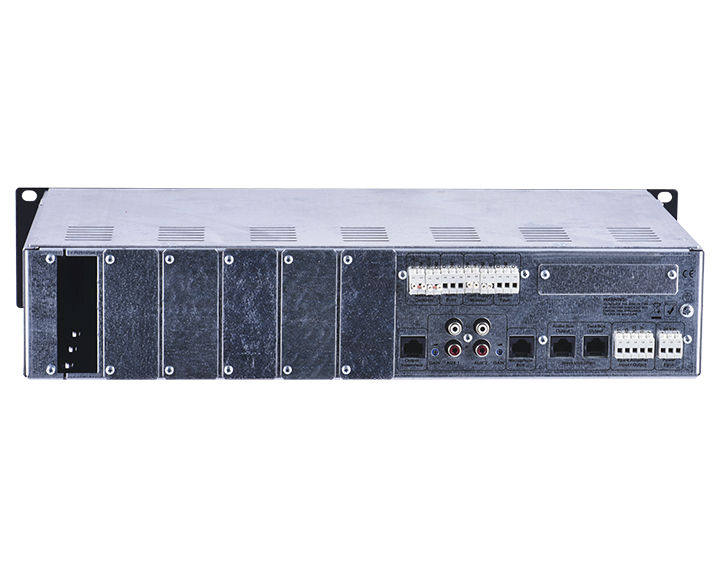

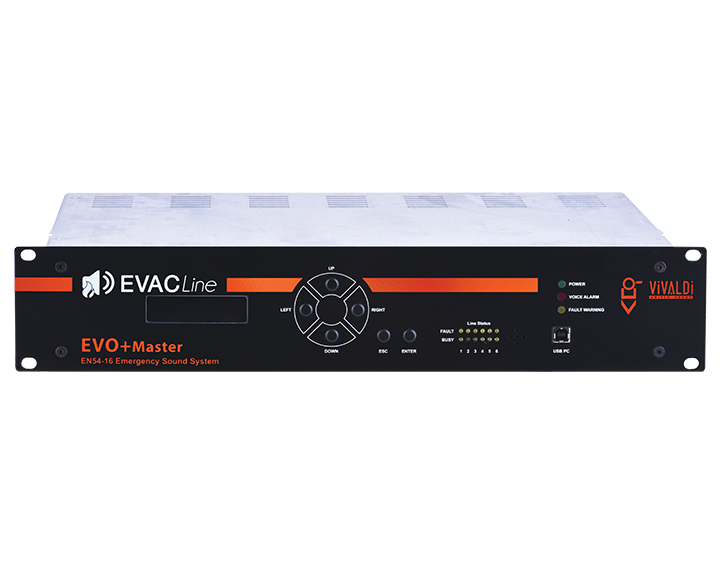

Vivaldi EN54 EVO+Master
Modular, up to 54.000W RMS, EN54-16 certified voice evacuation system
Evo+Master unit is the core of the EVO+Matrix system.
This expandable 6 zones main unit manages all the events and audio signal flows in the system and takes care of system monitoring in compliance with EN54 standards. Each zone requires one EVO+ZONAA or Vivaldi EN54 EVO+ZONAAB zone board.
Certifications: EN54-16, CE. Certification number 0068-CPR-012/2017.
MAIN FEATURES
Request a commercial offer
This expandable 6 zones main unit manages all the events and audio signal flows in the system and takes care of system monitoring in compliance with EN54 standards. Each zone requires one EVO+ZONAA or Vivaldi EN54 EVO+ZONAAB zone board.
Certifications: EN54-16, CE. Certification number 0068-CPR-012/2017.
MAIN FEATURES
- Audio matrix main unit, expandable up to 110 zones (with EVO+Slave units)
- 2x Independent messages for each zone resident on Vivaldi EN54 EVO+ZONAA, Vivaldi EN54 EVO+ZONAAB zone control boards
- Unlimited number of messages addressable to the zones up to the limit of the SD card capacity
- 2x Monitored dry contacts on EVO+Master 2x Monitored dry contacts on zone modules Vivaldi EN54 EVO+ZONAA o r Vivaldi EN54 EVO+ZONAAB for pre-recordered messages triggering.
- Continuous and independent monitoring of each zone through Vivaldi EN54 EVO+ZONAA o Vivaldi EN54 EVO+ZONAAB zone control boards and external amplifier
- Continous and independent monitoring of double line of the same zone ( line A and line B) via Vivaldi EN54 EVO+ZONAAB module.
- Continous and independent earth leakage of each single loudspeaker line
- Calibration of the speaker lines and verification of the load applied to the amplifier
- Connection of spare amplifier on Vivaldi EN54 EVO+Master e Vivaldi EN54 EVO+Slave units.
- 2x AUX inputs addressable in each zone
- Independent tone and volume settings for each zone
- Independent tone and volume settings for each content played
- Activation and control of the AUX inputs volume in each zone for background music.
- Possibility to have up to 4 different musical sources, 3 centralized and 1 local (player, PC,..) with independent remote control of local music volume for each zone
- Independent local music for each zone
- Contents playback management settable on 10 priority levels and addressable to all zones or groups of zones
- Configuration operational functions related to 3 access levels protected by password according the requirements of EN54-16 standard.
- Acoustic and visible Led fault status signaling with manual muting.
- Possibility to silence the alarm messages in each zone
- Supports up to 54 microphone station on bus
- Continous monitoring of the microphone capsule, actionable via software
- Log on internal storage of events related to the system: switch on, faults, voice alarms, etc..
- Conversion of any audio file format by software
- Expansion slot on Vivaldi EN54 EVO+Master unit for connection of more master via priority 485 loop
- 2x Inputs for power supply unit contact monitoring
- Systems status signaling via relay contacts
- Black colour, white and orange screen painting
- Dimensions (WxHxD) 483x89x210 mm
- Weight 4,7 kg
- Standard rack
- Rack brackets supplied
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
