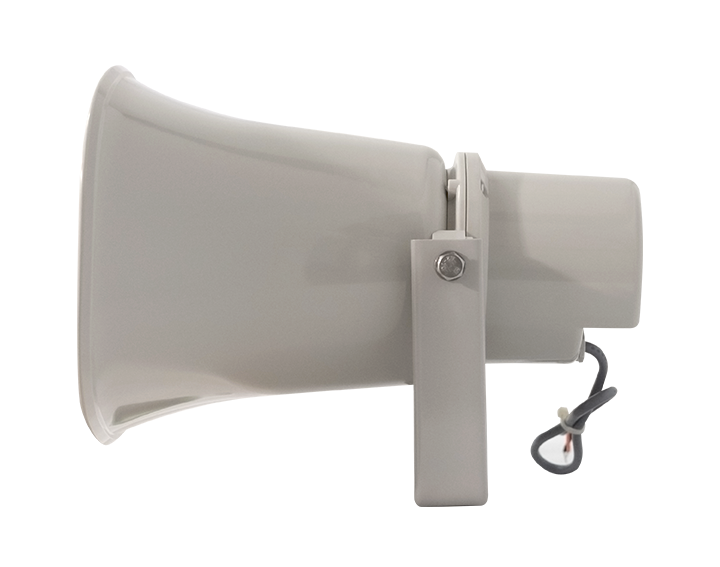

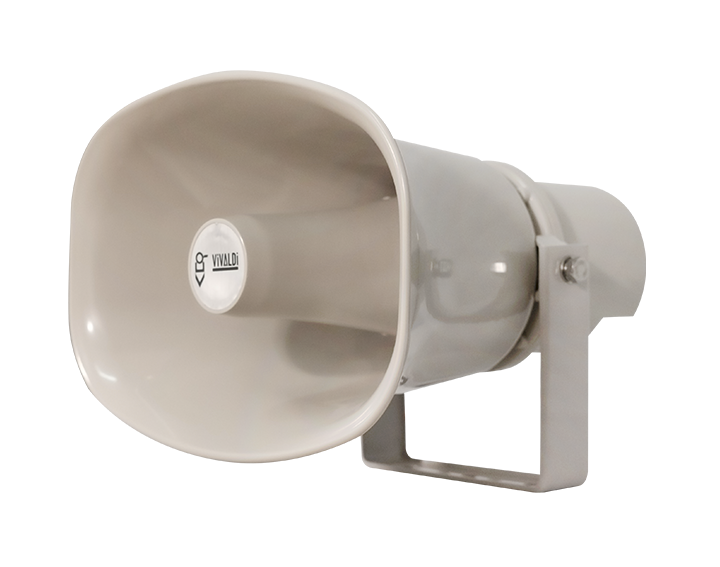

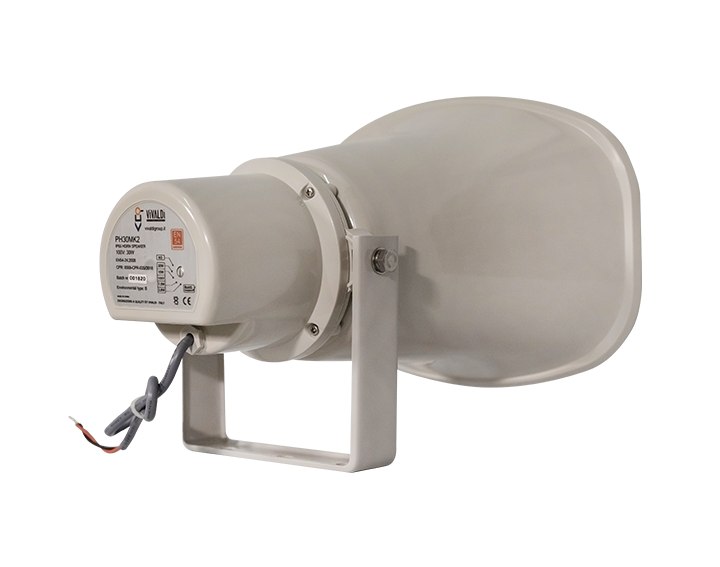

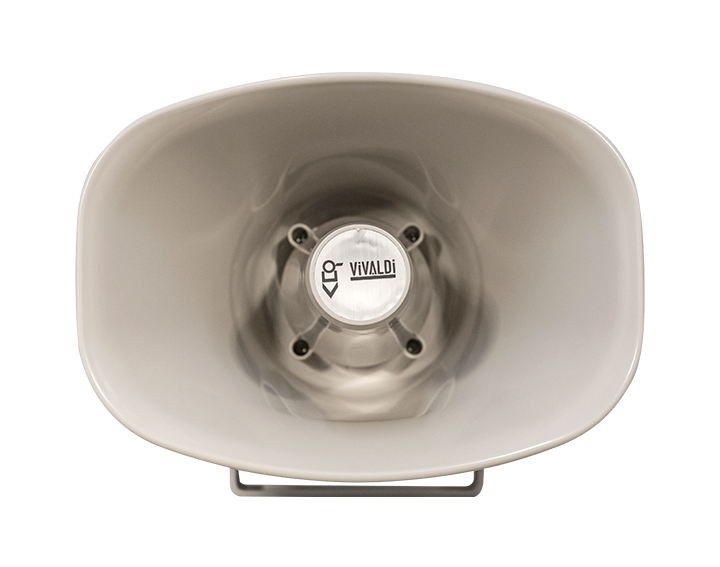

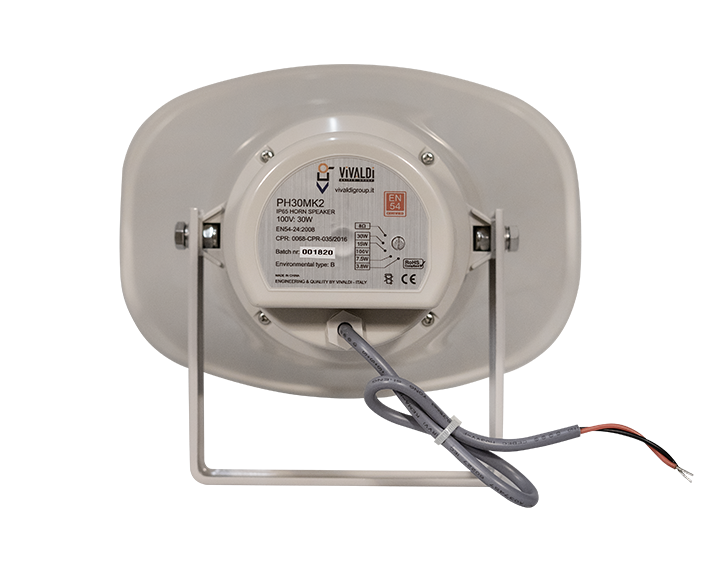

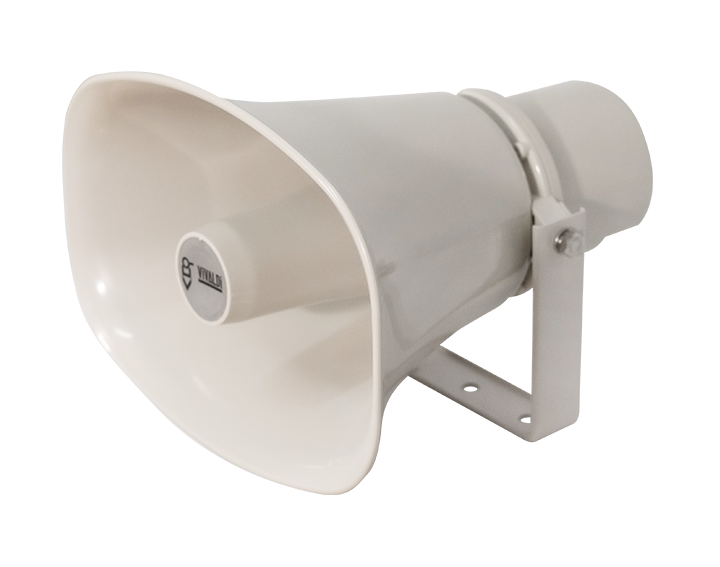

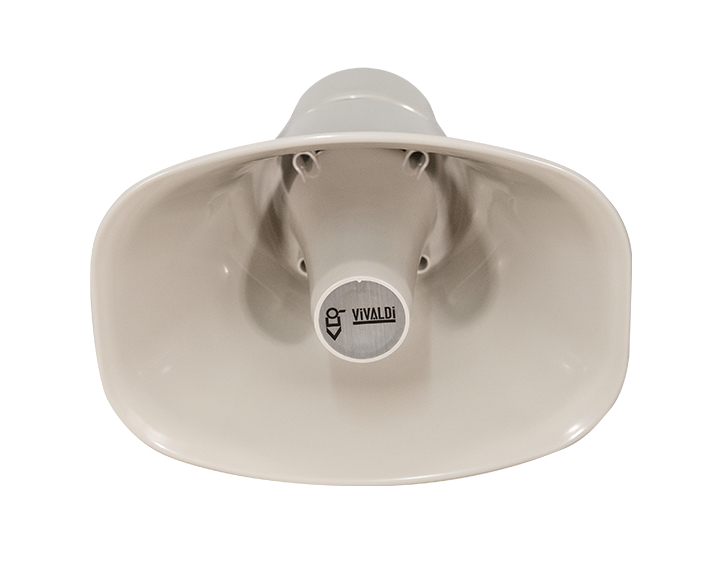

Vivaldi EN54 PH30MK2
Speakers for EN54-24 certified voice evacuation systems
IP 65 waterproof horn speaker certified EN50849 EN54-24 certification nr 0068-CPR-035/2016.
UV resistant.
Input: 100V.
Nominal power: 3,8/7,5/15/30W. Peak 60W.
8 Ohms Power: 40W RMS.
Frequency response: 250-8000 Hz - 10dB
Sensitivity 108 dB.
Max output level / full power 120dB.
Dispersion 90°(V) 100°(H) 2KHz.
Dimensions without bracket: (WxHxD) 284x206x286 mm.
Dimensions with bracket: (WxHxD) 284x230x286 mm.
Weight 1,8 Kg.
Colour RAL9035.
Cabinet: ABS V0, painted stainless steel U bracket.
ABS V0 elliptical shape.
Working temperature from –20° to + 60°.
Request a commercial offer
UV resistant.
Input: 100V.
Nominal power: 3,8/7,5/15/30W. Peak 60W.
8 Ohms Power: 40W RMS.
Frequency response: 250-8000 Hz - 10dB
Sensitivity 108 dB.
Max output level / full power 120dB.
Dispersion 90°(V) 100°(H) 2KHz.
Dimensions without bracket: (WxHxD) 284x206x286 mm.
Dimensions with bracket: (WxHxD) 284x230x286 mm.
Weight 1,8 Kg.
Colour RAL9035.
Cabinet: ABS V0, painted stainless steel U bracket.
ABS V0 elliptical shape.
Working temperature from –20° to + 60°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
