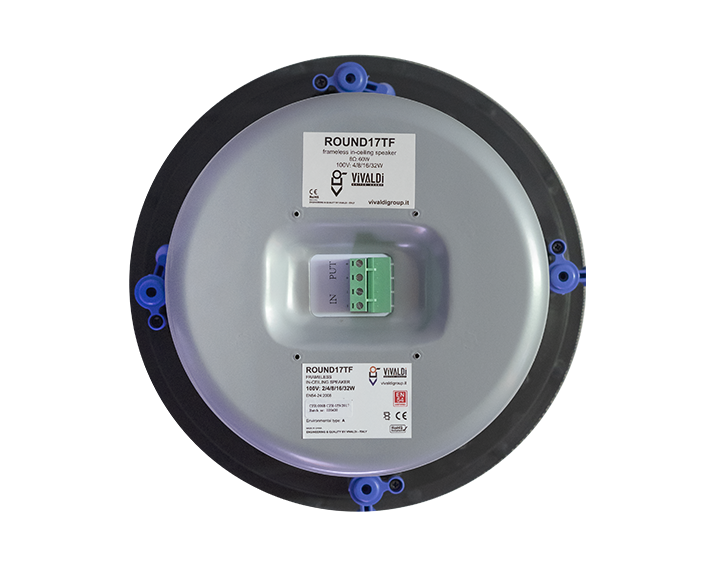

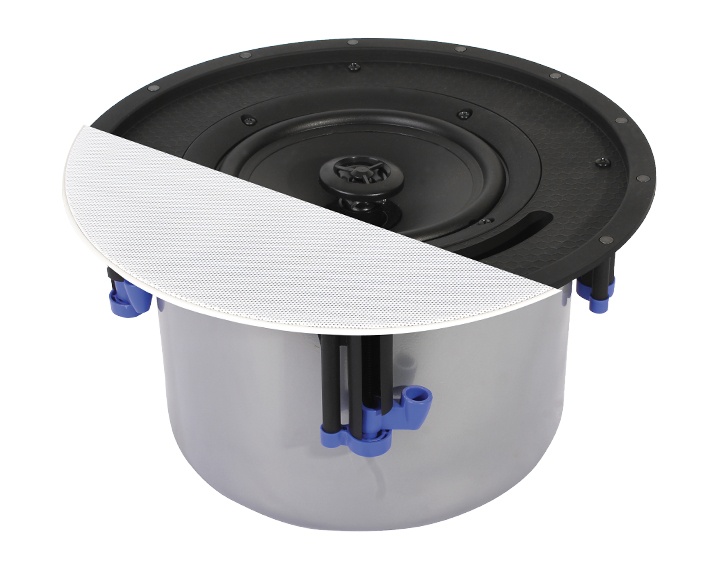

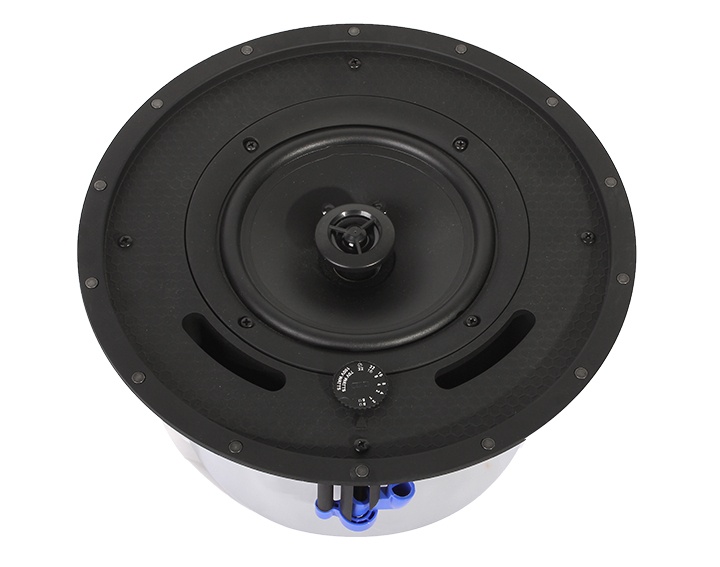

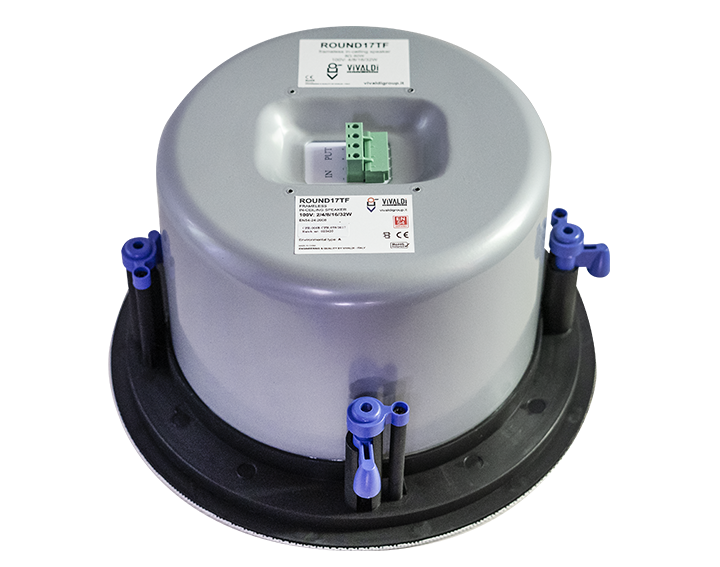

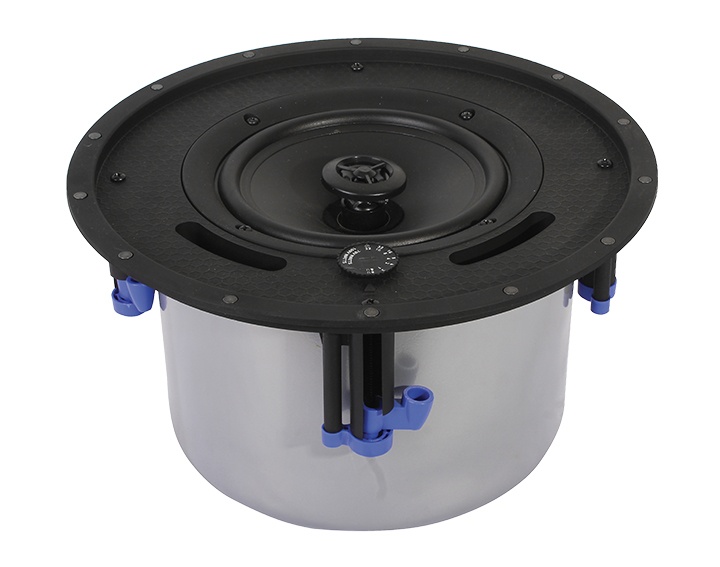

Vivaldi EN54 ROUND17TF
In-ceiling speaker for EN54-24 certified voice evacuation systems
code variation:
Vivaldi EN54 ROUND13TF 100V EN60849Vivaldi EN54 ROUND20TF 100V - EN54
Vivaldi EN54 ROUND10EN 100V EN60849
Vivaldi EN54 ROUND13EN 100V EN60849
Vivaldi EN54 ROUND16EN 100V EN60849
Vivaldi EN54 ROUND16AB 100V EN60849
HIFI speaker, IP33, round flush-mounted ceiling speaker provided with flame-retardant backplate, Frameless series.
EN50849 EN54-24 certified, certification no. 0068-CPR-059/2017. Steel structure with protective grille. 2-way flush-mounted.
16.5 cm woofer.
1.9 cm dome tweeter, mylar, neodymium magnet.

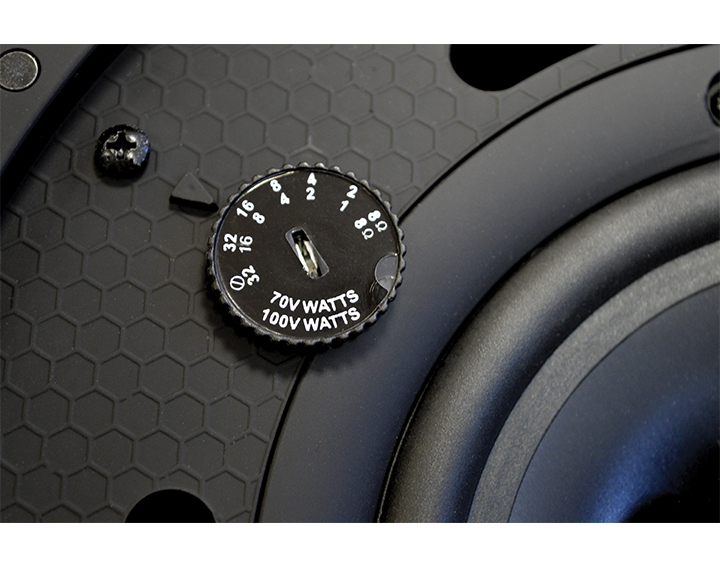

Nominal power: 2/4/8/16/32 W. 64 W peak, max 104 dB.
Transformer voltage: 100 V.
Impedance 8 Ω: power 60 W RMS.
Musical power 120W.
Recommended amplification from 20 to 80 W RMS.
Frequency response: 65-20000 Hz - 10dB.
Sensitivity 86 dB.
Max output level / full power 101 dB.
Speaker dimensions (WxD) 284x155 mm.
Recess hole (D) 262 mm.
Weight 2.9 kg.
Recess: no accessories required.
Recess in masonry: not suitable.
White grille colour RAL9016.
Cabinet: ABS V0 metal protective grille.
Steel shell.
Operating temperature from -20° to +65°.
Request a commercial offer
EN50849 EN54-24 certified, certification no. 0068-CPR-059/2017. Steel structure with protective grille. 2-way flush-mounted.
16.5 cm woofer.
1.9 cm dome tweeter, mylar, neodymium magnet.
Nominal power: 2/4/8/16/32 W. 64 W peak, max 104 dB.
Transformer voltage: 100 V.
Impedance 8 Ω: power 60 W RMS.
Musical power 120W.
Recommended amplification from 20 to 80 W RMS.
Frequency response: 65-20000 Hz - 10dB.
Sensitivity 86 dB.
Max output level / full power 101 dB.
Speaker dimensions (WxD) 284x155 mm.
Recess hole (D) 262 mm.
Weight 2.9 kg.
Recess: no accessories required.
Recess in masonry: not suitable.
White grille colour RAL9016.
Cabinet: ABS V0 metal protective grille.
Steel shell.
Operating temperature from -20° to +65°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
