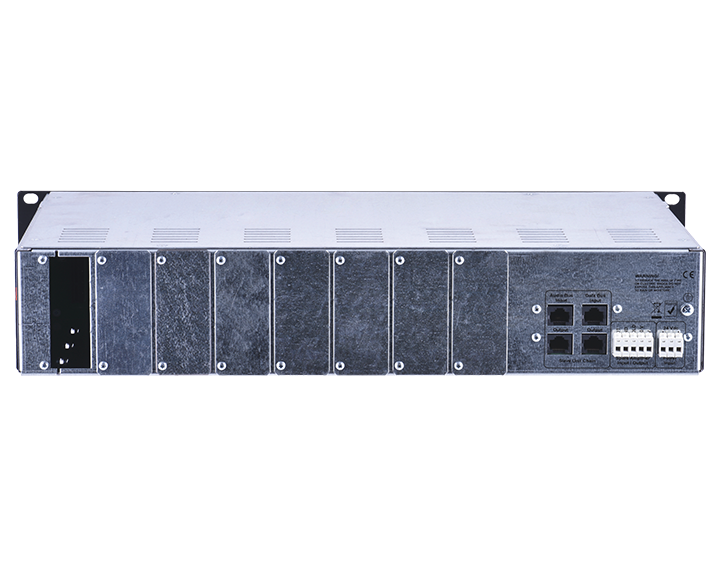

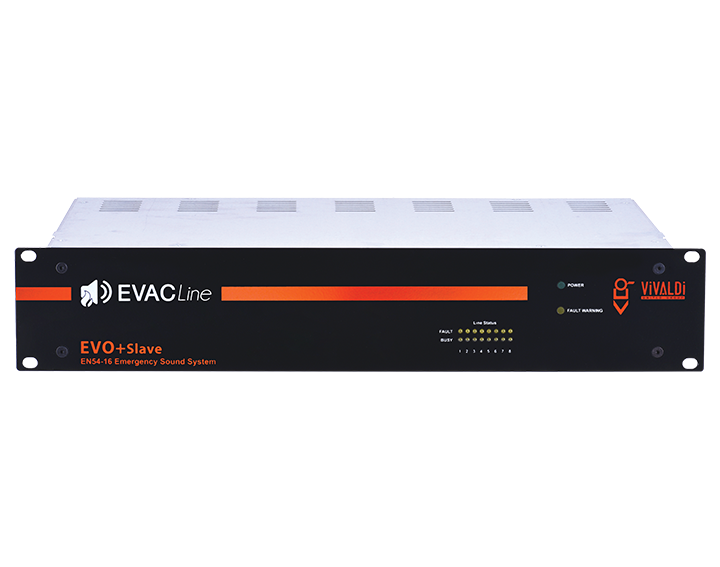

Vivaldi EN54 EVO+Slave
Modular, up to 54.000W RMS, EN54-16 certified evacuation system
VIVALDI ULISSE EVO+Slave is an expansion for 8 zones, endowed with all the necessary features for expanding the Vivaldi EN54 EVO+Master system.
In case of project of voice evacuation systems for large buildings, more Slave Units can be interconnected in daisy chain to the Vivaldi EN54 EVO+Master unit.
Required boards: Vivaldi EN54 EVO+ZONAA, Vivaldi EN54 EVO+ZONAAB
Certified EN54-16. Certification Nr 0068-CPR-012/2017.
Features:
- Assignment of zones, of priority levels
Request a commercial offer
In case of project of voice evacuation systems for large buildings, more Slave Units can be interconnected in daisy chain to the Vivaldi EN54 EVO+Master unit.
Required boards: Vivaldi EN54 EVO+ZONAA, Vivaldi EN54 EVO+ZONAAB
Certified EN54-16. Certification Nr 0068-CPR-012/2017.
Features:
- Requirement to connect to the Vivaldi EN54 EVO+Master Unit
- Up to 13 units VIVALDI ULISSE EVO+Slave can be interconnected to expand the system to 110 zones
- Equipped with 8 slot plug-in for the connection of the Vivaldi EN54 EVO+ZONAA, Vivaldi EN54 EVO+ZONAAB boards.
- Functioning 24Vdc
- Black colour, white and orange screen painting
- Dimensions (WxHxD) 483x89x210 mm
- Weight 4,7 kg
- standard rack
- flaps included
- Assignment of zones, of priority levels
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
