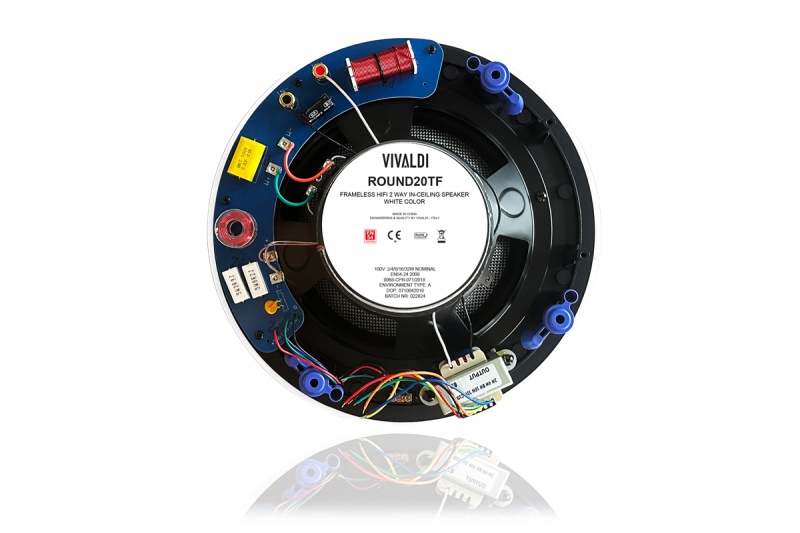

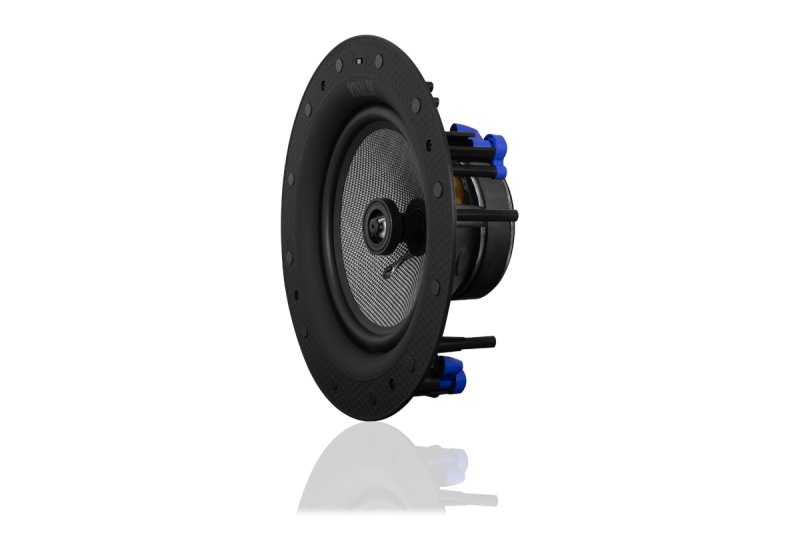

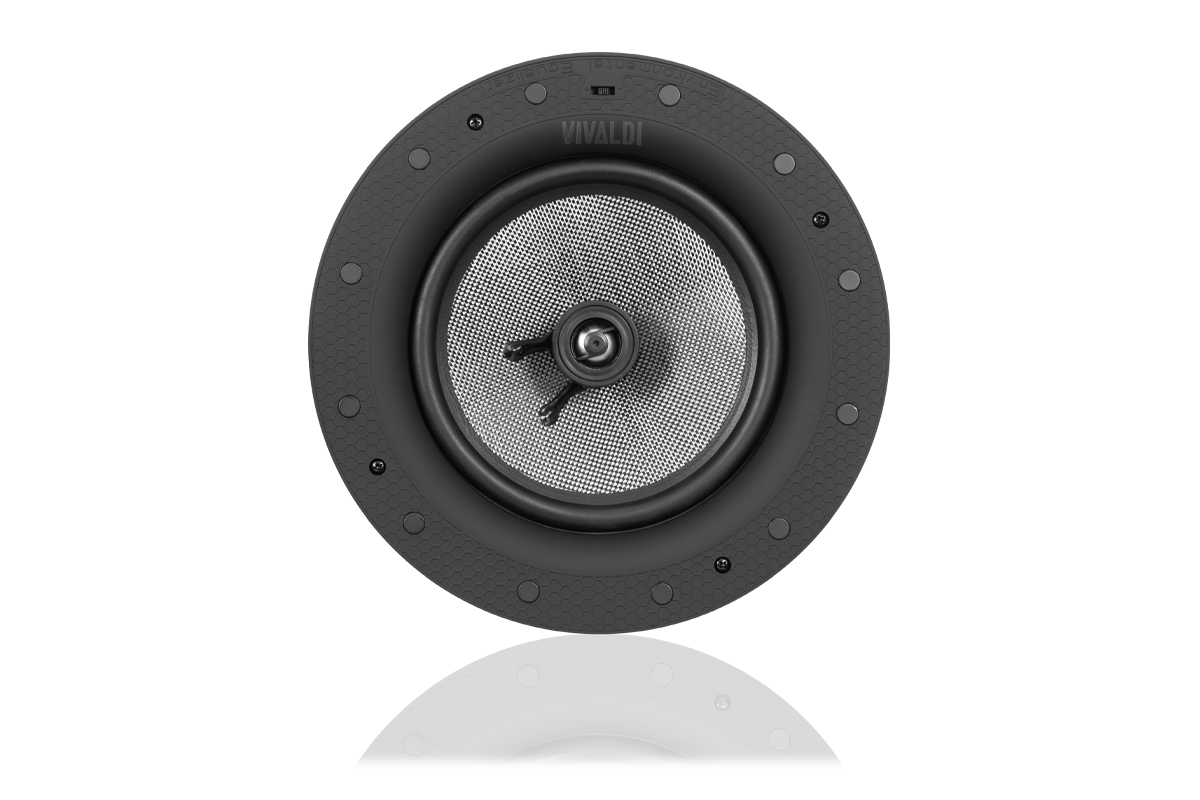

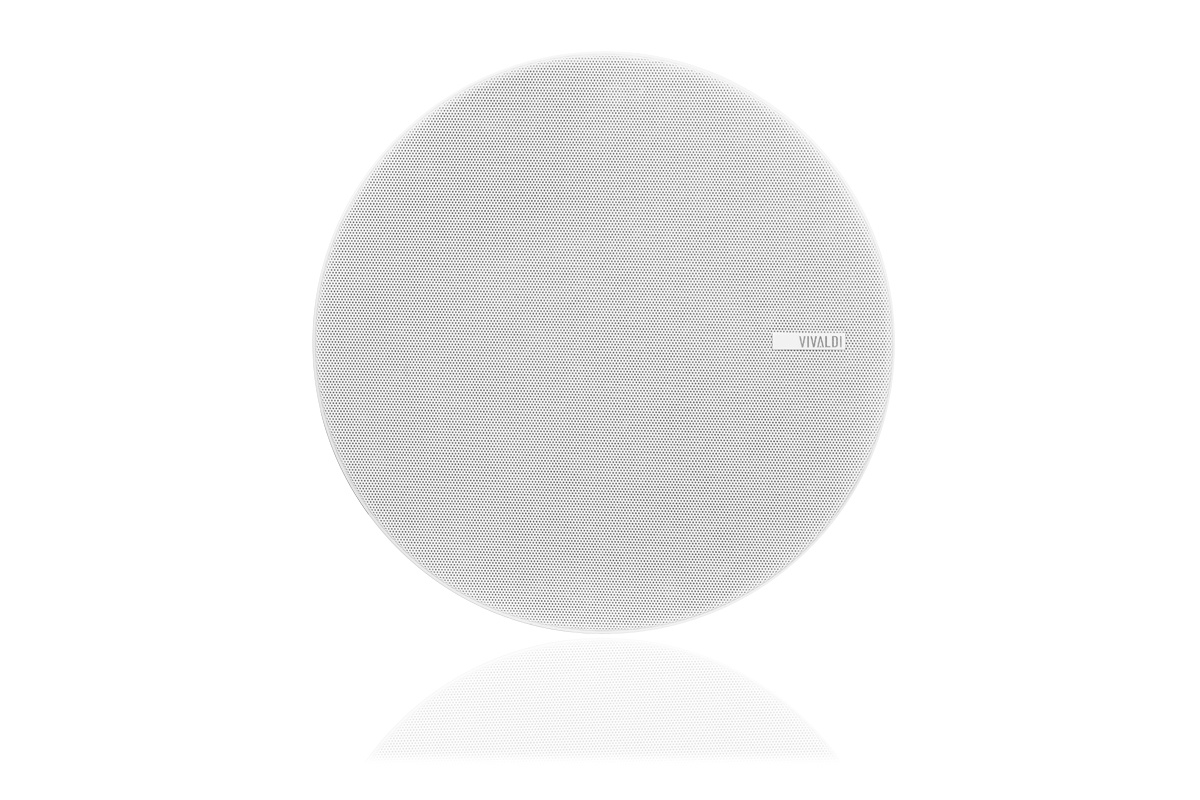

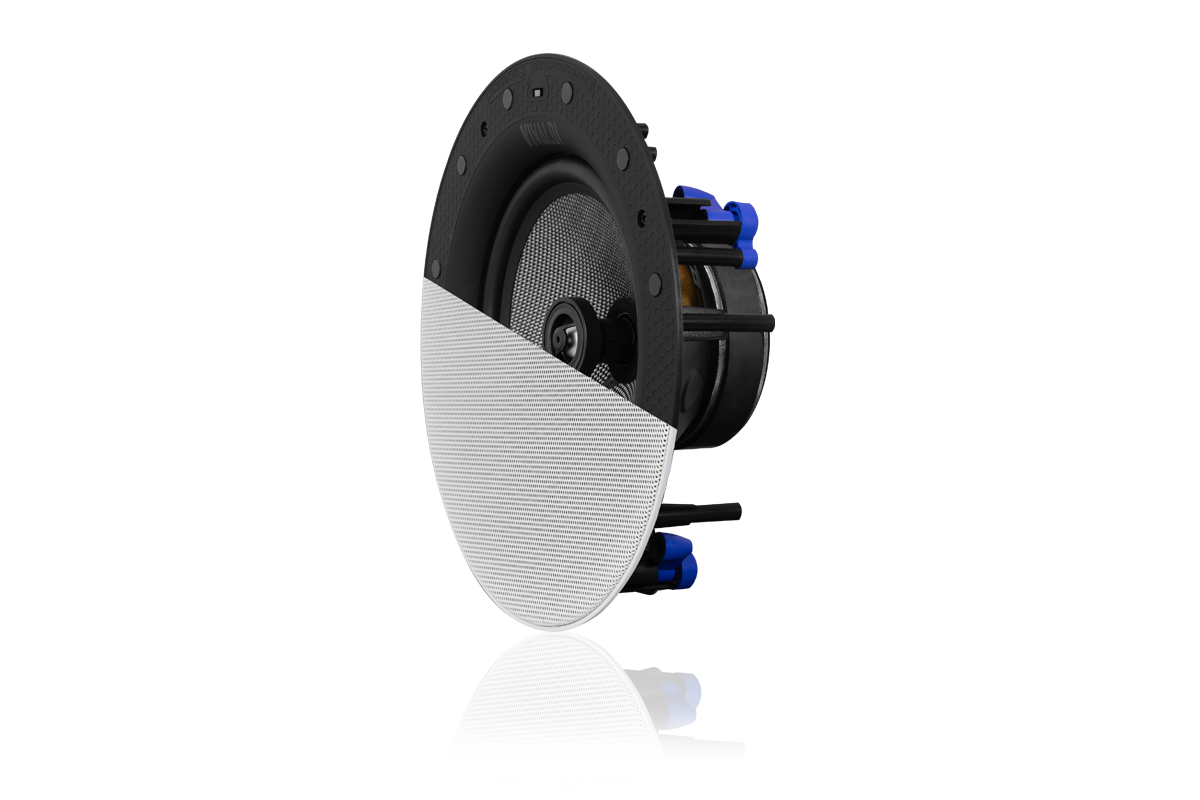

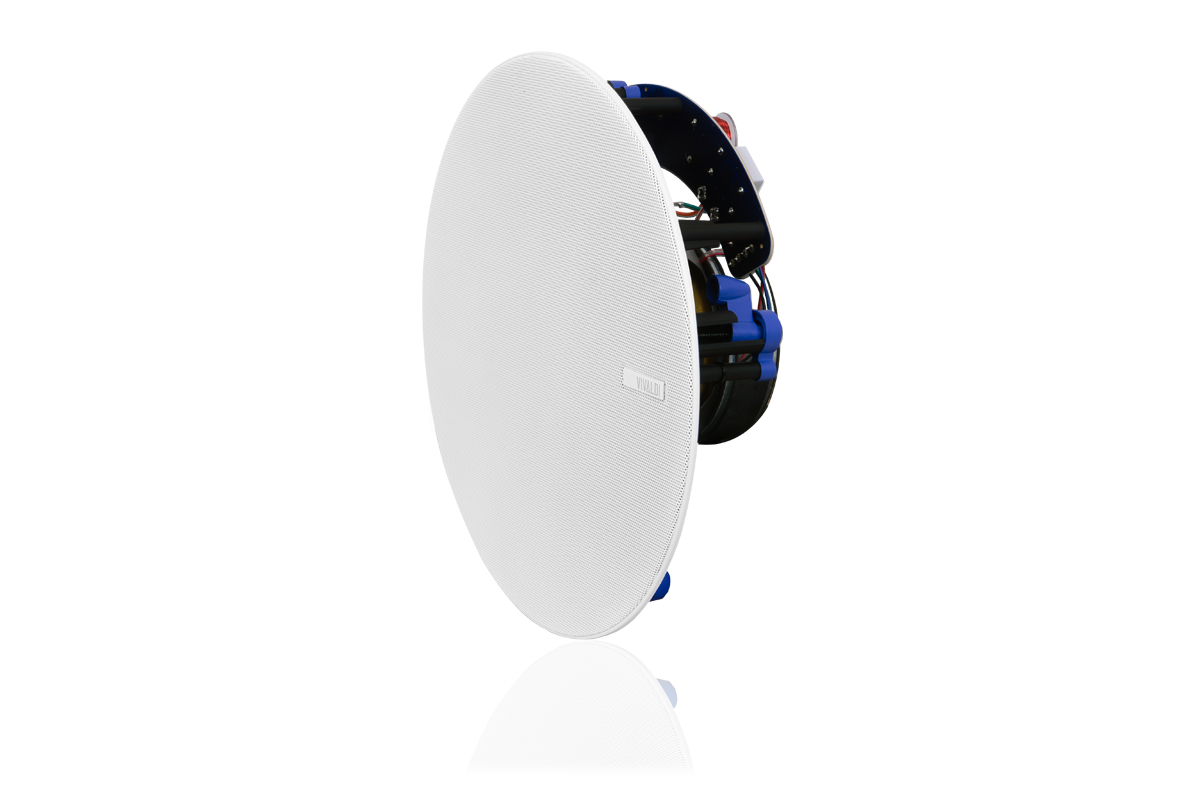

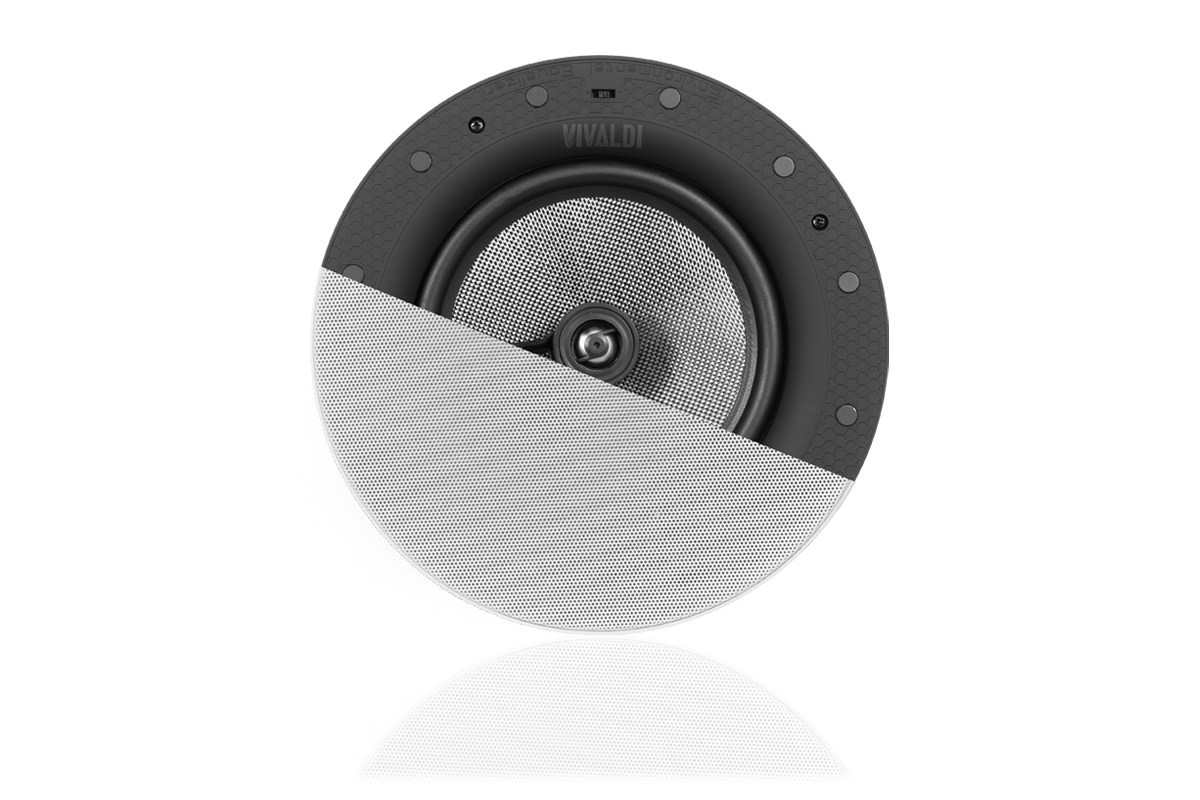

Vivaldi EN54 ROUND20TF
In-ceiling round speaker, 20,5cm (8 inch)
code variation:
Vivaldi EN54 ROUND13TF 100V EN60849Vivaldi EN54 ROUND17TF 100V EN60849
Vivaldi EN54 ROUND10EN 100V EN60849
Vivaldi EN54 ROUND13EN 100V EN60849
Vivaldi EN54 ROUND16EN 100V EN60849
Vivaldi EN54 ROUND16AB 100V EN60849
In-ceiling round speaker, 2-way, Hi-Fi, Frameless
Woofer: 20,5 cm, Kevlar
Tweeter 1,9 cm, silk dome, adjustable
Power (@100V): 2/4/8/16/32W RMS - 64W peak
Transformer voltage: 100V
Frequency response: 50-20000 Hz +-3dB
Sensitivity: 89 dB
Dispersion angle: 120° (V/O)
Dimensions (Diam.xD): 283x109 mm
Recessed installation hole (D): 258 mm
Weight: 2 Kg
Colour: white RAL 9016
Operation temperature: from -20° to +65°C
Installation in plasterboard, wood walls and similar: no accessories needed, the speaker is provided with hooks for stable anchoring
Installation in-wall (concrete): not suitable
Request a commercial offer
Woofer: 20,5 cm, Kevlar
Tweeter 1,9 cm, silk dome, adjustable
Power (@100V): 2/4/8/16/32W RMS - 64W peak
Transformer voltage: 100V
Frequency response: 50-20000 Hz +-3dB
Sensitivity: 89 dB
Dispersion angle: 120° (V/O)
Dimensions (Diam.xD): 283x109 mm
Recessed installation hole (D): 258 mm
Weight: 2 Kg
Colour: white RAL 9016
Operation temperature: from -20° to +65°C
Installation in plasterboard, wood walls and similar: no accessories needed, the speaker is provided with hooks for stable anchoring
Installation in-wall (concrete): not suitable
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
