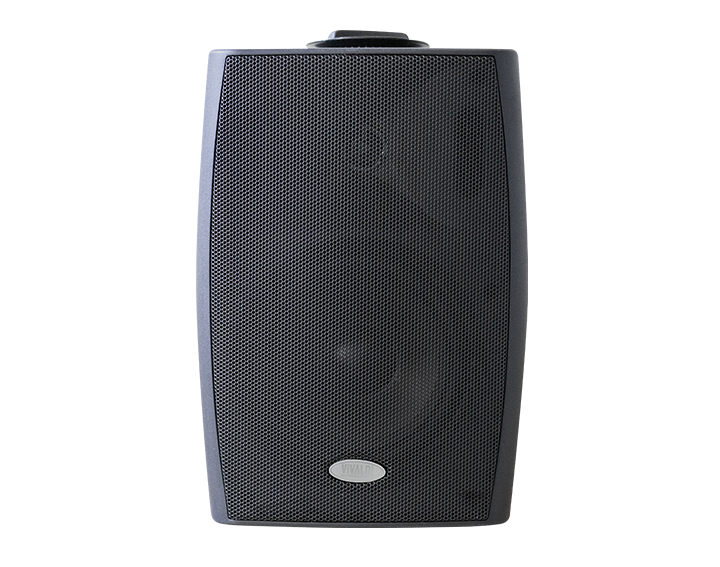

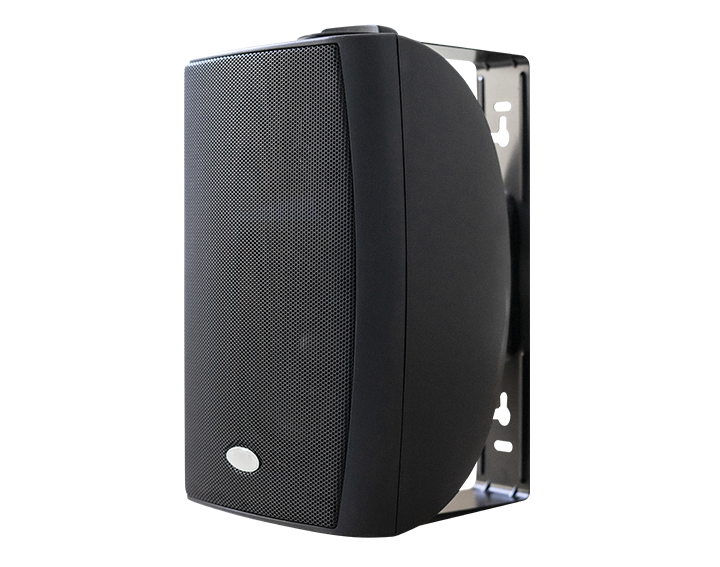

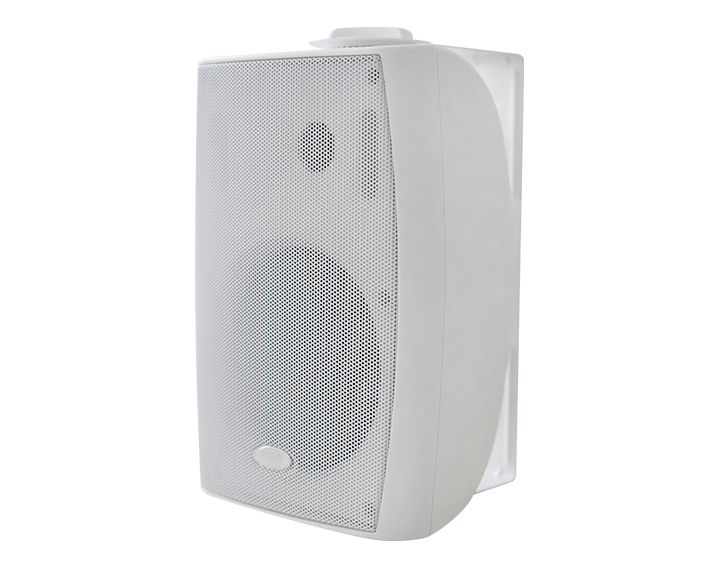

Vivaldi EN54 LARA10T
Vocal evacuation system speaker EN54-24 certified
code variation:
Vivaldi EN54 LARA10TB selectable impedance 8 Ohm - 100VVivaldi EN54 LARA10TW selectable impedance 8 Ohm - 100V
HiFi version Sound projector, 2 way, HiFi, IP32.
EN50849, EN54-24 Certified. Certification number 0068-CPR-017/2016

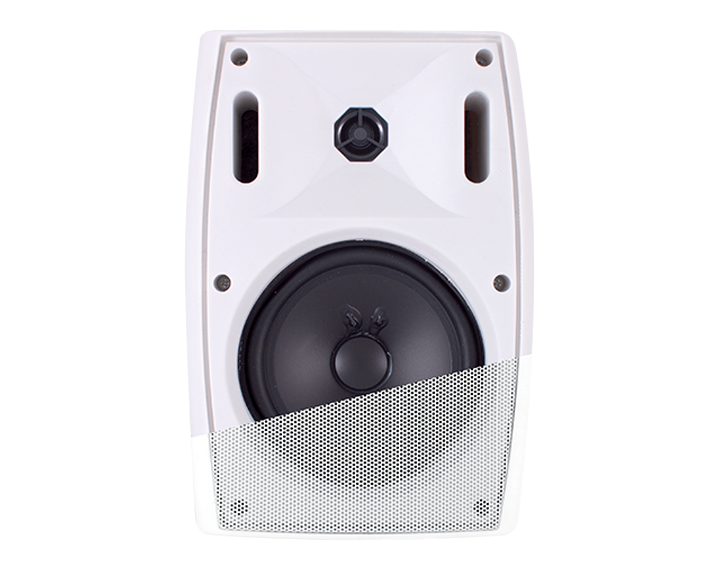

Woofer 13,5 cm.
Tweeter 2,5 cm.
Mylar diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 2,5/5/10/20W. 40W peak. max 109dB
Power 8 Ω: 40W RMS, 80W musical.
Suggested amplification from 10 to 40W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 70-20000 Hz.
Sensitivity 92 dB.
Max output level / full power 105 dB.
Dimensions (WxHxD) without bracket 176x251x161 mm.
Dimensions (WxHxD) with bracket 176x286x190 mm.
Weight 2,6 Kg.
ABS cabinet, bracket and painted galvanized steel grille.

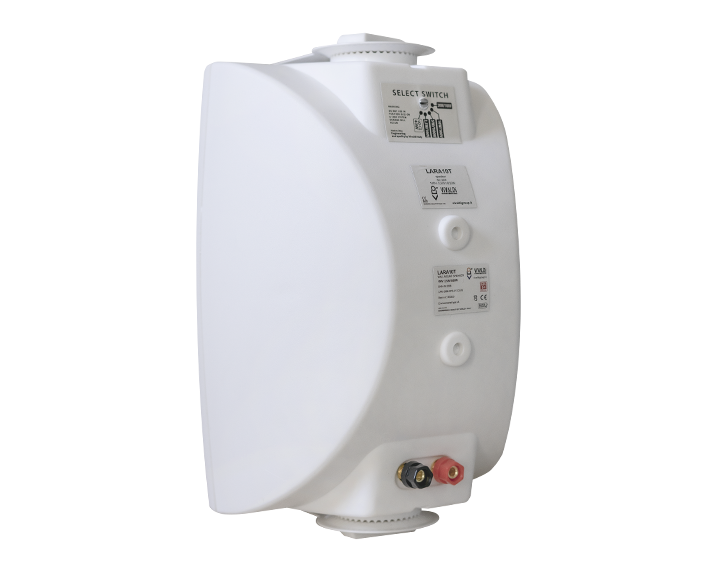

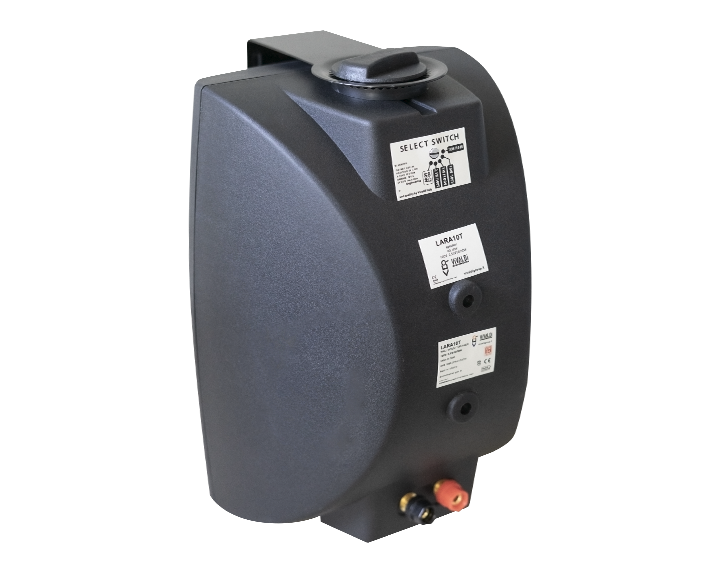

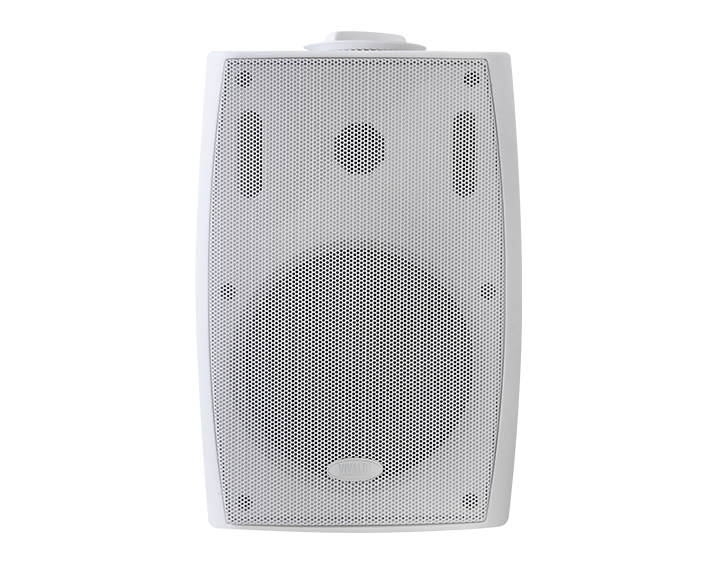

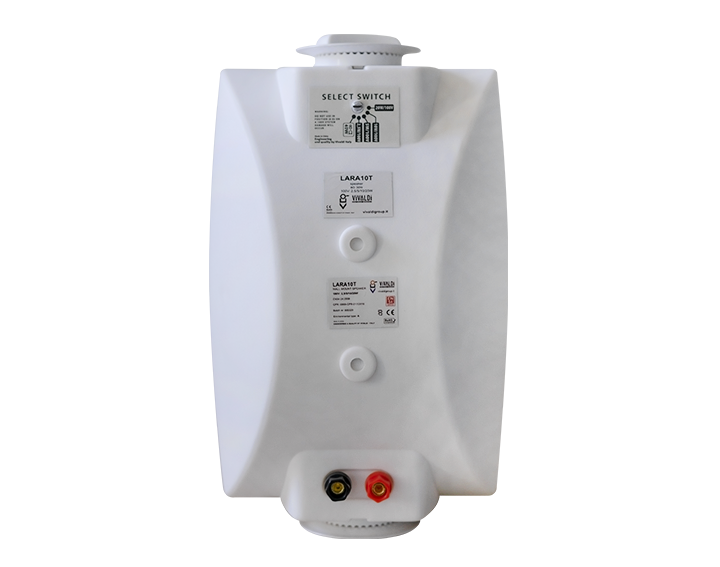

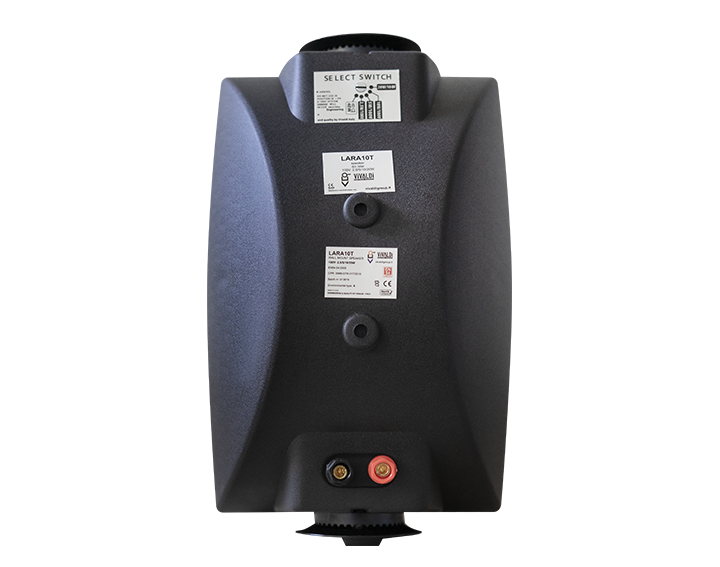

Available colours black (Vivaldi Ulisse LARA10TB) and white (Vivaldi Ulisse LARA10TW).
Working temperature from –20° to +80°.
Request a commercial offer
EN50849, EN54-24 Certified. Certification number 0068-CPR-017/2016

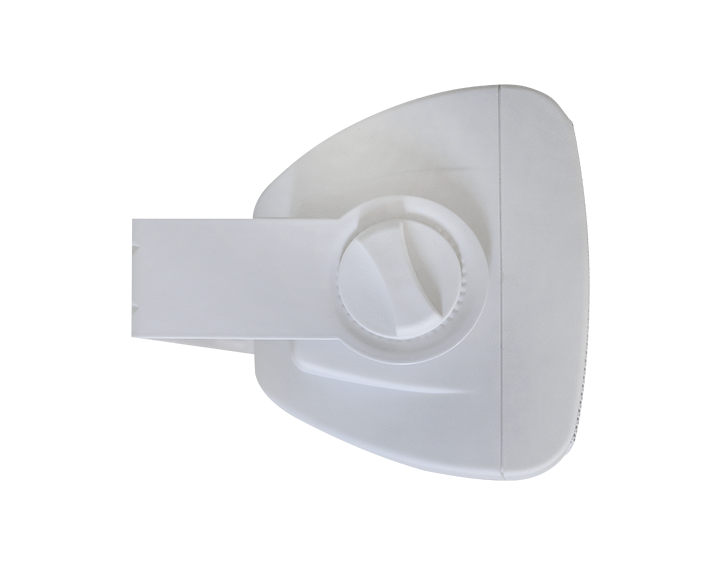

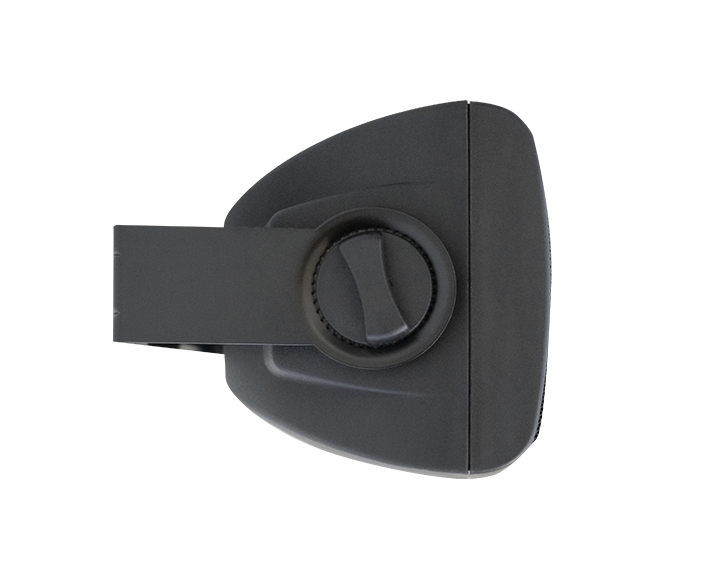

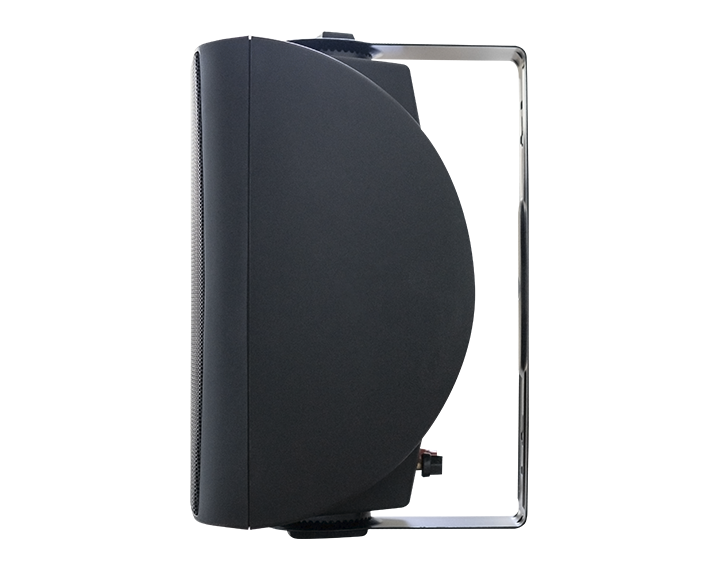

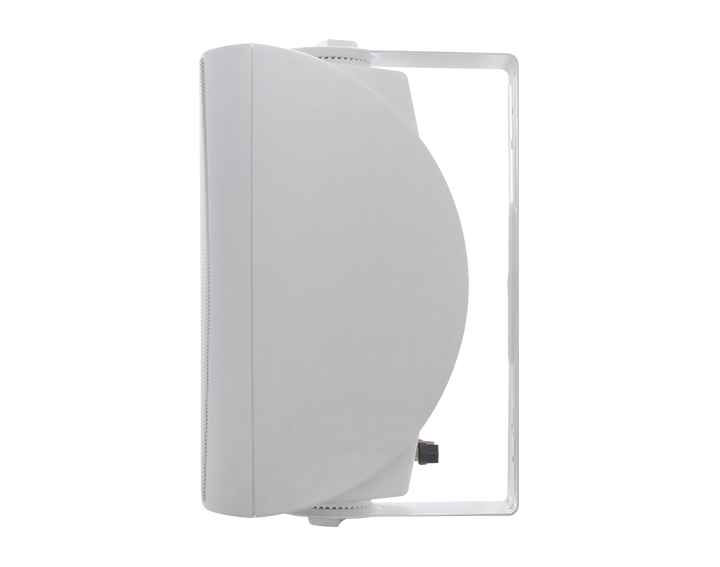

Supplied with bracket for wall mounting.
Woofer 13,5 cm.
Tweeter 2,5 cm.
Mylar diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 2,5/5/10/20W. 40W peak. max 109dB
Power 8 Ω: 40W RMS, 80W musical.
Suggested amplification from 10 to 40W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 70-20000 Hz.
Sensitivity 92 dB.
Max output level / full power 105 dB.
Dimensions (WxHxD) without bracket 176x251x161 mm.
Dimensions (WxHxD) with bracket 176x286x190 mm.
Weight 2,6 Kg.
ABS cabinet, bracket and painted galvanized steel grille.
Available colours black (Vivaldi Ulisse LARA10TB) and white (Vivaldi Ulisse LARA10TW).
Working temperature from –20° to +80°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
