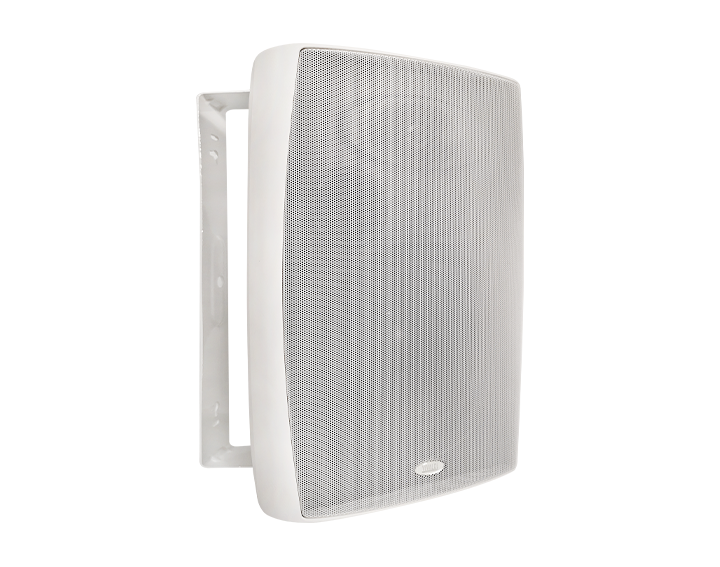

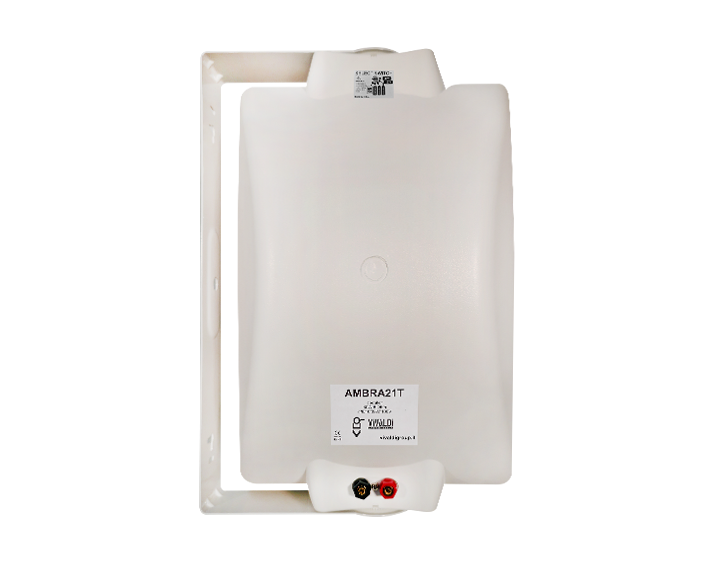

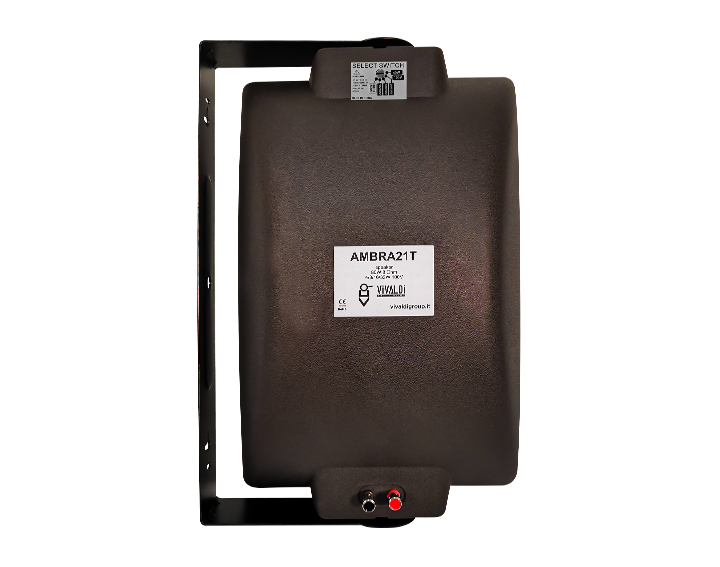

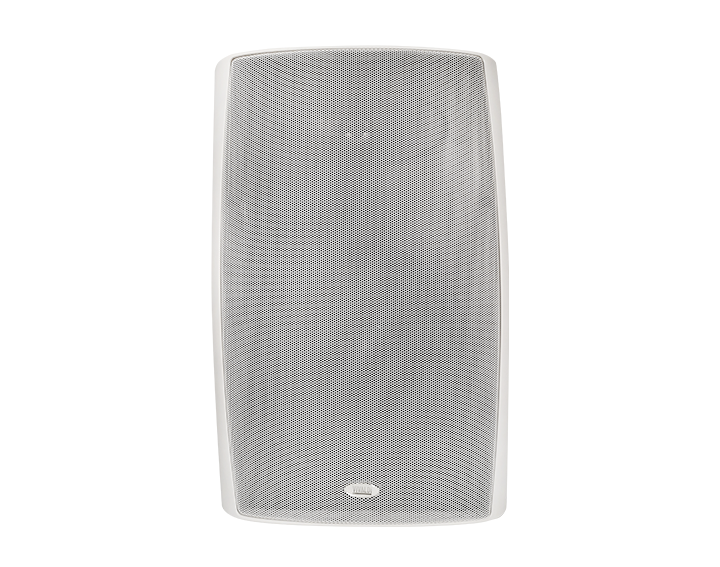

Vivaldi EN54 AMBRA21T
Speakers for EN54-24 certified voice evacuation systems
code variation:
Vivaldi EN54 AMBRA21TB selectable impedance 8 Ohm - 100VVivaldi EN54 AMBRA21TW selectable impedance 8 Ohm - 100V
Wall speaker, 2-way, Hi-Fi, certified EN50849 EN54-24 certification nr 0068-CPR-035/2016.
Woofer 20 cm.
Dome tweeter 3,2 cm.
Silk and aluminium diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 5/10/20/40W. 80W peak.
Power 8 Ω: 80W RMS, 160W musical.
Suggested amplification from 10 to 120W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 60-20000 Hz - 10dB.
Sensitivity 92 dB.
Max output level / full power 108 dB.
Dimensions (WxHxD) without bracket 287x409x250 mm.
Dimensions (WxHxD) with bracket 287x448x288 mm.
Weight 6,3 Kg.

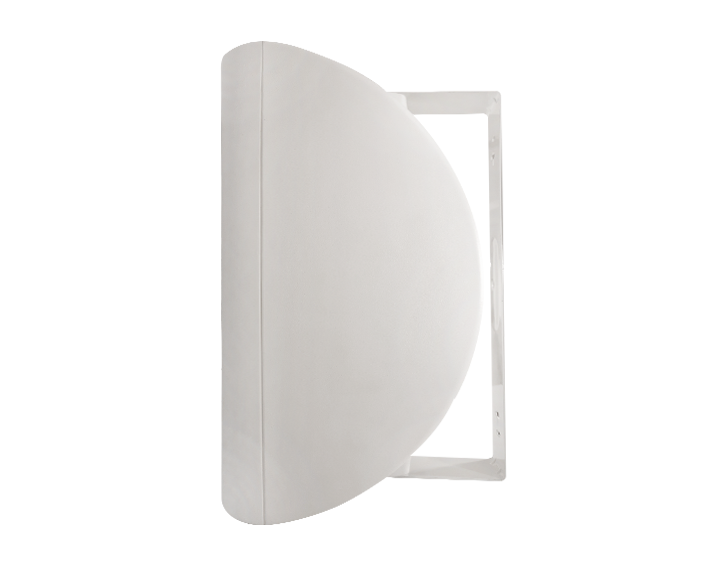

V0 ABS cabinet, bracket and metal grille.

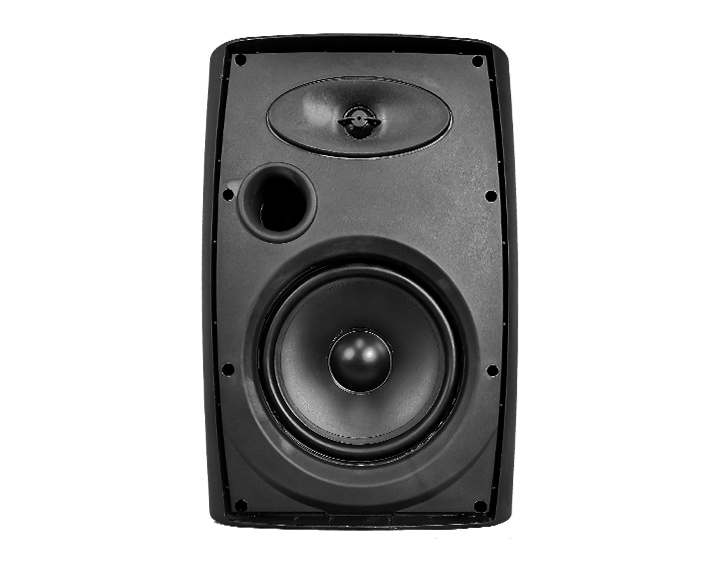

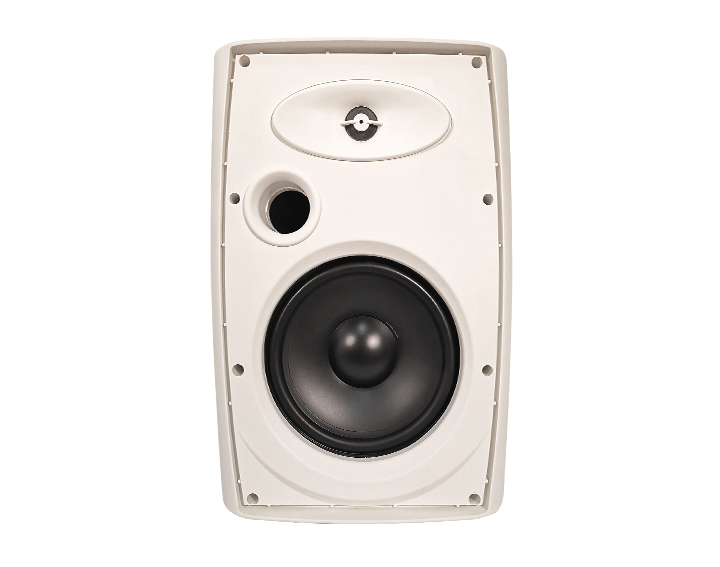

Available colours black (Vivaldi EN54 AMBRA21TB) and white RAL9003 (Vivaldi EN54 AMBRA21TW).
Working temperature from –20° to +80°.
Request a commercial offer

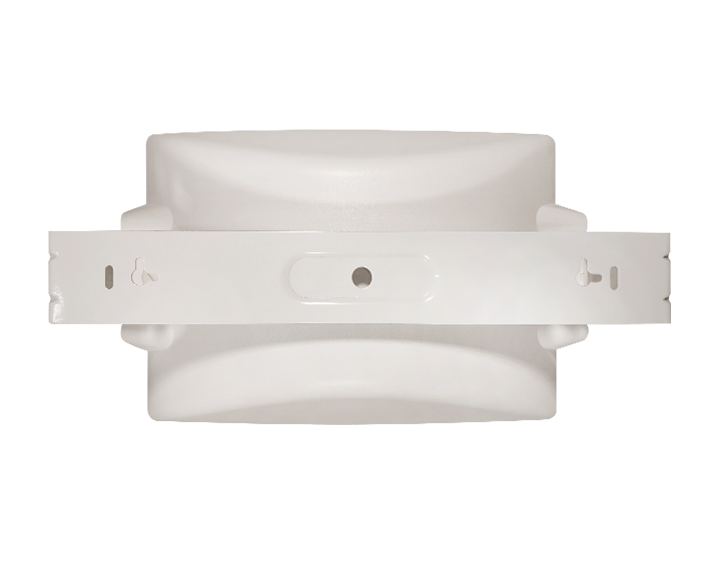

Supplied with bracket for wall mounting.

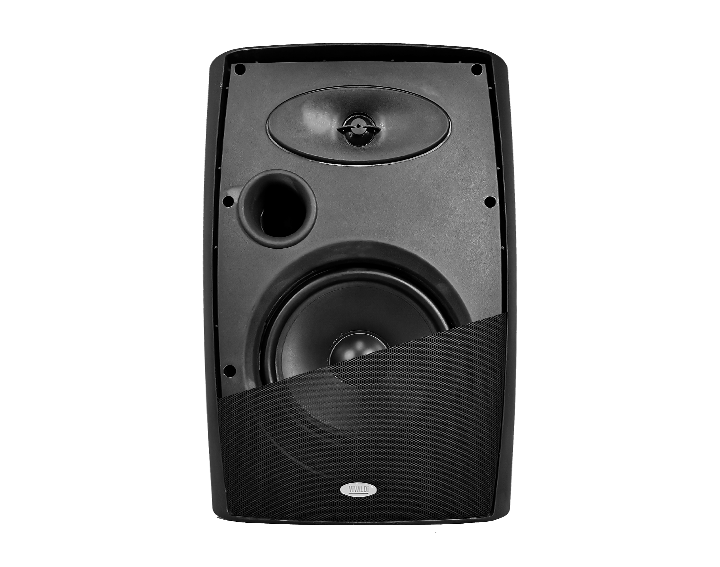

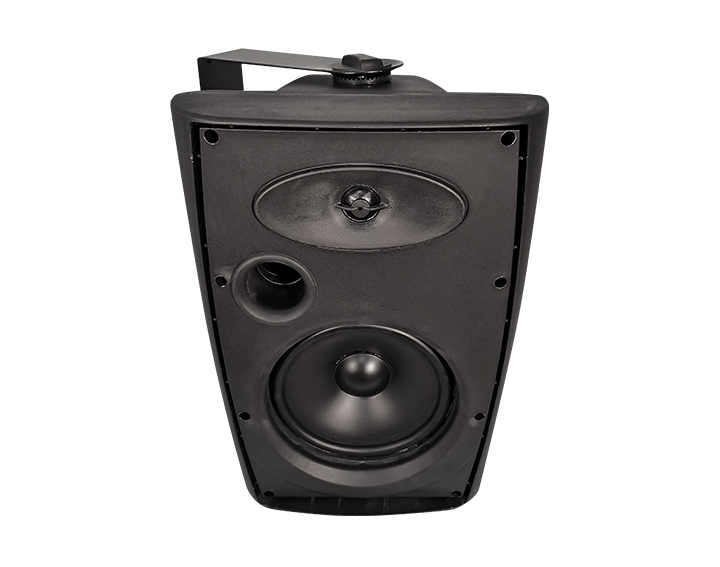

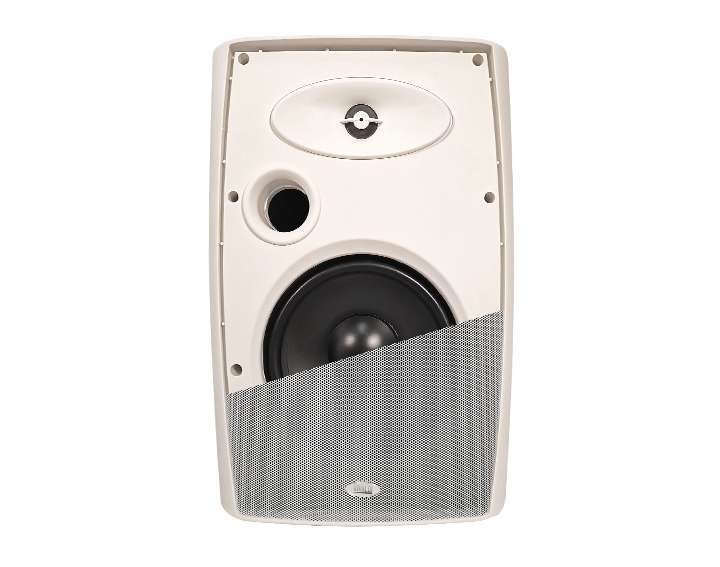

Woofer 20 cm.
Dome tweeter 3,2 cm.
Silk and aluminium diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 5/10/20/40W. 80W peak.
Power 8 Ω: 80W RMS, 160W musical.
Suggested amplification from 10 to 120W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 60-20000 Hz - 10dB.
Sensitivity 92 dB.
Max output level / full power 108 dB.
Dimensions (WxHxD) without bracket 287x409x250 mm.
Dimensions (WxHxD) with bracket 287x448x288 mm.
Weight 6,3 Kg.
V0 ABS cabinet, bracket and metal grille.
Available colours black (Vivaldi EN54 AMBRA21TB) and white RAL9003 (Vivaldi EN54 AMBRA21TW).
Working temperature from –20° to +80°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
