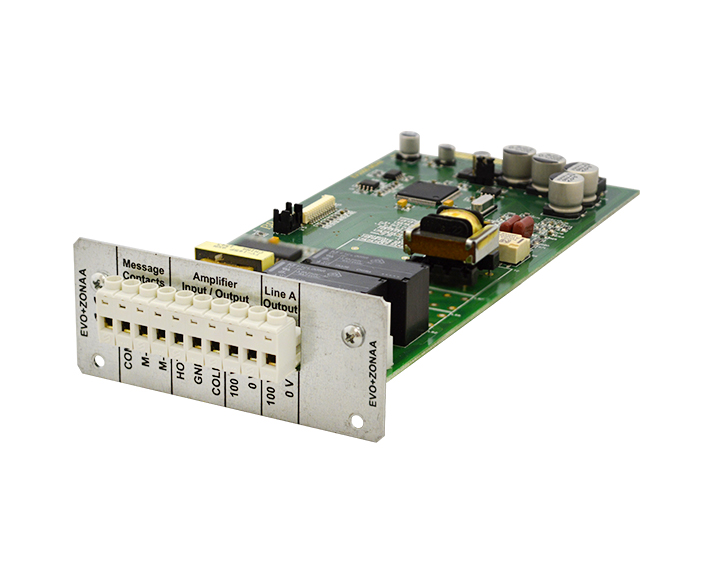

Vivaldi EN54 EVO+ZONAA
Zone monitoring board for EVO+
Zone module with single speaker output.
Monitors the amplifier and speaker lines.
This board must be plugged into a slot on the main unit Vivaldi EN54 EVO+Master or in the expansions to 8 zones Vivaldi EN54 EVO+Slave.
Certified EN54-16. Certification Nr 0068-CPR-012/2017.
MAIN FEATURES:
• Automatic addressing
• Power management up to 500W RMS
• Monitoring of the loudspeakers line A
• Monitoring of the amplifiers operation parameters
• Automatic switch to the backup amplifier in case of faults of the main amplifier
• 2 monitored message players, integrated
• Balanced output to feed zone amplifiers
• Status LED
• Dimensions (WxHxD) 85x3,5x134 mm
•Silver colour
• Weight 0,1 Kg
Request a commercial offer
Monitors the amplifier and speaker lines.
This board must be plugged into a slot on the main unit Vivaldi EN54 EVO+Master or in the expansions to 8 zones Vivaldi EN54 EVO+Slave.
Certified EN54-16. Certification Nr 0068-CPR-012/2017.
MAIN FEATURES:
• Automatic addressing
• Power management up to 500W RMS
• Monitoring of the loudspeakers line A
• Monitoring of the amplifiers operation parameters
• Automatic switch to the backup amplifier in case of faults of the main amplifier
• 2 monitored message players, integrated
• Balanced output to feed zone amplifiers
• Status LED
• Dimensions (WxHxD) 85x3,5x134 mm
•Silver colour
• Weight 0,1 Kg
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
