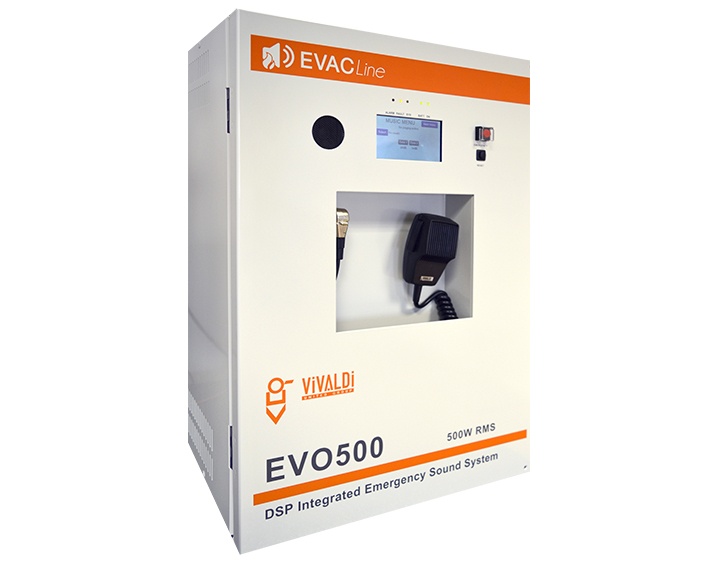

Vivaldi EN54 EVO500L
EN54-16 certified voice evacuation system ALL-IN-ONE 500W RMS
SYSTEM INTRODUCTION
Voice evacuation systems for emergency systems, designed with cabinet for in-wall installation.
Designed for small to medium sized applications, where the certification of EN54-16: 2008 is required

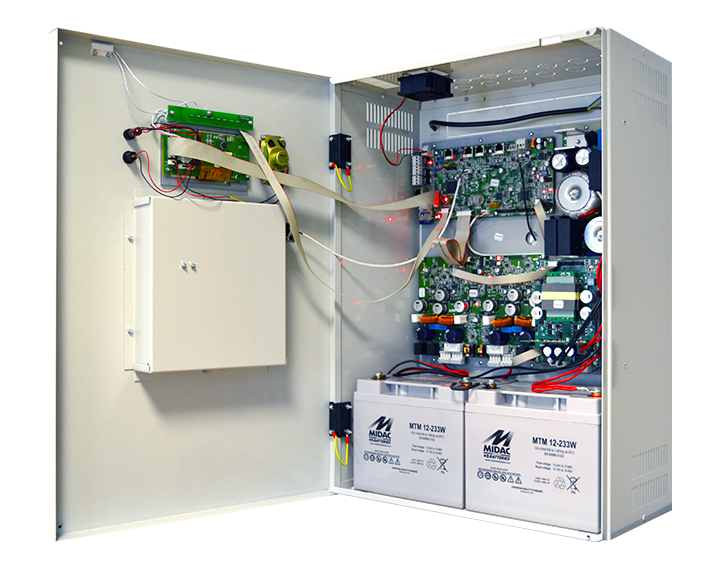

All-in-one: it integrates all the electronics to make up a complete, functioning, EN54 certified system.
Batteries must be ordered separately.
Equipped with a certified control unit compliant with EN 54-16: 2008 and EN 54-4, it is able to manage 2 alarm zones, each of which is driven by a single amplifier.
The system can be integrated with remote desk microphone stations.
Inputs must be connected and controlled to a fire control unit.
TECHNICAL FEATURES:
All-in-one voice evacuation system, 2 zones to 250W RMS each zone (2 amplifiers).
CE certification. EN50849 EN54-16, EN54-4, CE certified.
Certification number 0068-CPR-046/2016.
Request a commercial offer
Voice evacuation systems for emergency systems, designed with cabinet for in-wall installation.
Designed for small to medium sized applications, where the certification of EN54-16: 2008 is required
All-in-one: it integrates all the electronics to make up a complete, functioning, EN54 certified system.
Batteries must be ordered separately.
Equipped with a certified control unit compliant with EN 54-16: 2008 and EN 54-4, it is able to manage 2 alarm zones, each of which is driven by a single amplifier.
The system can be integrated with remote desk microphone stations.
Inputs must be connected and controlled to a fire control unit.
TECHNICAL FEATURES:
All-in-one voice evacuation system, 2 zones to 250W RMS each zone (2 amplifiers).
CE certification. EN50849 EN54-16, EN54-4, CE certified.
Certification number 0068-CPR-046/2016.
- Power supply 230Vac - 50/60HZ
- Backup power supply 24V (2 batteries x 12V 26 Ah each, cod. Vivaldi EN54 BATTERIA26AH sold separately)
- 1 zone with backup amplifier
- Autonomy 36h stand-by + 0,5h full power
- Max consumption 660VA
- Audio power 500W RMS @ 1% THD at 100V speaker lines
- Sognal-to-noise ratio >90dB
- Speaker lines monitoring test @18Khz FFT impedance measurement +-5% range
- Automatic line interruption, short circuit or efficiency loss check
- User interface, status LED, touch display, navigation menu with password protection
- Automatic alarm activation mode: from 7 input contacts, constantly monitored
- 1xAudio IN: background music, or emergency microphones
- 1xDeviation switch contact
- 1xEmergency button (with protection cover)
- 1xReset button for acoustic alarm
- 1xBuilt-in monitor speaker on front panel
- 1xLCD display on front panel
- 1xVVF microphone on front panel
- 1xRJ45 plug for remote VVF microphone bases
- Internal battery monitoring, impedance and tension check
- Supports connection with up to 4 emergency bases Vivaldi EN54 EVO500.BVF e Vivaldi EN54 EVO500.B12Z
- Steel chassis, powder painted
- Dimensions (WxHxD) 430x620x240 mm
- Weight 19,1 Kg (without batteries)
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
