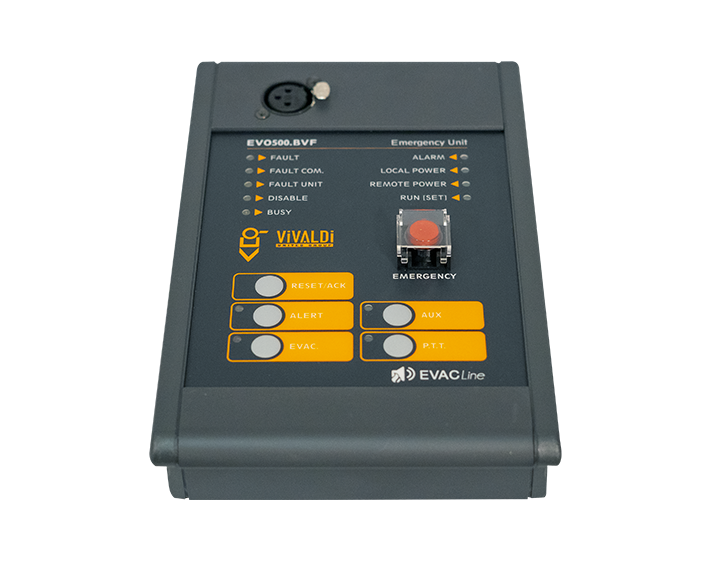

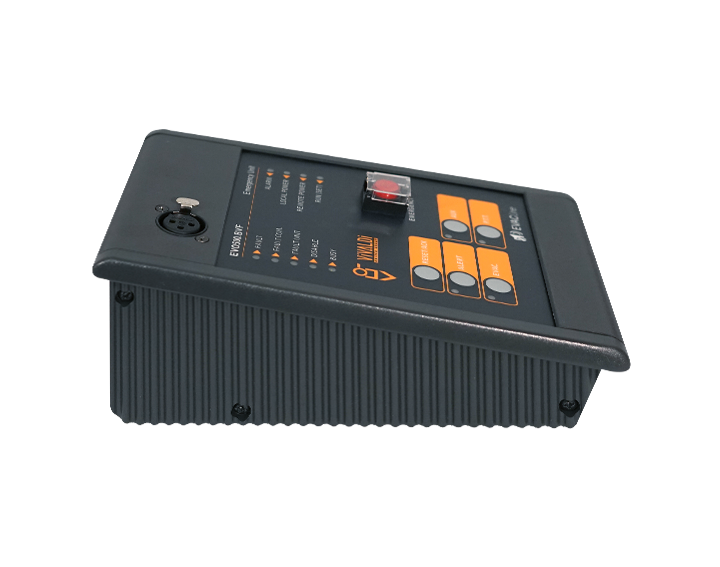

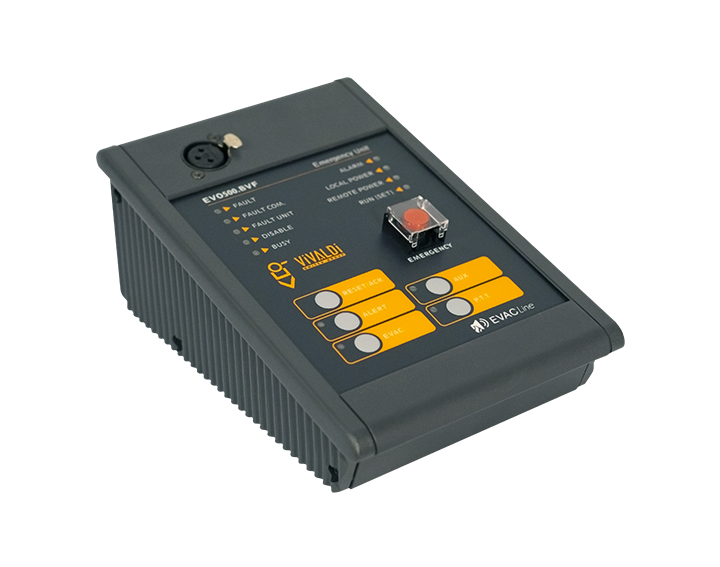

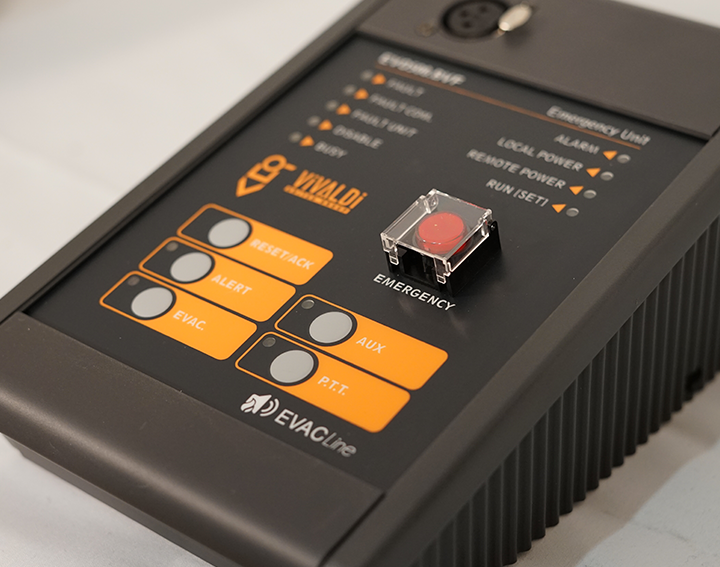

Vivaldi EN54 EVO500.BVF
Microphone base for VVF 1 zone
Emergency desktop base for sending live or preregistered messages (alarm/evacuation).
CE certifications. EN 54-16. Certificate. Certification nr 0068-CPR-046/2016.
To be used in combination with the gooseneck microphone Vivaldi EN54 EVO500.GM38 or with the hand microphone Vivaldi EN54 EVO500.PTT.
Anthracite black colour.
Note: Cable for connection to che main unit and interconnection between the desk microphones CAT6SFTP.
Request a commercial offer
CE certifications. EN 54-16. Certificate. Certification nr 0068-CPR-046/2016.
To be used in combination with the gooseneck microphone Vivaldi EN54 EVO500.GM38 or with the hand microphone Vivaldi EN54 EVO500.PTT.
- Microphone jack.
- Status LED.
- Emergency push-button.
- Push-button for interrupting messages / faults buzzer.
- Push-button for sending preregistered alarm messages.
- Push-button for sending preregistered evacuation messages.
- Push-button for call.

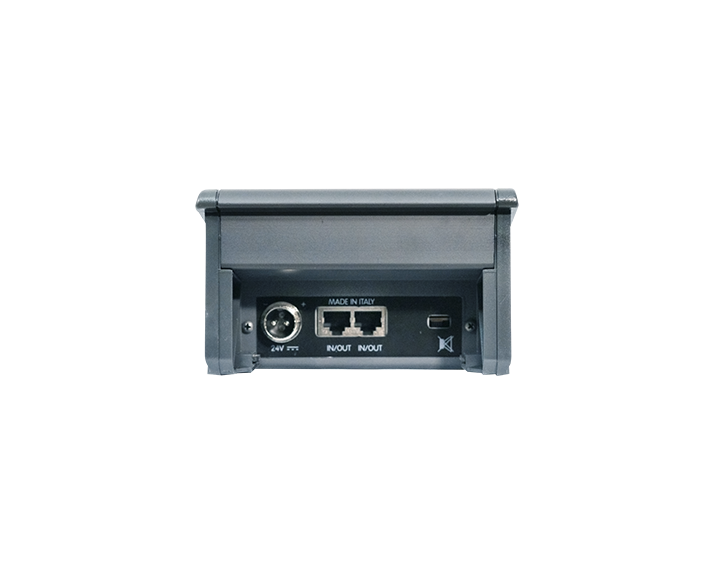

- Input/Output connectors
- Supply voltage 24 Vcc
- Maximum absorption @24Vcc 60 mA
- Typical output level 300 mV
- Distortion < 1%
- Signal/noise ratio > 60 dB
- Signal/noise ratio > 65 dB
- Frequency response 130 ÷ 19.000 Hz
- Dimensions (WxHxD) 140x80x200 mm
Anthracite black colour.
Note: Cable for connection to che main unit and interconnection between the desk microphones CAT6SFTP.
