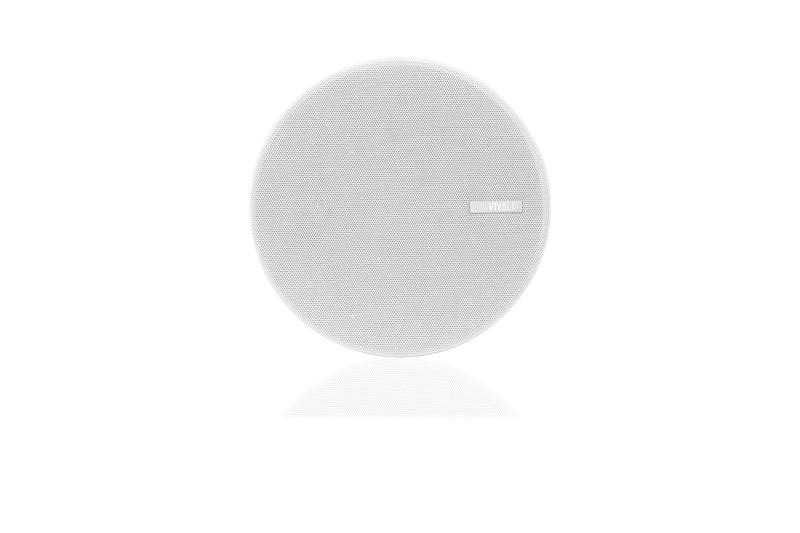

Vivaldi EN54 ROUND13TF
100V EN60849
code variation:
Vivaldi EN54 ROUND17TF 100V EN60849Vivaldi EN54 ROUND20TF 100V - EN54
Vivaldi EN54 ROUND10EN 100V EN60849
Vivaldi EN54 ROUND13EN 100V EN60849
Vivaldi EN54 ROUND16EN 100V EN60849
Vivaldi EN54 ROUND16AB 100V EN60849
Ceiling round speaker, 2 way, Hi-Fi, Frameless design
EN50849 EN54-24 Certified. Certification number 0068/CPR/071-2018
When installed with fireproof cover Vivaldi EN54 SQR13 (to order separately)
For recessed installations on masonry (not EN54) use the Vivaldi Ulisse SR13
Woofer 13,5cm (5,25")
Tweeter 1,3cm, dome Mylar, neodymium magnet
Nominal Power 2,5/5/10/15W - 30W peak, max 102dB.
Transformer voltage: 100V
Frequency range: 70-20000 Hz
Sensitivity: 87 dB
Max output level full power 99dB
Dispersion angle 120° (V/O)
DimensionS (Diam.xD): 204x90 mm
Recessed installation hole (D): 177 mm
Weight: 1,35 Kg
Colour: White (RAL 9016)
Operation temperature: -20° a +65°
Request a commercial offer
EN50849 EN54-24 Certified. Certification number 0068/CPR/071-2018
When installed with fireproof cover Vivaldi EN54 SQR13 (to order separately)
For recessed installations on masonry (not EN54) use the Vivaldi Ulisse SR13
Woofer 13,5cm (5,25")
Tweeter 1,3cm, dome Mylar, neodymium magnet
Nominal Power 2,5/5/10/15W - 30W peak, max 102dB.
Transformer voltage: 100V
Frequency range: 70-20000 Hz
Sensitivity: 87 dB
Max output level full power 99dB
Dispersion angle 120° (V/O)
DimensionS (Diam.xD): 204x90 mm
Recessed installation hole (D): 177 mm
Weight: 1,35 Kg
Colour: White (RAL 9016)
Operation temperature: -20° a +65°
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
