Vivaldi EN54 ROUND16AB
100V EN60849
code variation:
Vivaldi EN54 ROUND13TF 100V EN60849Vivaldi EN54 ROUND17TF 100V EN60849
Vivaldi EN54 ROUND20TF 100V - EN54
Vivaldi EN54 ROUND10EN 100V EN60849
Vivaldi EN54 ROUND13EN 100V EN60849
Vivaldi EN54 ROUND16EN 100V EN60849

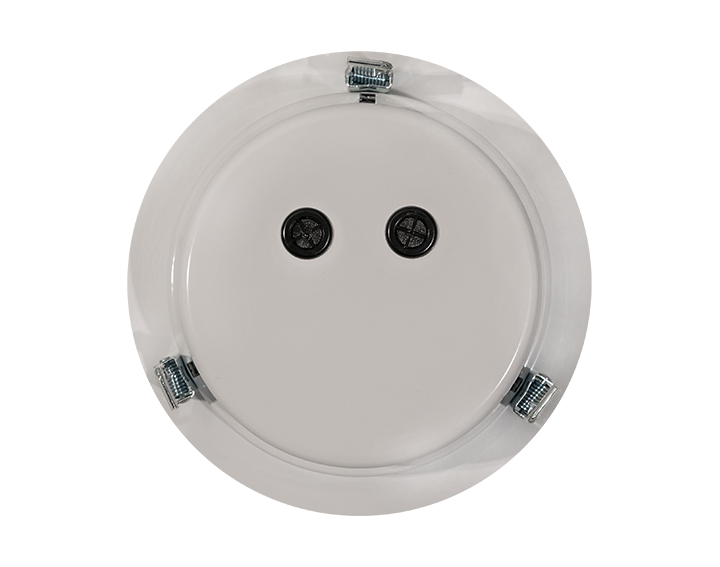

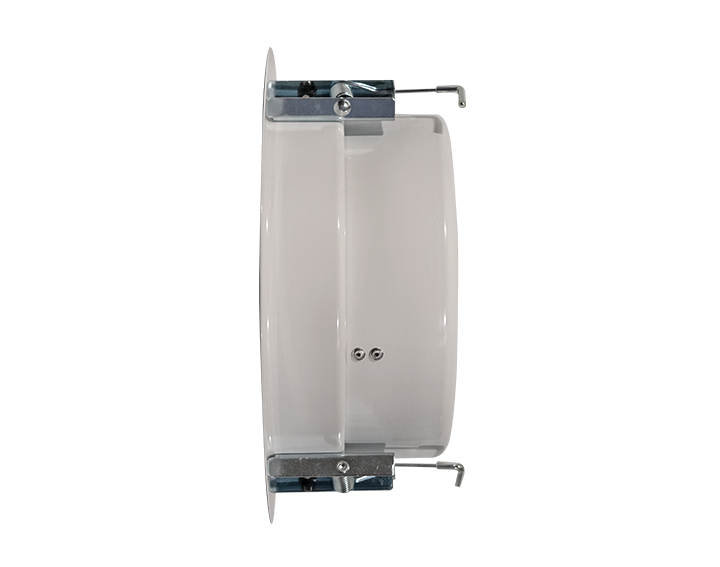

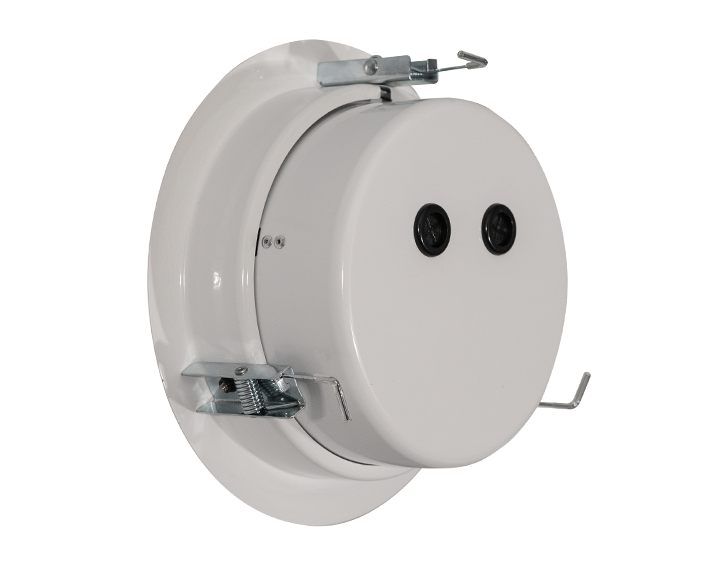

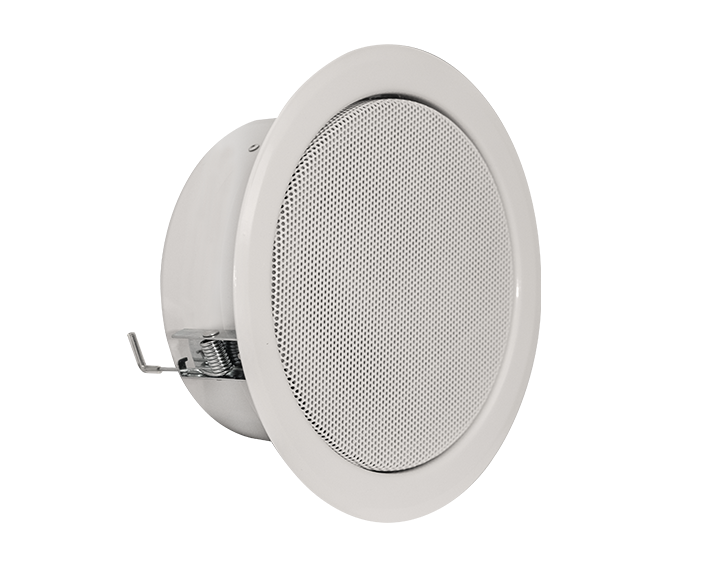

In-ceiling round speaker with steel flame-resistant cap.

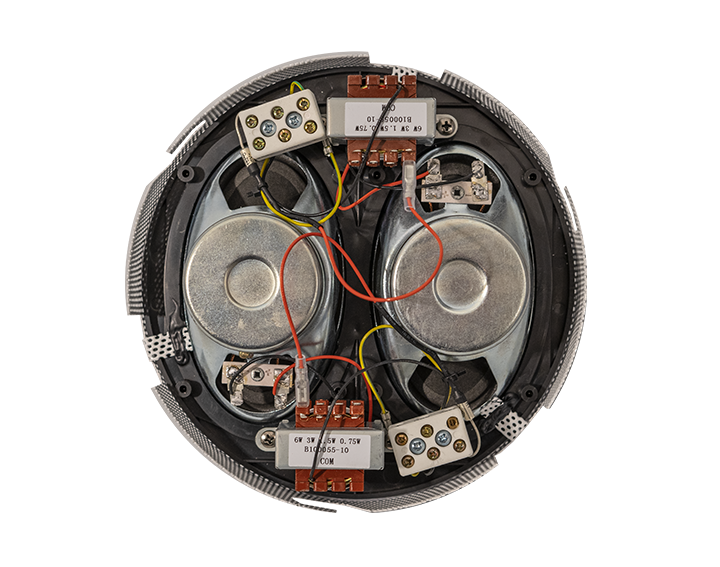

It integrates two independent elliptical 6W speaker systems.
To be used in zones with only one speaker where redundancy is required.
EN54-24 certified certification nr 0068/CPR/170-2022.

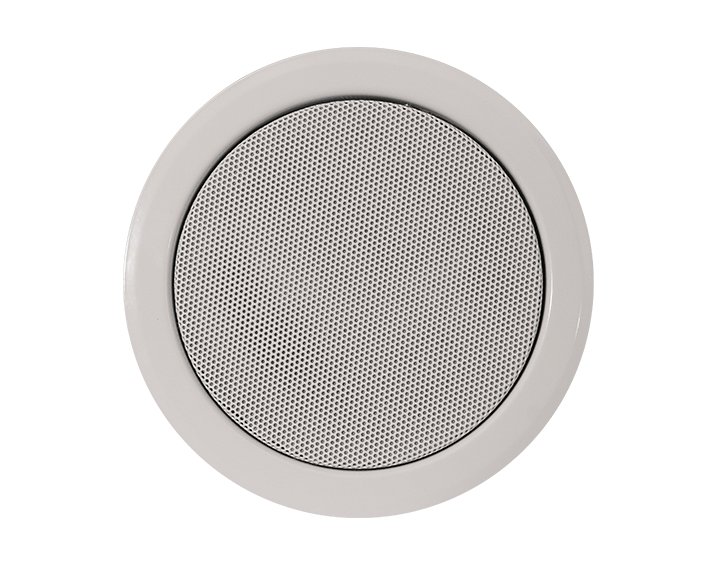

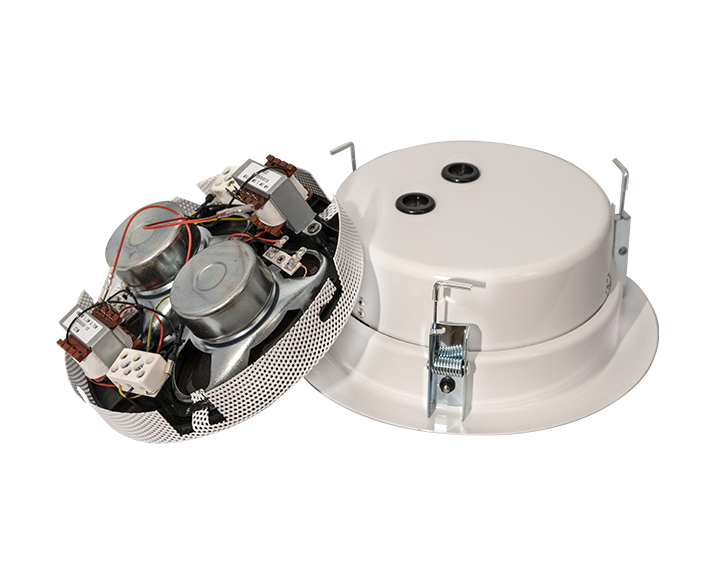

Steel frame with protection grill, IP21.
2x ceramic connection terminal block for fireproof wires
2x thermal fuse
2x ground connection screw
Fireproof double internal wiring
2x 100V tranformer

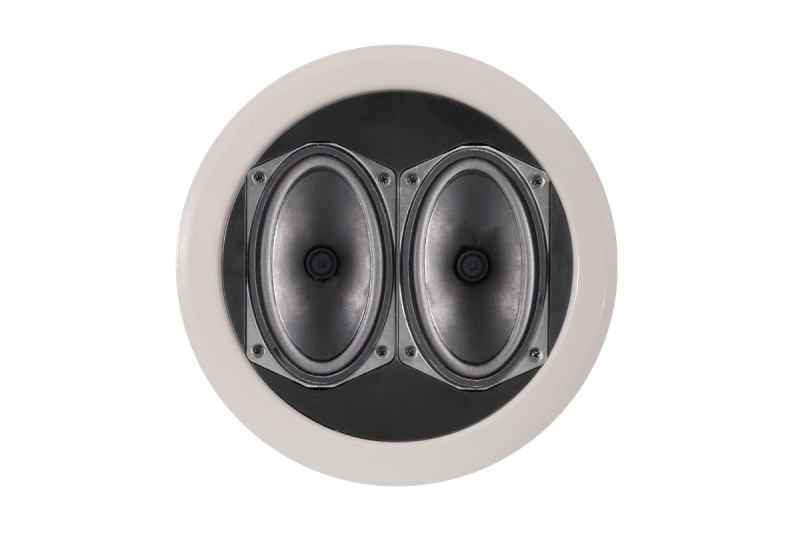

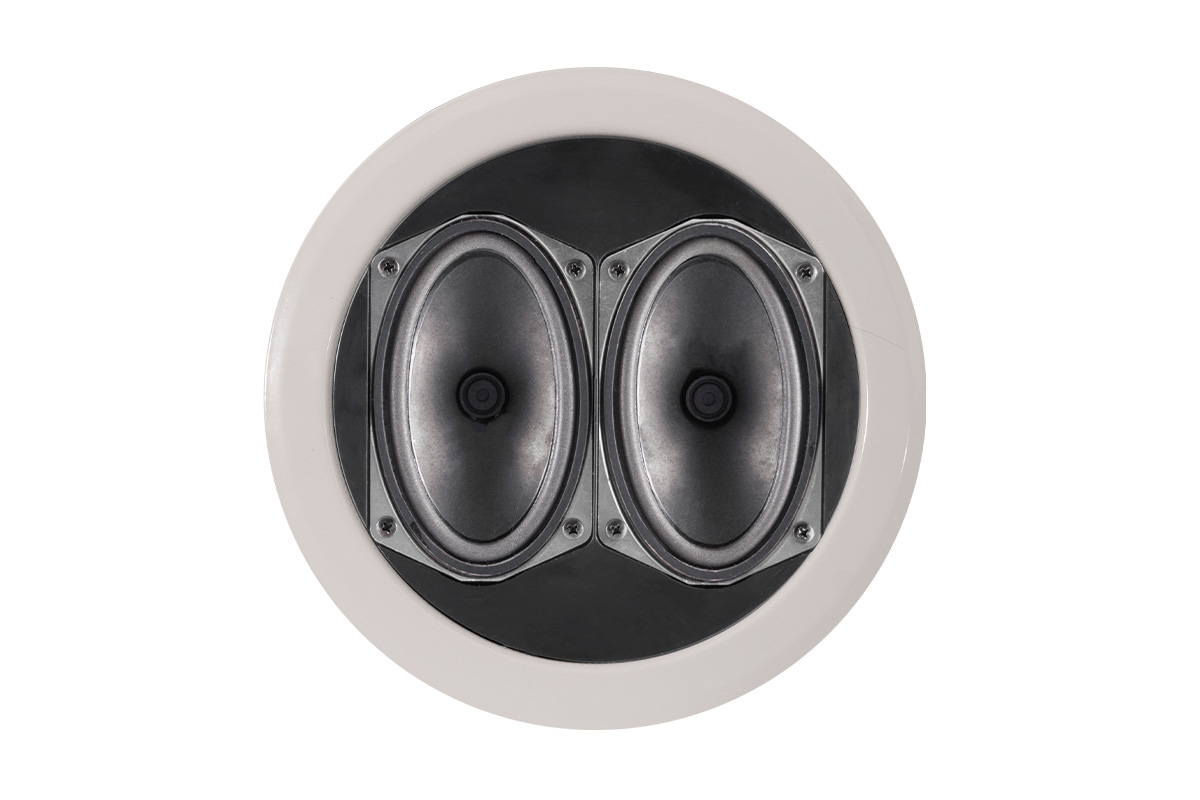

Double elliptical speaker 115x65 mm
Nominal Power: 2x0,75/1,5/3/6W. 2x12W peak, 106dB.
Frequency response: 120-18500 Hz - 10dB
Sensitivity: 95 dB 1+1W
Max output level / full power 103 dB.
Dimensions (Diam.xD): 241x100 mm
Opening for recessed (D): 218 mm
Weight: 1,8 kg

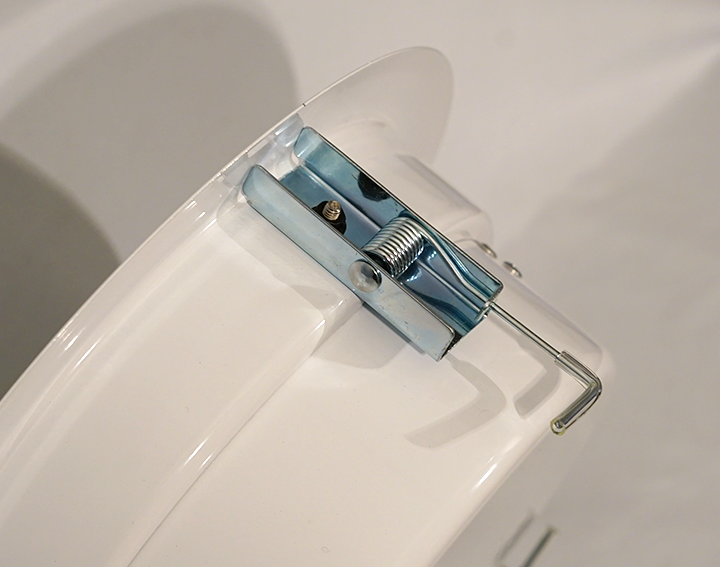

Installation on plasterboard, wood walls or similar: no accessories needed
Installation in-wall (concrete): not suitable
Colour: white RAL9010

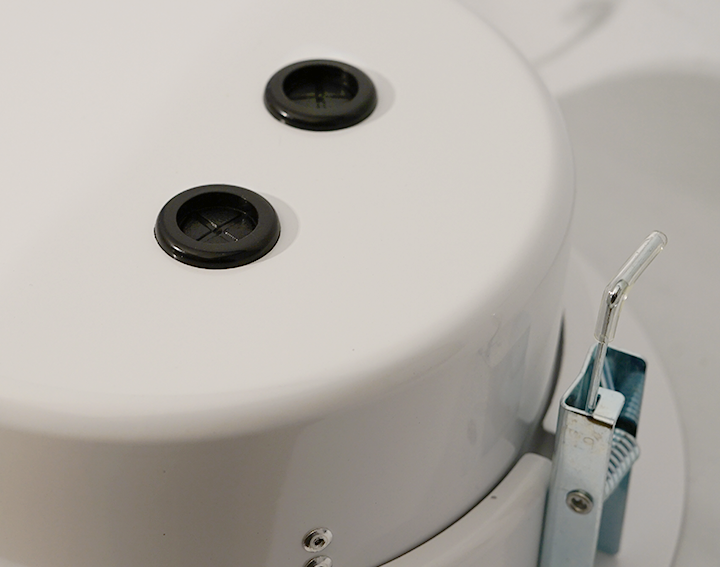

Cabinet: painted steel, metal protection grid
Operation temperature: from -20°C to +65°C
Request a commercial offer
It integrates two independent elliptical 6W speaker systems.
To be used in zones with only one speaker where redundancy is required.
EN54-24 certified certification nr 0068/CPR/170-2022.
Steel frame with protection grill, IP21.
2x ceramic connection terminal block for fireproof wires
2x thermal fuse
2x ground connection screw
Fireproof double internal wiring
2x 100V tranformer
Double elliptical speaker 115x65 mm
Nominal Power: 2x0,75/1,5/3/6W. 2x12W peak, 106dB.
Frequency response: 120-18500 Hz - 10dB
Sensitivity: 95 dB 1+1W
Max output level / full power 103 dB.
Dimensions (Diam.xD): 241x100 mm
Opening for recessed (D): 218 mm
Weight: 1,8 kg
Installation on plasterboard, wood walls or similar: no accessories needed
Installation in-wall (concrete): not suitable
Colour: white RAL9010
Cabinet: painted steel, metal protection grid
Operation temperature: from -20°C to +65°C
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
