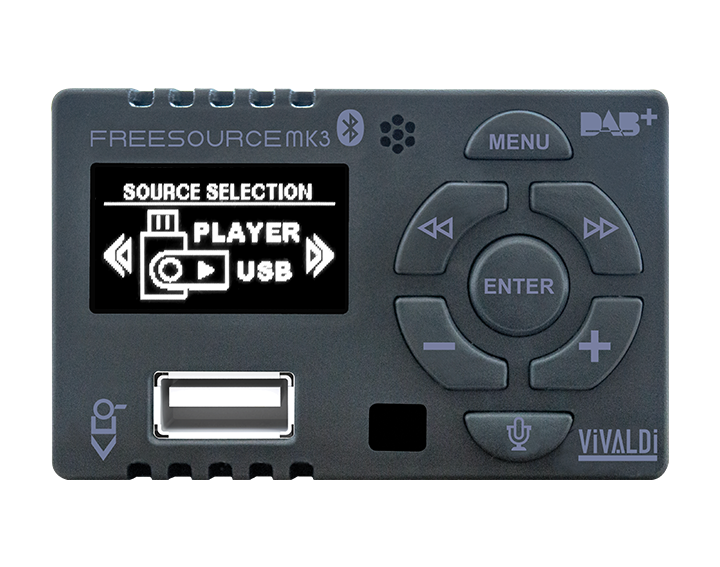

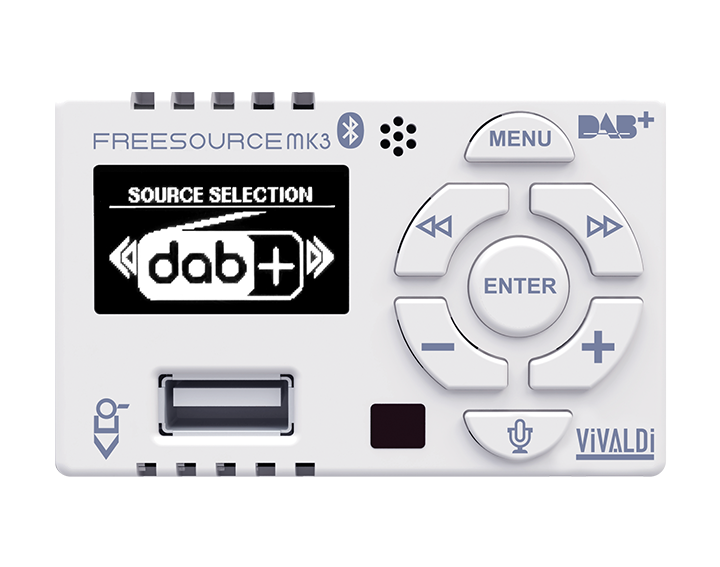

Vivaldi EN54 FREESOURCEMK3

All-in-one multi-source audio zone or remote module.
To be used in combination with:

• Vivaldi active speaker
• Vivaldi matrix/main unit evacuation systems EVO500, EVO1000 o EVO+ series.

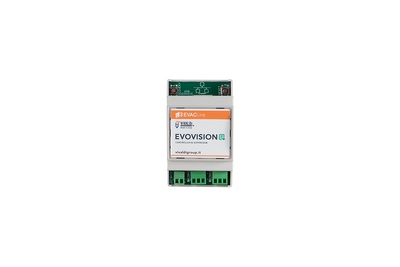

Supervision and remote control via Vivaldi EN54 EVO.VISION ( evacuation systems), Vivaldi Domotica iCONTROL4.1L,  Vivaldi Domotica iCONTROL4.0+.

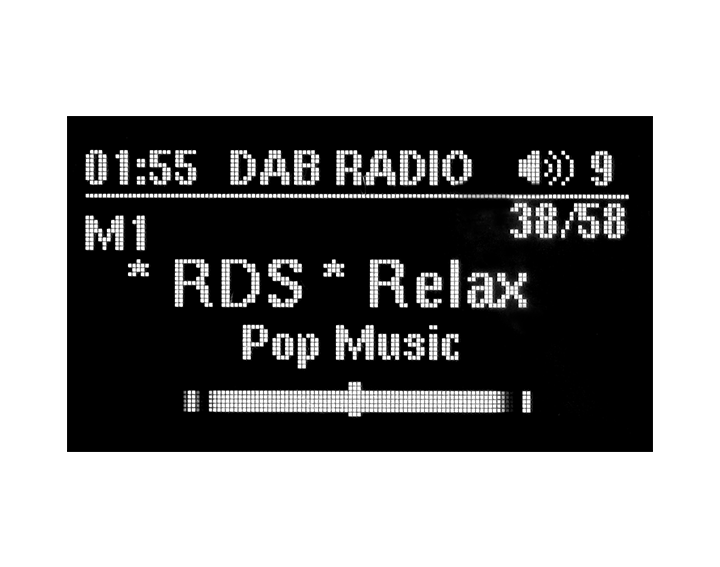

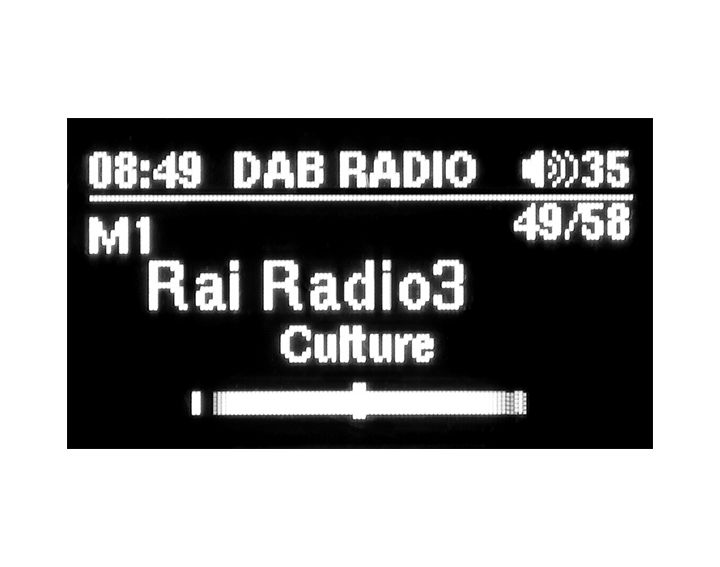

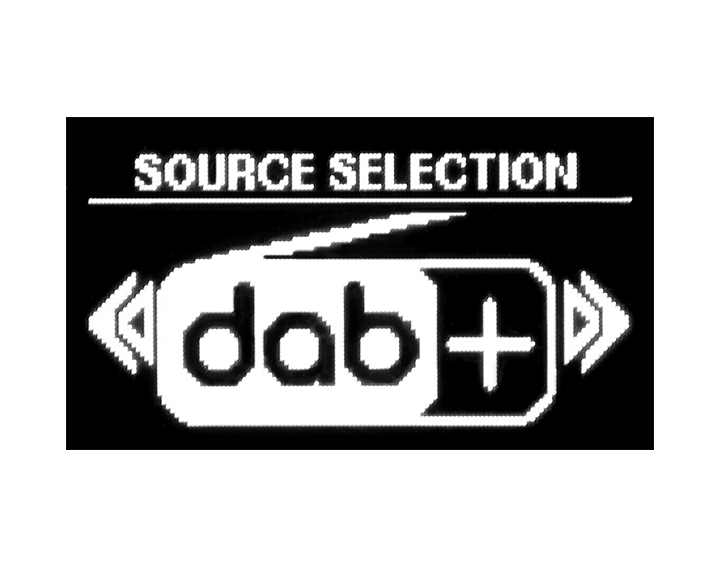

DAB/DAB+ Digital Radio ( to use the Dab radio is required to connect FREESOURCEMK3 to the existing TV antenna system via coaxial cable 75ohm)

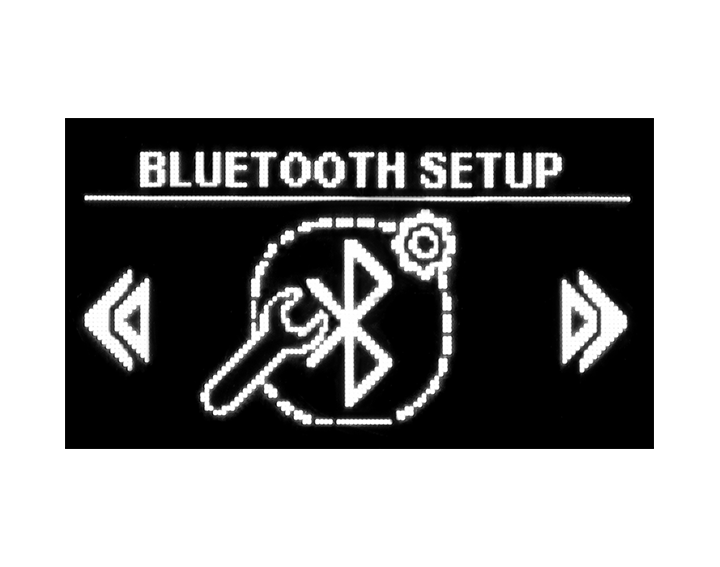

BLUETOOTH 5.0 with automatic pin assignment, possibility to rename the device
Thermostat control room thermoregulation tailored to your needs. Temperature regulation and control in every single zone in combination with Vivaldi Domotica iCONTROL4.0+ and with an thermostat.

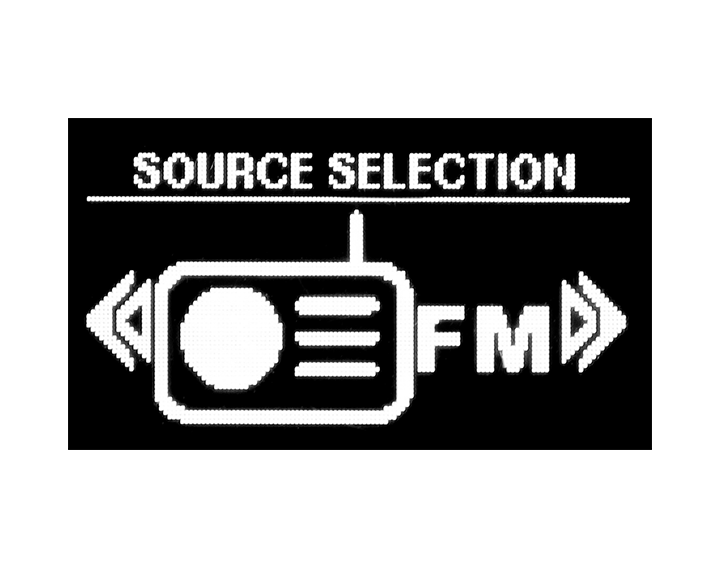

FM RADIO with RDS, 6 stored frequencies
HFP Profile (Hands Free): in Bluetooth source Hands-free function for the smartphone.
Chime integrated: function can be activated in 3 modes ( receiving calls, sending calls or both)

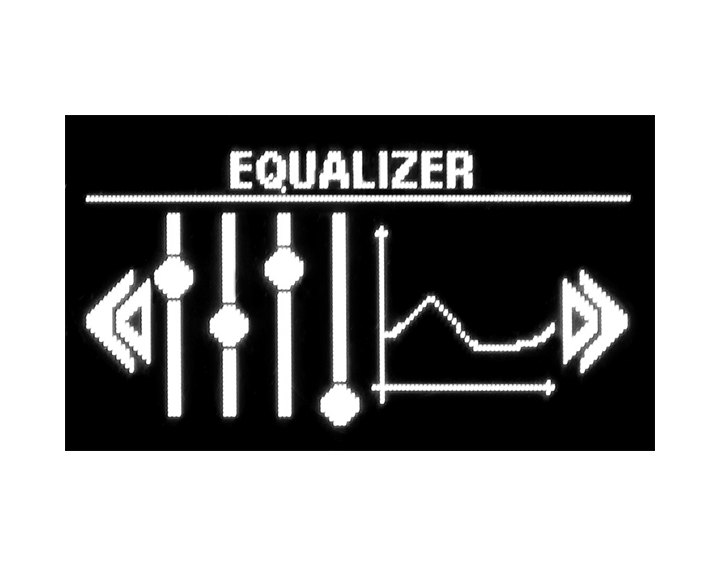

7 Bands graphic equalizer

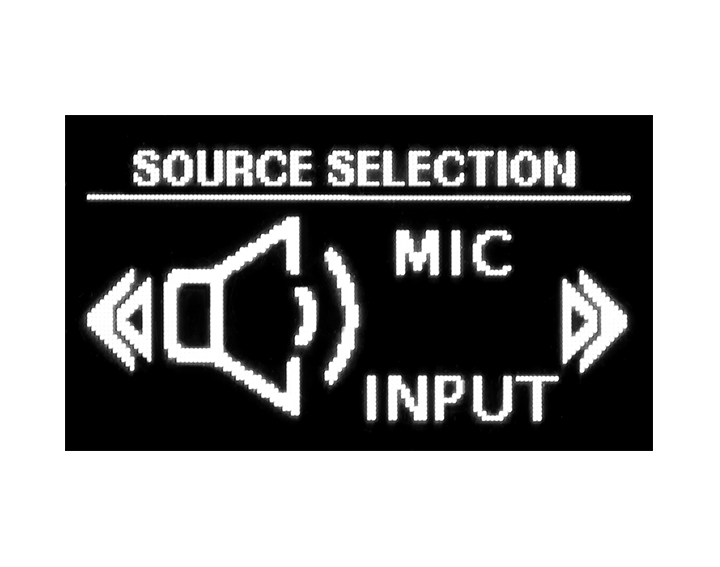

Possibility to mix an external source, via MIC input on all sources.

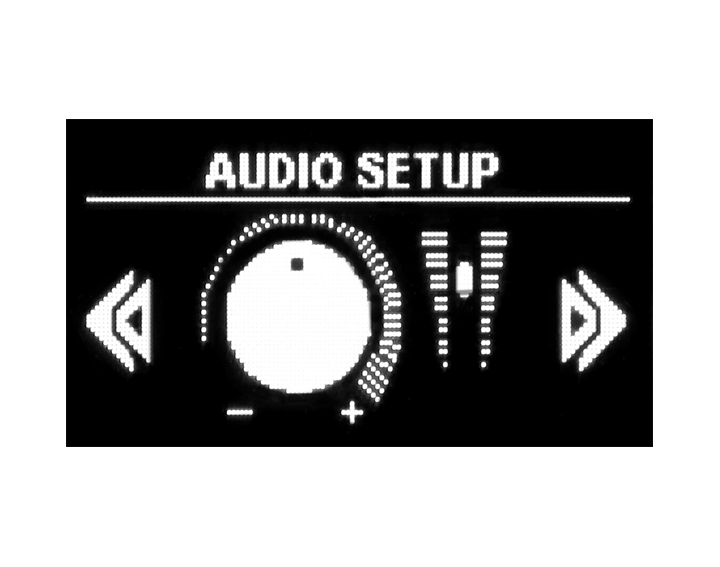

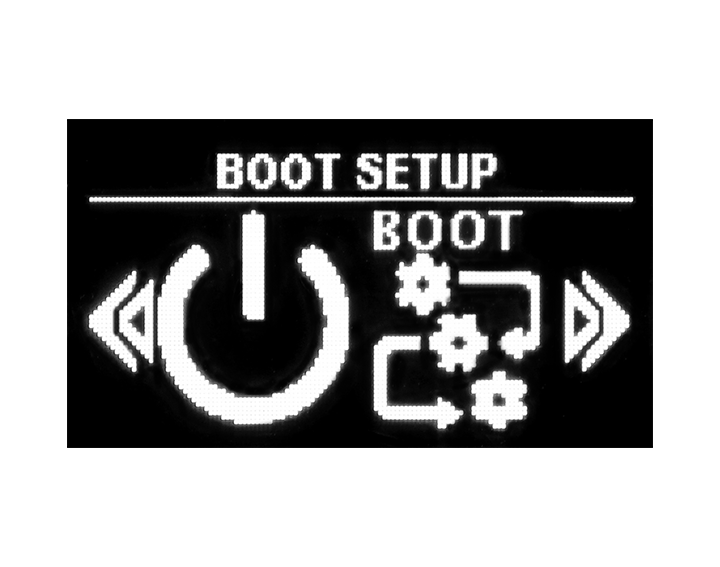

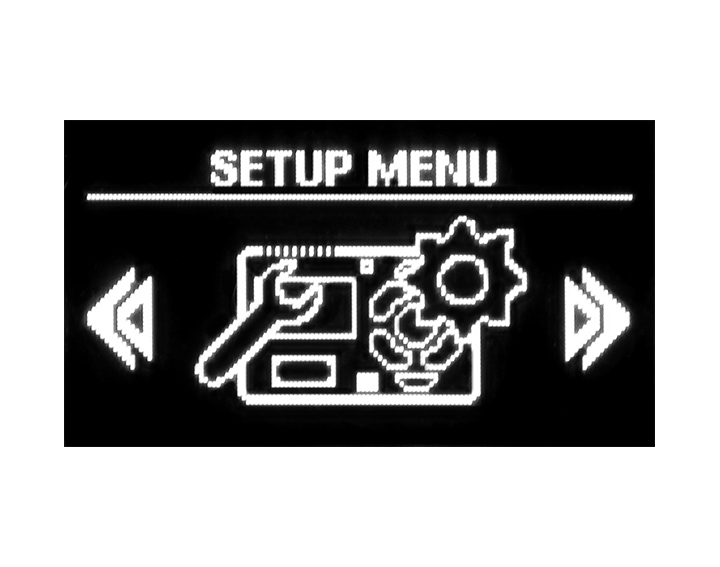

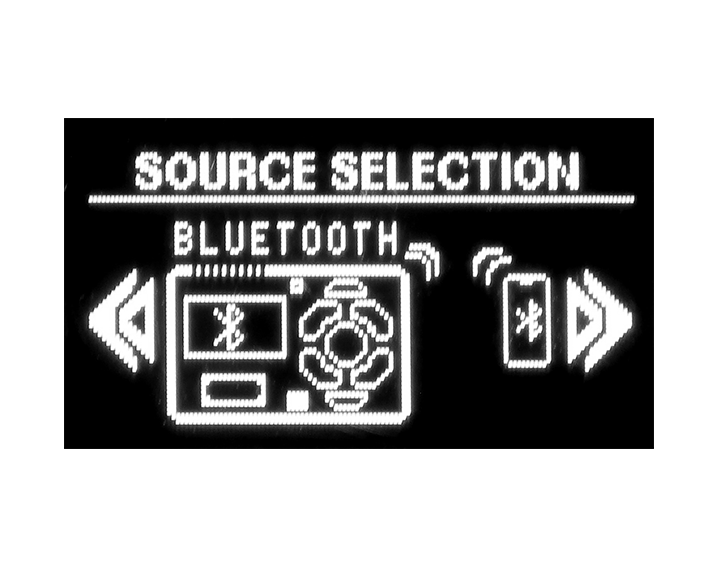

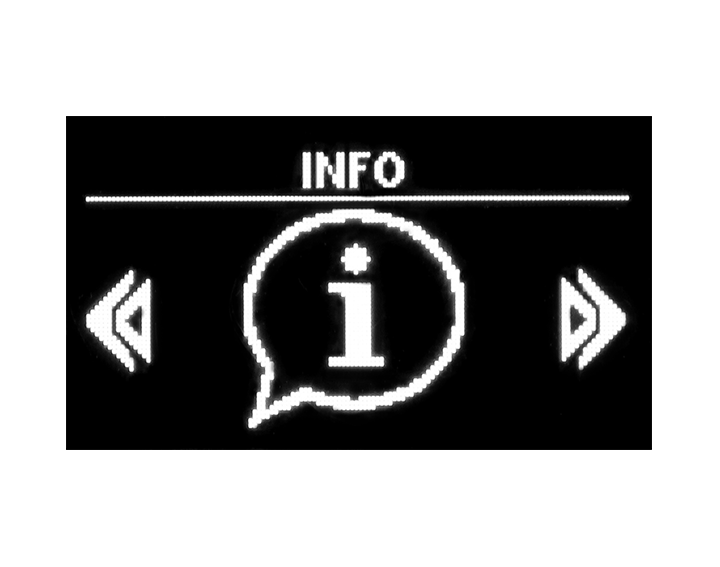

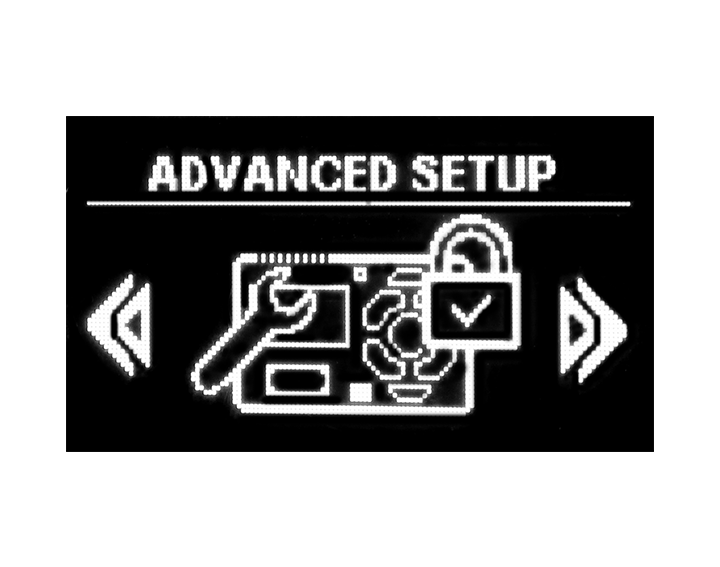

New graphic interface and new navigation menu.

---

Left/Right channel balance adjustment
Possibility to set up the outputs, amplificated and PreOut, in the following modes: all stereo/all mono/only ampli mono.
Possibility to set up the PreOut output without mute.
Automatic ON/OFF switch function based on the presence of signal in AUX1 or AUX2 Input.
Firmare update via USB

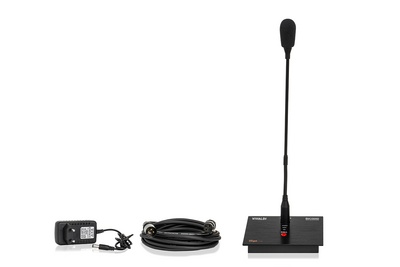

Balanced input for desk microphone Vivaldi Ulisse BM1000D, or condenser microphone ( enabling PhantomPower).
Mono Audio balanced Output

Moreover:
Fm Radio with RDS, 6 stores frequencies

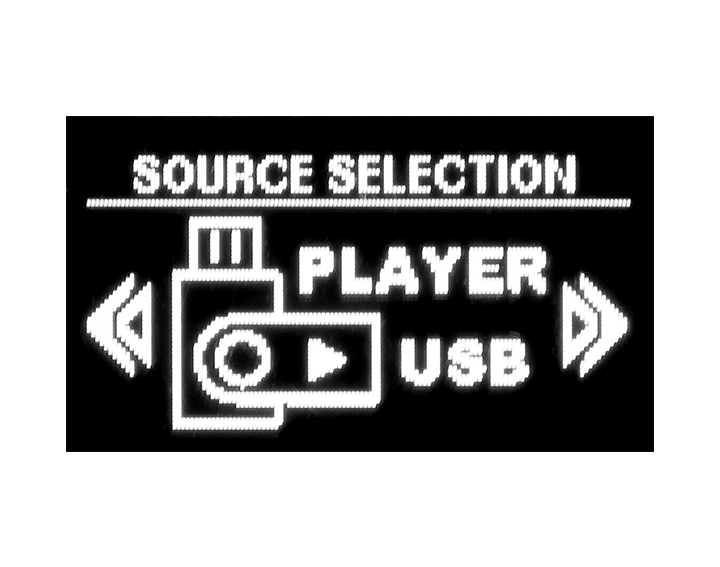

Audio file USB player (MP3, WMA,AAC).
Microphone for environmental listening ( kids, disabled, old people) or sending messages.

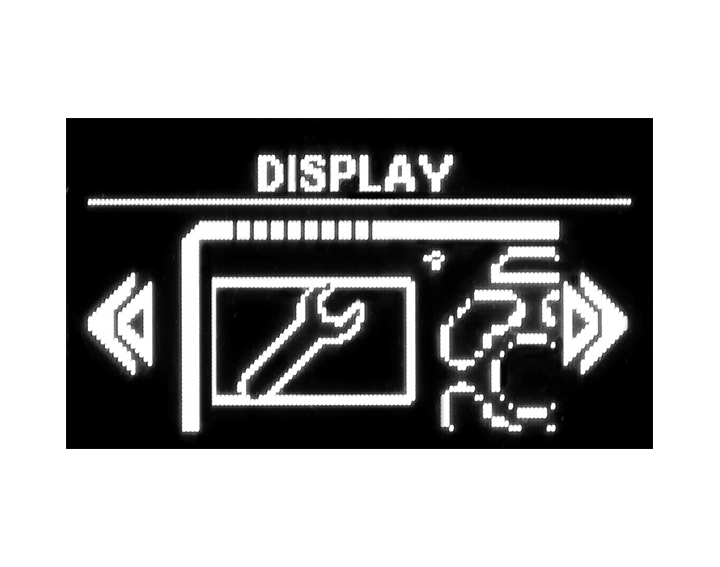

OLED Display
IR receiver for remote control TCIR5

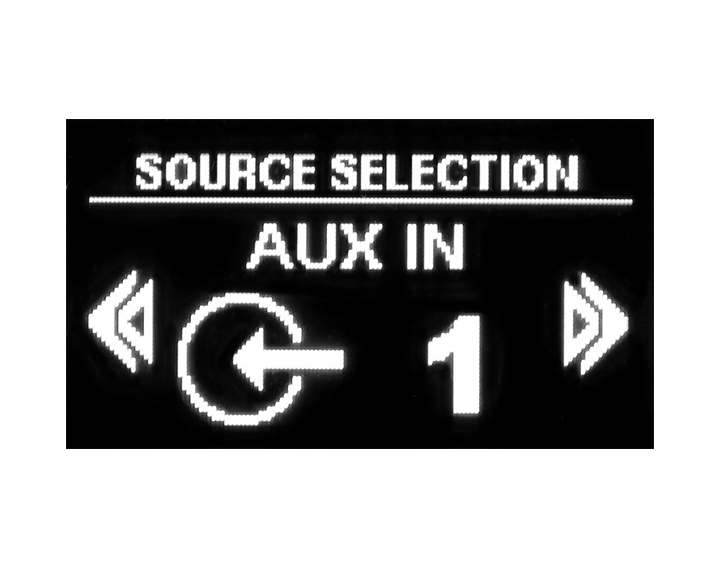

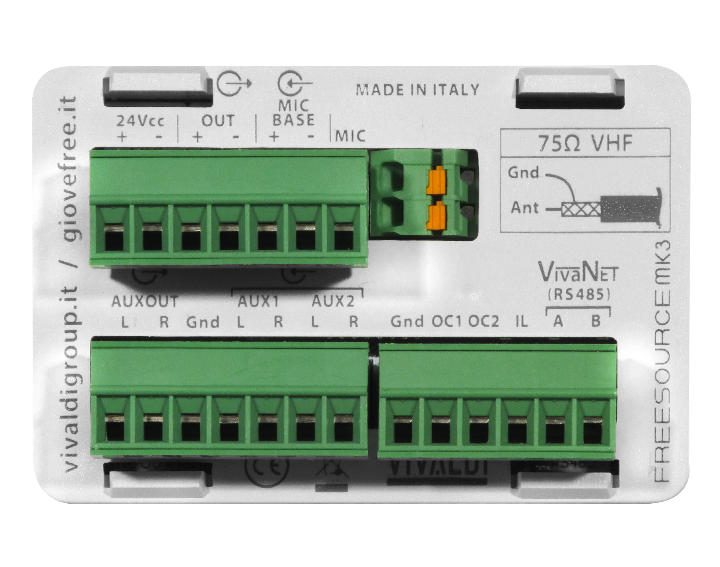

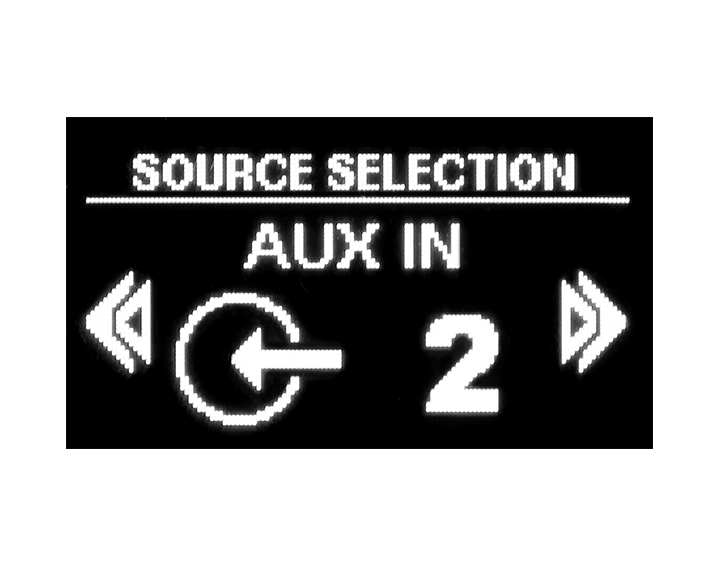

2x AUX Inputs for local sources (ex. TV, CD, PC, Sky…)
PreOut Output for Vivaldi active speaker, with the possibility to choose between fixed volume output and subordinate to the main volume, active subwoofer (Vivaldi Giove Sub8AB, Vivaldi Giove Sub8AW, Vivaldi Giove Sub10AB, Vivaldi Giove Sub10AW, Vivaldi Giove Sub12AB, Vivaldi Giove Sub12AW).

---

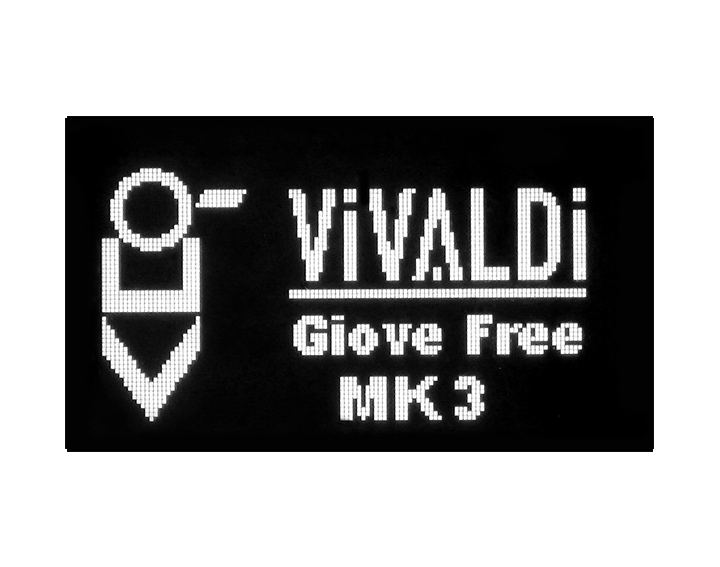

Standby screen, selectable
Bluetooth with playback control (play/pause/next/ back track.
Microphone with automatic volume sensitivity

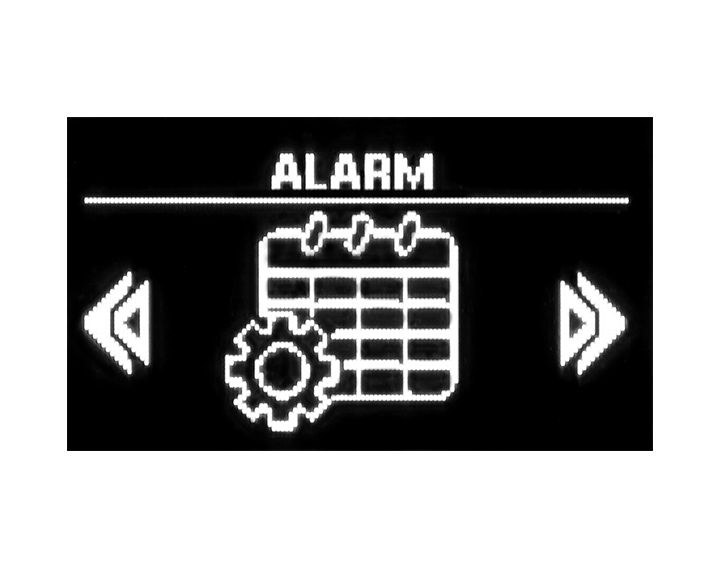

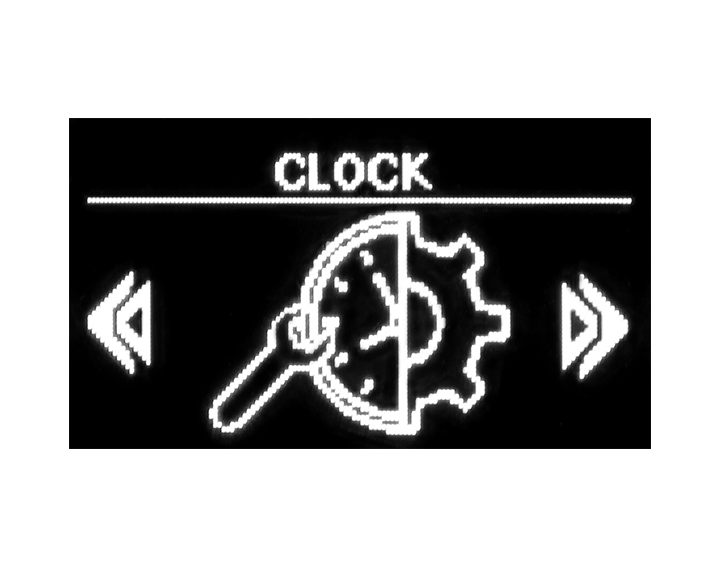

Clock and Alarm clock with programmable timer function for automatic 0N/OFF switch

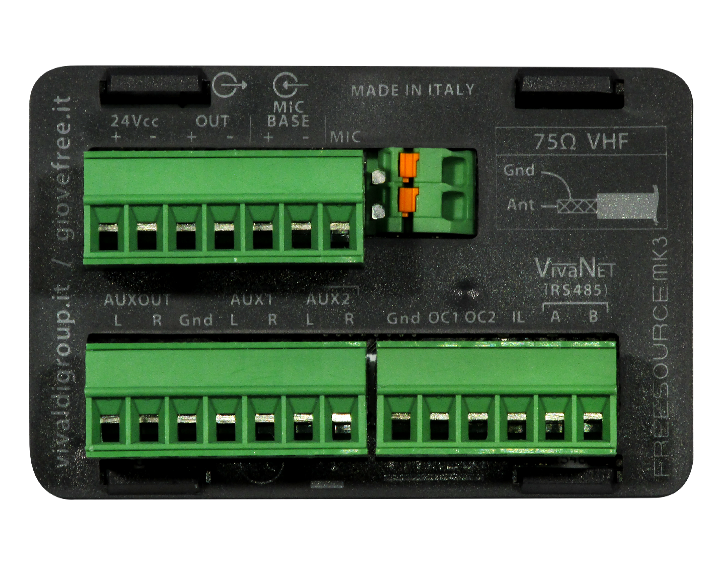

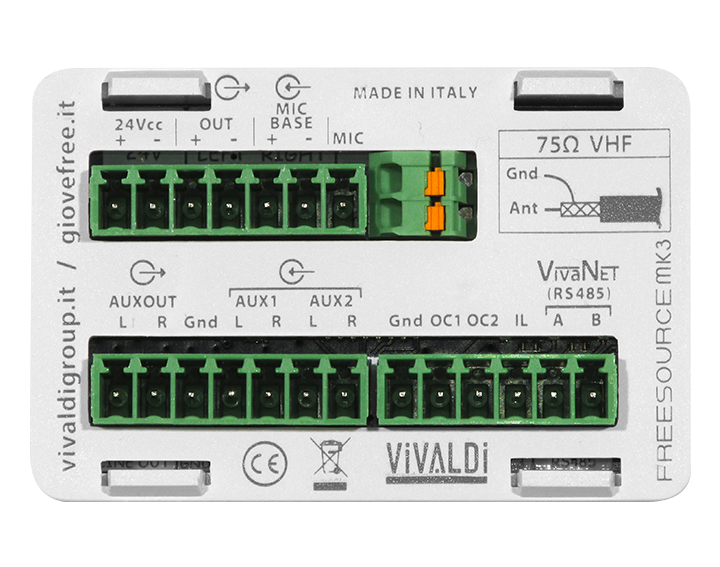

Input/Output OC1, OC2, IL function management from menu
Setting Master/Slave/Ibrid mode (OC1) for the microphone calls.
Input/Output “IL” bidirectional with Maste/Slave/Ibrid function

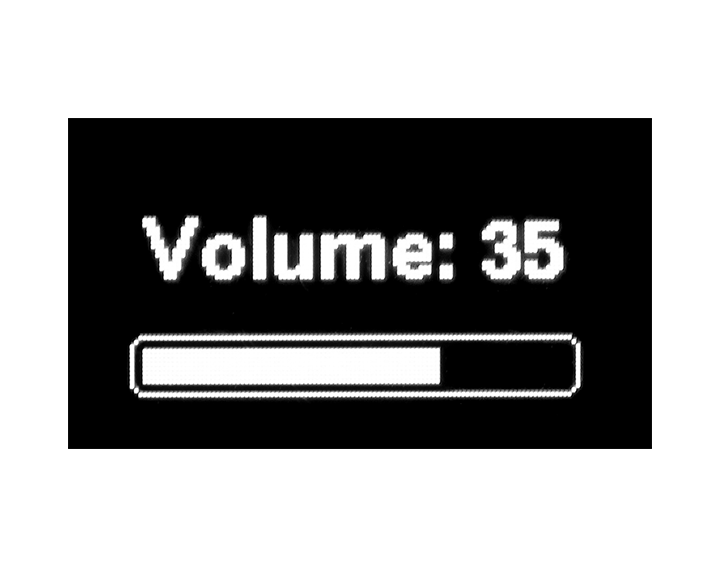

Max volume adjustable

Available colours:
-anthracite gray (Vivaldi EN54 FREESOURCEMK3.B)
-white (Vivaldi EN54 FREESOURCEMK3.W).

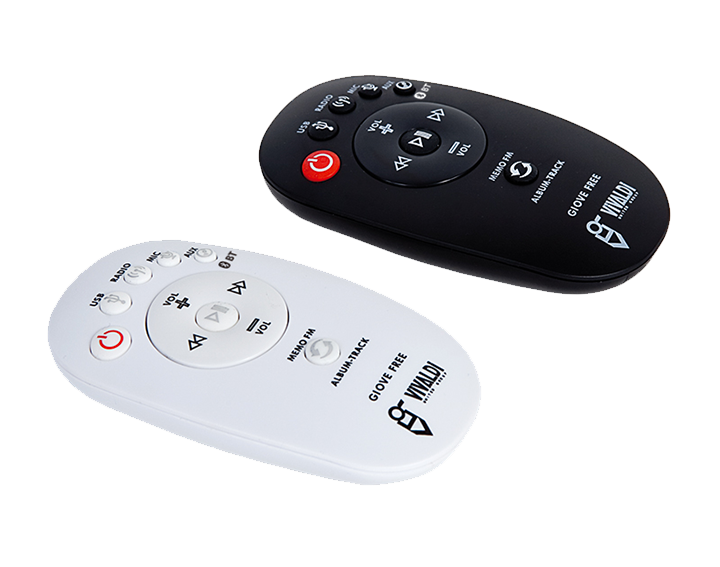

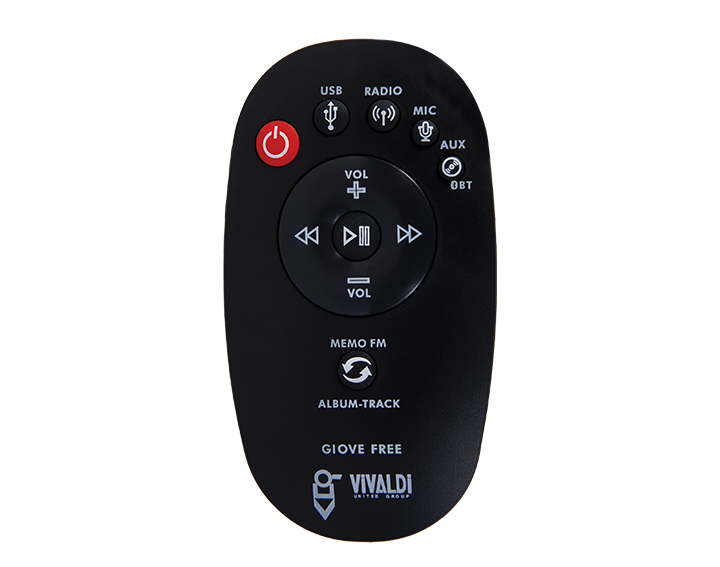

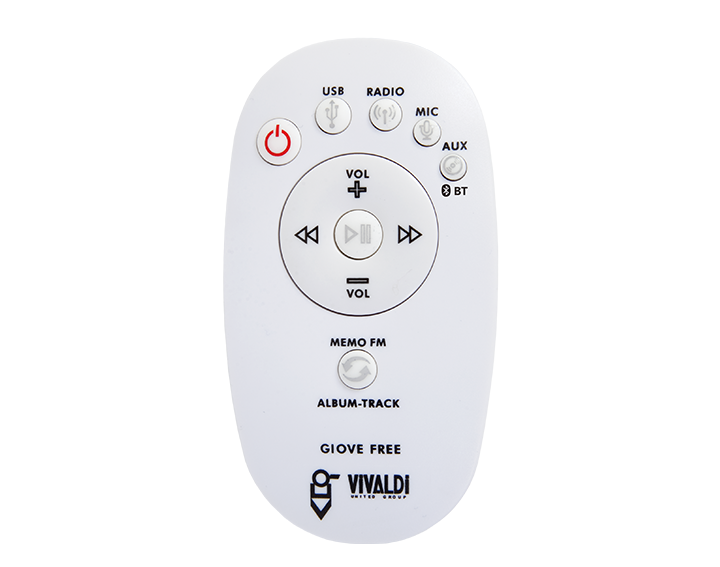

Slim remote control (Vivaldi GIOVE TCIR5), supplied.
Fits a standard rectangular wall box (503) or 3 modules of 504, 506, 507..
Compatibility with civil series Vivaldi Ulisse ADATTATORI (to be ordered separately during order phase)

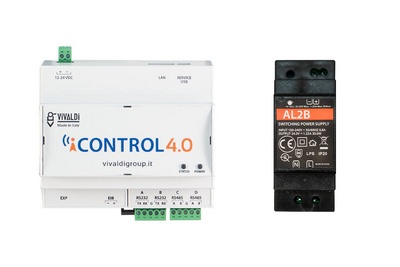

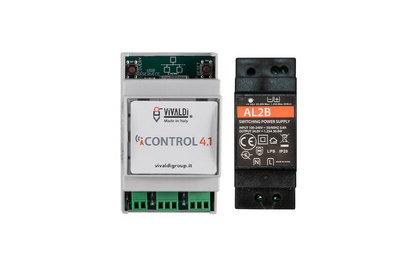

Power supply Vivaldi Giove AL2B ( power up to 4 FreeSource)
Weight 0,15 Kg
