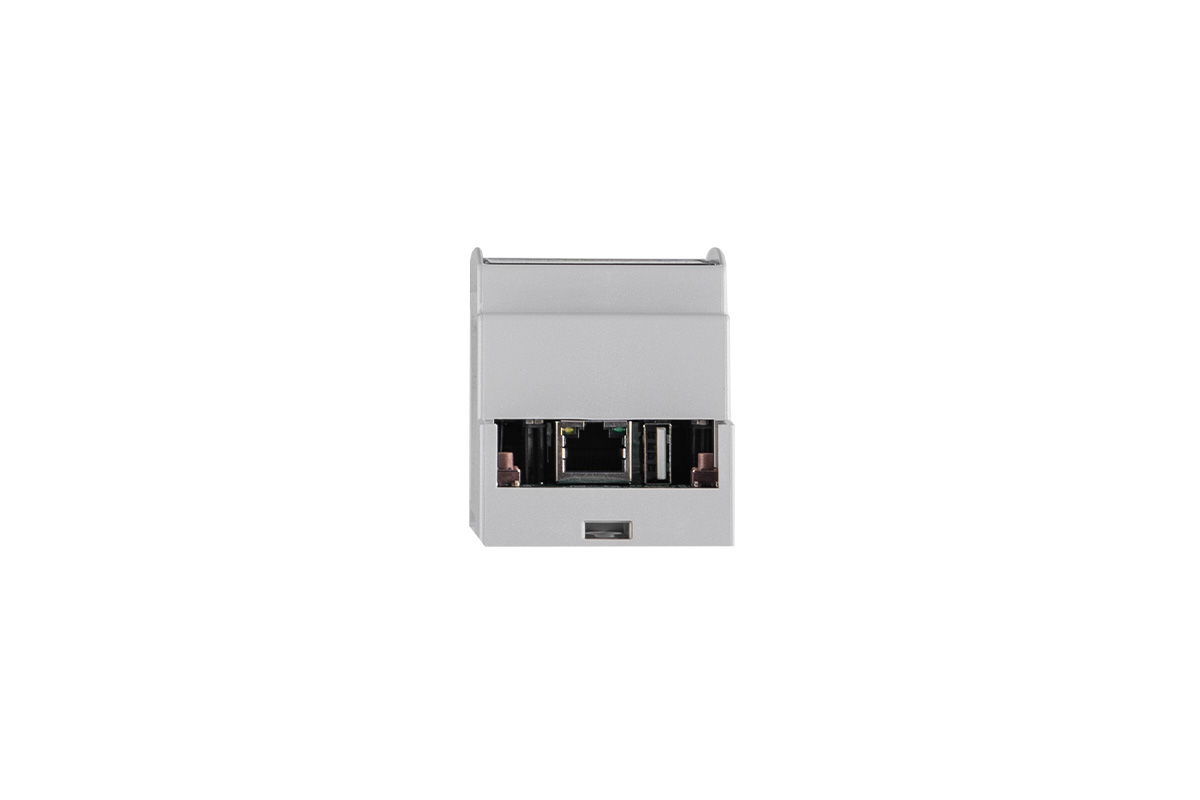

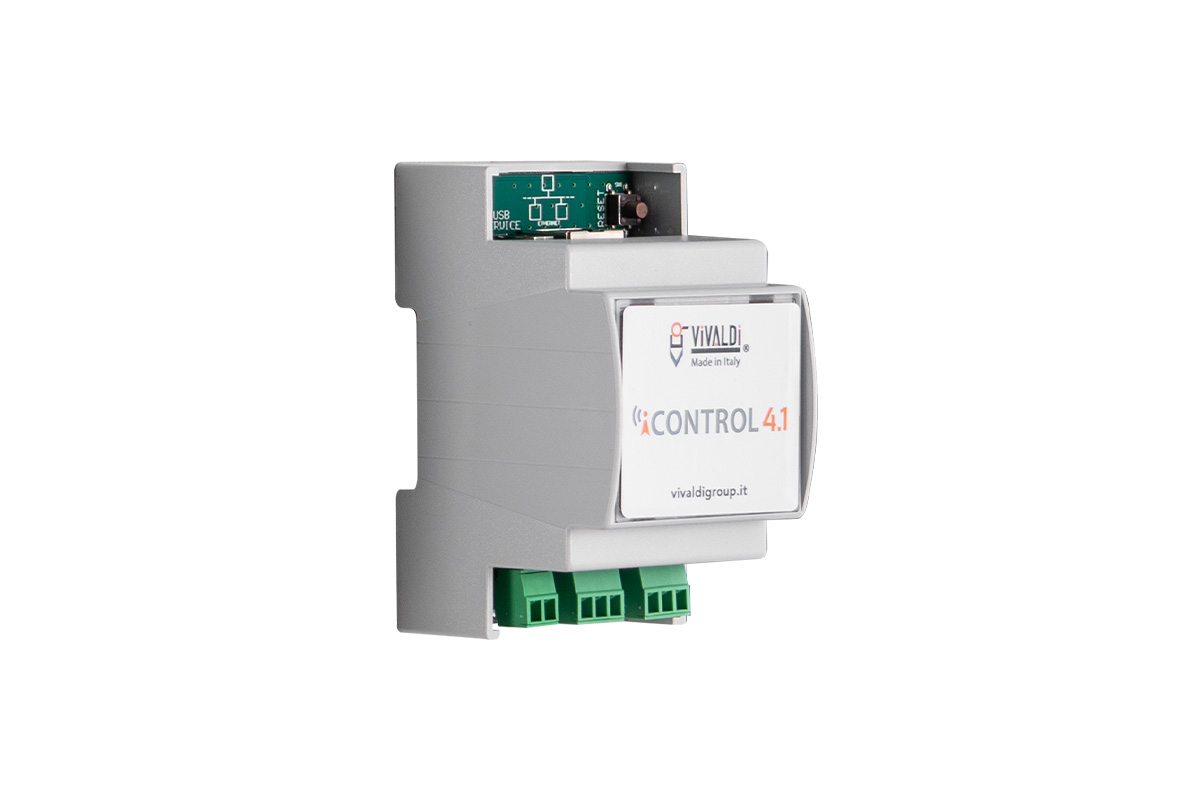

Vivaldi Domotica iCONTROL4.1L
Control server for Multiroom Audio and Video Systems
Control server and supervisor for Vivaldi devices ( Vivaldi Giove FREENETMK3 , Vivaldi EN54 FREESOURCEMK3 , Vivaldi Giove iFREEMK3.55 , Vivaldi Giove iFREEMK3.70 ).

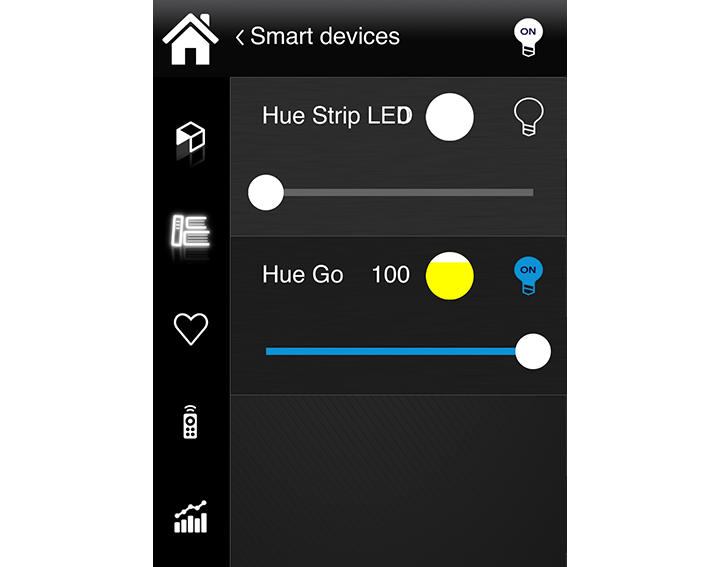

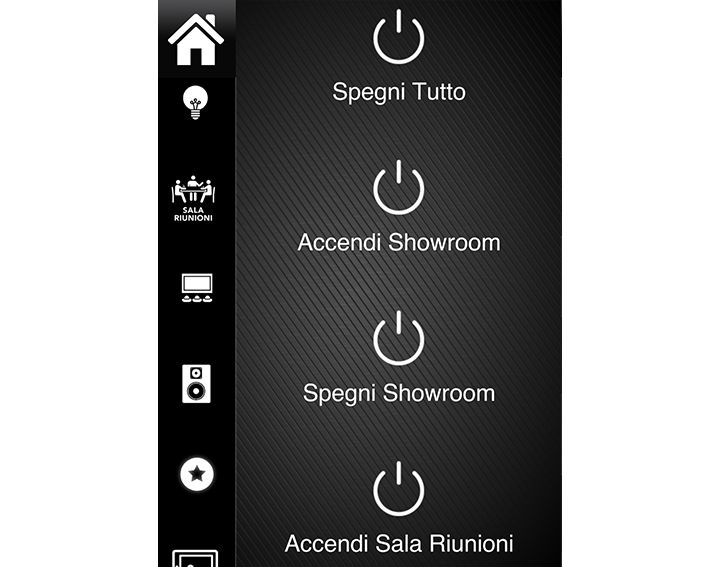

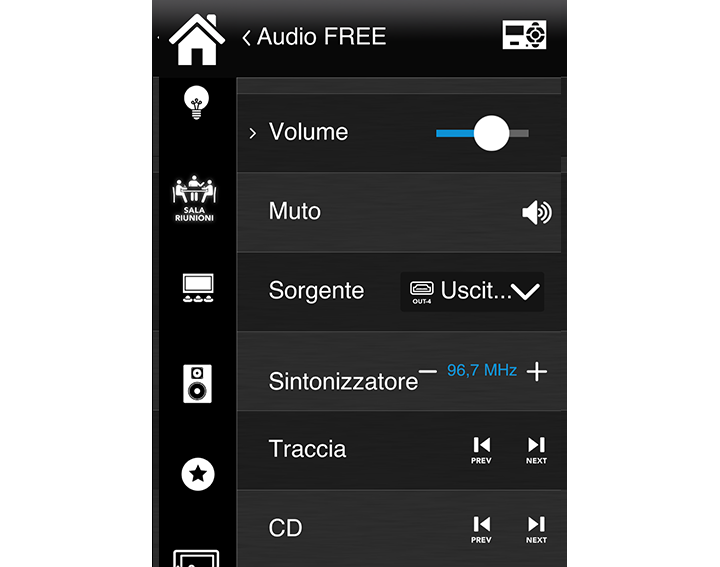

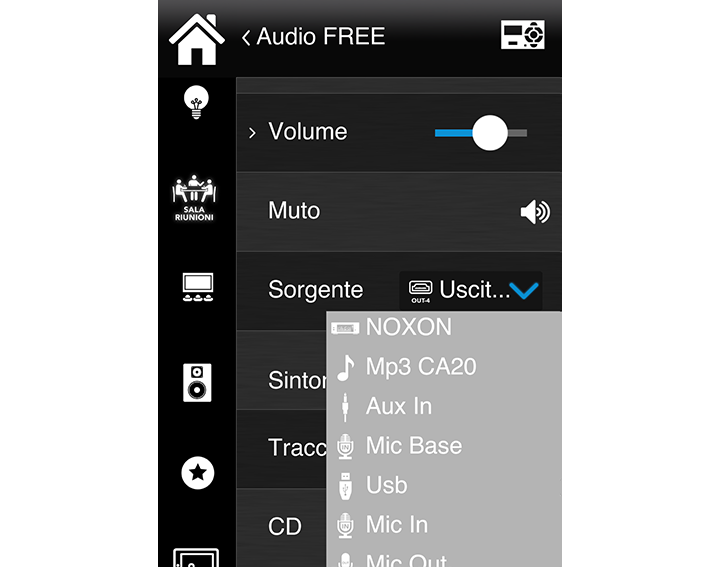

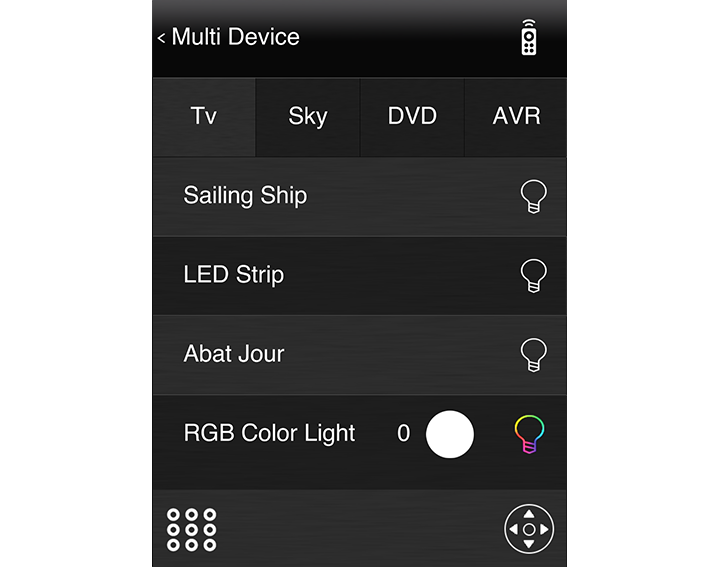

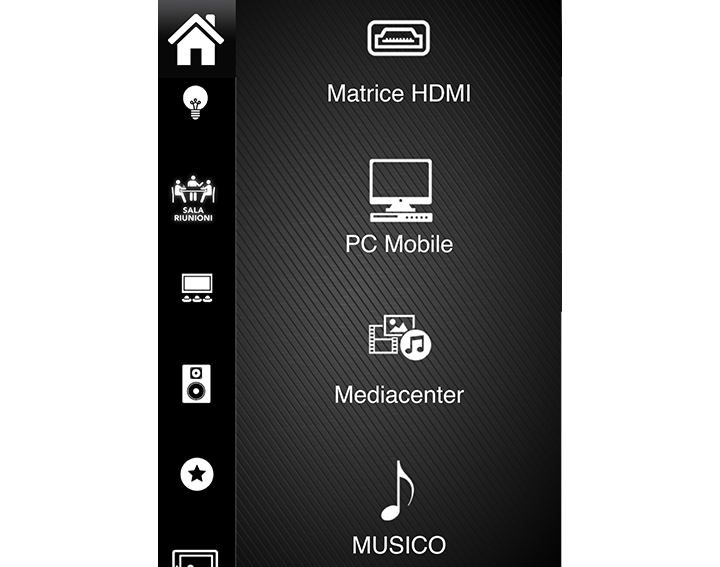

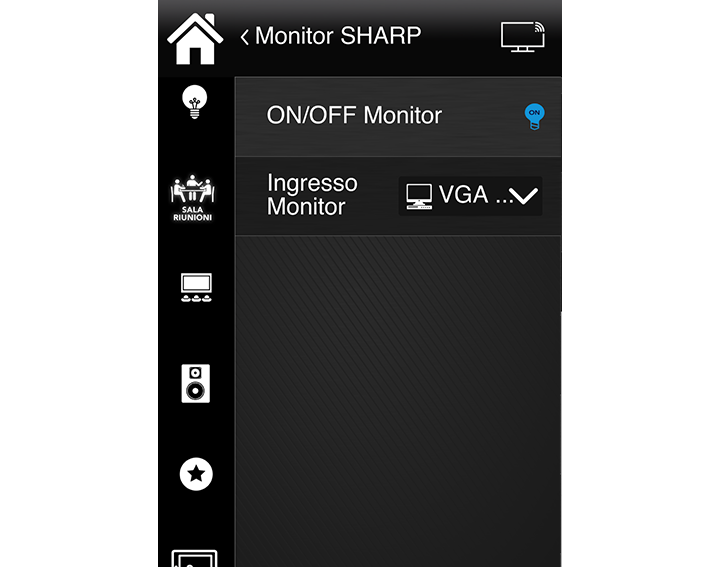

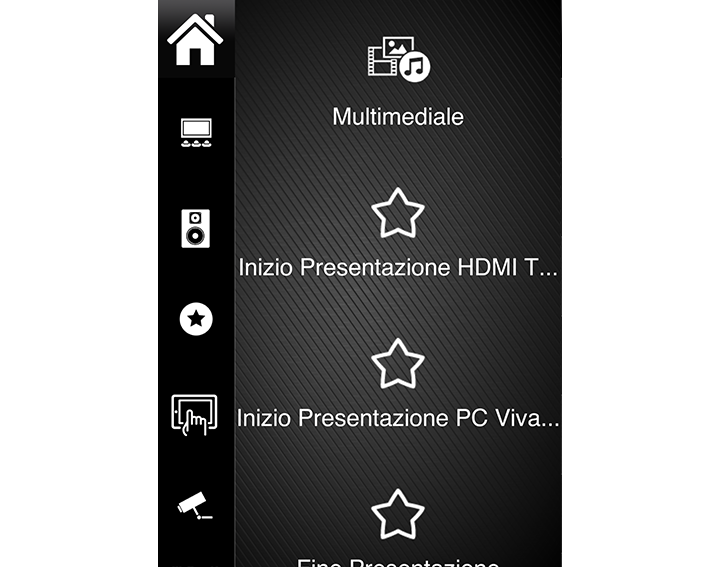

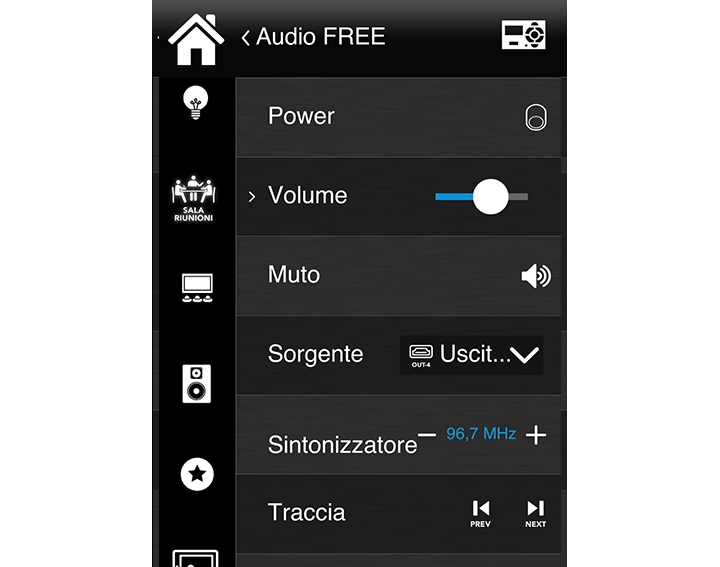

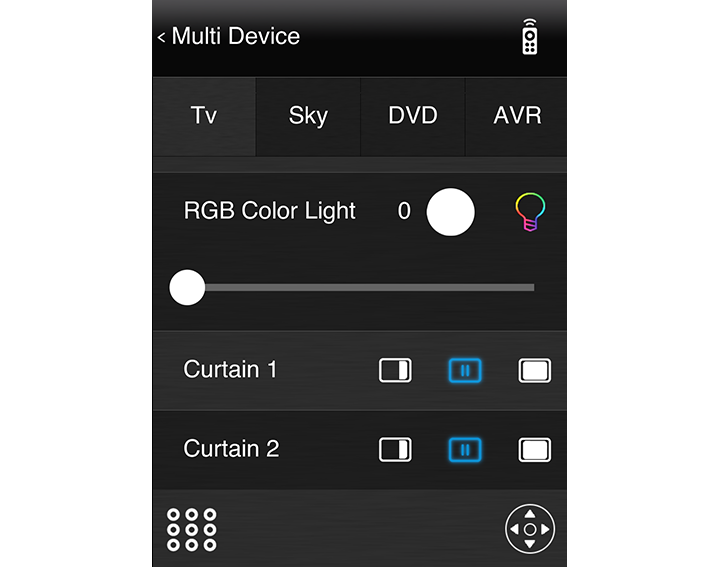

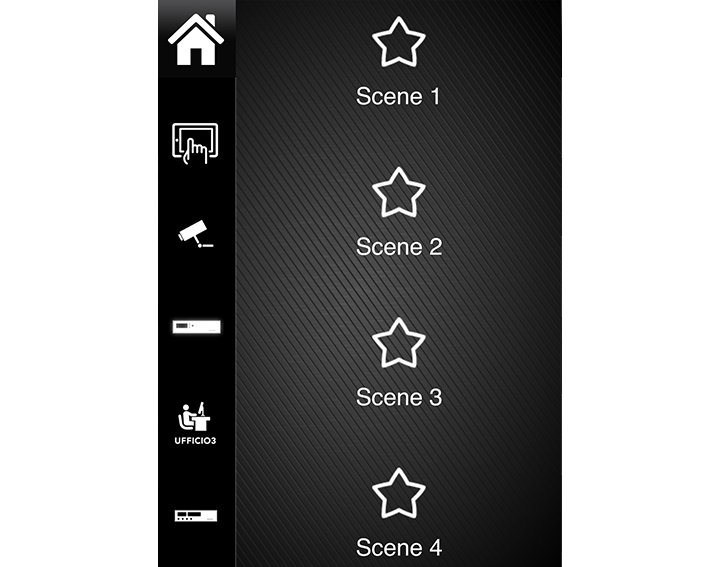

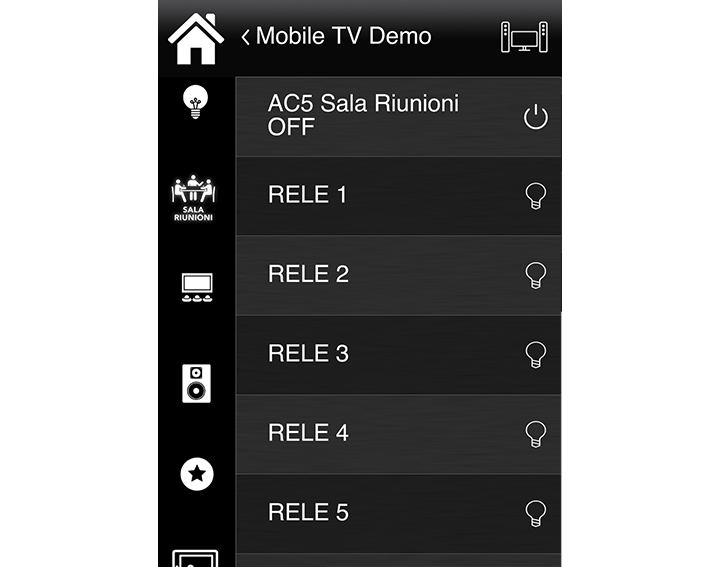

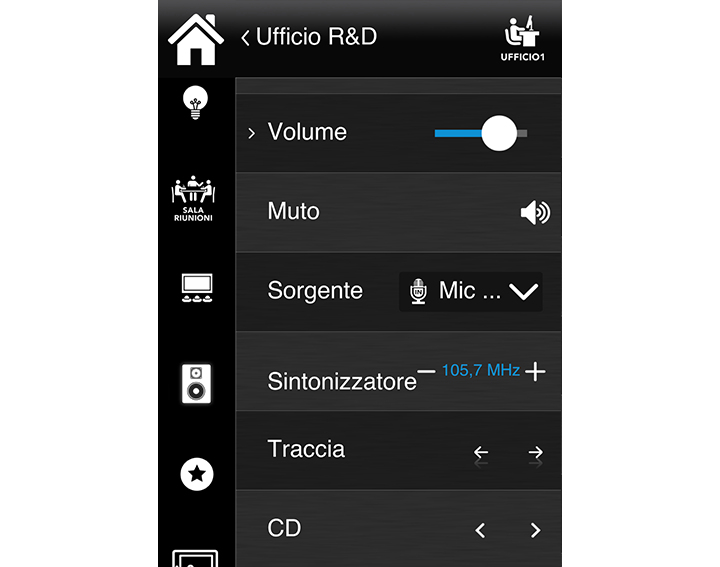

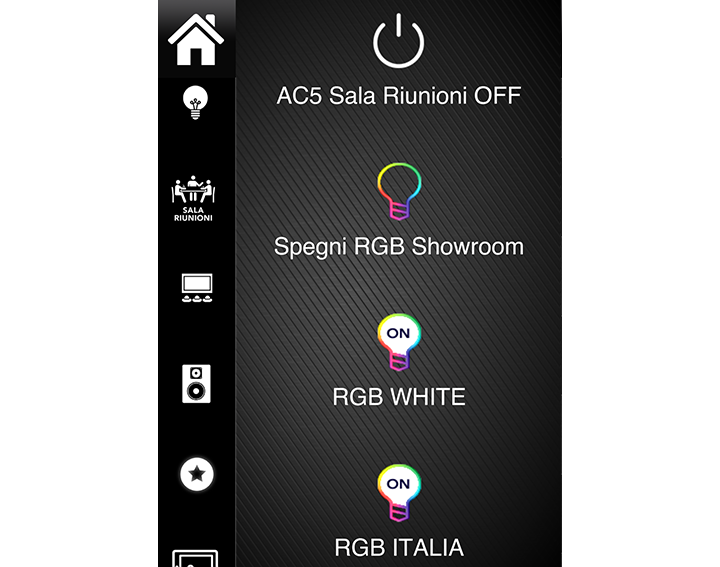

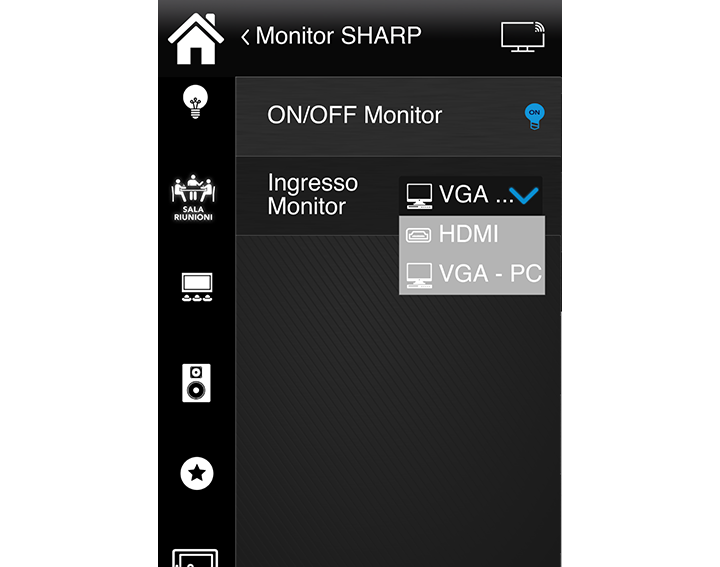

Controllable via Vivaldi iControl APP (iOS, Android, PC, Mac).

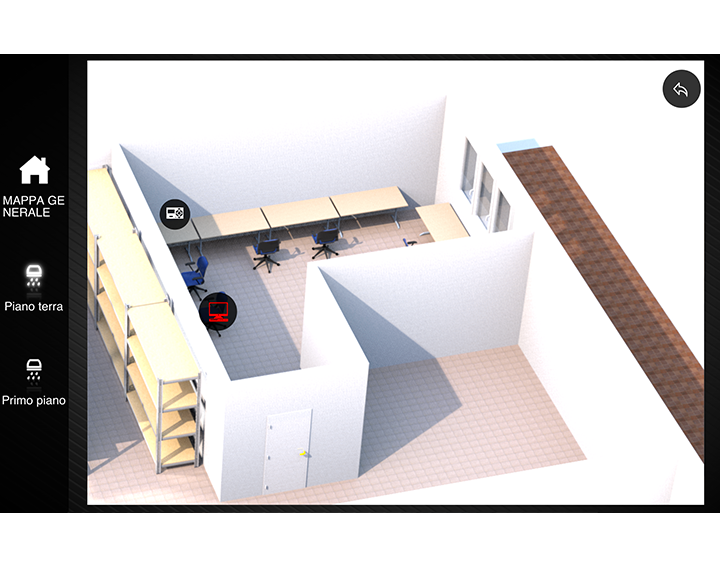

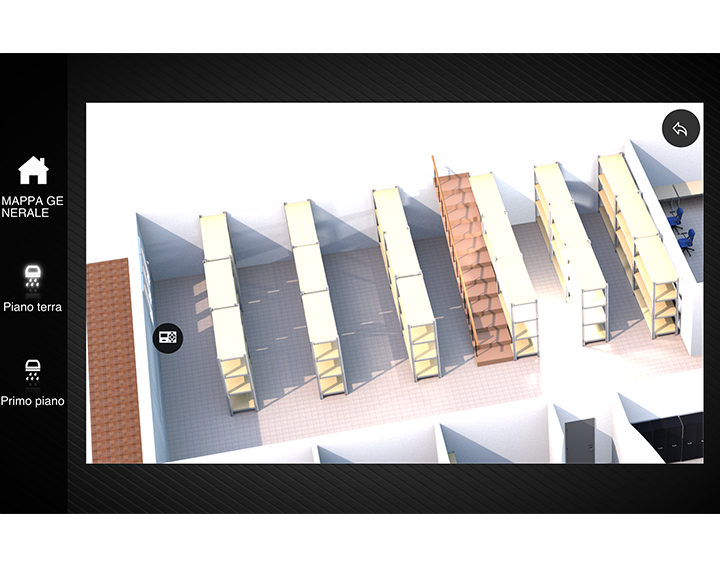

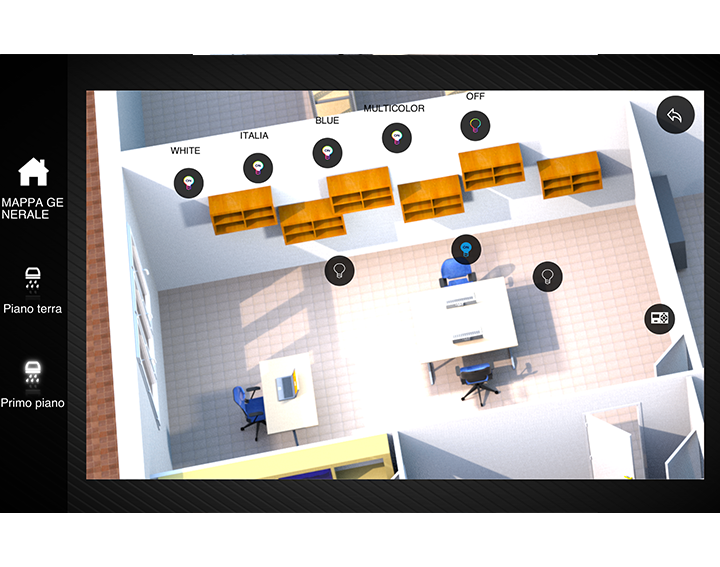

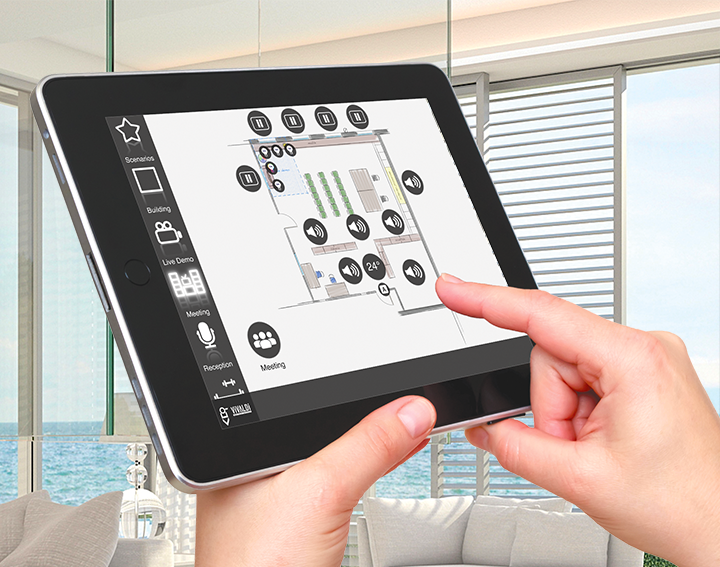

It is possible to connect up to 30 devices Vivaldi Giove FREENETMK3 per RS485 port (maximum 60 devices). Search and automatic creation of the graphical supervision interface. WebPage integration of external devices. Controls HDMI matrices with UDP protocol (through the use of Universal Gateway). Usable from the Vivaldi iCONTROL APP (iOS / Android / MAC / PC) downloadable from the relevant stores.
Permanent use license (does not expire in time).
- SUPPORTS VOICE CONTROL VIA GOOGLE HOME and AMAZON ALEXA (through specific program)
TECHNICAL INFO:
- Dimensions (WxHxD): 54x90x63 mm (3 DIN bar modules)
- Power supply: 12-24 VDC (Power supply Vivaldi Giove AL2B included)
- Certifications: RoHS, CE
SOFTWARE:
- APP control (iOS / Android / MAC / PC)
- Configuration software (PC / MAC)
PROTOCOLS MANAGED:
- Vivaldi ( Vivaldi Giove FREENETMK3 , Vivaldi Giove iFREEMK3.55 , Vivaldi Giove iFREEMK3.70 , Vivaldi Giove CA20 , Vivaldi Giove CA21 ).

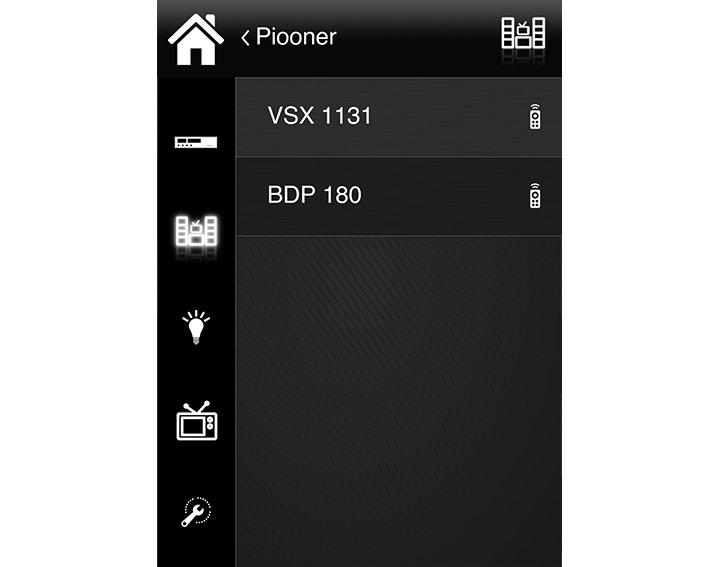

- Pioneer Receivers and BluRay.
- UDP Datagram.

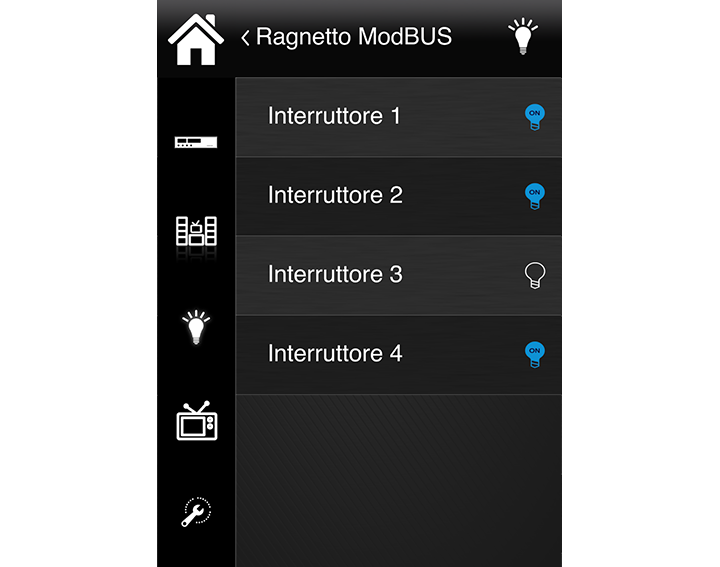

- ModBus RTU.

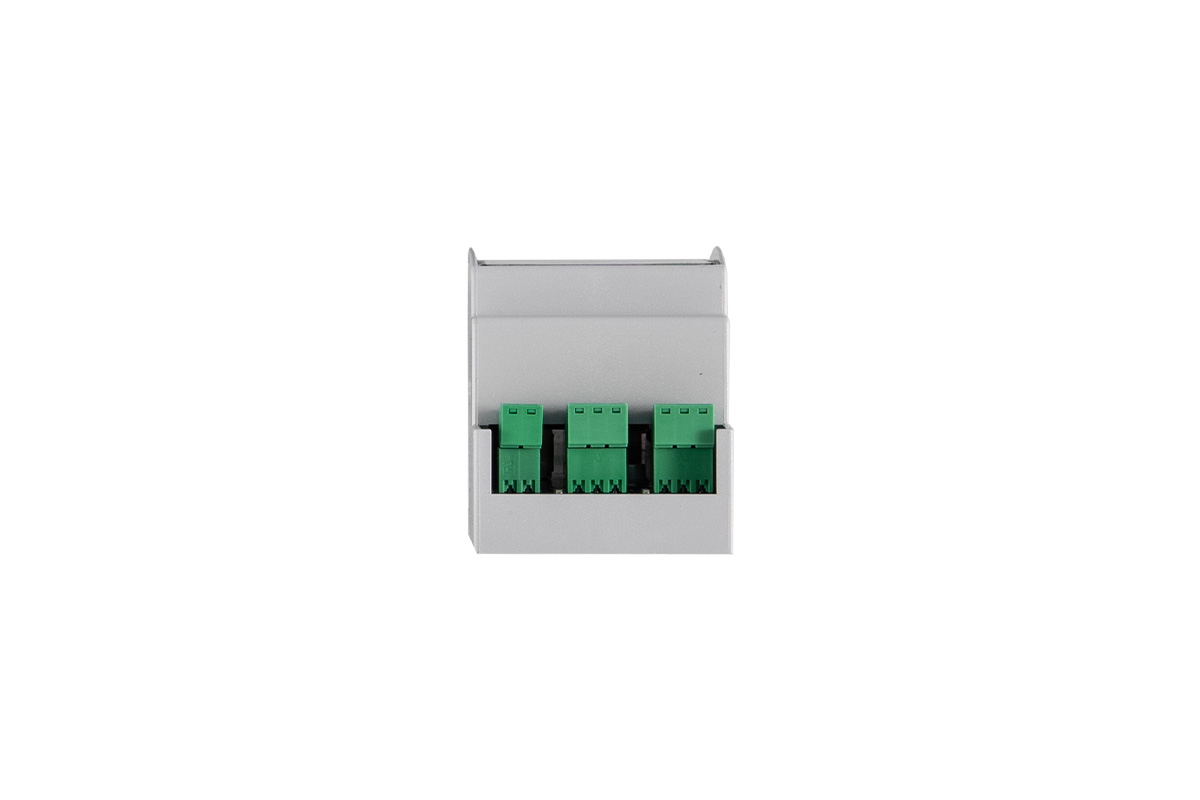

CONNECTIONS:
- 2x RS485
- 1x RJ45 (LAN)
- 1x 12-24 Vdc power supply

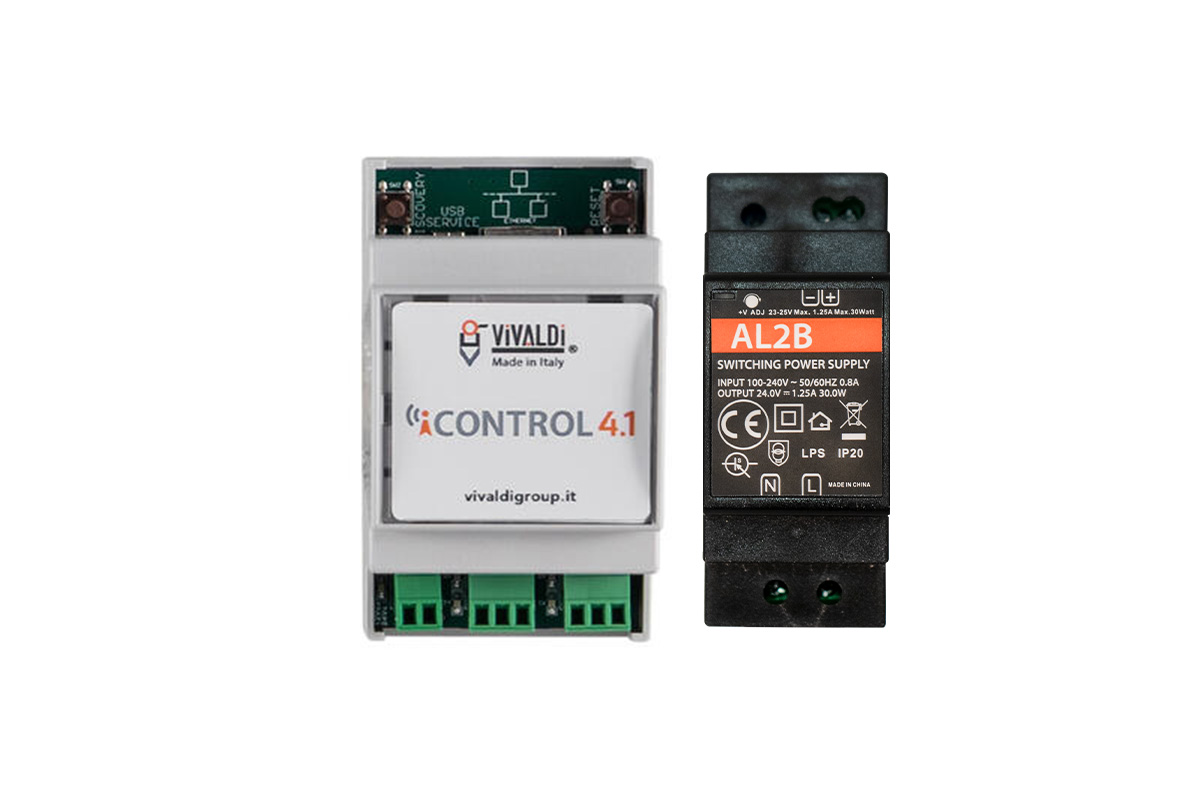

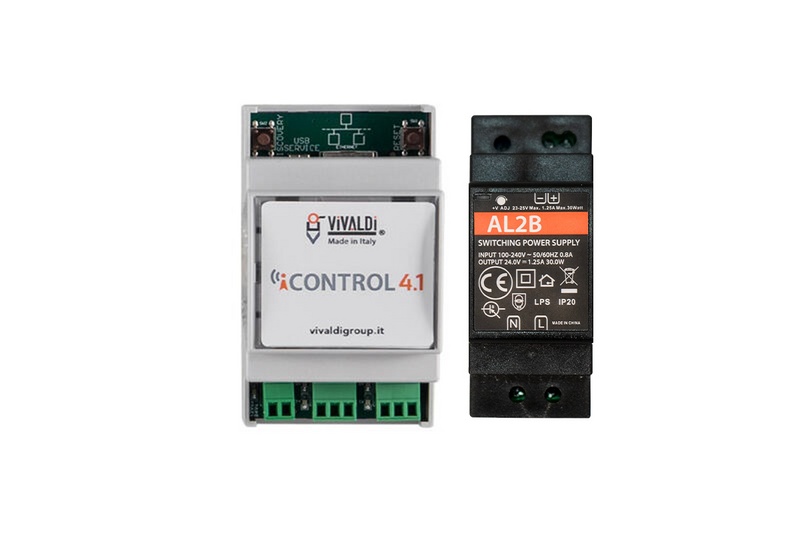

KIT INCLUDES:
- iCONTROL4.1L
- User manual
- Power supply Vivaldi Giove AL2B
- RJ45 patch cable
Request a commercial offer
Controllable via Vivaldi iControl APP (iOS, Android, PC, Mac).
It is possible to connect up to 30 devices Vivaldi Giove FREENETMK3 per RS485 port (maximum 60 devices). Search and automatic creation of the graphical supervision interface. WebPage integration of external devices. Controls HDMI matrices with UDP protocol (through the use of Universal Gateway). Usable from the Vivaldi iCONTROL APP (iOS / Android / MAC / PC) downloadable from the relevant stores.
Permanent use license (does not expire in time).
- SUPPORTS VOICE CONTROL VIA GOOGLE HOME and AMAZON ALEXA (through specific program)
TECHNICAL INFO:
- Dimensions (WxHxD): 54x90x63 mm (3 DIN bar modules)
- Power supply: 12-24 VDC (Power supply Vivaldi Giove AL2B included)
- Certifications: RoHS, CE
SOFTWARE:
- APP control (iOS / Android / MAC / PC)
- Configuration software (PC / MAC)
PROTOCOLS MANAGED:
- Vivaldi ( Vivaldi Giove FREENETMK3 , Vivaldi Giove iFREEMK3.55 , Vivaldi Giove iFREEMK3.70 , Vivaldi Giove CA20 , Vivaldi Giove CA21 ).
- Pioneer Receivers and BluRay.
- UDP Datagram.
- ModBus RTU.
CONNECTIONS:
- 2x RS485
- 1x RJ45 (LAN)
- 1x 12-24 Vdc power supply
KIT INCLUDES:
- iCONTROL4.1L
- User manual
- Power supply Vivaldi Giove AL2B
- RJ45 patch cable
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
