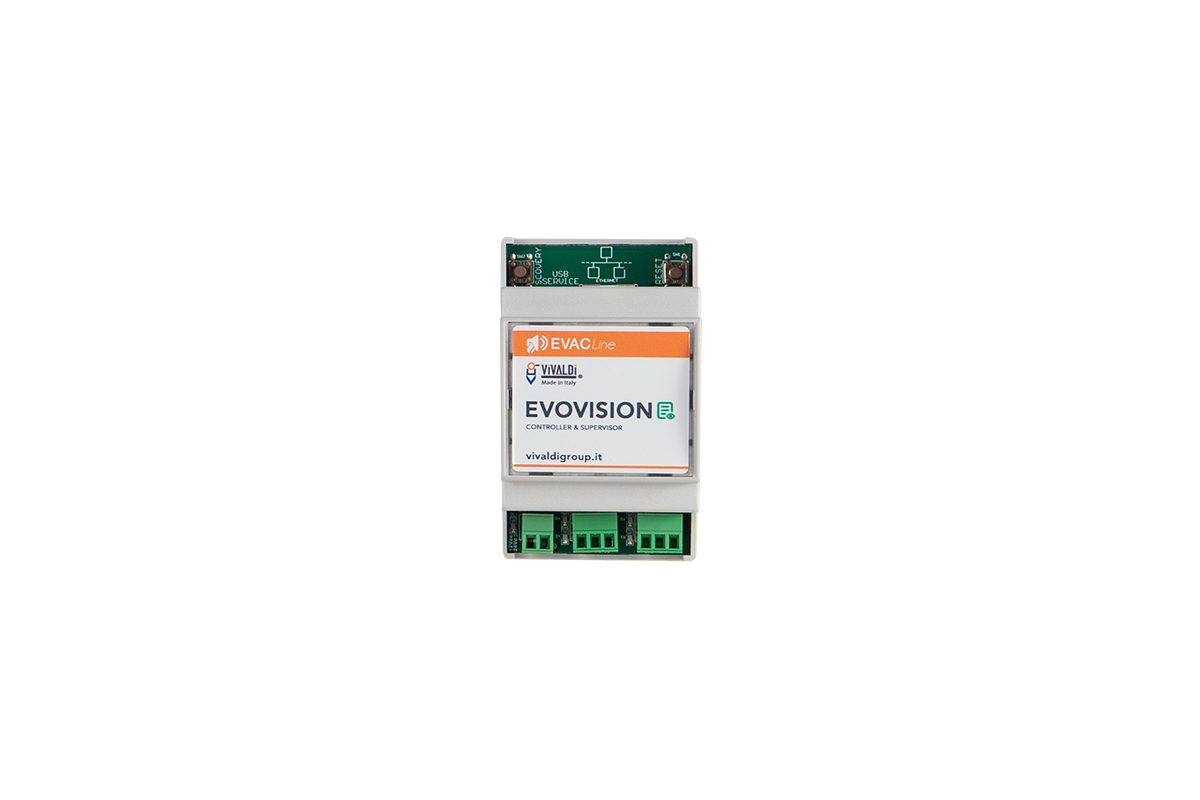

Vivaldi EN54 EVO.VISION

Innovative supervision device for EVAC EN54 systems.
Compatible with Vivaldi EN54 EVO500/2, Vivaldi EN54 EVO500/4, Vivaldi EN54 EVO500/6, Vivaldi EN54 EVO500M/2, Vivaldi EN54 EVO500M/4, Vivaldi EN54 EVO500M/6, Vivaldi EN54 EVO1000M/4, Vivaldi EN54 EVO1000M/6, Vivaldi EN54 EVO+Master
It allows the control of Vivaldi EN54 FREESOURCEMK3 easily from Smartphone and Tablet (iOS / Android) or PC (Windows / MacOSX).

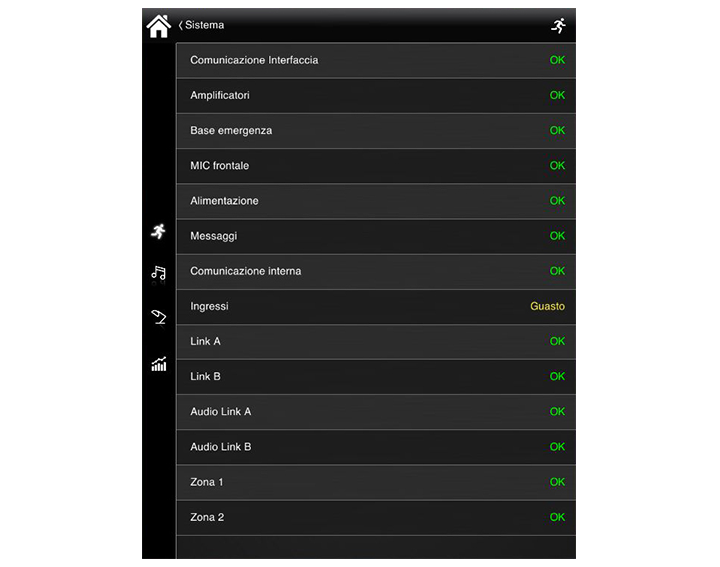

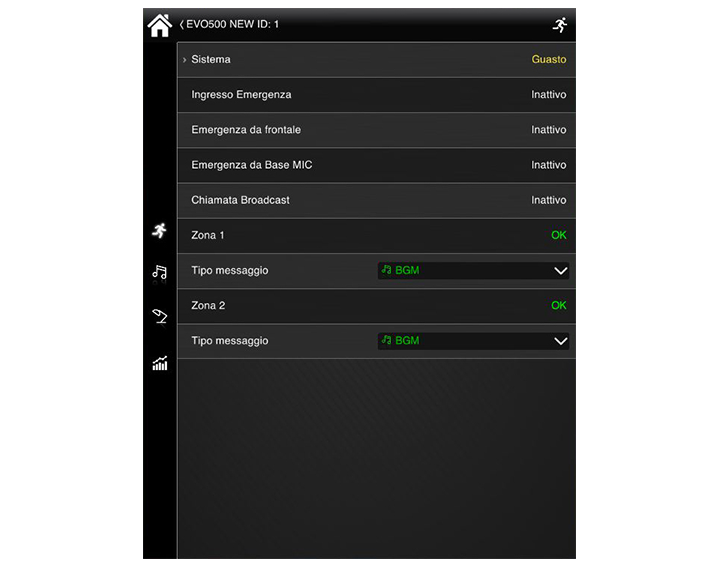

Receive feedbacks and notifications on system status through Vivaldi EN54 EVO.BRIDGE (ModBus RTU).
Pre-programming included, customization on demand.
Zones Auto-addressing

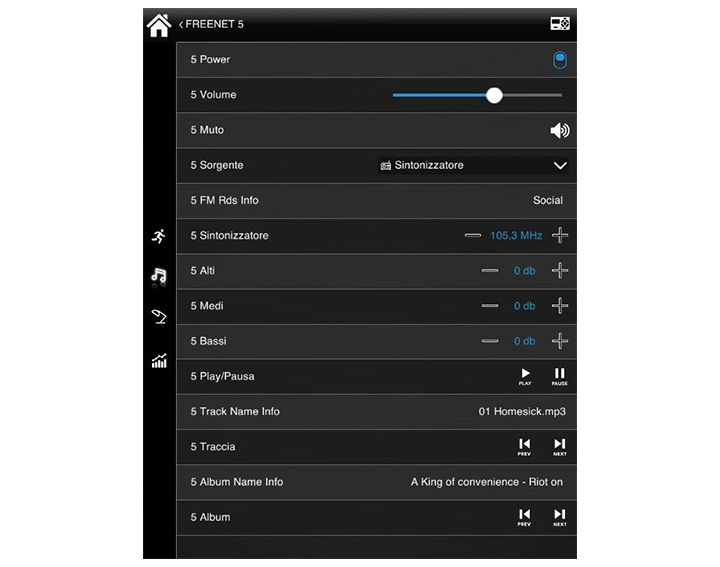

Example of actions on Vivaldi EN54 FREESOURCEMK3:
- Switching on / off
- Volume adjustment
- Tone adjustment (EQ)
- FM Tuner frequency change
- Source change
- Track Change / Album (USB reader) integrated in Vivaldi EN54 FREESOURCEMK3
- Management of selective microphone calls (intercom)

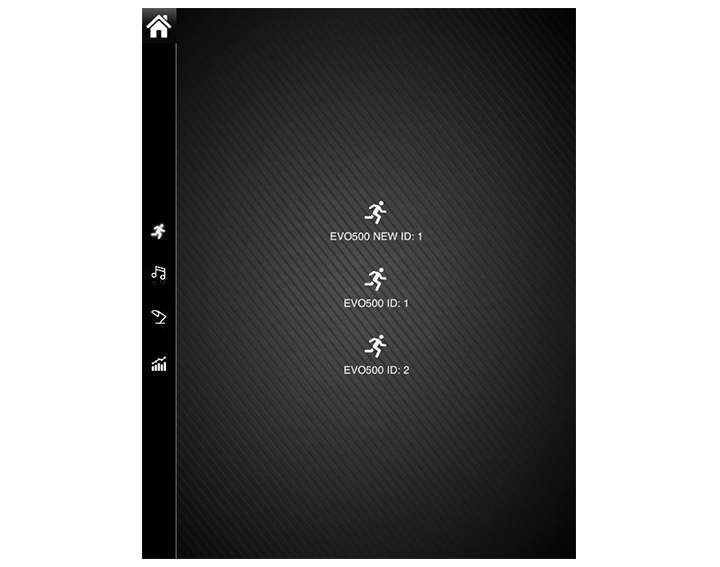

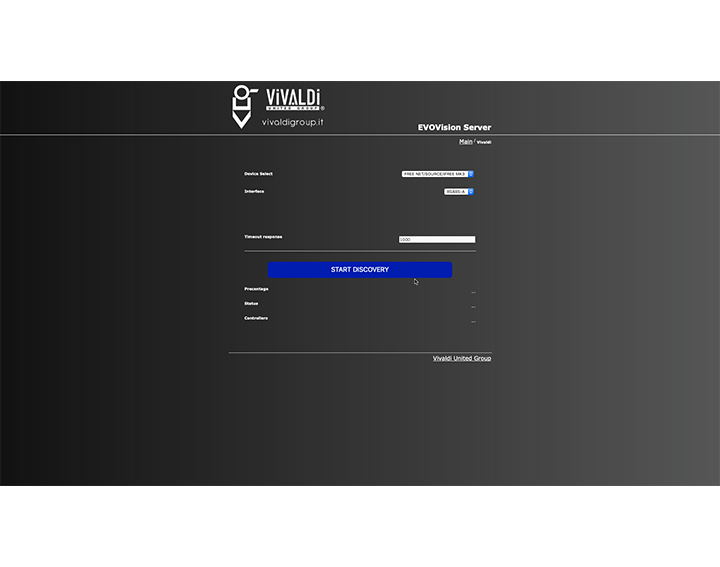

- Auto-search for zone modules Vivaldi EN54 FREESOURCEMK3 installed in the system, with automatic creation of a basic interface
Customizable graphic interfaces through specific programming (Vivaldi Giove My6).

Technical info:

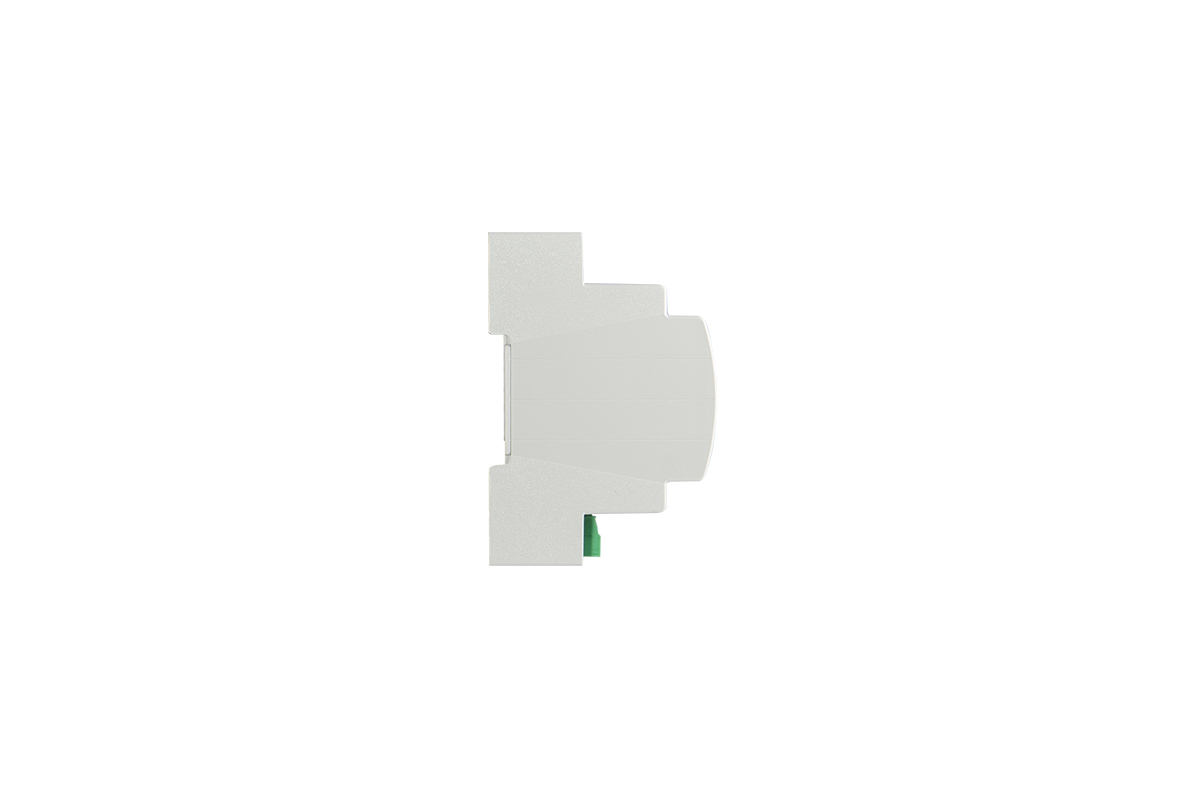

- Size (WxHxD): 54x90x63 mm (3 DIN bar modules)
- Power supply via Vivaldi Giove AL2B (not included).
- Certifications: RoHS, CE

SOFTWARE:

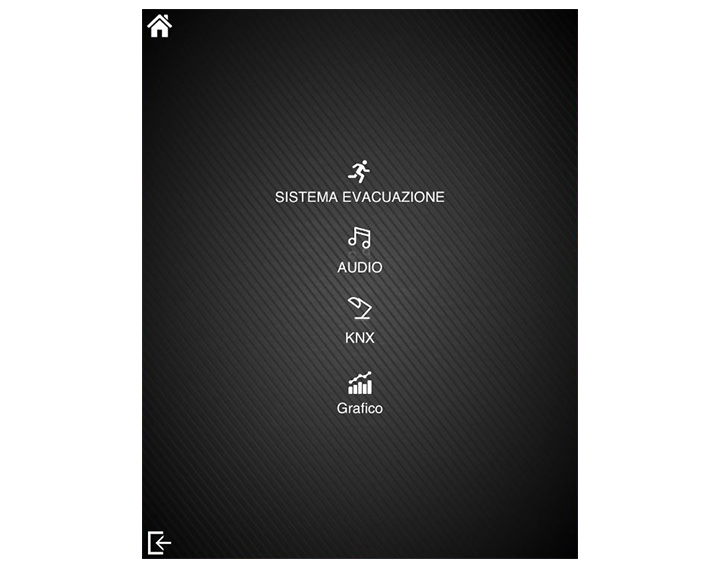

- Control APP (iOS / Android) is available on store (MAC/PC) available on Vivaldi site

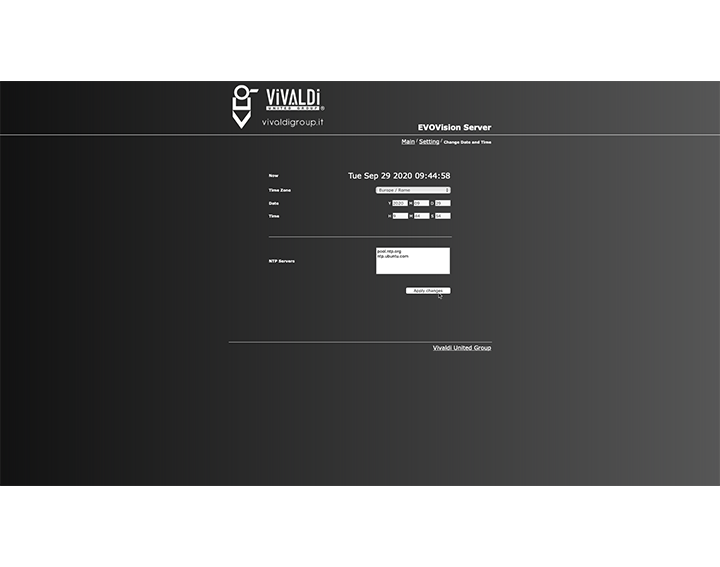

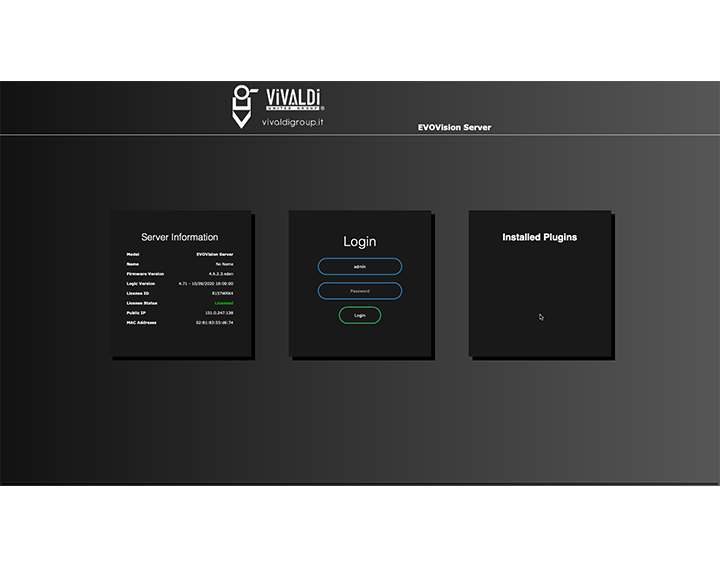

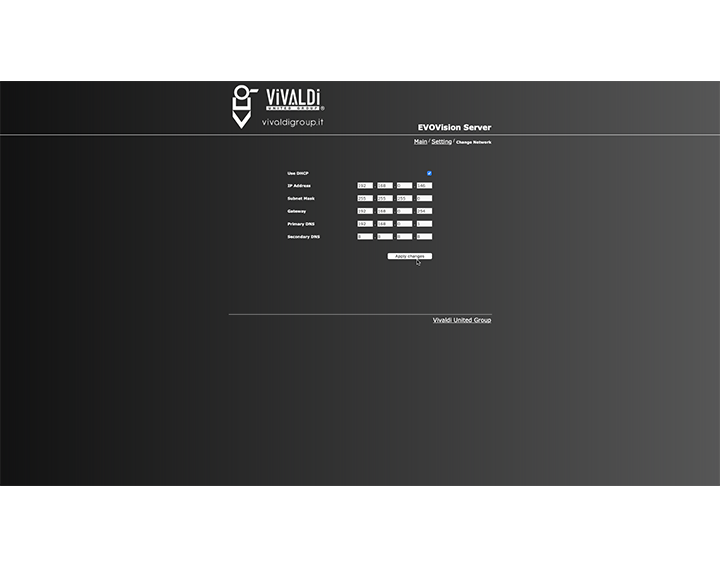

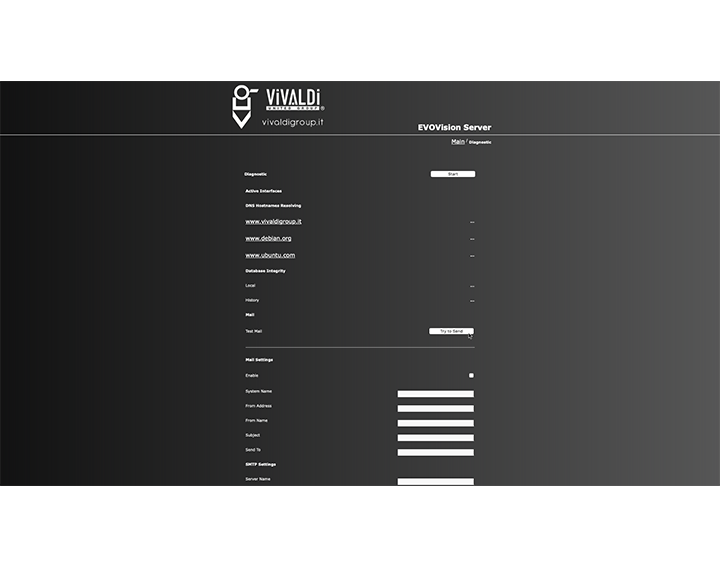

- Configuration software (WIN / MAC) available on Vivaldi site

PROTOCOLS MANAGED:
- Vivaldi EN54 FREESOURCEMK3
- ModBus (Vivaldi EN54 EVO.BRIDGE)

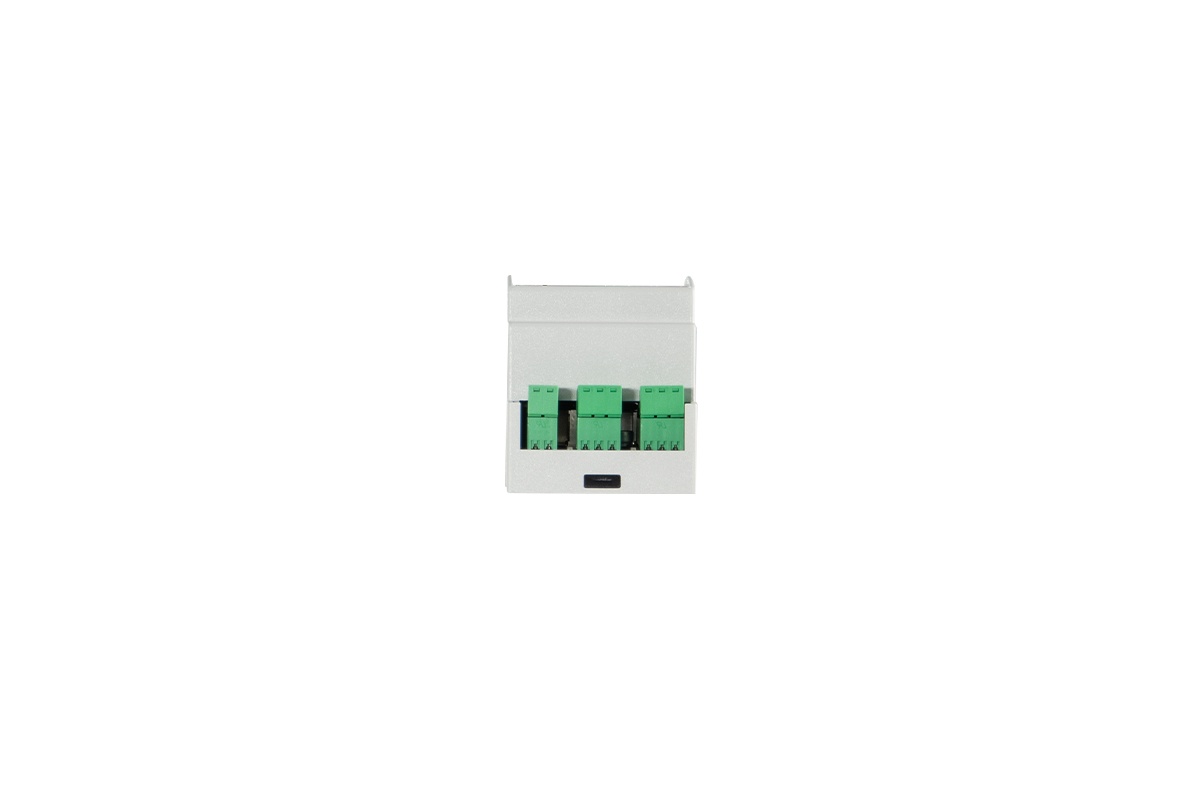

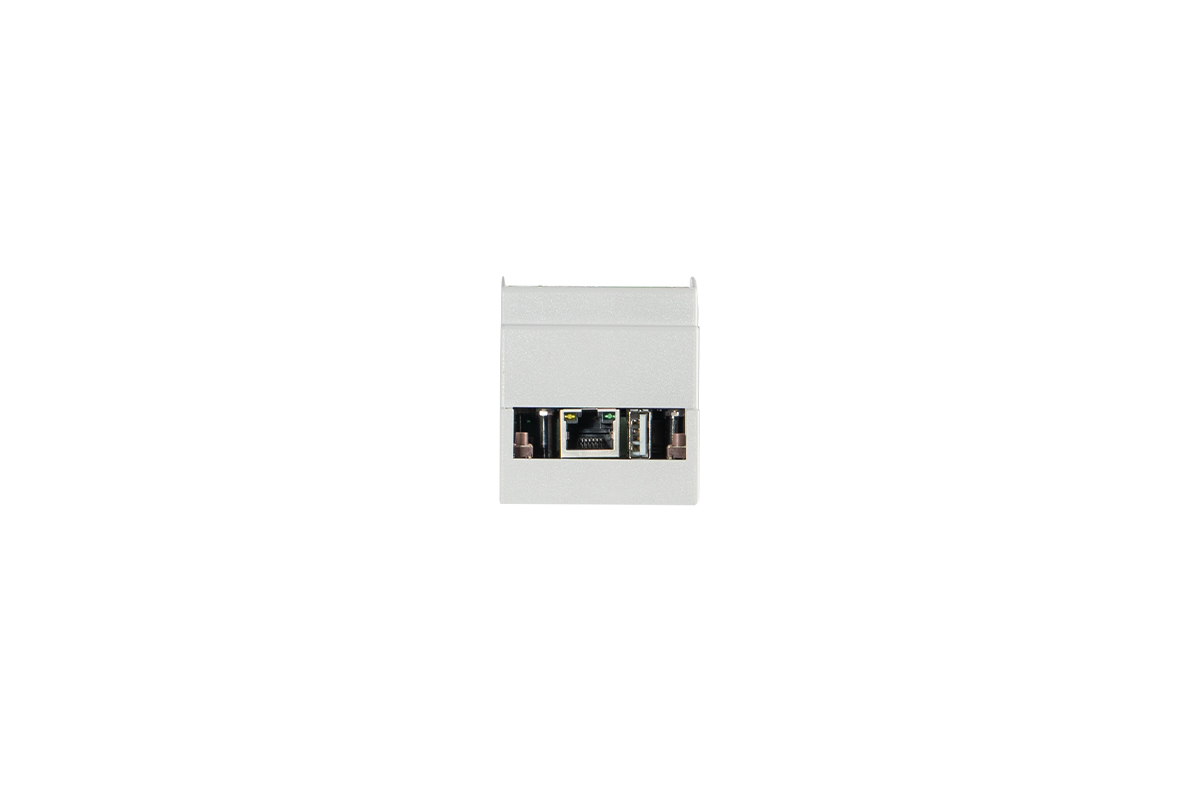

CONNECTIONS:
- 2x RS485 (1x Bus Vivaldi EN54 FREESOURCEMK3 - 1x Bus Vivaldi EN54 EVO.BRIDGE)
- 1x RJ45 (LAN)
- 1x 12-24 VDC power supply

SUPPLY:
External power supply 24Vdc. Absorption Max 1.5A @ 24VDC.

ENVIRONMENTAL REQUIREMENTS:
Operating temperature from +5 to + 55 ° C. Relative humidity from 5% to 95% (without condensation).

KIT INCLUDES:

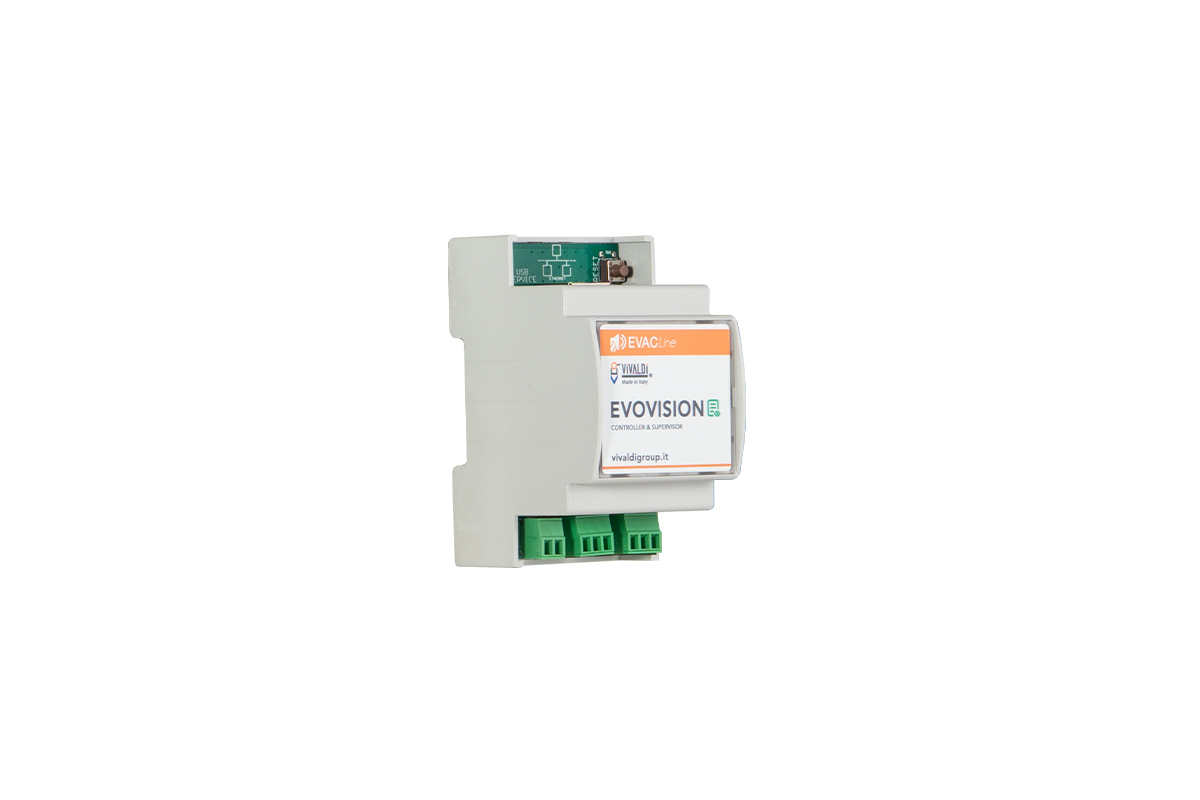

- EVOVISION (with DIN rail enclosure)
- Cat5E 1m Ethernet cable
- Paper manual

QUALITY CERTIFICATIONS: RoHS - CE
