Vivaldi Domotics iCONTROL4.0+
Smart Building control and supervision system, with app control (iOS & Android)
Multiprotocol device for the management of VIVALDI Home Automation-Audio-Video systems and the most popular protocols (KNX, Vimar By-Me, BTicino Legrand, Ave Domina Plus, ModBus RTU, IESS ...).
Unlimited number of integrable devices.
More than 500 accesses at the same time.
Permanent use license (no time limit).

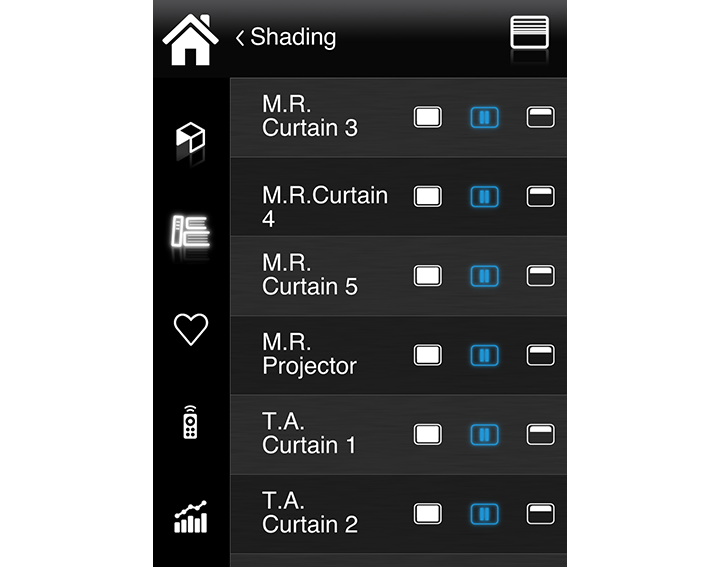

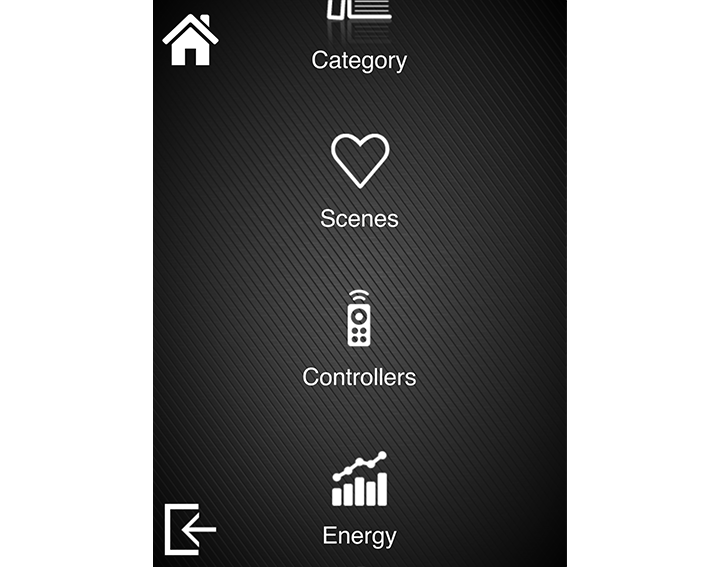

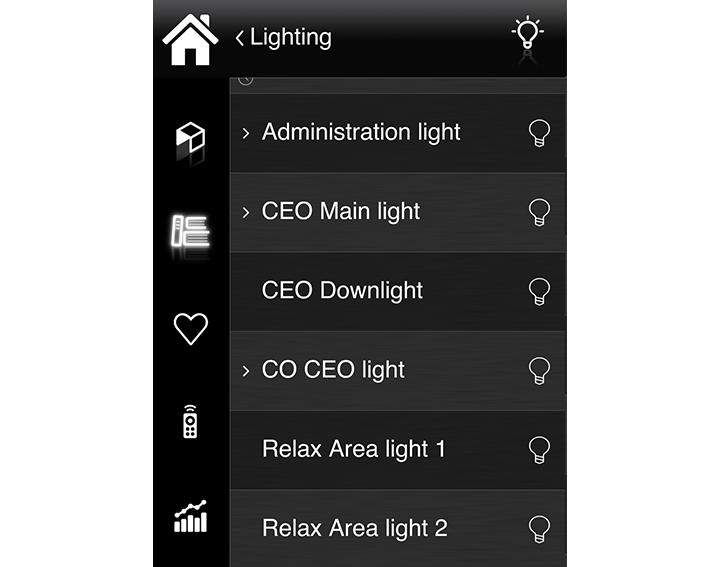

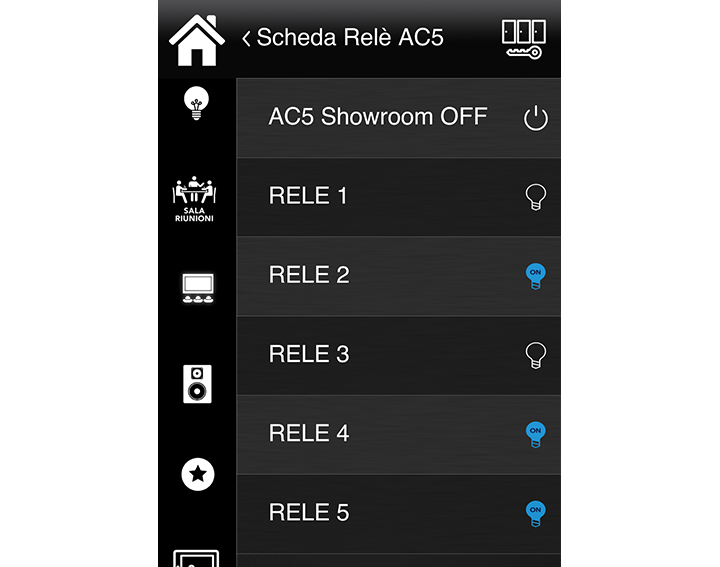

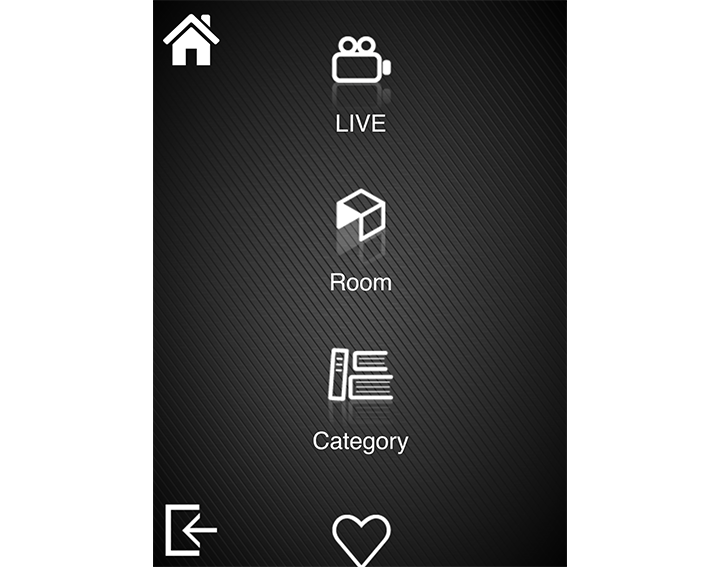

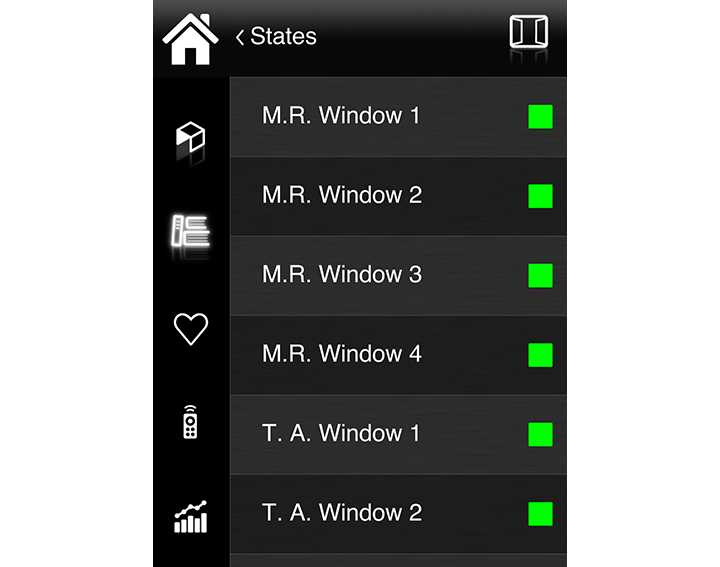

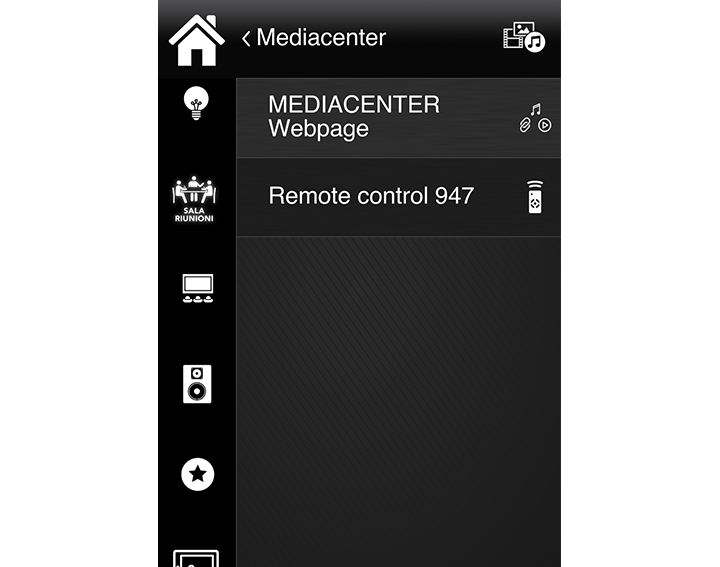

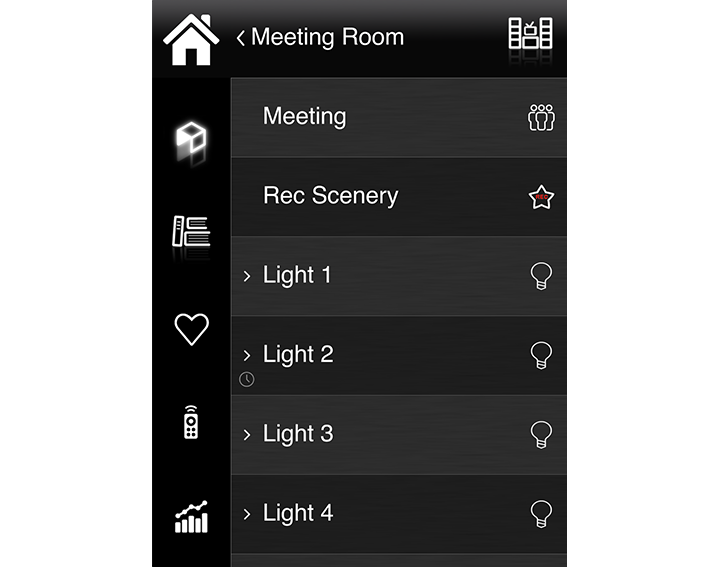

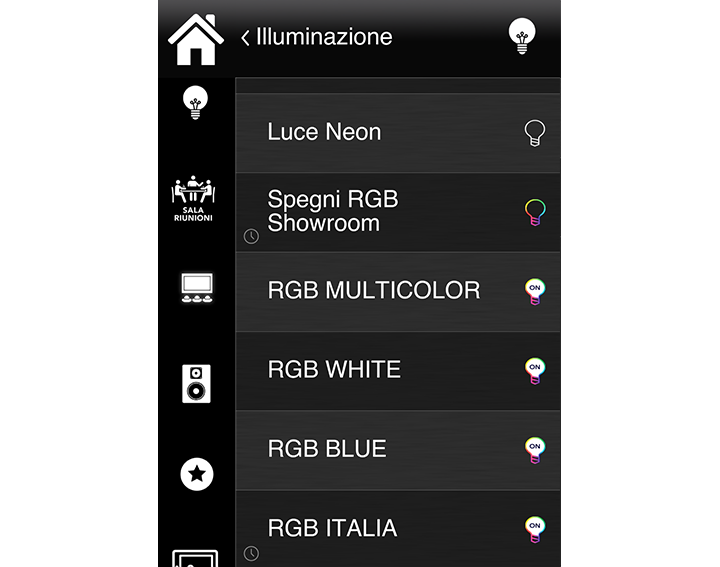

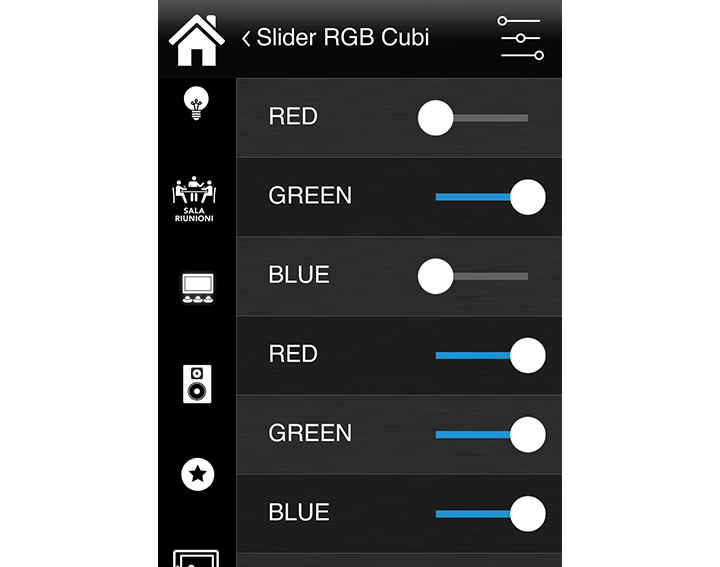

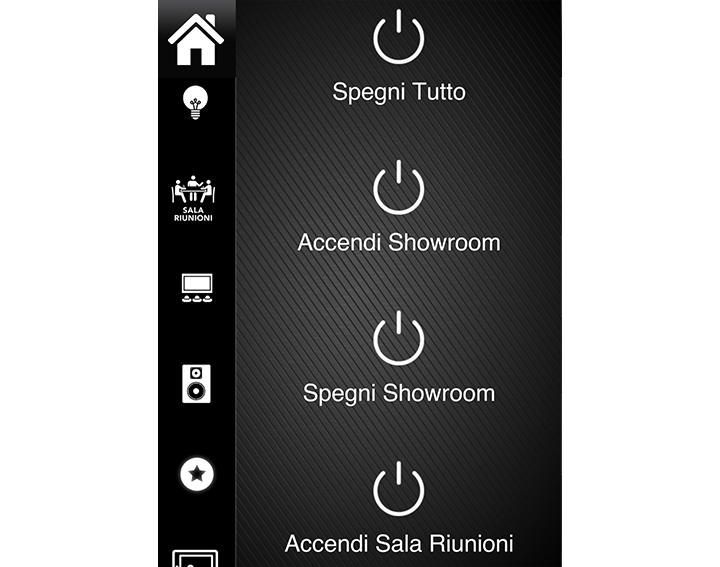

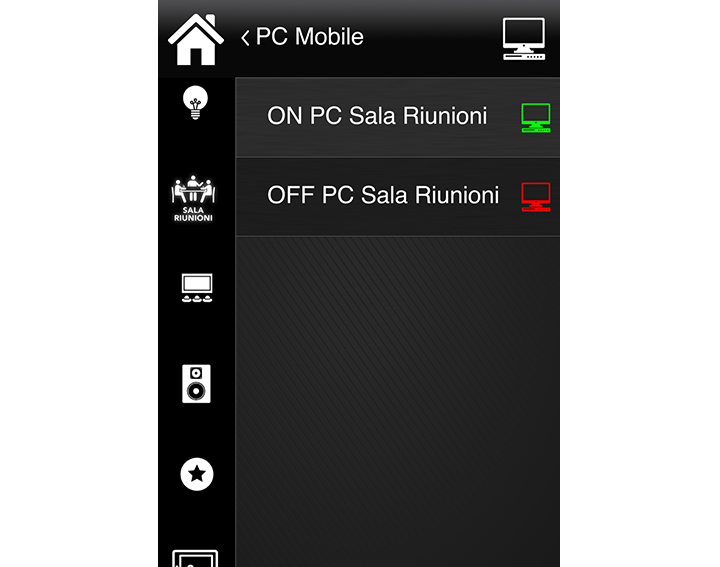

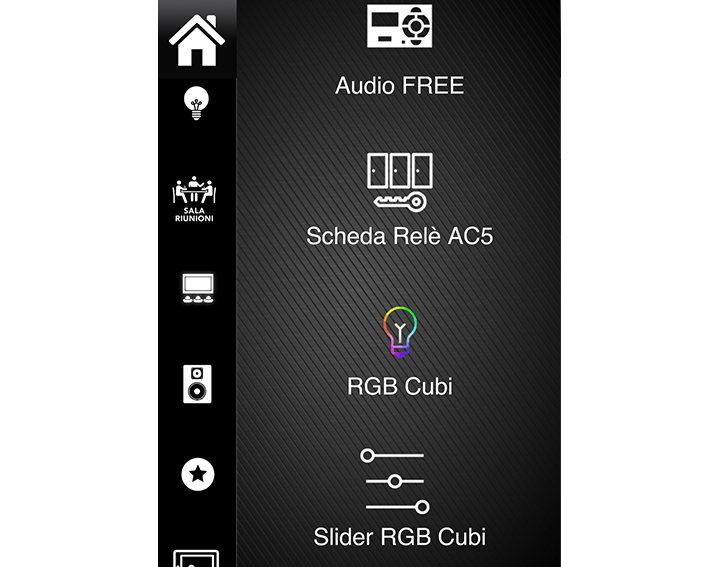

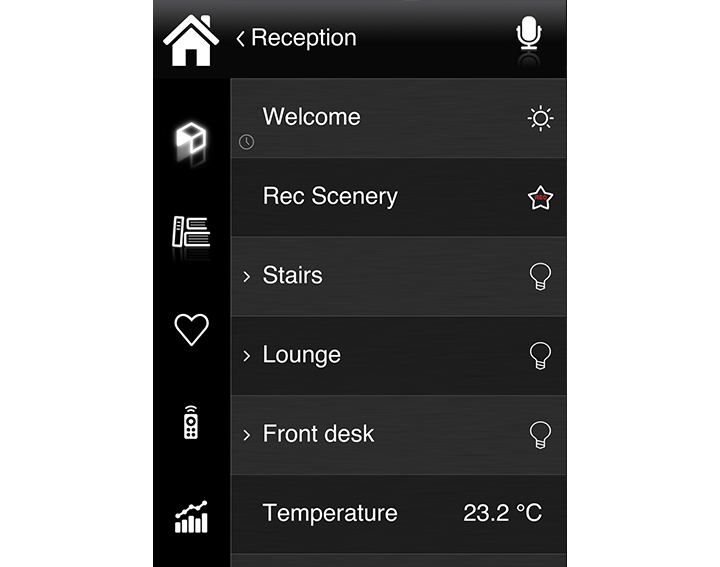

It allows the control of the various devices, with the advantage of being able to manage everything comfortably from your Smartphone and Tablet (iOS / Android) or PC (Windows / MacOSX):
- Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70,
- self-search of devices Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70 installed in the system, with automatic creation of a basic interface.

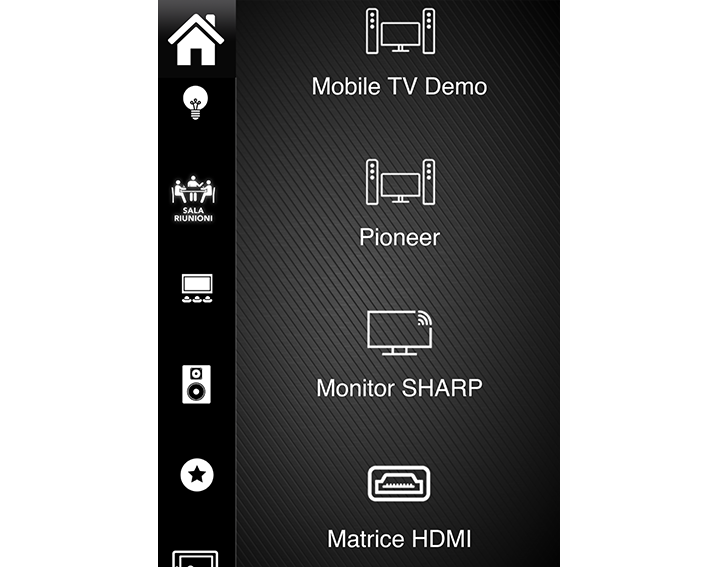

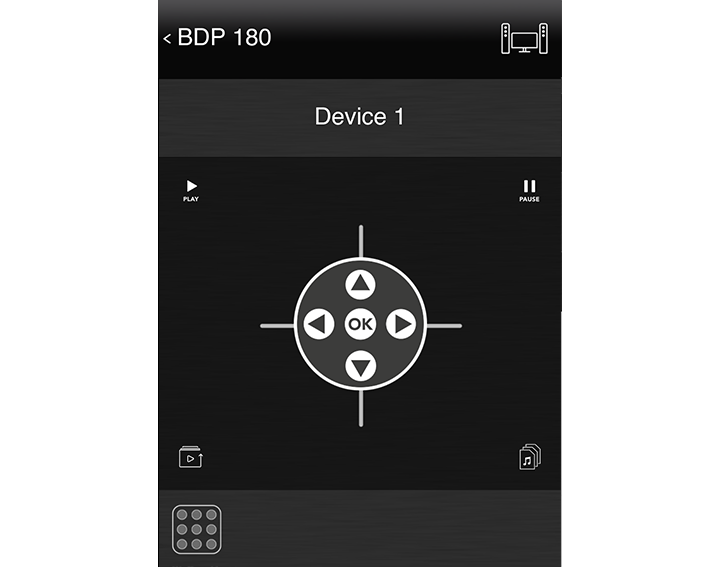

- HOME CINEMA SYSTEMS WITH RECEIVER AND BLU-RAY*
- SUPPORTS THE CONTROL OF HOME AUTOMATION ALREADY INSTALLED (KNX, VIMAR, BTICINO, AVE, IESS, etc.) *
- SUPPORTS VOICE CONTROL VIA GOOGLE HOME and AMAZON ALEXA*
Permanent use license (no time limit).
Example of actions on technological devices Vivaldi Giove Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70:

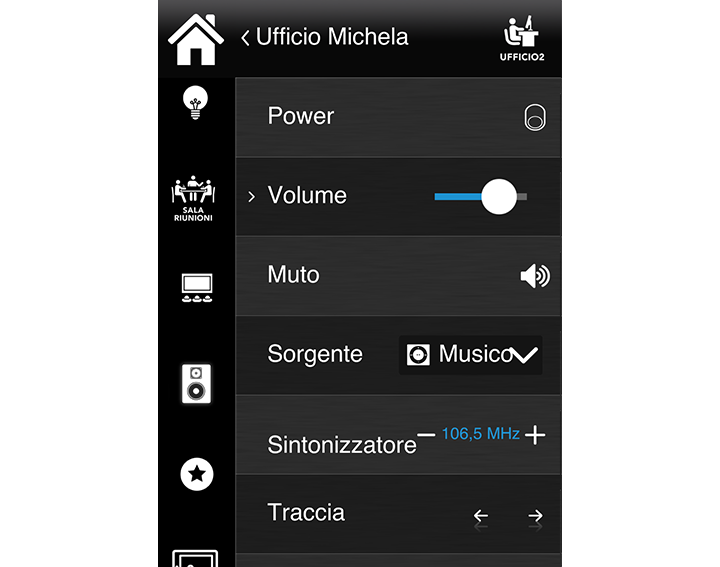

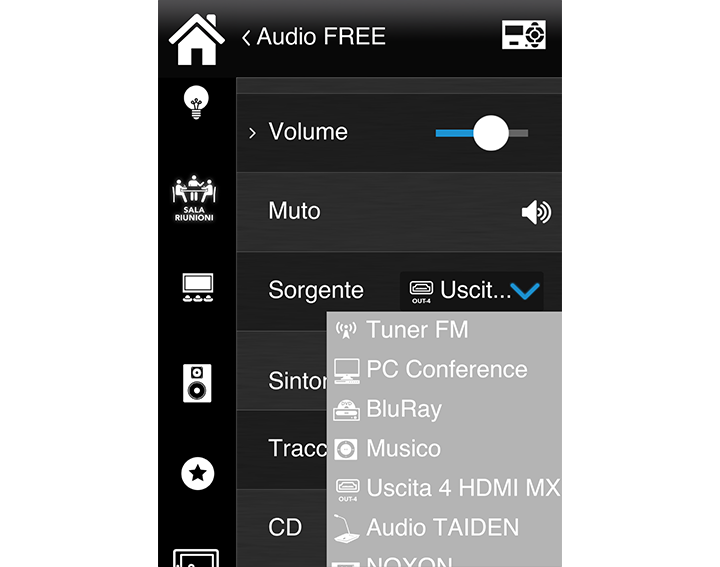

- On/Off, Volume adjustment, Tone adjustment
- FM Tuner frequency change, Source change
- Usb or BLUETOOTH player Track/Album change integrated in the Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70
- Management of selective microphone calls
Also:
- INSERTION WEB INTERFACE OF OTHER DEVICES e.g. Vivaldi Ulisse GRM1, Vivaldi Giove MUSICO

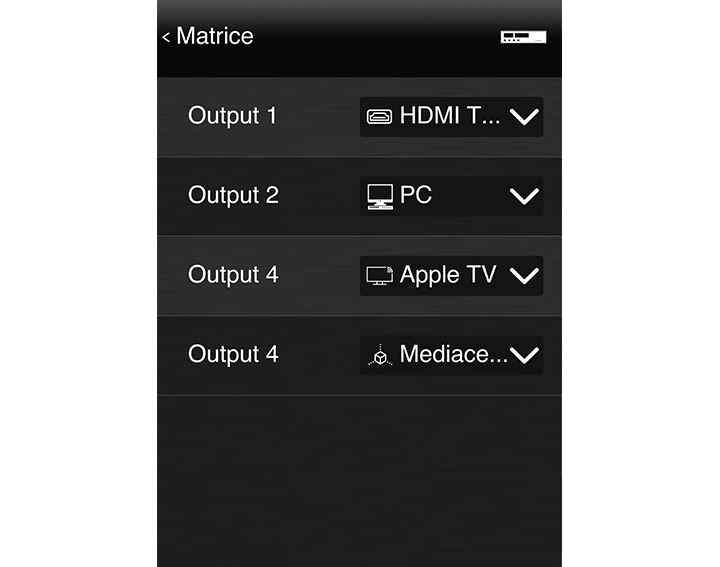

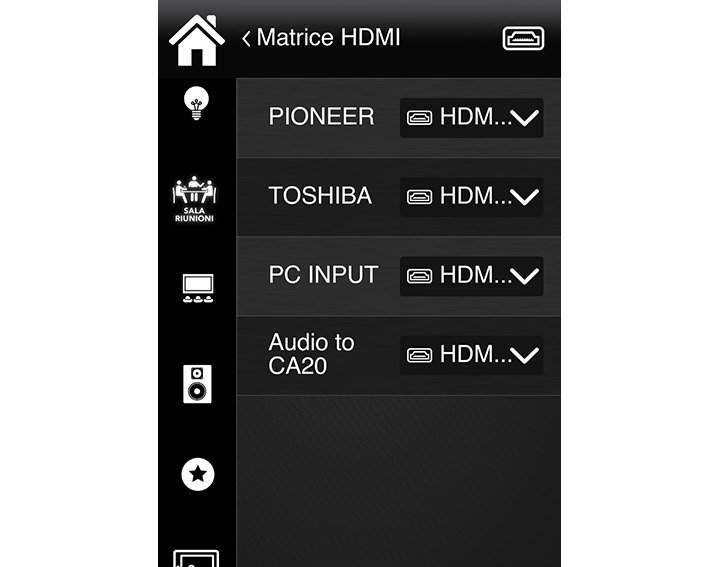

- HDMI video matrix control*

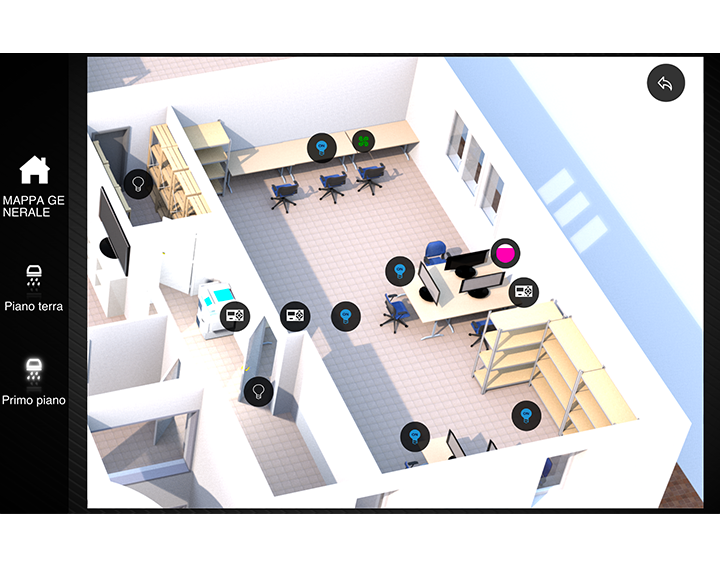

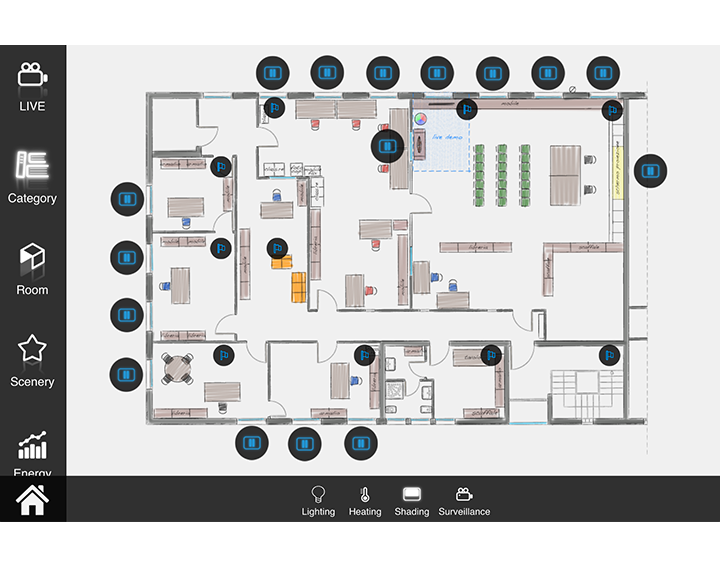

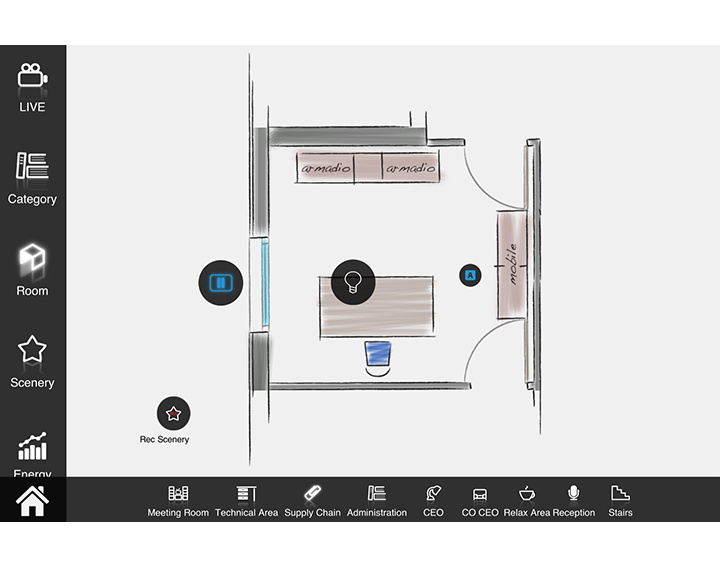

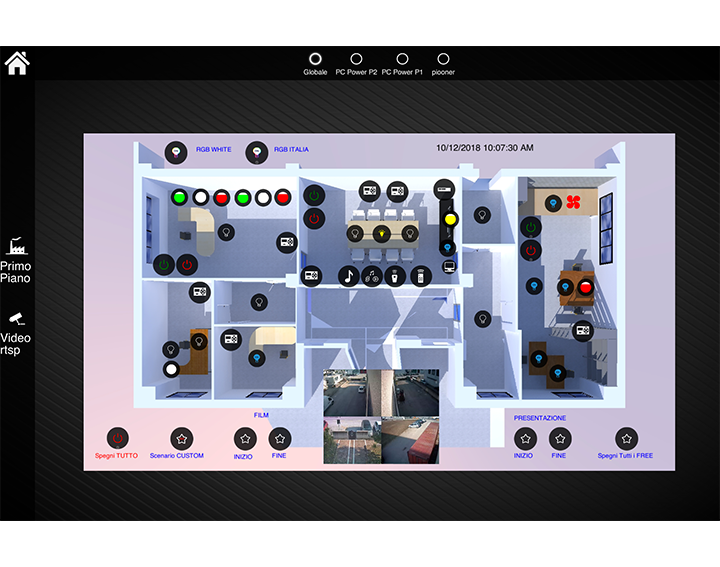

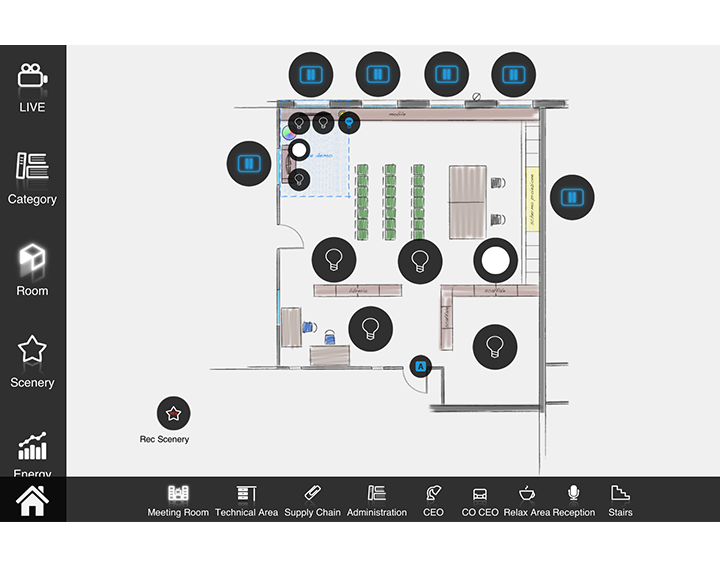

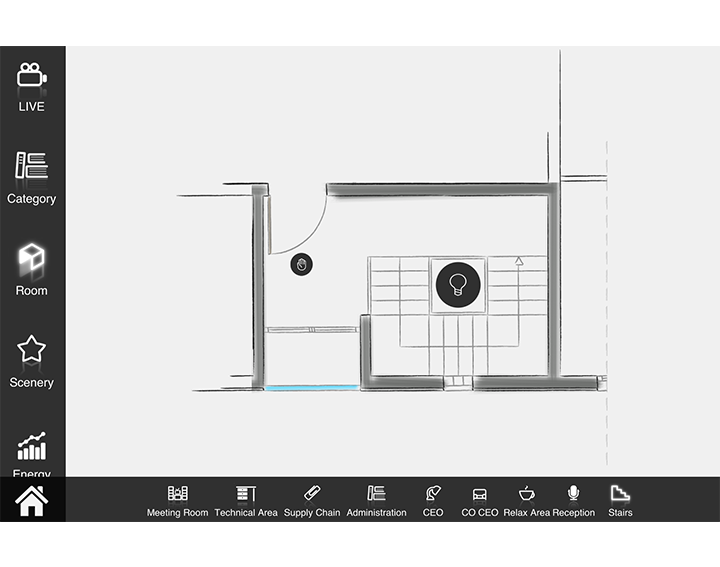

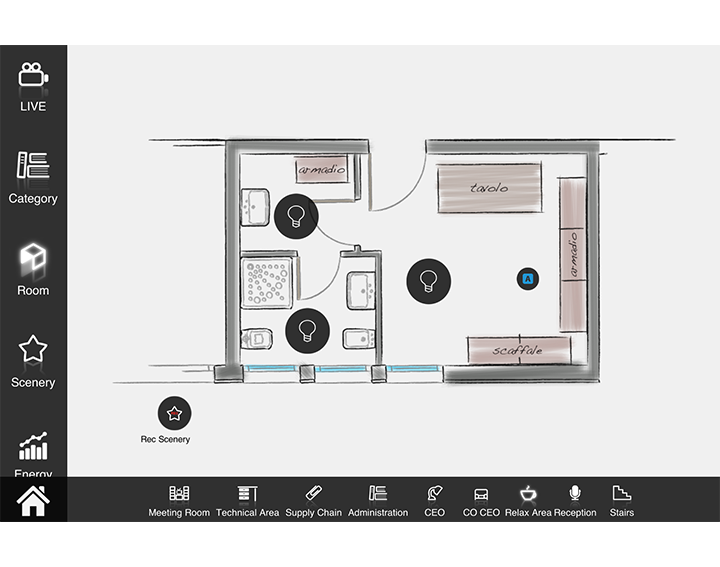

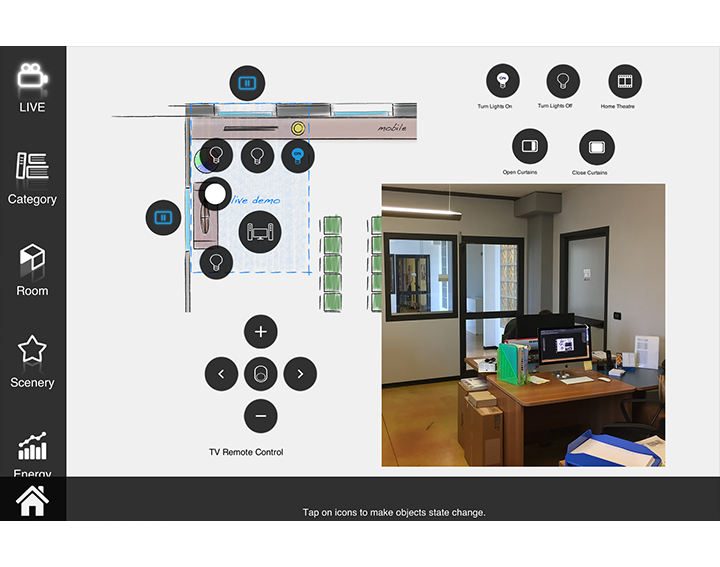

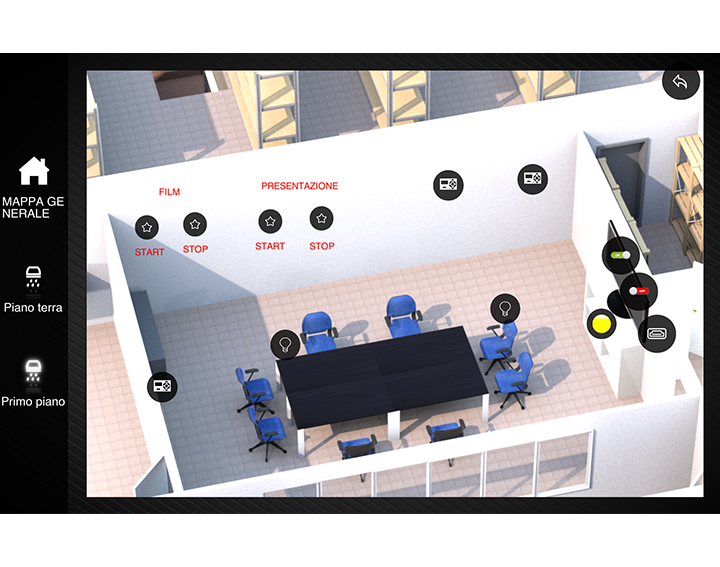

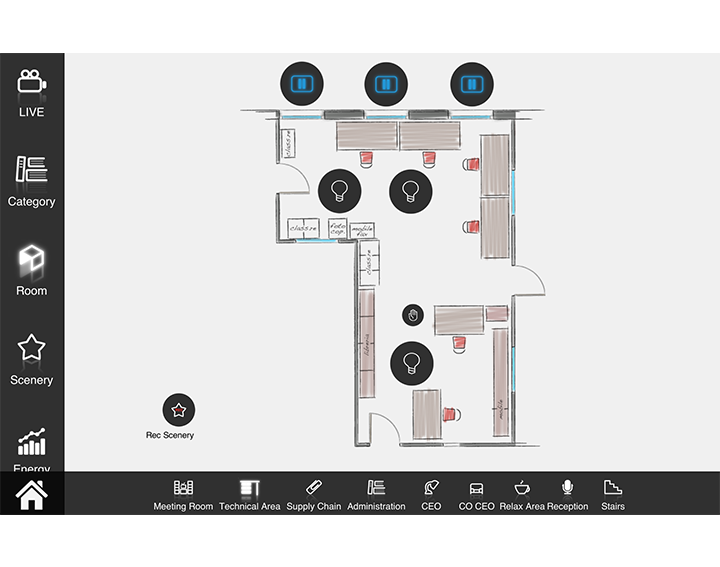

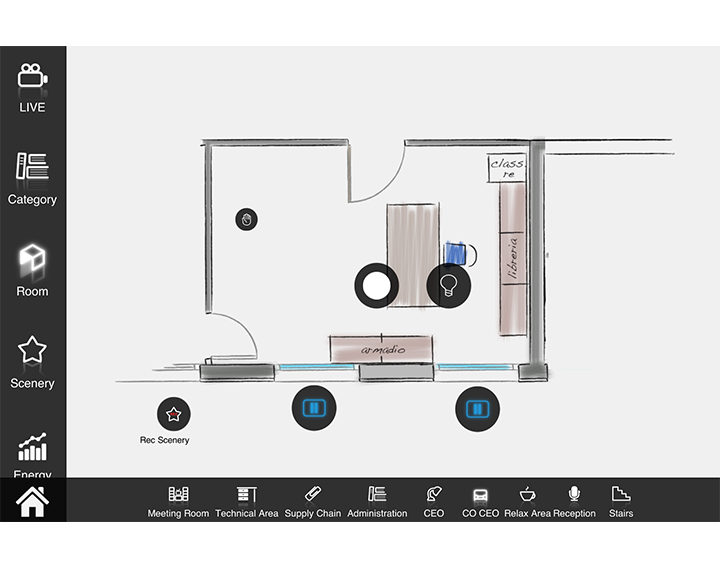

- Customizable graphic interfaces*
- provide Weather info to devices Vivaldi Giove FREENETMK3*
- provide room temperature and humidity info from an external home automation*
*through specific programming (Vivaldi Giove MY6)
Technical info :
- Size (WxHxD): 106x90x63 mm (WxHxD)
- Standard DIN 6 modules- Weight 0,187 Kg
- Power supply 24Vcc
- External power supply included 115/230Vac-24Vcc
- Compatibility: iOS/Android/Windows/MacOSX
- Certifications: RoHS, CE
COMPATIBILITY:

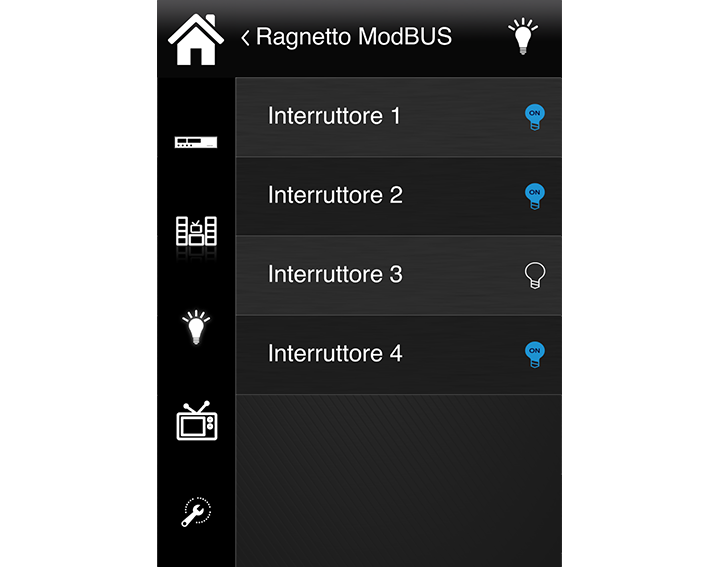

Home automation systems KNX, VIMAR, BTICINO, AVE, ModBUS TCP, ModBus RTU, ELMO, IESS, HTTP, TCP UDP, MQTT.
CONNECTIONS: Power supply 24Vdc; Ethernet 10/100; USB service; 2xRS232; 2xRS485; EIB/KNX bus port.
POWER SUPPLY: External power supply 24Vdc Vivaldi Giove AL2B (DIN rail). Max power consumption 15W.
ENVIRONMENTAL REQUIREMENTS: Operating temperature from +5 to +55° C. Relative humidity from 5% to 95% (non-condensing).
KIT COMPOSED OF:
- iCONTRO4.0+
- Power supply ( Vivaldi Giove AL2B )
- 1mt Cat5E Ethernet cable
- Quick Start paper
- 3 resistors 120 Ohm for BUS RS485
Other functions possible with custom programming:

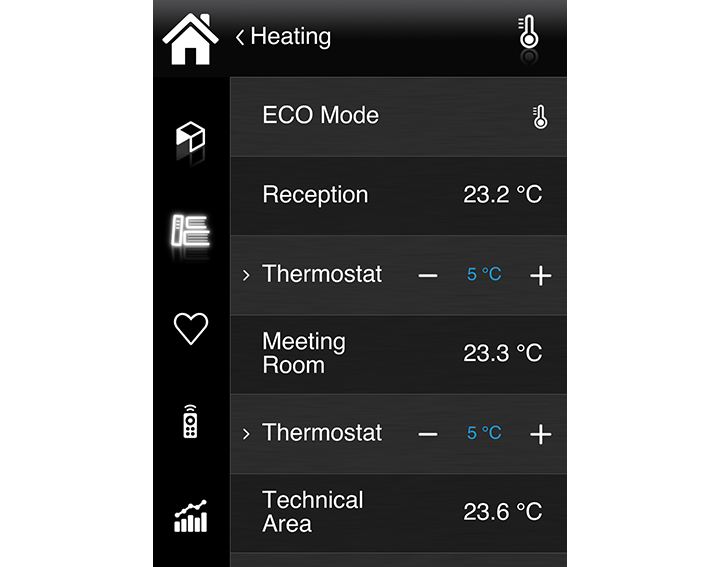

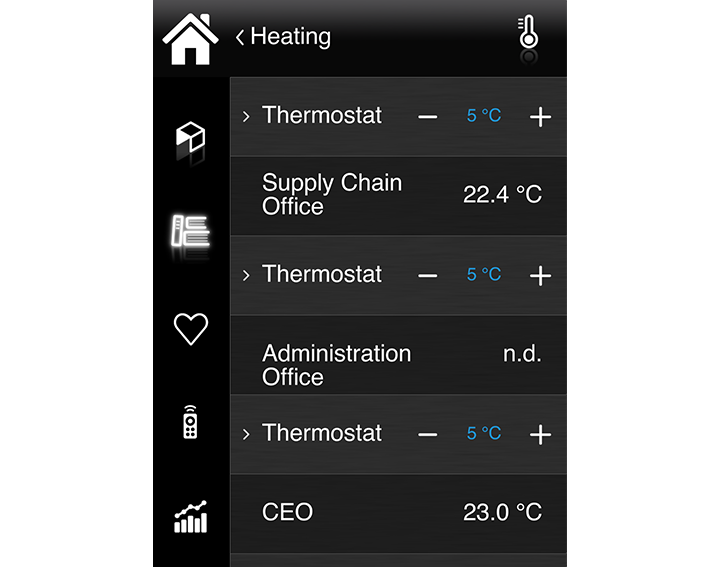

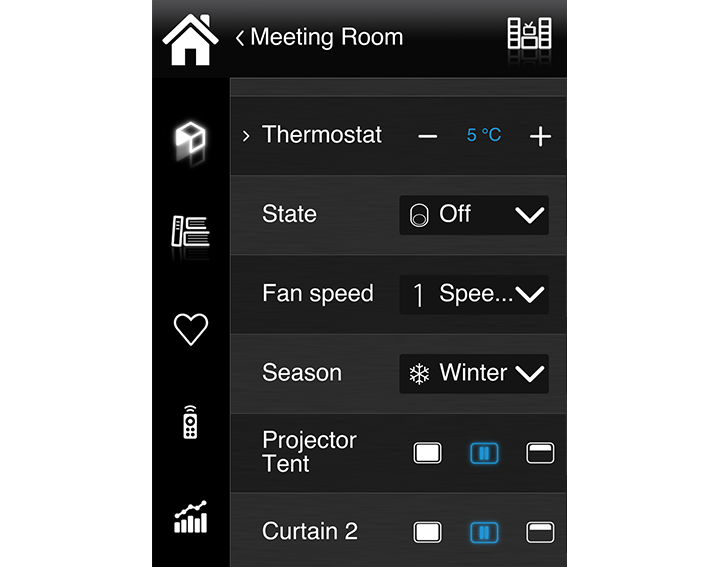

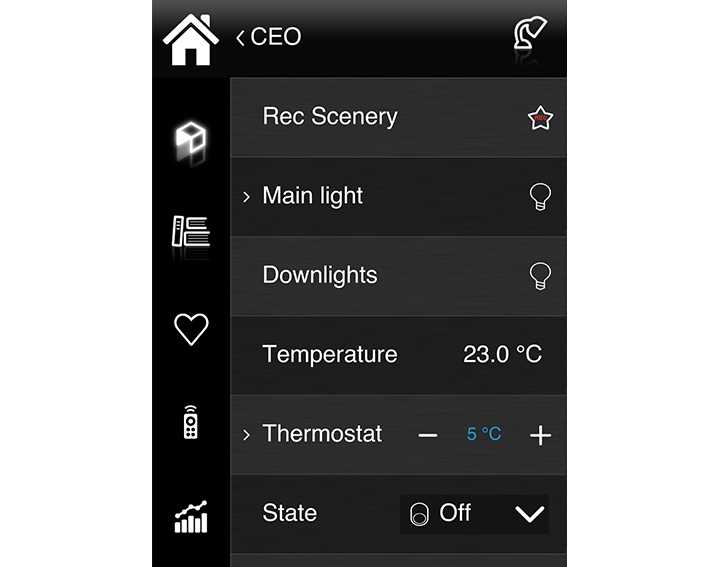

• chrono thermostat management

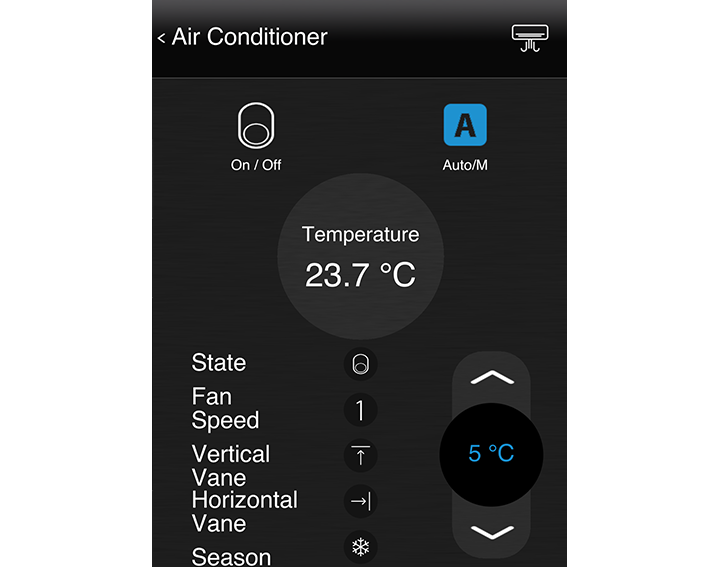

• air conditioning
• controlled sockets

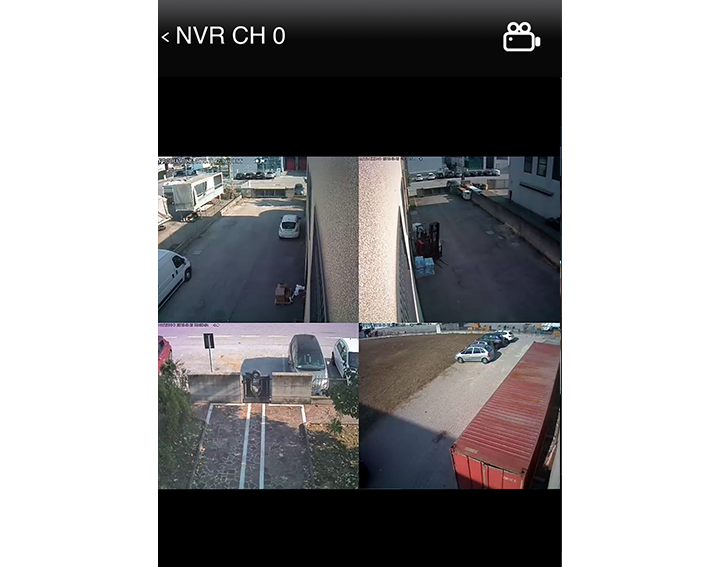

• IP cameras
• event management

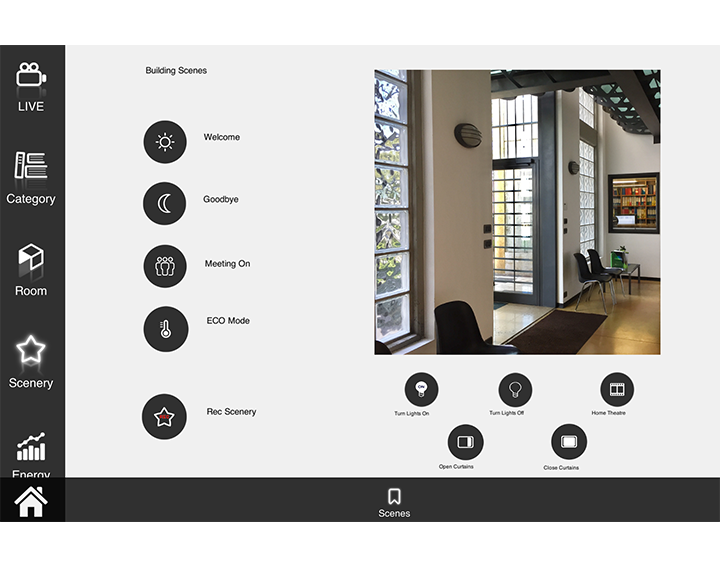

• virtual scenarios

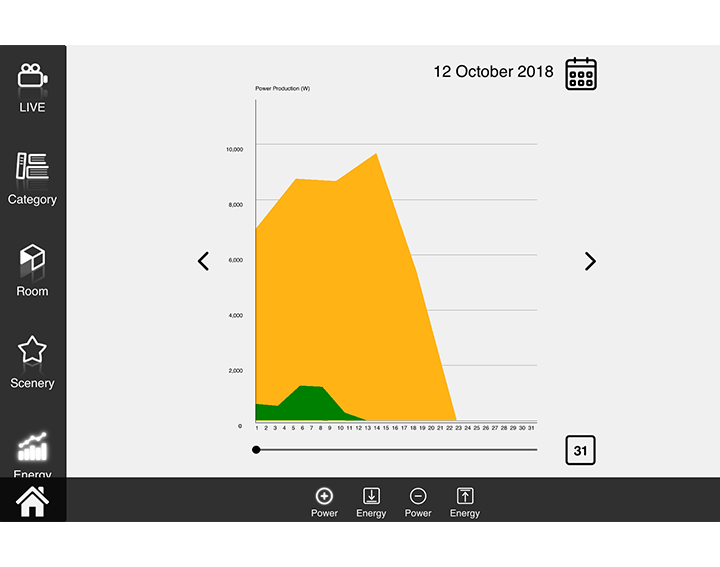

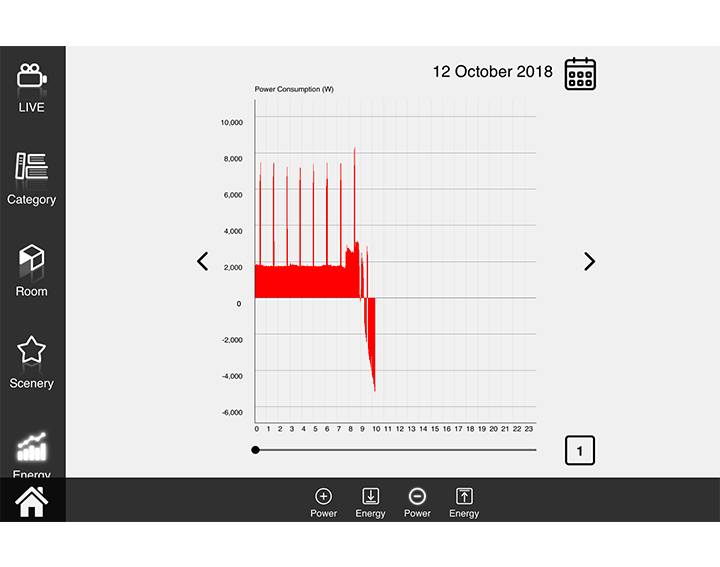

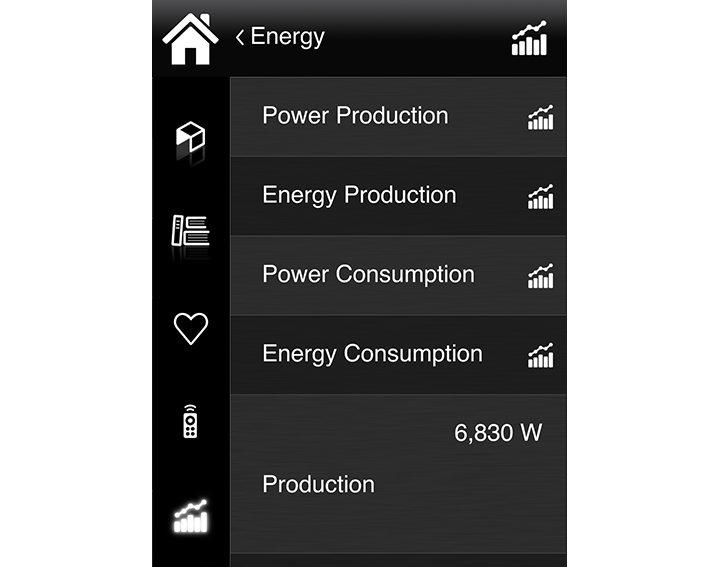

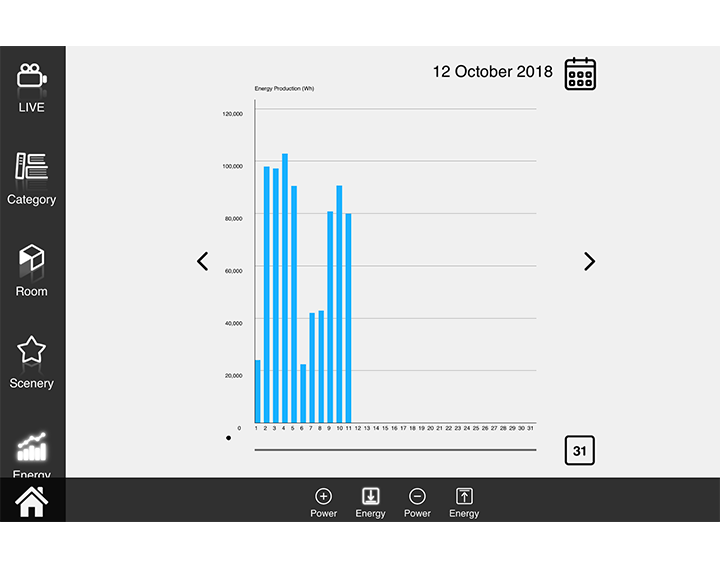

• consumption statistics
• alarm messages
• irrigation
• mail notifications or push notifications
• astronomical twilight
• web weather station
• ...
Request a commercial offer
Unlimited number of integrable devices.
More than 500 accesses at the same time.
Permanent use license (no time limit).
It allows the control of the various devices, with the advantage of being able to manage everything comfortably from your Smartphone and Tablet (iOS / Android) or PC (Windows / MacOSX):
- Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70,
- self-search of devices Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70 installed in the system, with automatic creation of a basic interface.
- HOME CINEMA SYSTEMS WITH RECEIVER AND BLU-RAY*
- SUPPORTS THE CONTROL OF HOME AUTOMATION ALREADY INSTALLED (KNX, VIMAR, BTICINO, AVE, IESS, etc.) *
- SUPPORTS VOICE CONTROL VIA GOOGLE HOME and AMAZON ALEXA*
Permanent use license (no time limit).
Example of actions on technological devices Vivaldi Giove Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70:
- On/Off, Volume adjustment, Tone adjustment
- FM Tuner frequency change, Source change
- Usb or BLUETOOTH player Track/Album change integrated in the Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70
- Management of selective microphone calls
- INSERTION WEB INTERFACE OF OTHER DEVICES e.g. Vivaldi Ulisse GRM1, Vivaldi Giove MUSICO
- HDMI video matrix control*
- Customizable graphic interfaces*
- provide Weather info to devices Vivaldi Giove FREENETMK3*
- provide room temperature and humidity info from an external home automation*
*through specific programming (Vivaldi Giove MY6)
Technical info :
- Size (WxHxD): 106x90x63 mm (WxHxD)
- Standard DIN 6 modules- Weight 0,187 Kg
- Power supply 24Vcc
- External power supply included 115/230Vac-24Vcc
- Compatibility: iOS/Android/Windows/MacOSX
- Certifications: RoHS, CE
COMPATIBILITY:
Home automation systems KNX, VIMAR, BTICINO, AVE, ModBUS TCP, ModBus RTU, ELMO, IESS, HTTP, TCP UDP, MQTT.
POWER SUPPLY: External power supply 24Vdc Vivaldi Giove AL2B (DIN rail). Max power consumption 15W.
ENVIRONMENTAL REQUIREMENTS: Operating temperature from +5 to +55° C. Relative humidity from 5% to 95% (non-condensing).
KIT COMPOSED OF:
- iCONTRO4.0+
- Power supply ( Vivaldi Giove AL2B )
- 1mt Cat5E Ethernet cable
- Quick Start paper
- 3 resistors 120 Ohm for BUS RS485
• chrono thermostat management
• air conditioning
• controlled sockets
• IP cameras
• event management
• virtual scenarios
• consumption statistics
• alarm messages
• irrigation
• mail notifications or push notifications
• astronomical twilight
• web weather station
• ...
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
