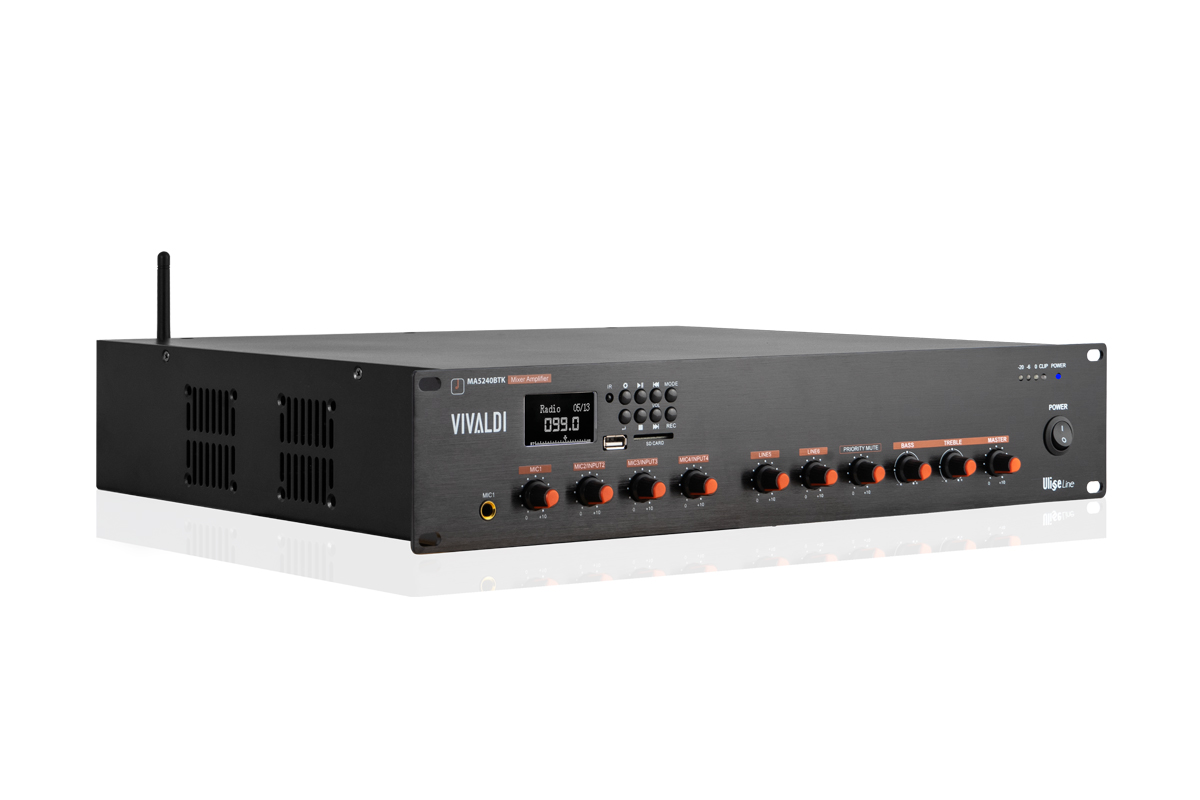

Vivaldi Ulisse MA5240BTK
Single Zone Mixer-Amplifier
code variation:
Vivaldi Ulisse MA5060BTK 100V mixer-amplifier with playerVivaldi Ulisse MA5120BTK 100V mixer-amplifier with player
Amplifier mixer 240W with player KEYSOL, BLUETOOTH source, FM TUNER, USB and SD CARD integrated, AirPlay (audio streaming. For example: YouTube, Apple Music, Amazon Music...)

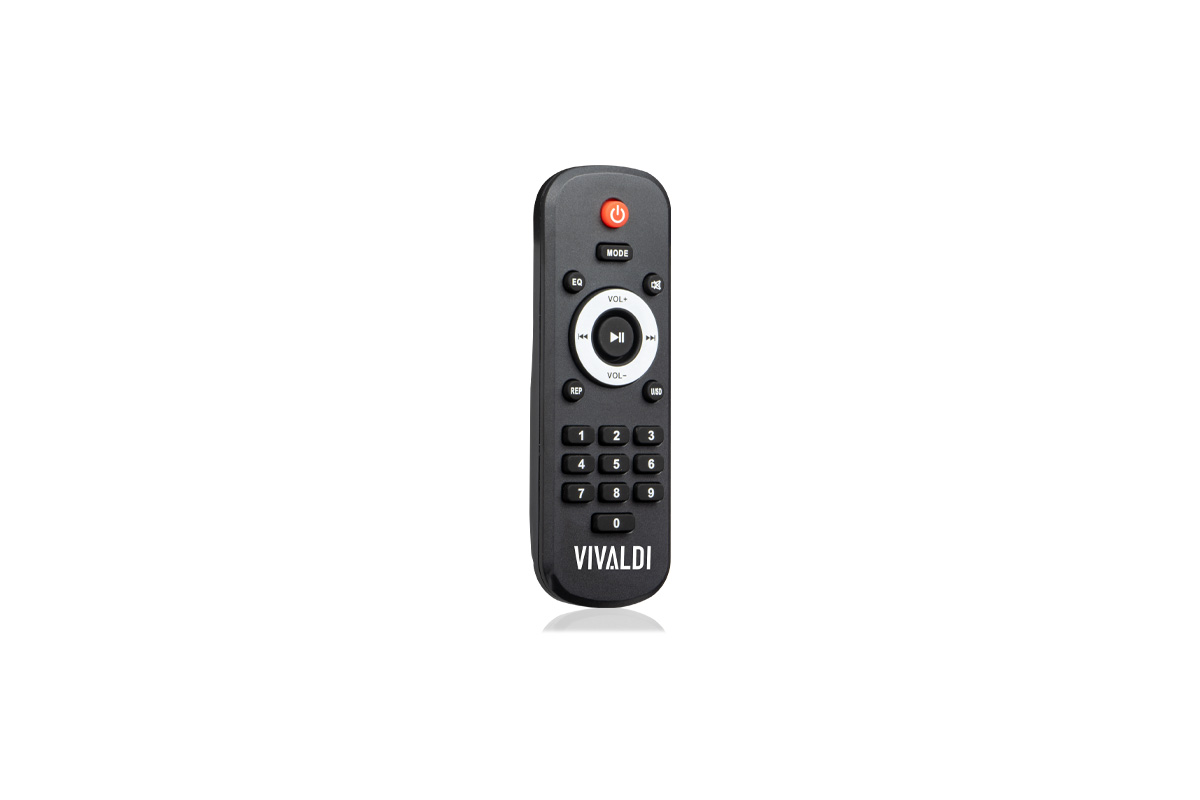

IR remote control supplied.
Power supply AC110-240V & 24Vdc.
Consumption 310VA.
6 Mix inputs+ sources
CH1 (priority): mic XLR 5-8mV 600Ω, Phantom power (selectable) with selectable Talkover function.
CH2-3: mic Jack 5-8mV 600Ω / line RCA 150-470mV 10KΩ (switchableCH4-5: line RCA.
CH6: tel. 600Ω 100mV.
Line out RCA: 0,775V (0dBV).

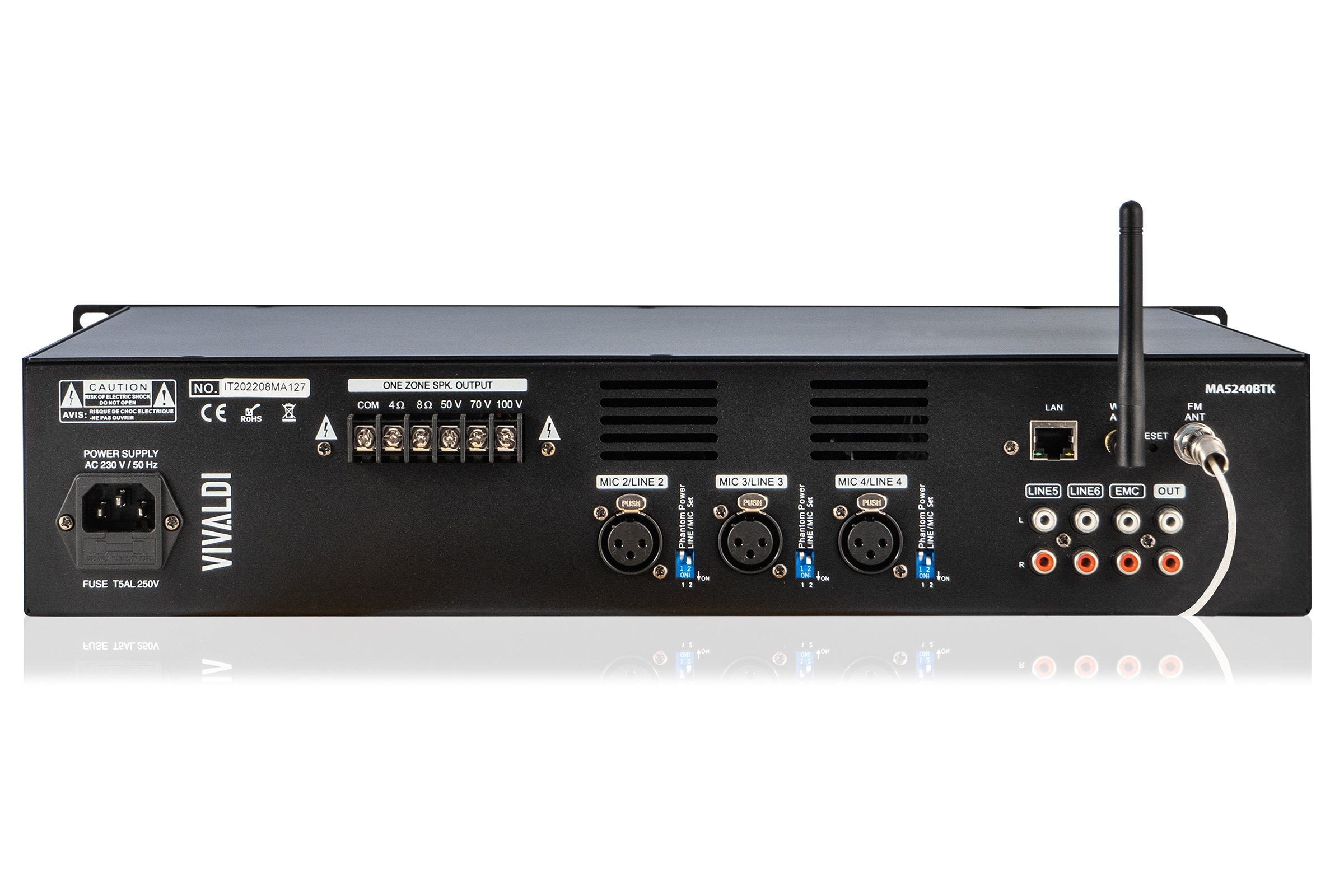

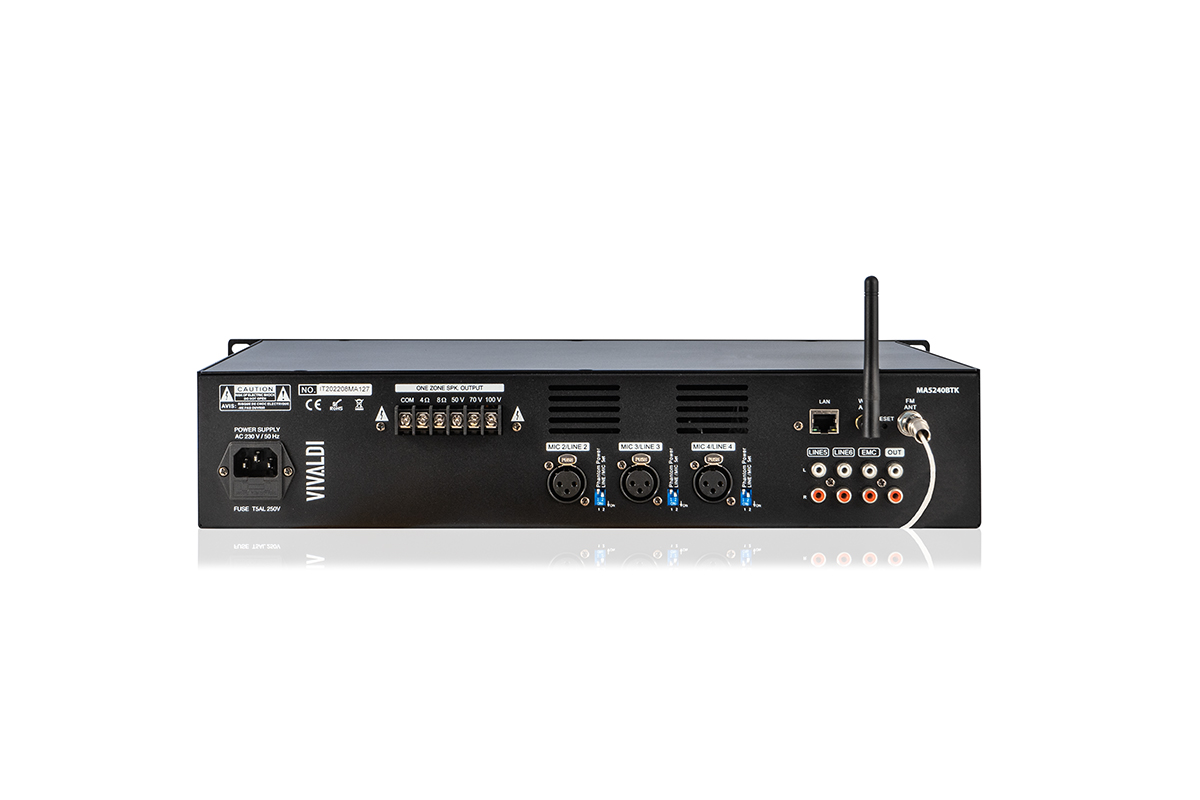

Outputs 4-8-16 Ω - 70/100V.
High/low tones control
Dimensions 482x93x420 mm (WxHxP).
2U rack.
Standard rack.
Weight 9,0 Kg.
Black cabinet, orange screen painting
Metal cabinet
Standard rack
Request a commercial offer
IR remote control supplied.
Power supply AC110-240V & 24Vdc.
Consumption 310VA.
6 Mix inputs+ sources
CH1 (priority): mic XLR 5-8mV 600Ω, Phantom power (selectable) with selectable Talkover function.
CH2-3: mic Jack 5-8mV 600Ω / line RCA 150-470mV 10KΩ (switchableCH4-5: line RCA.
CH6: tel. 600Ω 100mV.
Line out RCA: 0,775V (0dBV).
Outputs 4-8-16 Ω - 70/100V.
High/low tones control
Dimensions 482x93x420 mm (WxHxP).
2U rack.
Standard rack.
Weight 9,0 Kg.
Black cabinet, orange screen painting
Metal cabinet
Standard rack
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
