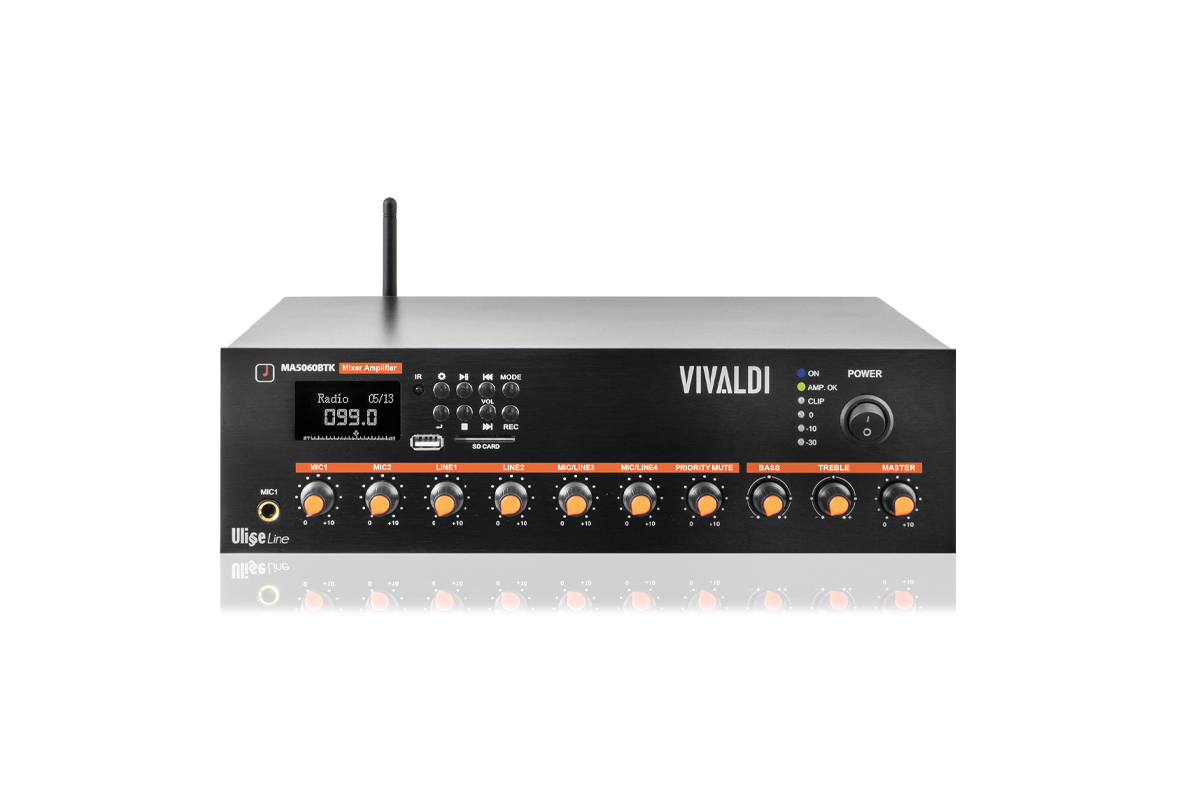

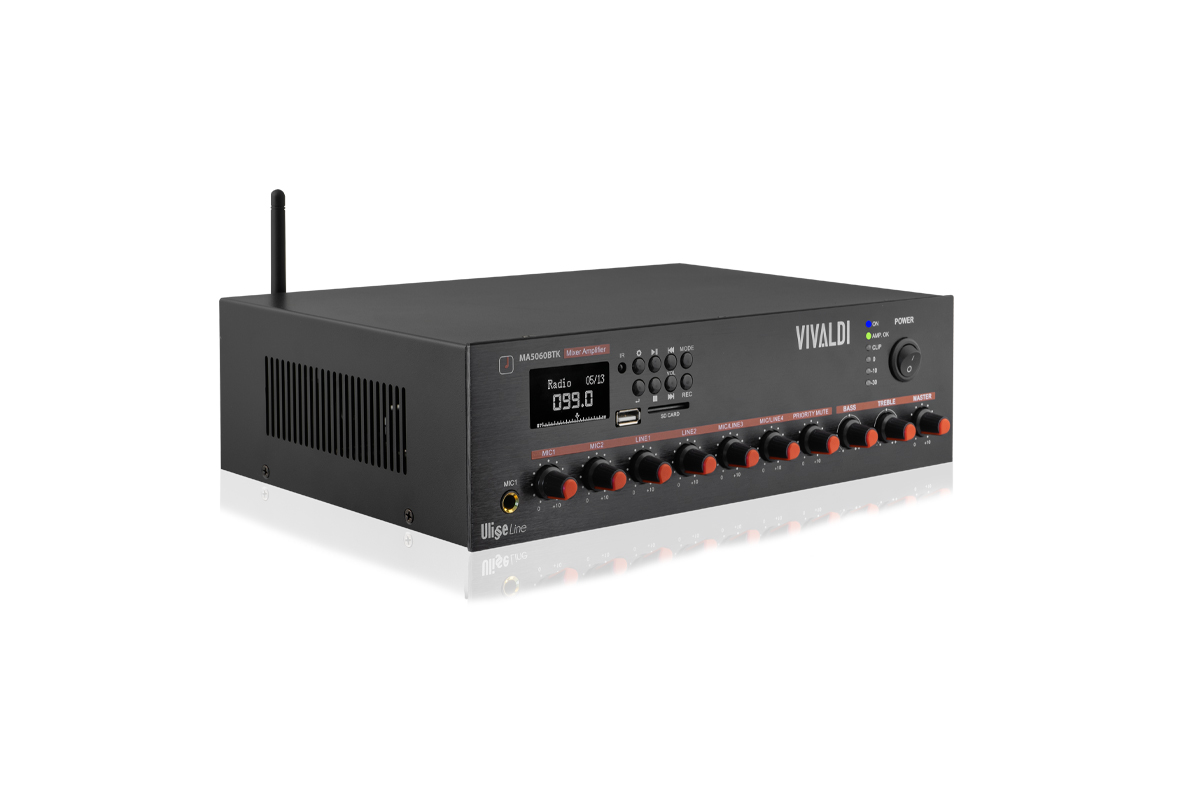

Vivaldi Ulisse MA5060BTK

Single Zone Mixer-Amplifier

code variation:

Vivaldi Ulisse MA5120BTK 100V mixer-amplifier with player
Vivaldi Ulisse MA5240BTK 100V mixer-amplifier with player

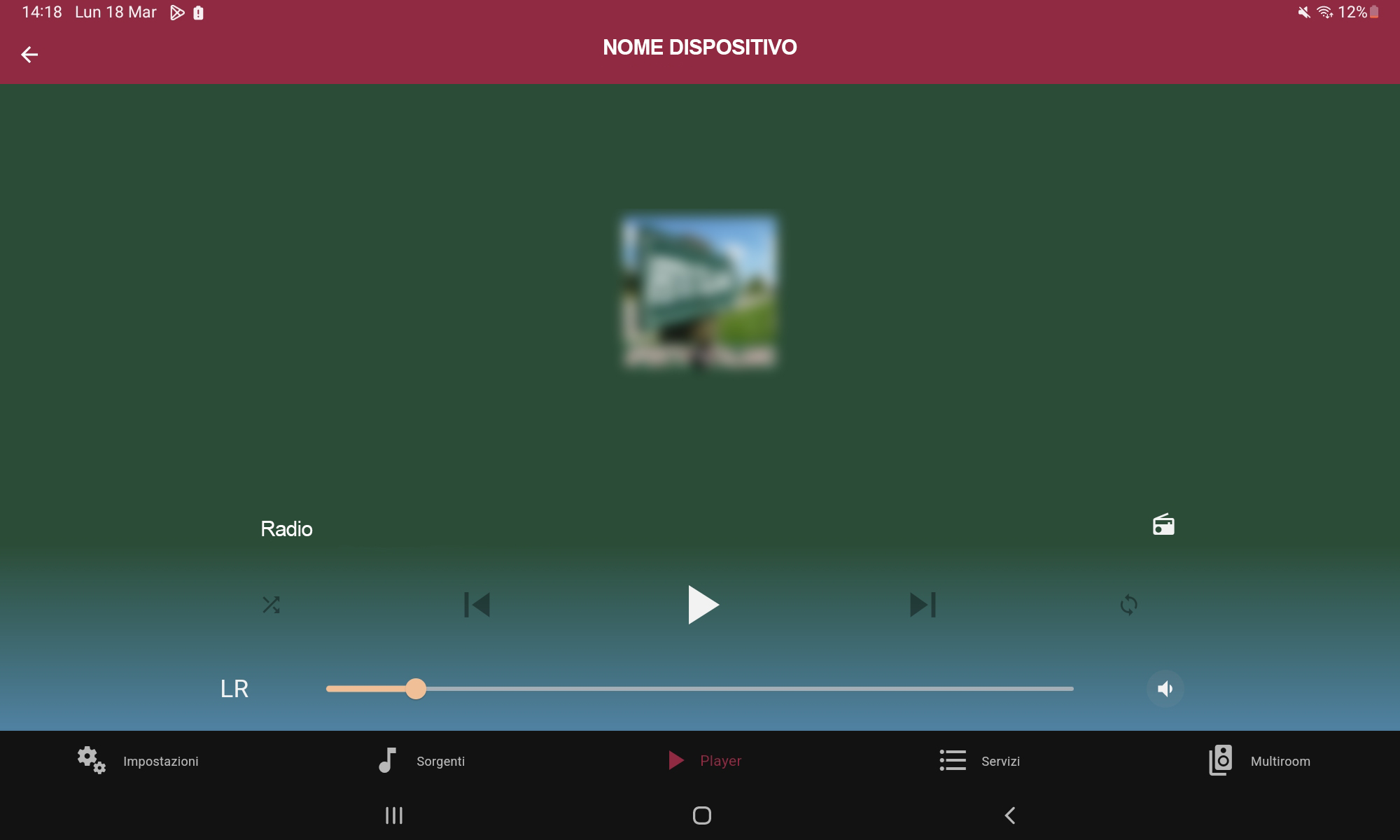

60W compact amplified mixer with integrated player for listening to WiFi sources / FM radio / MP3 USB / SD / Bluetooth / AirPlay (audio streaming. For example: YouTube, Apple Music, Amazon Music...)

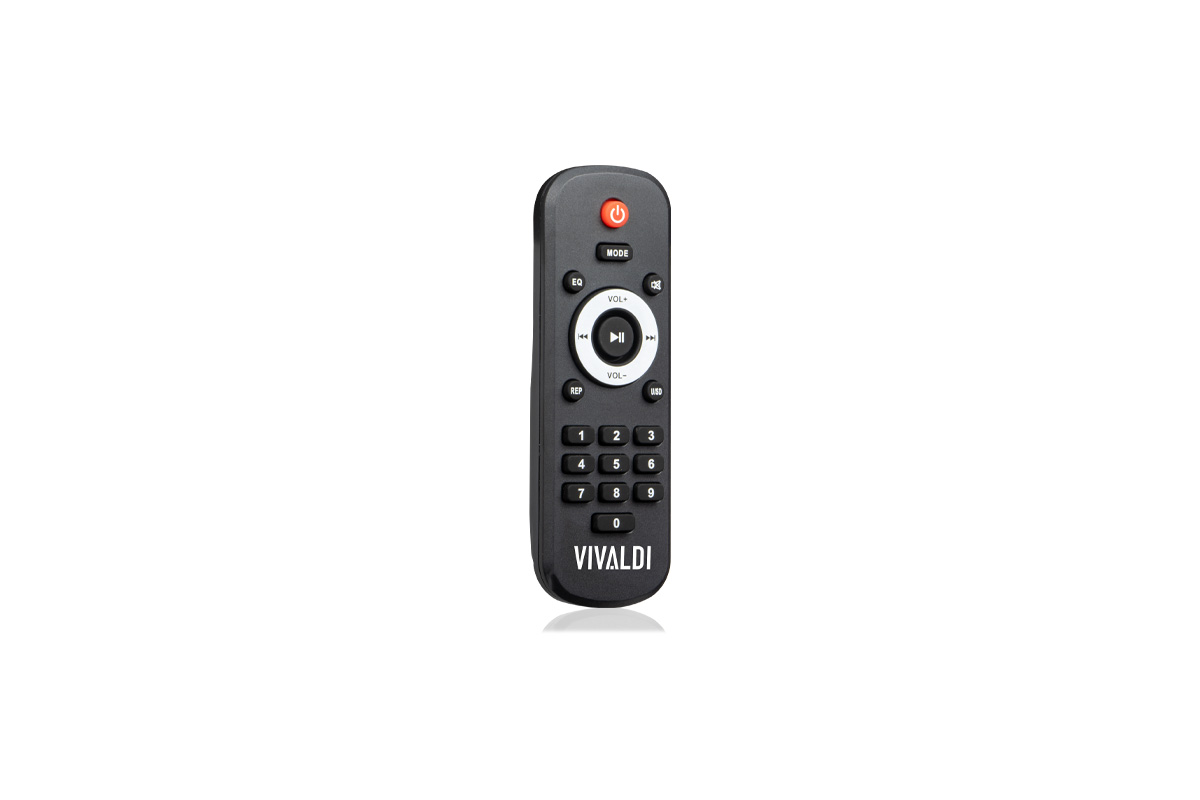

IR remote control included.
Power supply AC110-240V & 24Vdc.
Consumption 100VA.
6 mixable inputs + sources.
CH1 (priority): mic XLR 5-8mV 600Ω, phantom power (selectable) with selectable Talkover function.
CH2-3: mic Jack 5-8mV 600Ω / line RCA 150-470mV 10KΩ (switchable).
CH4-5: line RCA.
CH6: tel. 600Ω 100mV.
CH7 EMC: priority emergency input for evacuation or service messages Vivaldi Ulisse GRM1.
Line out RCA: 0.775V (0dBV).

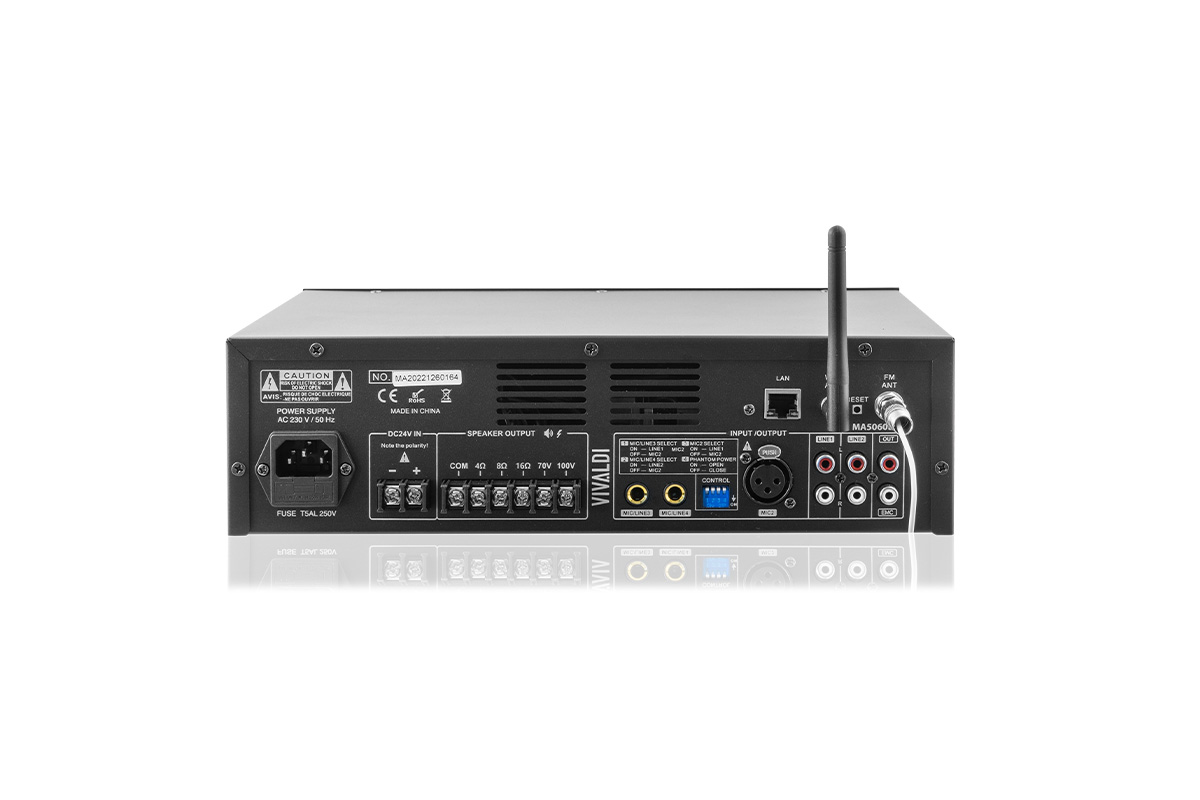

Outputs 4-8-16 Ω - 70/100V.
High/low tone control.
Dimensions 319x93x255 mm (WxHxD).
2U rack.

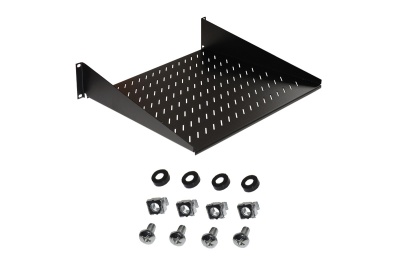

Compact standard (requires Vivaldi Ulisse PSK for rack housing).
Weight 4.0 kg.
Cabinet colour black, orange silk-screen printing.
Metal cabinet.

Versions also available:
- 120W (Vivaldi Ulisse MA5120BTK)
- 240W (Vivaldi Ulisse MA5240BTK) warning different standard

Request a commercial offer

Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
