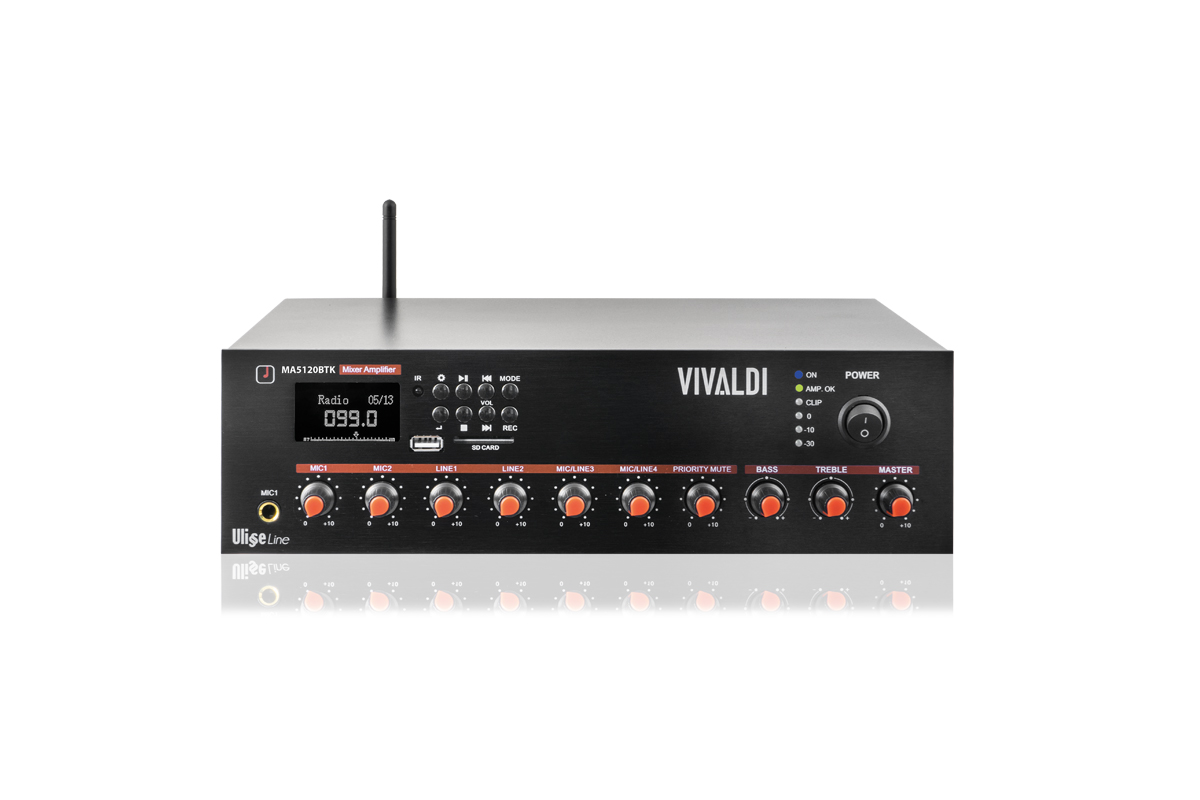

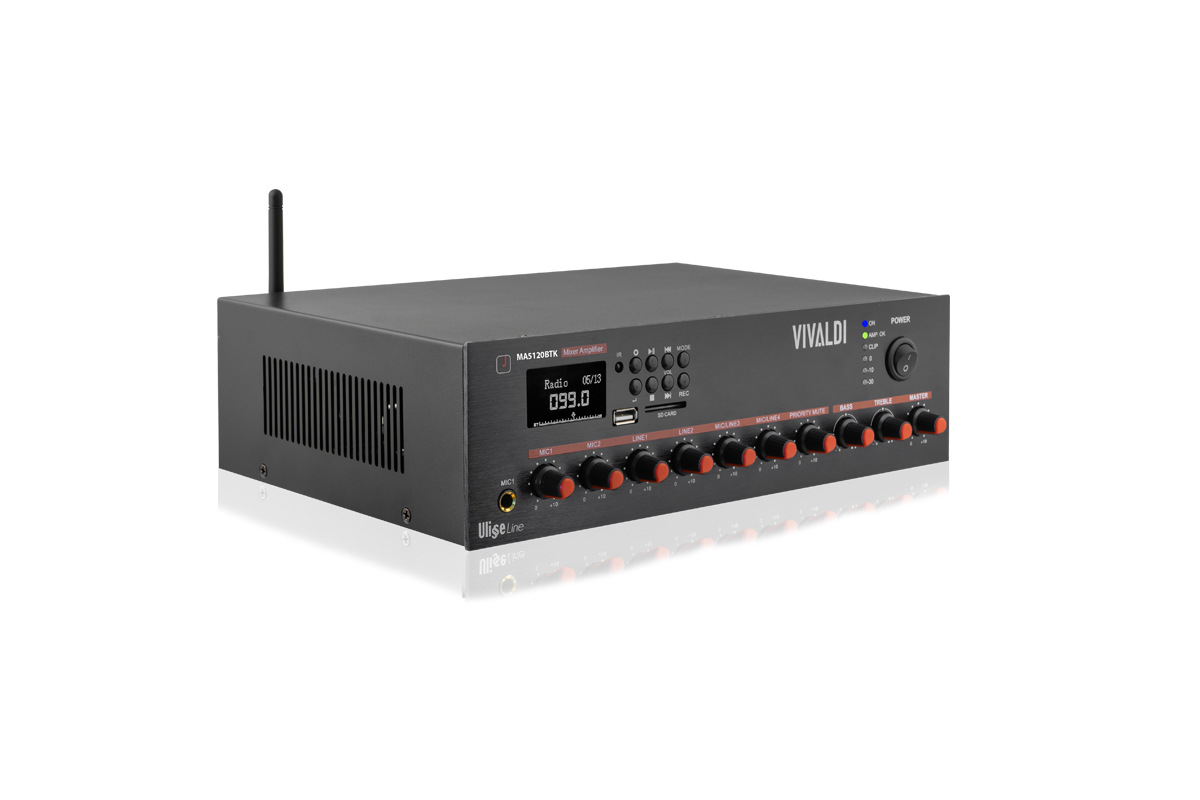

Vivaldi Ulisse MA5120BTK
Single Zone Mixer-Amplifier
code variation:
Vivaldi Ulisse MA5060BTK 100V mixer-amplifier with playerVivaldi Ulisse MA5240BTK 100V mixer-amplifier with player
Compact amplifier mixer 120W with player KEYSOL, BLUETOOTH source, FM TUNER, USB and SD CARD integrated, AirPlay (audio streaming. For example: YouTube, Apple Music, Amazon Music...)

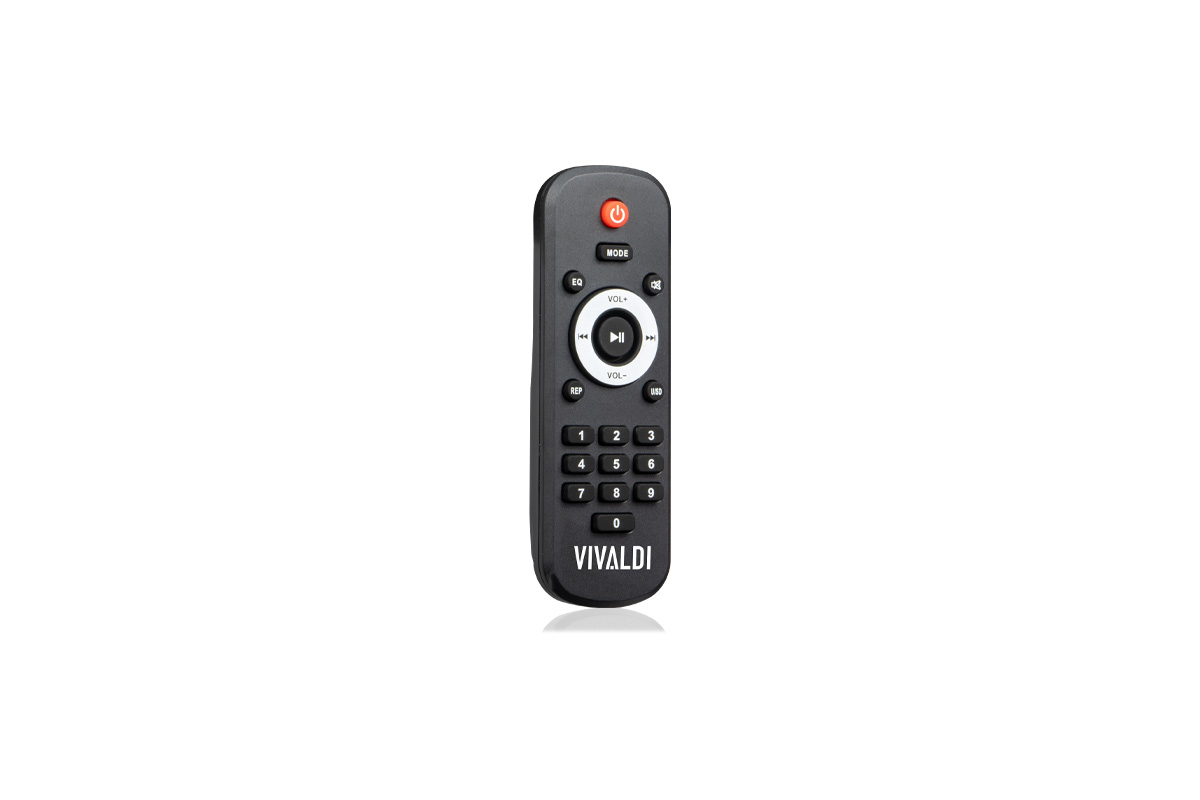

IR remote control supplied

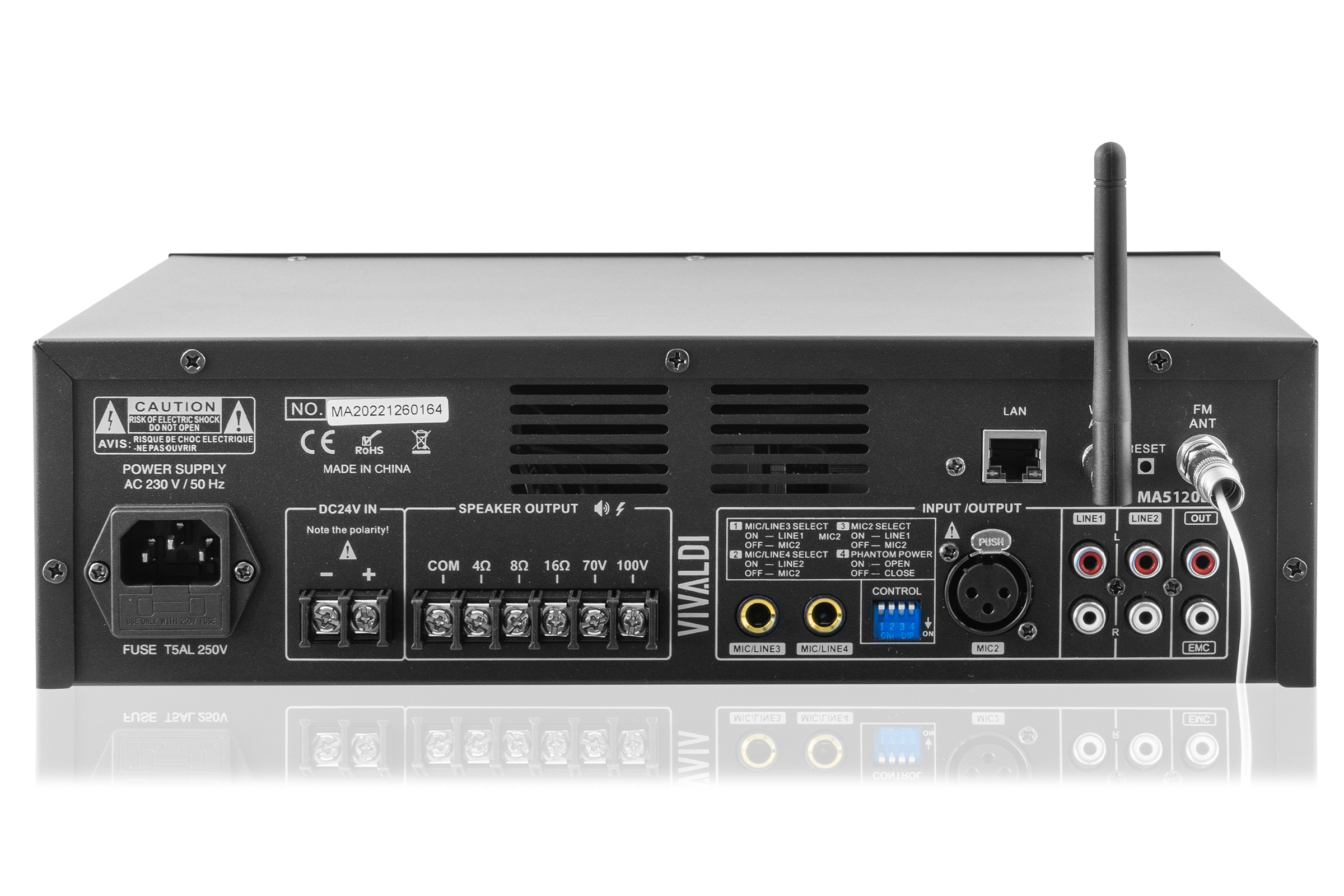

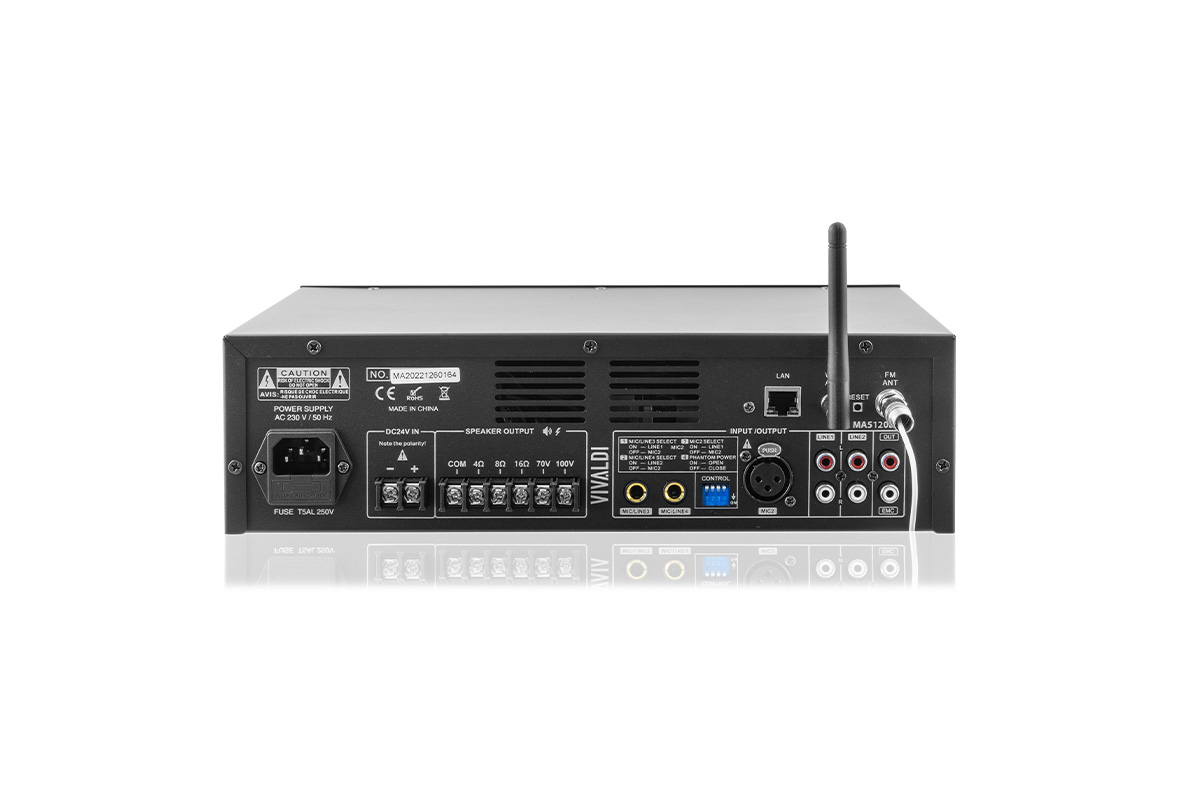

Power supply AC110-240V & 24Vdc.
Consumption 200VA.
6 mix. Inputs+ sources.
CH1 (priority): mic XLR 5-8mV 600Ω, Phantom power (selectable) with selectable Talkover function.
CH2-3: mic Jack 5-8mV 600Ω / line RCA 150-470mV 10KΩ (switchable).
CH4-5: line RCA.
CH6: tel. 600Ω 100mV.
Line out RCA: 0,775V (0dBV).
Output 4-8-16 Ω - 70/100V.
High/low tones control
Dimensions 319x93x255 mm (WxHxP).
2U rack.
Compact standard ( it needs Vivaldi Ulisse PSK for rack supports)
Weight 4,6 Kg
Black cabinet, orange screen painting
Metal cabinet
Request a commercial offer
IR remote control supplied
Power supply AC110-240V & 24Vdc.
Consumption 200VA.
6 mix. Inputs+ sources.
CH1 (priority): mic XLR 5-8mV 600Ω, Phantom power (selectable) with selectable Talkover function.
CH2-3: mic Jack 5-8mV 600Ω / line RCA 150-470mV 10KΩ (switchable).
CH4-5: line RCA.
CH6: tel. 600Ω 100mV.
Line out RCA: 0,775V (0dBV).
Output 4-8-16 Ω - 70/100V.
High/low tones control
Dimensions 319x93x255 mm (WxHxP).
2U rack.
Compact standard ( it needs Vivaldi Ulisse PSK for rack supports)
Weight 4,6 Kg
Black cabinet, orange screen painting
Metal cabinet
Other version available:
- 60W (Vivaldi Ulisse MA5060BTK)
- 240W (Vivaldi Ulisse MA5240BTK) attenzione standard diverso
- 60W (Vivaldi Ulisse MA5060BTK)
- 240W (Vivaldi Ulisse MA5240BTK) attenzione standard diverso
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
