Vivaldi Ulisse VOICE

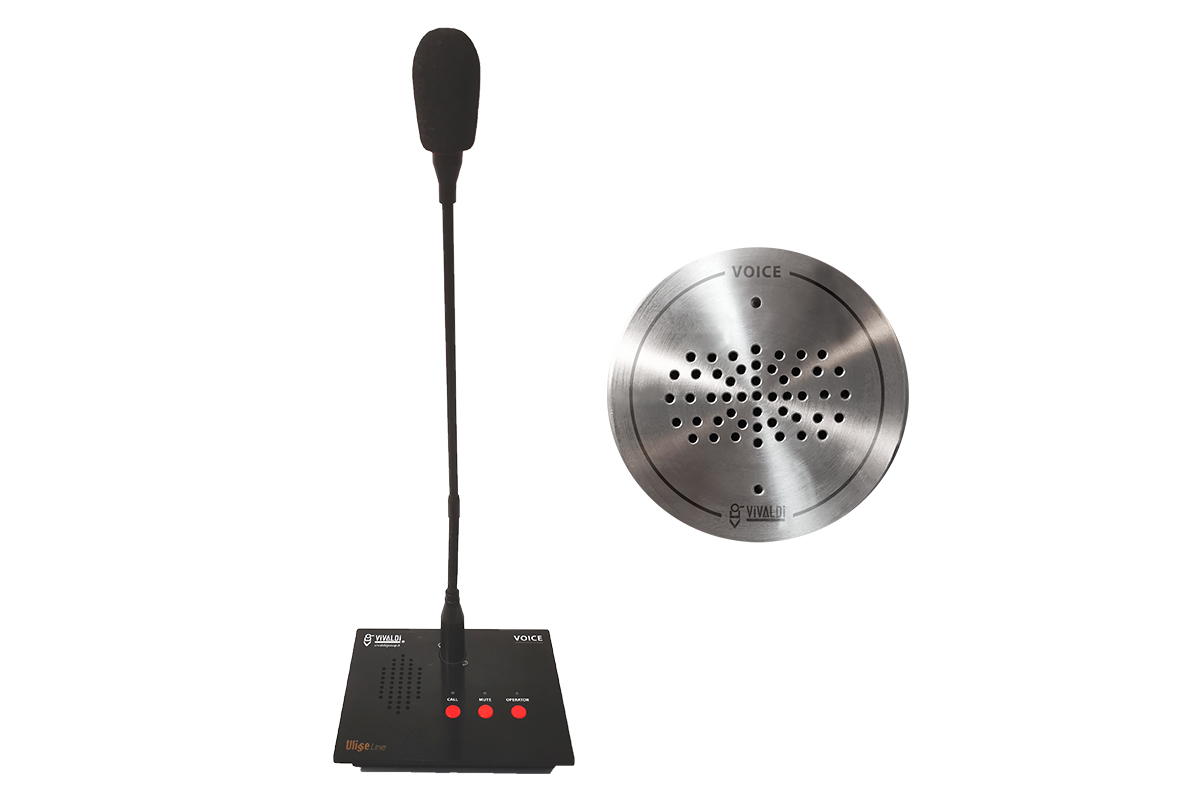

Professional audio communication kit between two stations (operator and guest) consisting of a table microphone base with speaker (Operator station) and a microphone with speaker for wall or glass mounting (Guest station).

Possibility of connecting external auxiliary speakers (8 Ohm) to both positions by means of screw terminals, ideal for environments with high background noise or for sound diffusion.

Typical use: intercommunicating stations, loading docks, counters, interports, access gates, etc ...

TECHNICAL FEATURES

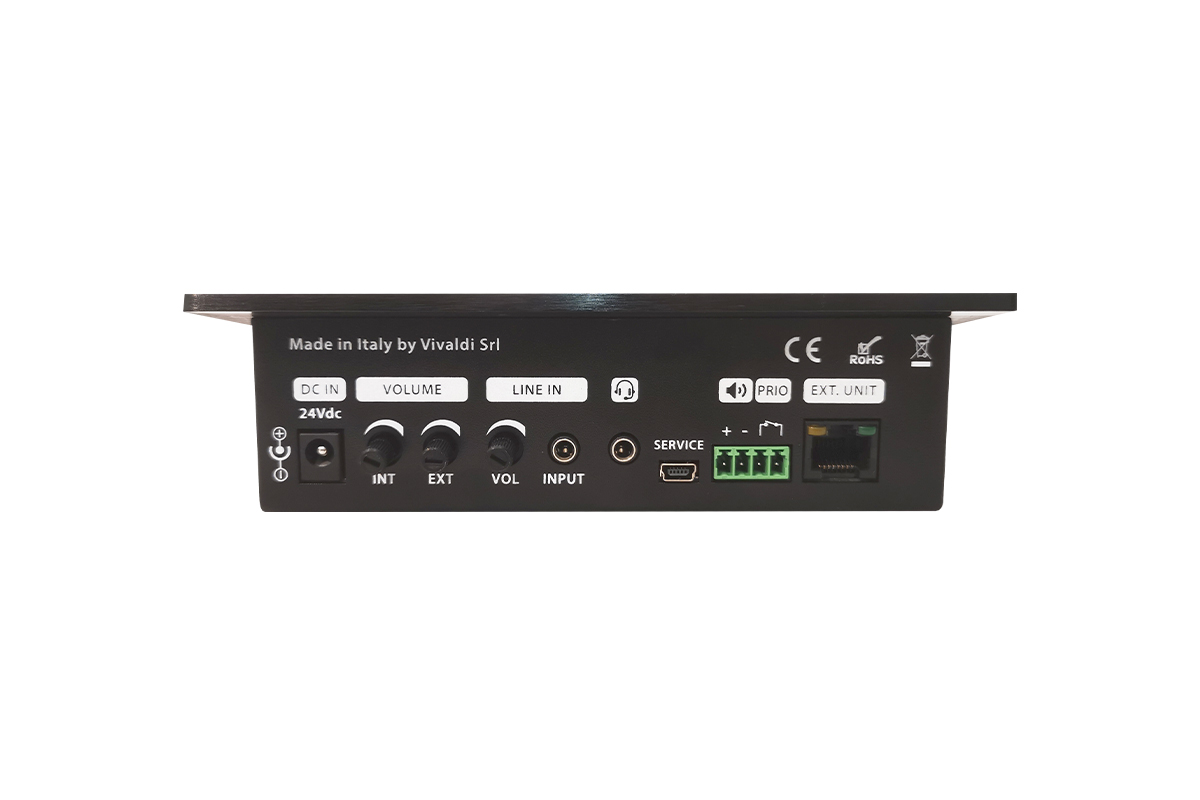

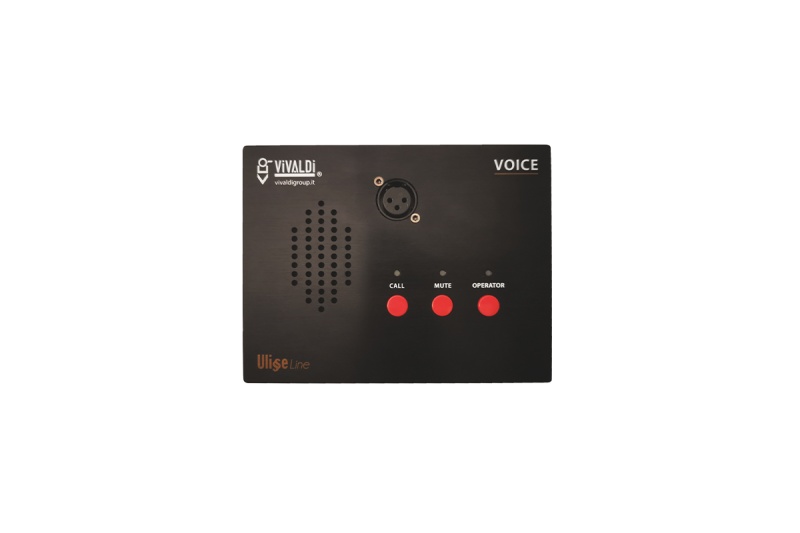

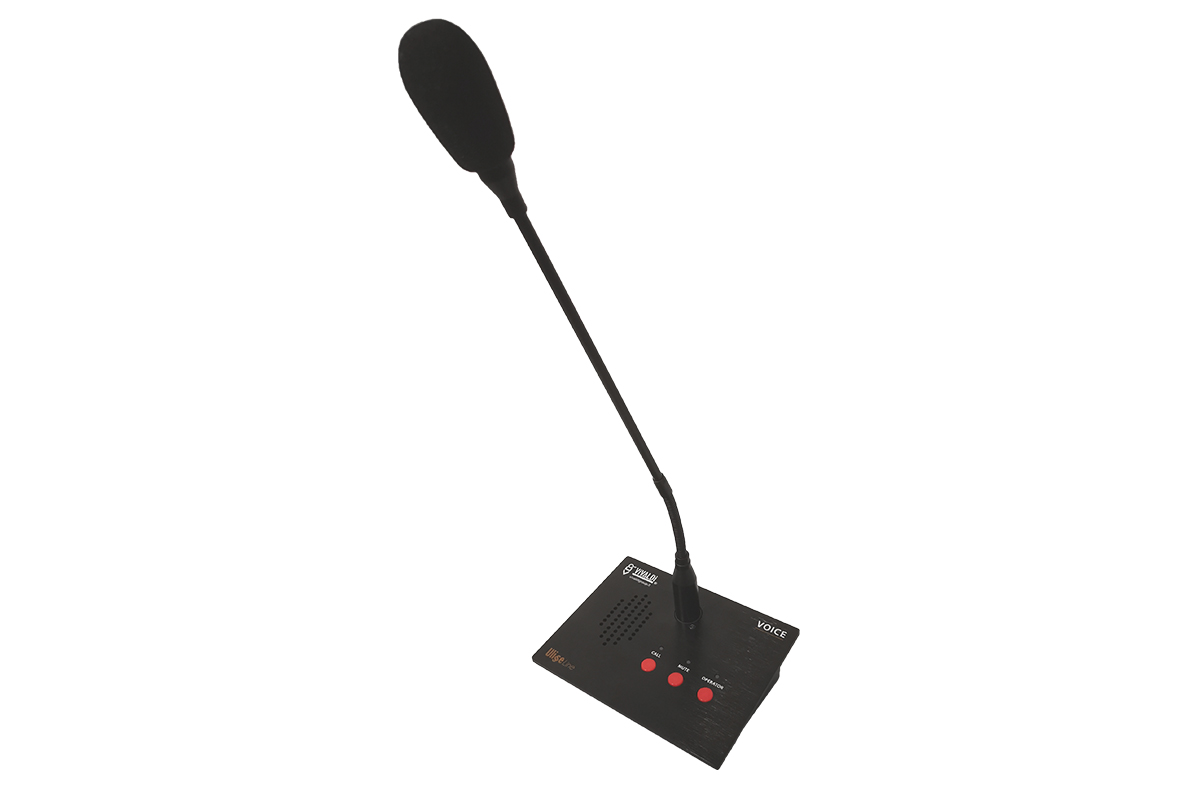

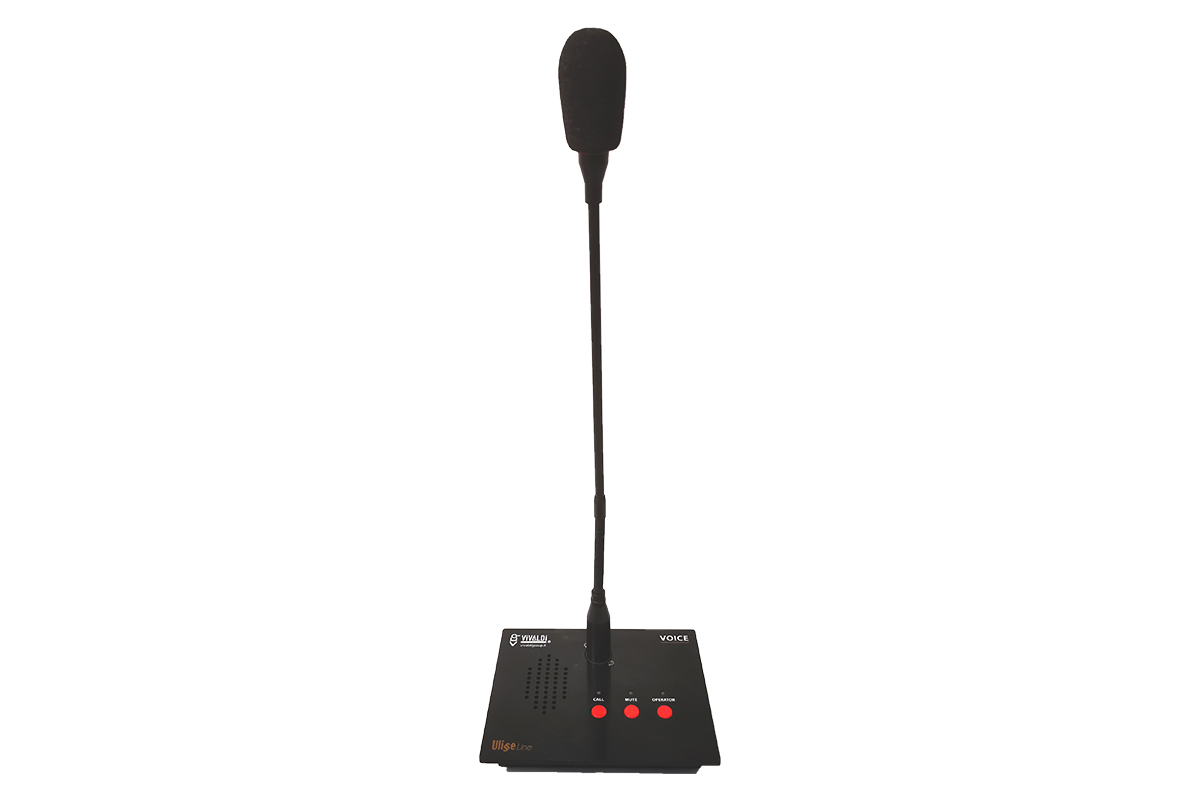

OPERATOR STATION

- Desk microphone base red push to talk button
- Integrated 30W RMS amplifier
- 46cm stem microphone, electrete, with luminous collar and pop filter
- Integrated 10W RMS speaker
- Operator presence button to signal the active station (via LED on the Guest station)
- Mute button to mute the audio of the Guest station
- Mute function activation LED
- Operator present LED
- Mic LED (talk in progress)
- 1x mini jack, for earphones with microphone
- 1x Line Aux IN (local source)
- 1x input contact for the activation power input
- Listening volume adjustment
- Clamp connection, power output for external speaker (8 Ohm)
- Power supply via AL0 24V, supplied
- Microphone base dimensions (LxHxP): 170x130x50 mm
- Microphone (L) 460 mm
- Weight 1,357Kg

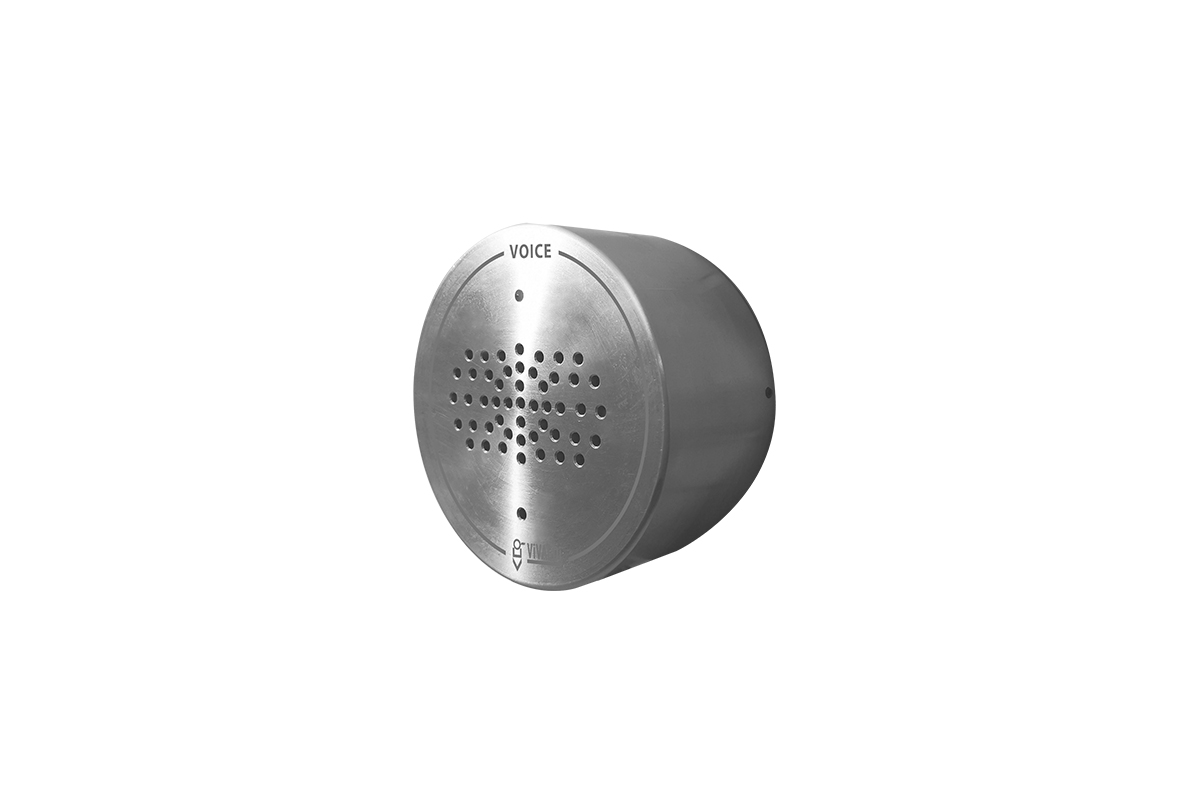

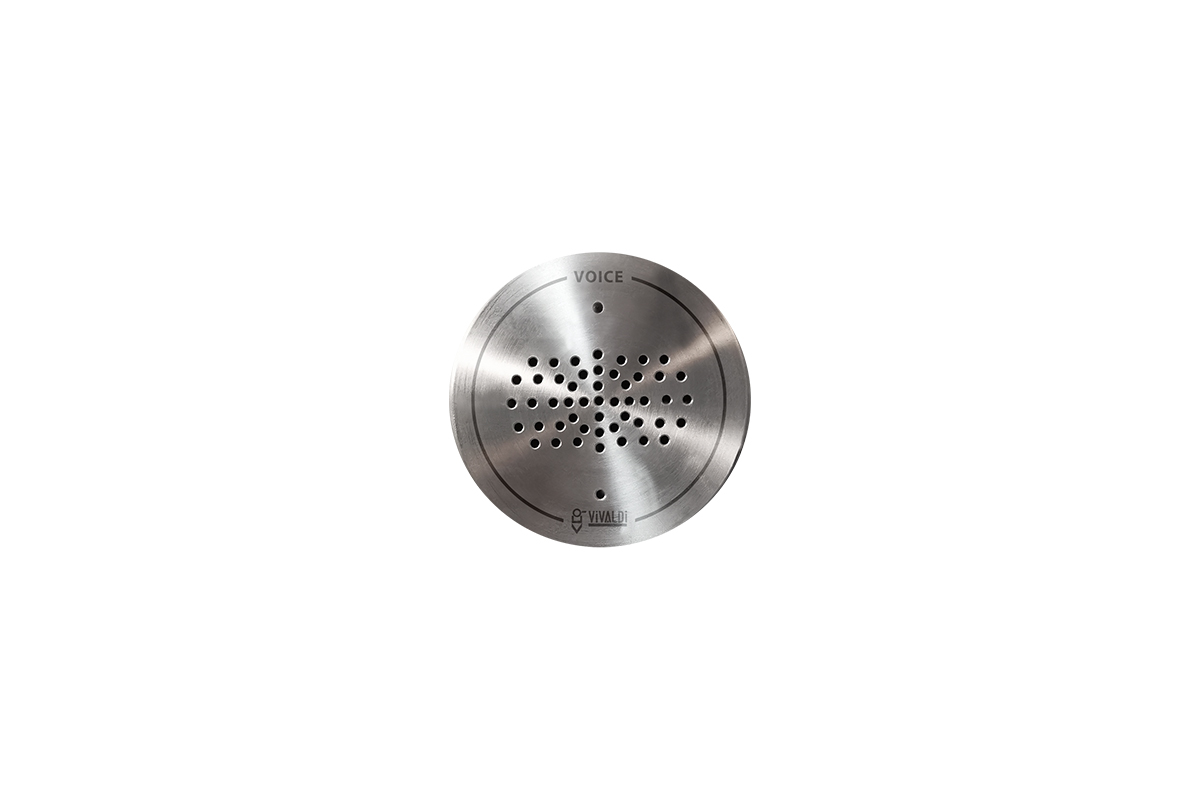

GUEST STATION

- Round in shape
- Integrated 10W RMS speaker
- Clamp connection, power output for external speaker (8 Ohm)
- Two-color LED (green for internal operator presence, red for internal operator absence)
- Input contact for operator
- Wall or glass fixing system
- Power supply via operator station
- Connection to the operator station via CAT5 / 6 UTP cable
- Dimensions (DxP): 100x45 mm
- Weight 0.3Kg
