Vivaldi Ulisse MS6240BTK

6x240W multi-zone amplified matrix with integrated player for listening to WiFi sources / FM radio / MP3 USB / SD / Bluetooth / AirPlay (audio streaming. For example: YouTube, Apple Music, Amazon Music...)

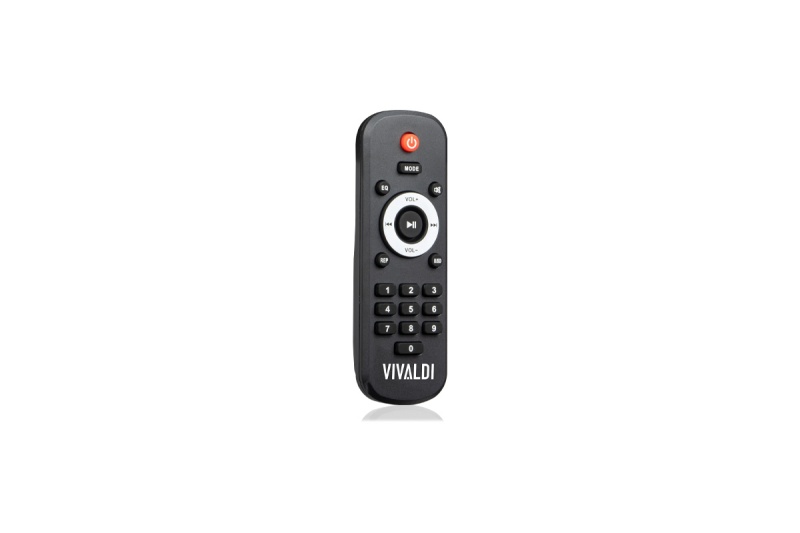

IR remote control included.

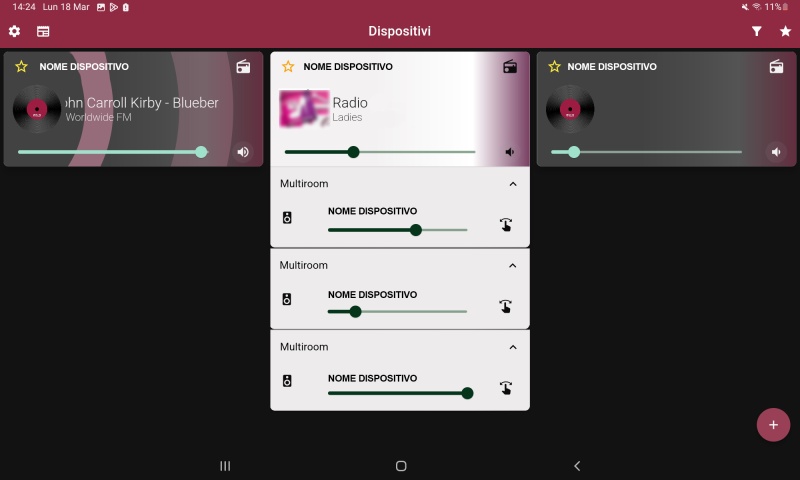

Independent source and volume selection for each zone.
Antenna for FM radio reception.
Vivaldi Ulisse CR1 remote control module with integrated Bluetooth (max 6).
2 MIC/LINE inputs + 2 AUX IN inputs.

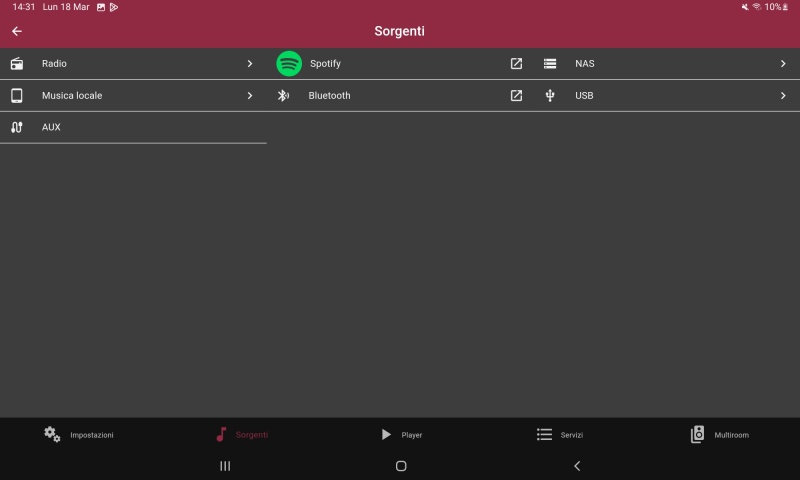

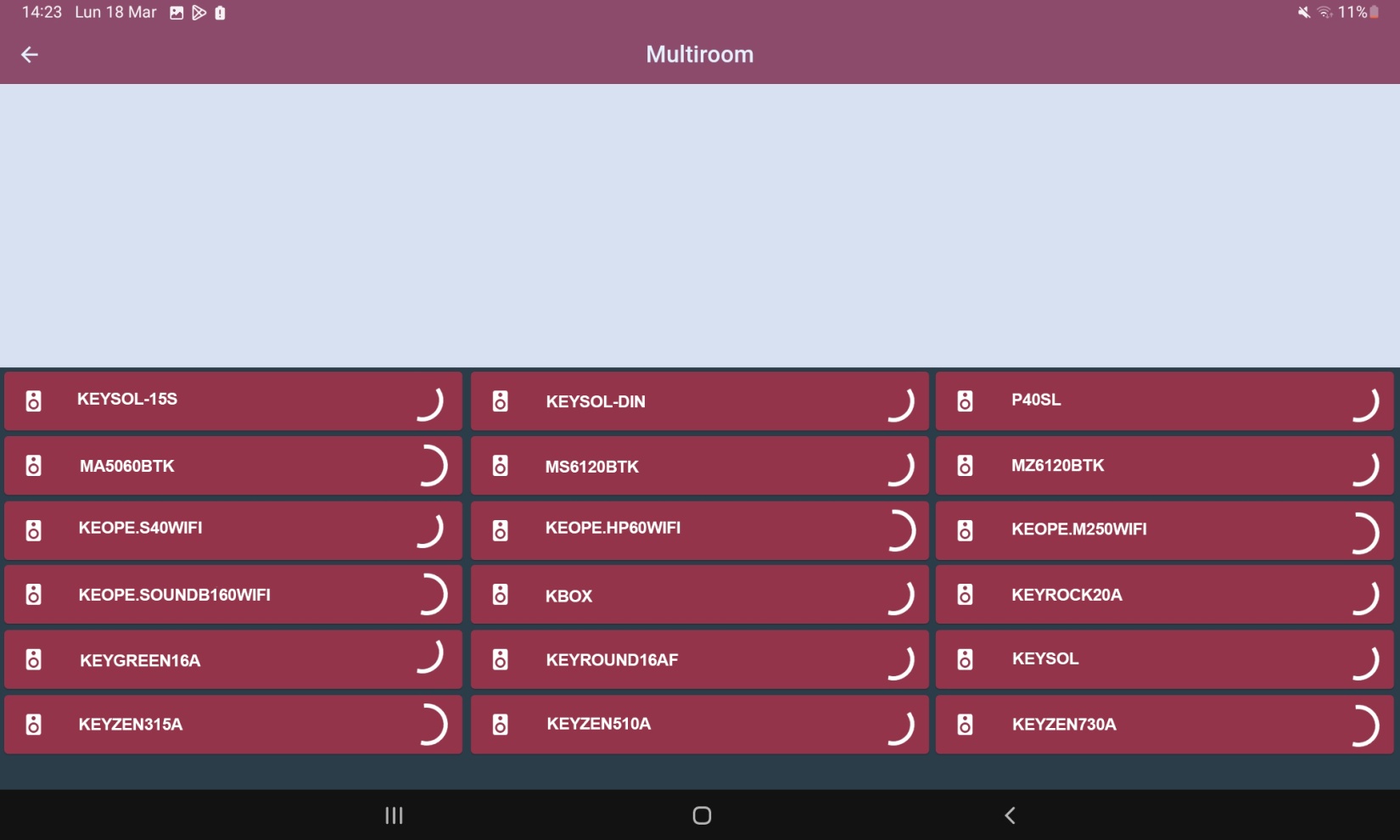

CH1 MP3: KEYSOL WiFi player, BLUETOOTH, FM TUNER, USB, SD CARD zone management via buttons.
CH2-3: mic COMBO 5-8mV 600Ω phantom power (switchable) / line XLR 150-470mV 10KΩ (switchable).
CH4-5: RCA AUX input.
CH6 EMC: priority emergency input for evacuation or service messages Vivaldi Ulysses GRM1.
* 6 RJ45 outputs for Vivaldi Ulisse CR1 zone controls or Vivaldi Ulisse BS6 multi-zone microphone bases.

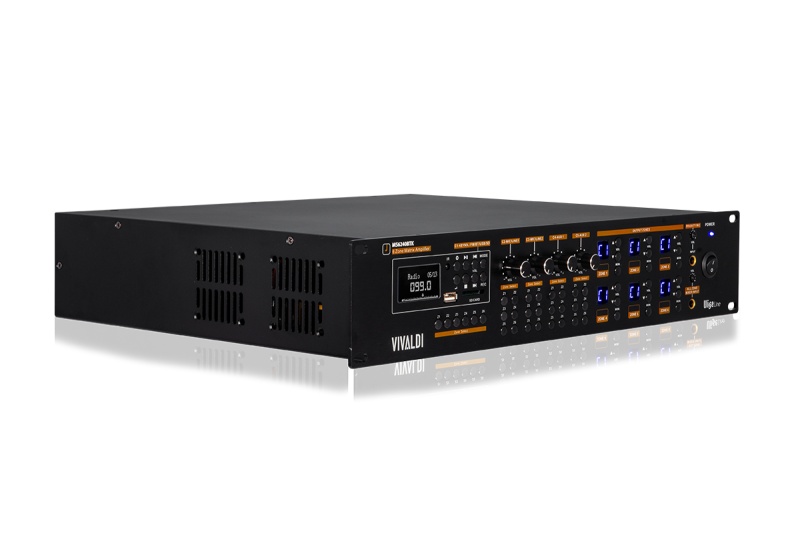

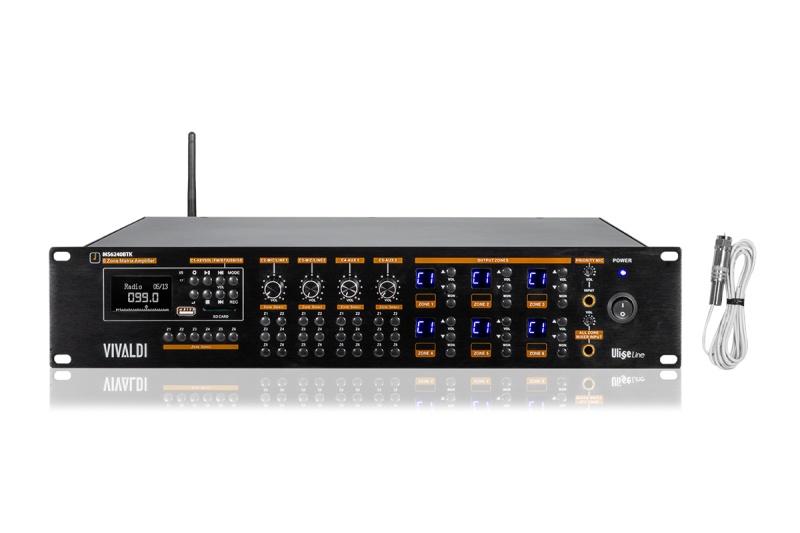

2 monitor outputs with volume control and button (front panel) for zone select:
- JACK 6.3mm for headphones on front panel.

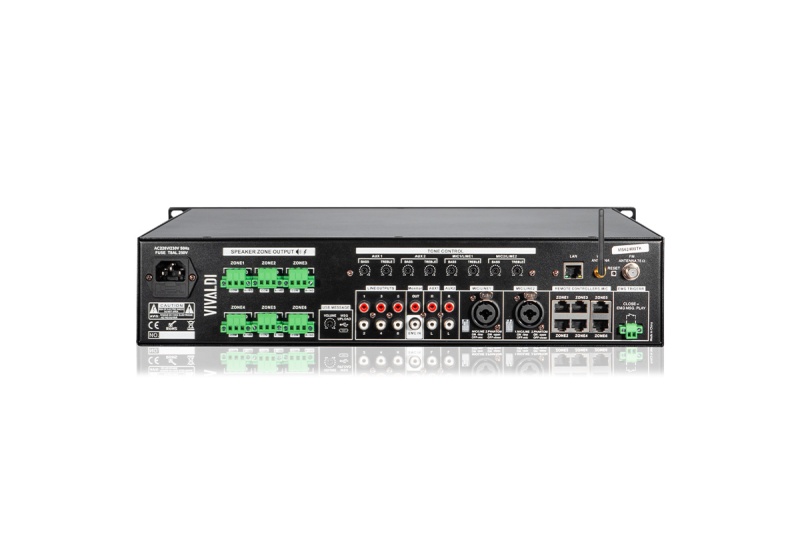

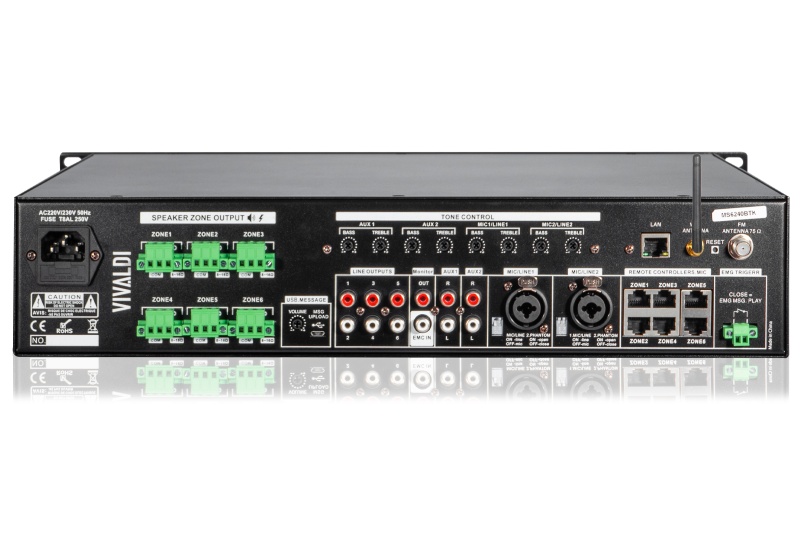

- RCA for active loudspeakers on rear panel.
MUTE function.
6 RCA line out: 0.775V (0dBV), each output is zone volume controlled.
Speaker outputs 100V, 8-16Ω.
6 zone displays.
Horn terminals: applying a DC voltage of 24V activates the pre-recorded message (internal) for evacuation.
High and low controls on inputs C2, C3, C4, C5 via trimmers.
Power supply AC110-230V, 24Vdc.
Consumption 900VA.
Dimensions 448x88x405 mm (WxHxD).
2U rack.
Weight 8 Kg.
Cabinet colour black, orange silk-screen printing.

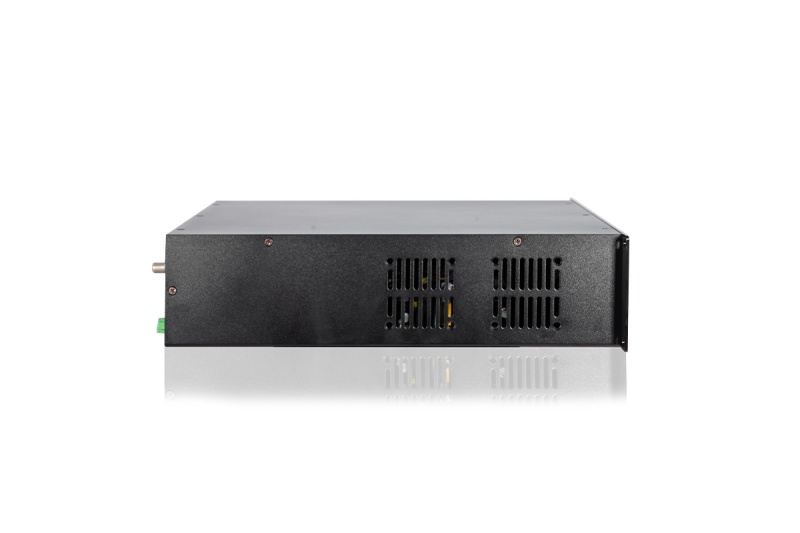

Metal cabinet.
Requires Vivaldi Ulisse PSK for rack mounting.

* the 6 outputs also support 12 devices by connecting 6 CR1 on COM02 of BS6 bases.
