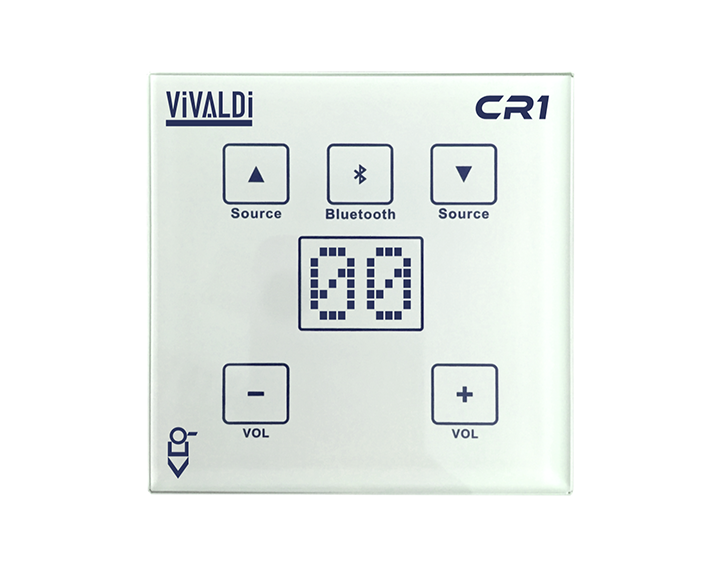

Vivaldi Ulisse CR1

Remote zone control, touch panel, recessed on concrete walls, plasterboard, wood or similar.
Dedicated for Vivaldi Ulisse MS6060BT, Vivaldi Ulisse MS6120BT, Vivaldi Ulisse MS6120BTK, Vivaldi Ulisse MS6240BTK matrices.
Each matrix manages up to 6 CR1 (independent zone controls).

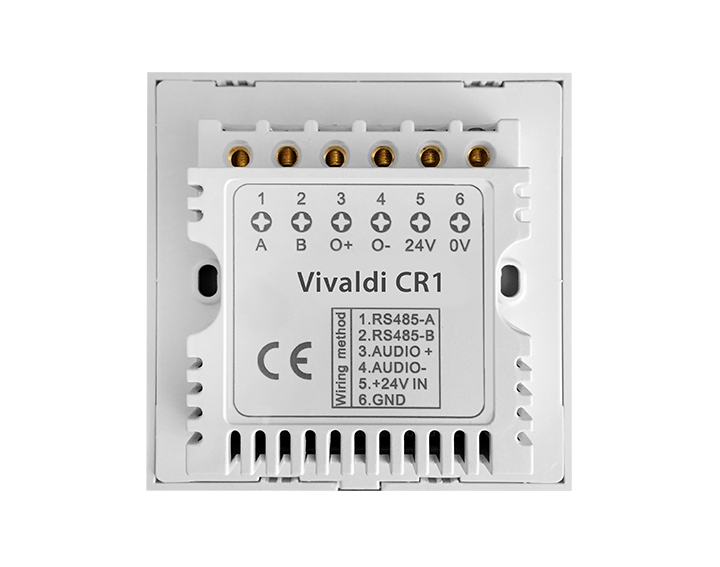

Power supply via link to amplifier with CAT5E/CAT6 RJ45 connector cable, maximum length of 200m per single line.
Functions:
- touch volume control (zone)
- channel selection (5)
- local Bluetooth source (integrated)
Touch buttons:
+ source
- source
bluetooth
- volume
+ volume
Function feedback display.
Dimensions (WxHxP) 86x86x35 mm.
Weight 0.2kg.

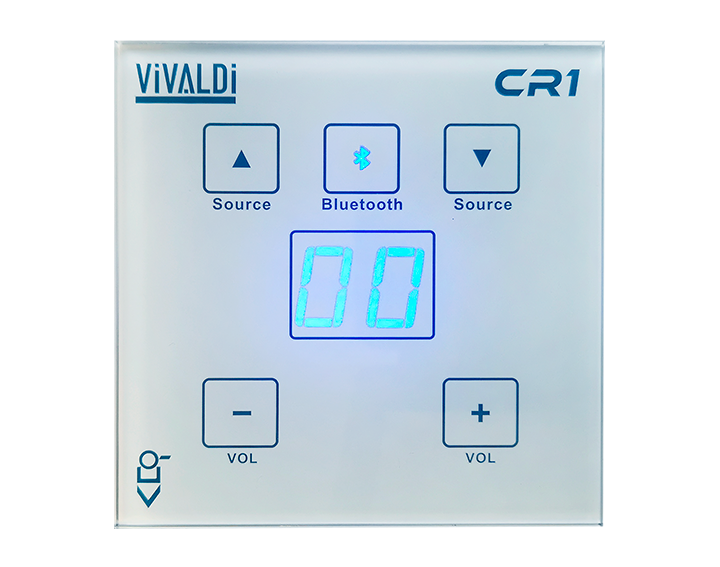

Satin white color, silk-screened, backlit.
Installation by Vivaldi Ulisse SC100 box.

Note: CR1 Remote zone control must be addressed of factory (zone number assignment). Please indicate the number of the zones during the order phase. The Units supports up to 6 devices between CR1 and Vivaldi Ulisse BS6 desk microphones.
