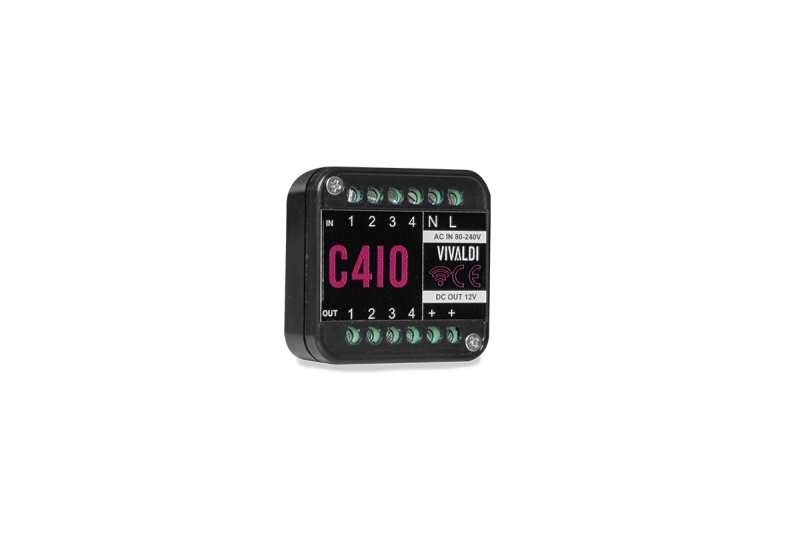

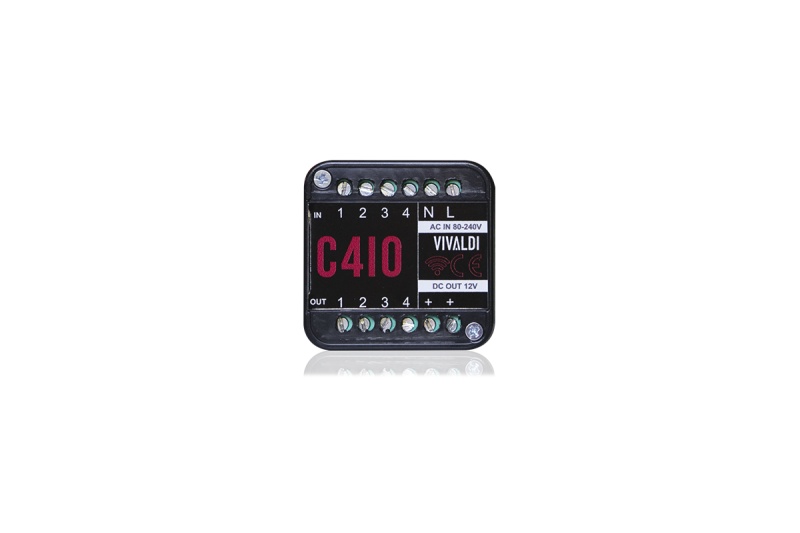

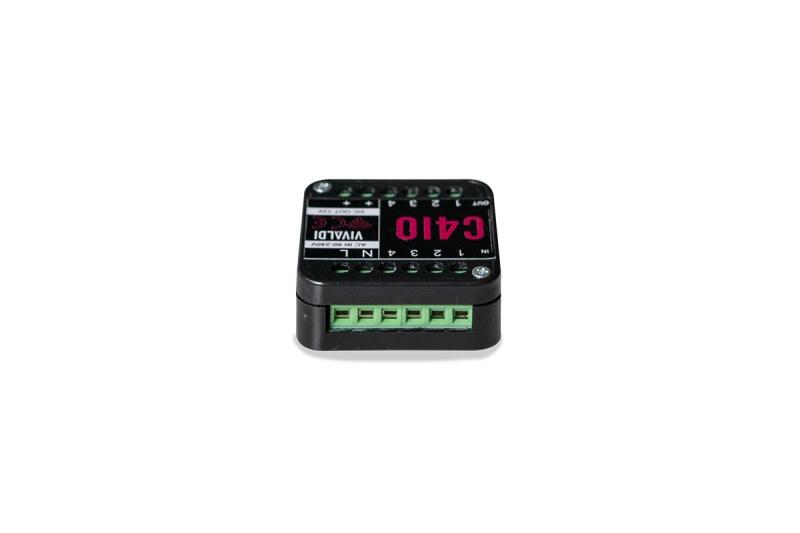

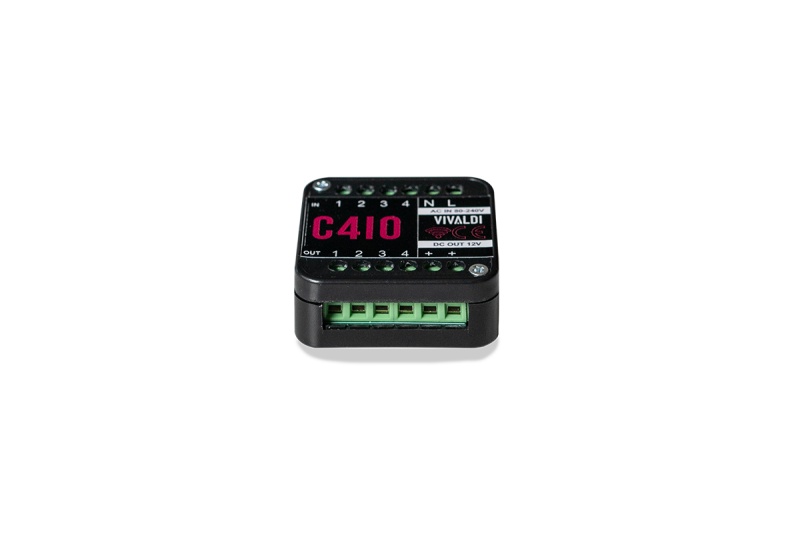

Vivaldi Multimedia C4IO

Remote control interface for Vivaldi Multimedia P30S, ##Vivaldi Multimedia P80S#, #Vivaldi Multimedia MATRIX6#, #Vivaldi Multimedia TELEMACO#.
WiFi connectivity.
Webpage configuration.

---

INPUTS
4 button inputs with functions assignable via webpage programming.
Multi-function buttons (short and long press) to associate two functions to each single input.
The first two inputs can be used with rotary encoder (accessory Vivaldi Multimedia TVE) for volume control via knob.

---

Functions in combination with Vivaldi Multimedia P30S, Vivaldi Multimedia P80S:

• Increment / decreasing volume  inputs/ outputs
• Mute and deactivation switch
• Preset recall
• Forward/backward track player
• Stop
• Play / Pause player
• Left and right channel separate volume control
• Play USB (priority)

---

Functions in conjunction with Vivaldi Multimedia MATRIX6:

• Increment / decreasing volume  inputs/ outputs
• Mute and deactivation switch
• Preset recall
• Forward/backward track player
• Stop
• Play / Pause player
• Play USB (priority)

---

Functions in conjunction with Vivaldi Multimedia TELEMACO:

• Increment / decreasing volume  inputs/ outputs
• Mute and deactivation switch
• Preset recall
• Forward/backward track player
• Stop
• Play / Pause player

---

OUTPUTS
4 outputs for 12V LED connection. 3 light modes: fixed, slow flashing, fast flashing. For the following functions:

• Mute player status, inputs and outputs
• Player playback status
• WiFi connection status
• Feedback button press

---

Power supply 110 - 230vac.
Dimensions (WxHxD) 44x44x18 mm.
Weight: 0,033kg
