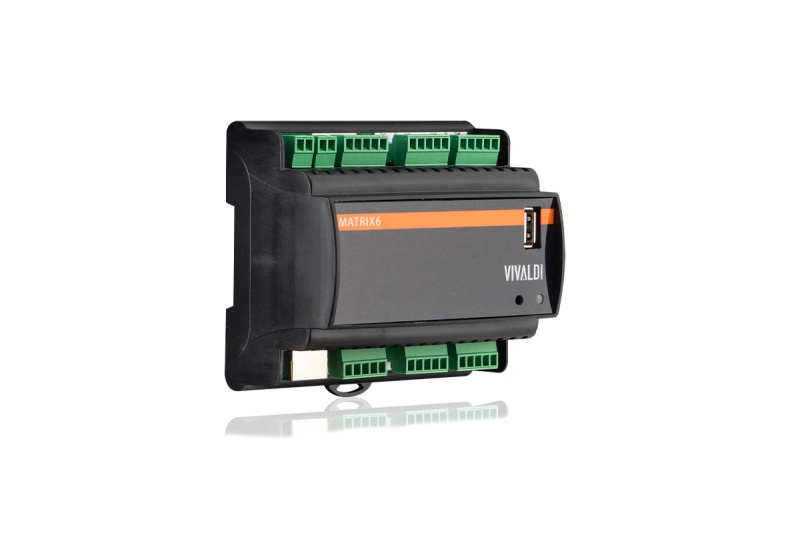

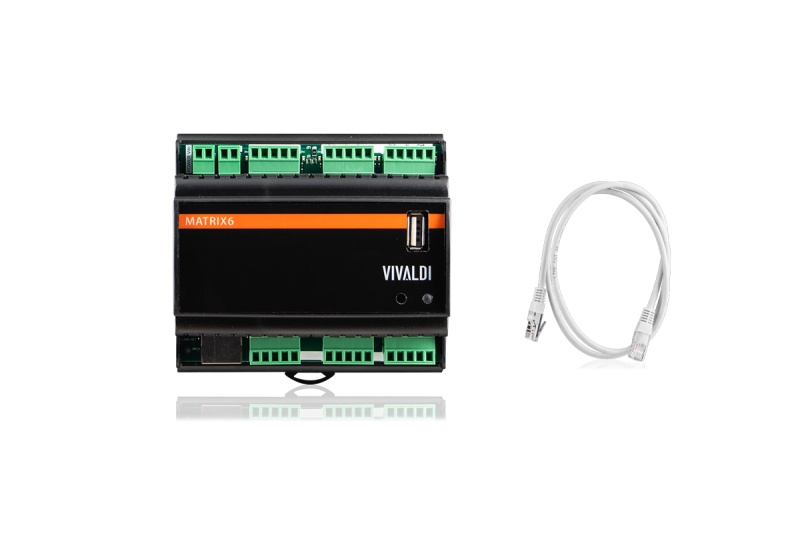

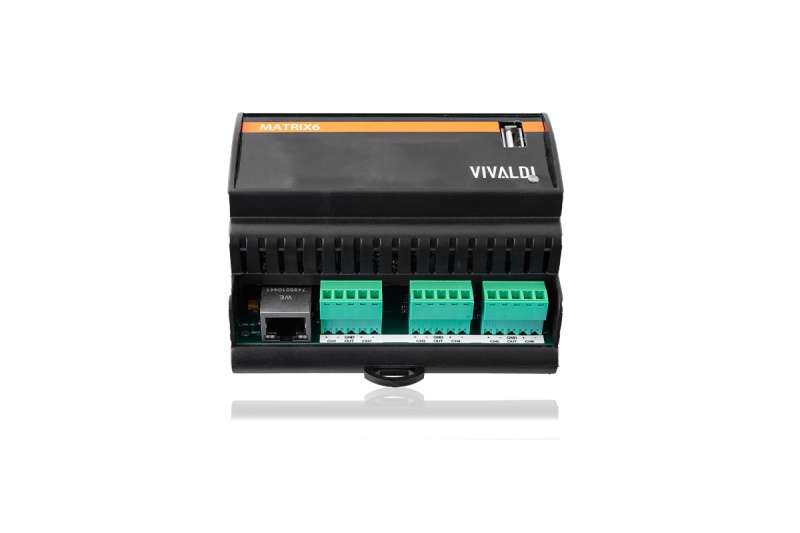

Vivaldi Multimedia MATRIX6
Vivaldi WiFi_6 zones matrix

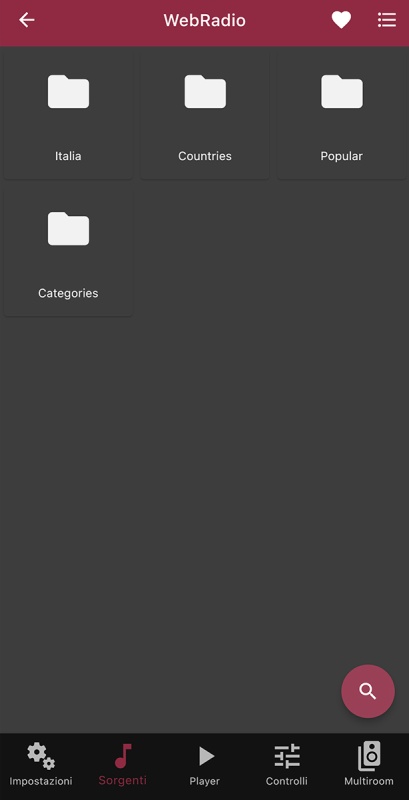

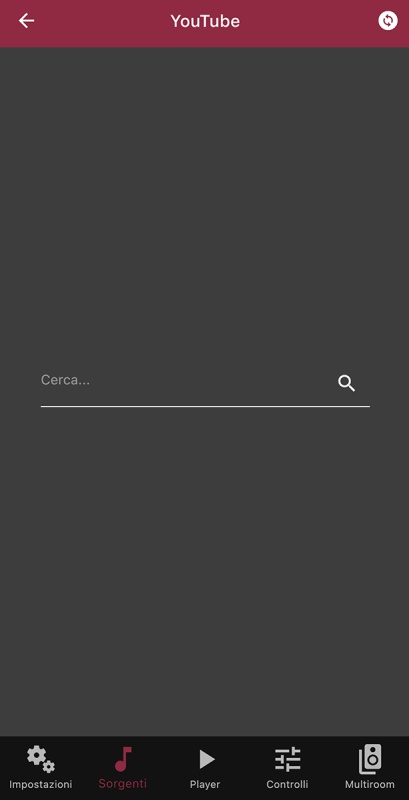

Multimedia stereo device with DSP and multimedia player embedded for WebRadio, Spotify, AirPlay (audio streaming. For example: YouTube, Apple Music, Amazon Music...) ecc....

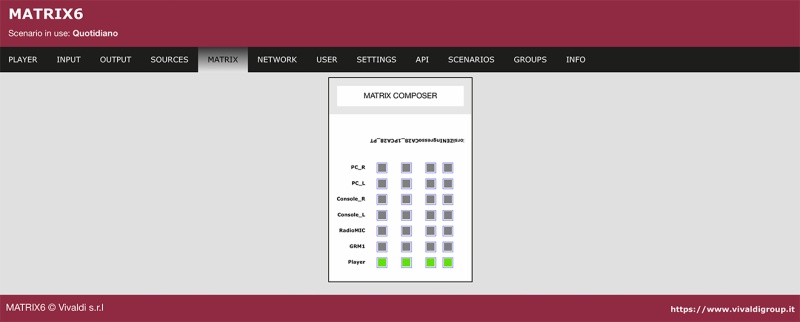

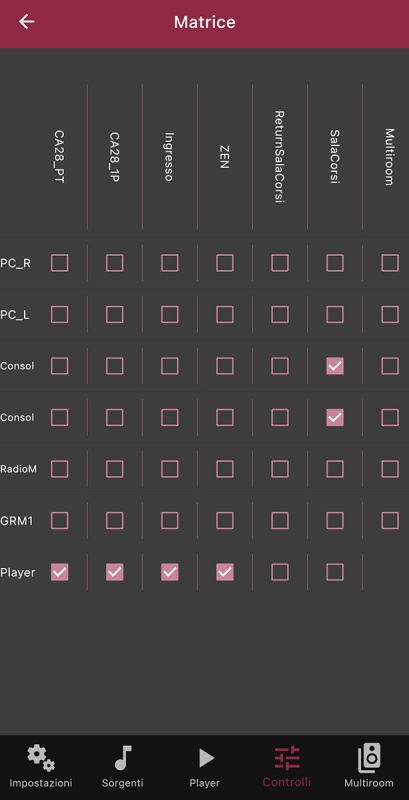

Matrix 6 inputs + 1 source.

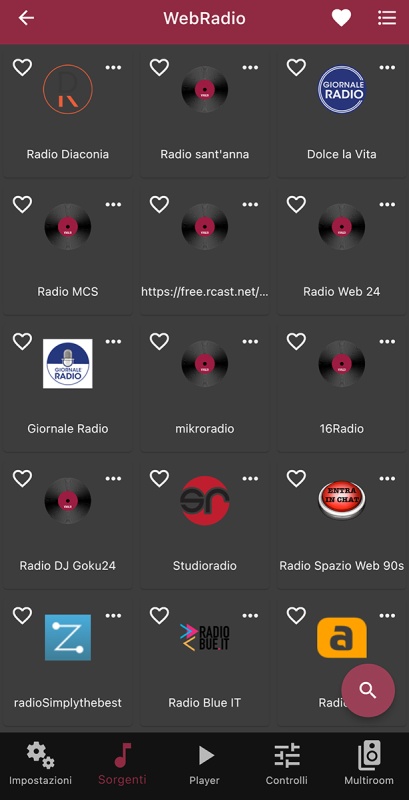

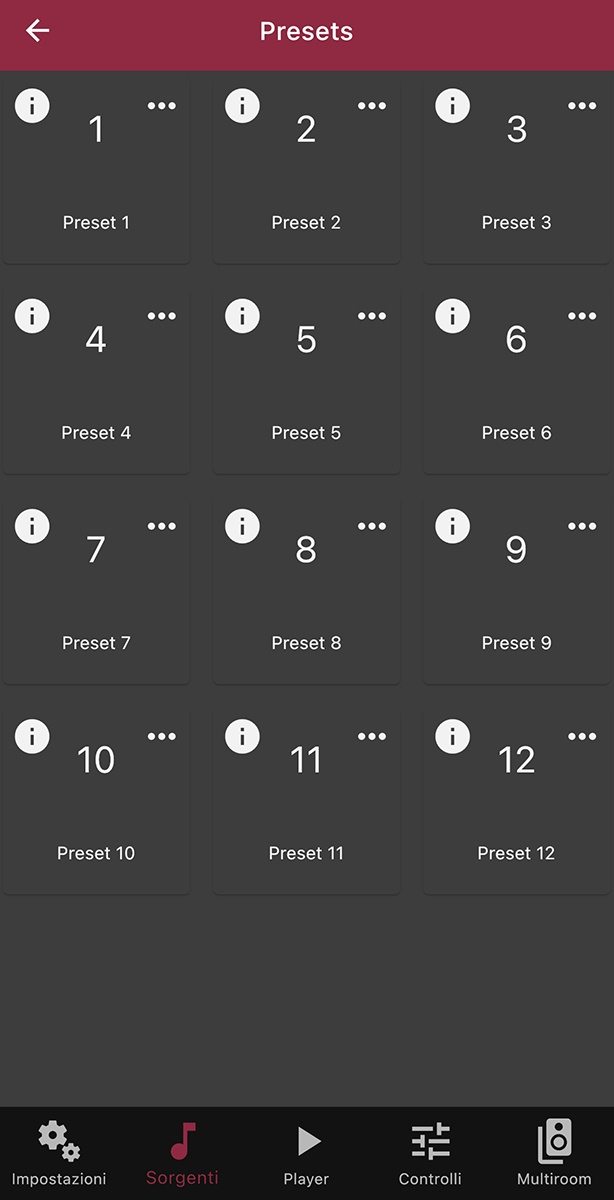

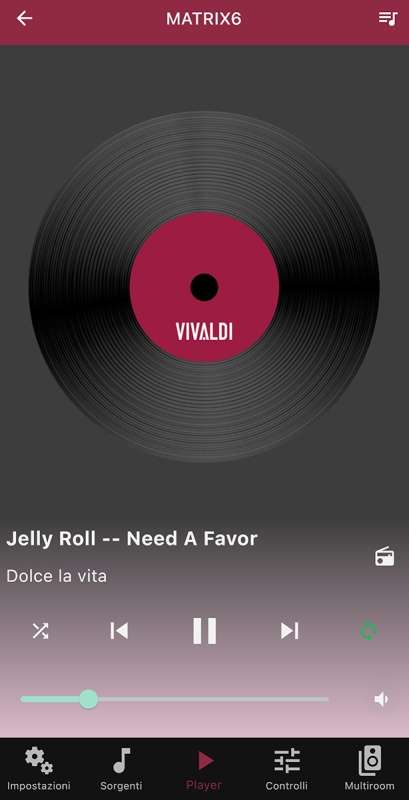

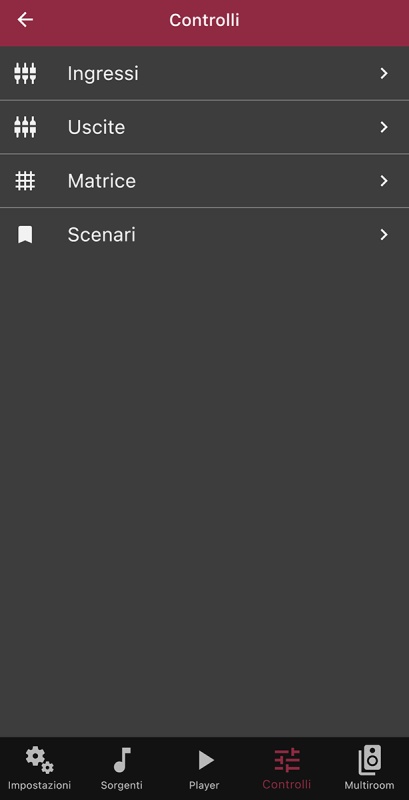

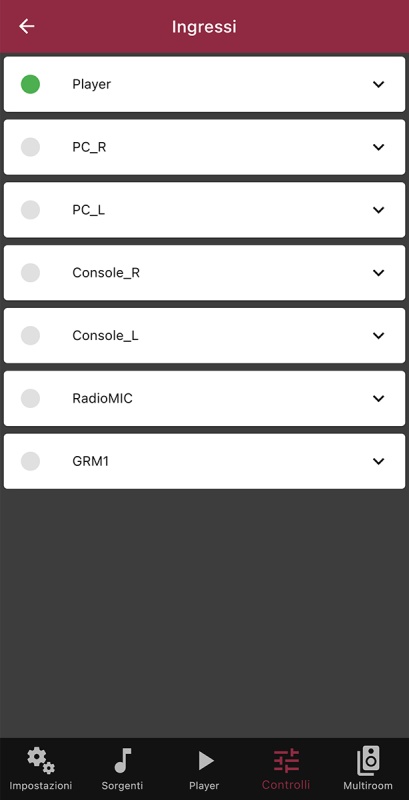

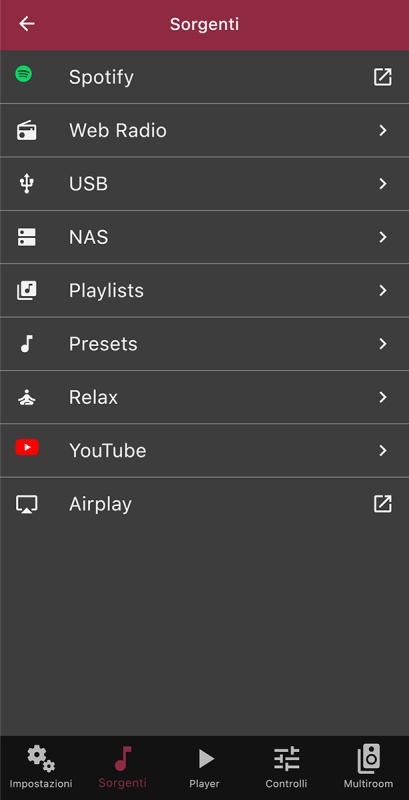

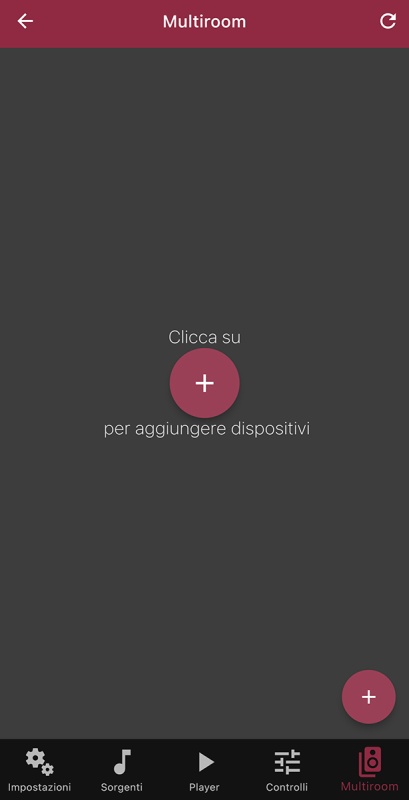

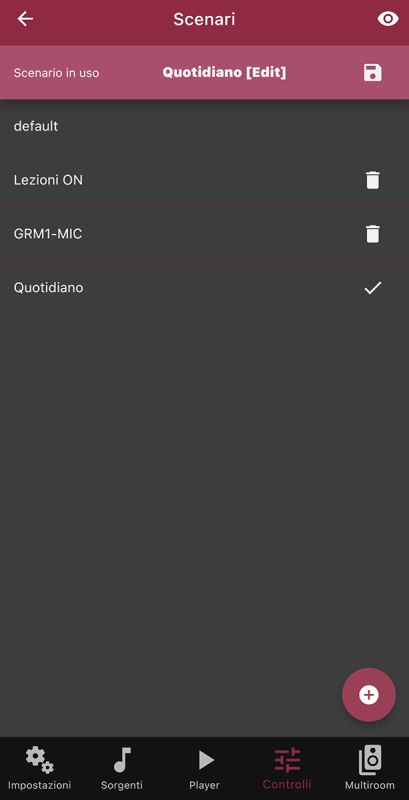

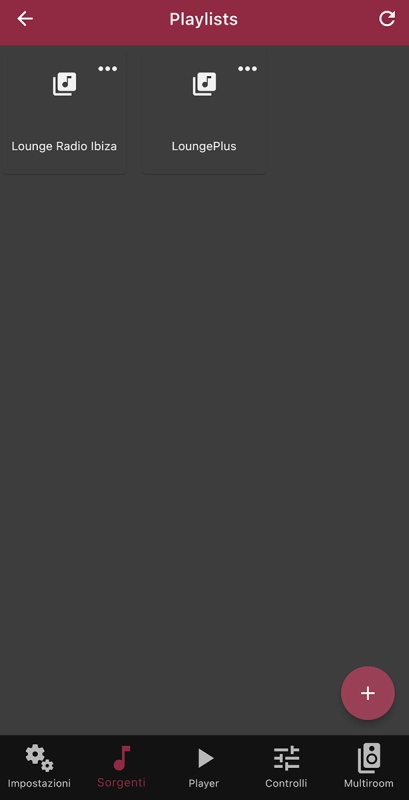

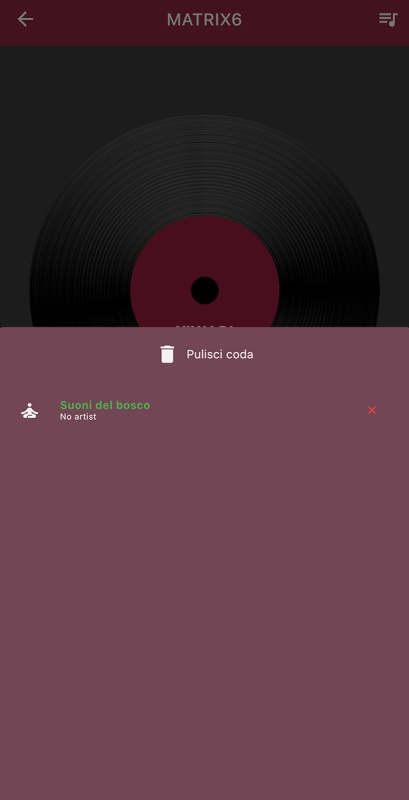

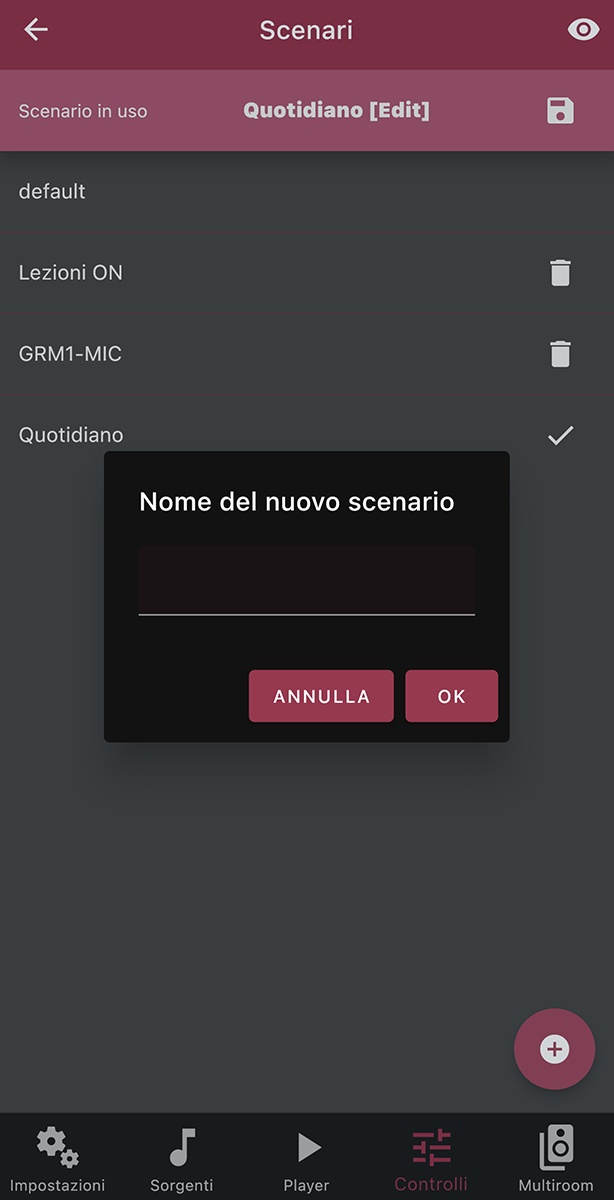

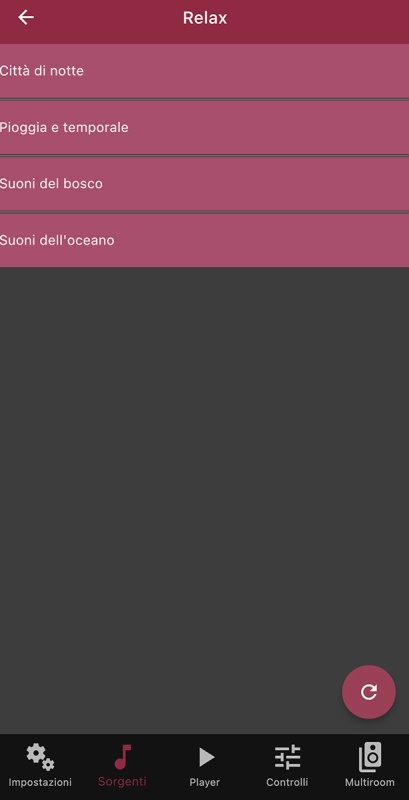

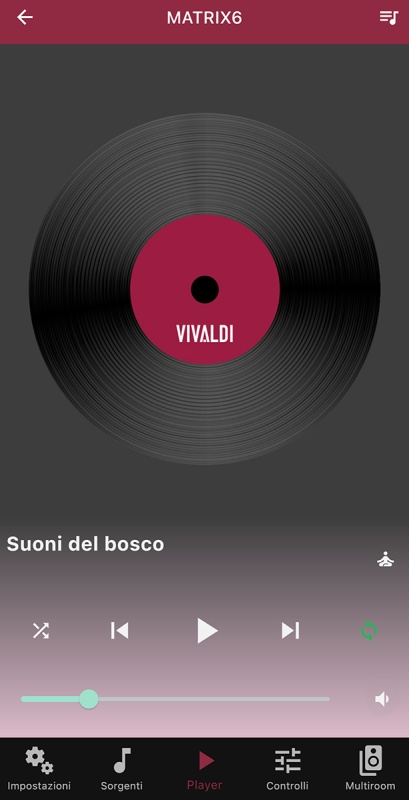

VIVALDI supervision and control APP (downloadable from iOS & Android).

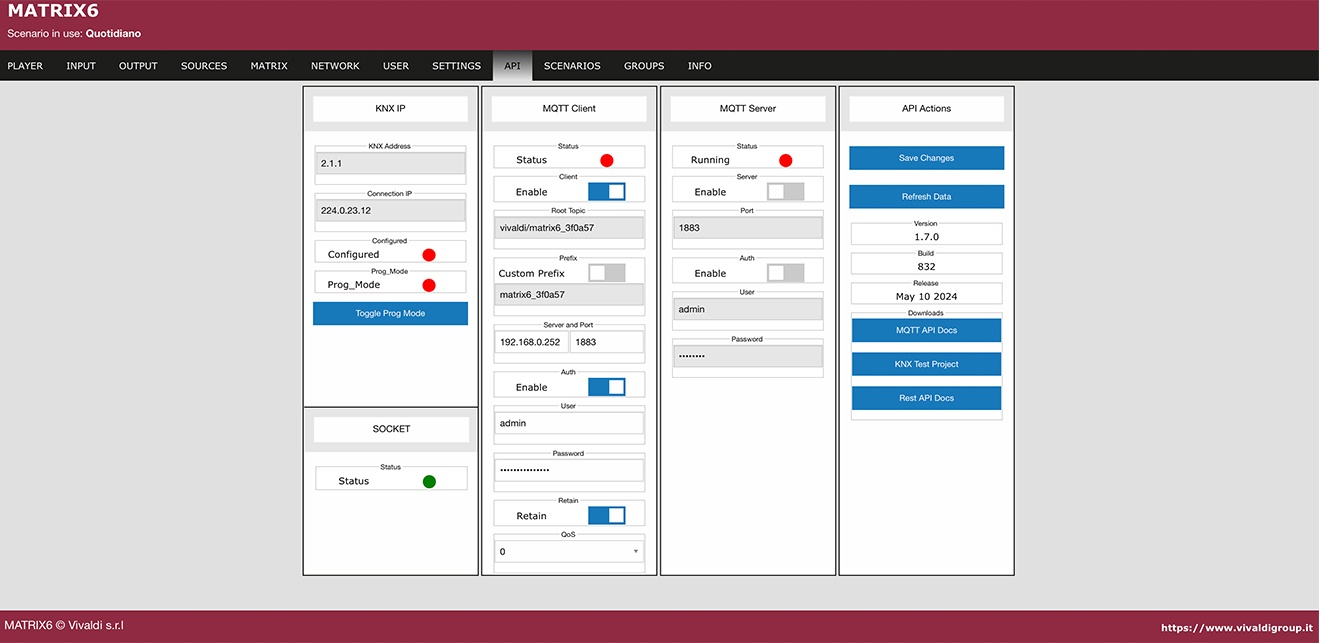

API available:
-KNXnet-IP (KNX IP mandatory Router is not provided)
-Protocollo MQTT 3.1 (through external Broker or integrated)
-REST-API (HTTP GET/POST)

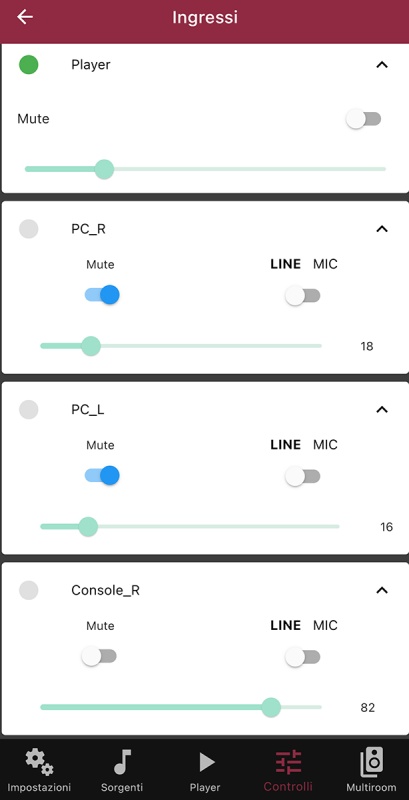

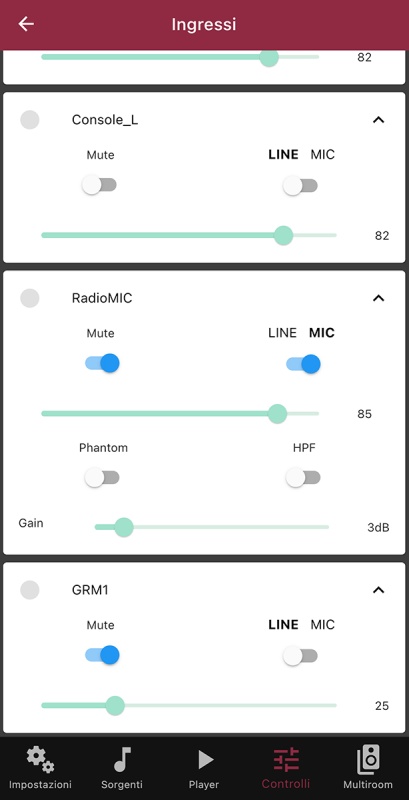

6x SELECTABLE MIC/LINE INPUTS with activable Phantom (24Vdc).

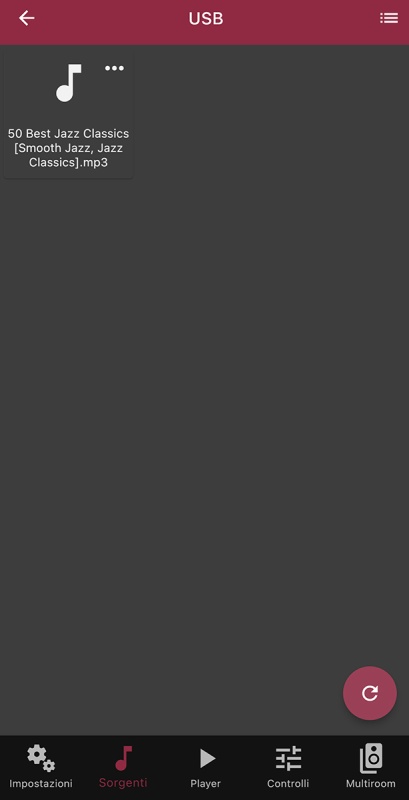

USB Type A on the front for MP3/WMA/AAC/AAC+/ALAC/FLAC/APE/WAV audio file playback.

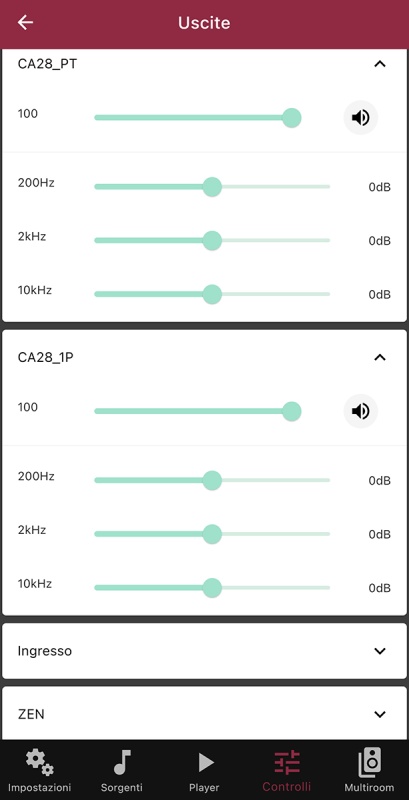

3-band equalizer.
Outputs for power expansions Vivaldi MULTIMEDIA E30S, Vivaldi MULTIMEDIA E80S or power amps Vivaldi Ulisse Line at 8Ω or 100V.

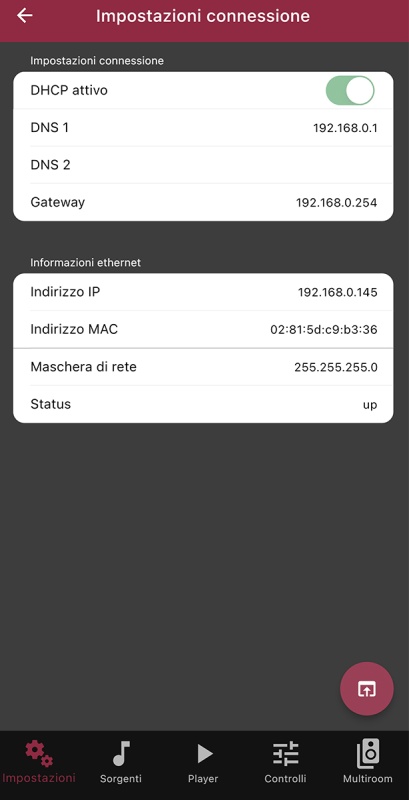

1x RJ45 per LAN.

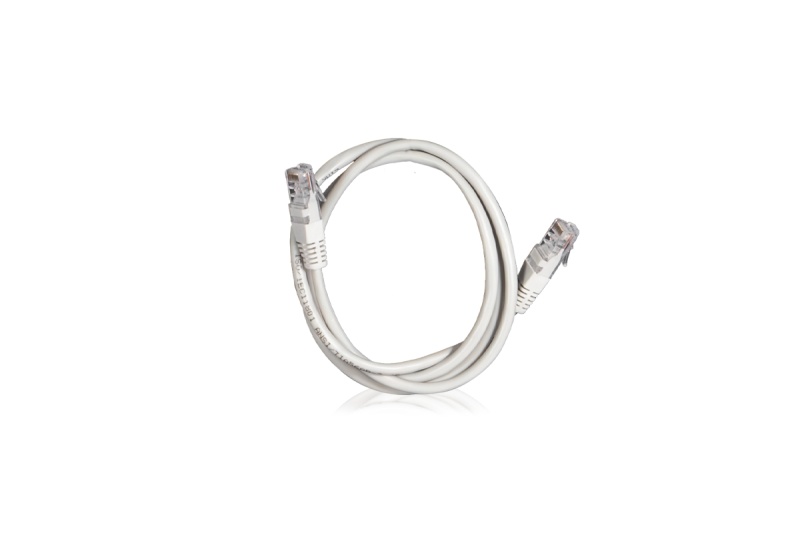

1x PATCH cable 1mt.

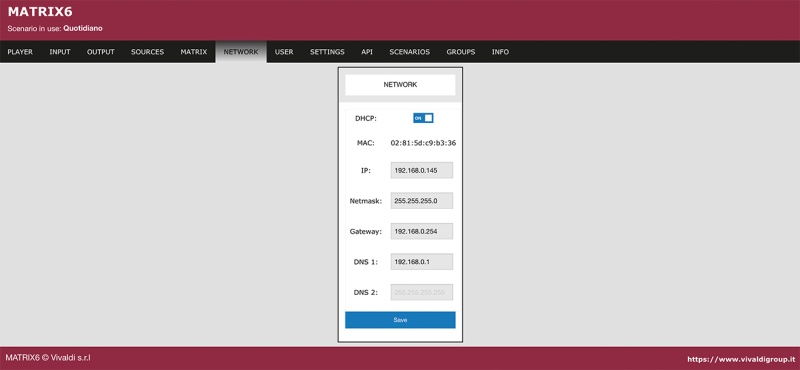

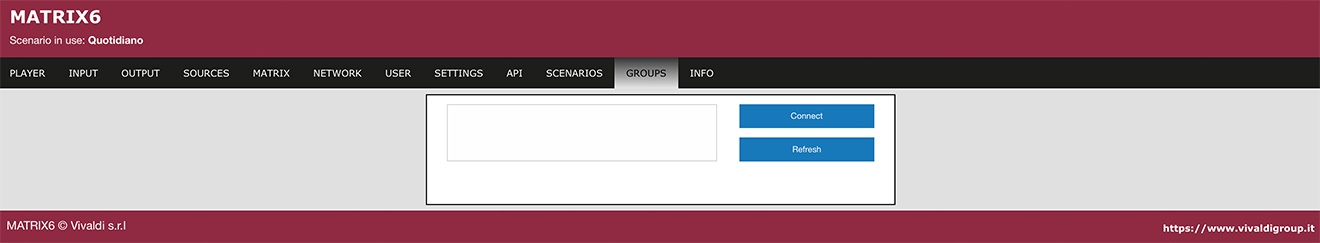

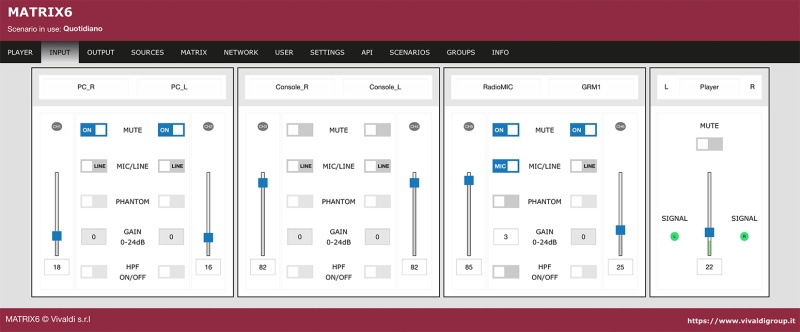

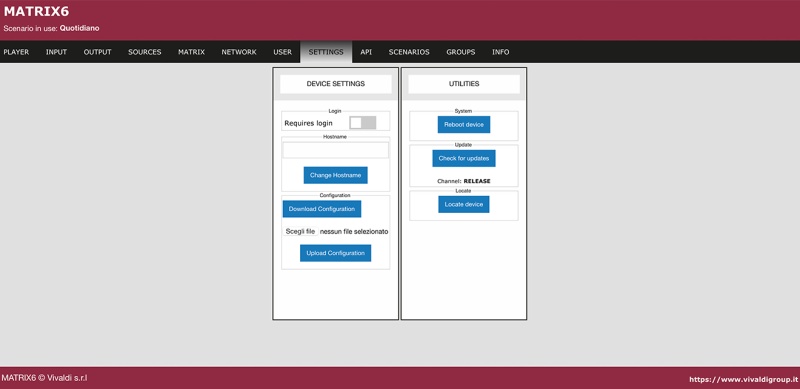

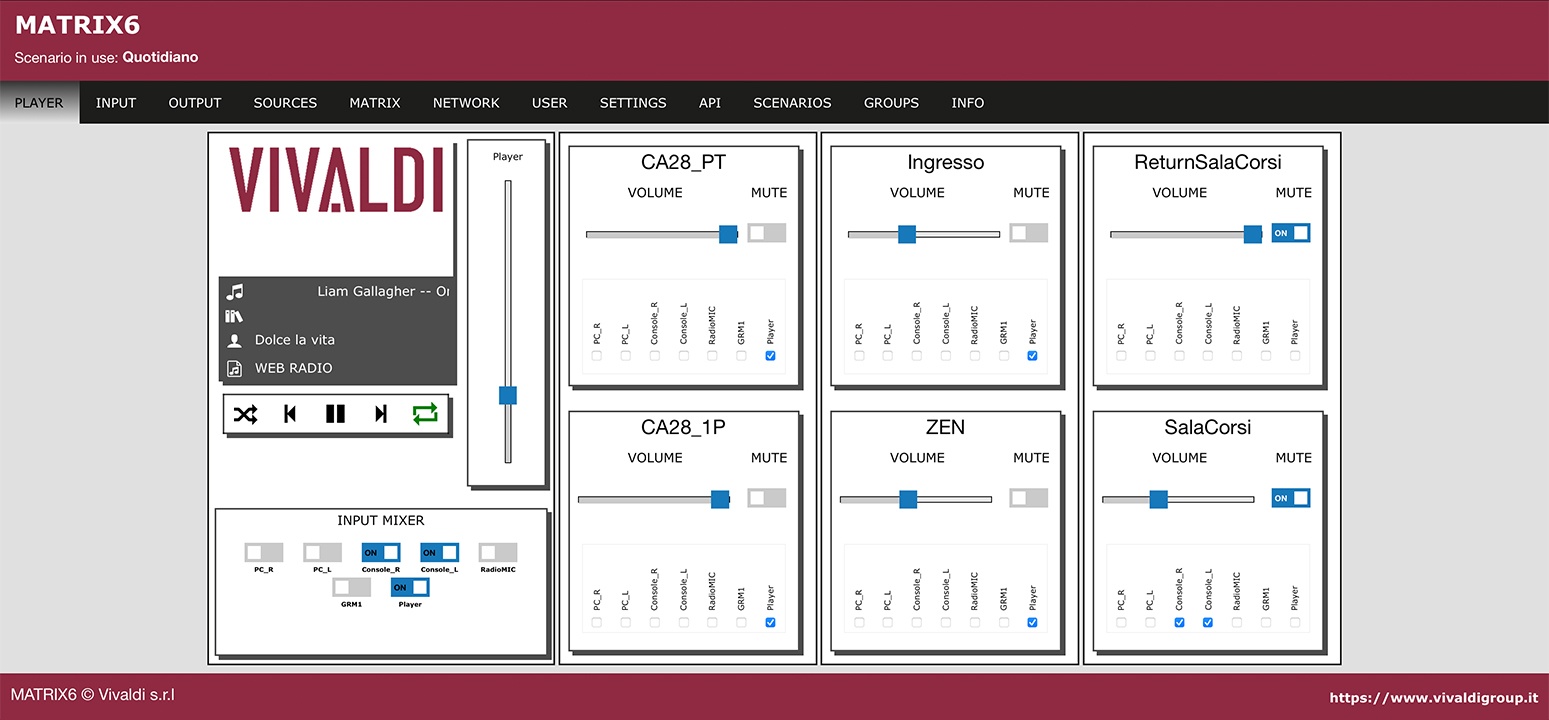

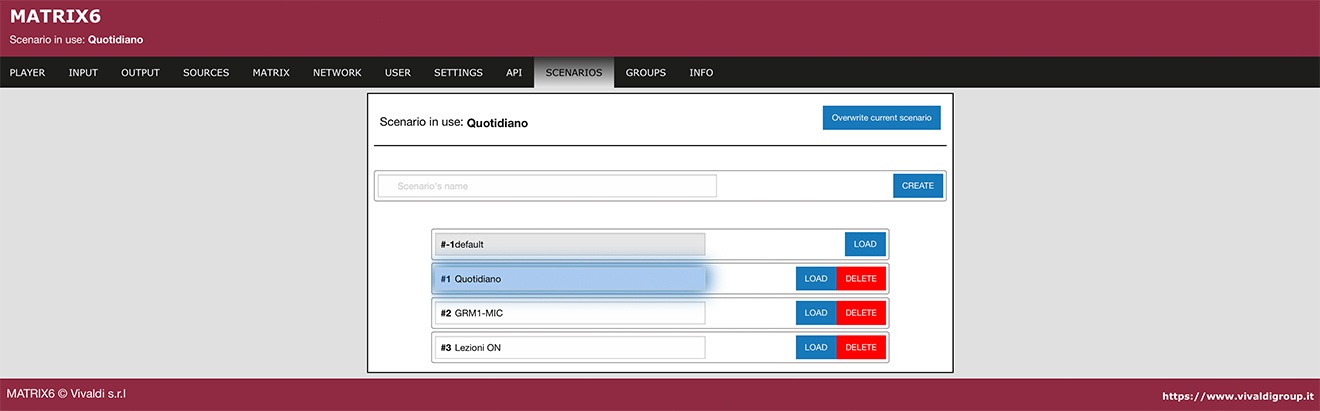

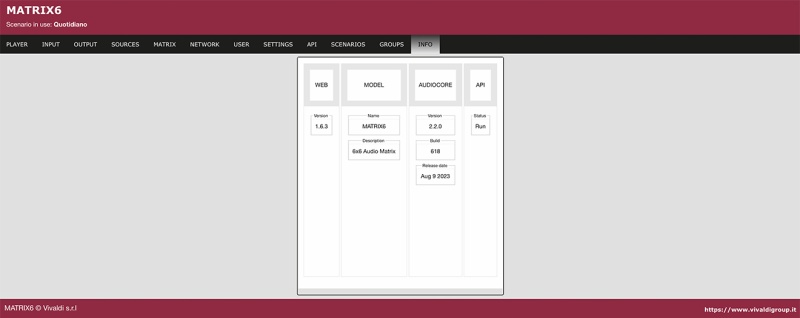

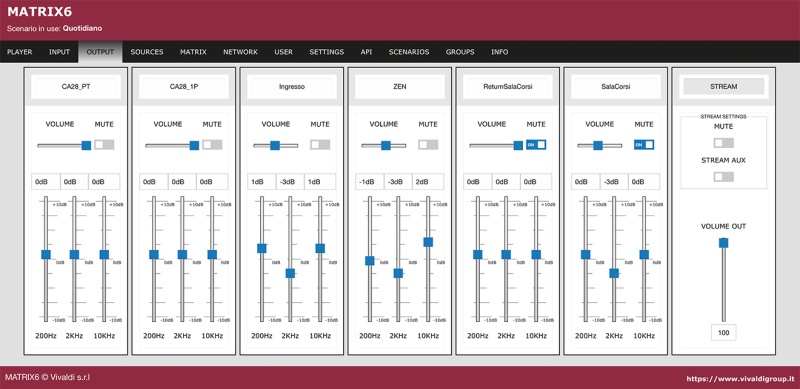

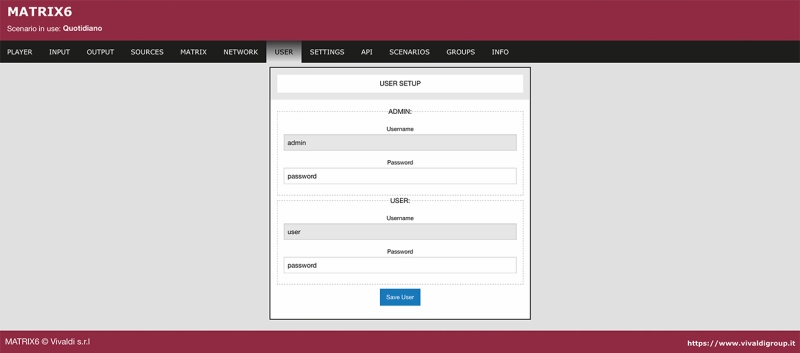

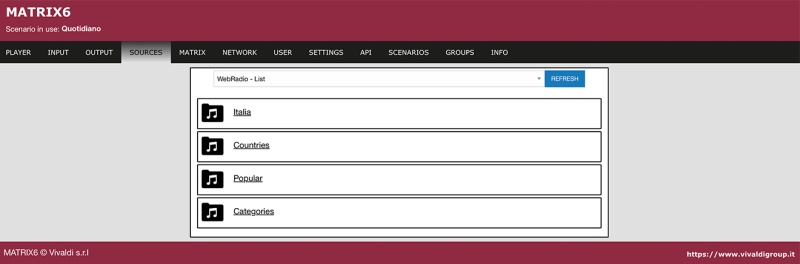

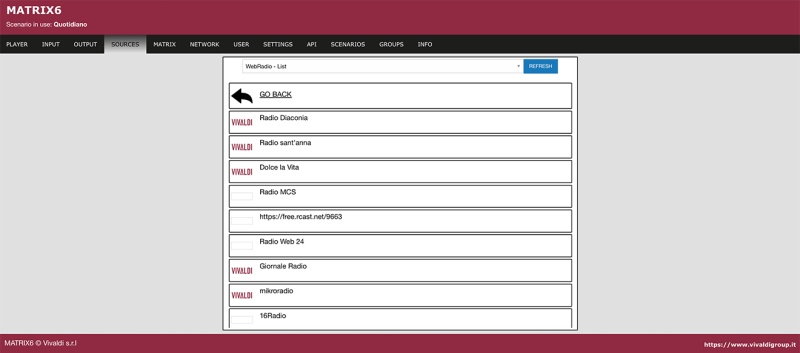

Audio parameter control with volume/settings/... from webpage. Can be integrated with home automation systems Vivaldi Domotica iCONTROL4.1L, Vivaldi Domotica iCONTROL4.0+ via LAN.
Power Supply 24Vdc via Vivaldi Giove AL2B (not included).
DIN standard (6 modules).
Dimensions (WxHxD): 106x90x63 mm.
Weight 0. 2 Kg.
Request a commercial offer
Matrix 6 inputs + 1 source.
VIVALDI supervision and control APP (downloadable from iOS & Android).
API available:
-KNXnet-IP (KNX IP mandatory Router is not provided)
-Protocollo MQTT 3.1 (through external Broker or integrated)
-REST-API (HTTP GET/POST)
6x SELECTABLE MIC/LINE INPUTS with activable Phantom (24Vdc).
USB Type A on the front for MP3/WMA/AAC/AAC+/ALAC/FLAC/APE/WAV audio file playback.
3-band equalizer.
Outputs for power expansions Vivaldi MULTIMEDIA E30S, Vivaldi MULTIMEDIA E80S or power amps Vivaldi Ulisse Line at 8Ω or 100V.
1x RJ45 per LAN.
1x PATCH cable 1mt.
Audio parameter control with volume/settings/... from webpage. Can be integrated with home automation systems Vivaldi Domotica iCONTROL4.1L, Vivaldi Domotica iCONTROL4.0+ via LAN.
Power Supply 24Vdc via Vivaldi Giove AL2B (not included).
DIN standard (6 modules).
Dimensions (WxHxD): 106x90x63 mm.
Weight 0. 2 Kg.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
