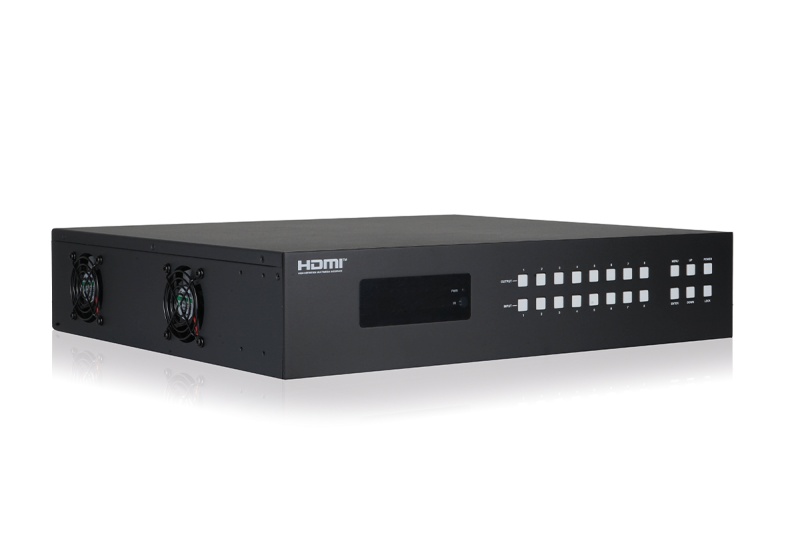

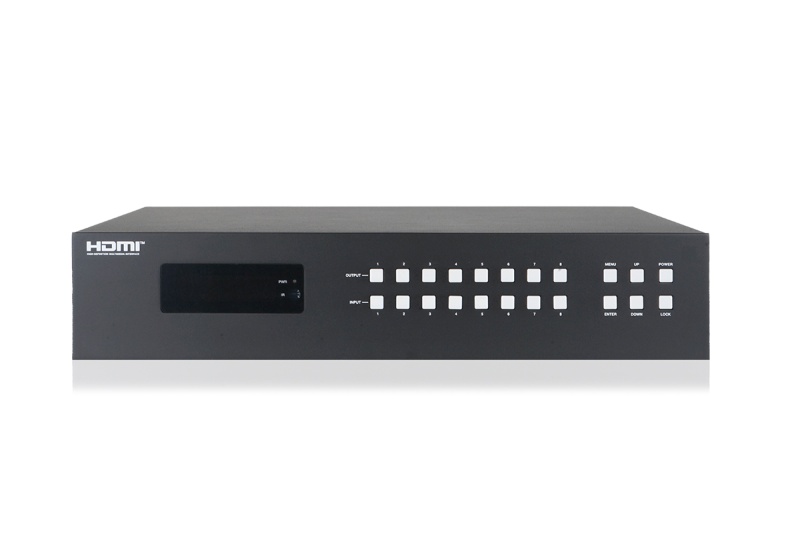

Vivaldi HDMI VM88H150E

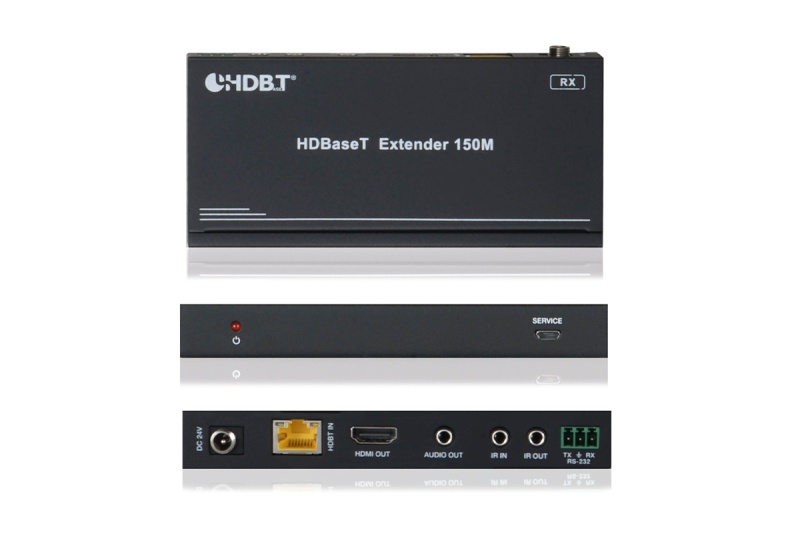

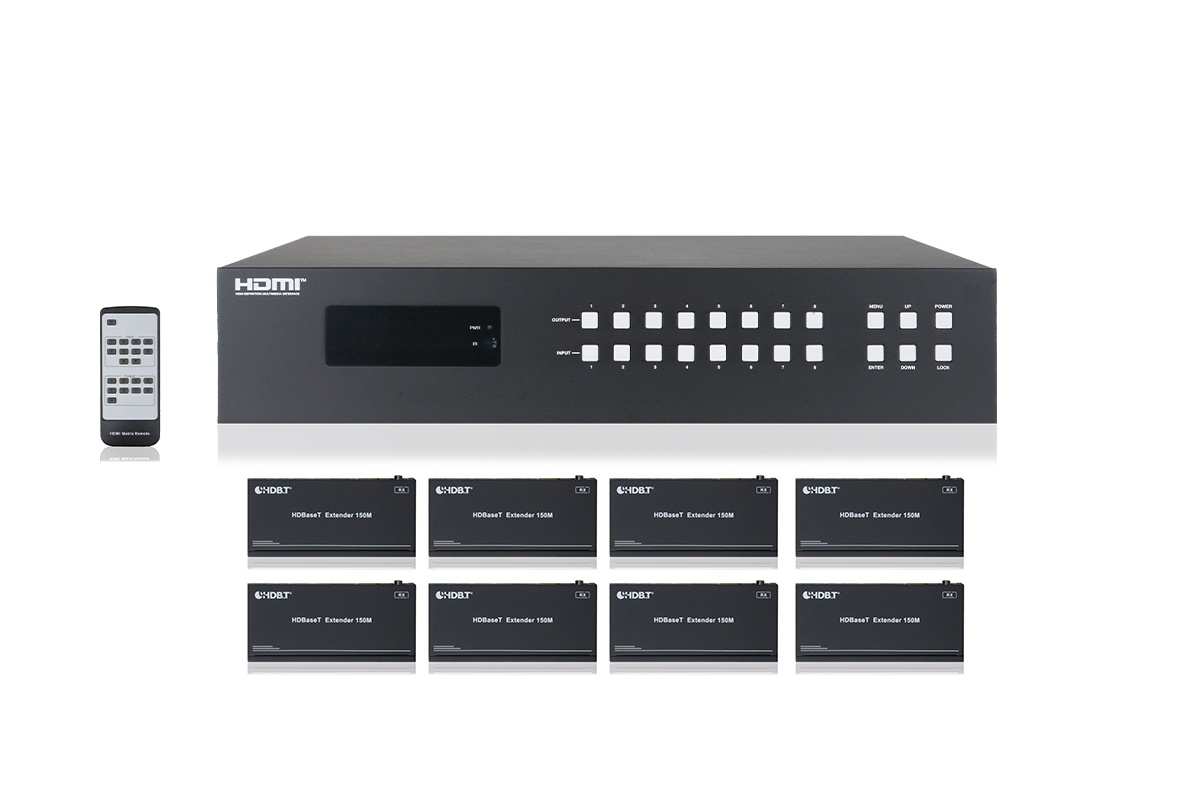

8x8 HDMI/HDBaseT Video Matrix + Extender (kit)

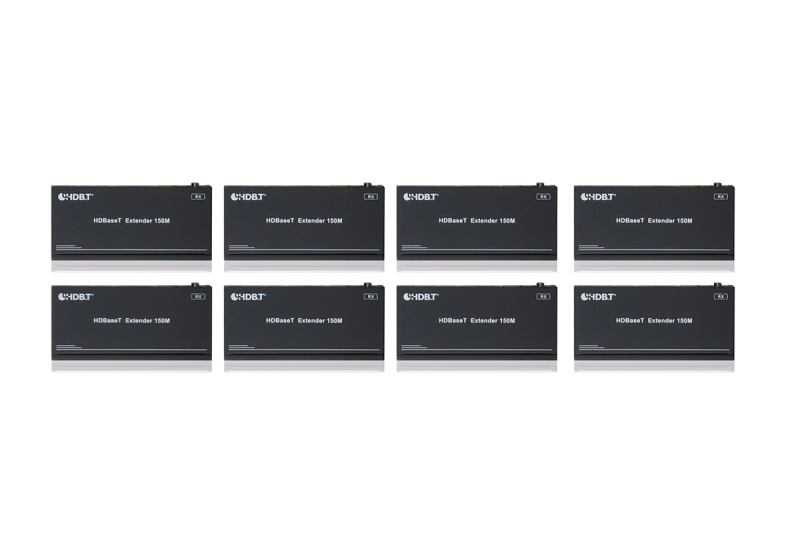

HDMI/HDBaseT 8x8 matrix kit complete with 8 150mt extenders; allows 8 HDMI audio/video input sources to be routed

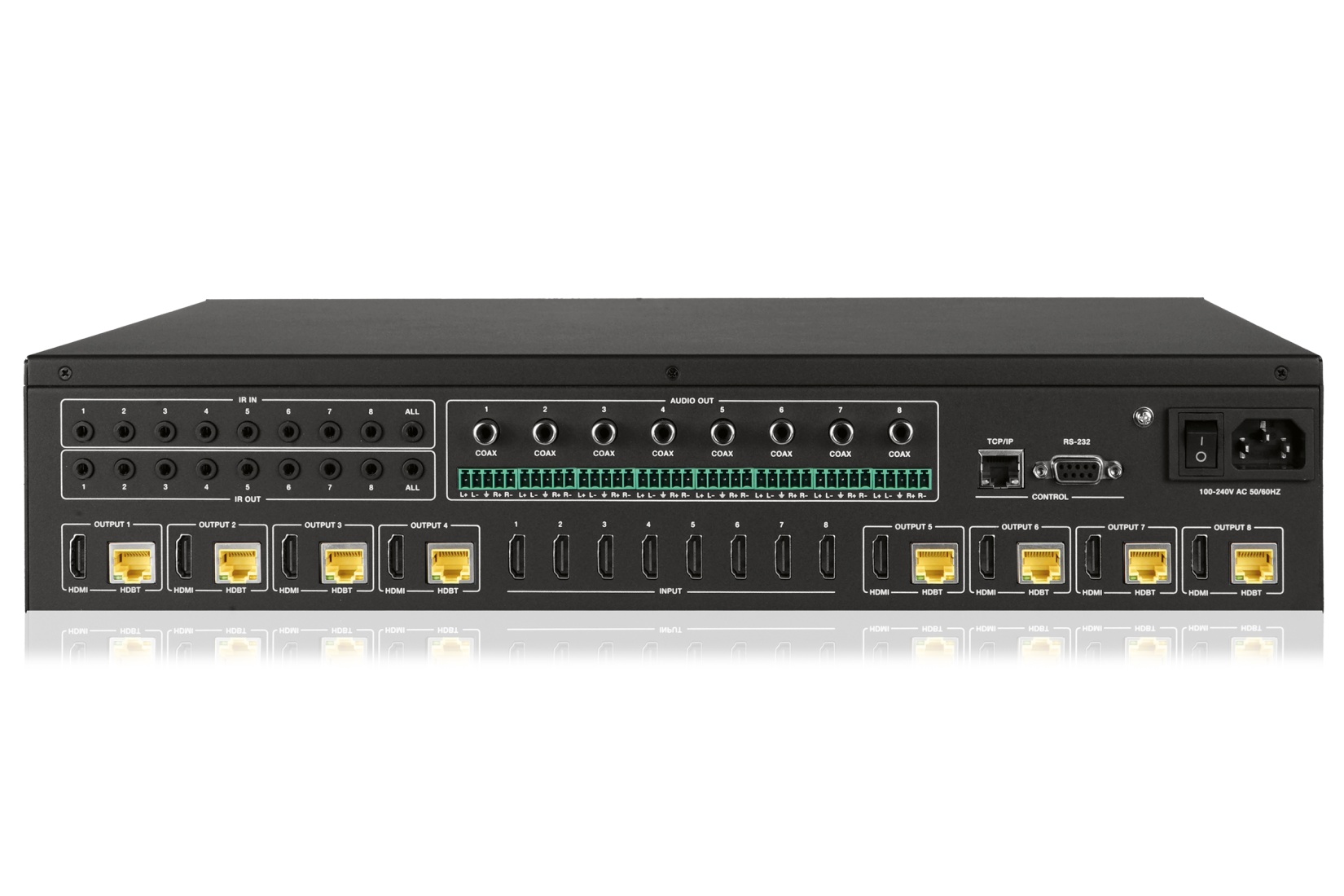

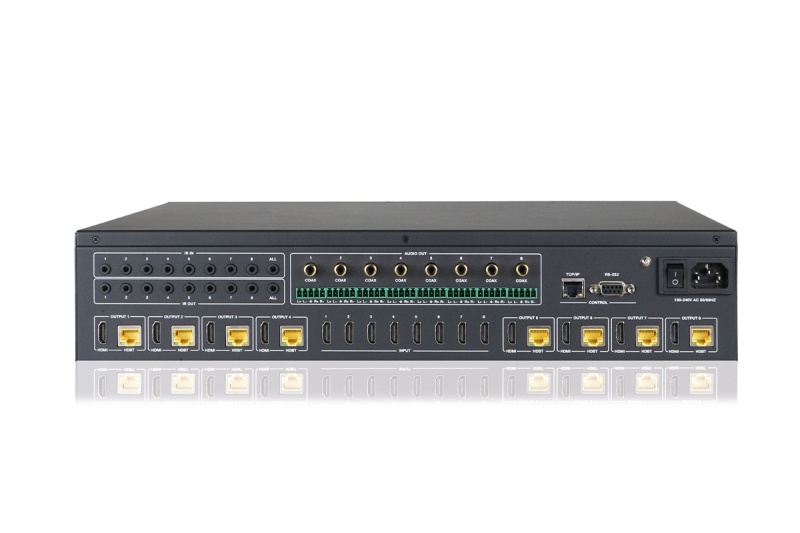

to 8 HDMI/HDBT video outputs. Each output has one HDBT port, one HDMI output (mirrored), one analogue L/R audio output
one coax digital audio output, one RS-232 TX-Rx port, LAN, WEB GUI.
HDBT outputs up to 150m with 1080p60 resolution with POC (remote power supply via cat 5e/6/7 cable).
Supports HDMI 2.0 format with HDCP 2.2 and resolutions up to 4K2K@60Hz(YUV4:4:4), on all HDMI and HDBaseT ports.
Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio).
Configurable EDID. Management via front panel and display, RS-232, IR, TCP/IP and Ethernet protocol (LAN), CEC control.
Black painted metal cabinet.
Dimensions 440x88x362 mm (WxHxD).
Weight 6.7 kg.
Request a commercial offer
to 8 HDMI/HDBT video outputs. Each output has one HDBT port, one HDMI output (mirrored), one analogue L/R audio output
one coax digital audio output, one RS-232 TX-Rx port, LAN, WEB GUI.
HDBT outputs up to 150m with 1080p60 resolution with POC (remote power supply via cat 5e/6/7 cable).
Supports HDMI 2.0 format with HDCP 2.2 and resolutions up to 4K2K@60Hz(YUV4:4:4), on all HDMI and HDBaseT ports.
Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio).
Configurable EDID. Management via front panel and display, RS-232, IR, TCP/IP and Ethernet protocol (LAN), CEC control.
Black painted metal cabinet.
Dimensions 440x88x362 mm (WxHxD).
Weight 6.7 kg.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
