Vivaldi HDMI VM44H100E
4x4 HDMI/HDBaseT Video Matrix + Extender (kit)

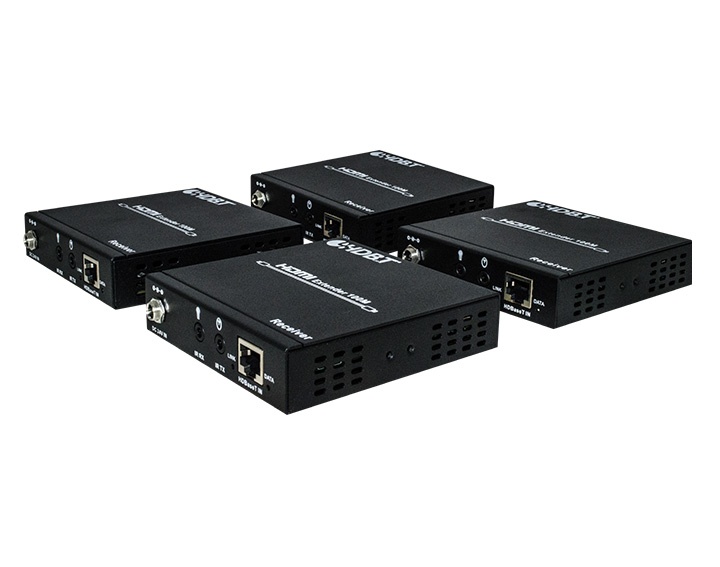

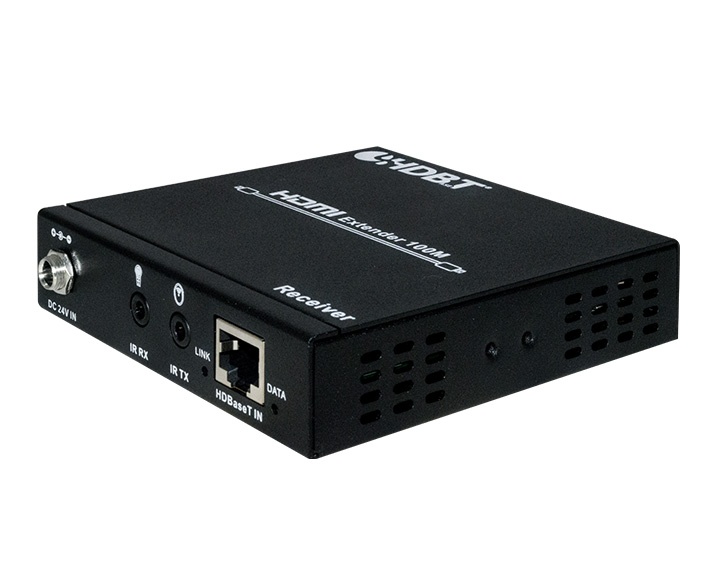

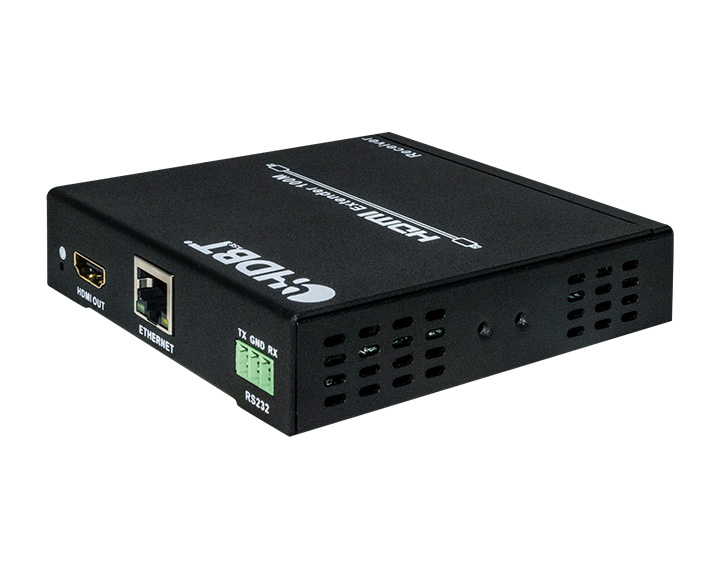

4x4 HDMI/HDBaseT Video matrix with 4 100m extenders;
routes signal from 4 HDMI audio/video input sources to 4 HDMI/HDBaseT.

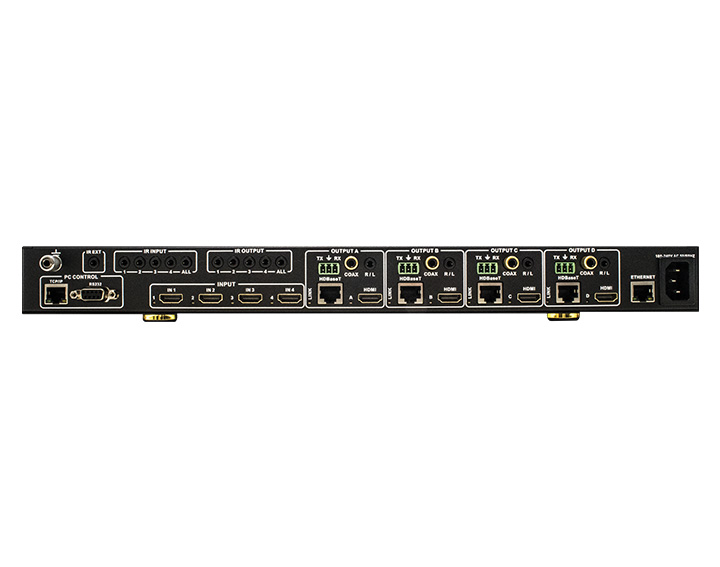

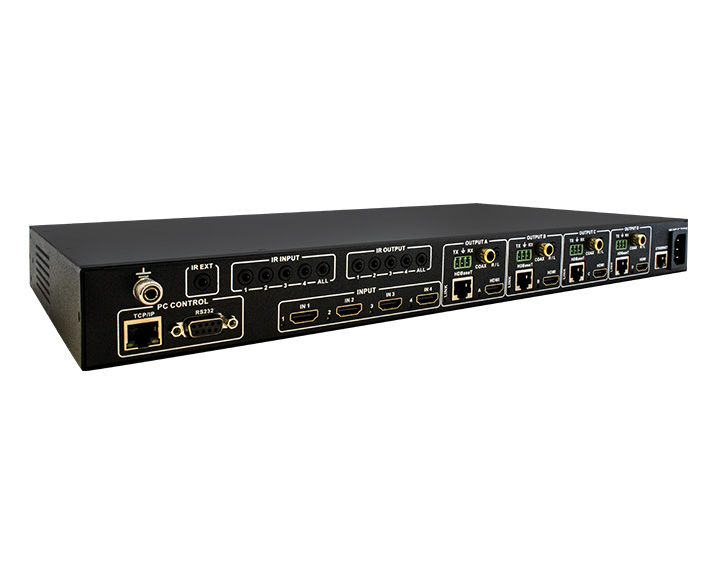

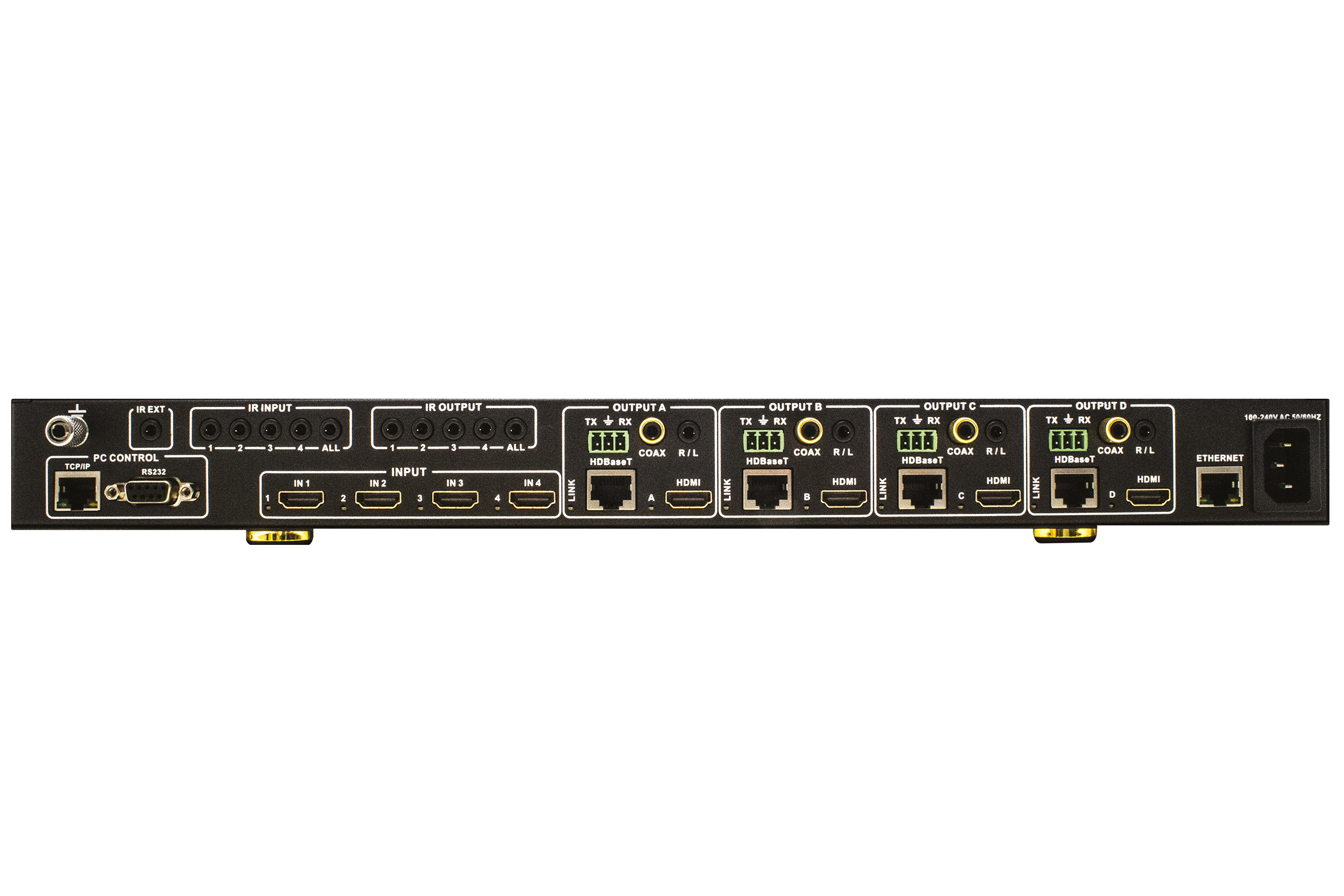

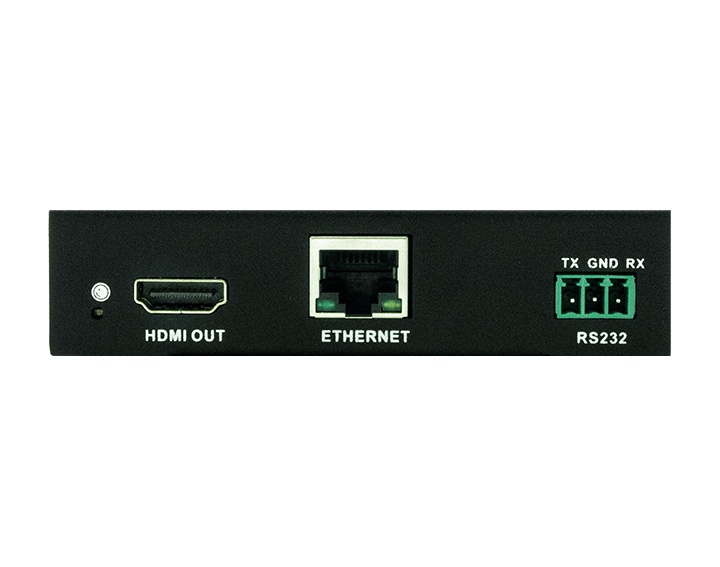

Each output has one HDBaseT port, one HDMI (mirrored) output, one L/R analog output, one digital coax output, one RS-232 Tx-Rx port.

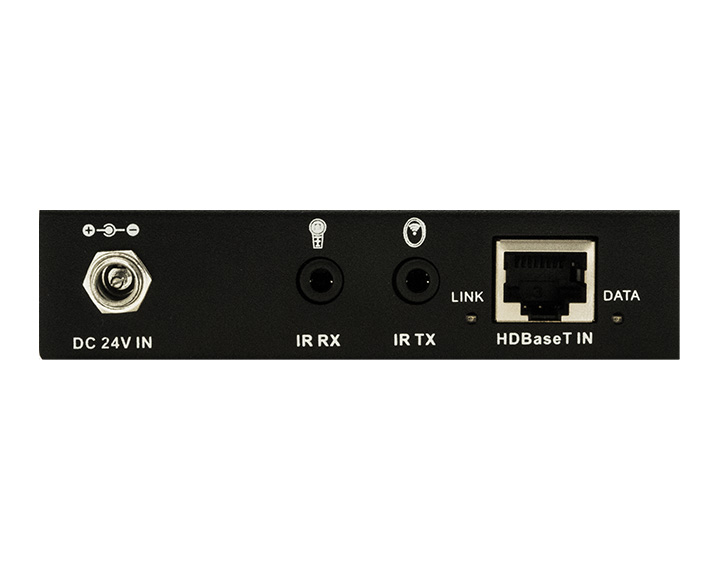

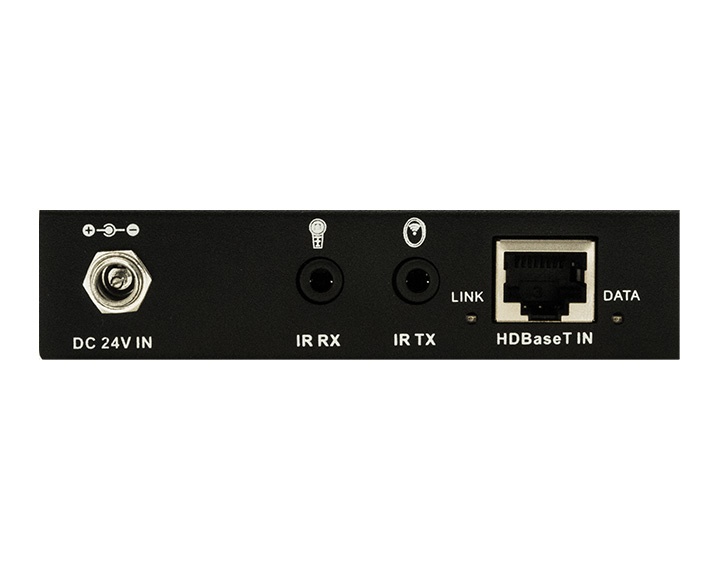

HDBaseT outputs up to 70mt at 1080p60 resolution with POC (remote power supply via cat 5e/6/7 cable).
Supports HDMI 2.0 format with HDCP 2.2 and resolutions up to 4K 2K@60Hz(4:2:0), 4K 2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz.
Supports up to 7.1 High Definition audio channels (LPCM, Dolby TrueHD e DTS-HD Master Audio).

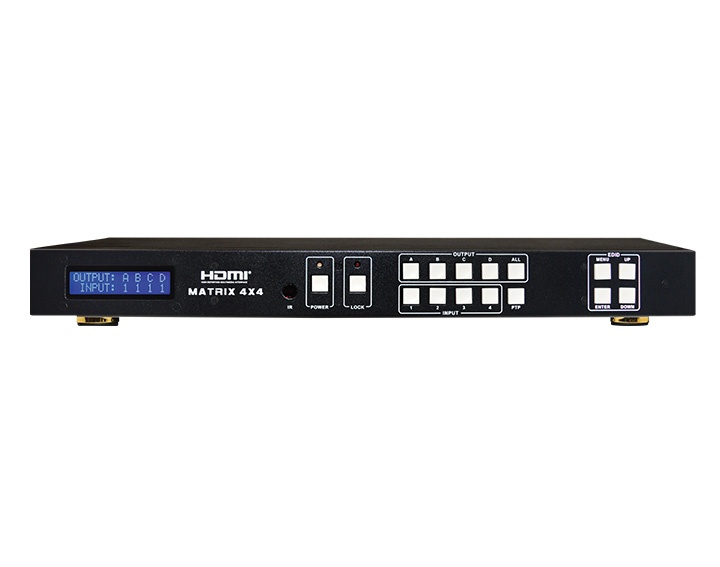

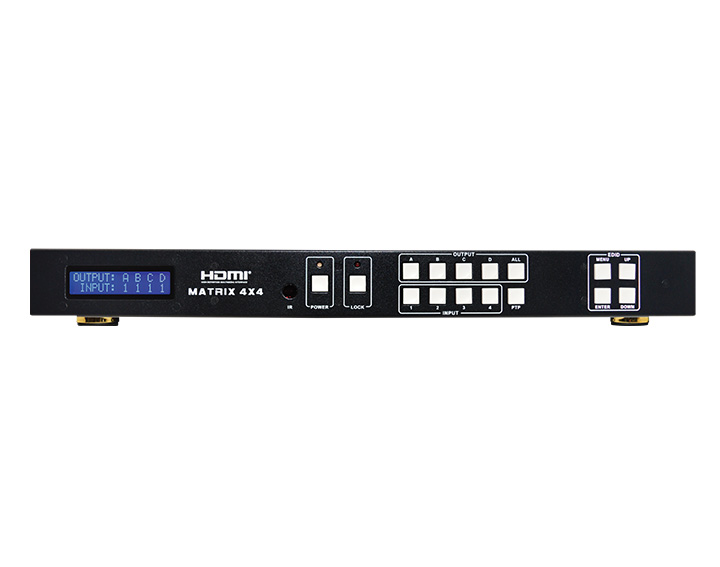

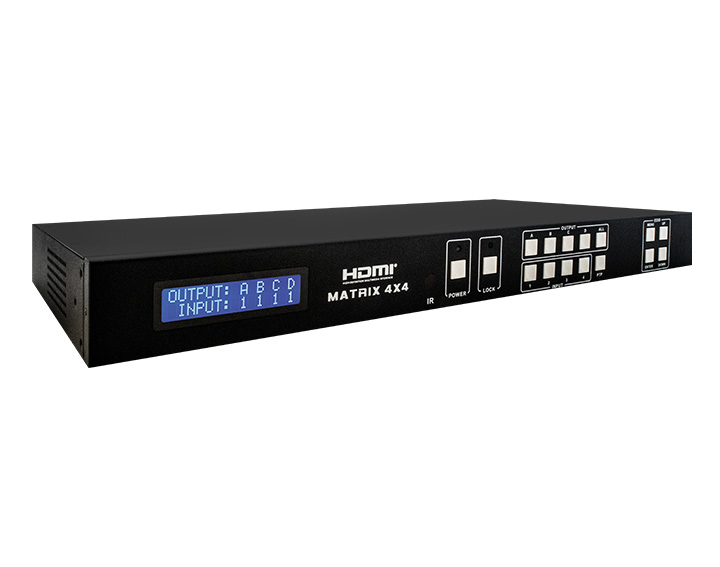

Configurable EDID. Control from front panel and display, RS-232, IR and ethernet protocols (LAN).
Black colour metal chassis.
Dimensions 440x45x200 mm (WxHxD). Weight 1,82 Kg.
Request a commercial offer
routes signal from 4 HDMI audio/video input sources to 4 HDMI/HDBaseT.
Each output has one HDBaseT port, one HDMI (mirrored) output, one L/R analog output, one digital coax output, one RS-232 Tx-Rx port.
HDBaseT outputs up to 70mt at 1080p60 resolution with POC (remote power supply via cat 5e/6/7 cable).
Supports HDMI 2.0 format with HDCP 2.2 and resolutions up to 4K 2K@60Hz(4:2:0), 4K 2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz.
Supports up to 7.1 High Definition audio channels (LPCM, Dolby TrueHD e DTS-HD Master Audio).
Configurable EDID. Control from front panel and display, RS-232, IR and ethernet protocols (LAN).
Black colour metal chassis.
Dimensions 440x45x200 mm (WxHxD). Weight 1,82 Kg.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
