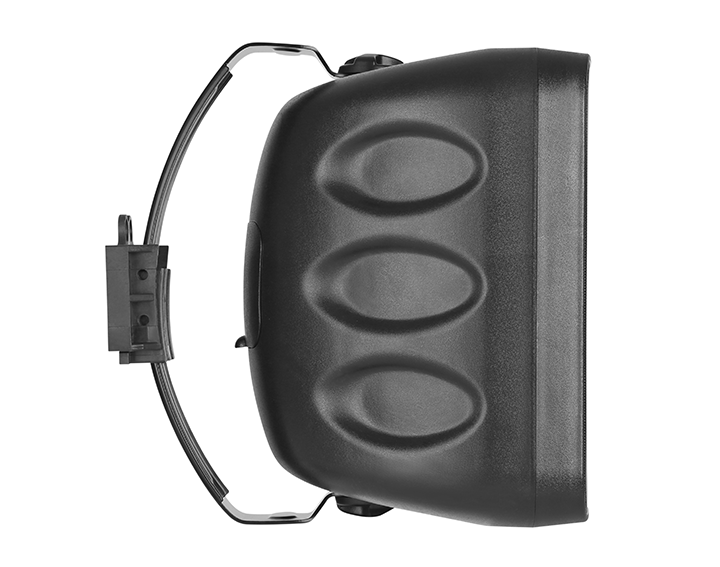

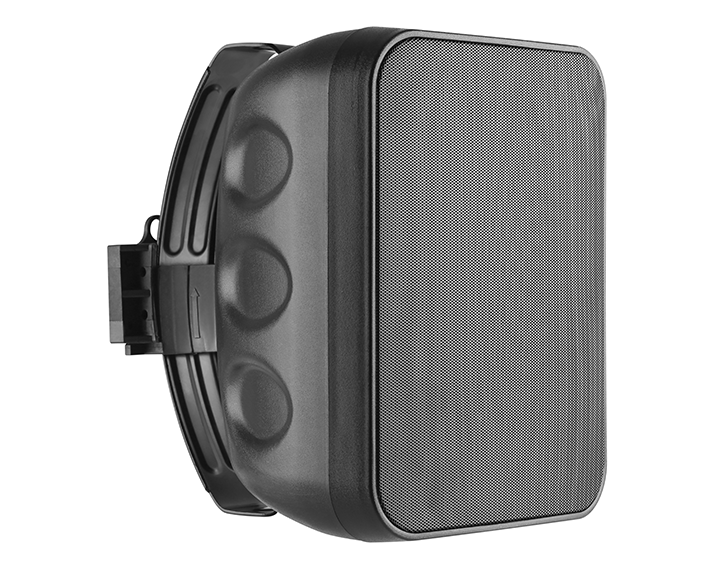

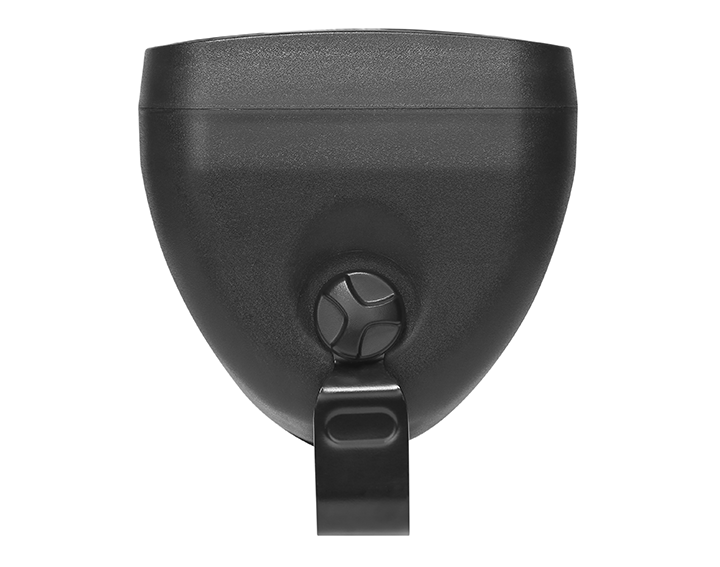

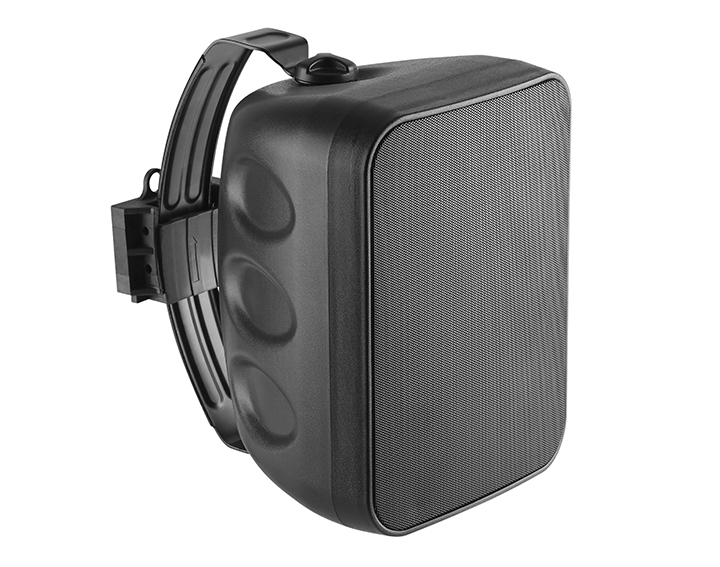

Vivaldi EN54 FLORA16TB
Speakers for EN54-24 certified voice evacuation systems
code variation:
Vivaldi EN54 FLORA16TW selectable impedance 8 Ohm - 100VVivaldi EN54 FLORA10T
Vivaldi EN54 FLORA13T selectable impedance 8 Ohm - 100V
Professional 2-way Hi-Fi sound projector. EN54-24 certified.
IP65 protection. Ideal for outdoor applications even in marine areas. Resistant to corrosive agents as chlorine and salt.

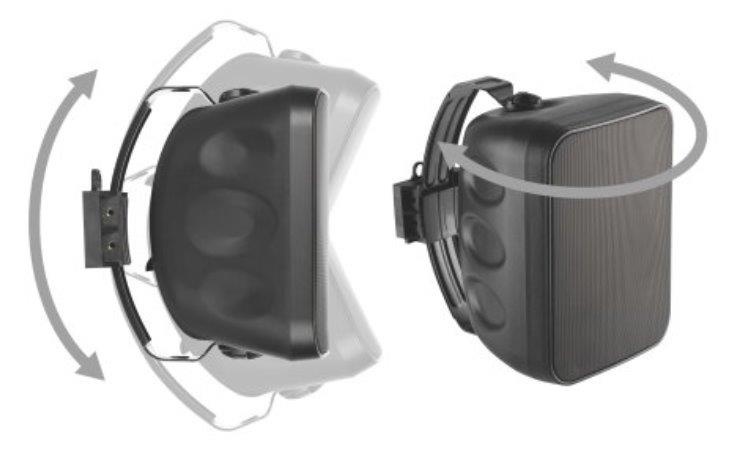

Bracket rotation 90 ° vertical, 170 ° horizontal.

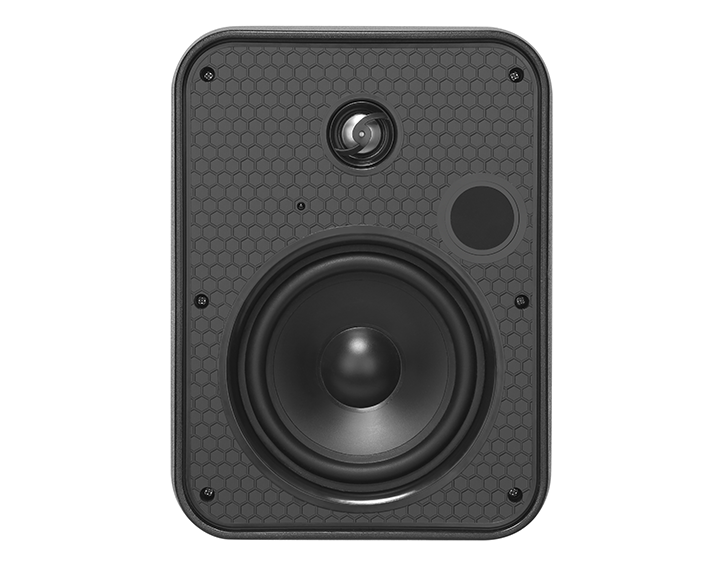

Woofer 16.5 cm.
2.54 cm dome tweeter, in titanium.
Dispersion angle 105 ° Vx90 ° W (120 ° up to 3 Khz).
Nominal power at 100V: 4/8/16 / 32W. 64W peak, max 108dB.
Power 8 Ω: 60W RMS, 120W musical.
Recommended amplification from 10 to 80W RMS.

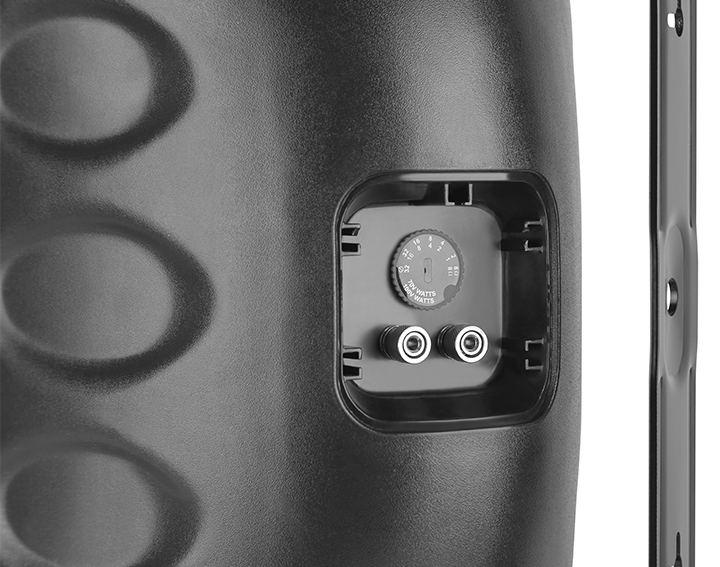

Impedance 8 Ω - 100V selectable.
Frequency response 60-20000 Hz.
Sensitivity 90 dB
Max output level / full power 104 dB.
Dimensions (WxHxP) without bracket 222x315x235 mm.
Dimensions (WxHxP) with 222x335x295 mm bracket.
Weight 3 Kg.
ABS cabinet, bracket and grill in painted aluminum.
Black colour RAL9005.
Working temperature from –20 ° to + 80 °.
Request a commercial offer
IP65 protection. Ideal for outdoor applications even in marine areas. Resistant to corrosive agents as chlorine and salt.
Supplied with bracket for wall mounting.
Bracket rotation 90 ° vertical, 170 ° horizontal.
Woofer 16.5 cm.
2.54 cm dome tweeter, in titanium.
Dispersion angle 105 ° Vx90 ° W (120 ° up to 3 Khz).
Nominal power at 100V: 4/8/16 / 32W. 64W peak, max 108dB.
Power 8 Ω: 60W RMS, 120W musical.
Recommended amplification from 10 to 80W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 60-20000 Hz.
Sensitivity 90 dB
Max output level / full power 104 dB.
Dimensions (WxHxP) without bracket 222x315x235 mm.
Dimensions (WxHxP) with 222x335x295 mm bracket.
Weight 3 Kg.
ABS cabinet, bracket and grill in painted aluminum.
Black colour RAL9005.
Working temperature from –20 ° to + 80 °.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
