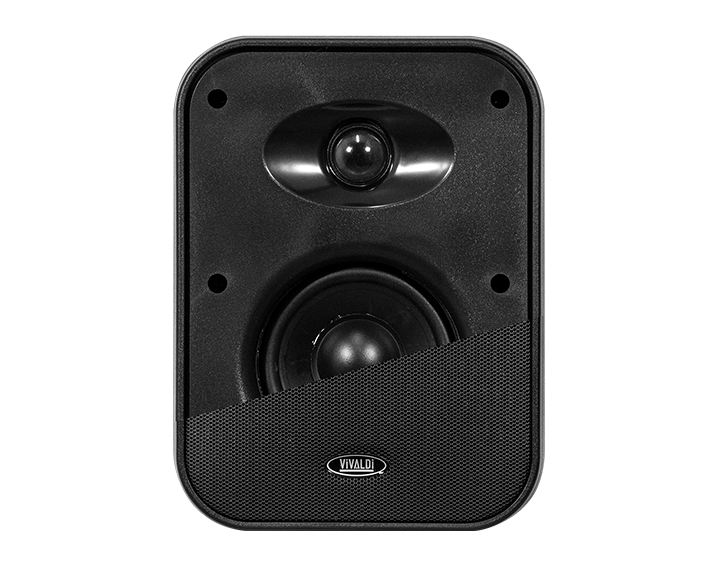

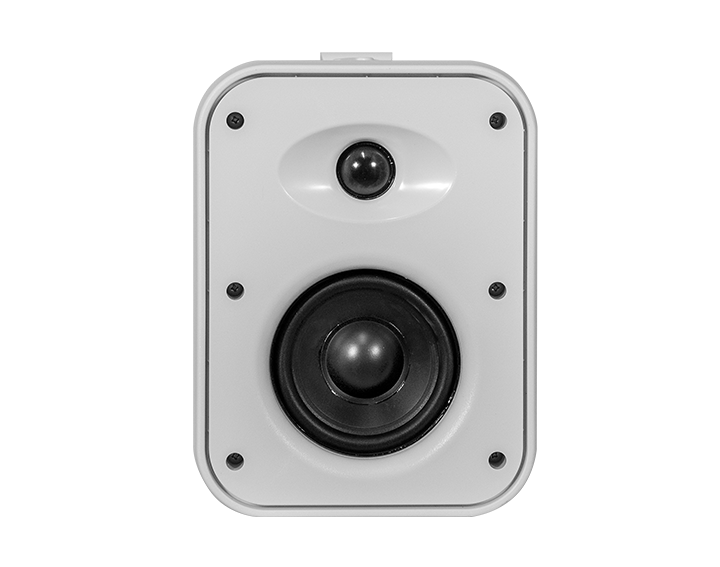

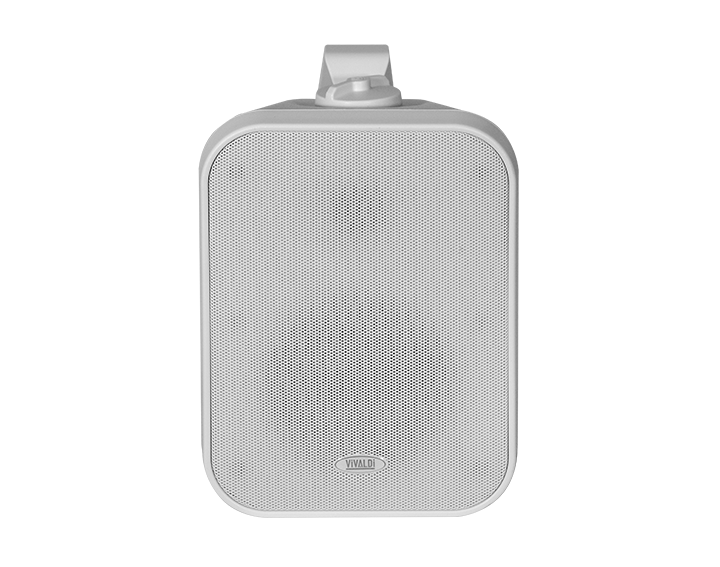

Vivaldi EN54 FLORA10T
Vivaldi EN54_spkr 20W/100V 30W/8Ohm. Black and white colour available.
code variation:
Vivaldi EN54 FLORA10TWVivaldi EN54 FLORA10TB
Vivaldi EN54 FLORA13T selectable impedance 8 Ohm - 100V
Vivaldi EN54 FLORA16T selectable impedance 8 Ohm - 100V

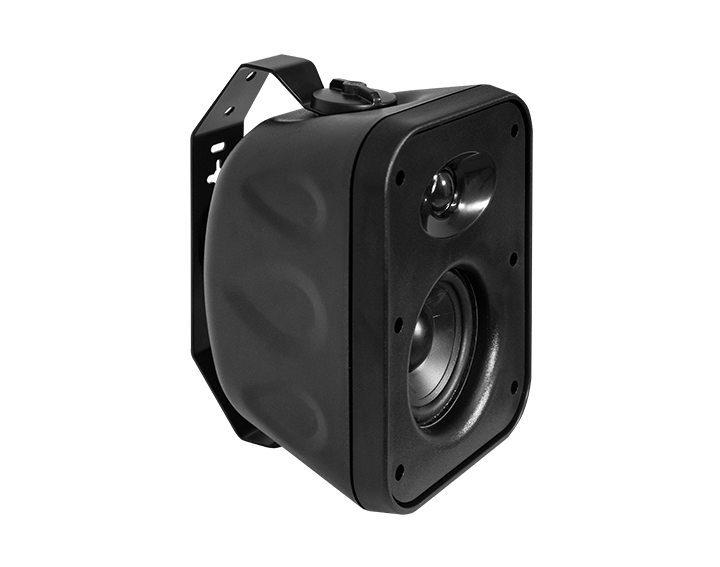

Professional sound projector, HiFi, 2 way, IP65, EN50849, EN54-24 certified.

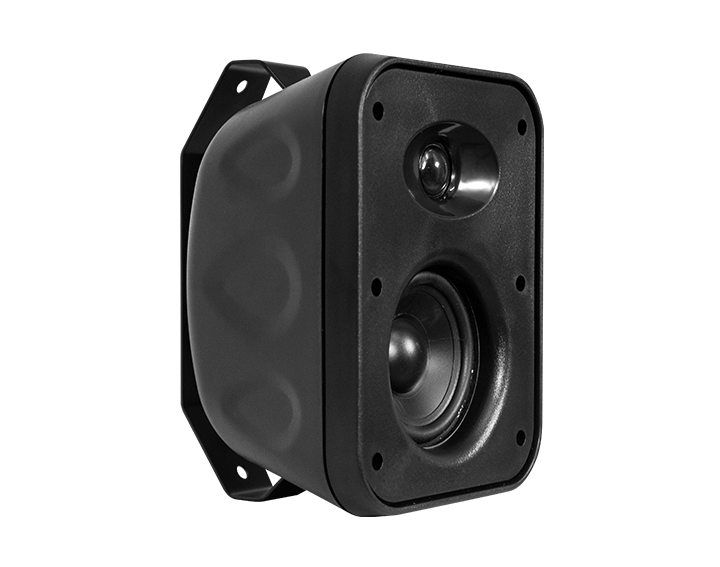

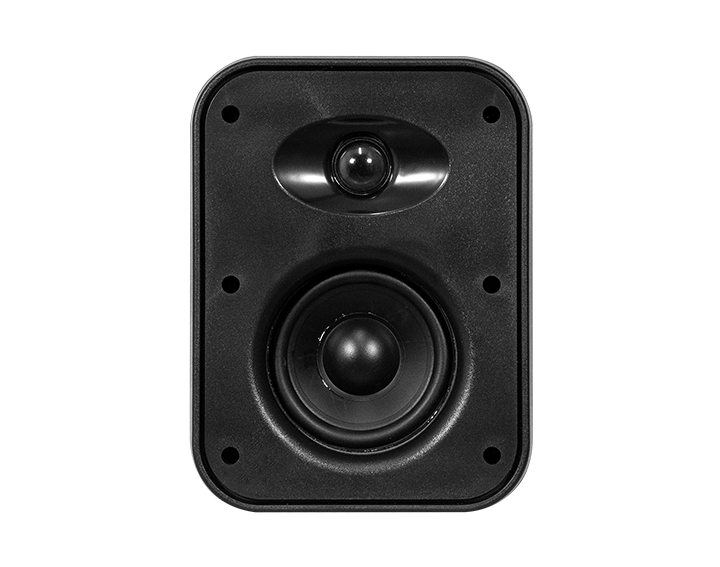

Woofer 10,5 cm
Dome Tweeter 2,5 cm, Polyamide
Dispersion angle 105°Vx90°O (120° up to 3 Khz)
Nominal power 100V: 5/10/20W. 40W peak, max 105dB.
Power 8 Ω: 30W RMS, 60W musical
Suggested amplification from 10 to 50W RMS

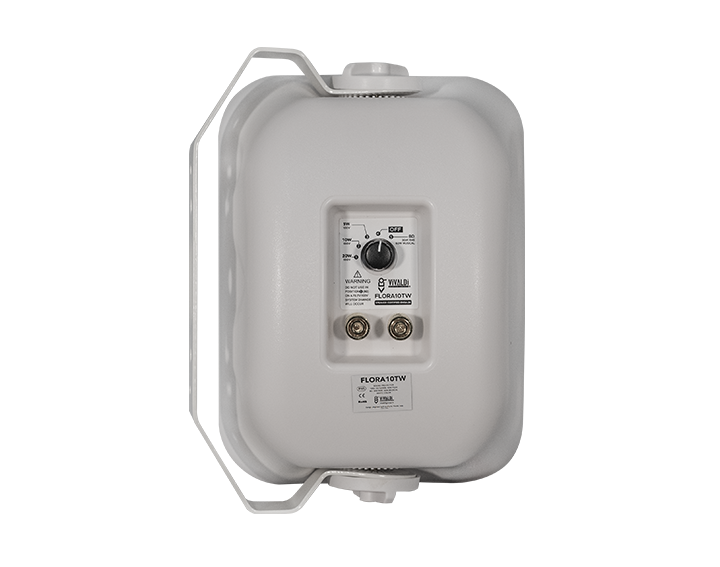

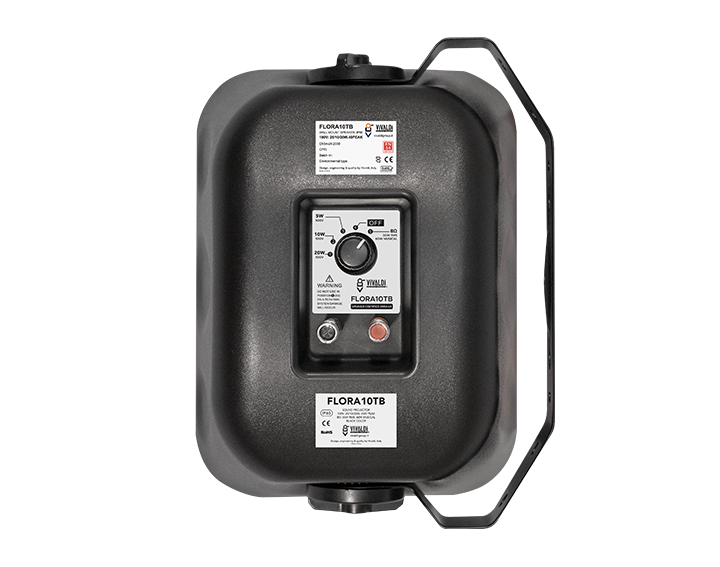

Impendance 8 Ω - 100V selectable
Frequency range 75-20000 Hz -10dB
Sensitivity 85 dB
Max output level / full power 102 dB.
Dimensions (WxHxD) without bracket 170x250x147 mm
Dimensions (WxHxD) with bracket 170x243x180 mm
Weight 2,4 Kg
Cabinet ABS V0, painted aluminum bracket and grille.

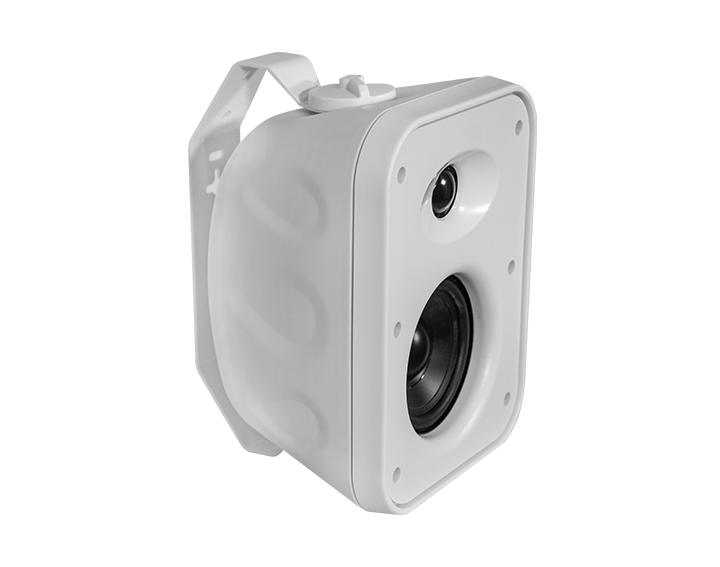

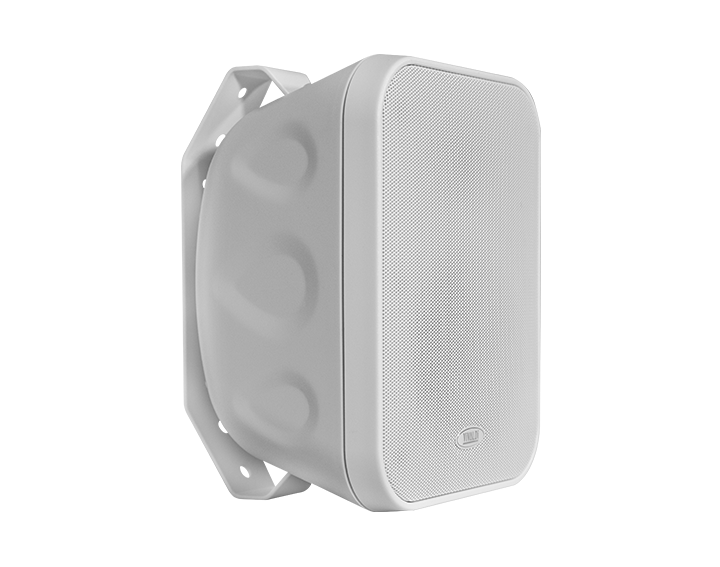

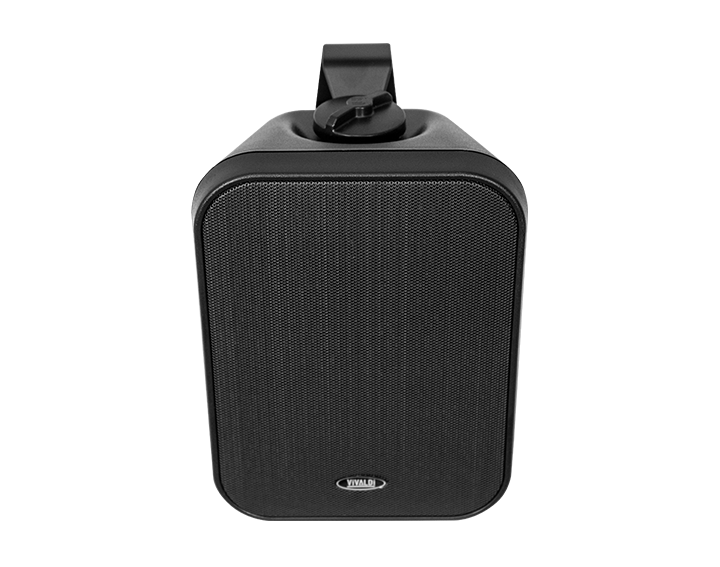

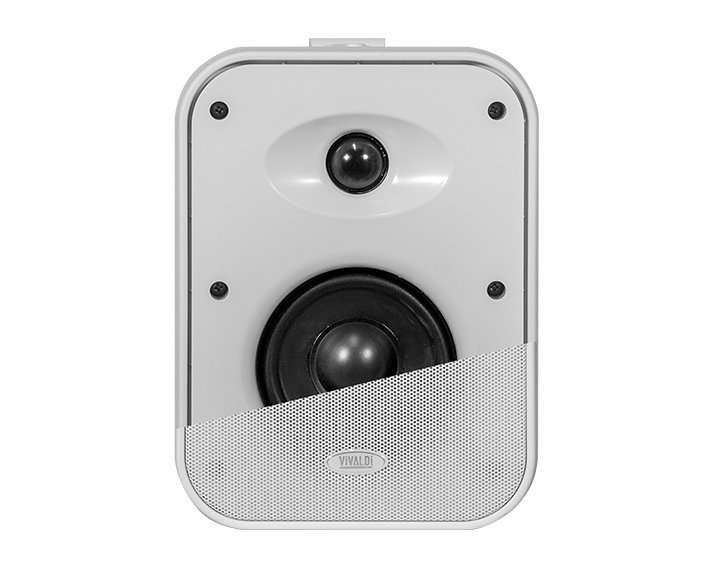

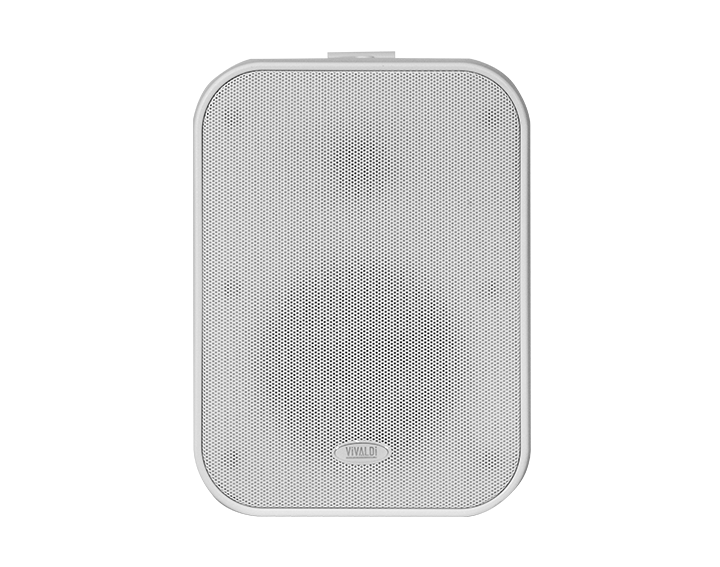

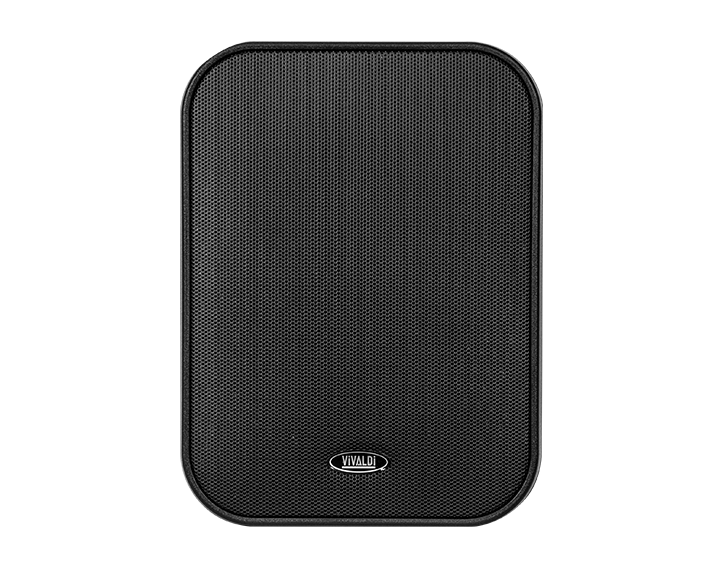

Available colours: black RAL9005 (Vivaldi EN54 FLORA10TB) - white RAL9003 (Vivaldi EN54 FLORA10TW)
Working temperature from –20° to +80°.
Request a commercial offer

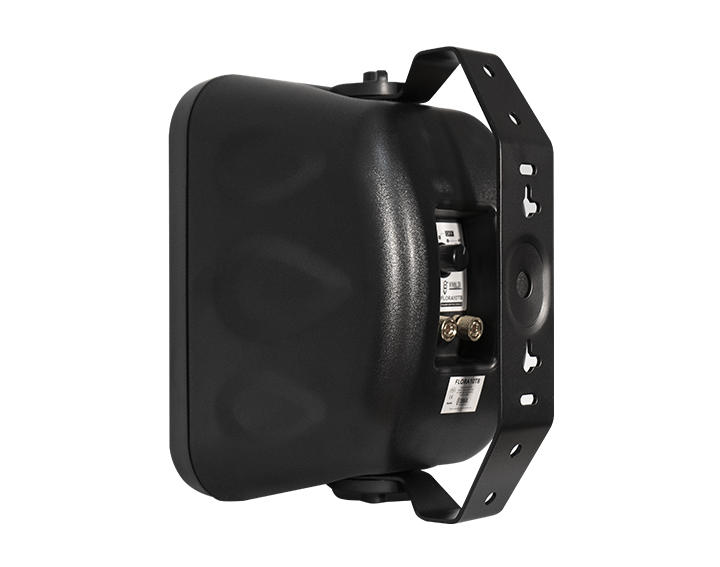

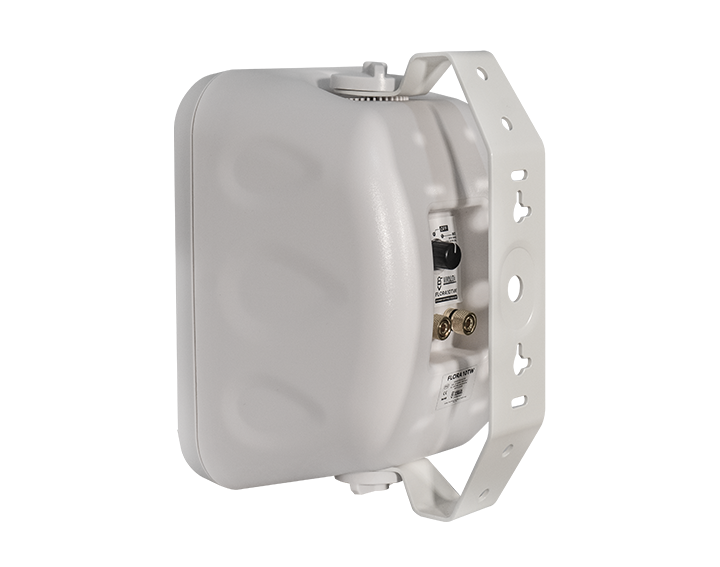

Supplied with bracket for wall mounting, 3 positions (-30°, 0°, +30°). Up and over 180°O/180°V.
Woofer 10,5 cm
Dome Tweeter 2,5 cm, Polyamide
Dispersion angle 105°Vx90°O (120° up to 3 Khz)
Nominal power 100V: 5/10/20W. 40W peak, max 105dB.
Power 8 Ω: 30W RMS, 60W musical
Suggested amplification from 10 to 50W RMS
Impendance 8 Ω - 100V selectable
Frequency range 75-20000 Hz -10dB
Sensitivity 85 dB
Max output level / full power 102 dB.
Dimensions (WxHxD) without bracket 170x250x147 mm
Dimensions (WxHxD) with bracket 170x243x180 mm
Weight 2,4 Kg
Cabinet ABS V0, painted aluminum bracket and grille.
Available colours: black RAL9005 (Vivaldi EN54 FLORA10TB) - white RAL9003 (Vivaldi EN54 FLORA10TW)
Working temperature from –20° to +80°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
