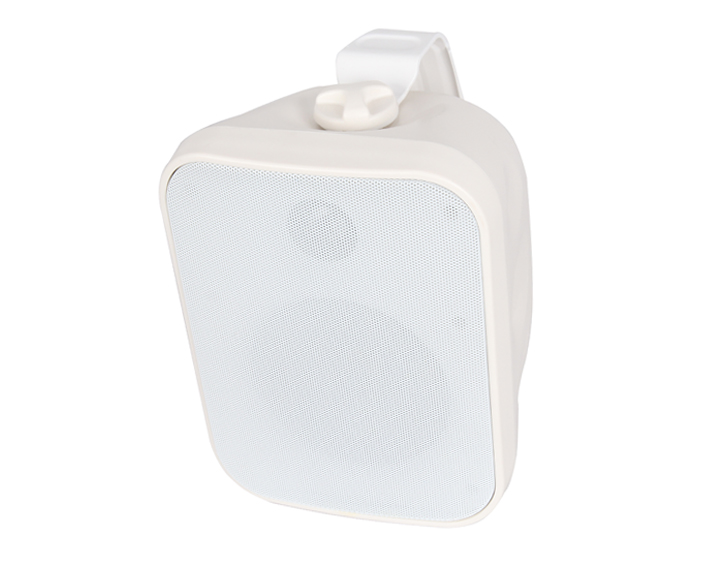

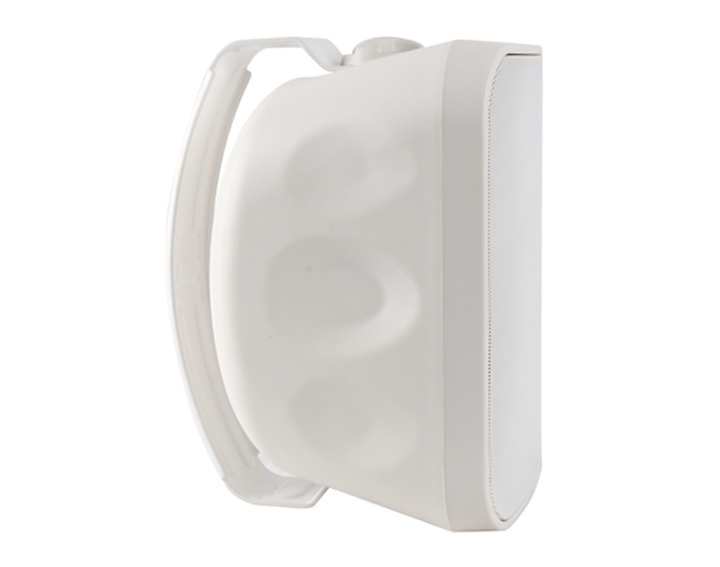

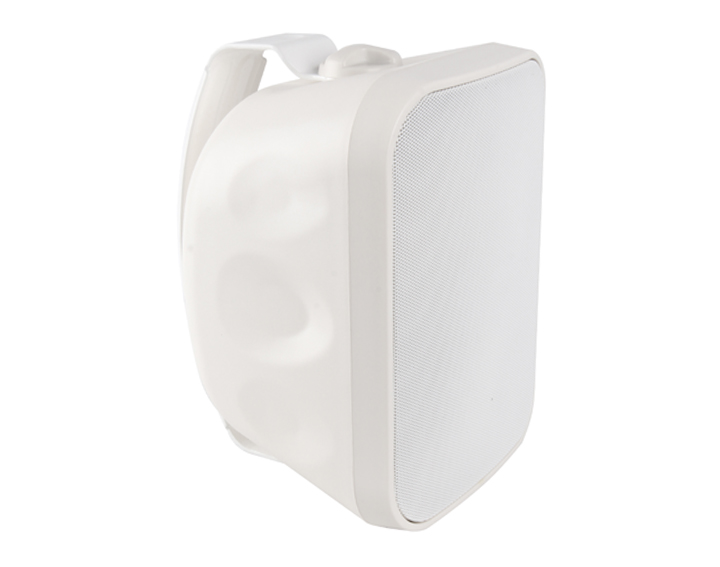

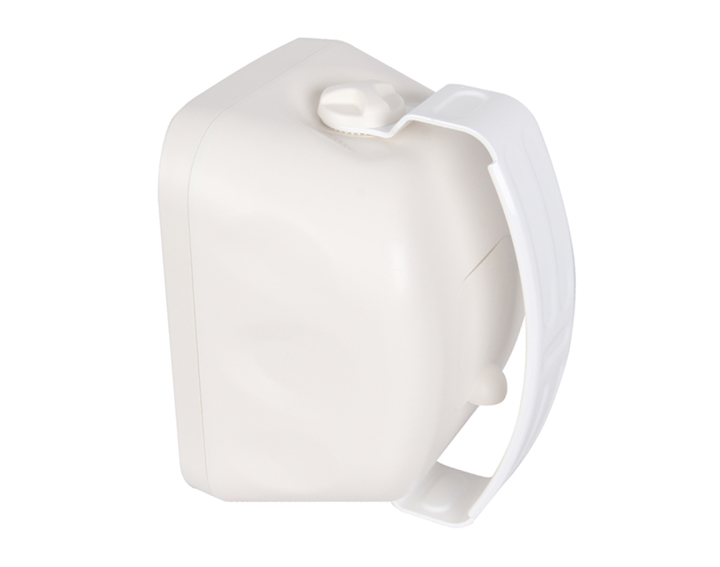

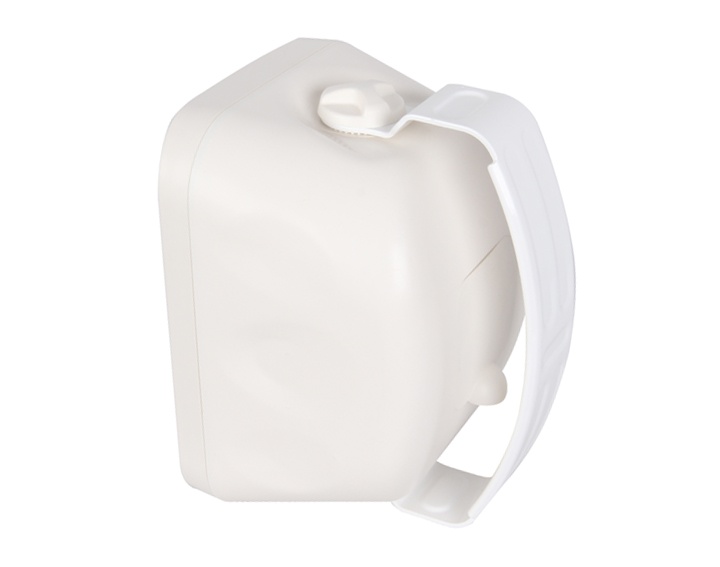

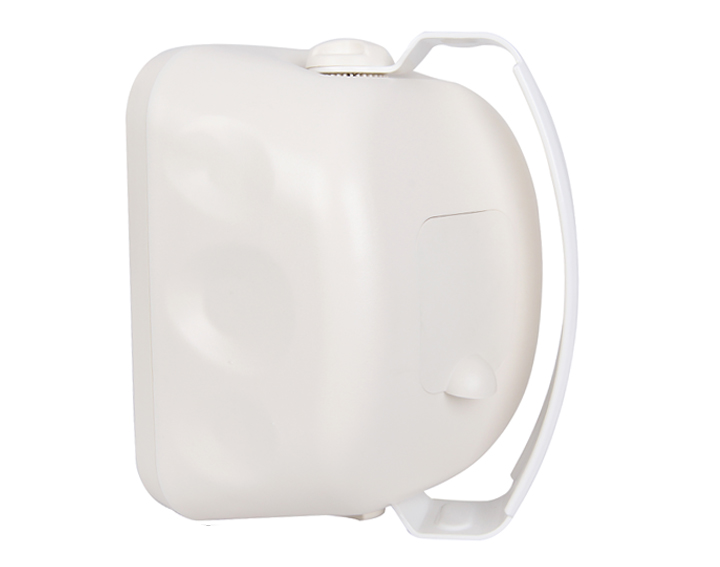

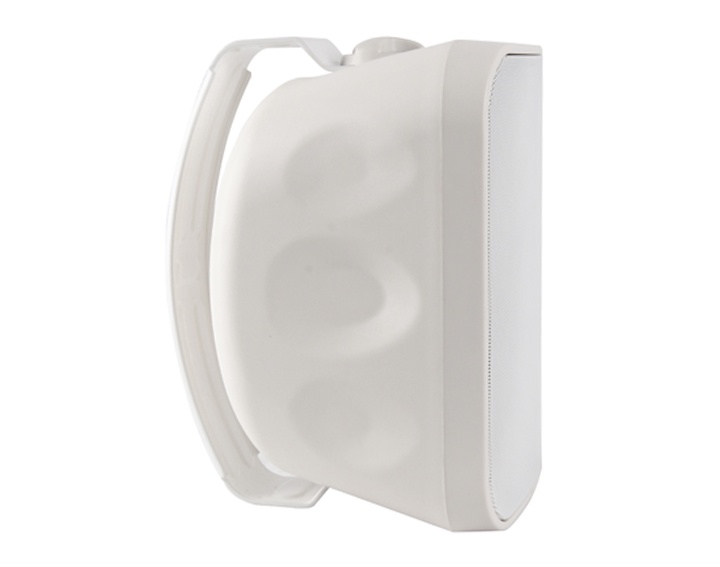

Vivaldi EN54 FLORA13TW
Speakers for EN54-24 certified voice evacuation systems
code variation:
Vivaldi EN54 FLORA13TB selectable impedance 8 Ohm - 100VVivaldi EN54 FLORA10T
Vivaldi EN54 FLORA16T selectable impedance 8 Ohm - 100V
Professional sound projector,Hi-Fi, 2-way, certified EN50849 EN54-24 certification nr 0068-CPR-035/2016.
IP65 protection. Ideal for outdoor applications even in marine areas. Resistant to corrosive agents as chlorine and salt.

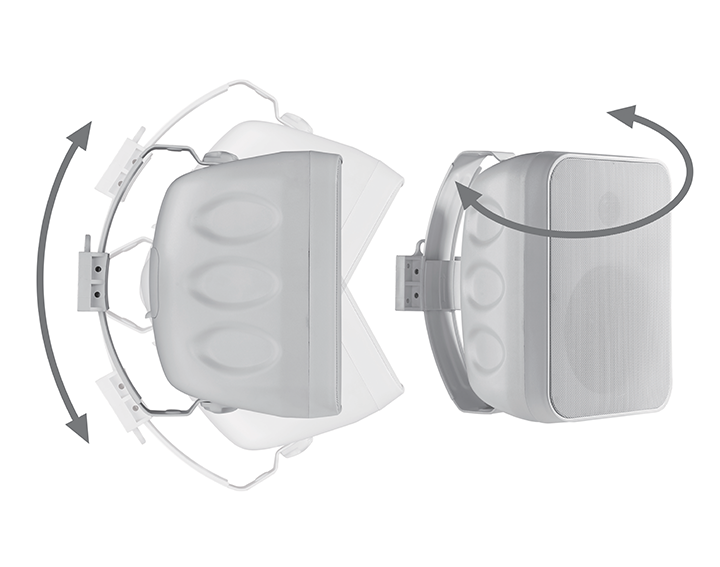

Rotating bracket 90° vertical, 170° horizontal.
Woofer 13,5 cm.
Dome tweeter 2,5 cm, titanium.
Dispersion angle 105°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 2/4/8/16/32W. 64Wpeak.
Power 8 Ω: 60W RMS, 120W musical.
Suggested amplification from 10 to 80W RMS.

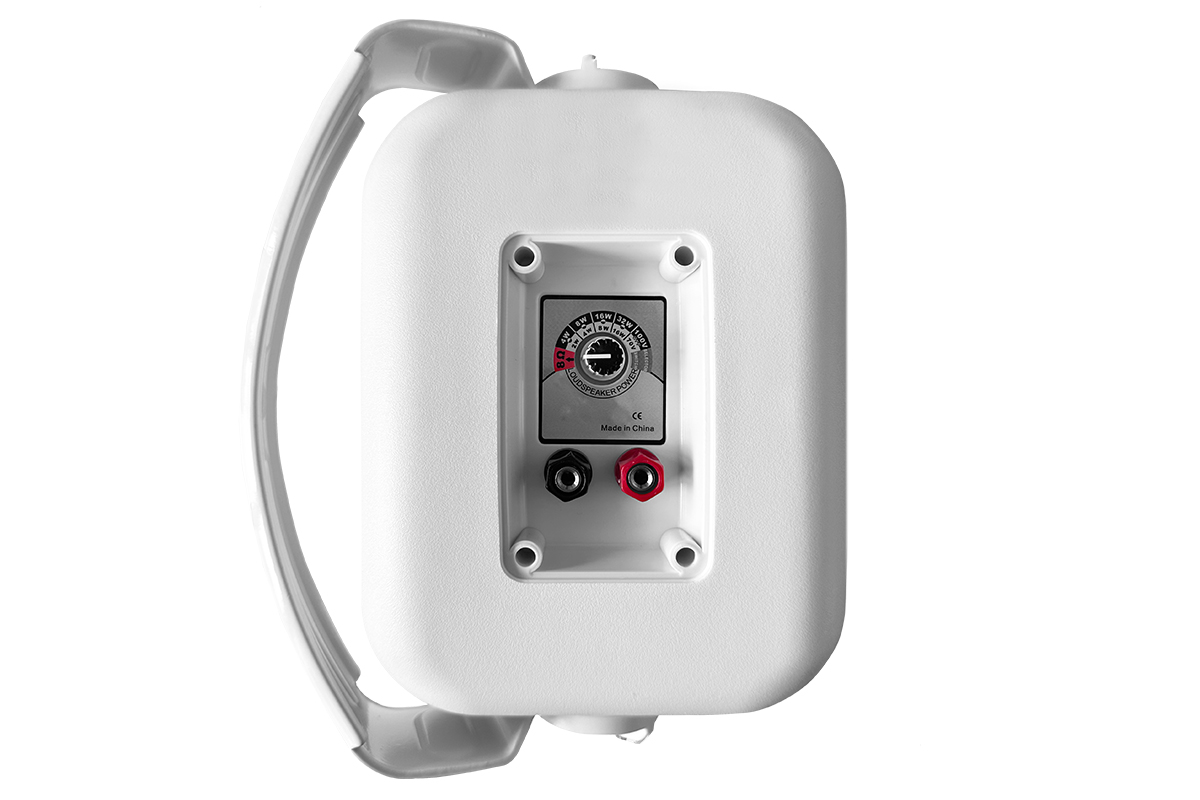

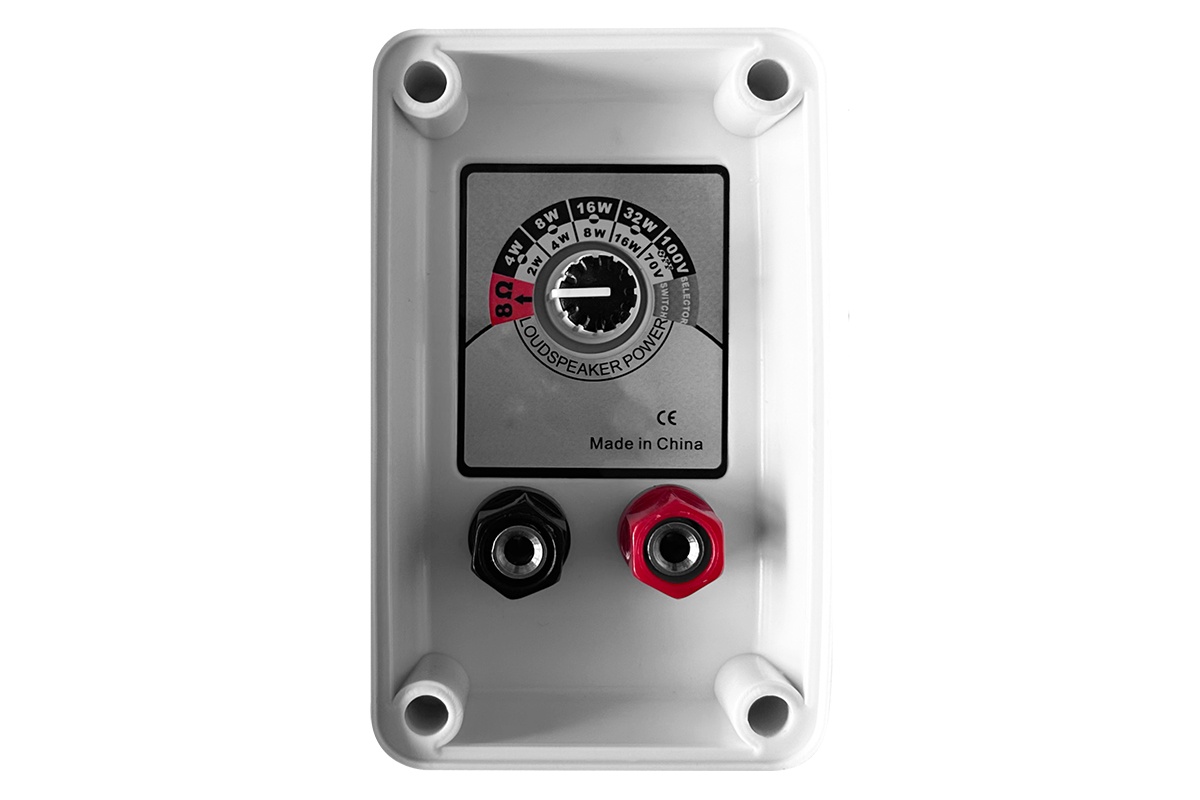

Impedance 8 Ω - 100V selectable.
Frequency response 65-20000 Hz.
Sensitivity 87 dB.
Max output level / full power 103 dB.
Dimensions (WxHxD) without bracket 186x257x165 mm.
Dimensions (WxHxD) with bracket 186x257x187 mm.
Weight 2,4 Kg.
V0 ABS cabinet, bracket and metal grille.
White colour.
Working temperature from –20° to +80°.
IP65 protection. Ideal for outdoor applications even in marine areas. Resistant to corrosive agents as chlorine and salt.
Supplied with bracket for wall mounting.

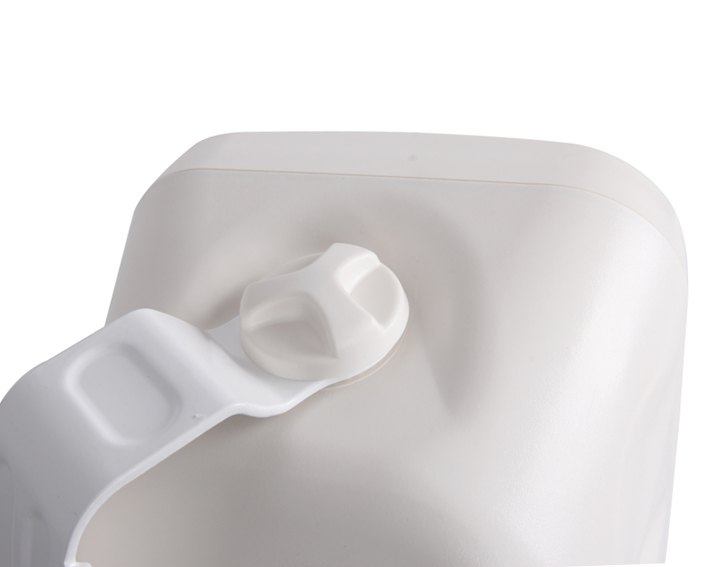

Rotating bracket 90° vertical, 170° horizontal.
Woofer 13,5 cm.
Dome tweeter 2,5 cm, titanium.
Dispersion angle 105°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 2/4/8/16/32W. 64Wpeak.
Power 8 Ω: 60W RMS, 120W musical.
Suggested amplification from 10 to 80W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 65-20000 Hz.
Sensitivity 87 dB.
Max output level / full power 103 dB.
Dimensions (WxHxD) without bracket 186x257x165 mm.
Dimensions (WxHxD) with bracket 186x257x187 mm.
Weight 2,4 Kg.
V0 ABS cabinet, bracket and metal grille.
White colour.
Working temperature from –20° to +80°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
