Vivaldi EN54 FLORA10TW
Vivaldi EN54_spkr 20W/100V 30W/8Ohm white colour
code variation:
Vivaldi EN54 FLORA10TBVivaldi EN54 FLORA13T selectable impedance 8 Ohm - 100V
Vivaldi EN54 FLORA16T selectable impedance 8 Ohm - 100V
Professional sound projector, HiFi, 2 way, IP65, EN50849, EN54-24 certified.
Woofer 10,5 cm
Dome Tweeter 2,5 cm, Polyamide
Dispersion angle 105°Vx90°O (120° up to 3 Khz)
Nominal power 100V: 5/10/20W. 40W peak, max 105dB.
Power 8 Ω: 30W RMS, 60W musical
Suggested amplification from 10 to 50W RMS
Impendance 8 Ω - 100V selectable
Frequency range 75-20000 Hz -10dB
Sensitivity 85 dB
Max output level / full power 102 dB.
Dimensions (WxHxD) without bracket 170x250x147 mm
Dimensions (WxHxD) with bracket 170x243x180 mm
Weight 2,4 Kg
Cabinet ABS V0, painted aluminum bracket and grille.
White colour RAL9003
Working temperature from –20° to +80°.
Request a commercial offer

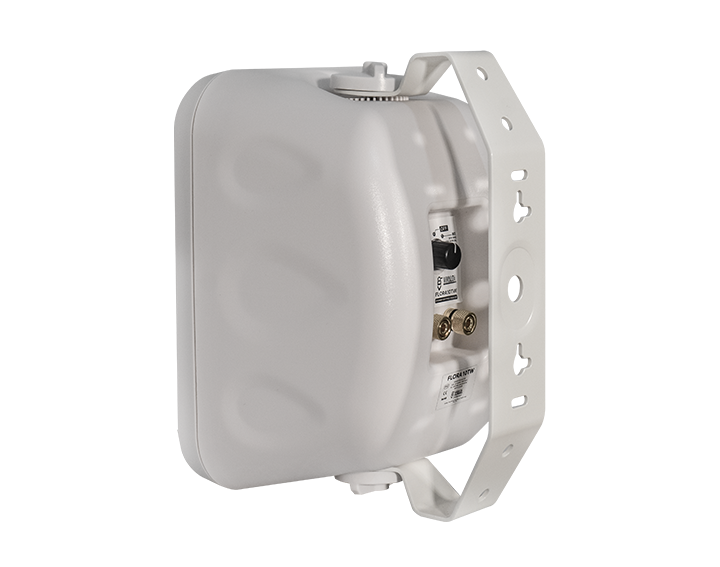

Supplied with bracket for wall mounting, 3 positions (-30°, 0°, +30°). Up and over 180°O/180°V.
Woofer 10,5 cm
Dome Tweeter 2,5 cm, Polyamide
Dispersion angle 105°Vx90°O (120° up to 3 Khz)
Nominal power 100V: 5/10/20W. 40W peak, max 105dB.
Power 8 Ω: 30W RMS, 60W musical
Suggested amplification from 10 to 50W RMS
Impendance 8 Ω - 100V selectable
Frequency range 75-20000 Hz -10dB
Sensitivity 85 dB
Max output level / full power 102 dB.
Dimensions (WxHxD) without bracket 170x250x147 mm
Dimensions (WxHxD) with bracket 170x243x180 mm
Weight 2,4 Kg
Cabinet ABS V0, painted aluminum bracket and grille.
White colour RAL9003
Working temperature from –20° to +80°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
