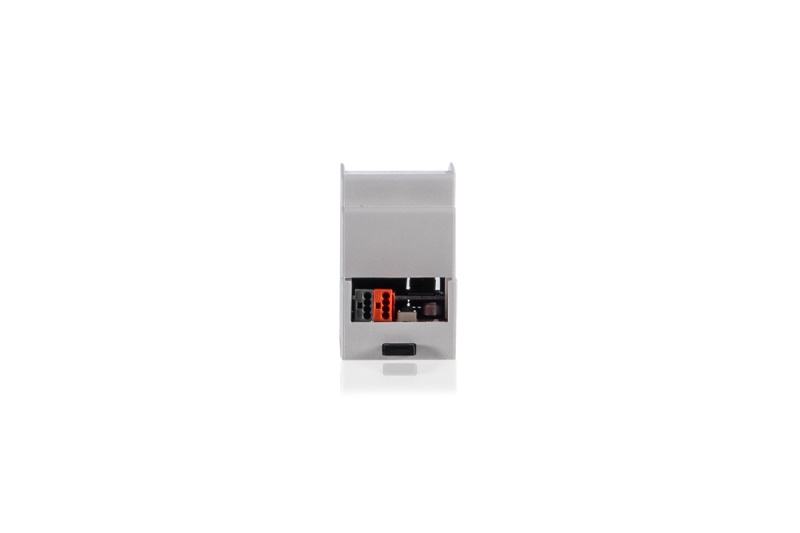

Vivaldi Domotica GATEWAYKNX

Gateway between the KNX world standard for home & building automation and the VIVANET serial communication protocol.

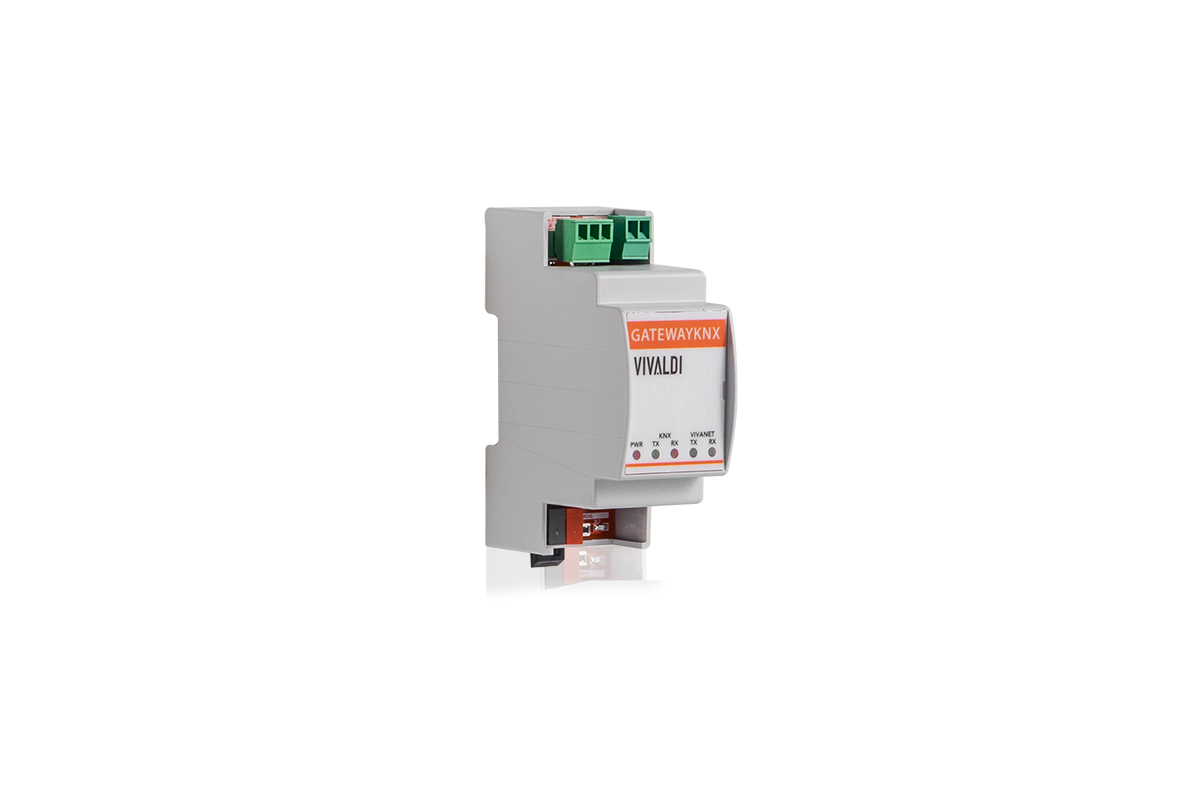

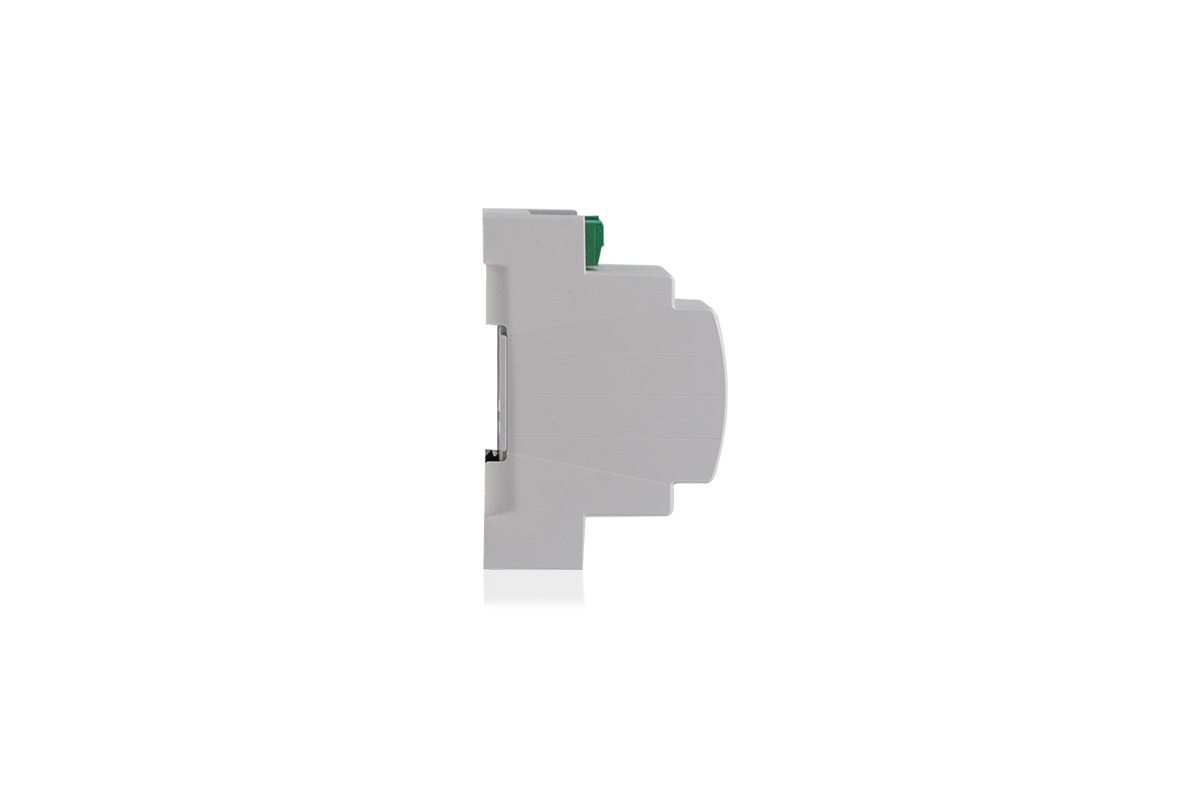

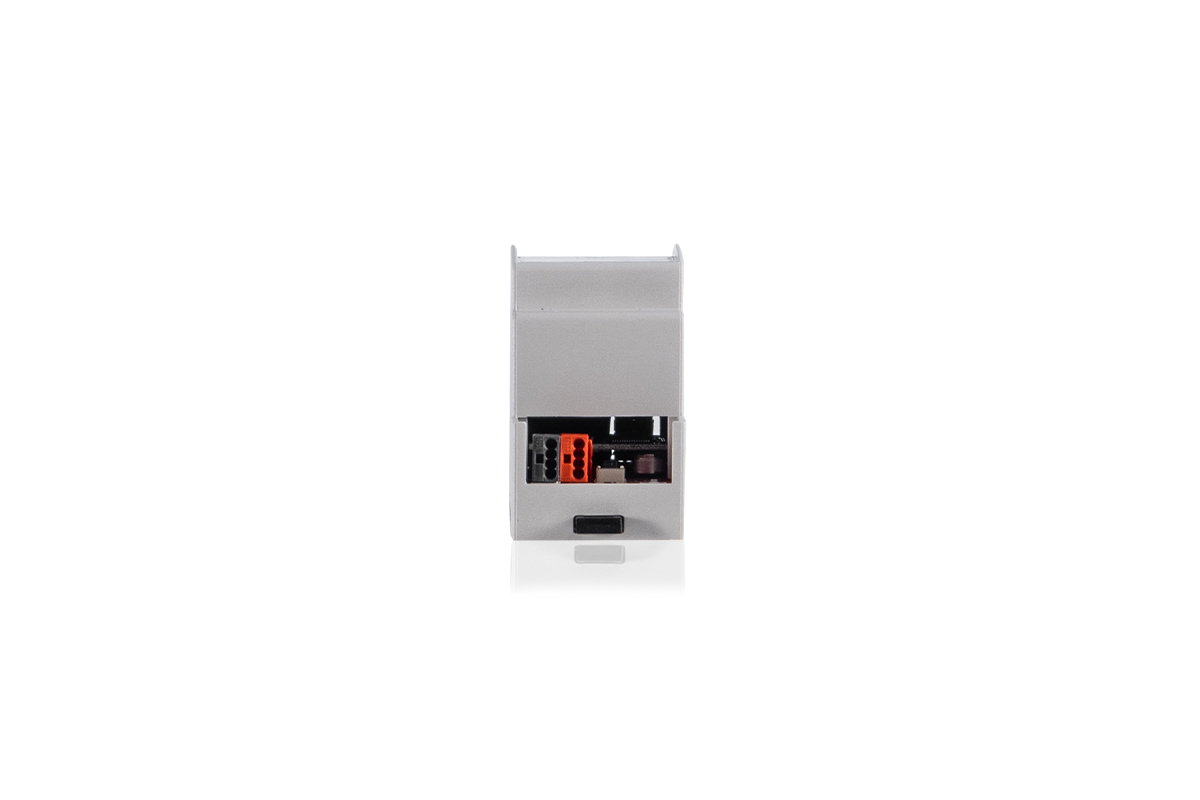

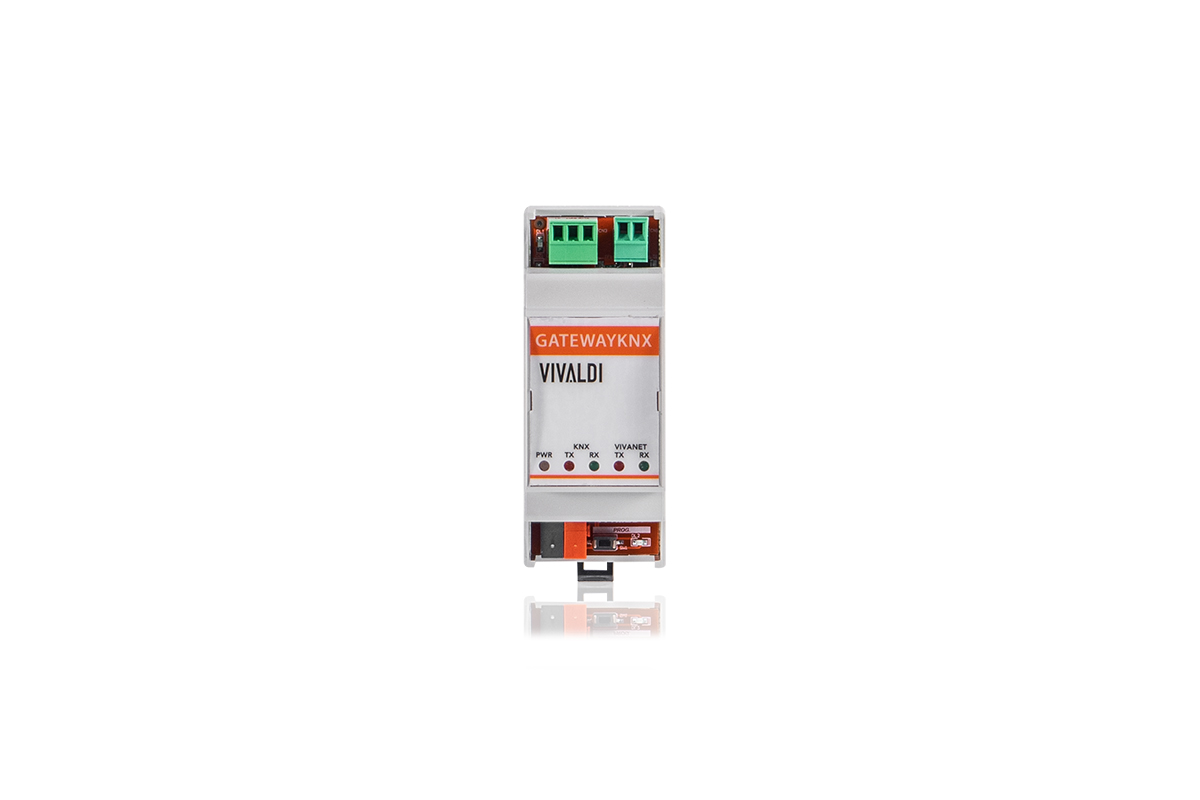

Interface device between Bus VivaNET and Bus KNX, the appearance of the device is on 2 DIN modules for civil electrical panel.

HARDWARE INFO:
Size (WxHxD) 36x90x63mm
Standard DIN (2 modules)
Power supply 12-24Vdc
Maximum consumption 150mA

CONNECTIONS:
1x KNX bus connection
1x VivaNET bus connection
1x Power supply

INFO SOFTWARE KNX:
Supports Up to a maximum of 16 GioveFree devices and can handle the following models: Vivaldi Giove FREENETMK3, Vivaldi EN54 FREESOURCEMK3, Vivaldi Giove iFREEMK3.55, Vivaldi Giove iFREEMK3.70.

 Below are the group objects of each GioveFree device on KNX Bus.

GLOBAL:
Send Date/Time
On/Off
Absolute volume in %
Source choice
Play/Pause – Mute/UnMute

SINGLE:
On/Off
Absolute volume in %
Volume increase
Volume decrease
Source choice
Status OC1 as input
Status OC2 as input
Status OC3(IL) as input
Play/Pause – Mute/UnMute
Player forward / backward track for USB and Bluetooth sources
Recall radio station preset from 1 - 6

THERMOSTAT CONTROL FUNCTION:
SetPoint Value
Temperature Room
Humidity Room
Status On/Off HVAC (Heating, Ventilation, Air-Conditioning)

for other functions check the possibilities of customization.
