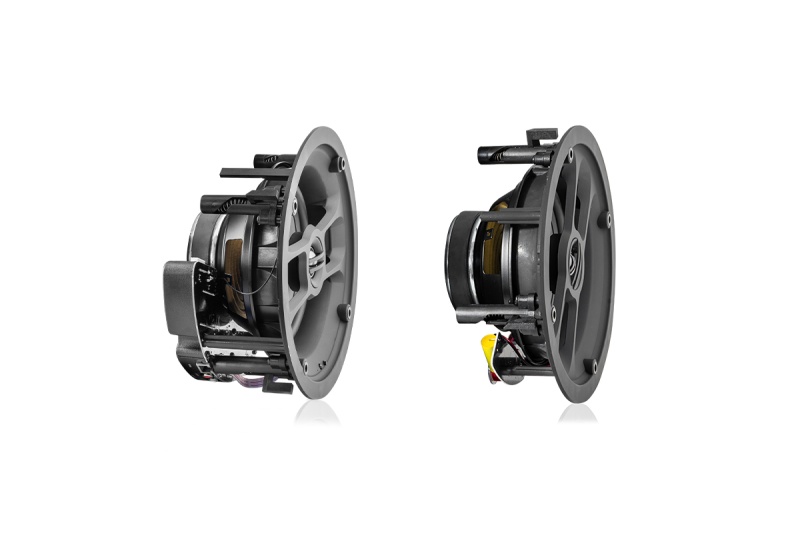

Vivaldi WIFI KEYROUND16AF

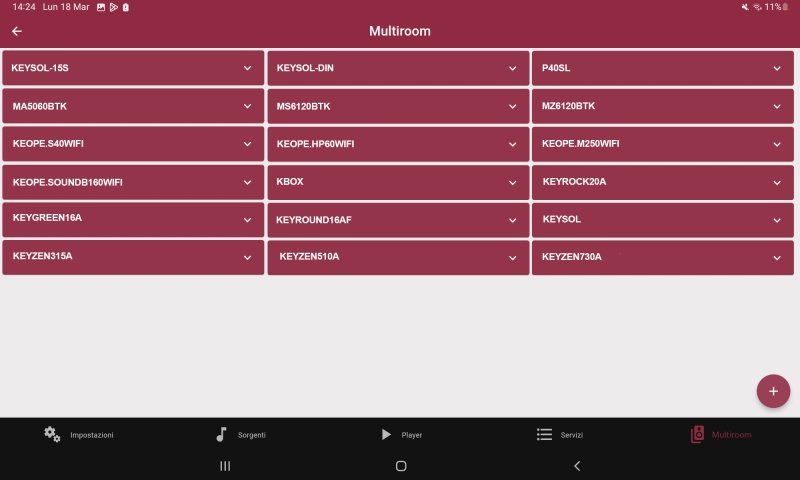

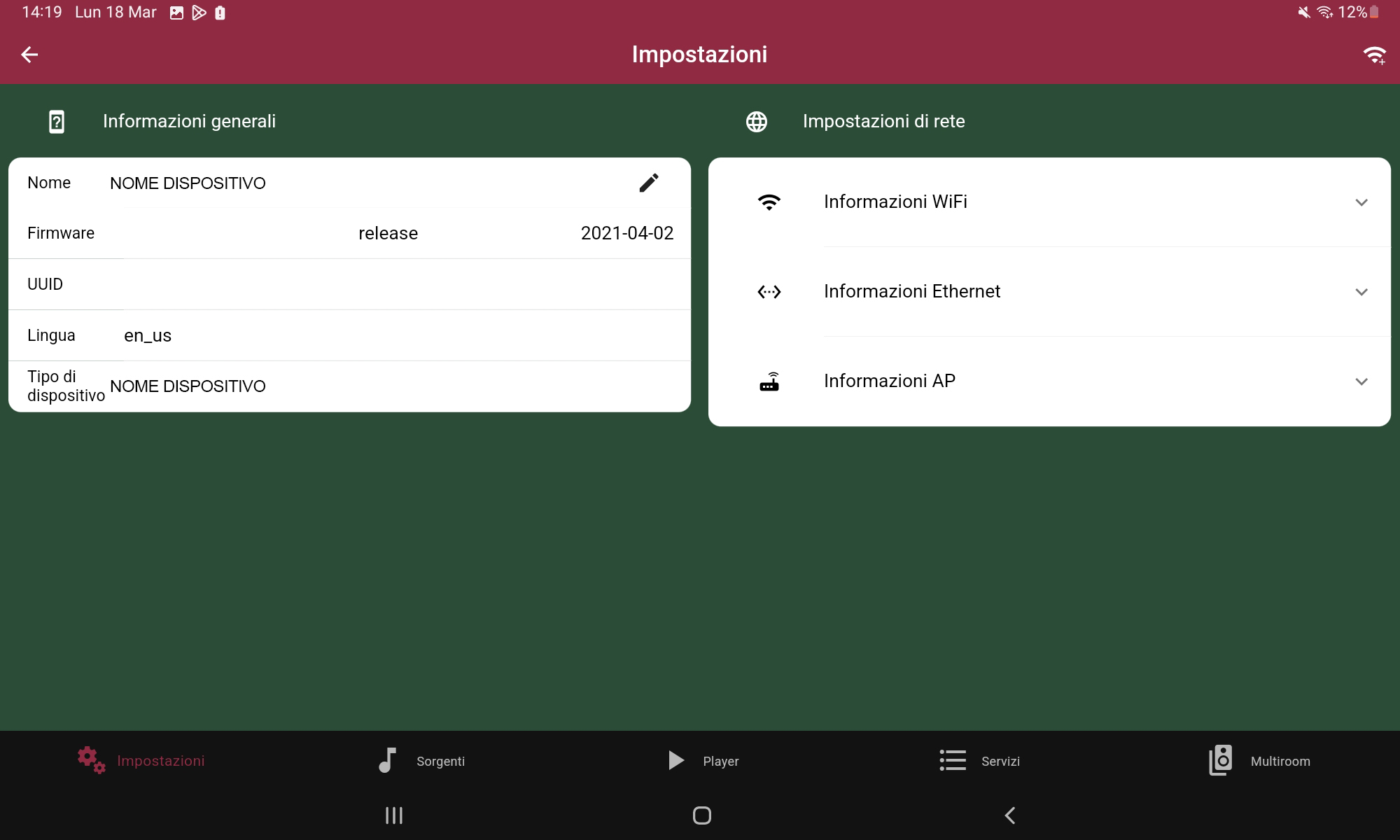

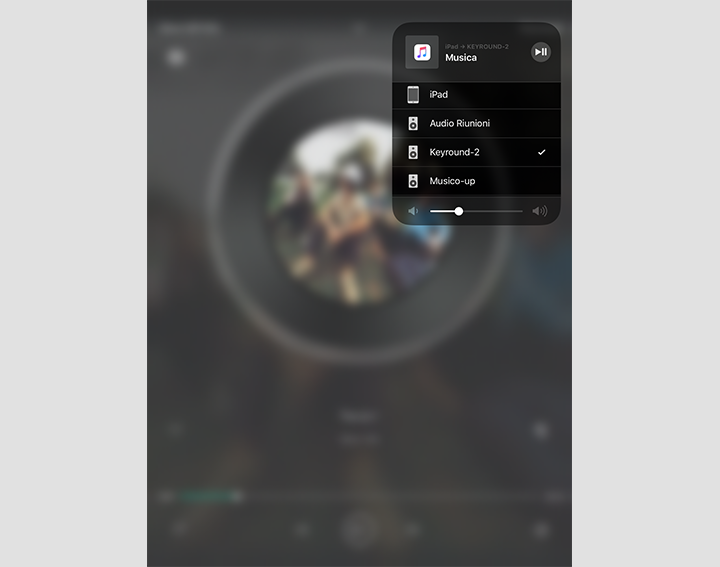

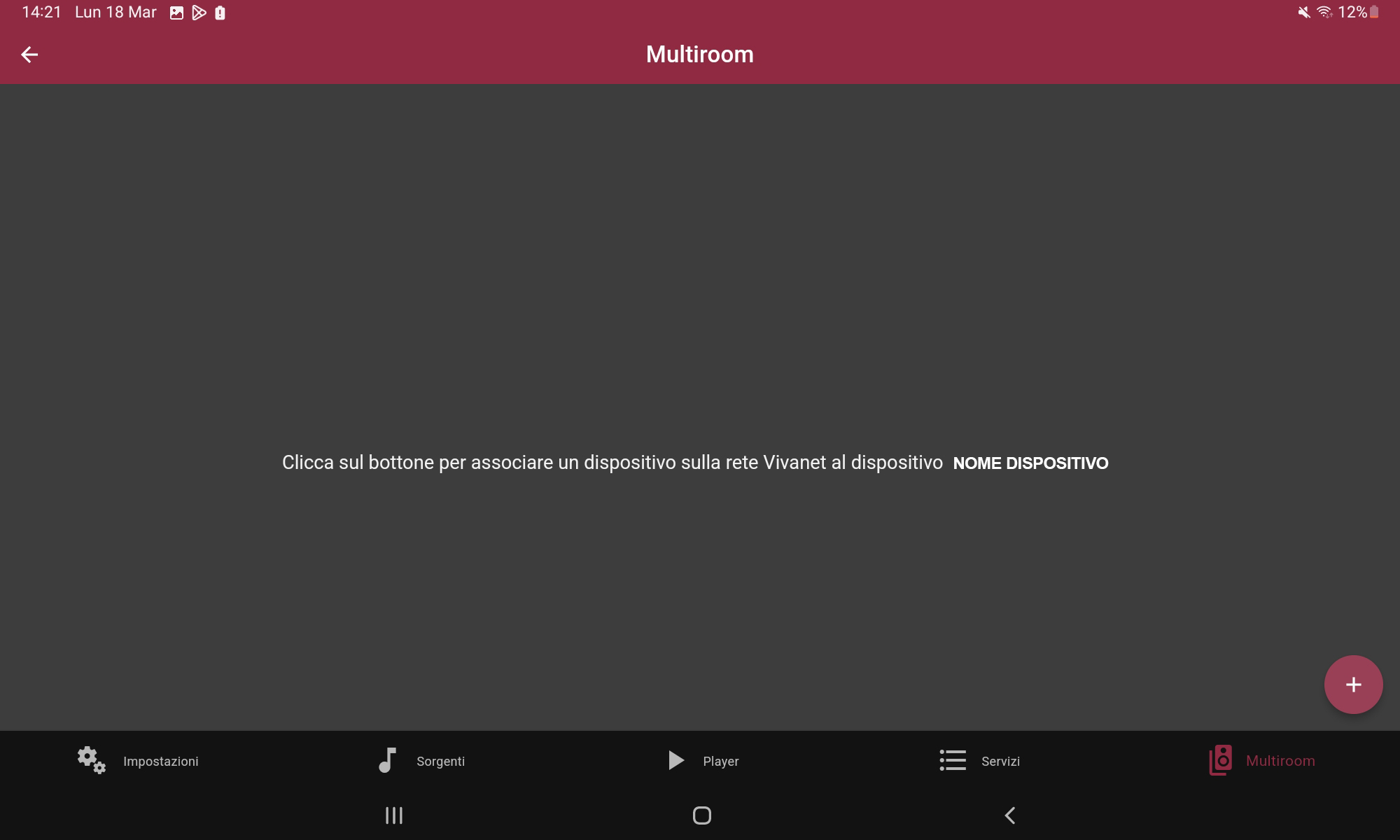

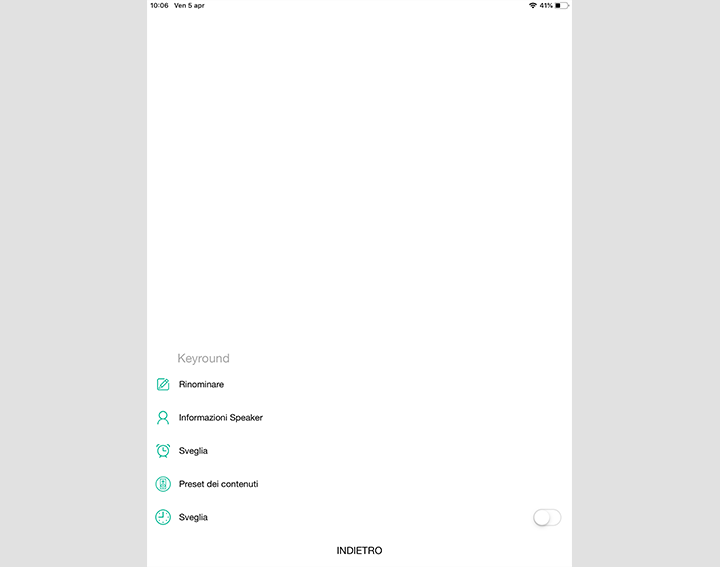

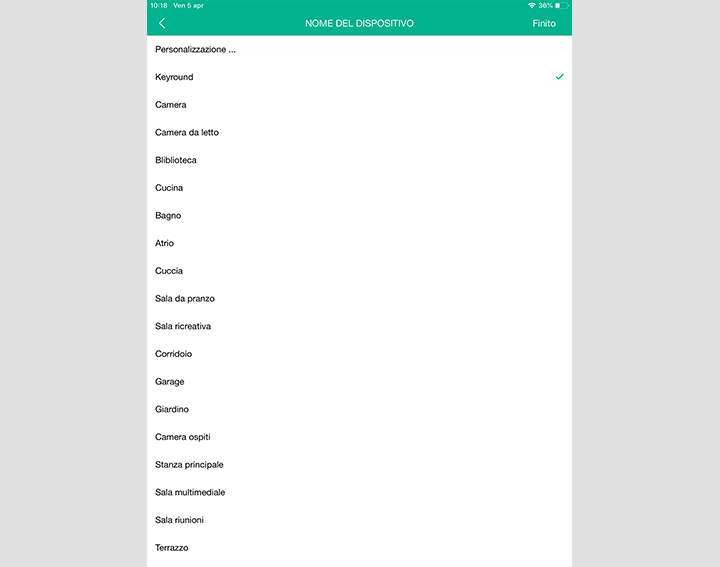

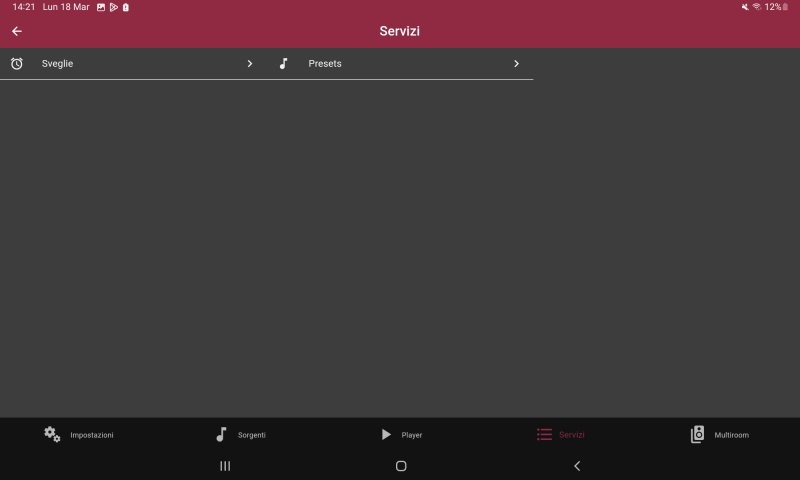

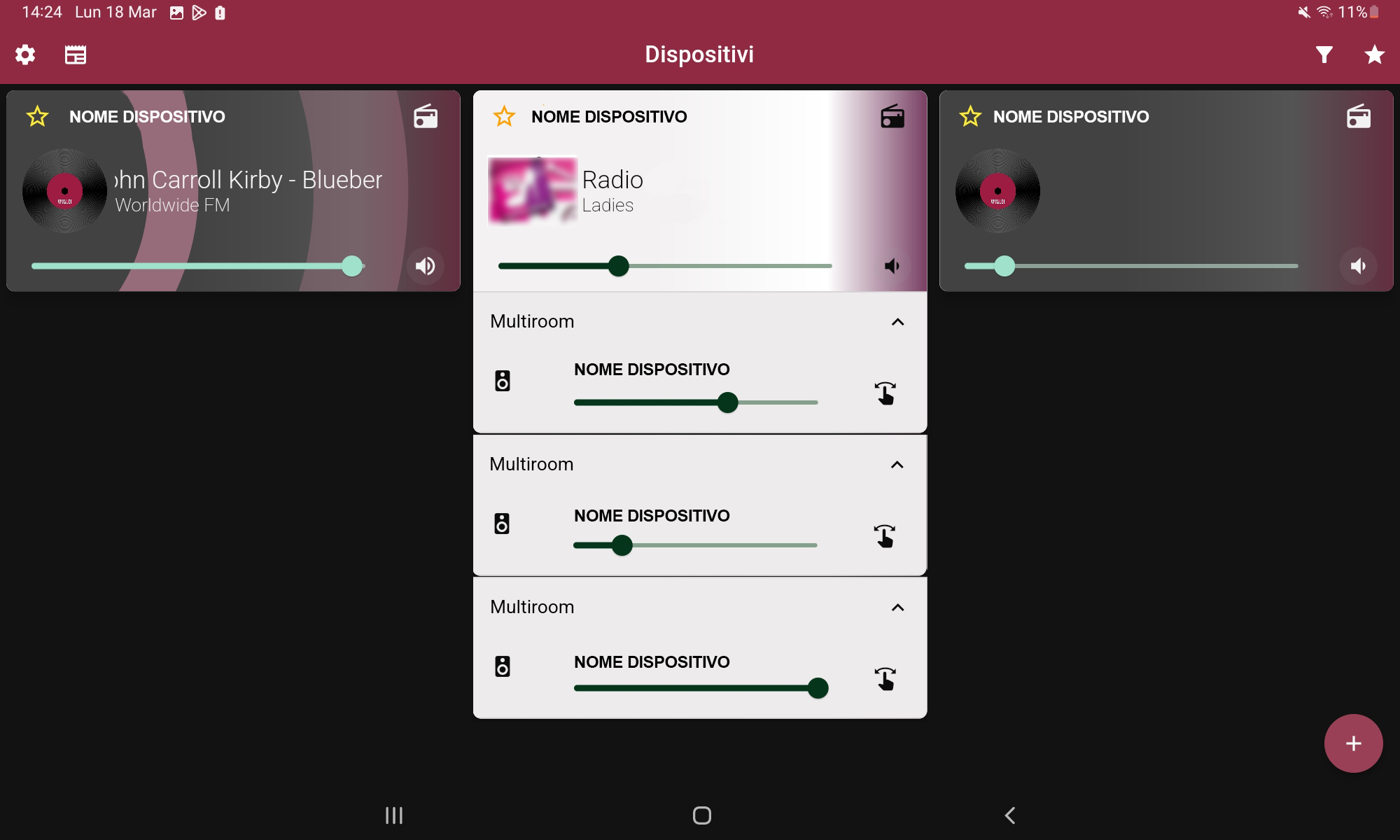

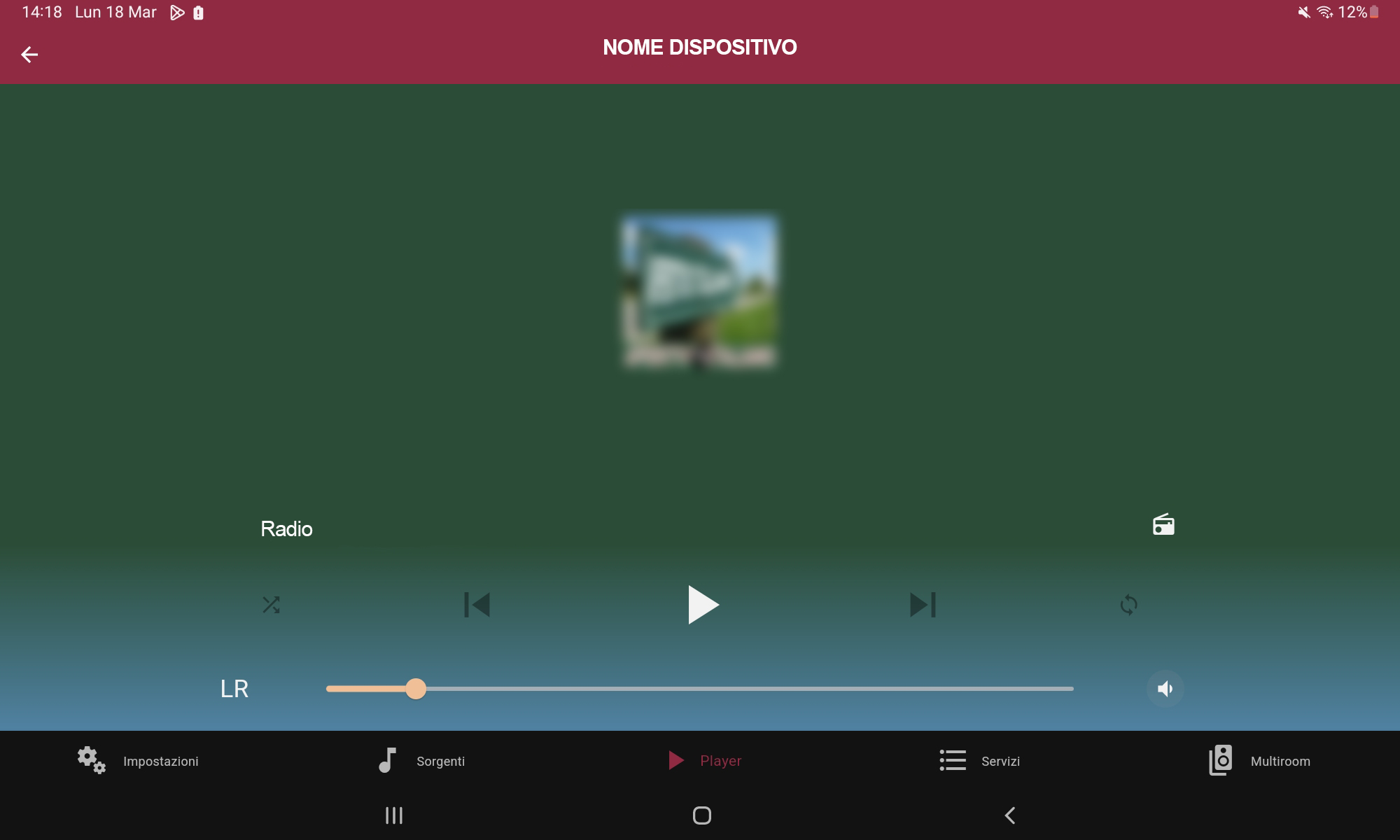

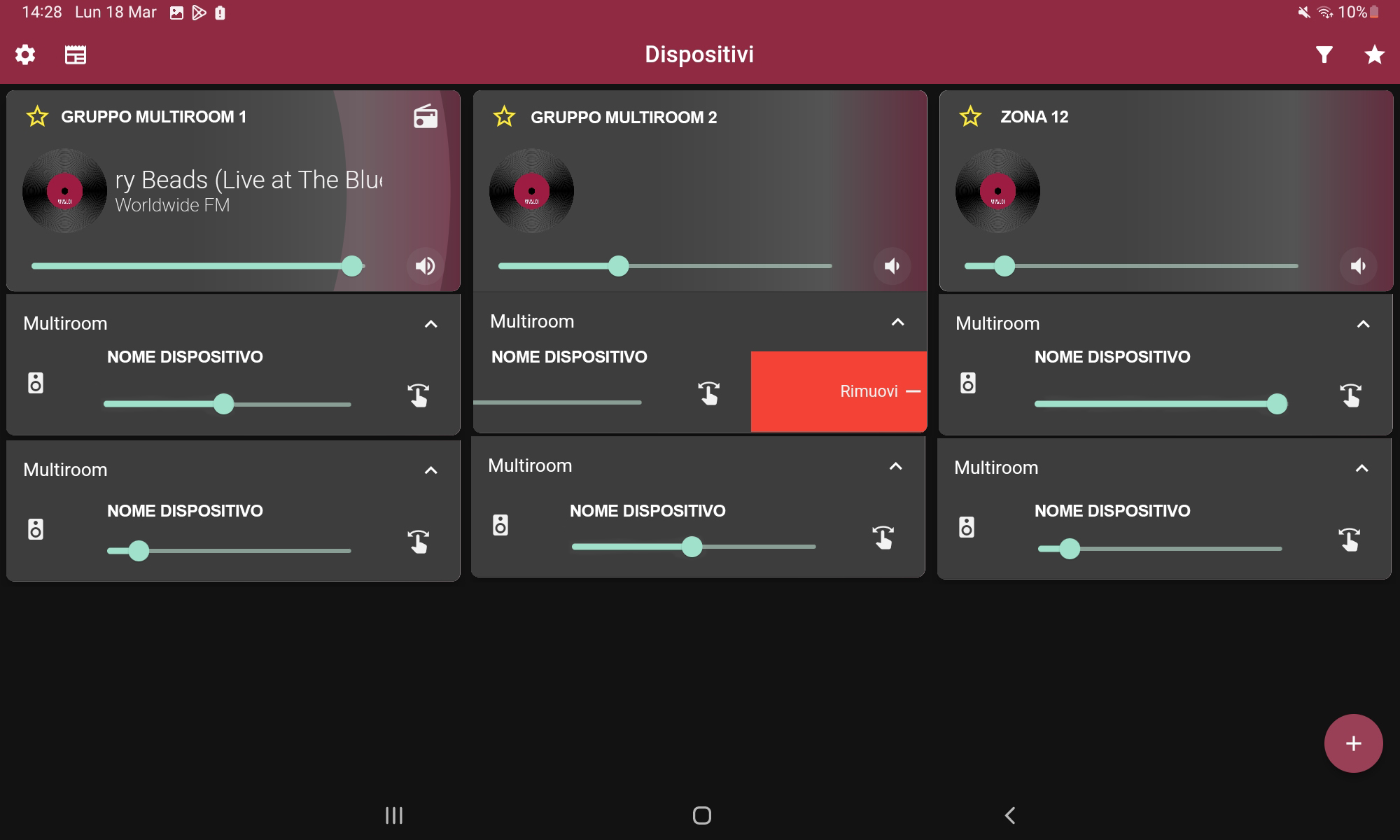

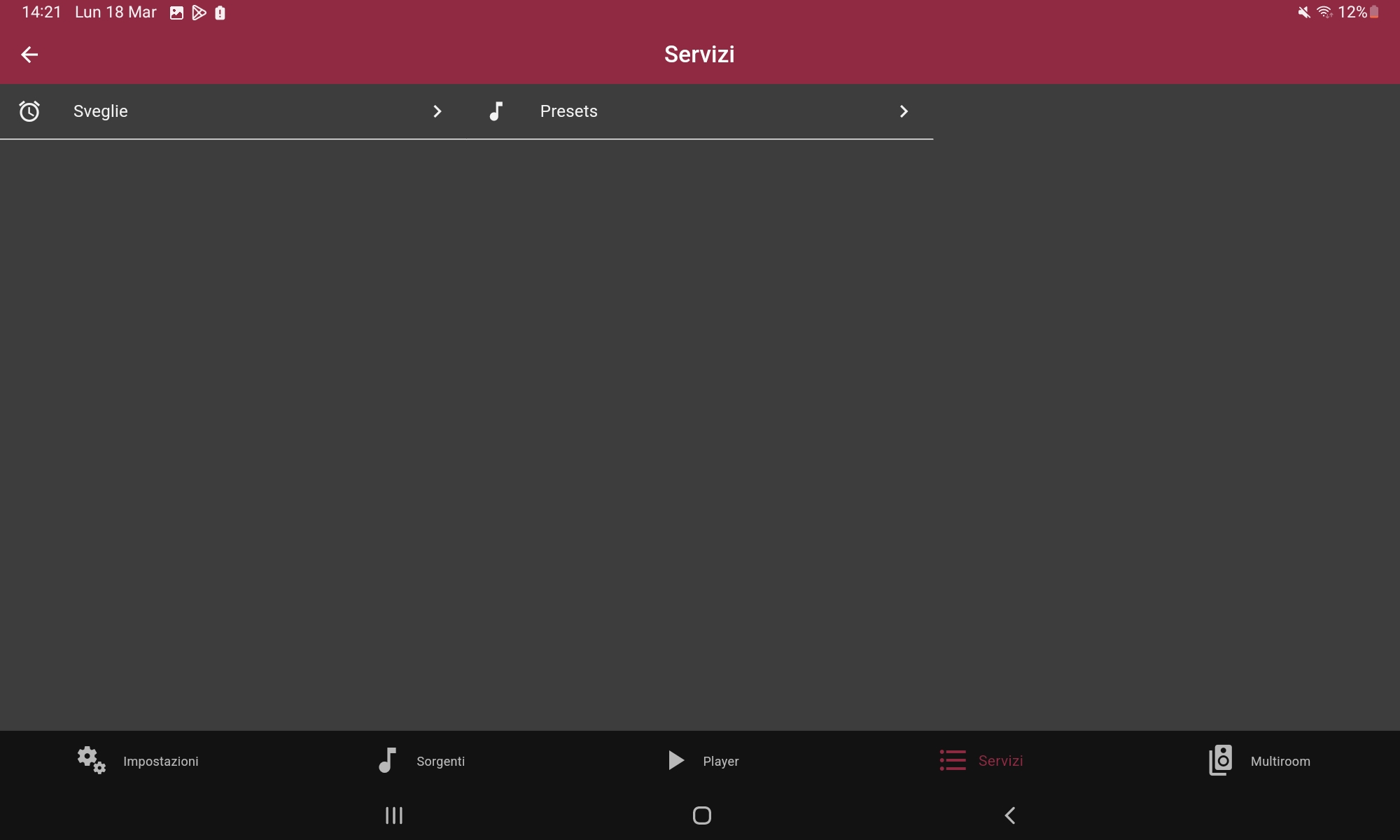

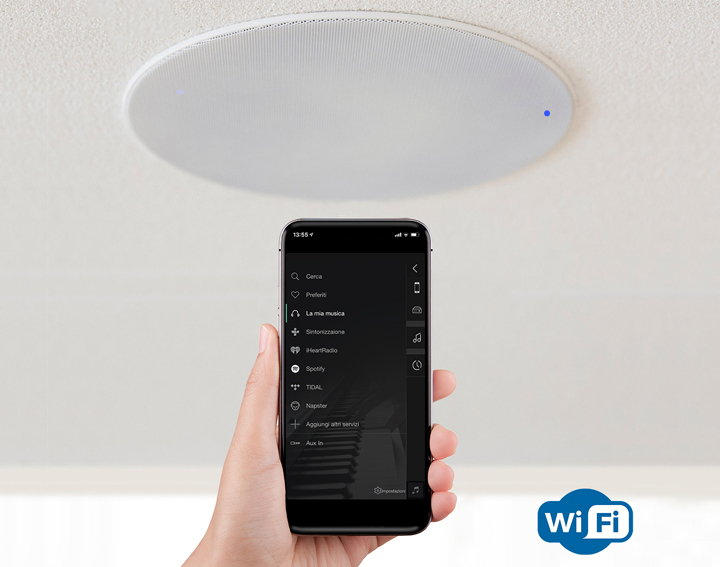

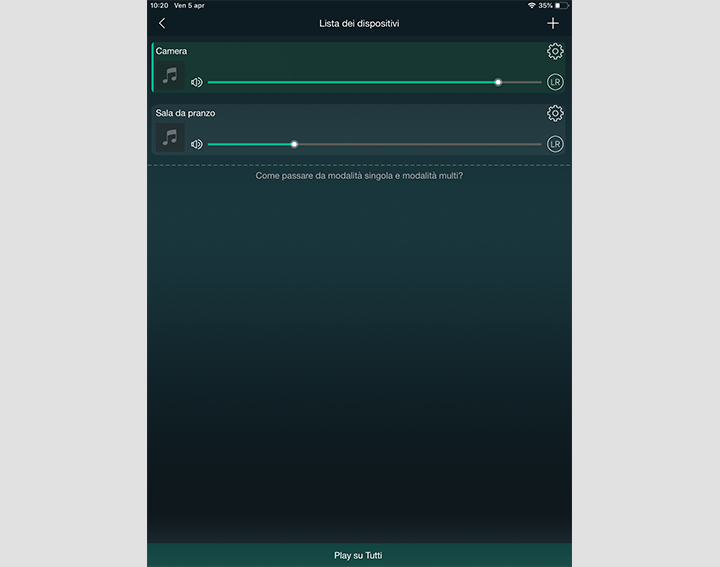

WiFi outdoor audio controllable by APP
code variation:
Vivaldi WIFI KEYROUND16AF.R 8 OhmVivaldi WiFi KEYROCK20A
Vivaldi WiFi KEYGREEN16A
Vivaldi WiFi KEYZEN315A
Vivaldi WiFi KEYZEN510A
Vivaldi WiFi KEYZEN730A

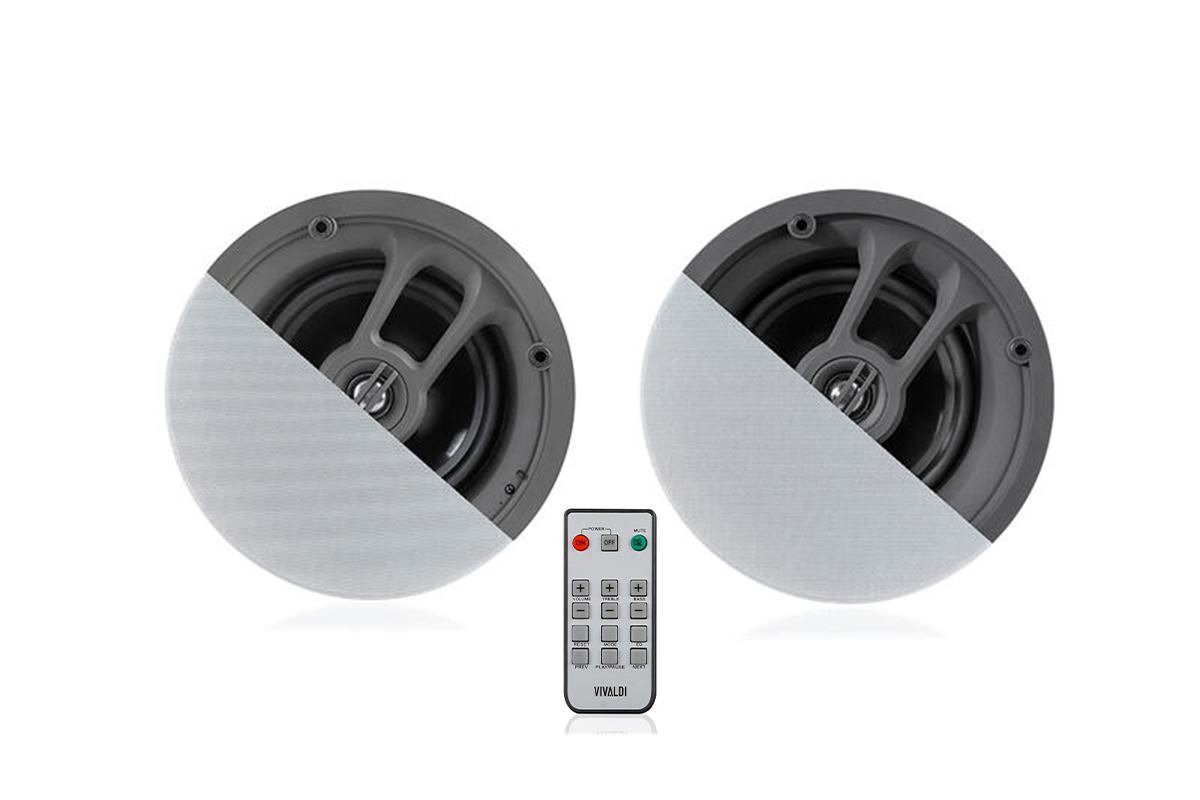

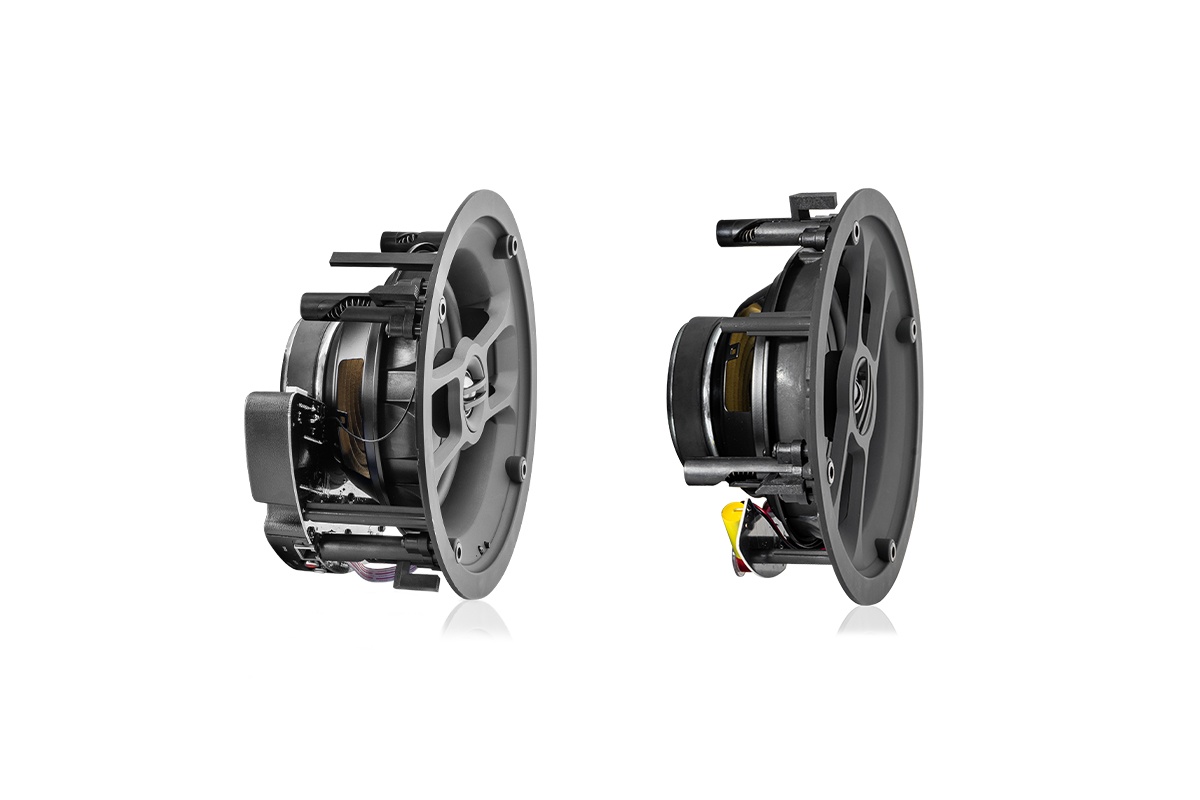

Multimedia WiFi speakers kit:
1pc KEYROUND16AF speaker with built-in Keysol
1pc ROUND16F
1pc KEYROUND16AF speaker with built-in Keysol
1pc ROUND16F
SPECIFICATIONS

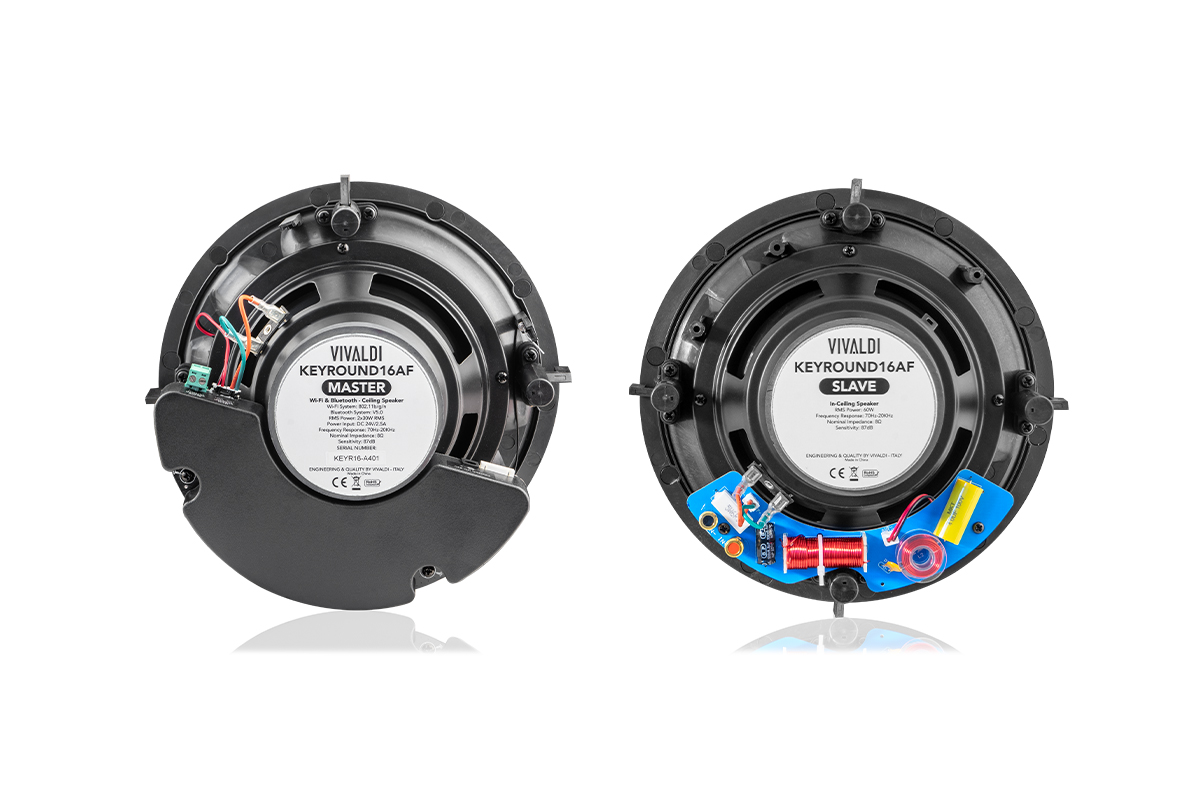

n. 01 - KEYROUND16AF MASTER

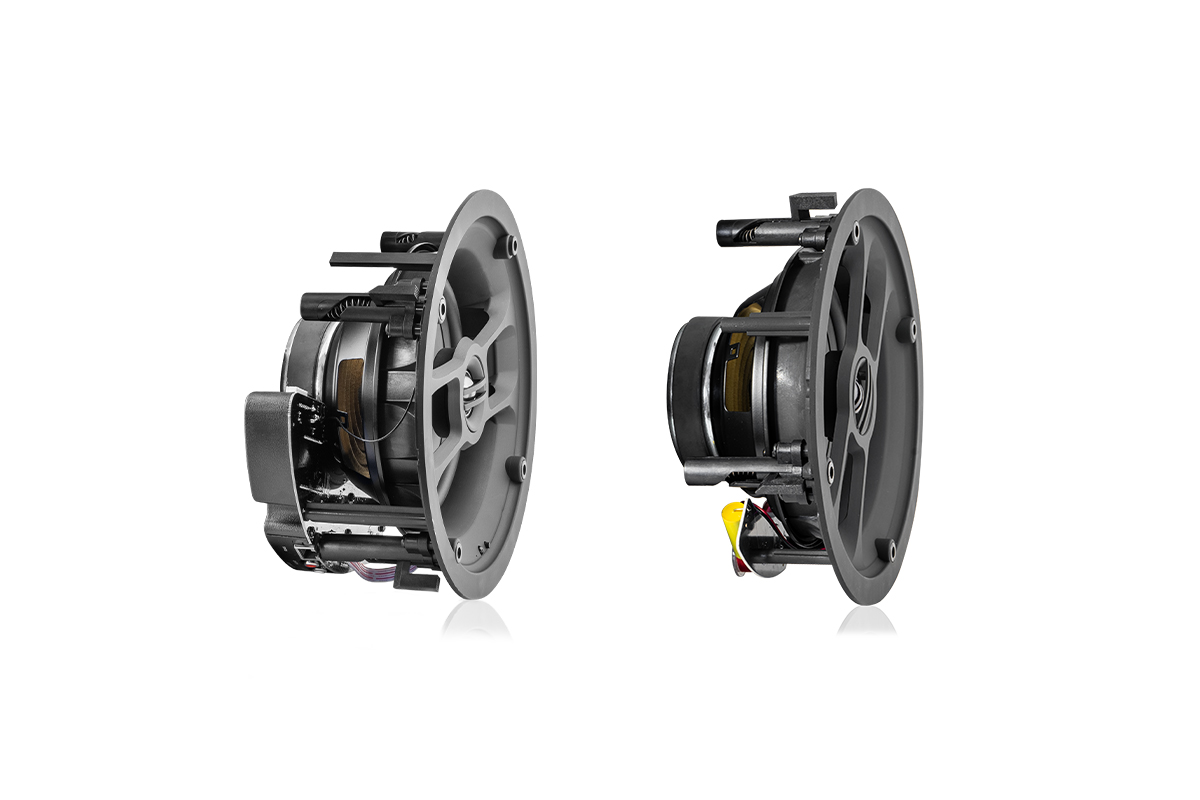

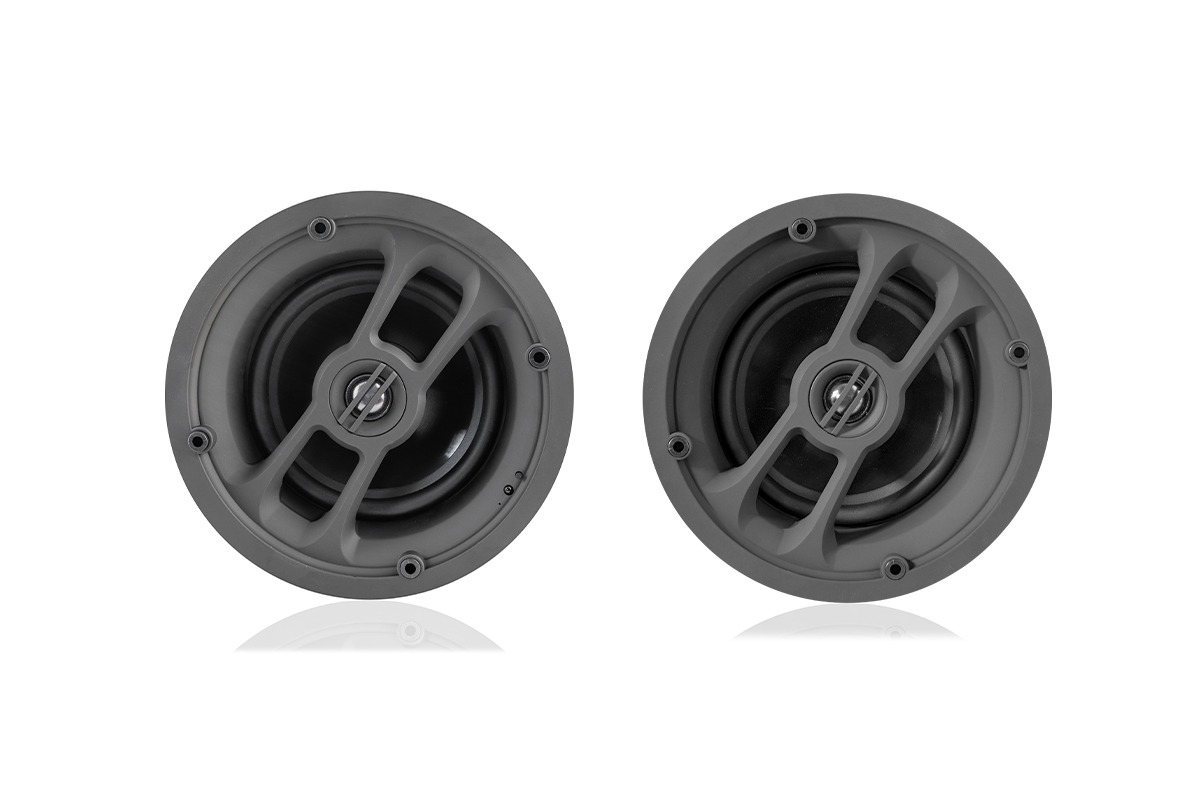

round MASTER speaker, Frameless design series, semi-flush wall, recessed ceiling.
ACTIVE, 2-way, 2x30W RMS, HI-FI, with built-in multimedia player WiFi Vivaldi WIFI KEYSOL (black version con Bluetooth).

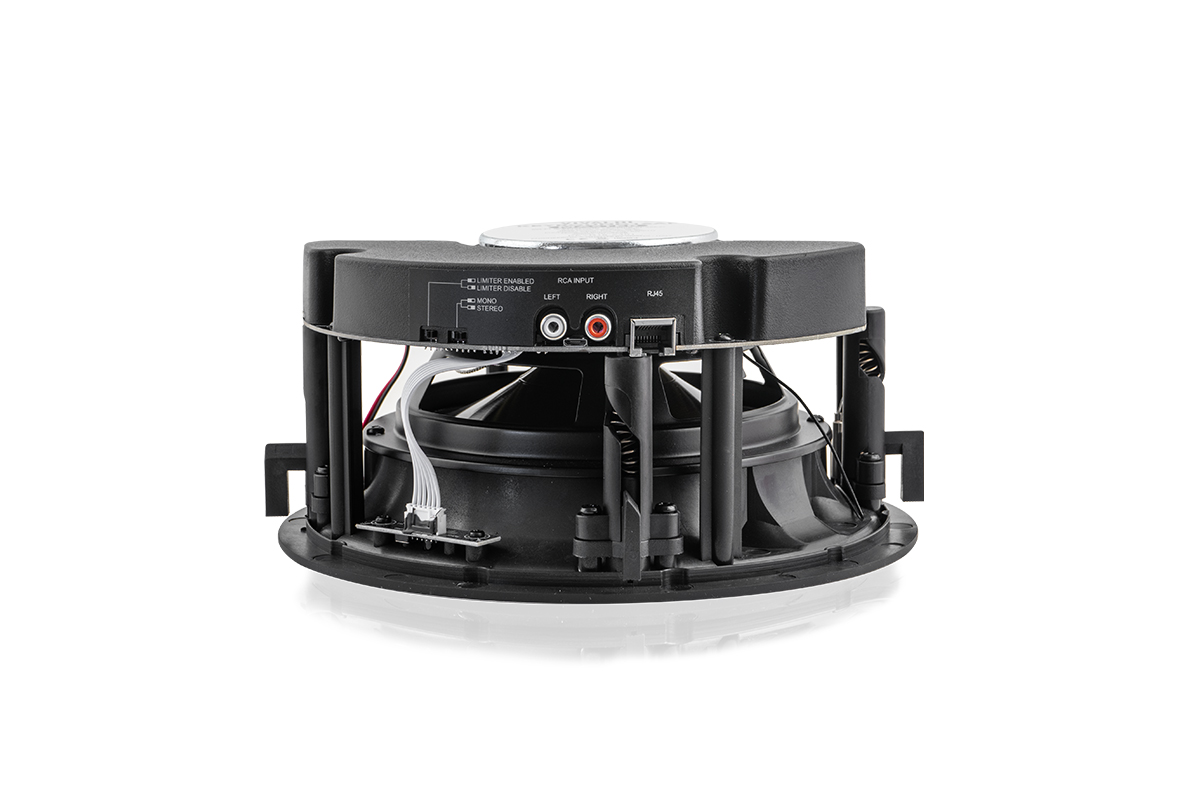

Network LAN port for connection (RJ45).
1 auxiliary stereo RCA input for external source.

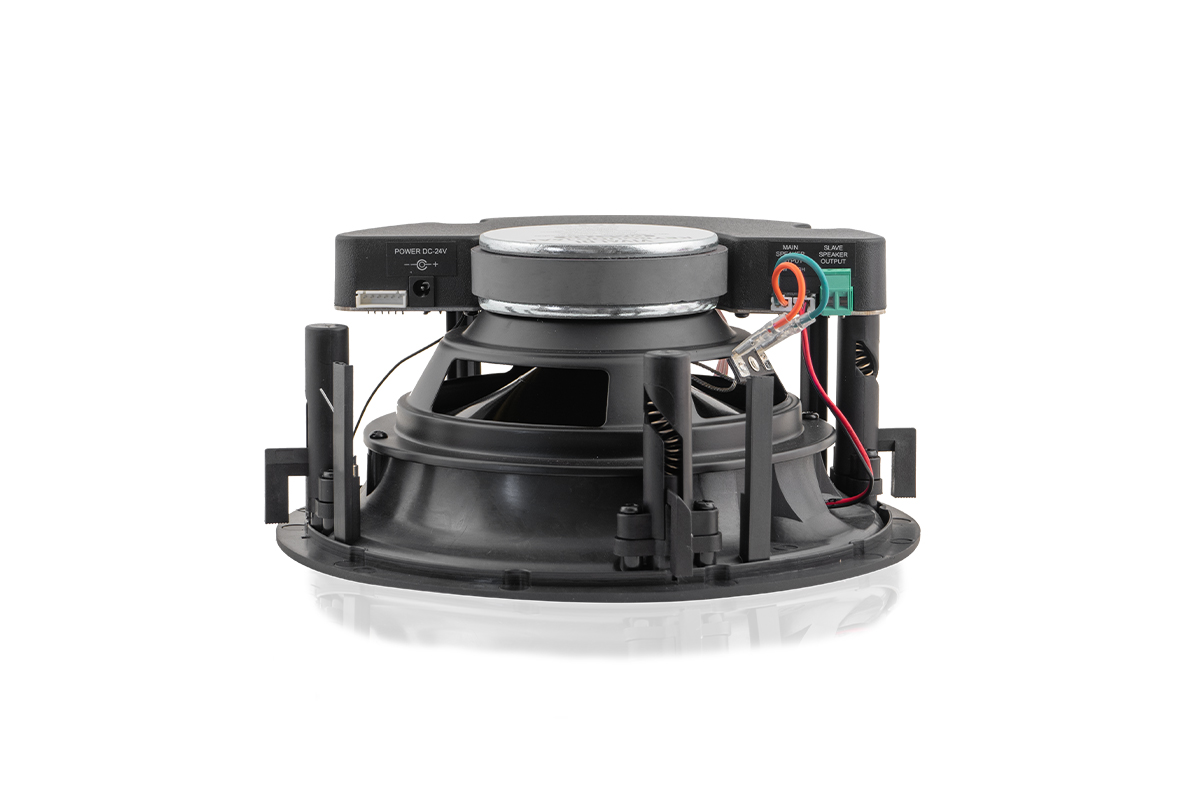

1 power output for SLAVE speaker (30W RMS).

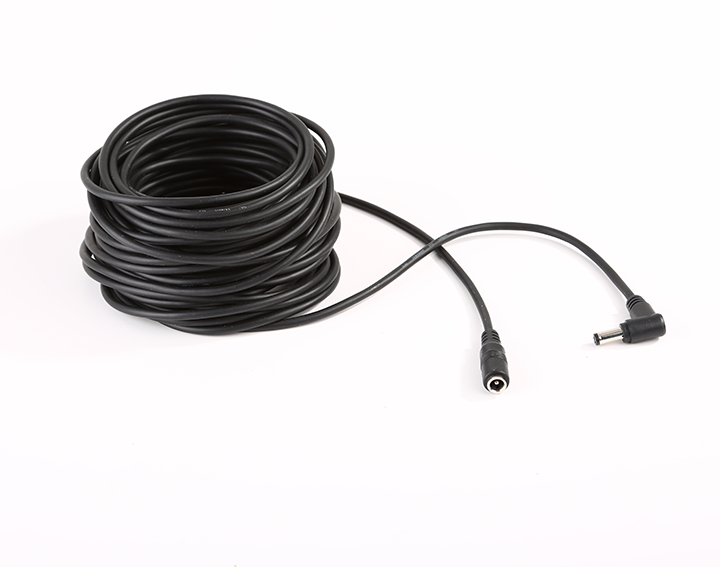

System power supply 24V, 2.5A (included).
Woofer 16.5 cm.
Titanium adjustable dome tweeter with neodymium magnet 1.9 cm
RMS Power 2x30W
Musical Power 2x60W
Frequency response 60-20000 Hz
Sensitivity 90 dB
Dispersion angle 120° (V / H)
ABS V0 cabinet with painted galvanized protection grille.
Working temperature from -20° to +65°.
Size (DxD) 227x100 mm
Built-in hole (D) 210 mm
Weight 1,8 Kg
n. 01 - ROUND16F SLAVE
Round speaker, 2-way in-ceiling, HI-FI, Frameless
Impedance: 8 Ω
Recessed on drywall, wood walls and similar: no accessories need, the speaker is provided with some hooks for stable anchoring in the rear side.
Installation in-wall: not suitable

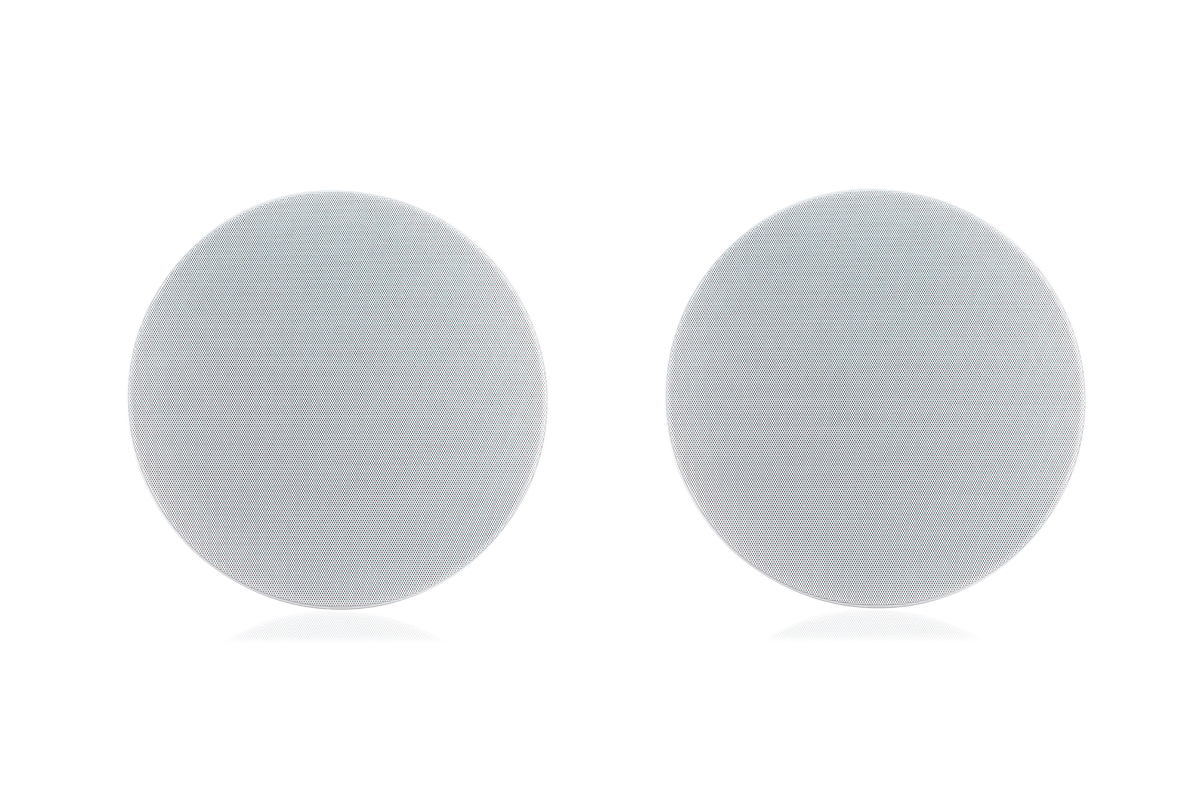

Colour white RAL 9016, paintable (see Vivaldi WIFI KEYROUND16AF.R).
ABS V0 cabinet with painted galvanized grille.
Working temperature from -20° to +65°
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
