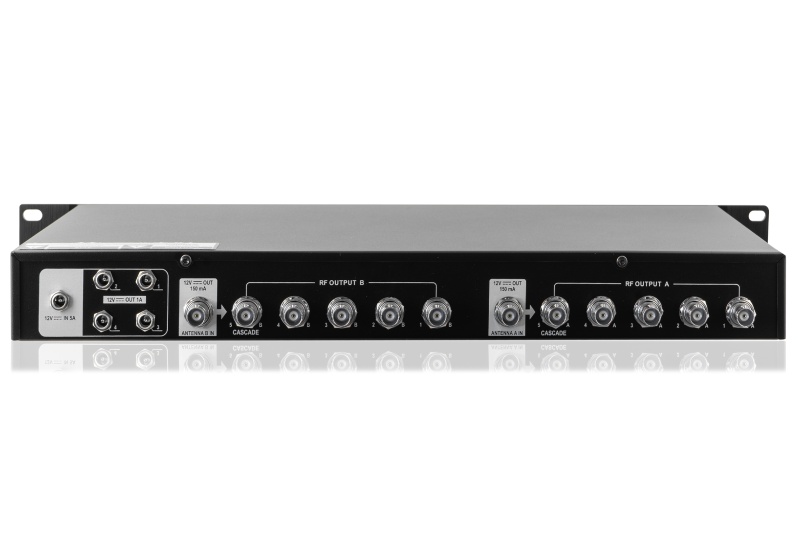

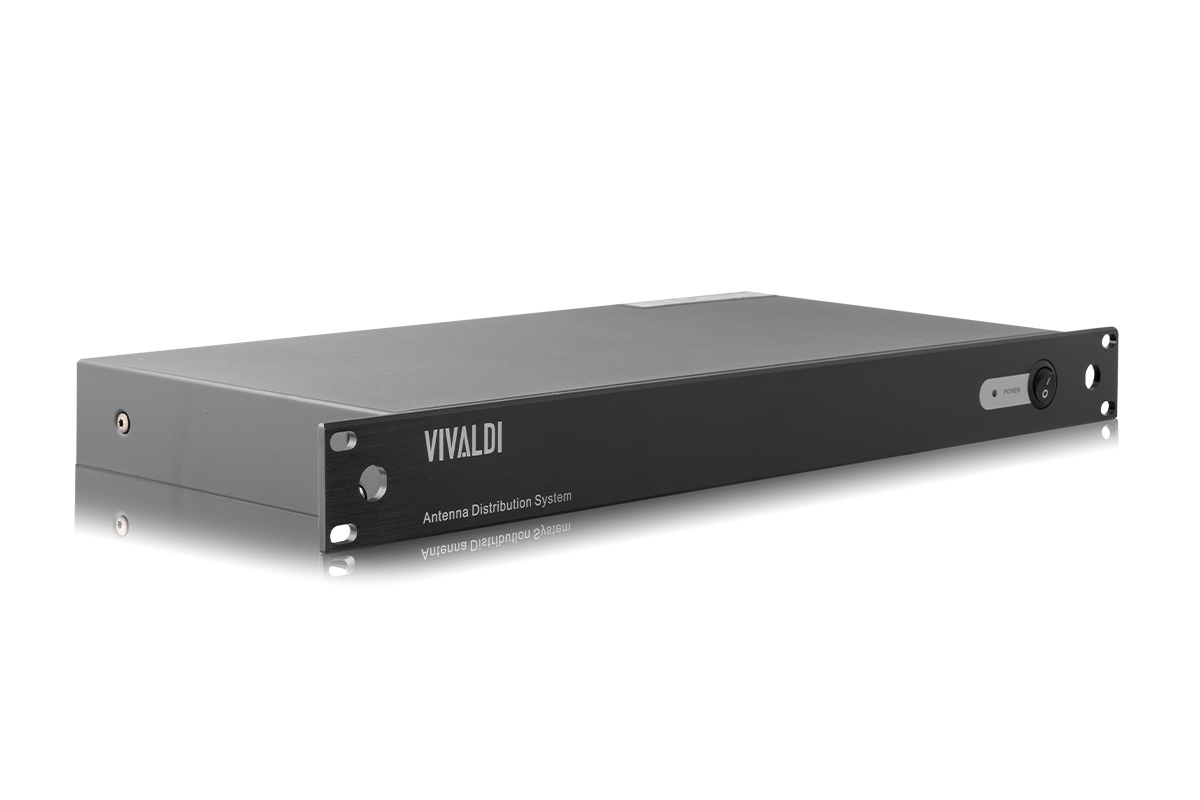

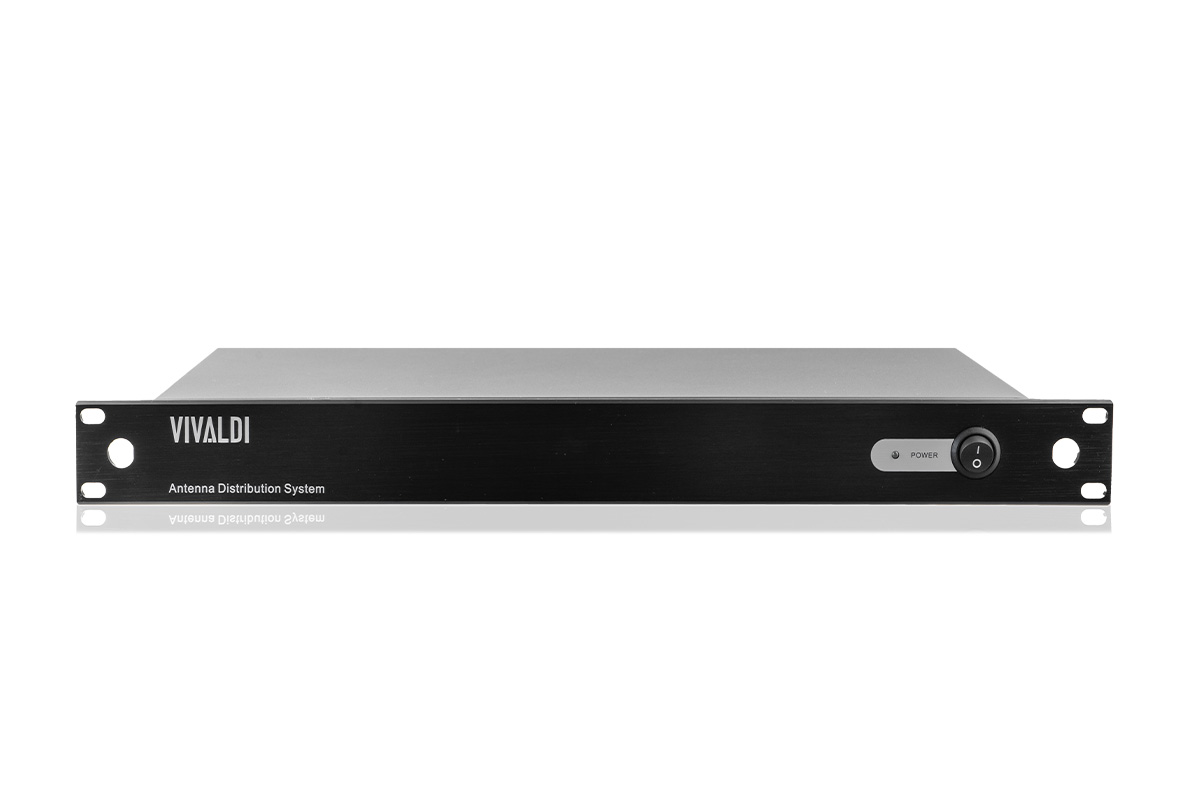

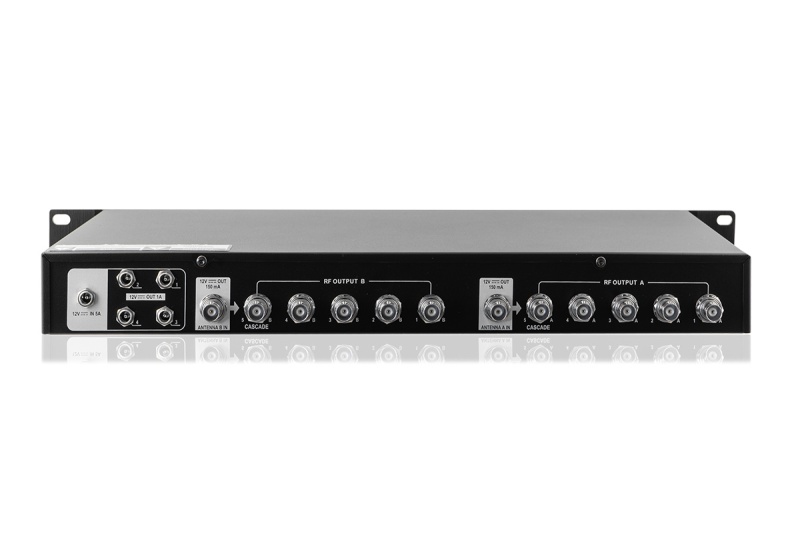

Vivaldi Ulisse WSR4

Antenna distributor for 5 wireless transmitters (radiomicrophones).
Phantom power supply.
Wide frequency range, covers all the UHF wireless frequency point.
Directional broadband antenna.
Directional antenna, decrease interference with other devices.
Antenna input impedance: 50Ω (cable Vivaldi Ulisse RG58U50.1 to be ordered separately).
Antenna output impedance: 50Ω (cable Vivaldi Ulisse RG58U50.1 to be ordered separately).
Antenna input socket: TNC.
Antenna output socket: TNC.
Gain: 3 dB.
Band: 200 MHz.
Power supply: DC 12-18 V 300 mA.
Dimensions (WxHxD): 410x45x160 mm.
Weight: 2 kg.
Maximum distance between distributor and antenna: 350mt.

---

Antenna amplifiers.
Antenna input impedance: 50Ω (cable Vivaldi Ulisse RG58U50.1 to be ordered separately).
Antenna output impedance: 50Ω (cable Vivaldi Ulisse RG58U50.1 to be ordered separately).
Antenna input socket: TNC.
Antenna output socket: TNC.
Gain: 13 dB.
Band: 400 MHz.
Power requirements: DC 12-18V Phantom power supply.
Dimensions (WxHxD): 65x35x75 mm.
Weight: 0,150 kg.

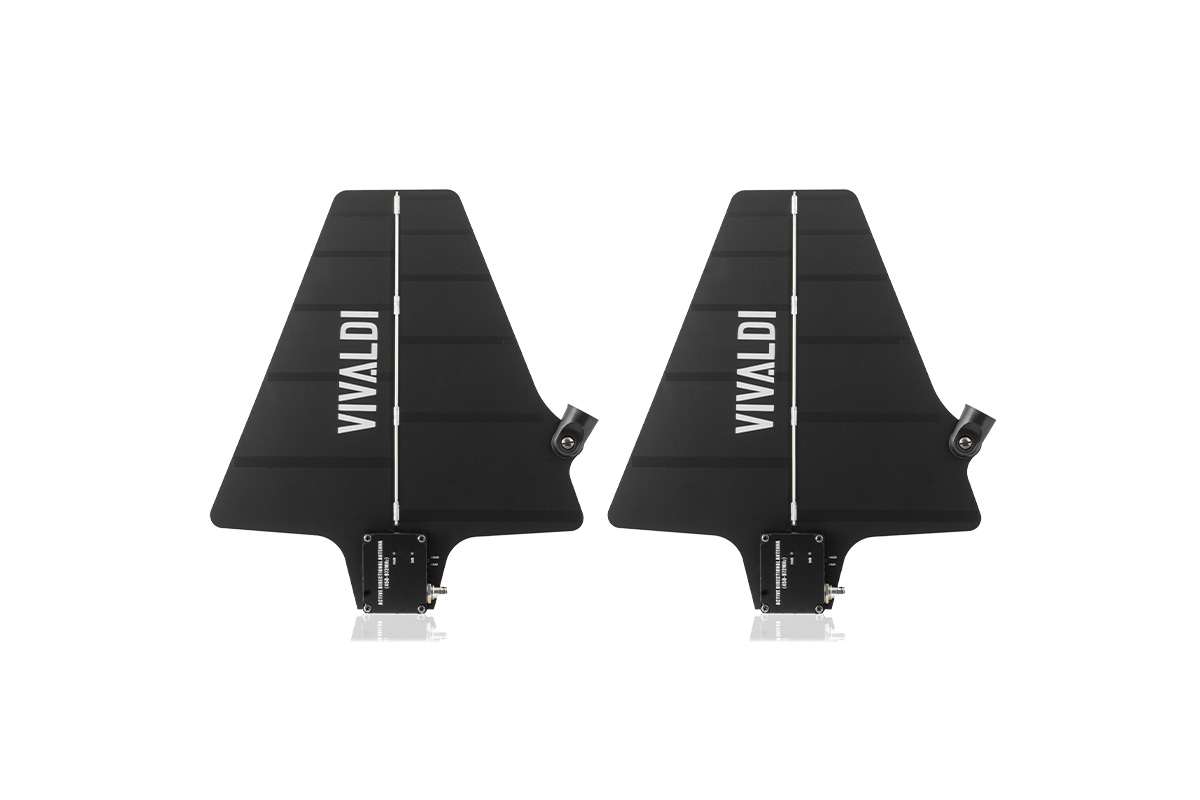

Directional broadband antenna.
Frequency: 450-973 MHz.
Gain: 7 dB.
Dimensions (WxH): 290x260 mm
Weight: 0,180 Kg

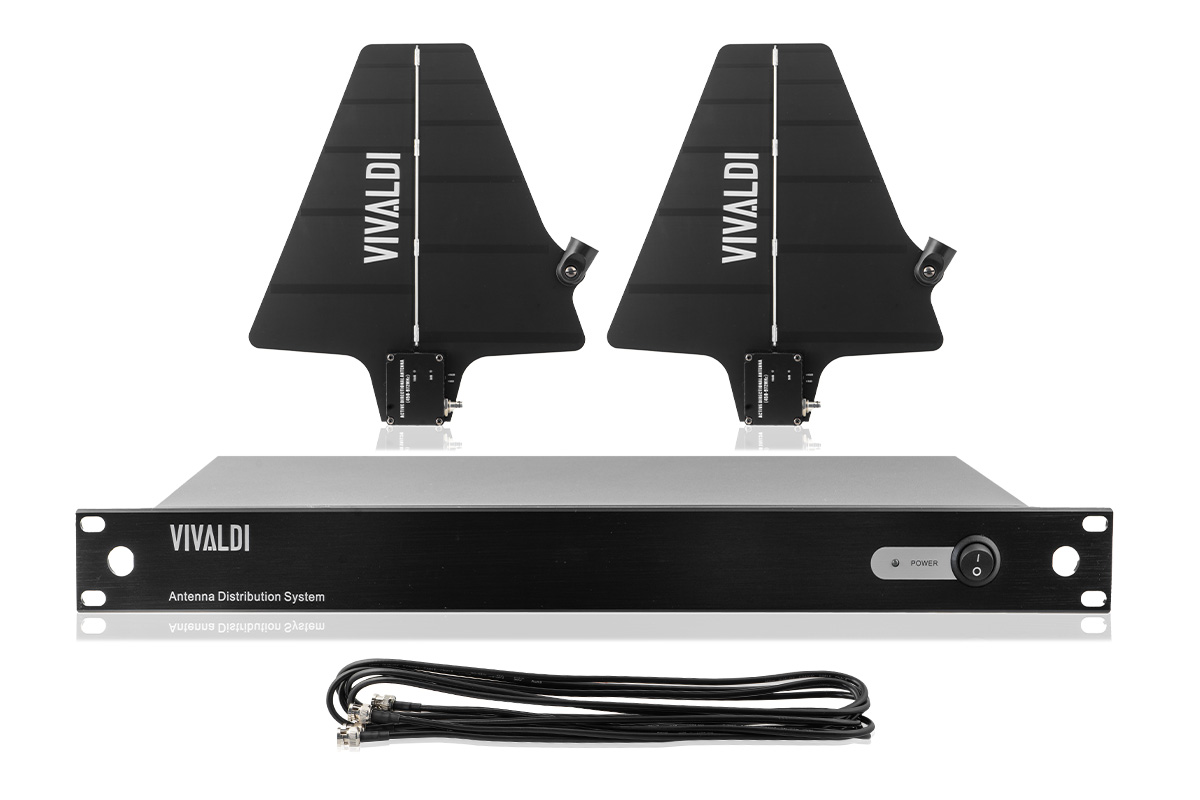

Kit with:
• 1 antenna distribution unit (1U rack)
• 2 directional antennas

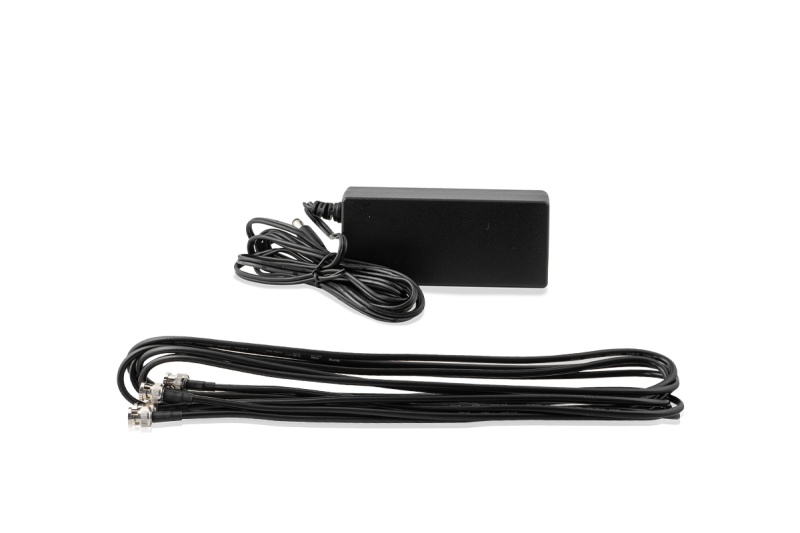

• 1 AC power cable
• 4 cables BNC-BNC

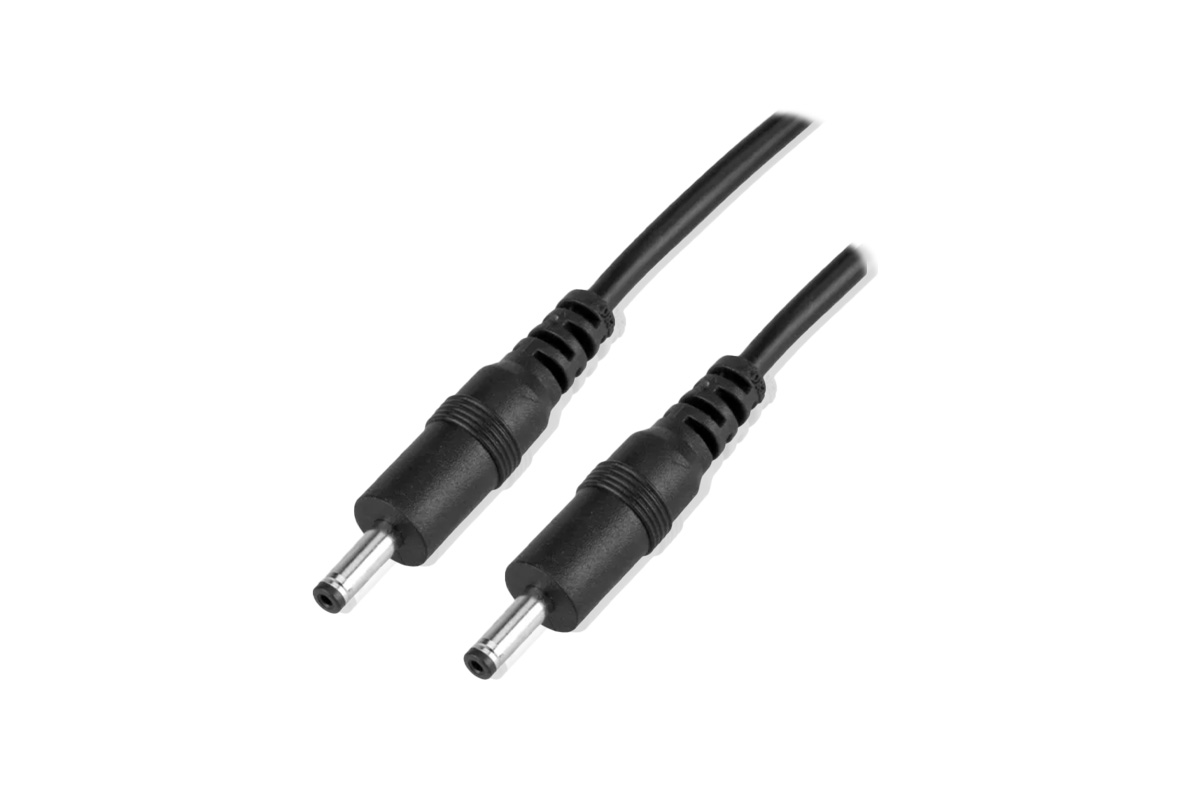

• 4 DC-DC cables
• 2 TNC cables
