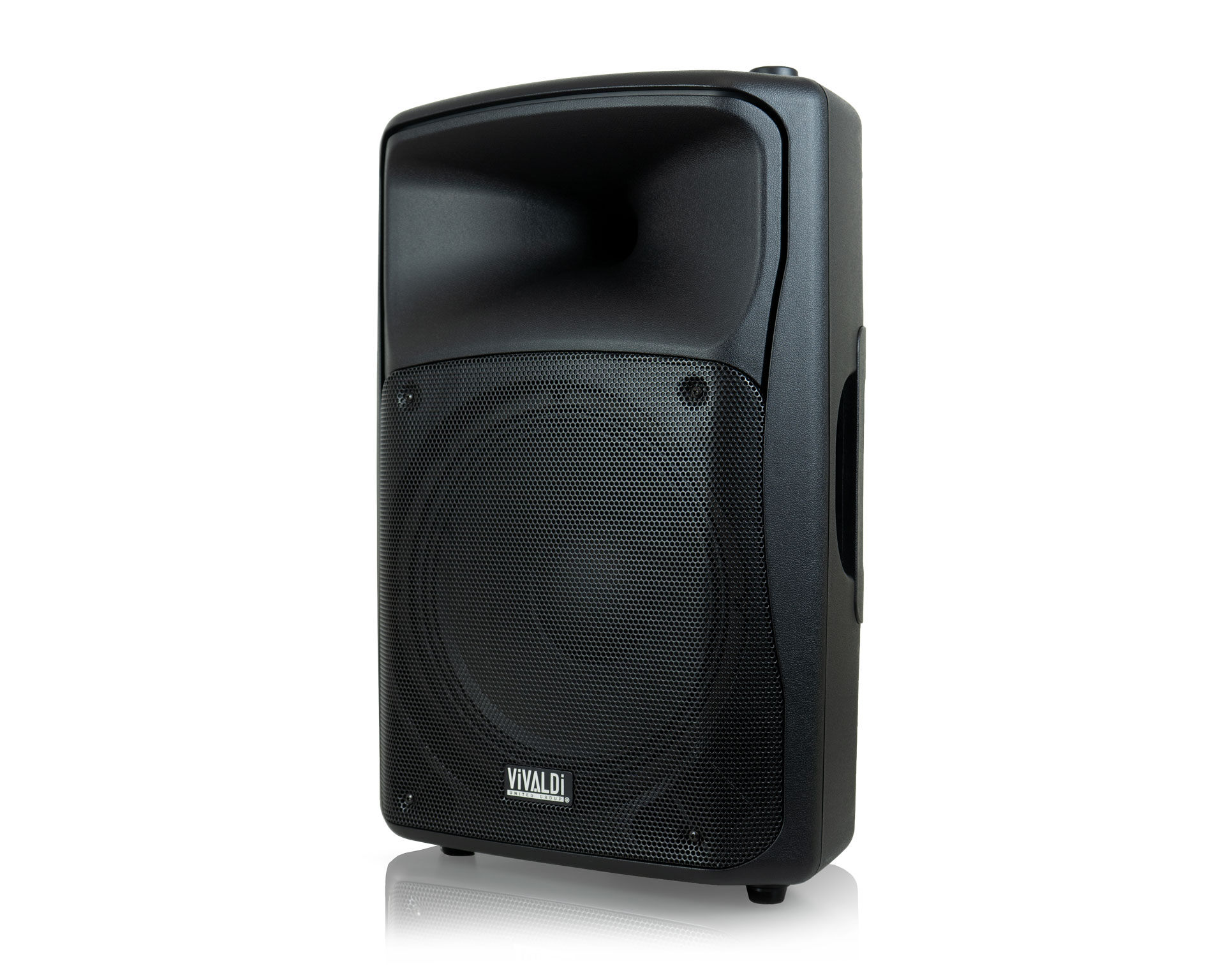

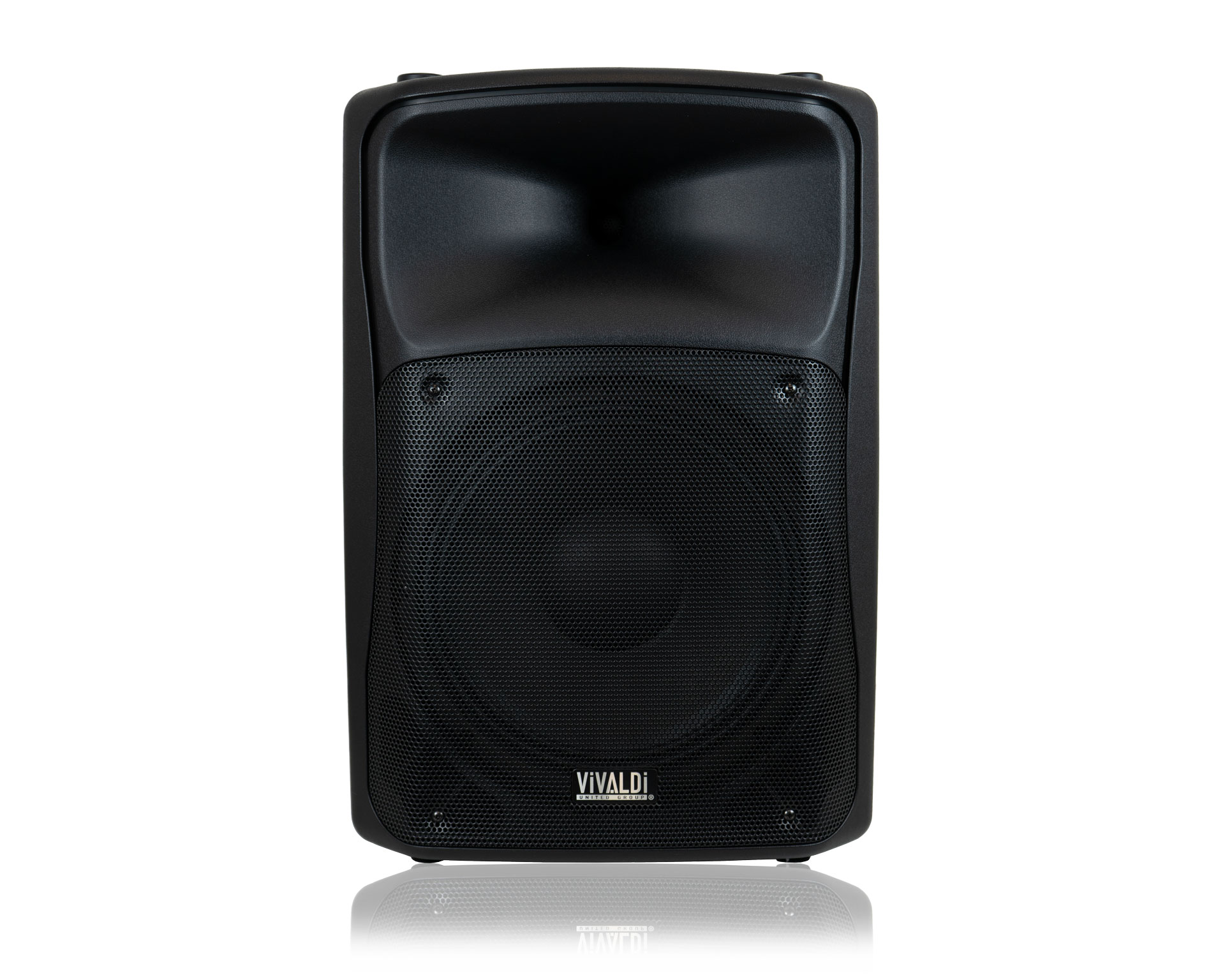

Vivaldi PRO SOUND12AP
Vivaldi PRO_active spk 550+150W
2-way bi-amplified Bass-Reflex system
Applications: Live Sound P.A., DJ System, Restaurants, Pubs, Clubs, Auditoriums, Theatres, Gyms...

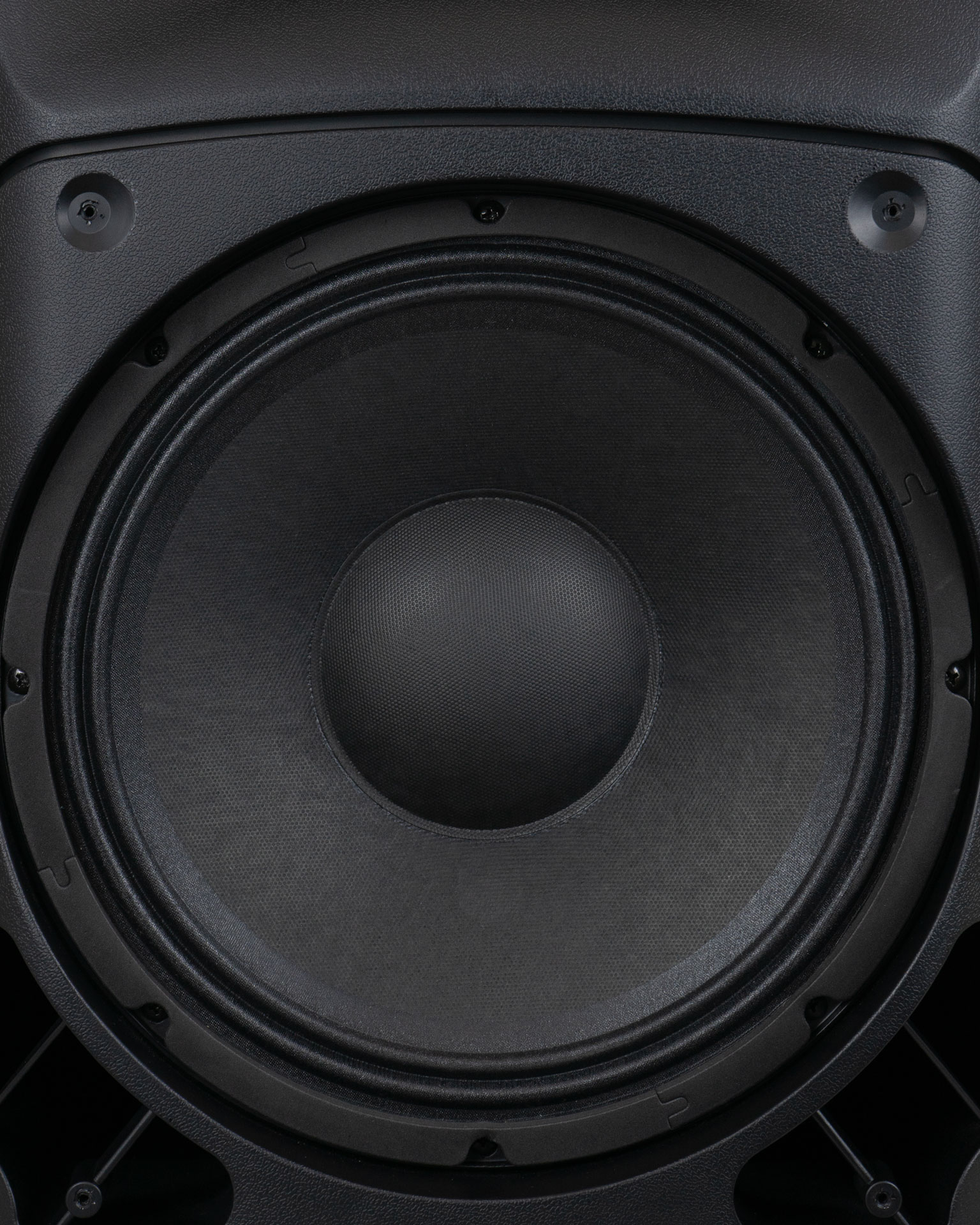

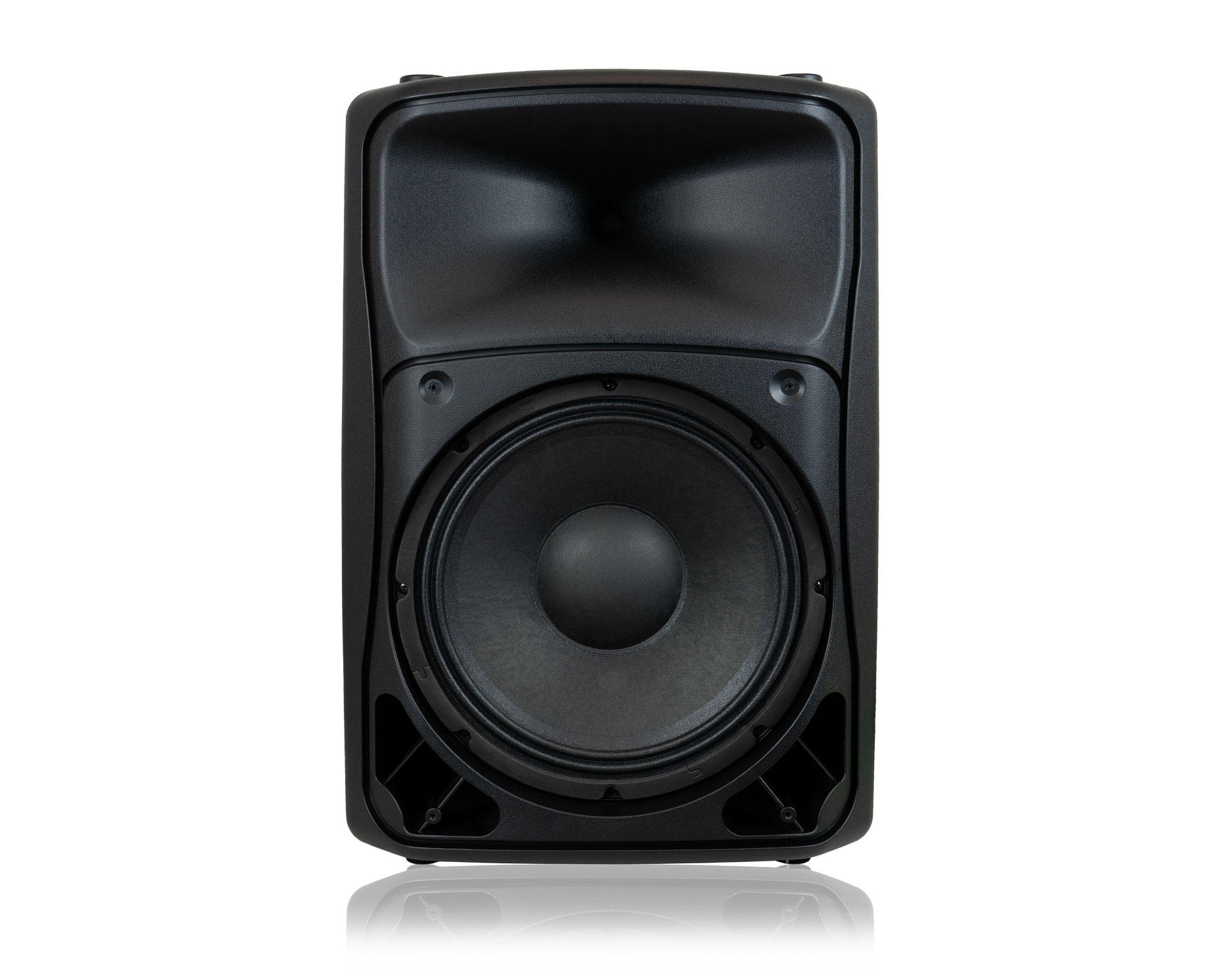

32 cm (12") ceramic magnet woofer
Compression driver with 25 mm (1‘) throat and 44 mm (1 3/4’) voice coil
550W RMS LF amplifier
150W RMS HF amplifier

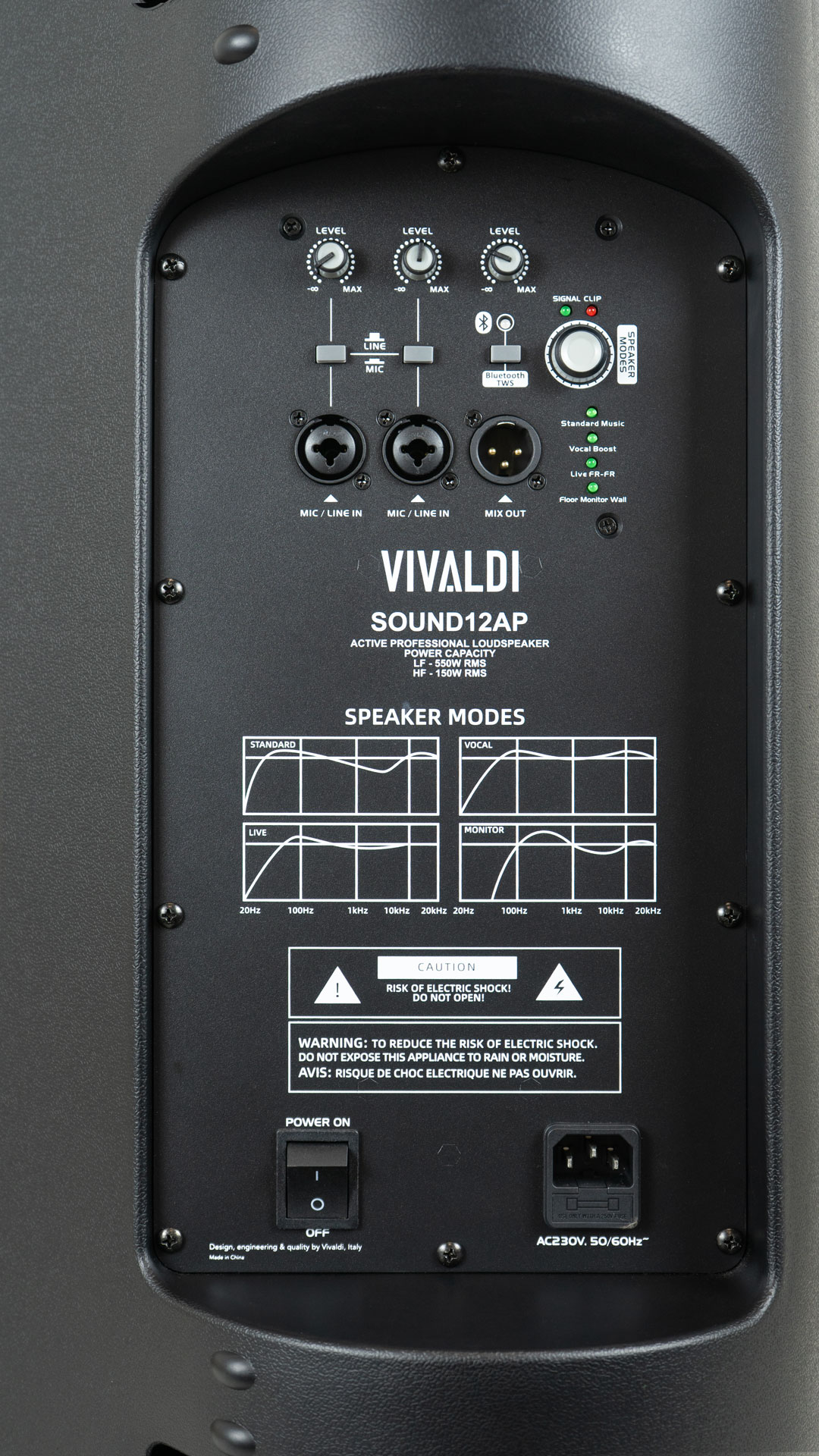

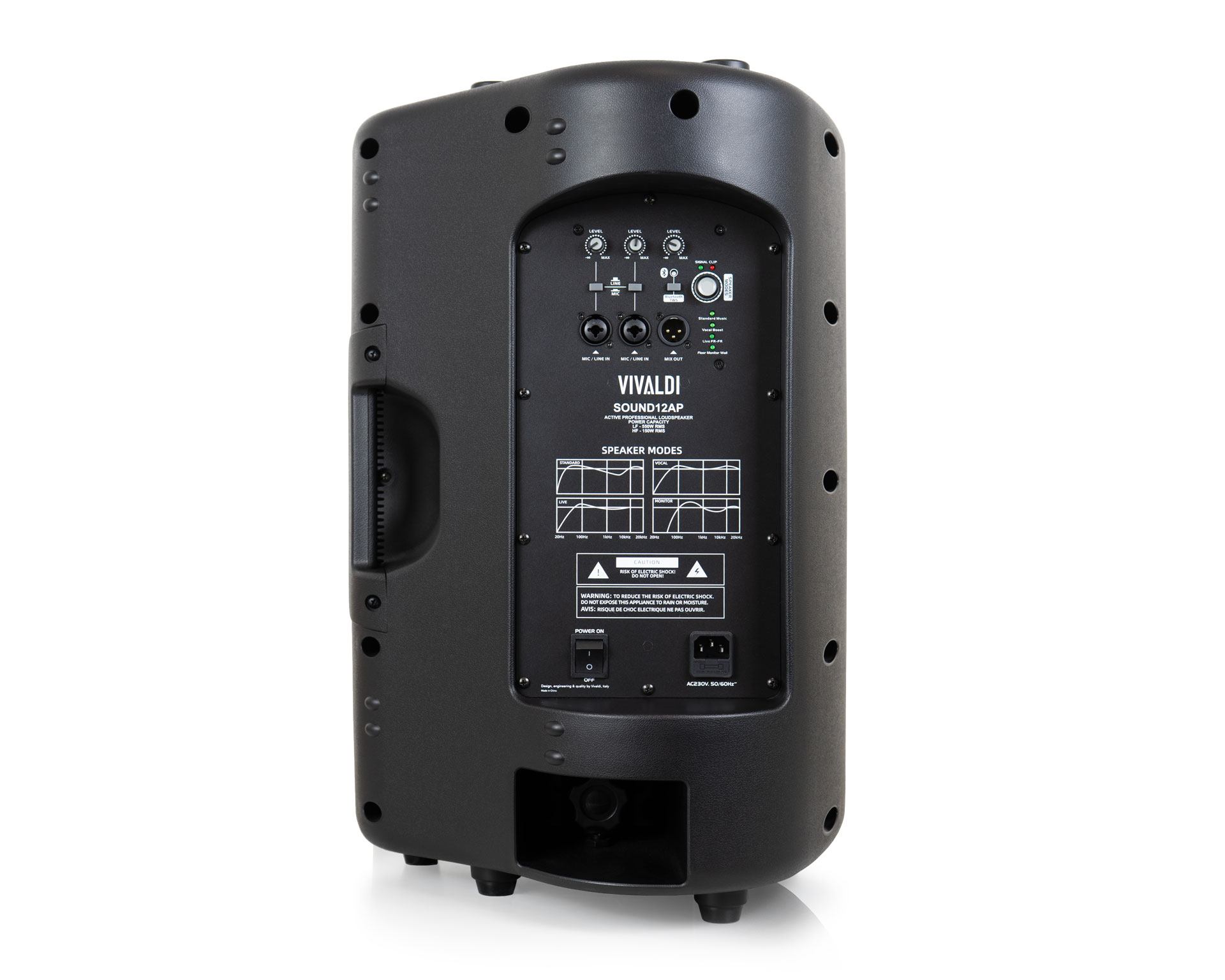

Control panel with Input, MIC, Line, XLR, Link Output
Separate Mic Level and Line Level functions + Master Volume
With DSP and 4 preset equalisation curves
Clip Power LED
90°H x 60°V horn
Frequency response 50Hz-20kHz -6dB
Sensitivity 96dB
Maximum SPL / peak 126 dB
Dispersion 90°x60° (HxV)
Crossover frequency 1.8 KHz
Connectors: IN XLR-JACK, OUT XLR

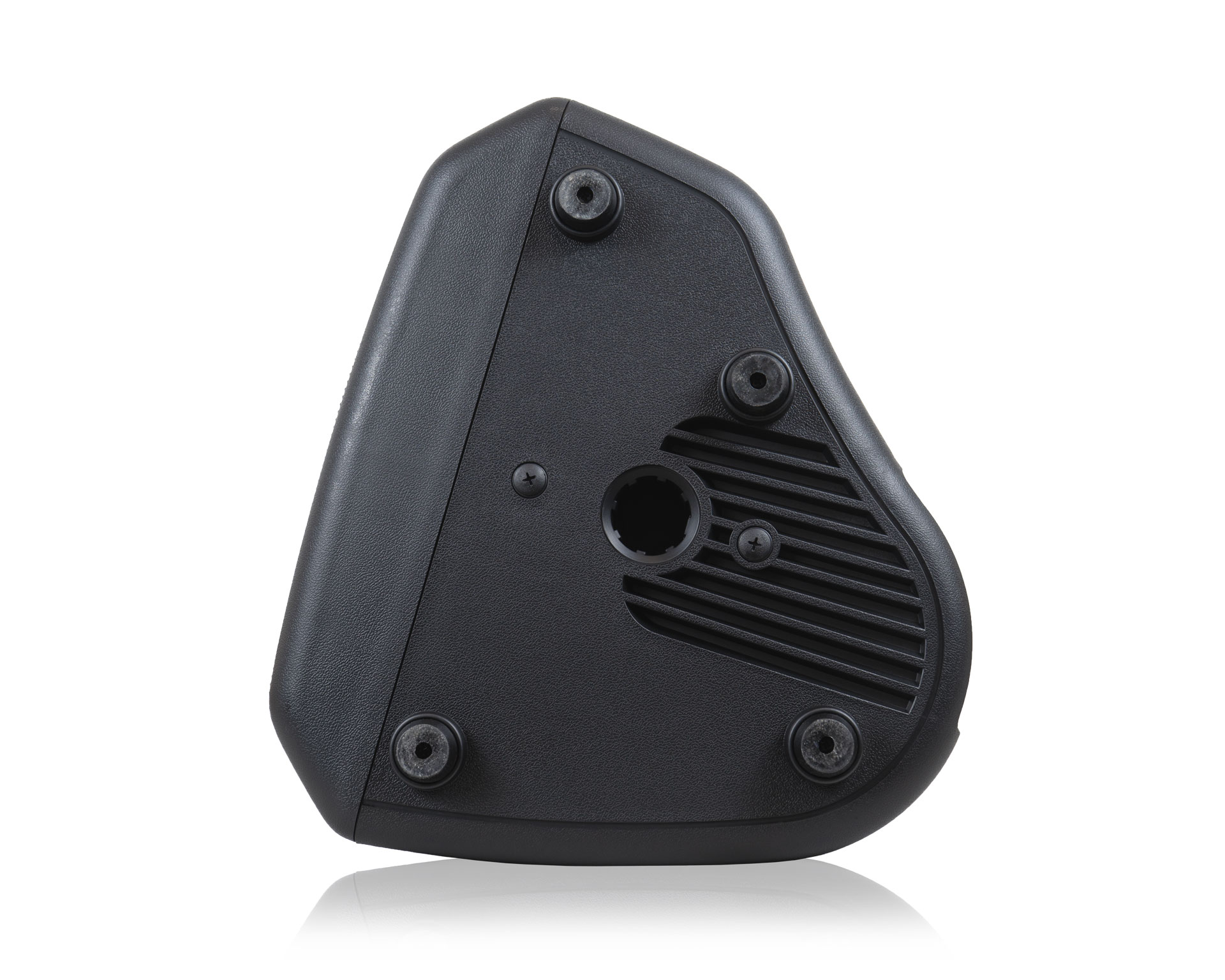

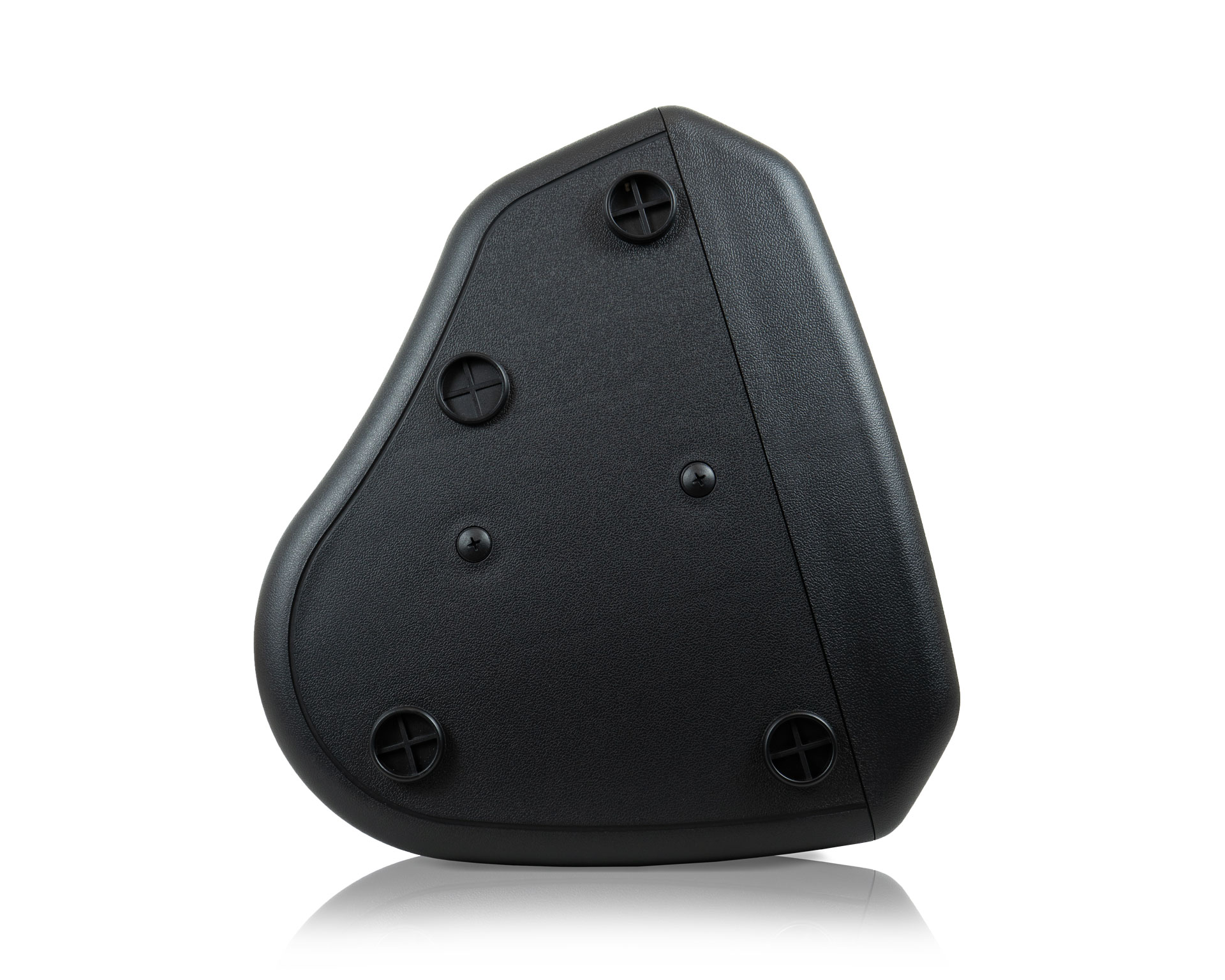

4 M8 mounting points, 35mm stand hole
Bracket mounting for wall installations

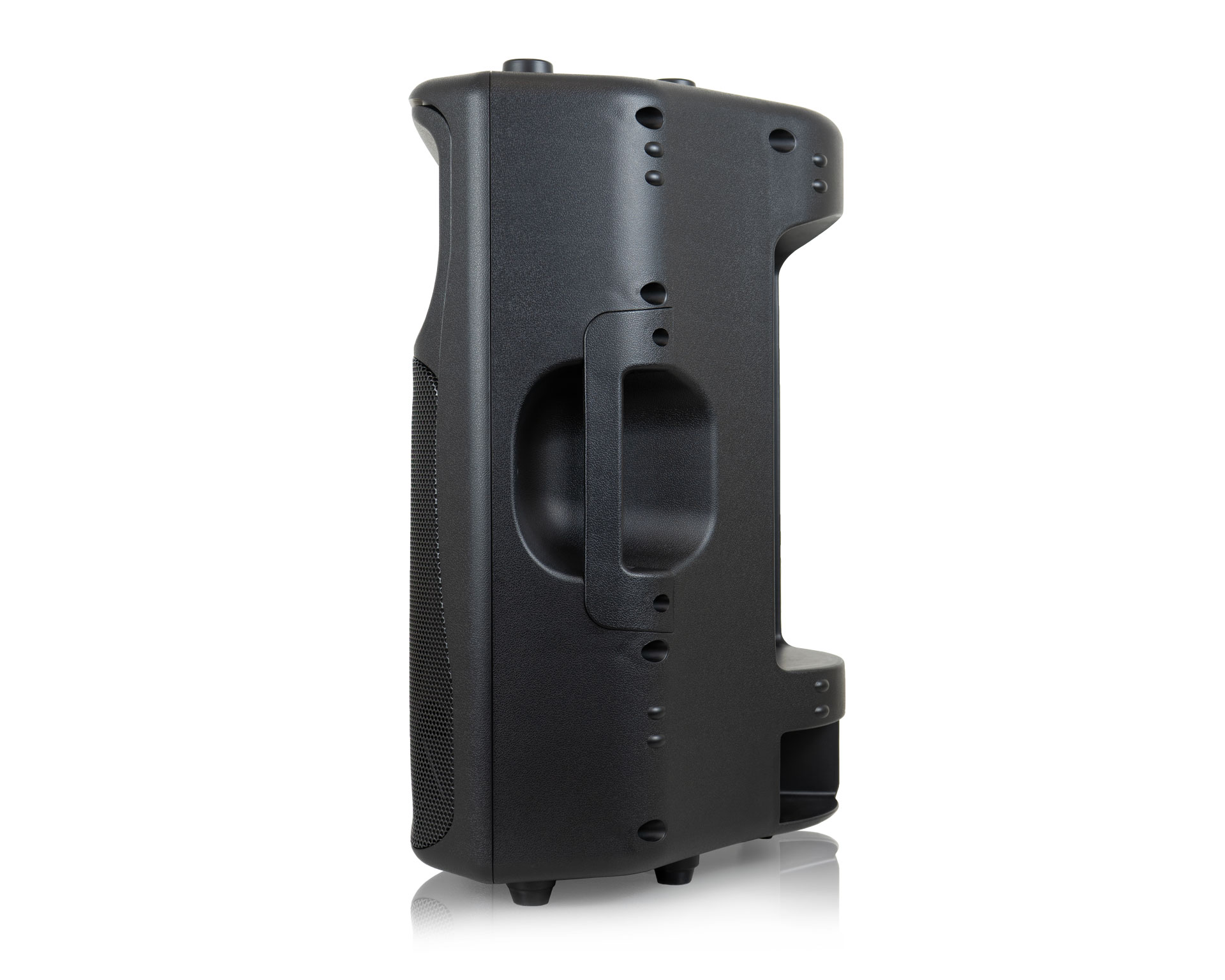

1 integrated handle
Dimensions 400x640x330 mm (WxHxD)
Weight 22Kg
Power supply 240V/50-60Hz
Plastic cabinet
Colour Anthracite
Request a commercial offer
Applications: Live Sound P.A., DJ System, Restaurants, Pubs, Clubs, Auditoriums, Theatres, Gyms...
32 cm (12") ceramic magnet woofer
Compression driver with 25 mm (1‘) throat and 44 mm (1 3/4’) voice coil
550W RMS LF amplifier
150W RMS HF amplifier
Control panel with Input, MIC, Line, XLR, Link Output
Separate Mic Level and Line Level functions + Master Volume
With DSP and 4 preset equalisation curves
Clip Power LED
90°H x 60°V horn
Frequency response 50Hz-20kHz -6dB
Sensitivity 96dB
Maximum SPL / peak 126 dB
Dispersion 90°x60° (HxV)
Crossover frequency 1.8 KHz
Connectors: IN XLR-JACK, OUT XLR
4 M8 mounting points, 35mm stand hole
Bracket mounting for wall installations
1 integrated handle
Dimensions 400x640x330 mm (WxHxD)
Weight 22Kg
Power supply 240V/50-60Hz
Plastic cabinet
Colour Anthracite
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
