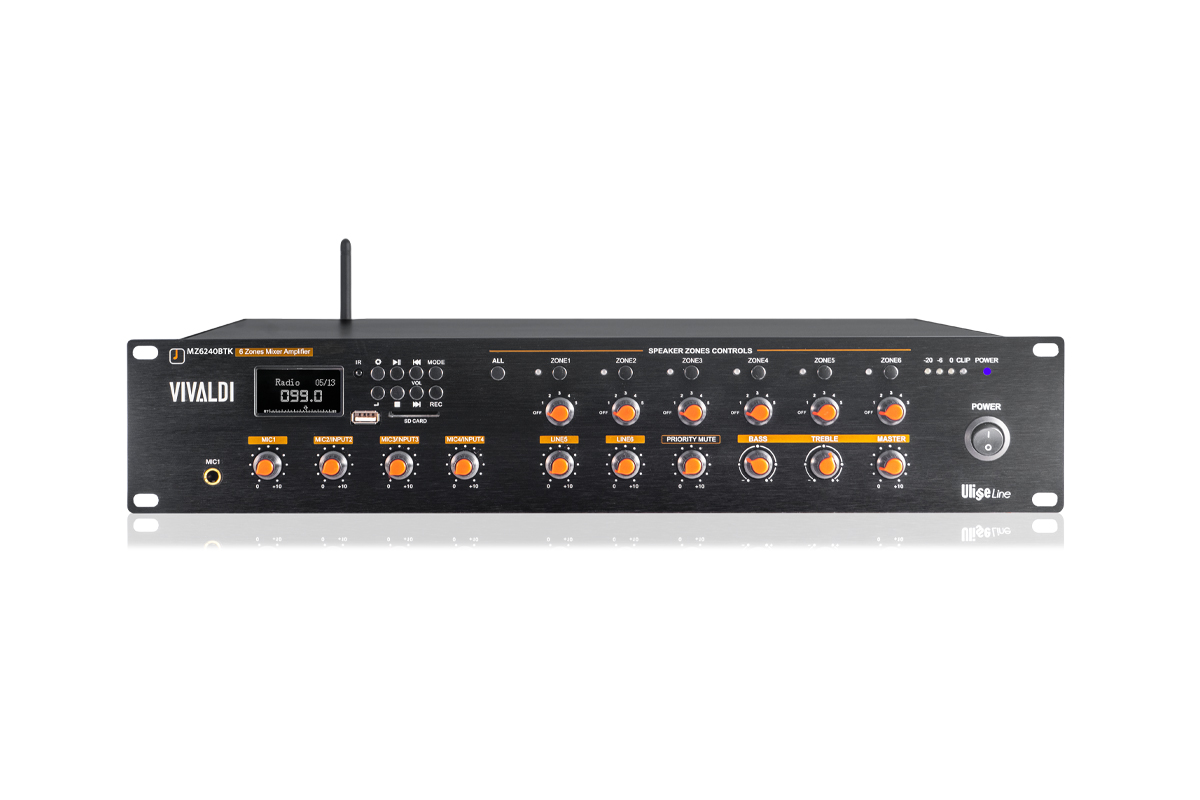

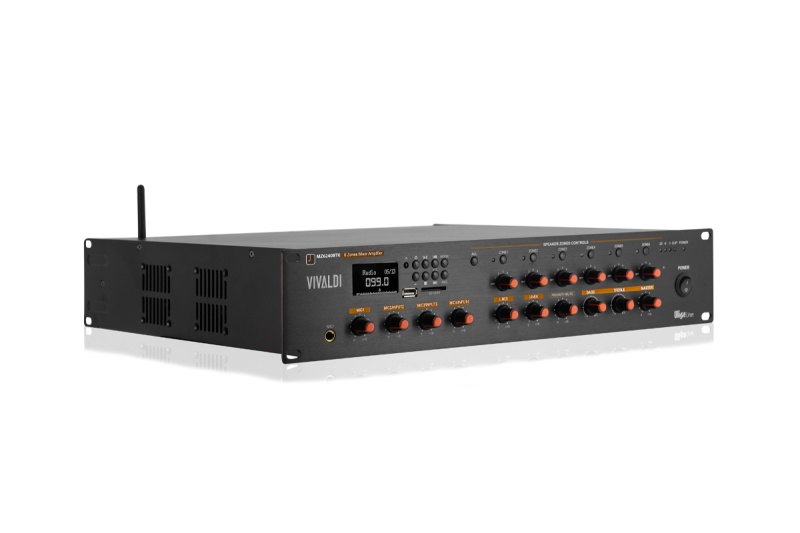

Vivaldi Ulisse MZ6240BTK
Multi-zone mixer amplifier with player
Variante codice:
Vivaldi Ulisse MZ6120BTK multi-zone mixer amplifier with playerVivaldi Ulisse MZ6350BTK multi-zone mixer amplifier with player
Vivaldi Ulisse MZ6500BTK multi-zone mixer amplifier with player
Independent volume adjustment on each zone.
General or selective messages via desk microphone Vivaldi Ulisse BM6.
General or selective messages via desk microphone Vivaldi Ulisse BM6.
Multi-zone amplifier mixer 240W with player KEYSOL, BLUETOOTH source, FM TUNER, USB and SD CARD integrated, AirPlay (audio streaming. For example: YouTube, Apple Music, Amazon Music...)

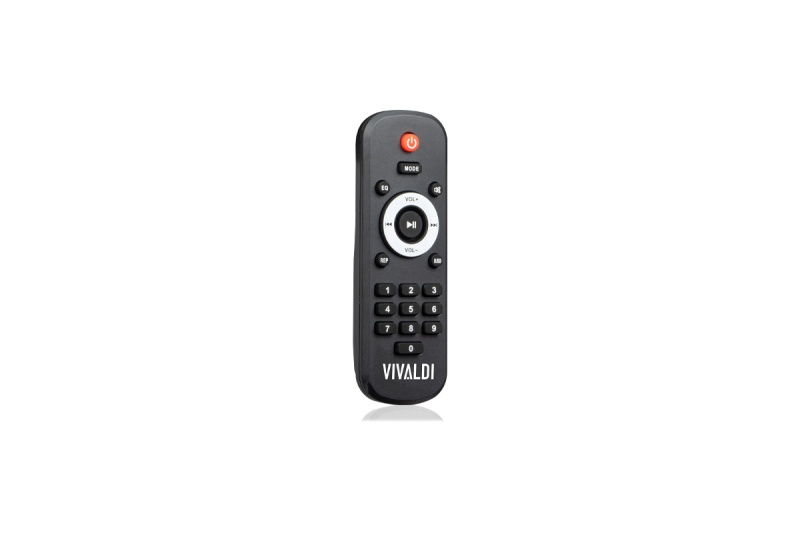

IR remote control supplied.
Volume adjustment to 6 independent zones
Power supply AC110-240V & 24Vdc.
Consumption 400VA.

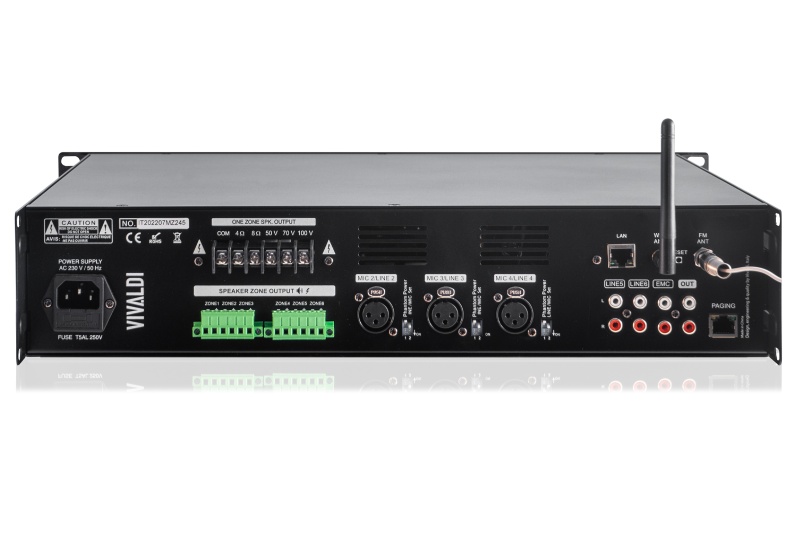

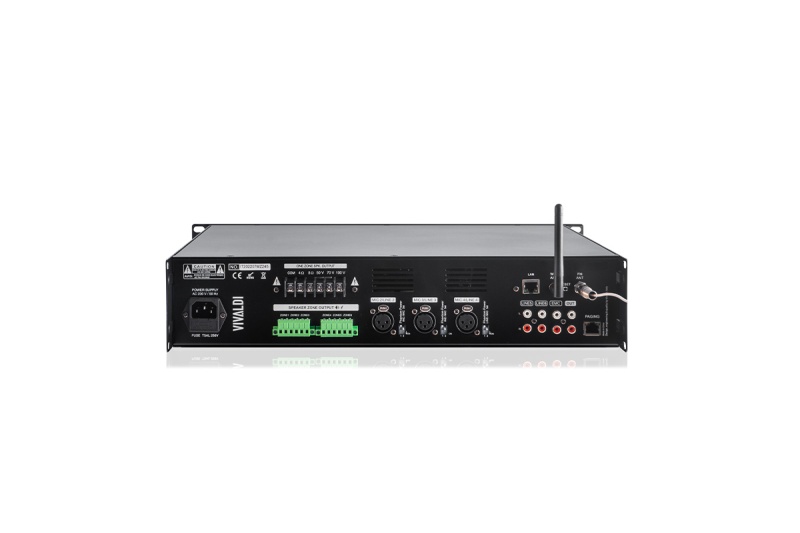

6 mix. Inputs + sources + priority emergency input + multi-zone desk microphone
CH1 (priority): mic JACK 5-8mV 600Ω.
CH2-3-4: mic XLR 5-8mV 600Ω phantom power
(selectable) / line XLR 150-470mV 10KΩ (switchable).
CH5-6: line RCA.
CH7 EMC: priority emergency input for evacuation or service messages.
CH8: paging multi-zone desk microphone input Vivaldi Ulisse BM6*.
Mute function adjustable.
Line out RCA: 0,775V (0dBV) output dependent on input channels and independent on volume.
General output 4-8 Ω ,100V.
Zone output 100V.
Antenna75Ω for reception RADIO FM.
High/Low tones control.
Dimensions 484x88x405 mm (WxHxD).
2U rack.
Weight 9,4 Kg.
Black cabinet, orange screen painting.
Metal cabinet.
Standard rack.
* each amplifier supports up to a maximum of 6 bases.
Other versions available:
- 120W (Vivaldi Ulisse MZ6120BTK)
- 350W (Vivaldi Ulisse MZ6350BTK)
- 500W (Vivaldi Ulisse MZ6500BTK)
- 120W (Vivaldi Ulisse MZ6120BTK)
- 350W (Vivaldi Ulisse MZ6350BTK)
- 500W (Vivaldi Ulisse MZ6500BTK)
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
