Vivaldi Ulisse AMBRA9TB
Selectable impedance 8 Ohm - 100V
Wall speaker, 2-way, Hi-Fi.
Woofer 11 cm.
Tweeter 2,5 cm.
Silk and aluminium diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 5/10/20W. 40W peak.
Power 8 Ω: 40W RMS, 80W musical.
Suggested amplification from 10 to 50W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 60-20000 Hz.
Sensitivity 89 dB.
Max output level / full power 103 dB.
Dimensions (WxHxD) without bracket 130x195x115 mm.
Dimensions (WxHxD) with bracket 130x215x130 mm.
Weight 1,5 Kg.
ABS cabinet, bracket and metal grille.
Black colour RAL9005.
Working temperature from –20° to +80°.
Request a commercial offer

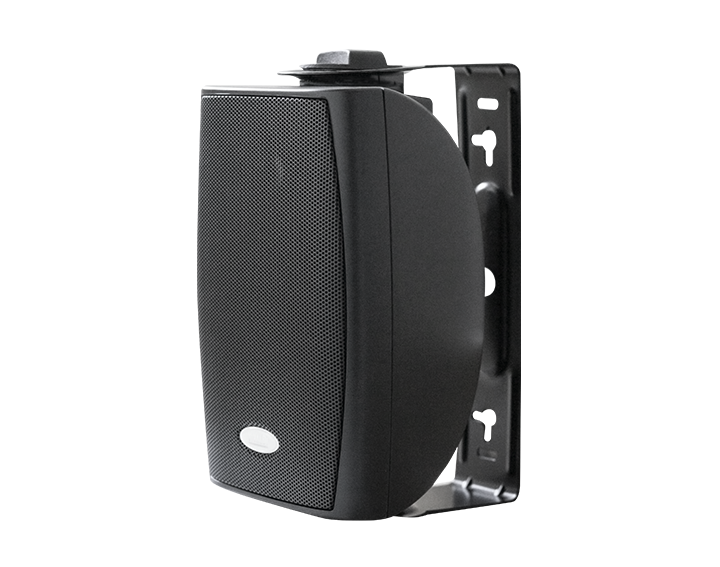

Supplied with bracket for wall mounting.
Woofer 11 cm.
Tweeter 2,5 cm.
Silk and aluminium diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 5/10/20W. 40W peak.
Power 8 Ω: 40W RMS, 80W musical.
Suggested amplification from 10 to 50W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 60-20000 Hz.
Sensitivity 89 dB.
Max output level / full power 103 dB.
Dimensions (WxHxD) without bracket 130x195x115 mm.
Dimensions (WxHxD) with bracket 130x215x130 mm.
Weight 1,5 Kg.
ABS cabinet, bracket and metal grille.
Black colour RAL9005.
Working temperature from –20° to +80°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
