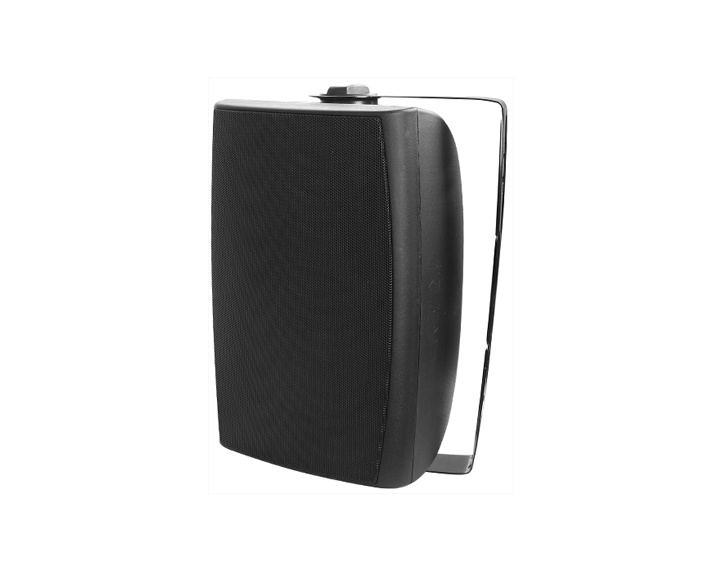

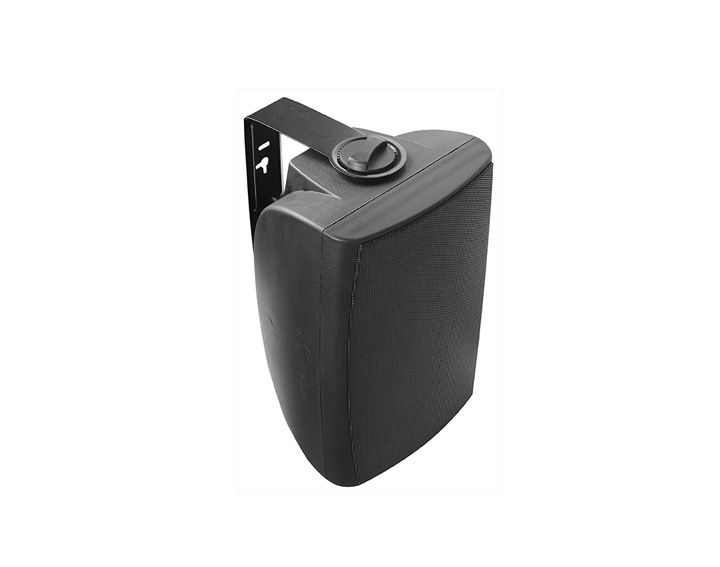

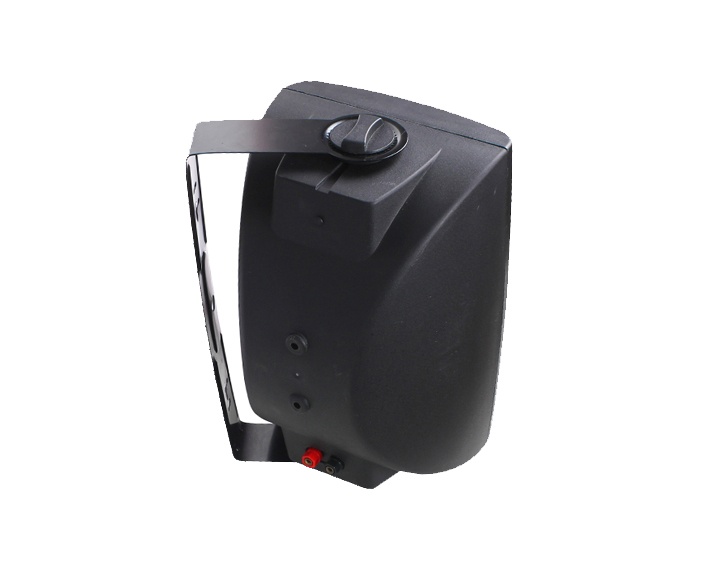

Vivaldi Ulisse AMBRA16TB
Selectable impedance 8 Ohm - 100V
Wall speaker, 2-way, Hi-Fi.
Woofer 16,5 cm.
Tweeter 2,5 cm.
Silk and aluminium diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 10/20/40W. 80W peak.
Power 8 Ω: 60W RMS, 120W musical.
Suggested amplification from 10 to 80W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 50-20000 Hz.
Sensitivity 92 dB.
Max output level / full power 108 dB.
Dimensions (WxHxD) without bracket 208x320x185 mm.
Dimensions (WxHxD) with bracket 208x334x200 mm.
Weight 4,3 Kg.
ABS cabinet, bracket and metal grille.
Black colour RAL 9005
Working temperature from –20° to +80°.
Request a commercial offer
Supplied with bracket for wall mounting.
Woofer 16,5 cm.
Tweeter 2,5 cm.
Silk and aluminium diaphragm.
Dispersion angle 90°Vx90°O (120° up to 3 Khz).
Nominal power 100V: 10/20/40W. 80W peak.
Power 8 Ω: 60W RMS, 120W musical.
Suggested amplification from 10 to 80W RMS.
Impedance 8 Ω - 100V selectable.
Frequency response 50-20000 Hz.
Sensitivity 92 dB.
Max output level / full power 108 dB.
Dimensions (WxHxD) without bracket 208x320x185 mm.
Dimensions (WxHxD) with bracket 208x334x200 mm.
Weight 4,3 Kg.
ABS cabinet, bracket and metal grille.
Black colour RAL 9005
Working temperature from –20° to +80°.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
