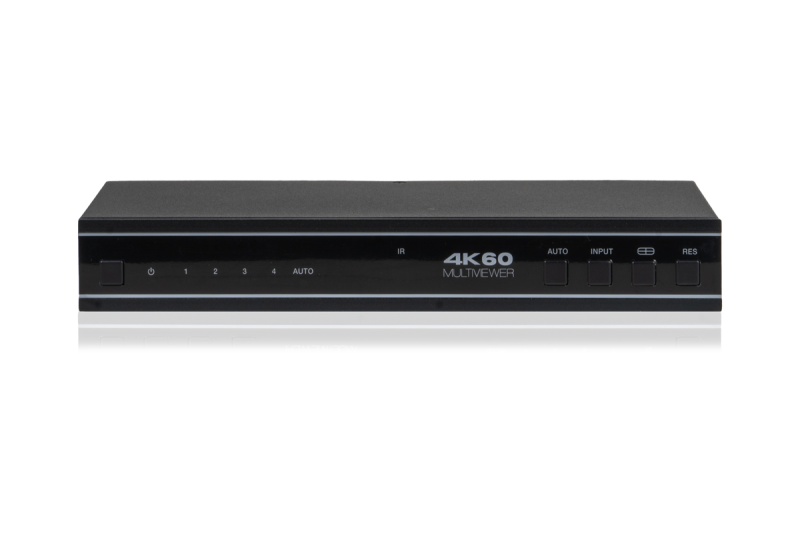

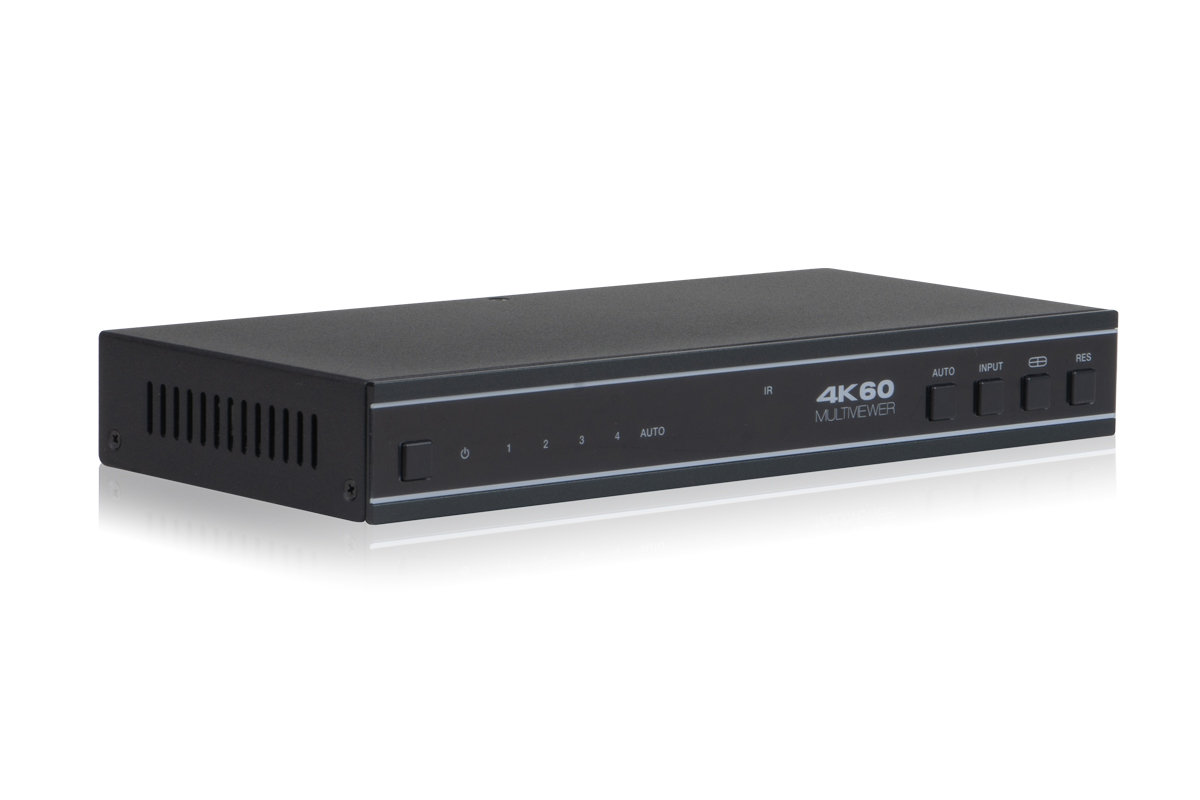

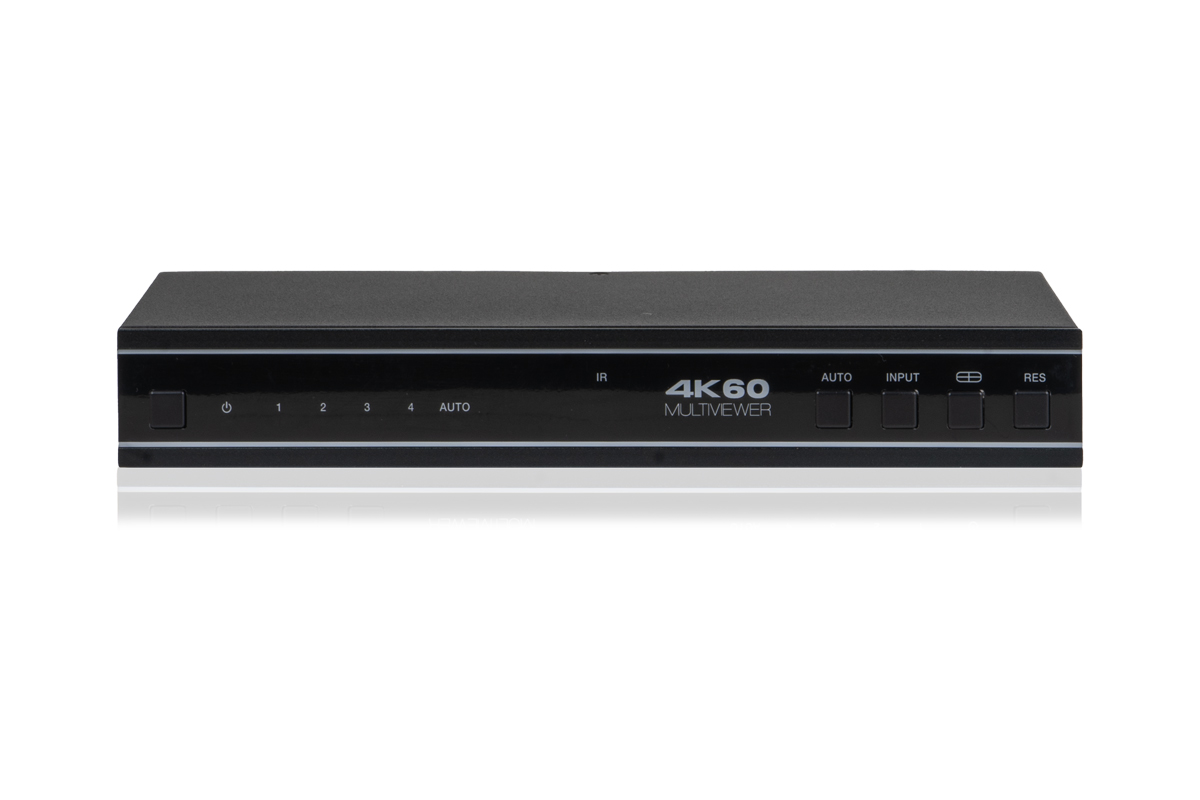

Vivaldi HDMI VSW41HSMK2
1x4 HDMI Seamless Video Switch
4K60 4x1 UHD multiviewer seamless video switch.
Supports higher output resolution (4K@60) for multiple sources on a single display. It can combine up to four video signals on a single UHD or HD display. The user can manage each input and create combinations of the four inputs on a single display, as well as adjust the position of any input. This product supports 8 display modes, within the mode range, users can freely change the HD input to 4-channel signals. It can realise single-screen and multi-screen display on a single screen.
Supports a full range of input video resolutions up to 4K@60 (RB)B and RCA/optical audio de-embedding supported for external audio distribution systems.

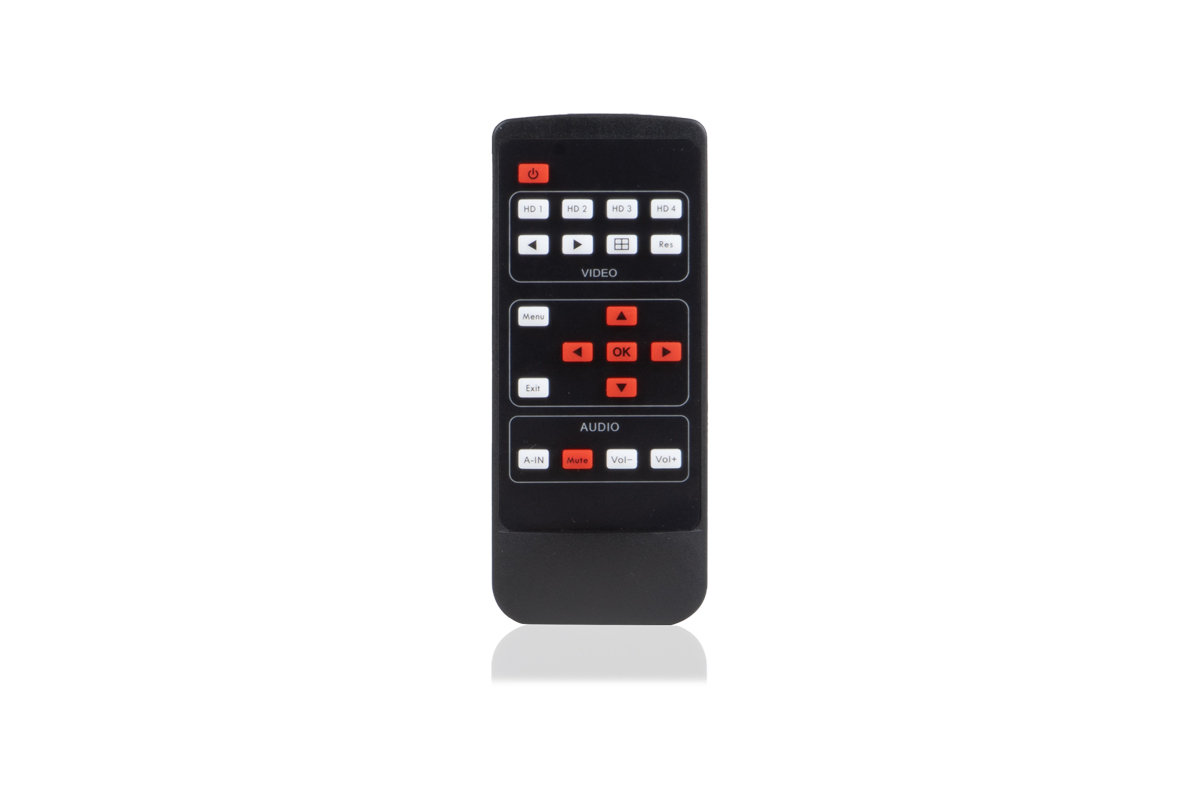

Controllable via front panel buttons, IR remote control, OSD menu navigation, controller software, RS-232 commands.
Compatible with HDMI 2.0b, HDCP 2.2 and HDCP 1.x.
Supports 18 Gbps video bandwidth.
Input and output resolutions support up to 4K at 60 Hz.
Supports LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channels.
Seamless switching between input channels and combination of multiple images on a single UHD monitor.
Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2).
Seamless switching to single screen display mode.
Quick switch to multi-viewing mode.
Audio de-embedding via analogue and fibre-optic audio ports.
Supports volume control and independent audio selection.
Supports OSD navigation for advanced settings.
EDID management.
Black painted metal cabinet.
Dimensions 118x32x250 mm (WxHxD).
Weight 0.75Kg.
