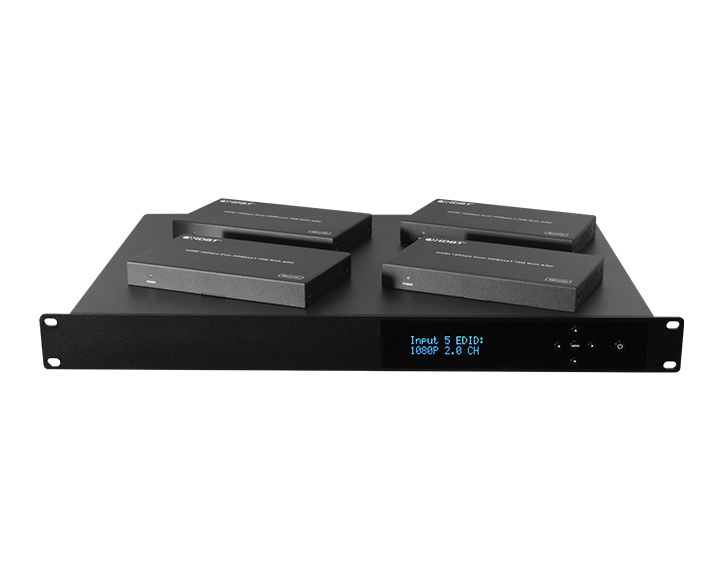

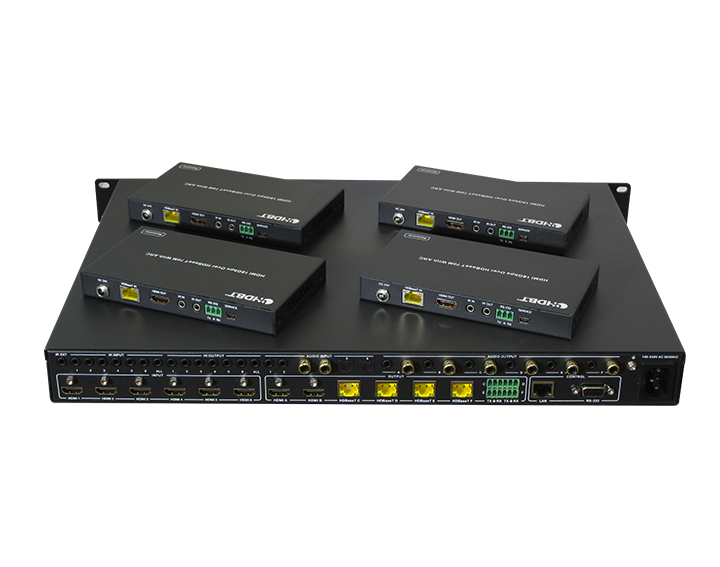

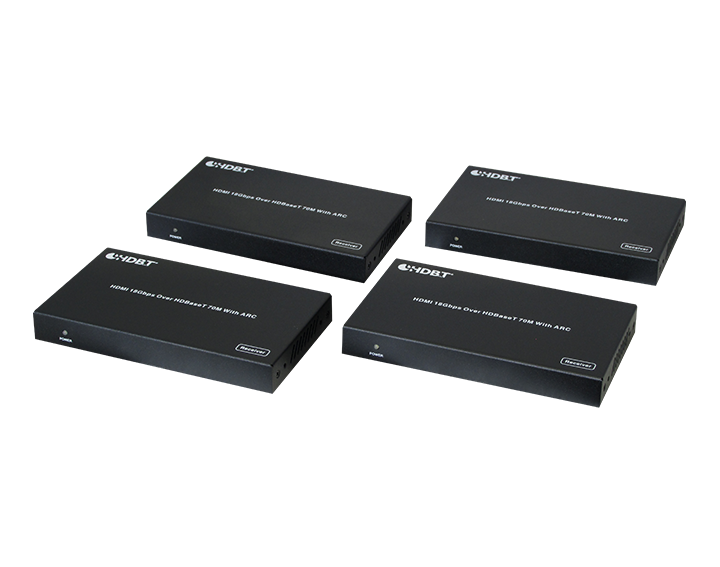

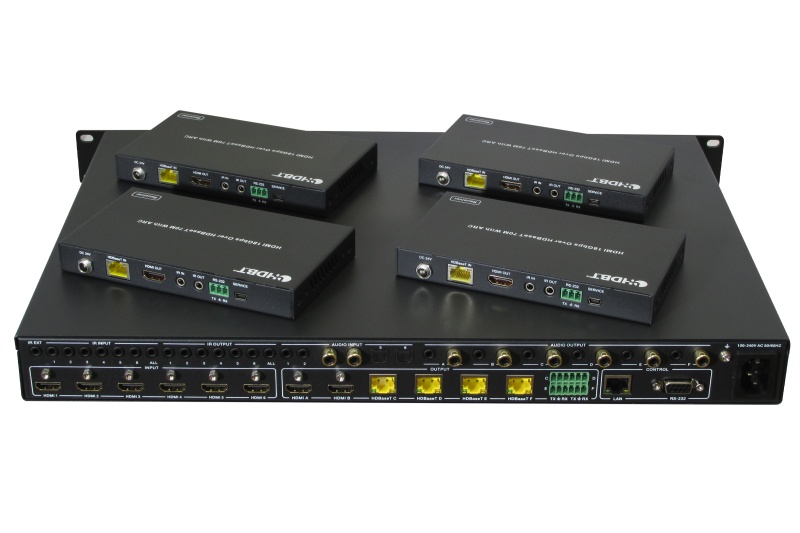

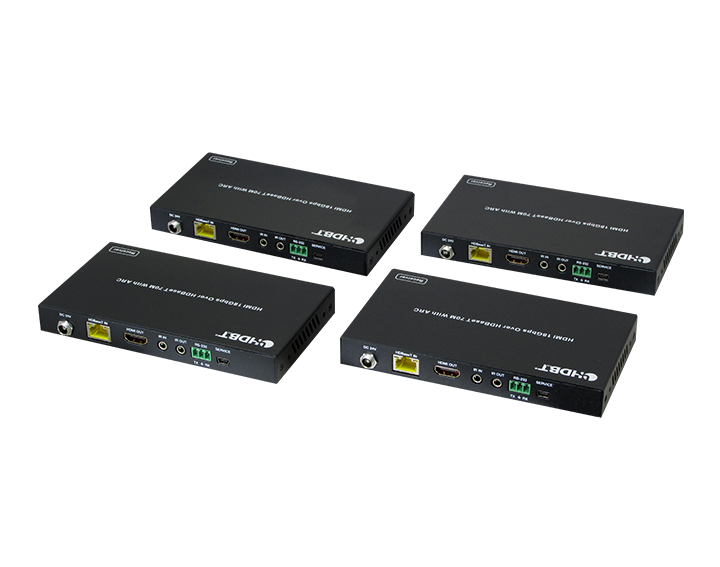

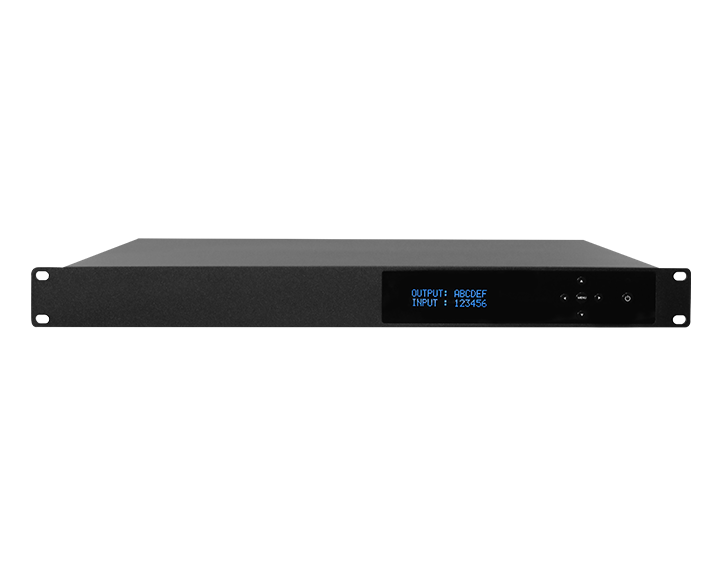

Vivaldi HDMI VM66H70+
6x4+2 HDMI/HDBaseT Video Matrix (kit)
6x4+2 HDMI/HDBaseT Video matrix;
Routes 6 HDMI audio/video inputs to 4 HDBaseT and 2 HDMI outputs.
6 line audio outputs L+R with mini Jack 3,5mm and 6 coax mirrored outputs.
HDBaseT outputs up to 70mt with 1080p60 resolution POC (remote power supply via cat 5e/6/7 cable).
Supports HDMI 2.0 18G format with HDCP 2.2 and resolution up to 4K 2K@60Hz(4:4:4), 4K 2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz.
Supports up to 7.1 High Definition audio channels (LPCM, Dolby TrueHD, e DTS-HD Master Audio).
The matrix has total 18 audio inputs (6 HDMI + 2 analog audio L+R + 2 coax audio + 2 toslink audio + 6 ARC audio) and 12 audio outputs (6 HDMI + 6 Analog and coax).
DSP for muting, management, volume and delay for audio/video sync.
Configurable EDID. Control from front panel and display, RS-232, IR and ethernet protocols (LAN).
Black colour metal chassis.
Dimensions 483x45x303 mm (WxHxD). Weight 2,4 Kg.
Request a commercial offer
Routes 6 HDMI audio/video inputs to 4 HDBaseT and 2 HDMI outputs.
6 line audio outputs L+R with mini Jack 3,5mm and 6 coax mirrored outputs.
HDBaseT outputs up to 70mt with 1080p60 resolution POC (remote power supply via cat 5e/6/7 cable).
Supports HDMI 2.0 18G format with HDCP 2.2 and resolution up to 4K 2K@60Hz(4:4:4), 4K 2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz.
Supports up to 7.1 High Definition audio channels (LPCM, Dolby TrueHD, e DTS-HD Master Audio).
The matrix has total 18 audio inputs (6 HDMI + 2 analog audio L+R + 2 coax audio + 2 toslink audio + 6 ARC audio) and 12 audio outputs (6 HDMI + 6 Analog and coax).
DSP for muting, management, volume and delay for audio/video sync.
Configurable EDID. Control from front panel and display, RS-232, IR and ethernet protocols (LAN).
Black colour metal chassis.
Dimensions 483x45x303 mm (WxHxD). Weight 2,4 Kg.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
