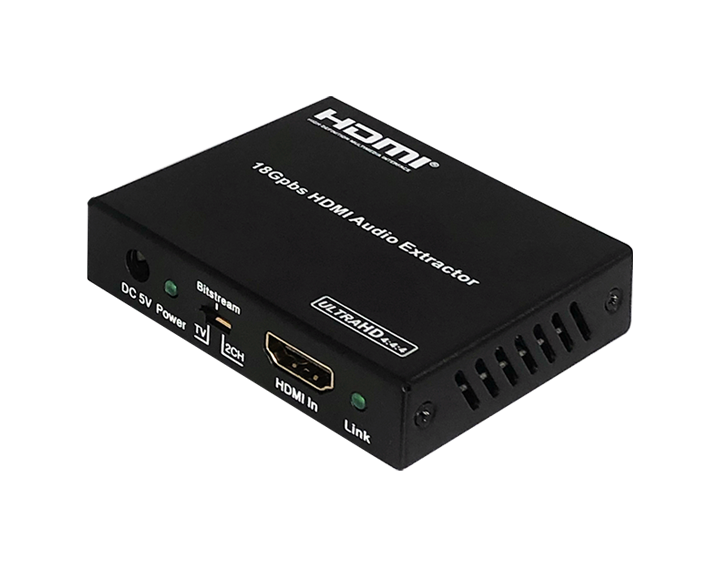

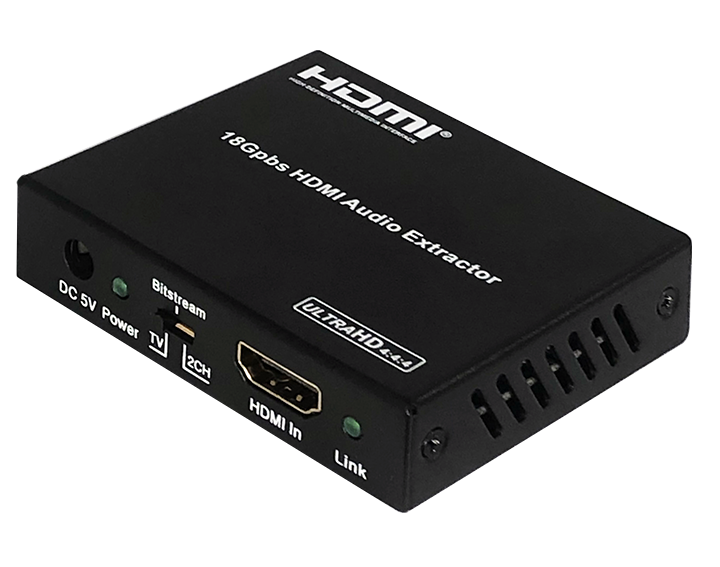

Vivaldi HDMI VAEXT2
| Vivaldi HDMI_audio extractor |
HDMI audio extractor.
Extracts the audio signal from an HDMI source to an analog L / R and a multichannel digital SPDIF audio output (LPCM 2CH, Dobly Digital 2 / 5.1CH, DTS 2 / 5.1CH). Supports HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant, video resolutions up to 4K2K @ 50 / 60Hz (YUV444).
Smart EDID management (2CH / 5.1CH / 7.1CH / OUT1 / OUT2)
Supports ARC and CEC functions.

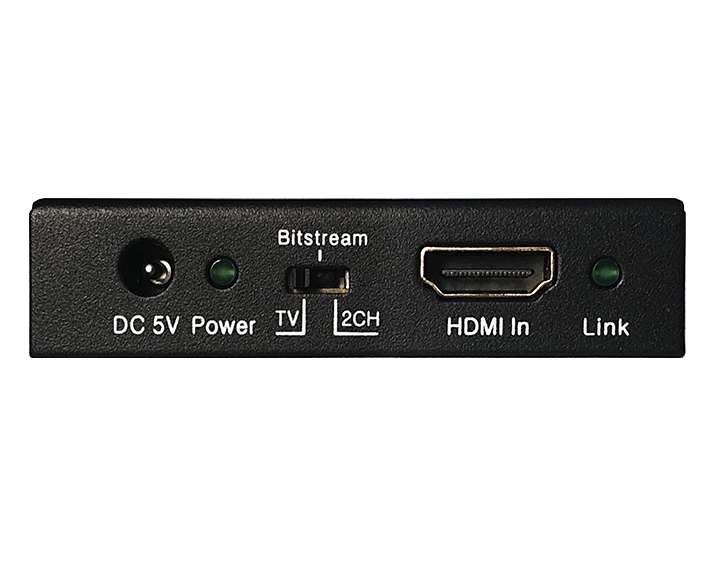

Input: 1x HDMI

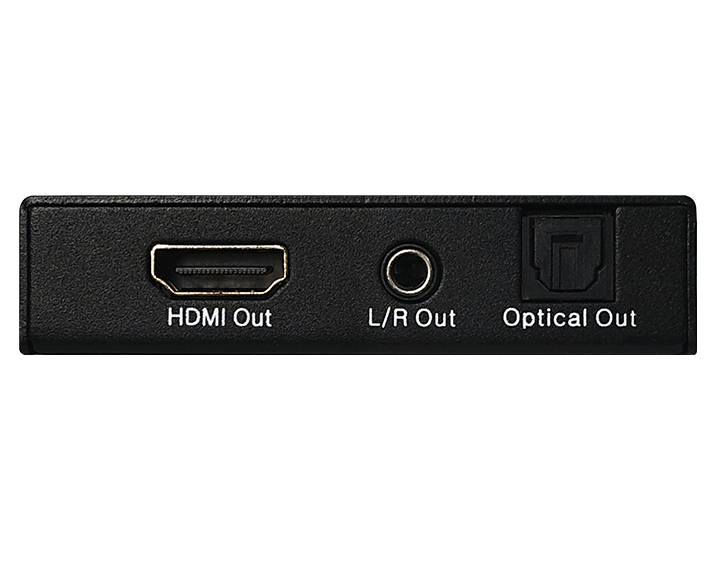

Outputs: 2x HDMI
1x L / R Audio Out
1x Optical Out [S / PDIF]
Dimensions 130x19x75 mm (WxHxD).
Weight 0.2 Kg.
Request a commercial offer
Extracts the audio signal from an HDMI source to an analog L / R and a multichannel digital SPDIF audio output (LPCM 2CH, Dobly Digital 2 / 5.1CH, DTS 2 / 5.1CH). Supports HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant, video resolutions up to 4K2K @ 50 / 60Hz (YUV444).
Smart EDID management (2CH / 5.1CH / 7.1CH / OUT1 / OUT2)
Supports ARC and CEC functions.
Input: 1x HDMI
Outputs: 2x HDMI
1x L / R Audio Out
1x Optical Out [S / PDIF]
Dimensions 130x19x75 mm (WxHxD).
Weight 0.2 Kg.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
