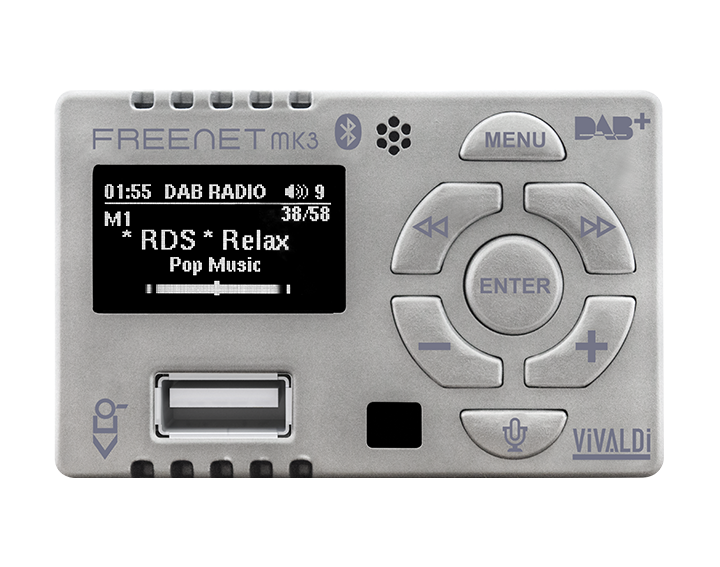

Vivaldi Giove FREENETMK3.S
In-wall stand alone amplifier for multiroom audio applications, with Bluetooth, 503-3 modules standard and RS485 control port
code variation:
Vivaldi Giove FREENETMK3.BVivaldi Giove FREENETMK3.W
Vivaldi Giove FREENETMK3.SABBIA
All-in-one smart audio system. MK3 generation, with supervision and control APP via Vivaldi Domotica iCONTROL4.0+, Vivaldi Domotica iCONTROL4.1L.
Made in Italy, Hi-Fi Stereo 25W + 25W RMS.

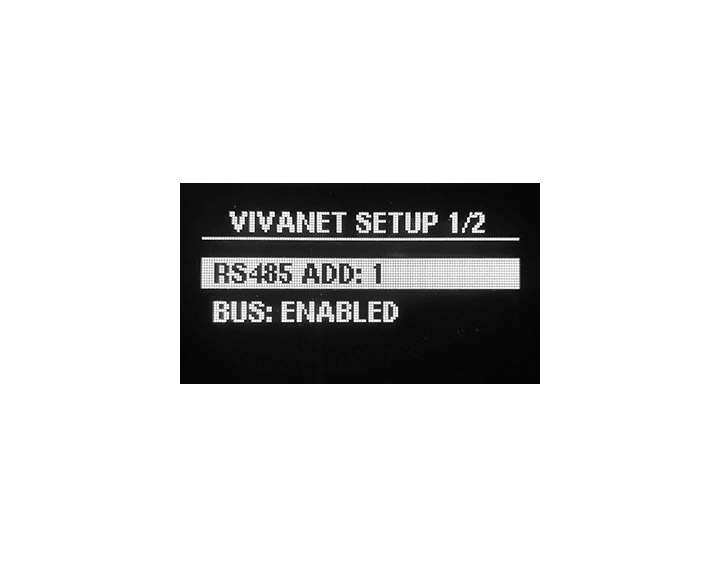

RS485 CONTROL PORT for home automation management.
All the new features include:

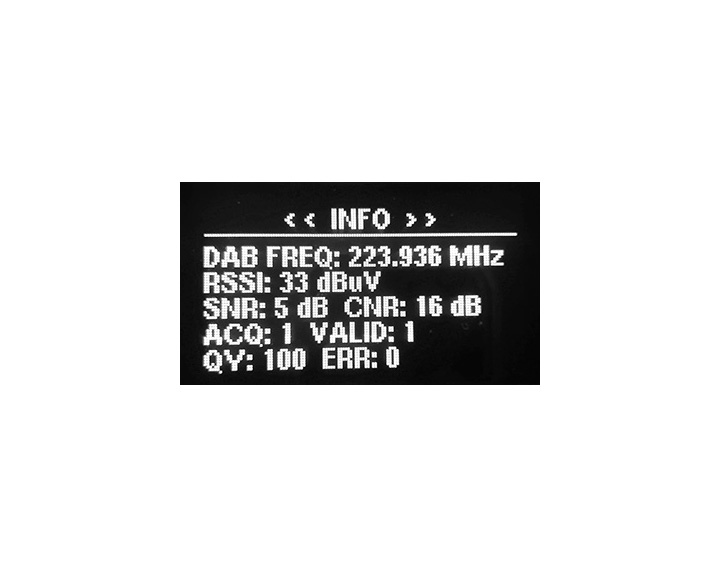

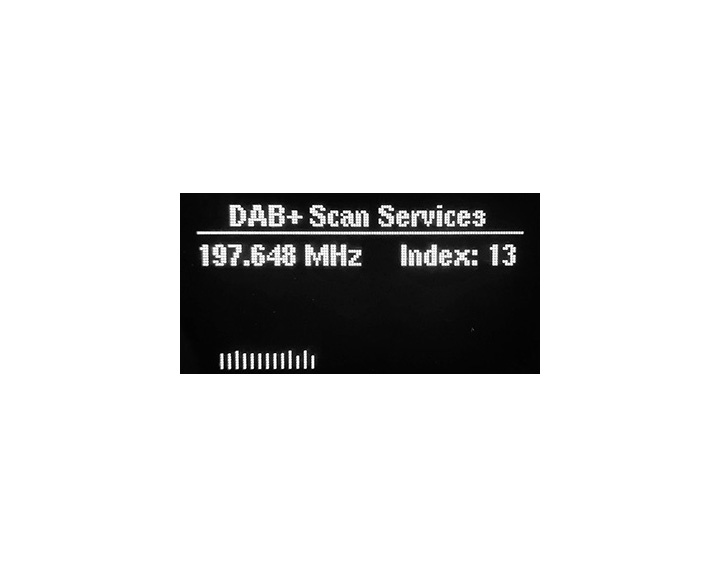

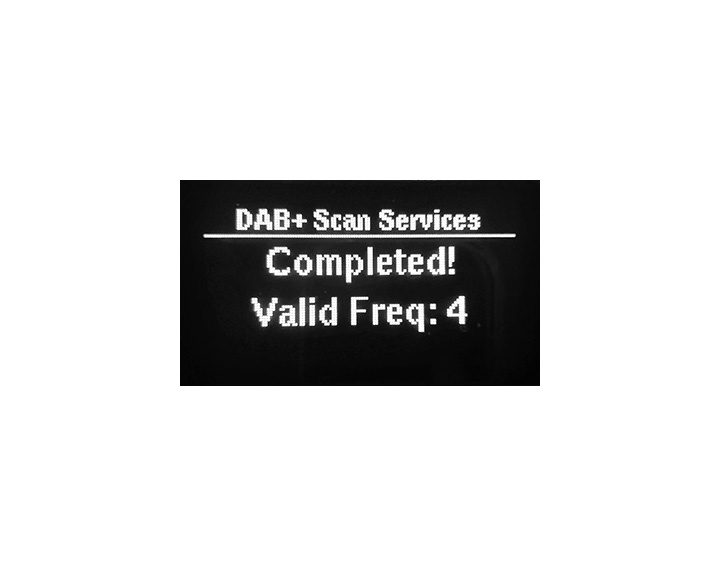

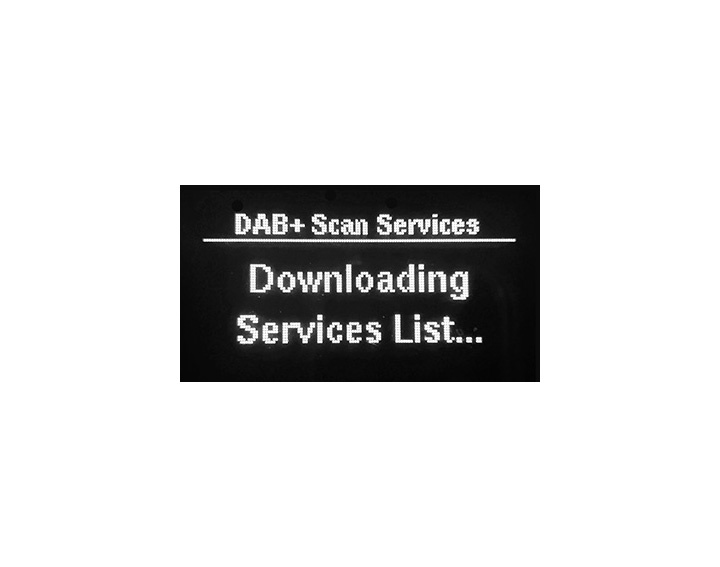

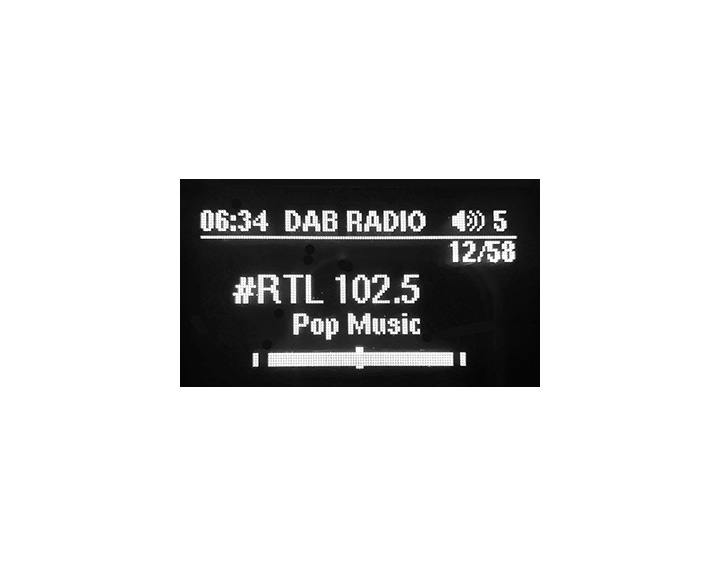

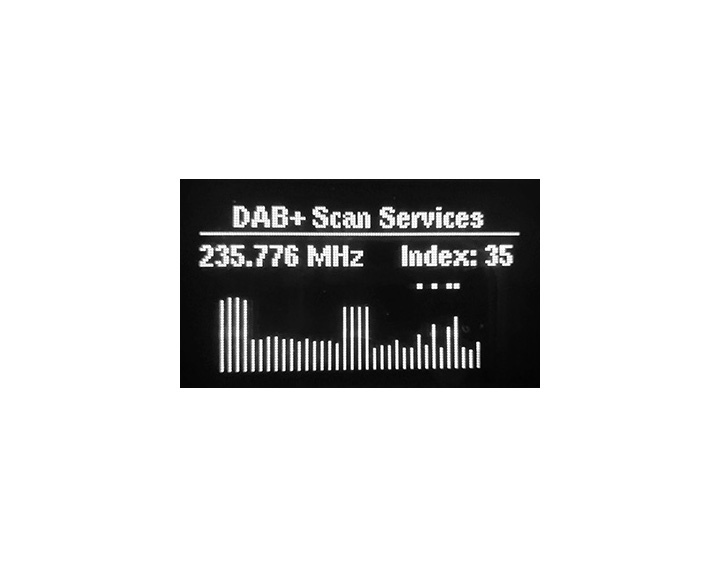

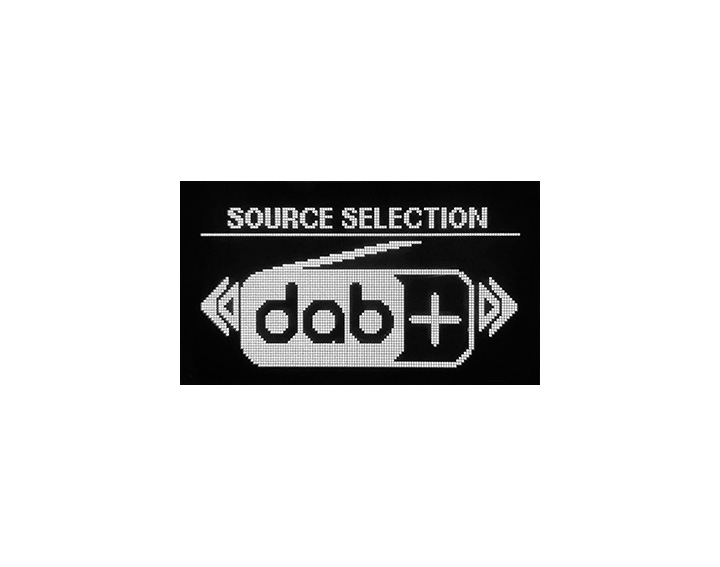

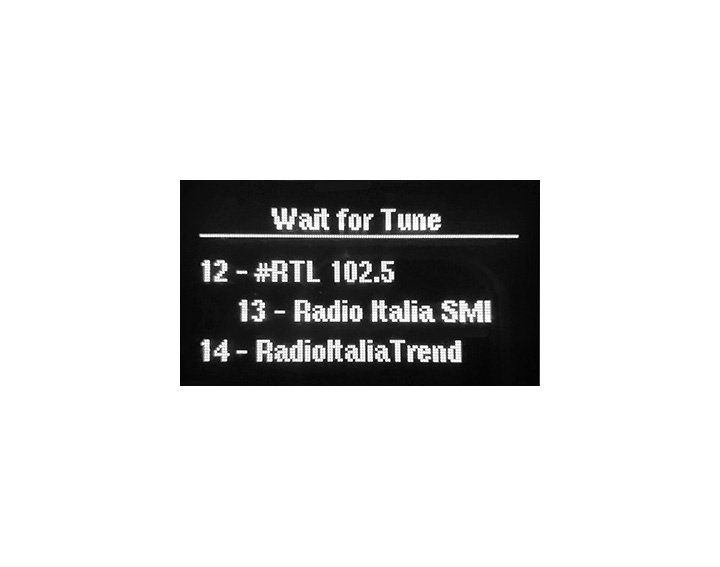

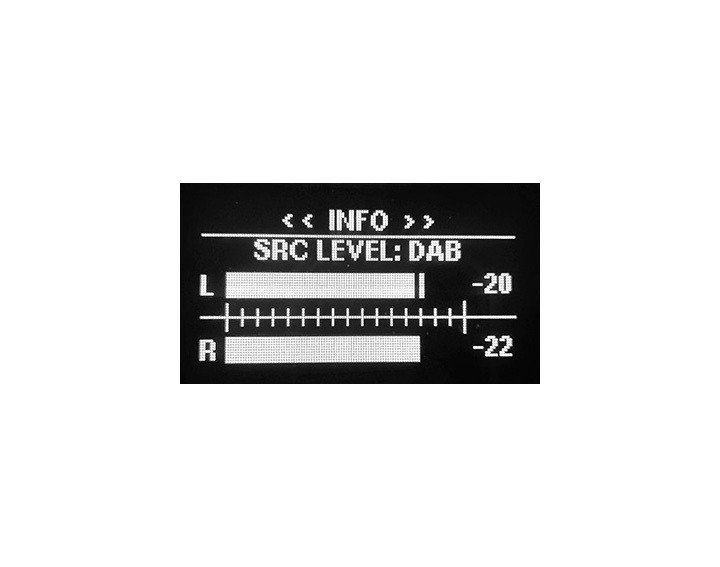

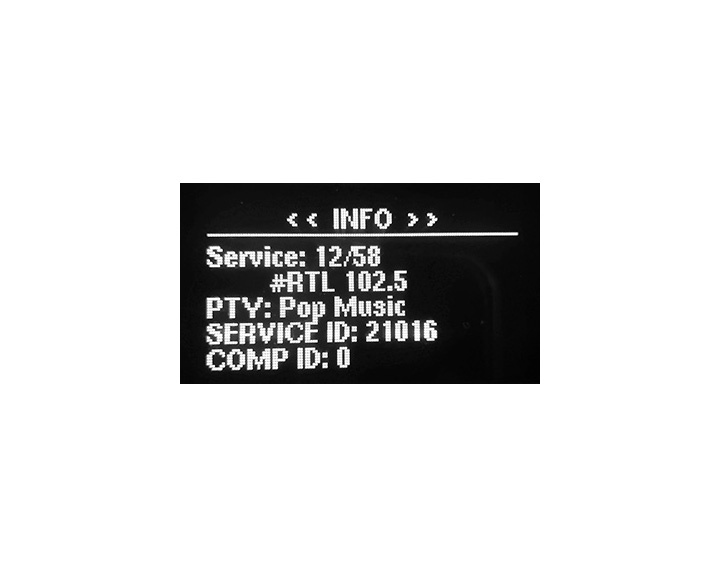

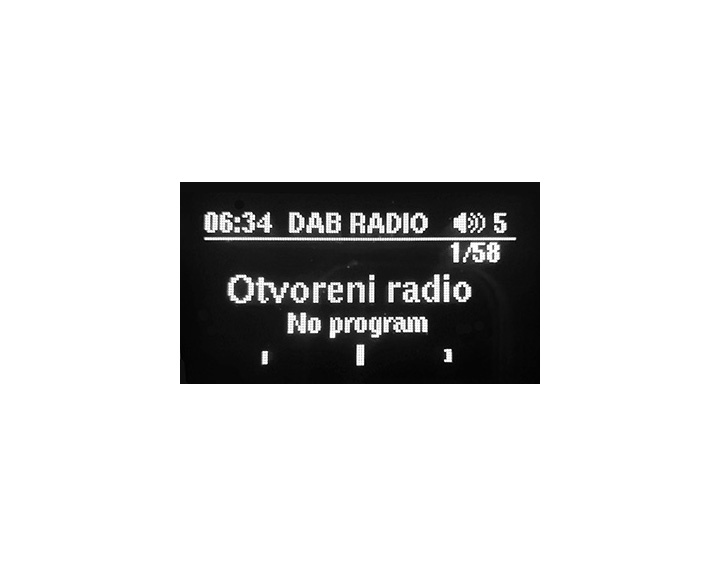

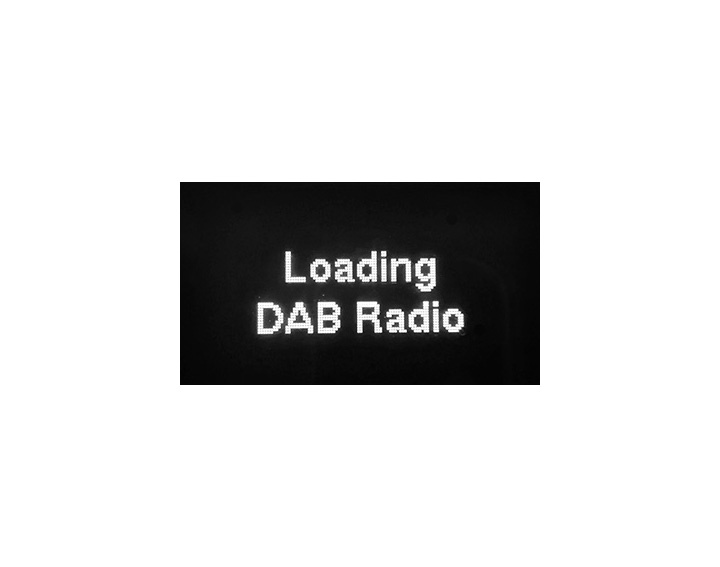

- New DAB / DAB + Digital Radio source (DAB radio requires a connection to an existing antenna system using a 75ohm coaxial cable)

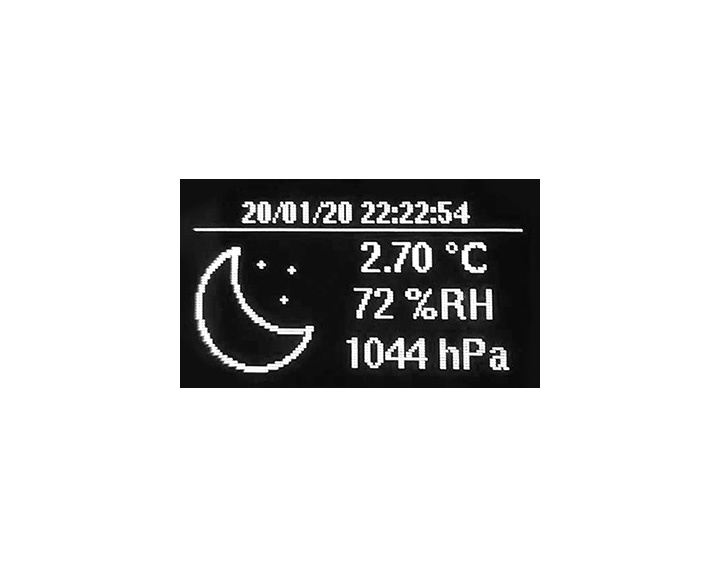

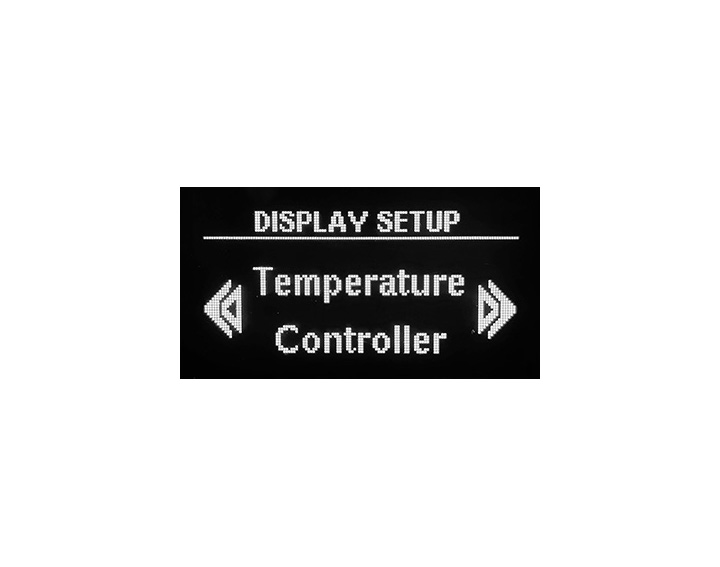

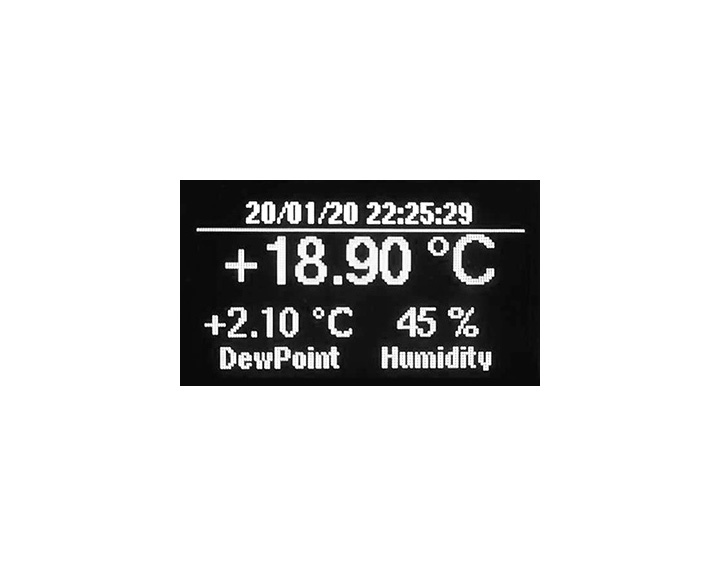

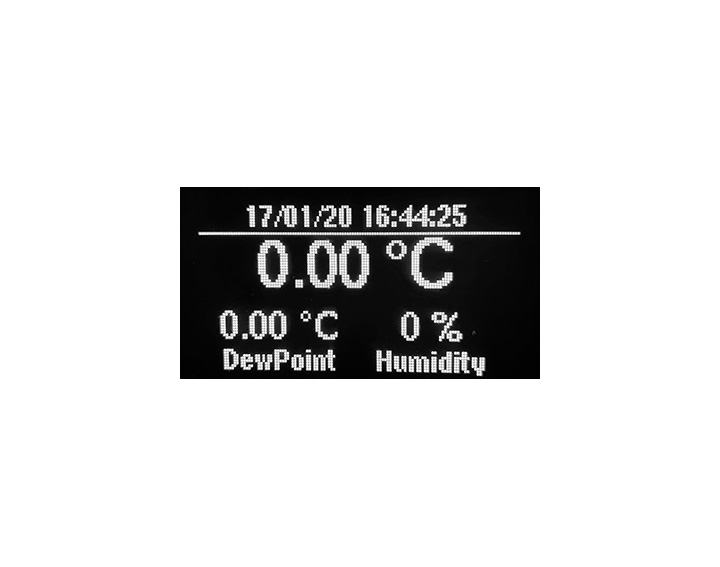

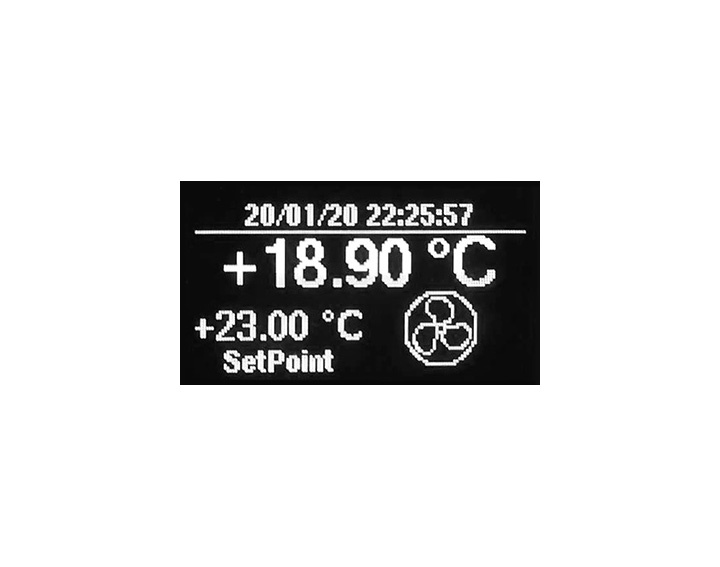

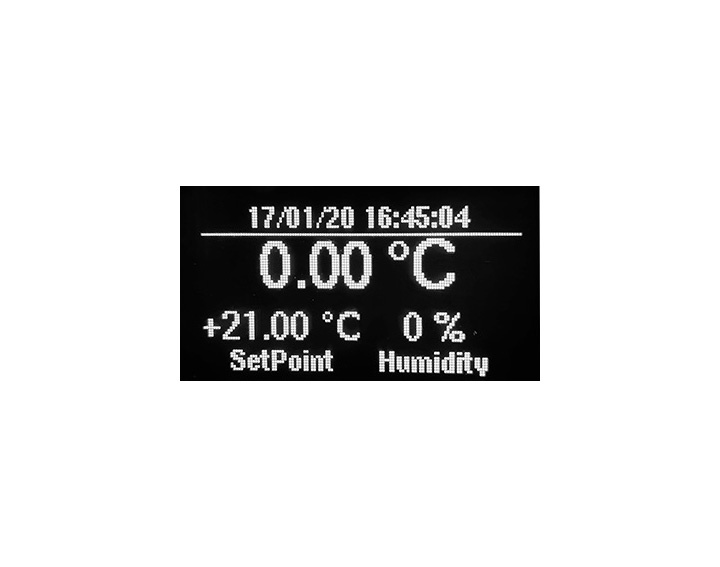

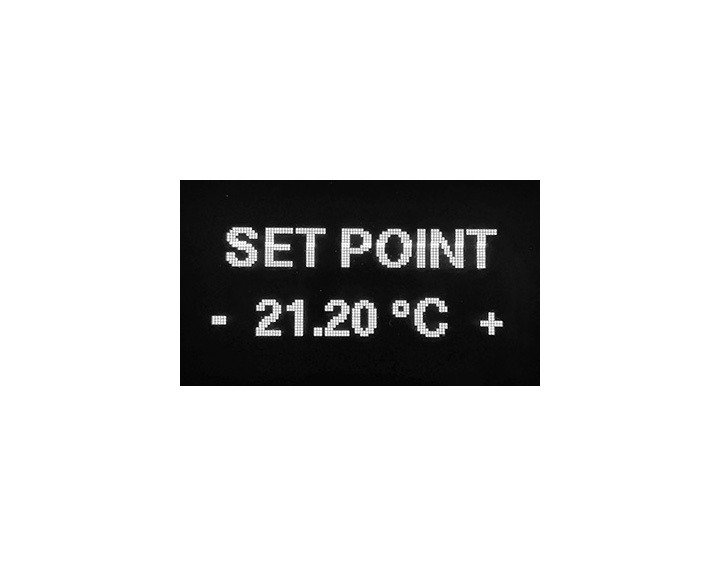

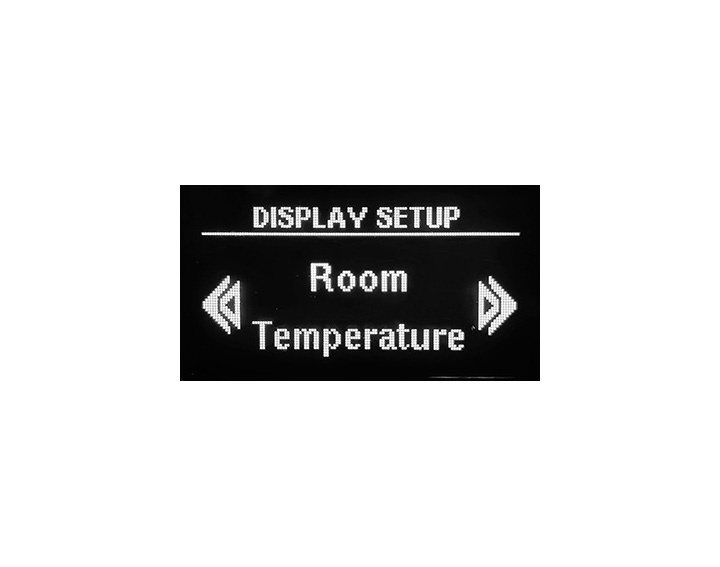

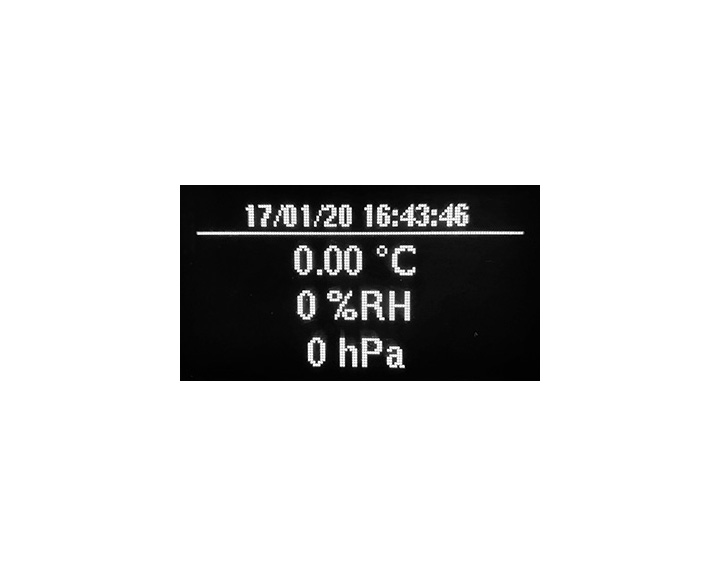

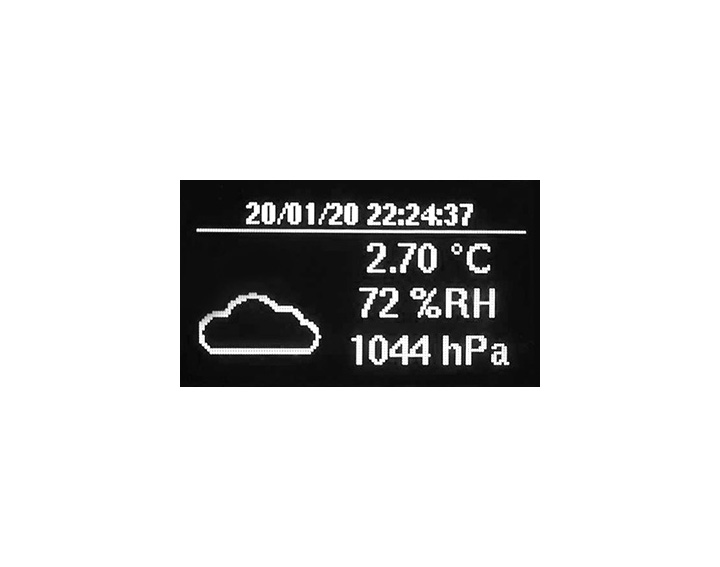

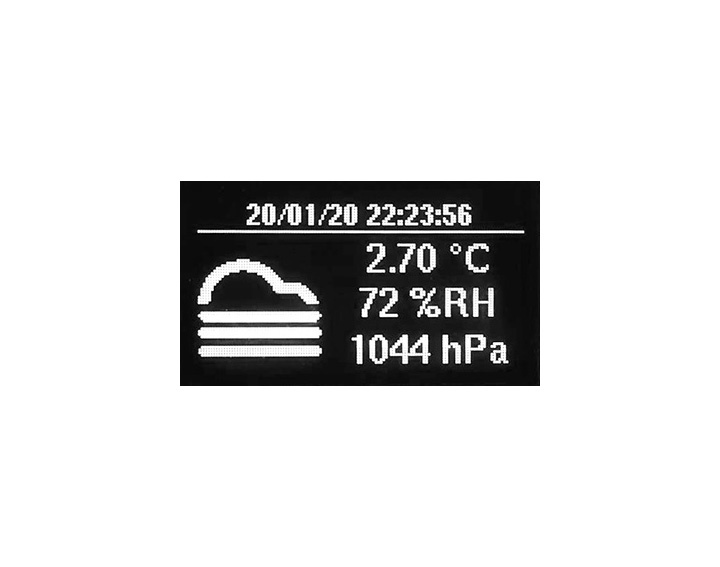

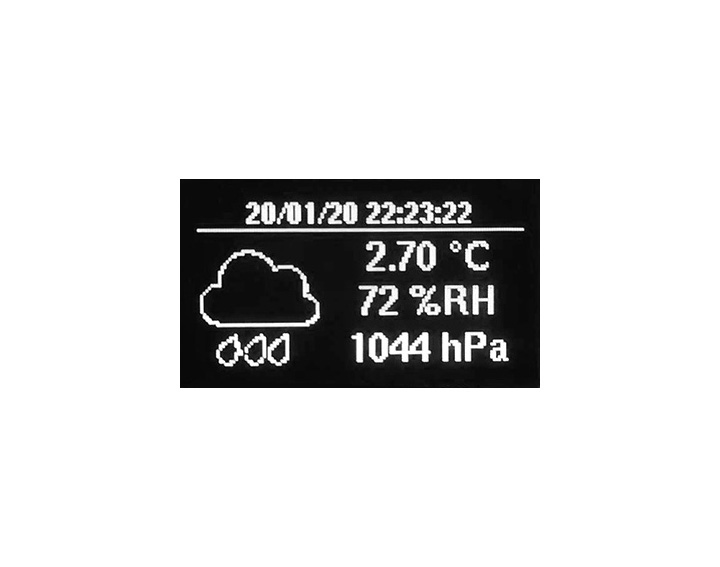

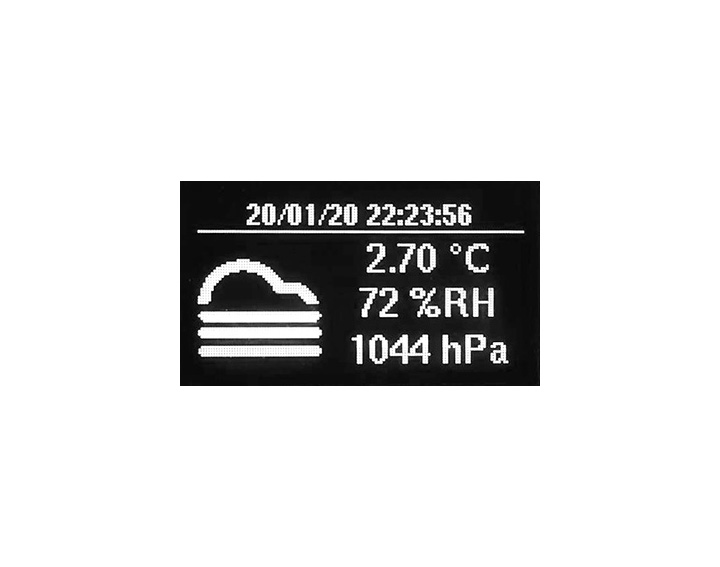

• Thermostat function on thermoregulation enviroment made on your needs. Regolation and temperature control in every single area with Vivaldi Domotica iCONTROL4.0+ and with an thermostat.

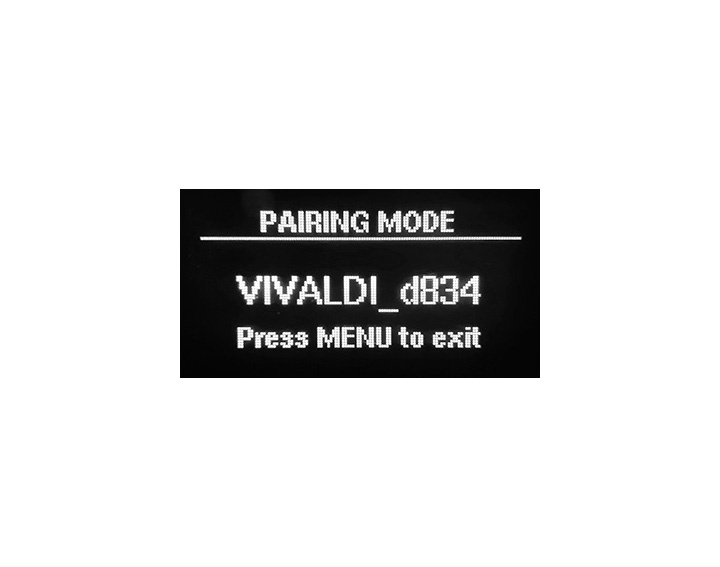

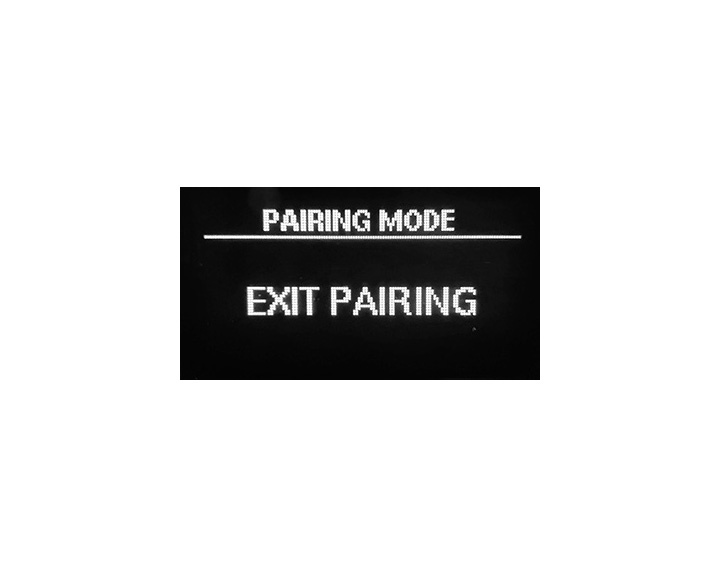

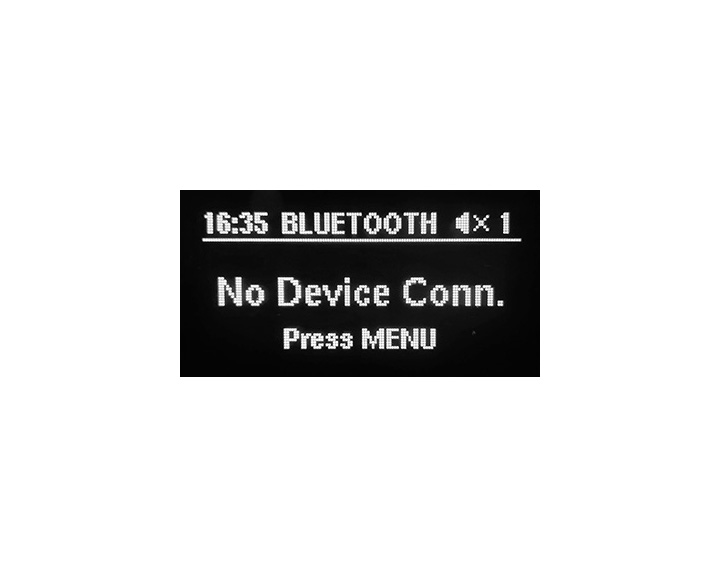

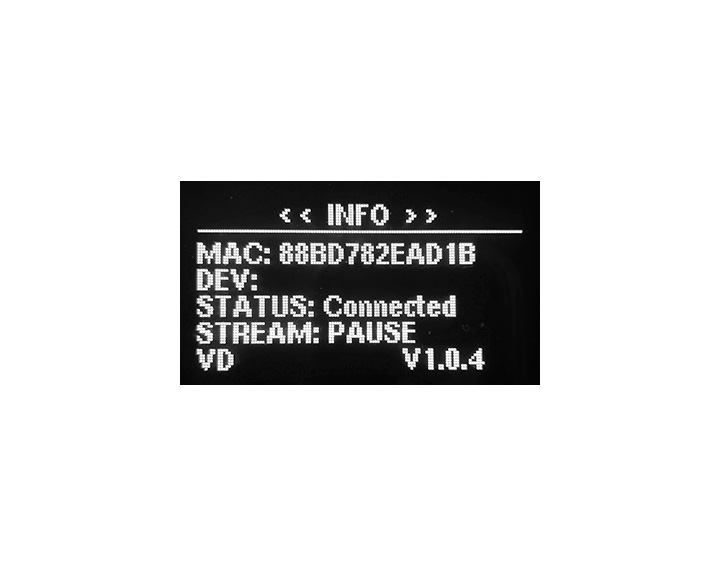

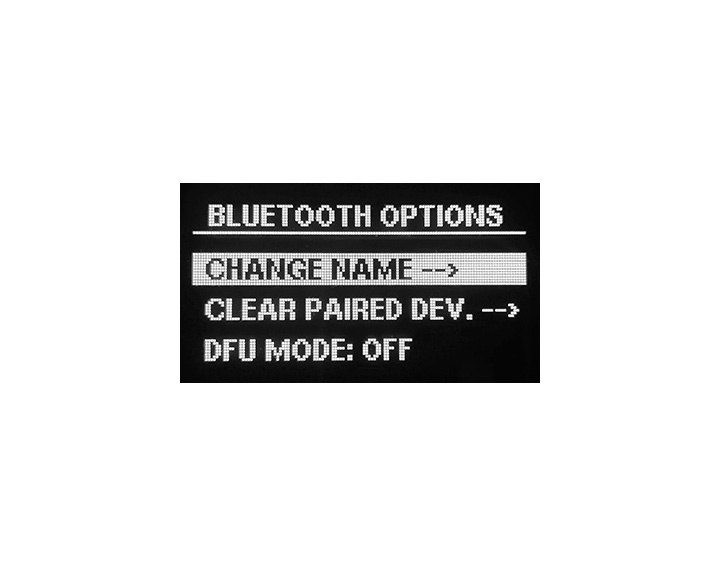

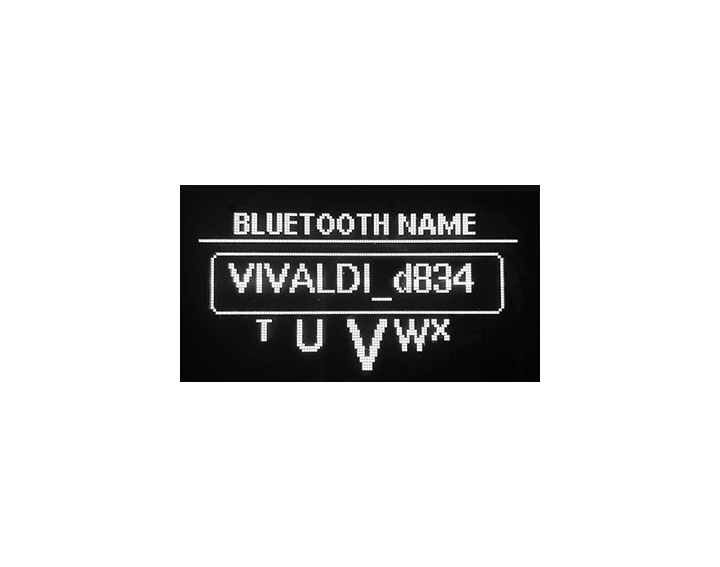

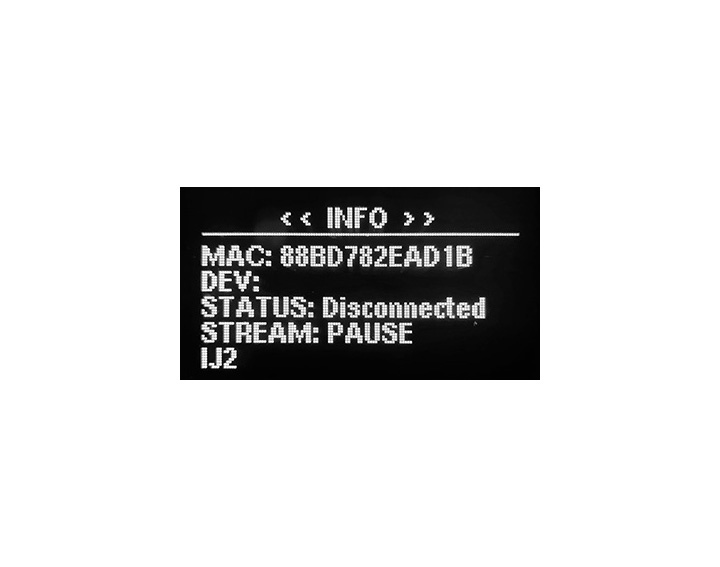

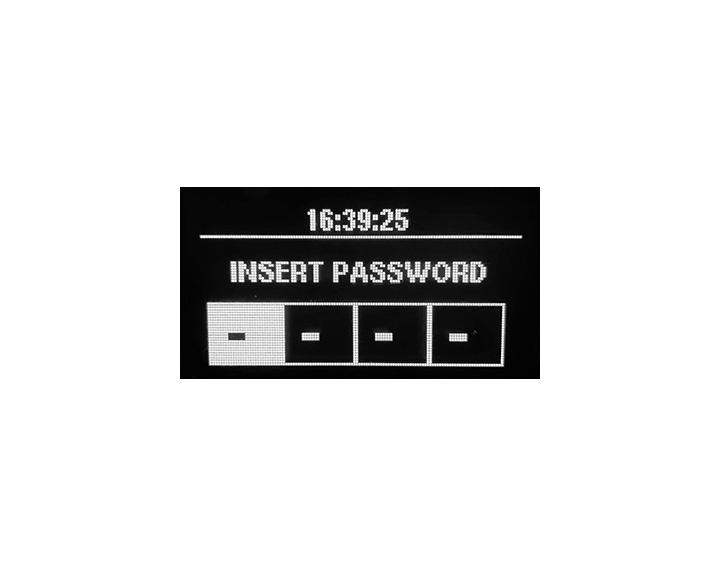

• BLUETOOTH 5.0 with automatic PIN assignment, possibility to rename the device and change the password
• HFP profile (Hands Free): in Bluetooth source, automatic Hands Free function for smartphone turns on

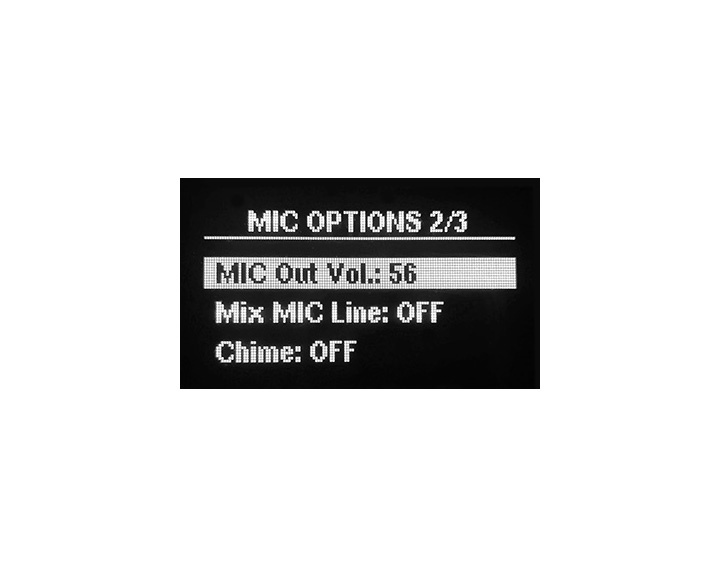

• Integrated chime function can be activated in 3 modes: on call reception, on call sending or both

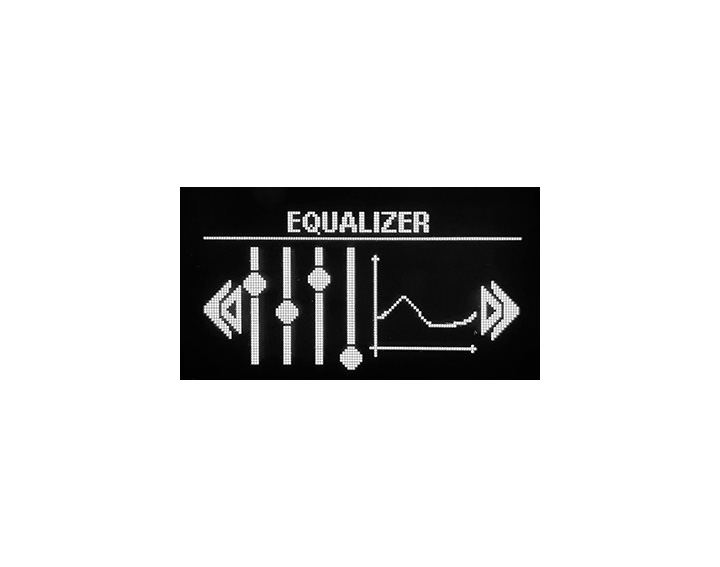

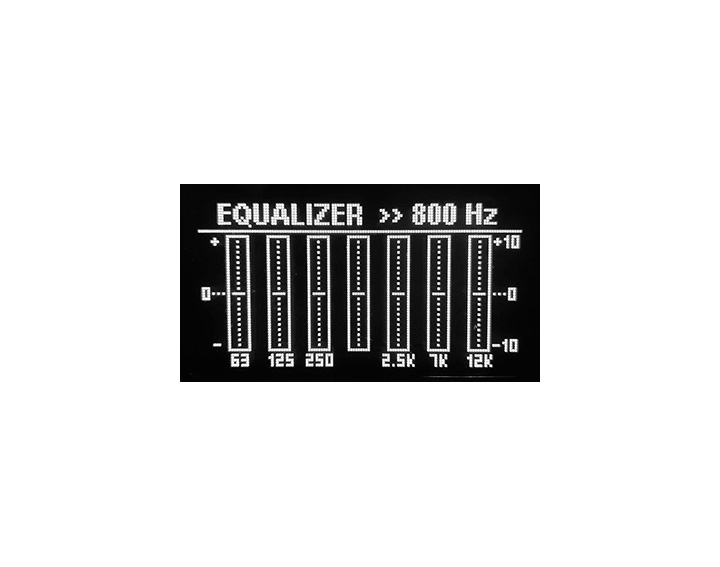

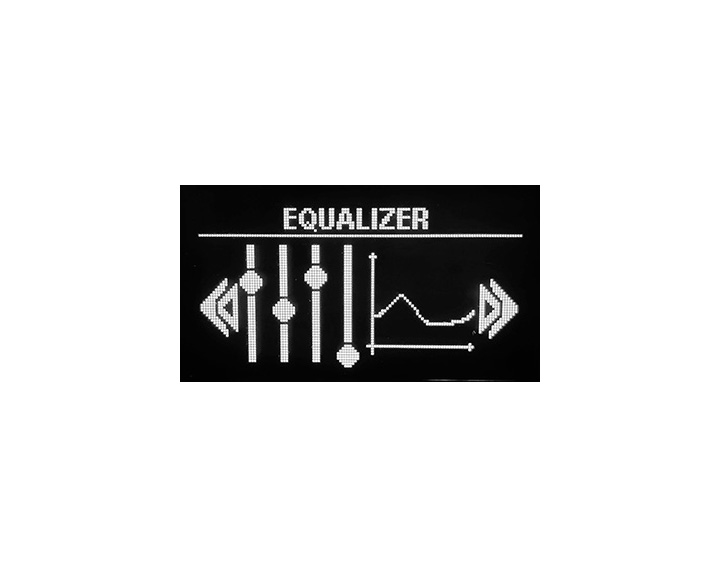

• 7 Band graphic EQ

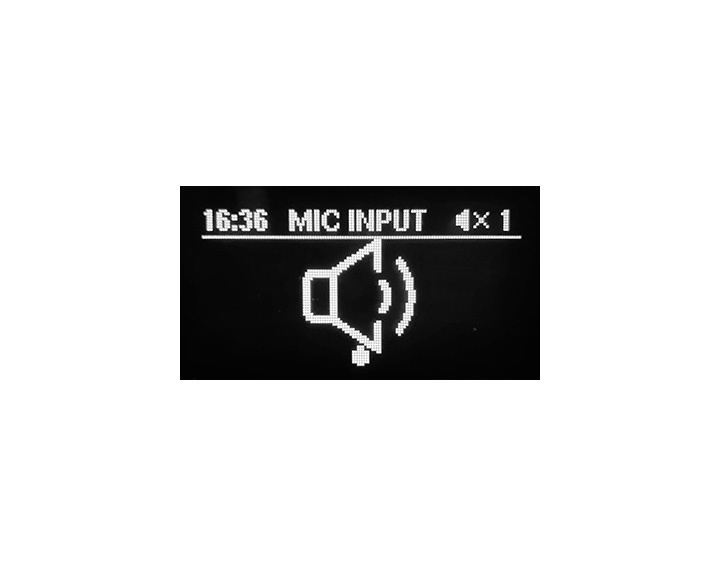

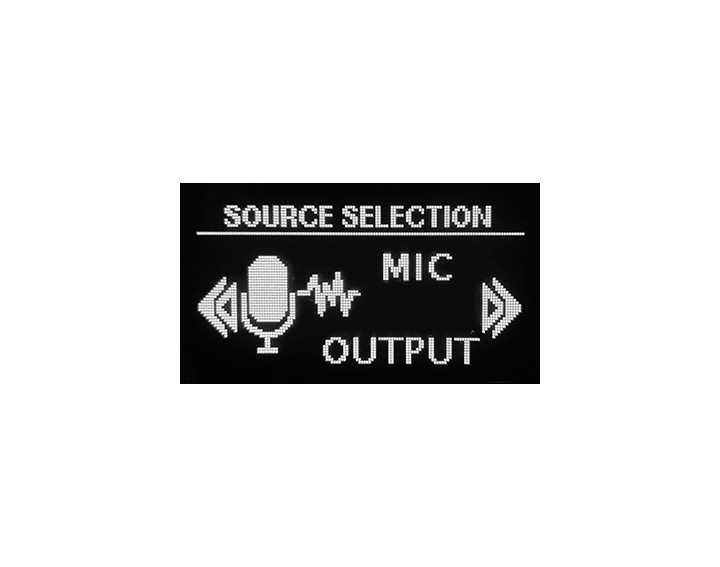

• Possibility to mix an external source through MIC input to all sources

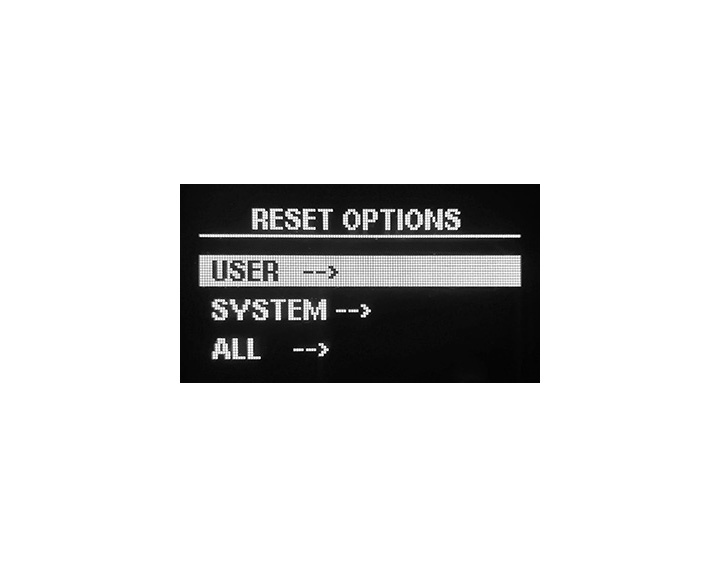

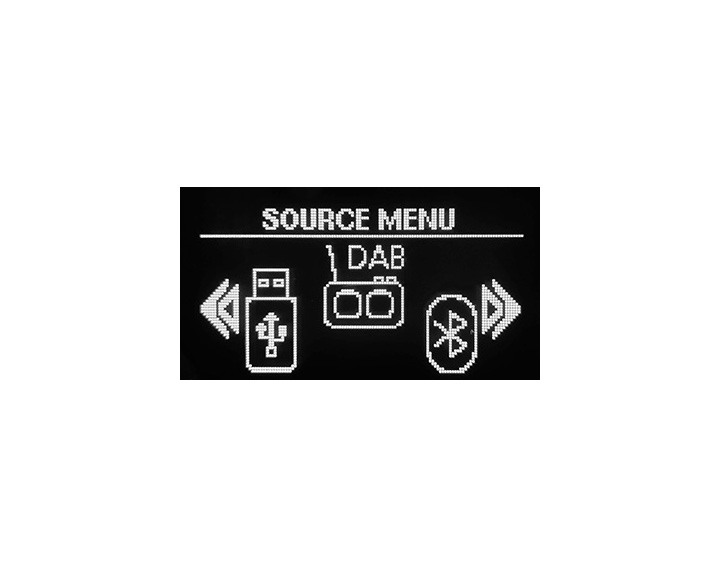

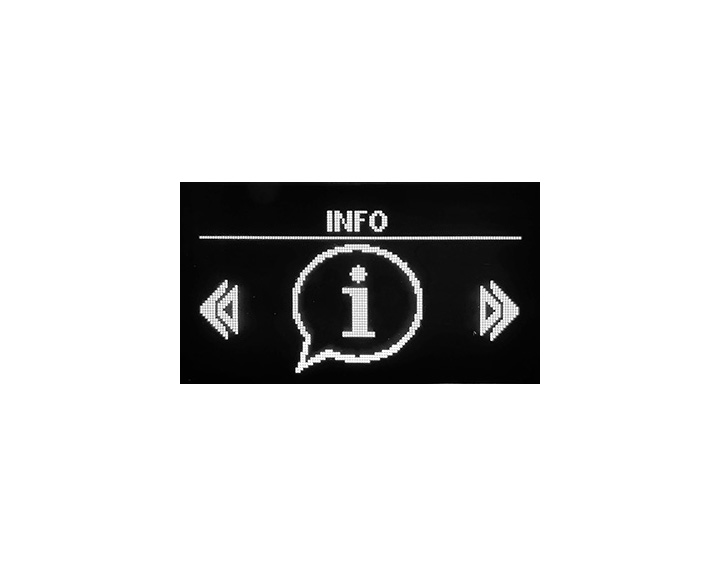

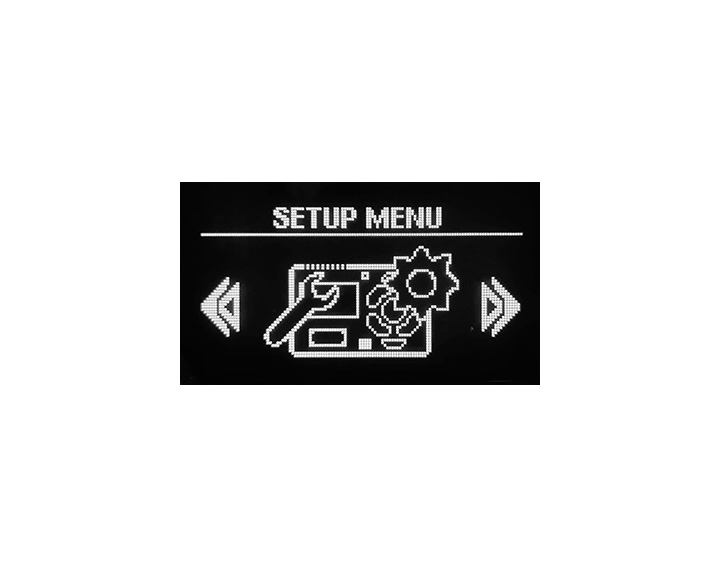

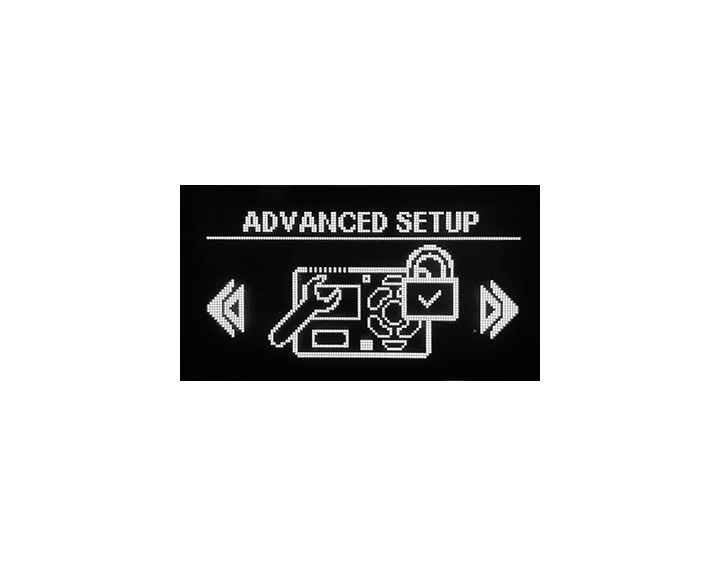

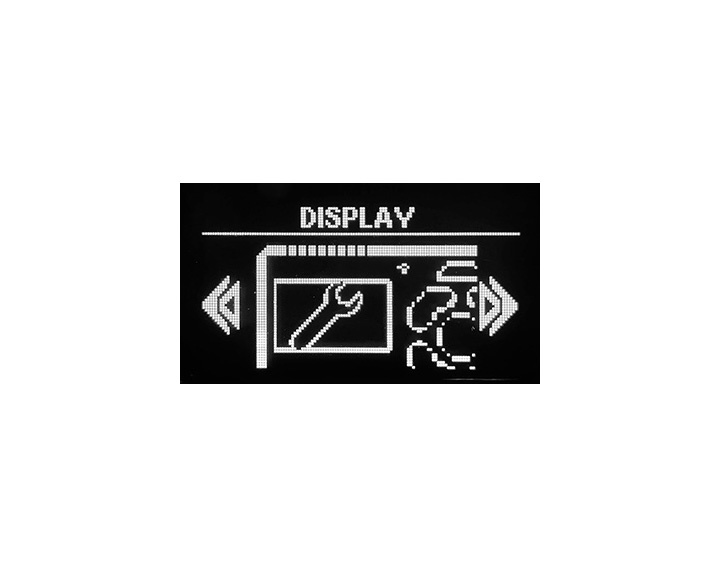

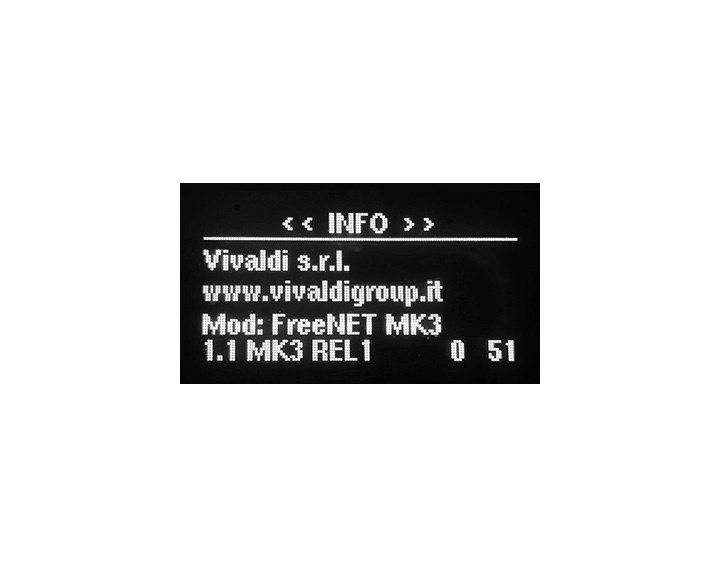

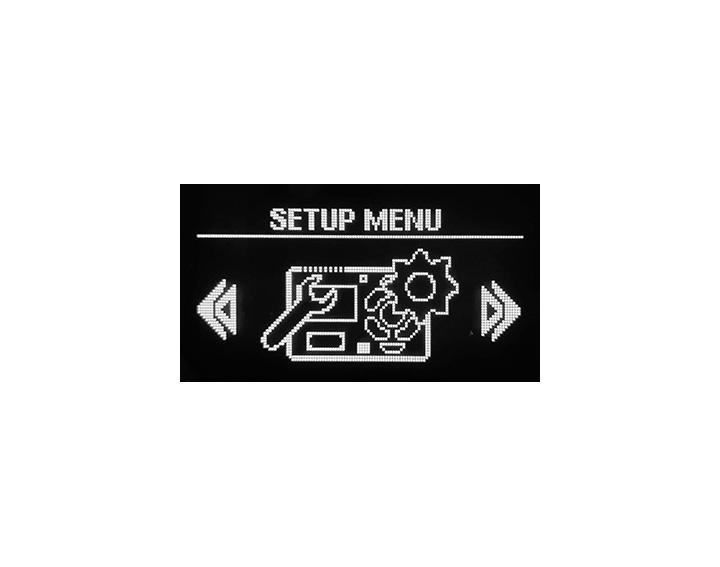

• New graphical interface and new navigation menu
• Adjustment of Left / Right channel balance

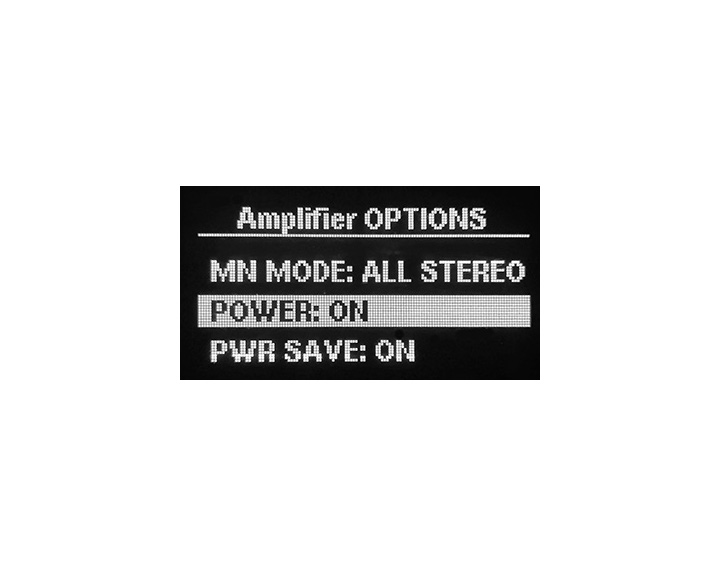

• Possibility to set the outputs, amplifier and PreOut, in the following modes: all stereo / all mono / only amp mono
• Possibility to set the PreOut output without Mute
• Amplifier energy saving function

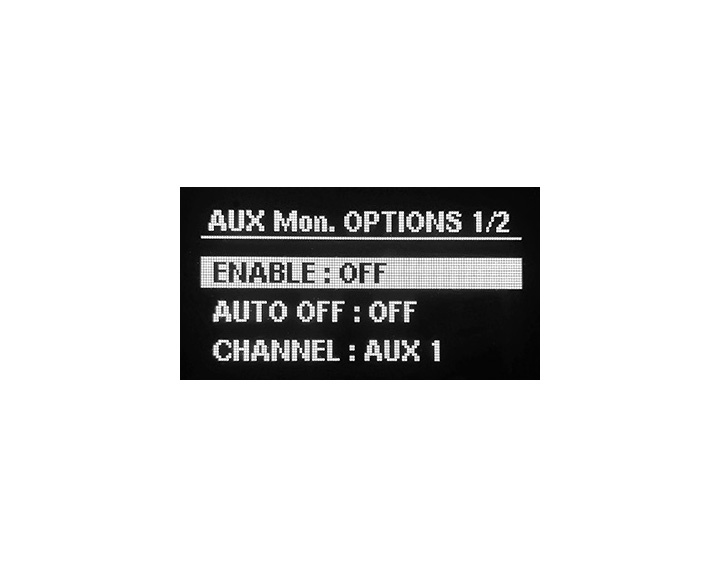

• Automatic switch-on and / or switch-off function based on the presence of signal on AUX1 or AUX2 input

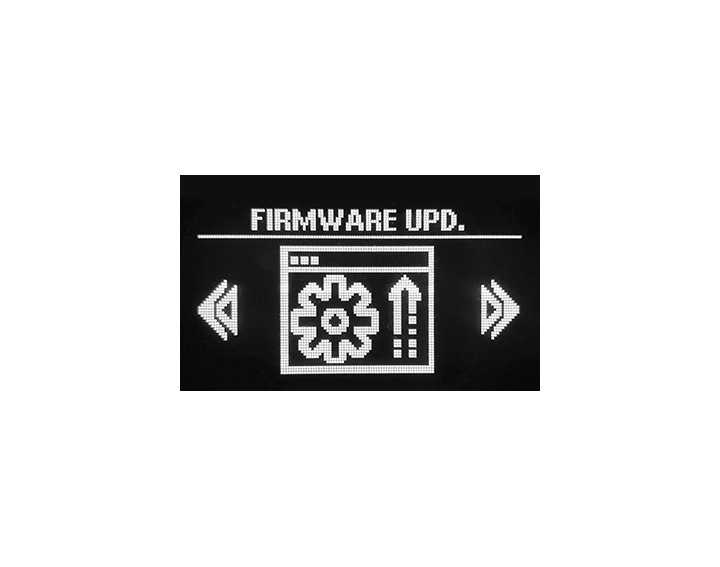

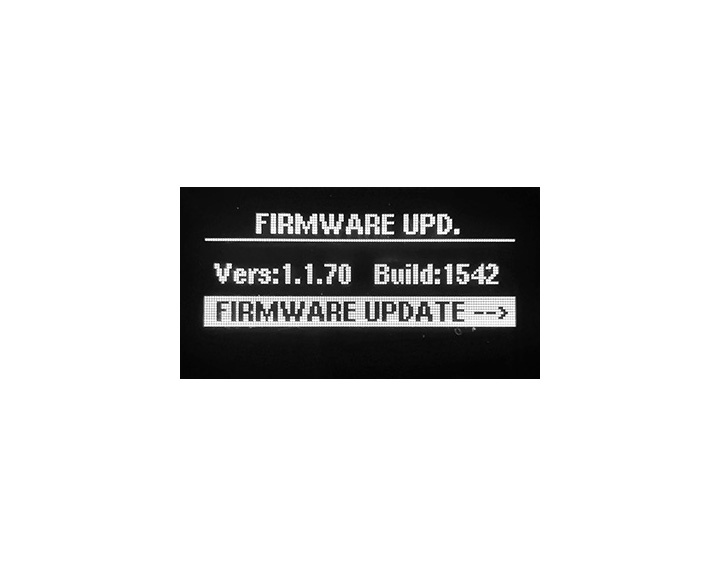

• Firmware update via USB
More features:

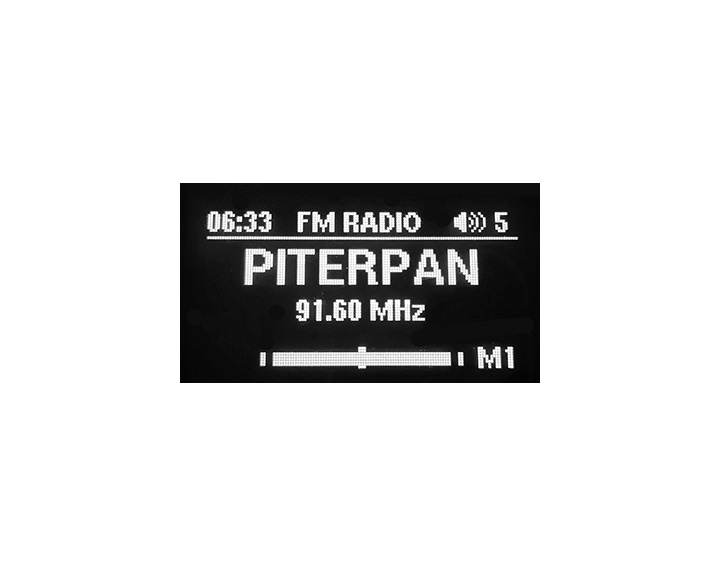

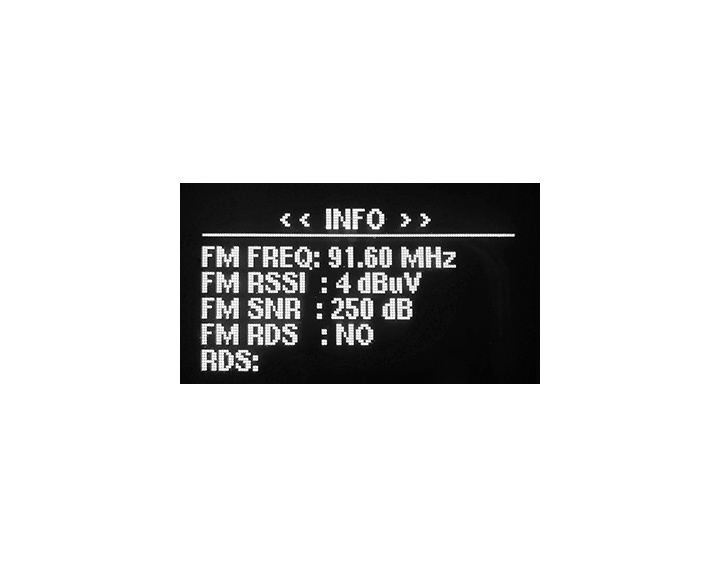

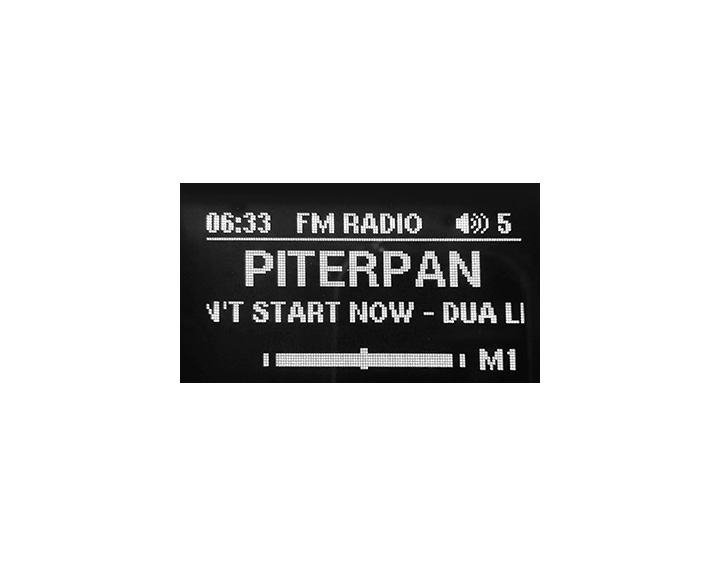

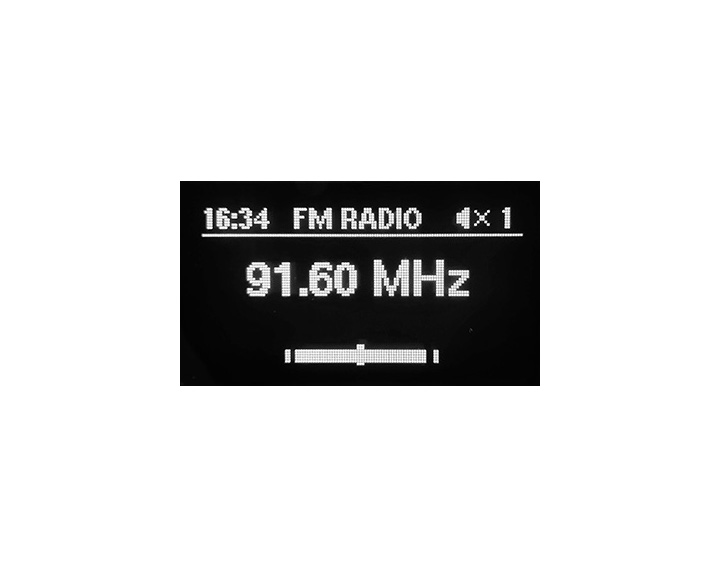

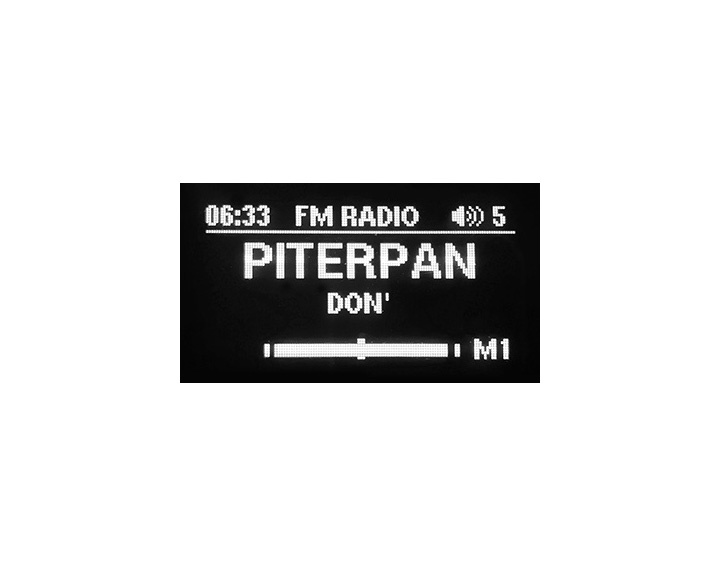

• FM RADIO with RDS, 6 storable frequencies

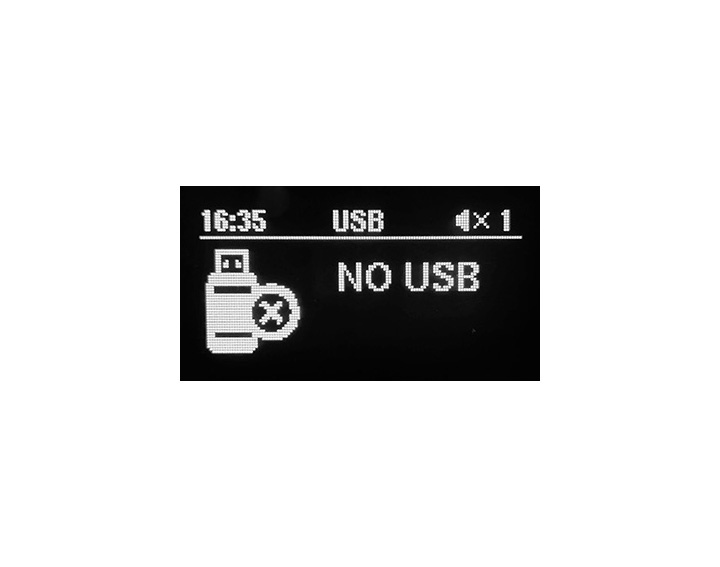

• USB audio file reader (MP3, WMA, AAC)

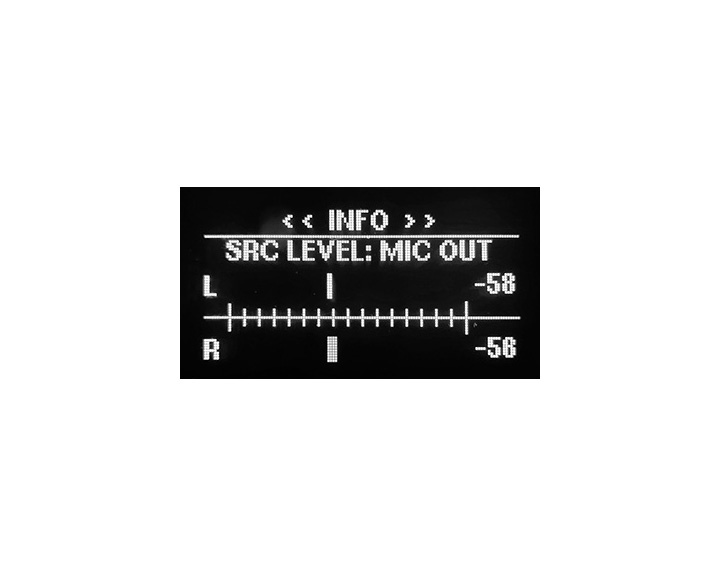

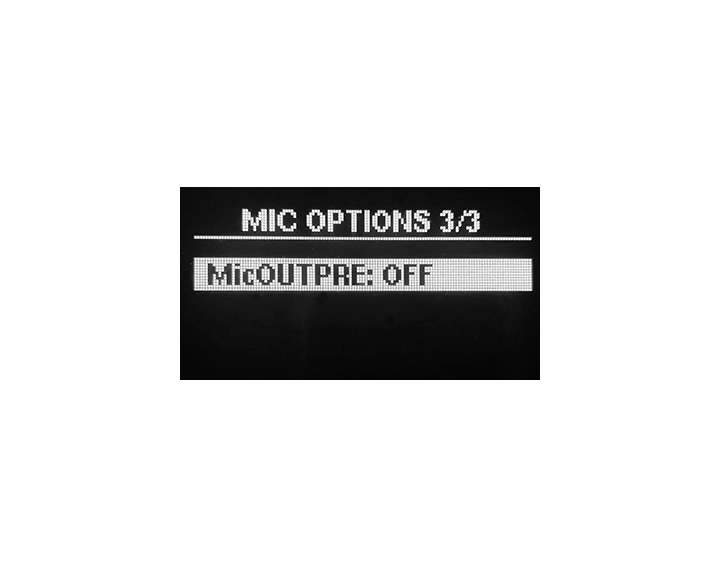

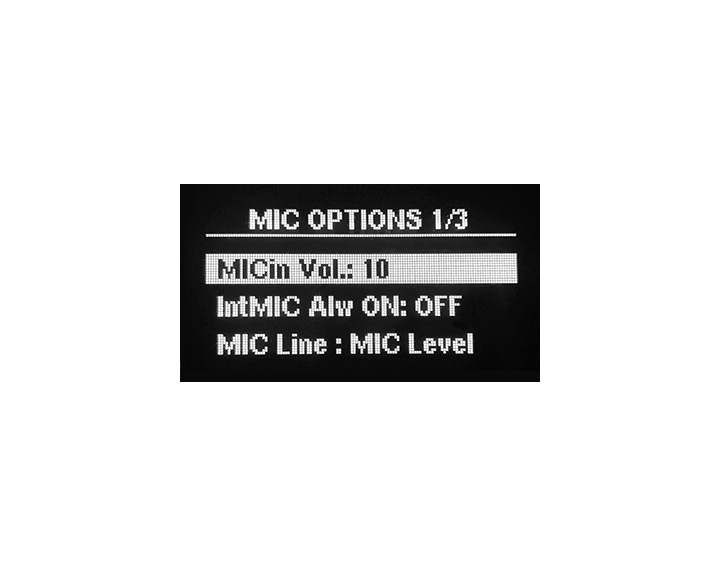

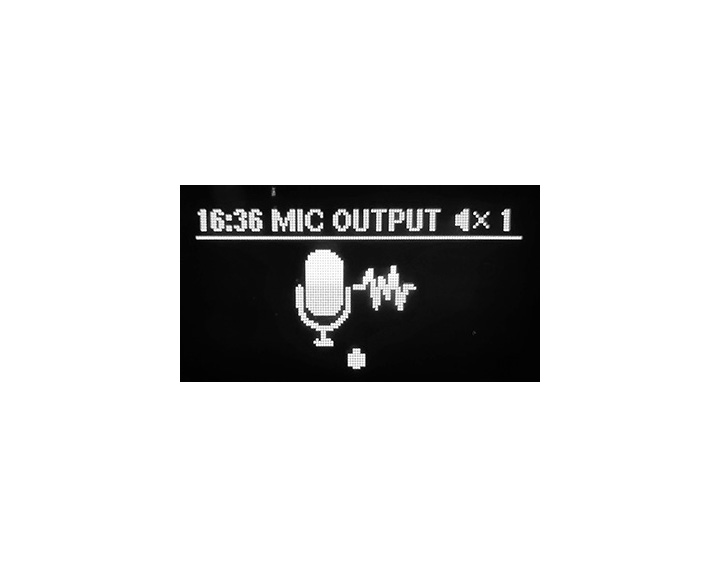

• MICROPHONE for intercom ((priority call: general or selective) or environmental listening

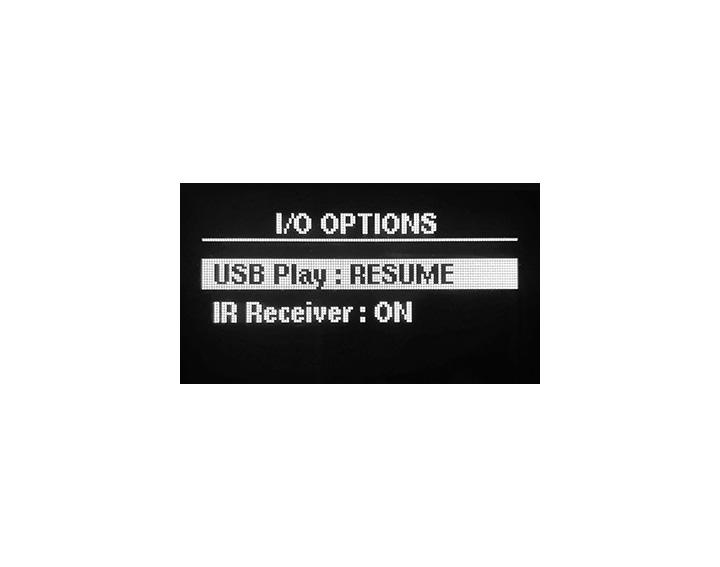

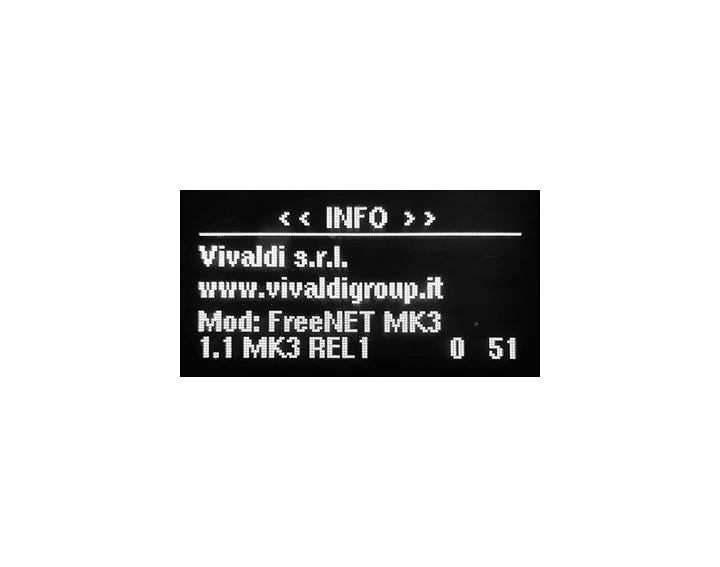

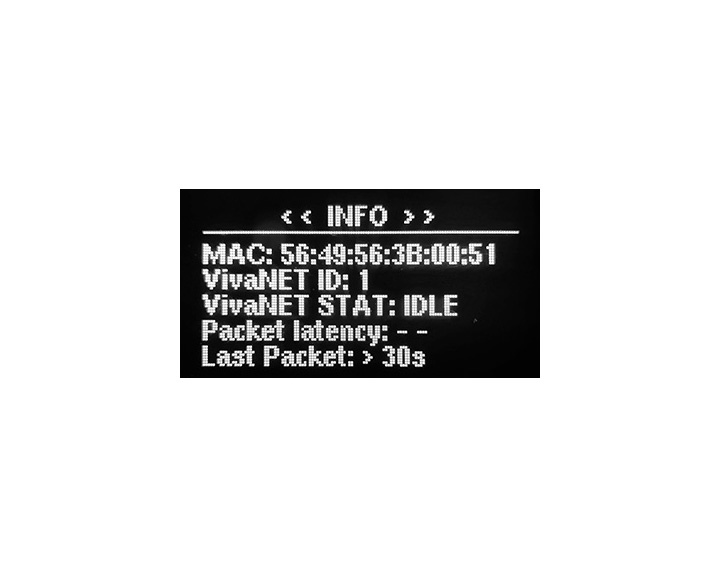

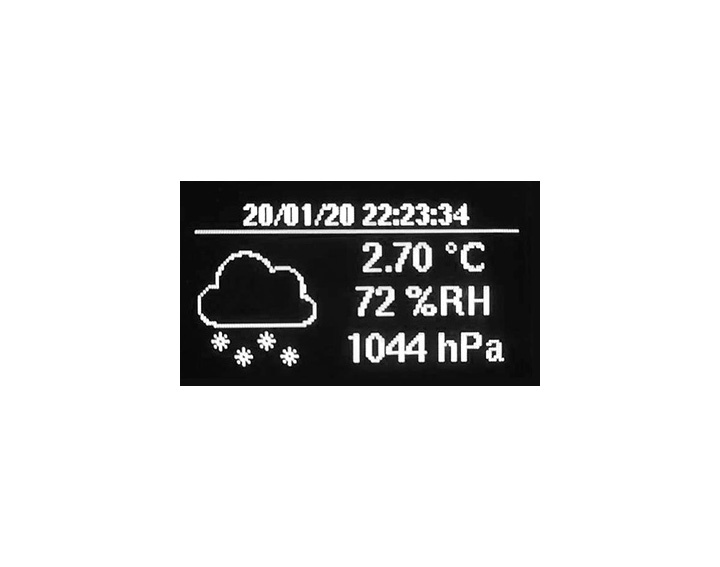

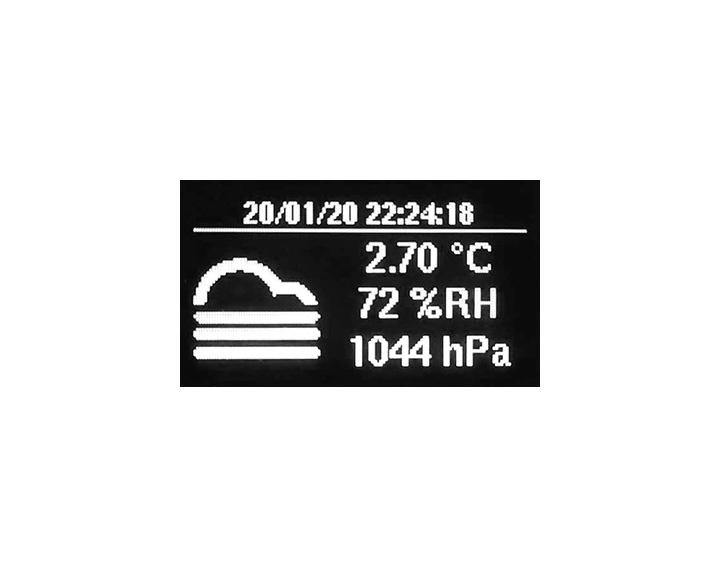

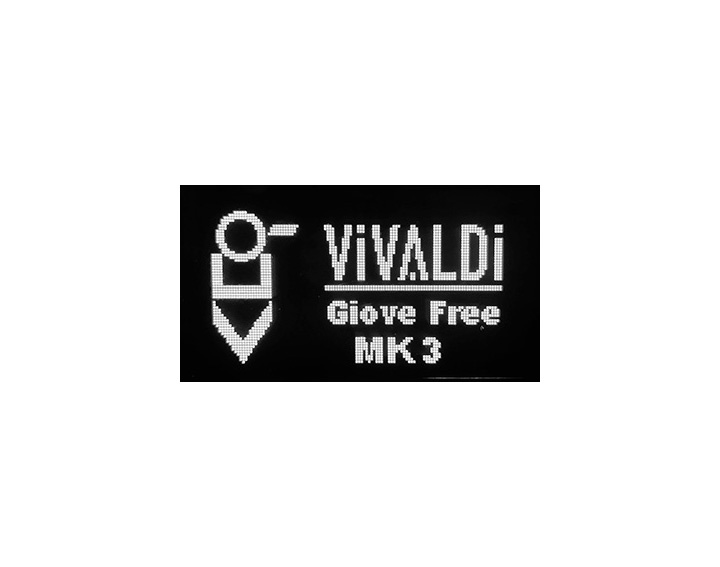

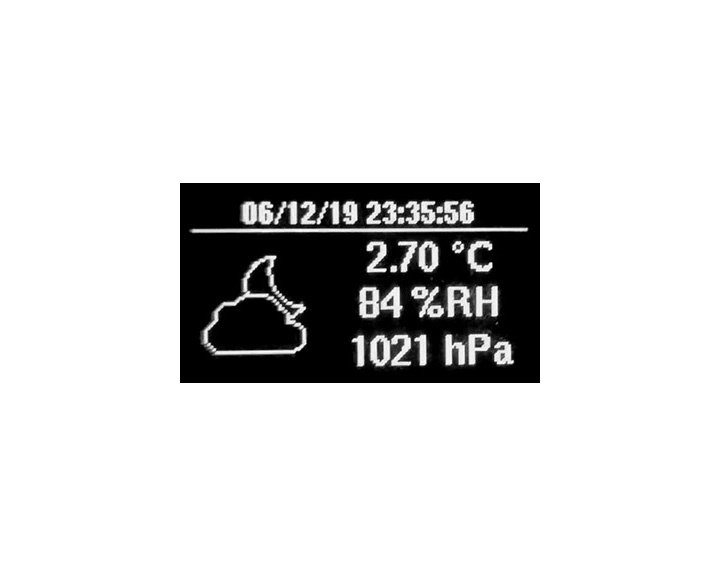

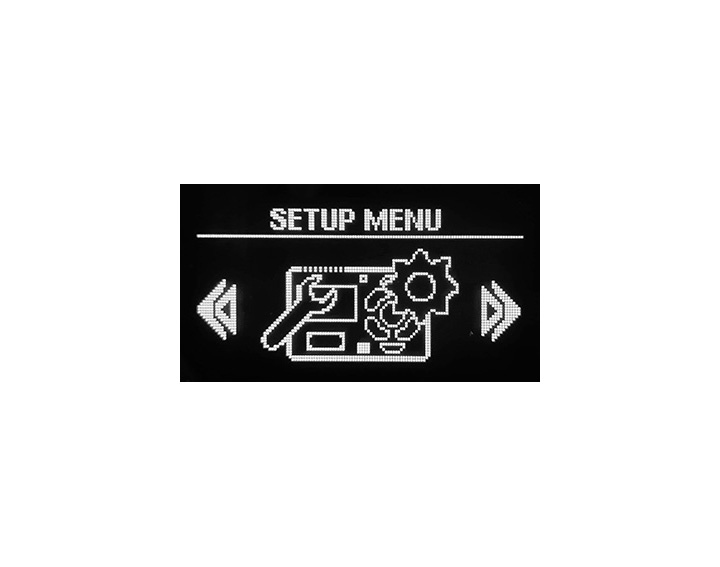

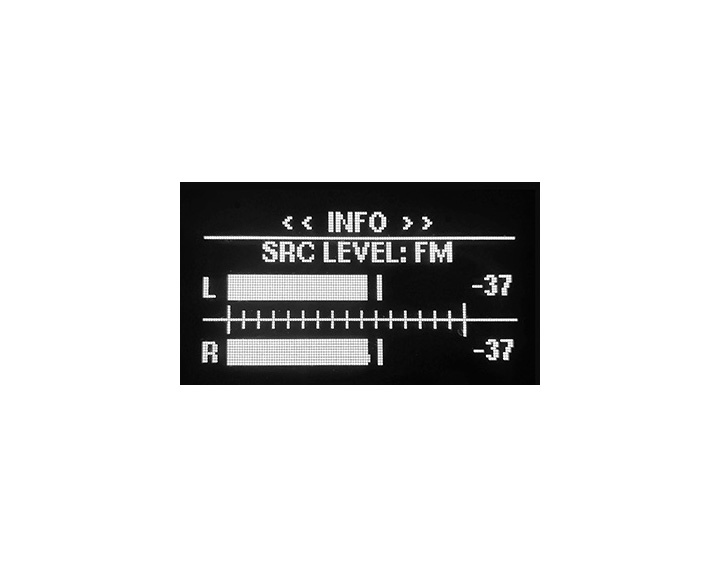

• OLED display

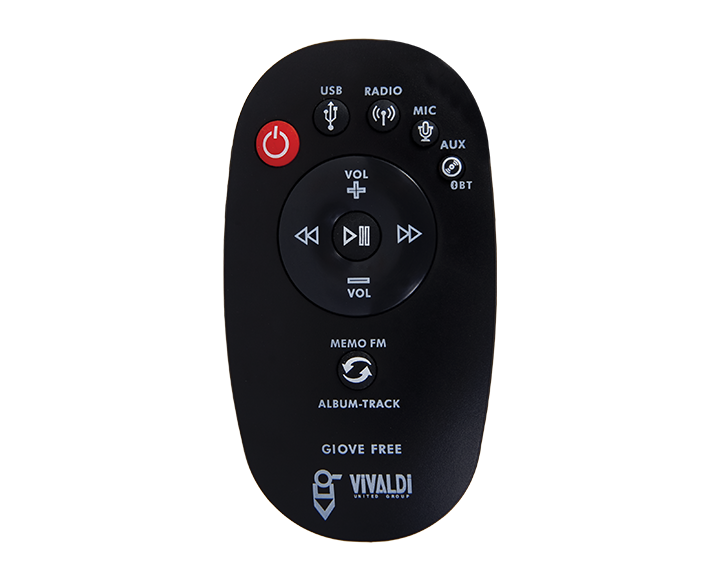

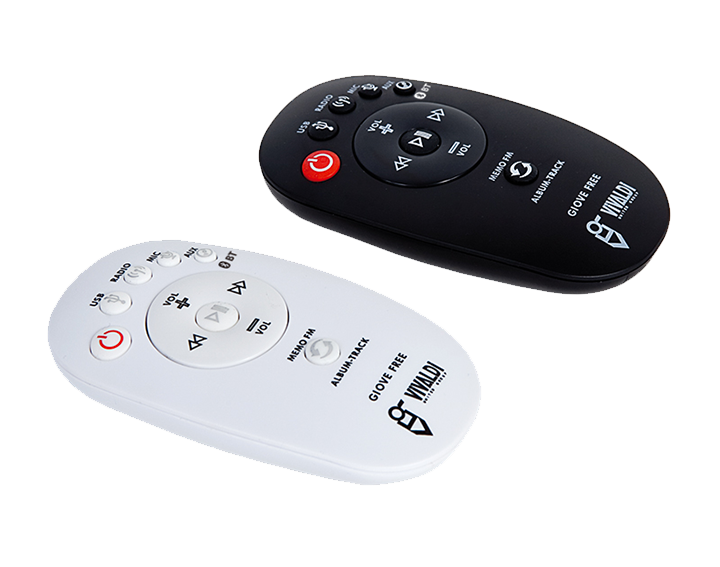

• IR receiver for TCIR5 remote control (included)

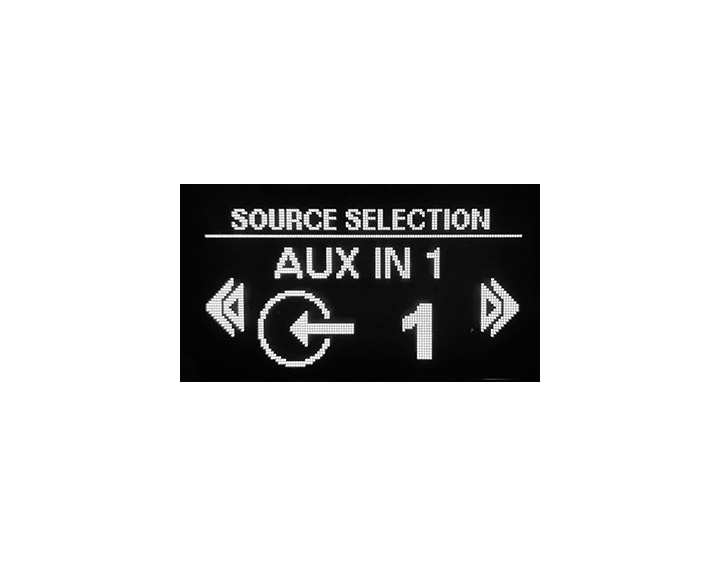

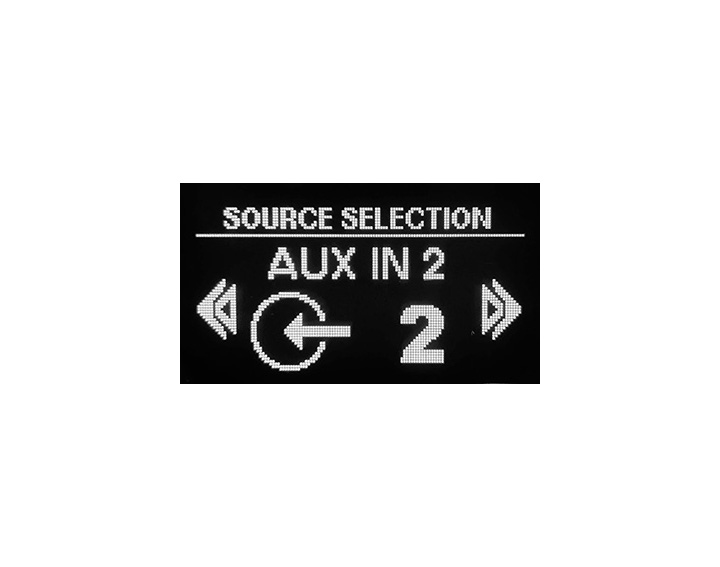

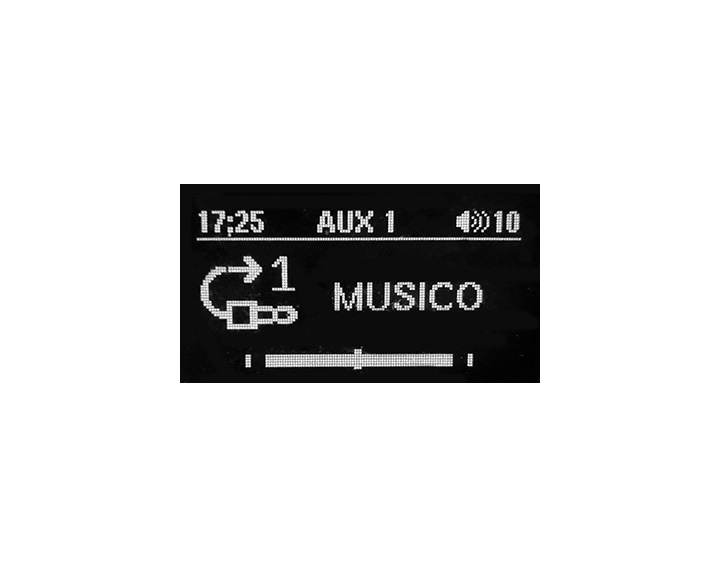

• 2x AUX Input for local sources (eg TV, CD, PC) or audio matrices (Vivaldi Giove MULTIMEDIA CA28, Vivaldi Giove MULTIMEDIA CA28L, Vivaldi Giove MULTIMEDIA CA28+).

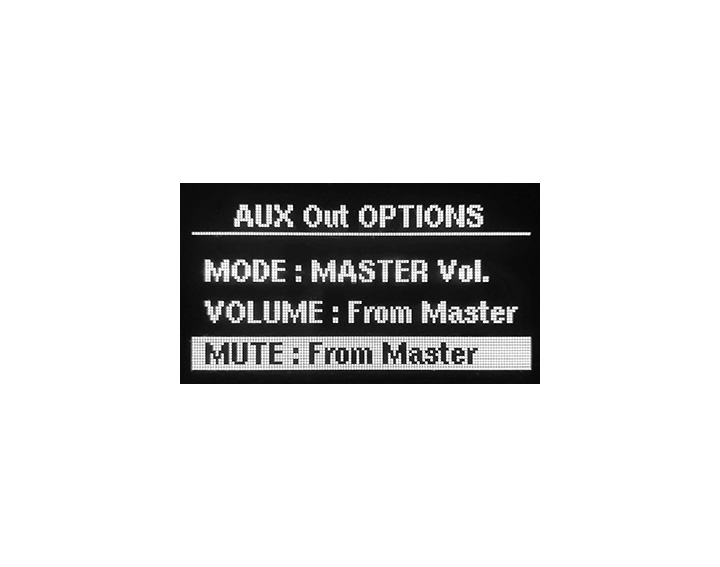

• Pre-out output for active loudspeakers, subwoofers or extension amplifiers, with the possibility to choose between fixed or master volume output

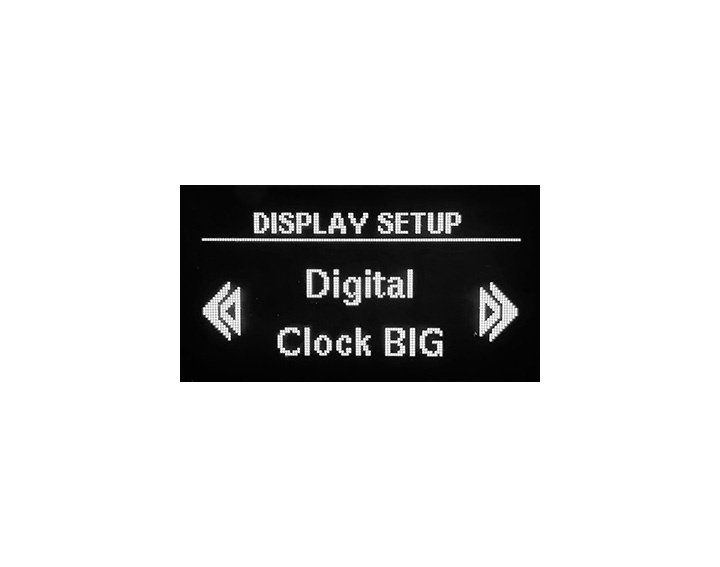

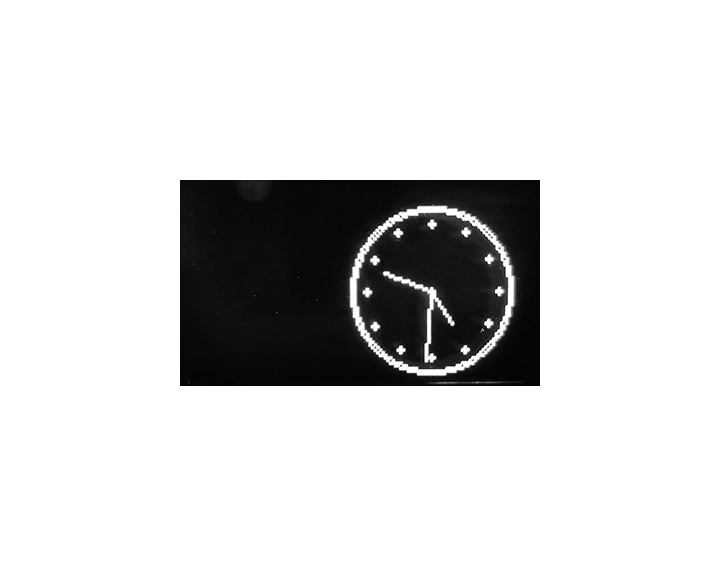

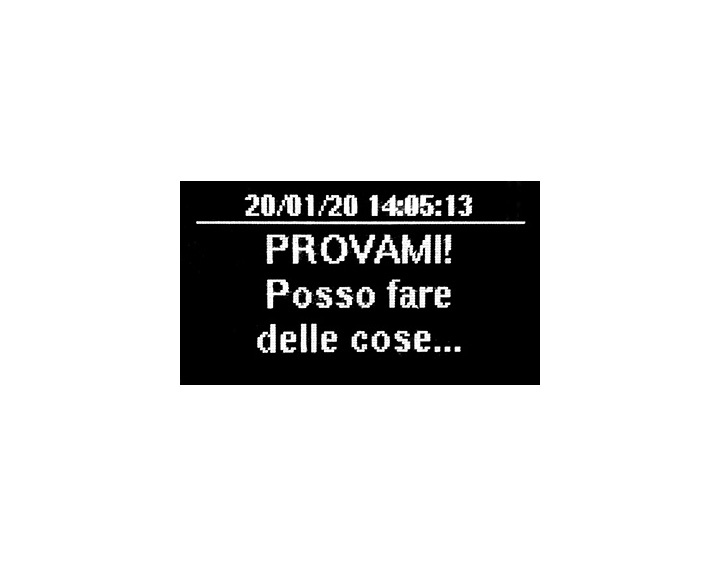

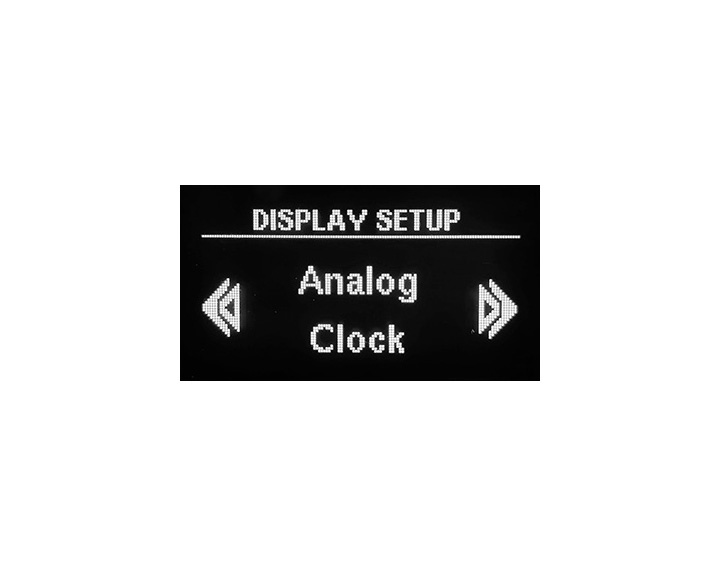

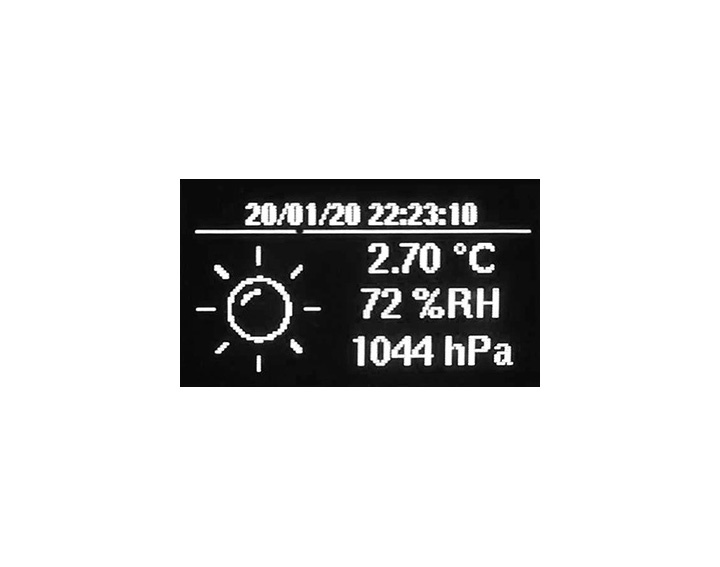

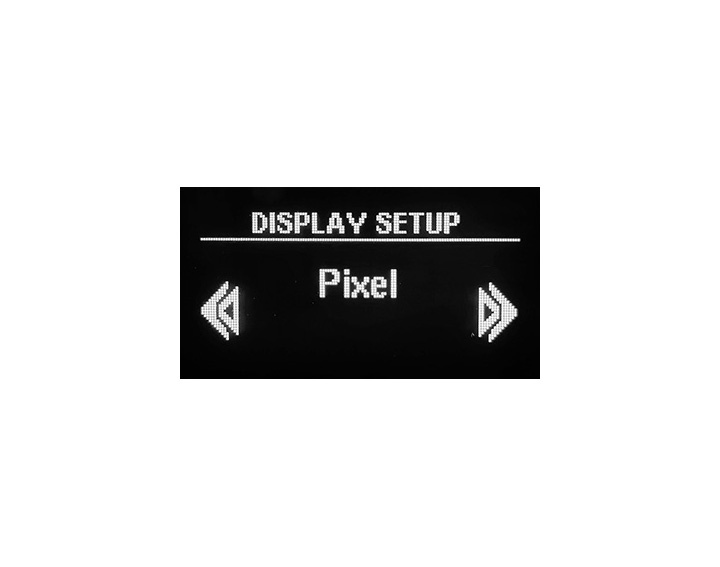

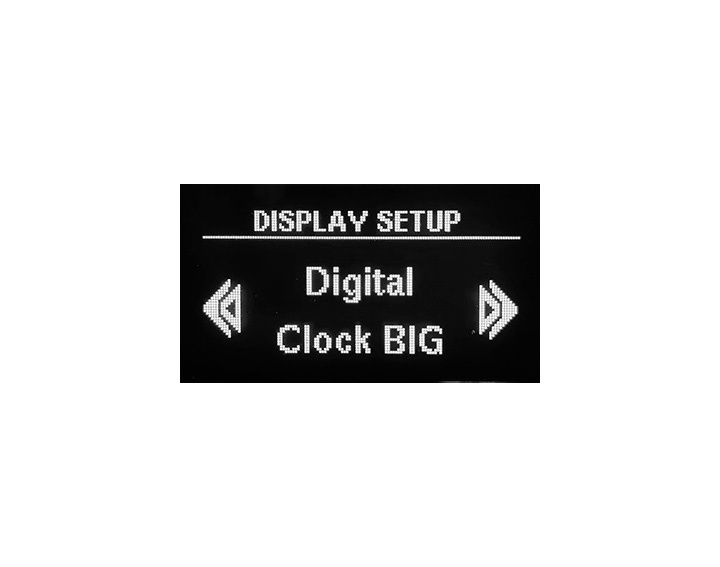

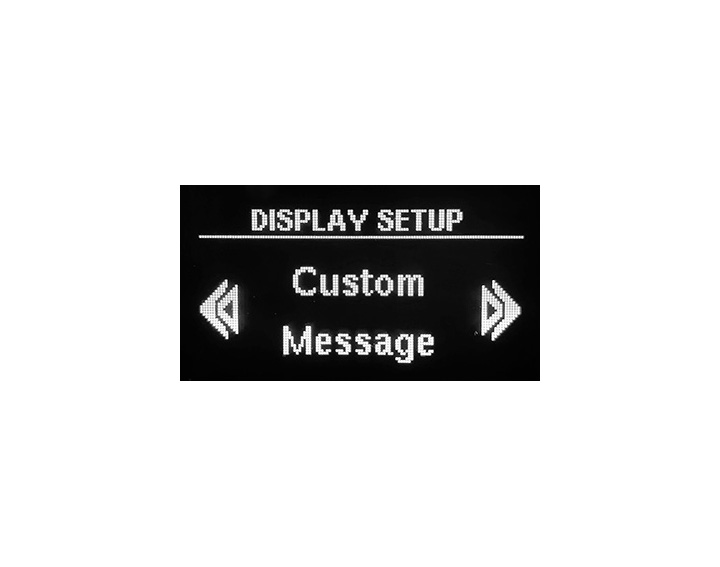

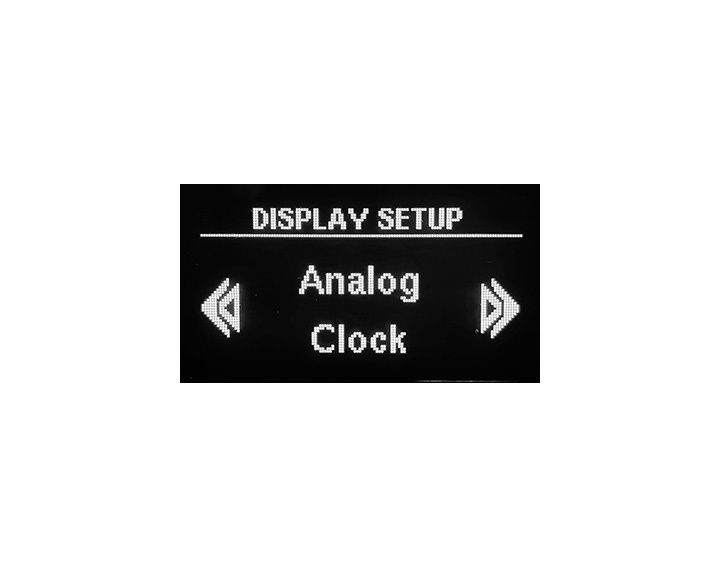

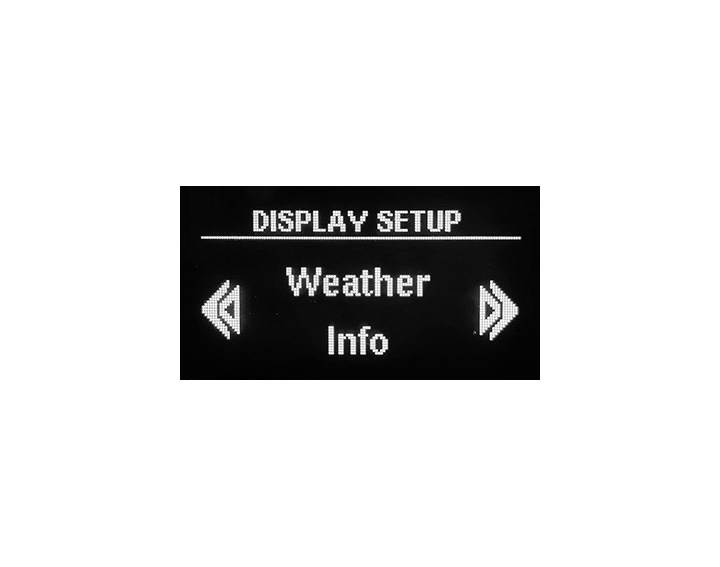

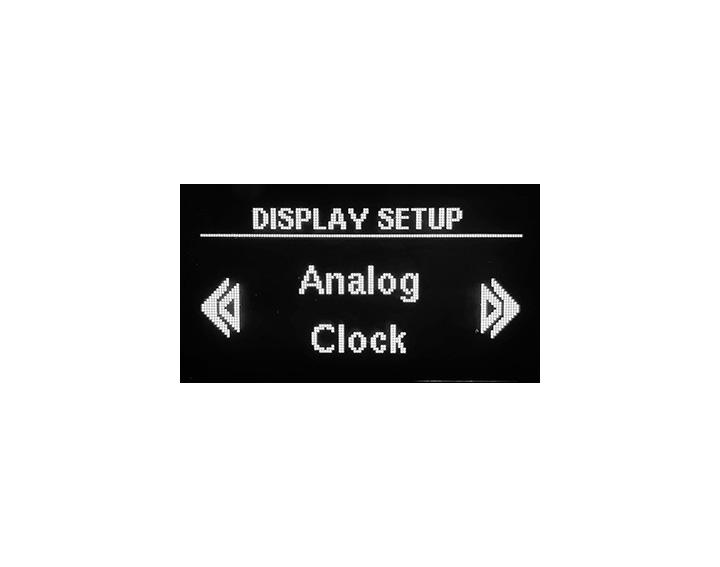

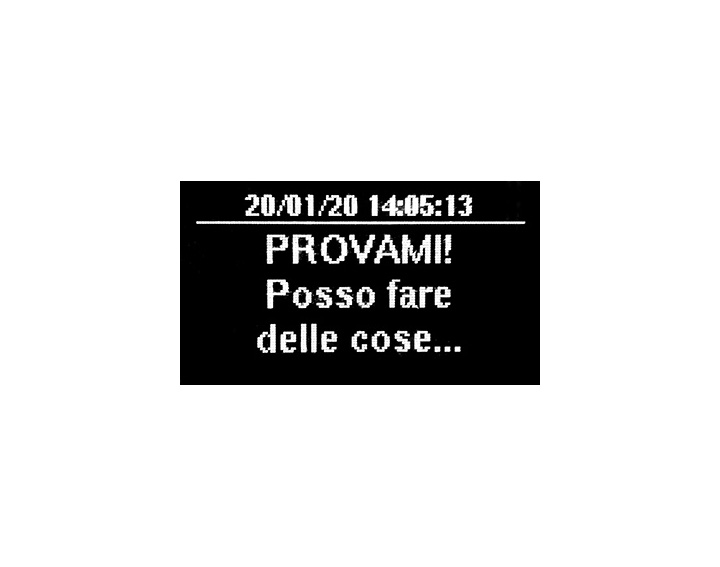

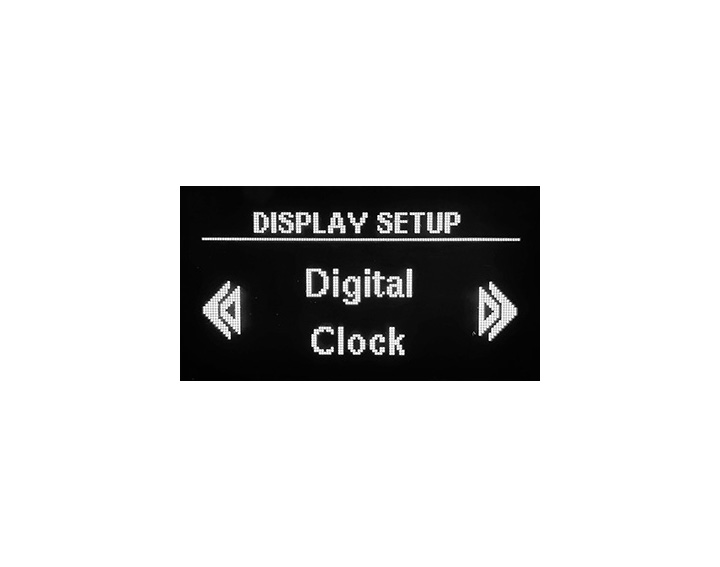

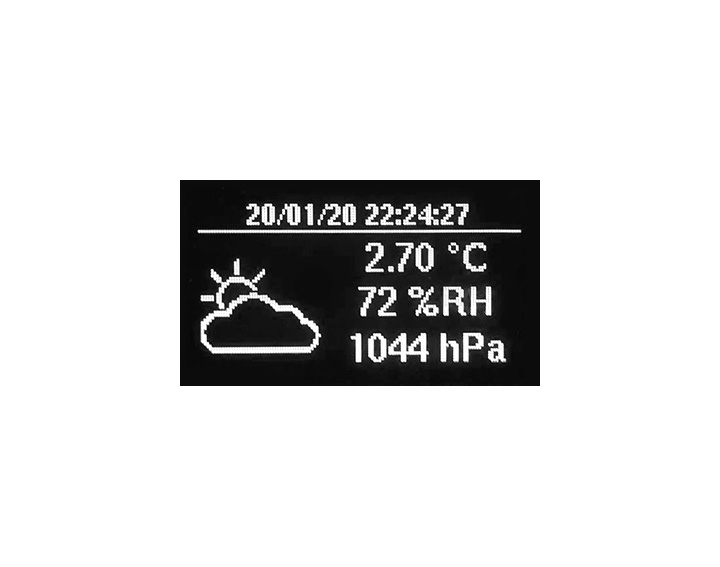

• Selectable standby screen

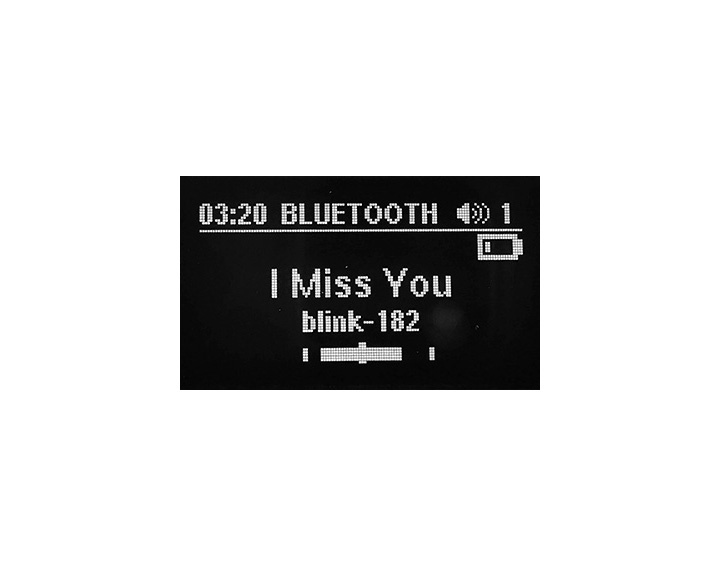

• Bluetooth with playback control (play / pause, forward / backward track)
• Microphone with automatic volume sensitivity (works as far field)

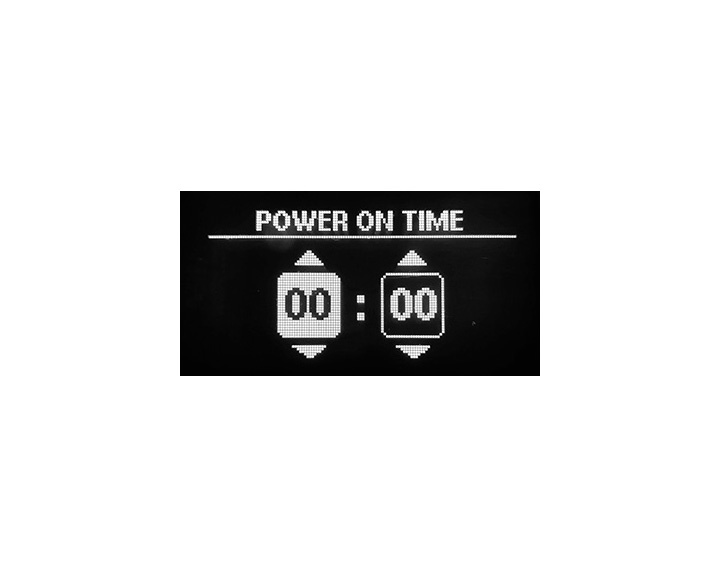

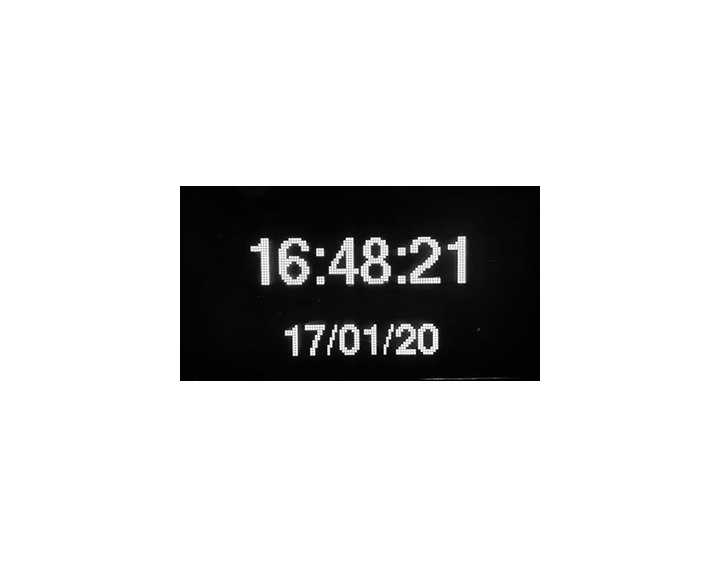

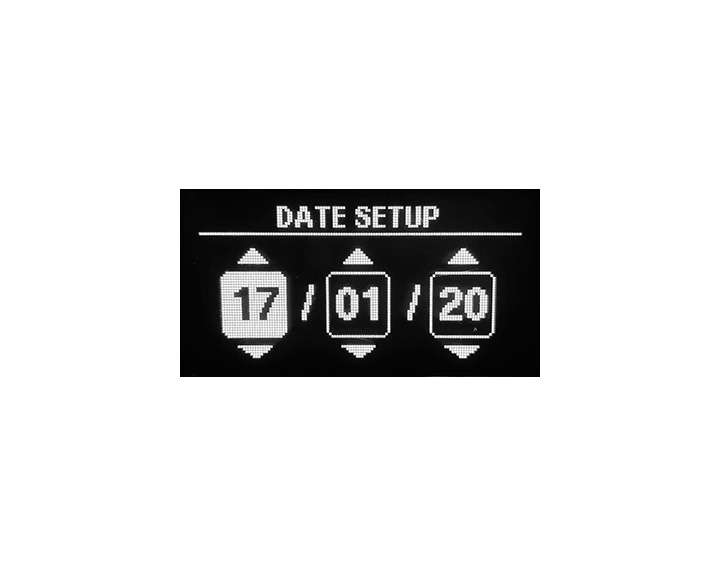

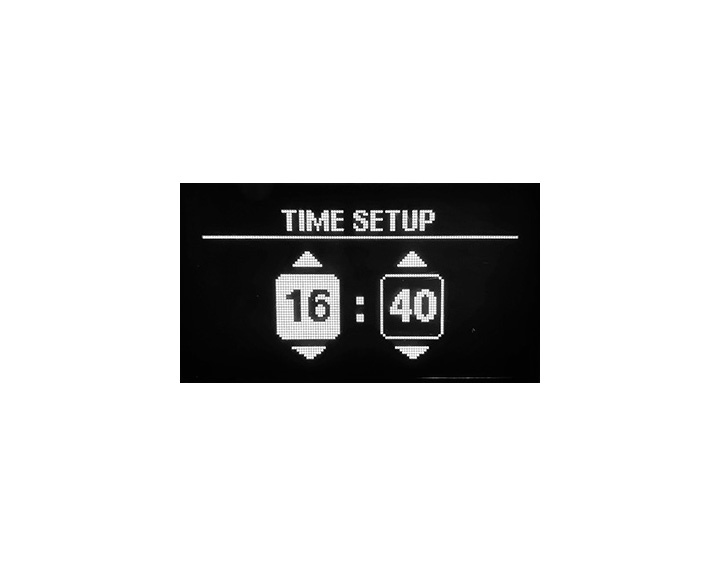

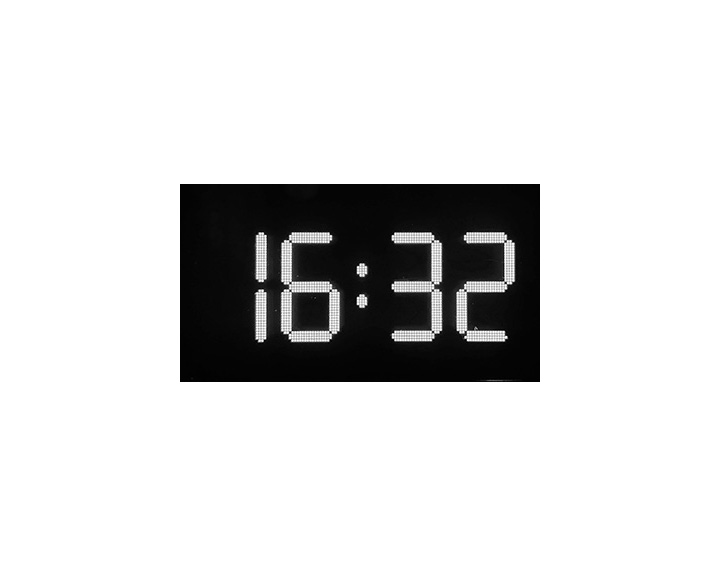

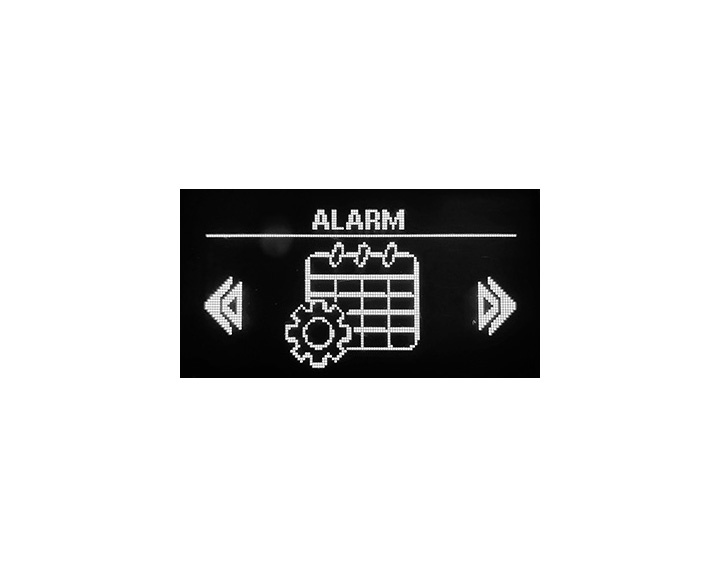

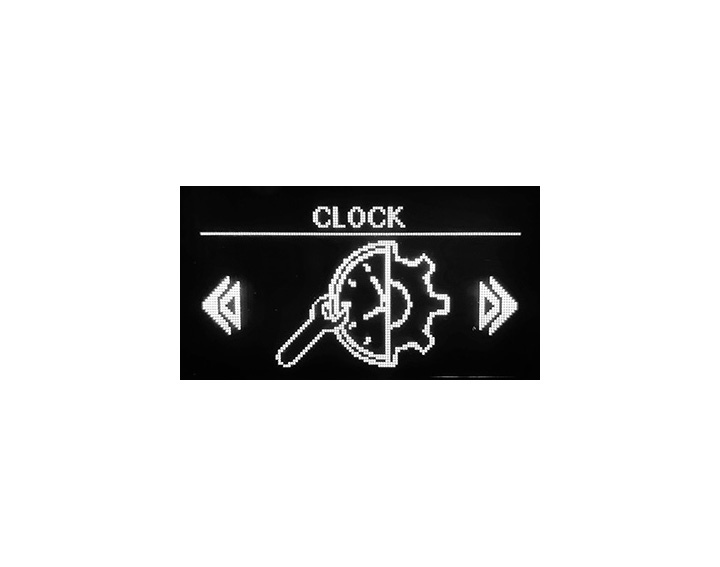

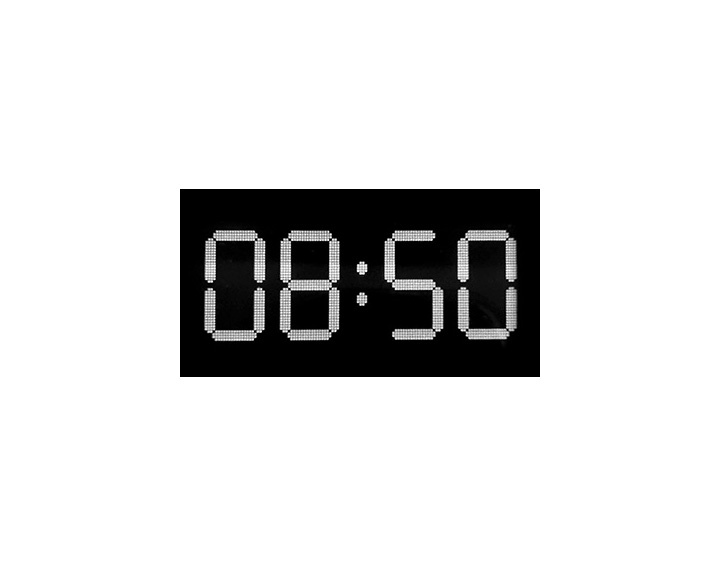

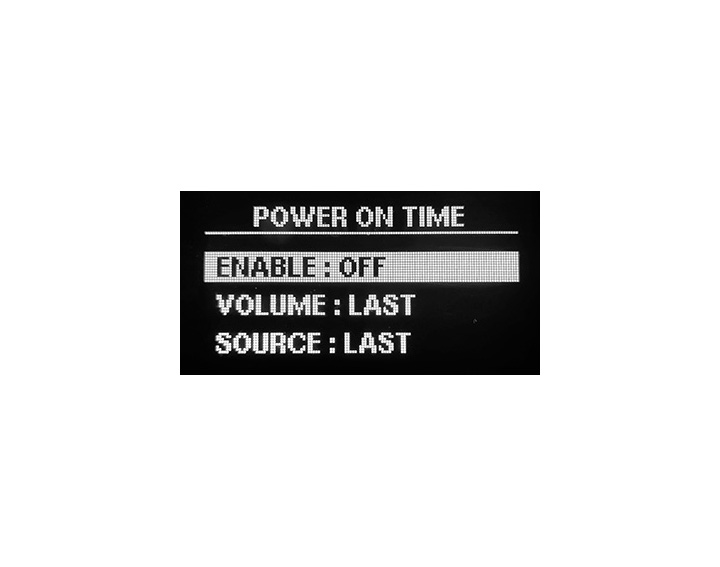

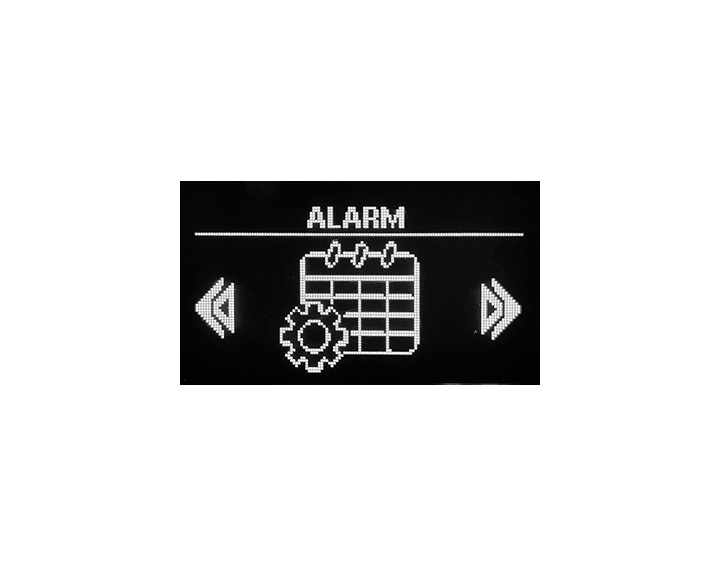

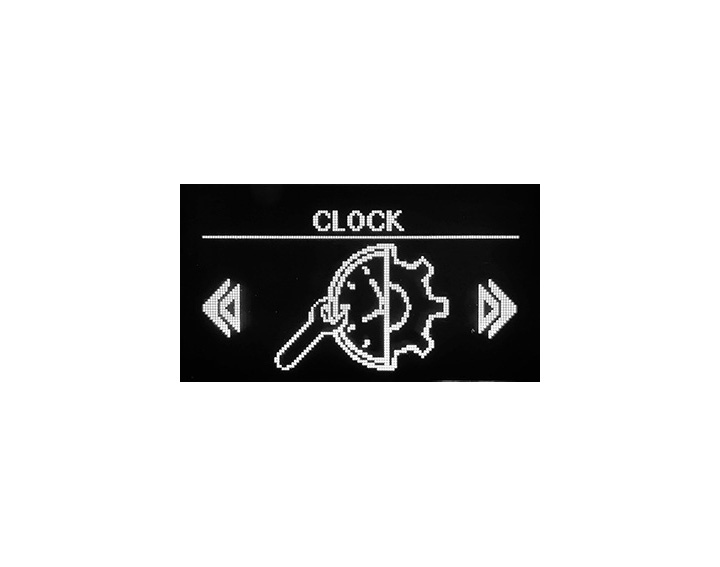

• Clock and alarm with programmable timer function for automatic switch on/off

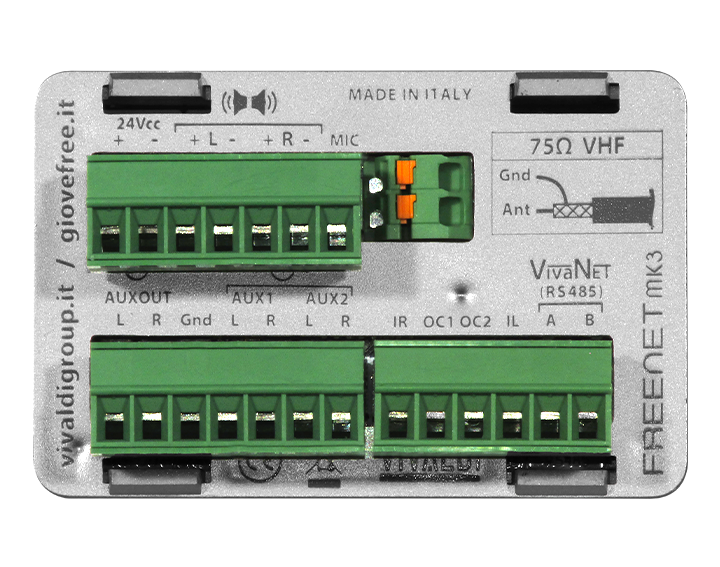

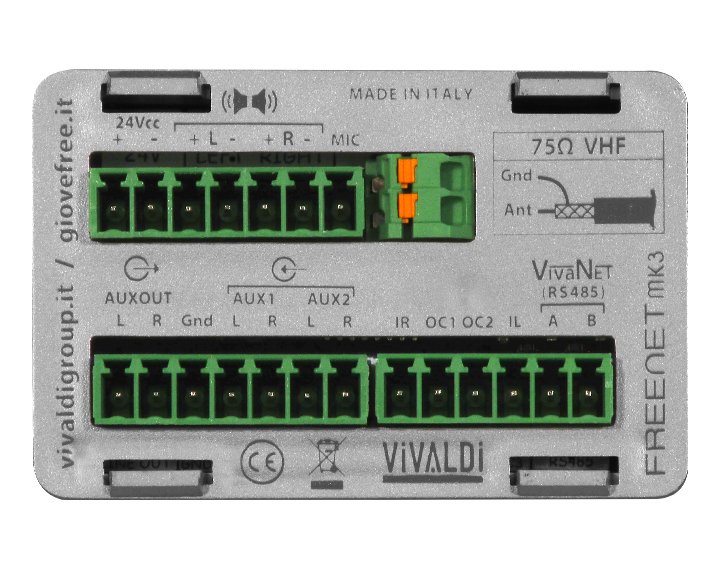

• 3x contacts (I/O) with assignable functionalities (OC1,OC2,IL)

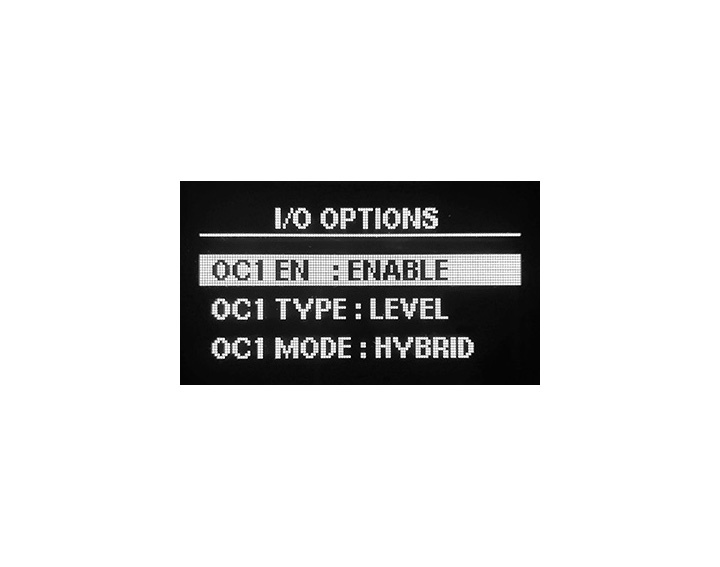

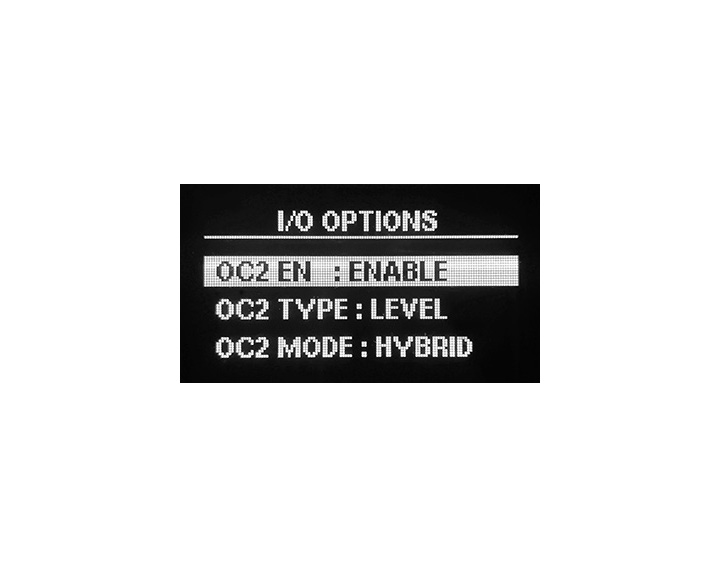

• Menu management of OC1, OC2, IL inputs/outputs functionalities
• Master / Slave / Hybrid mode setting (OC1) for microphone calls

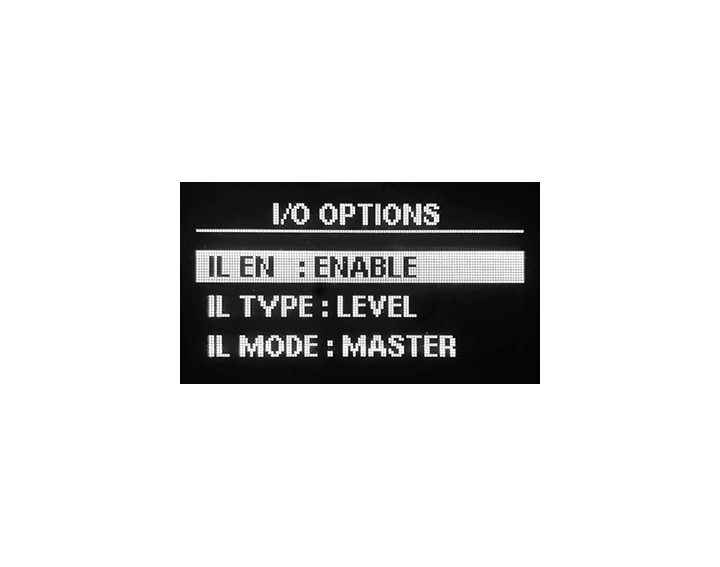

• "IL" bidirectional Inpu /Output, with Master/Slave/Hybrid function
• Possibility to deactivate the integrated amplifier

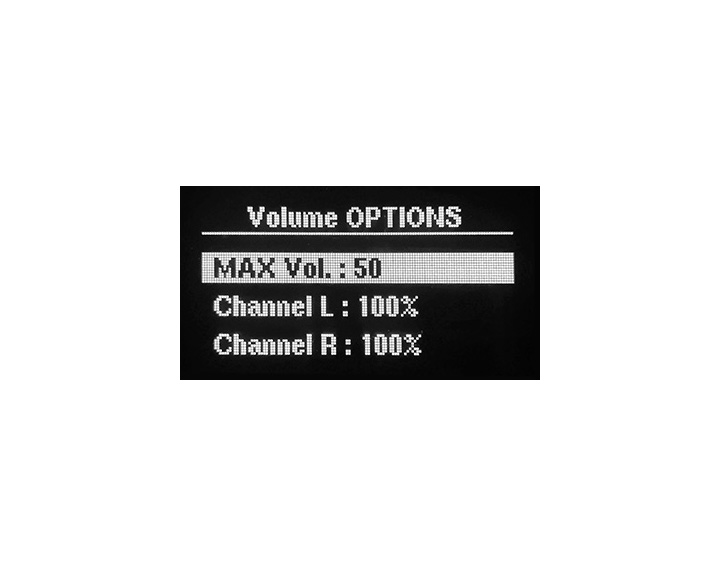

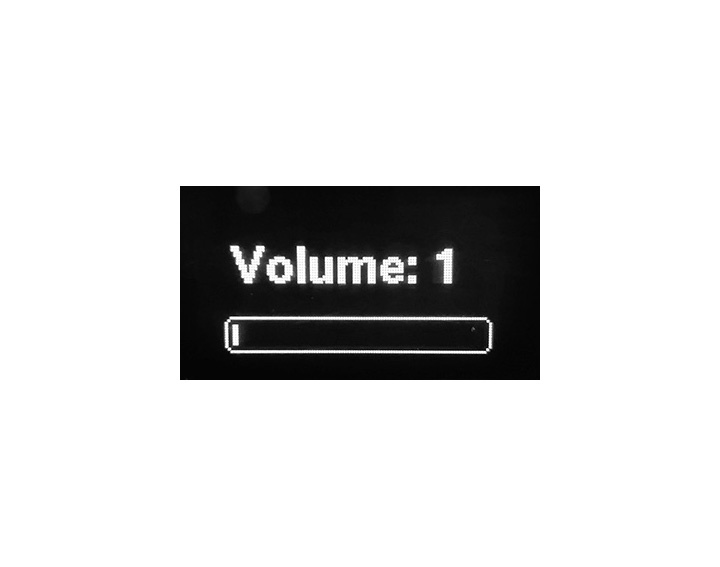

• Adjustable maximum volume limit
Accessories:
Vivaldi Giove AuxIn entrance for area source mounted on plug
Connectable devices:
-TV, PC, CD, DVD, iOS (iPOD, iPHONE, iPAD), Android, Blu-ray, SKY, Smartphone
- Vivaldi WIFI KEYSOL (black version con Bluetooth) universal WiFi multimedia source for audio streaming from YouTube, WebRadio, Spotify...
How to use:
- stand alone
- sound 2.1 (with subwoofer)
- stand alone integrated with home automation system (w/ RS485)
- multiroom combined with main unit Vivaldi Giove MULTIMEDIA CA28, Vivaldi Giove MULTIMEDIA CA28L, Vivaldi Giove MULTIMEDIA CA28+
- Working impedance 4 - 16 Ω, for a good musical level it is recommended to connect up to 4 loudspeakers
Power expansions: Increase the number of speakers or create a sub-zone with Vivaldi Giove FREELIGHT
Silver colour.

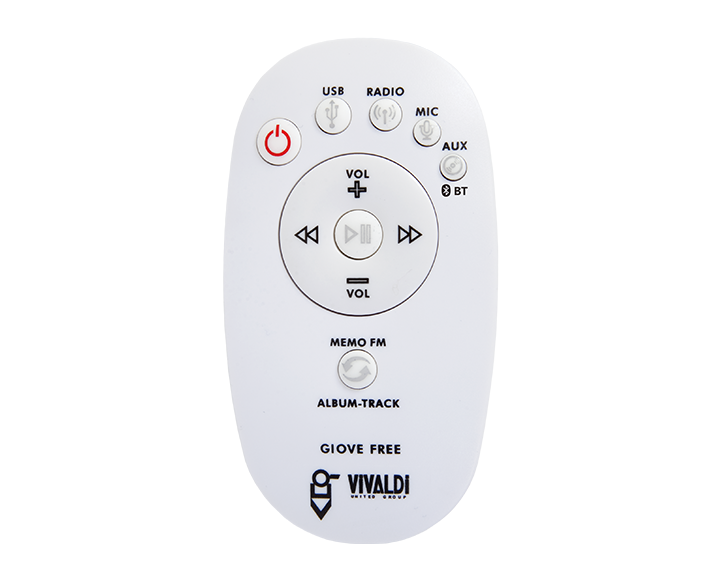

Vivaldi Giove TCIR5 remote control.
Prepared for box 503 or 3 modules of 504, 506, 507
Compatibility with civil series with Vivaldi Ulisse Adattatori (to be ordered separately during the order phase)
Power supply: Vivaldi Giove AL2B, Vivaldi Giove AL3B, Vivaldi Giove AL5B, Vivaldi Giove AL8.
Weight: 0.09 Kg
Request a commercial offer
Made in Italy, Hi-Fi Stereo 25W + 25W RMS.
RS485 CONTROL PORT for home automation management.
All the new features include:
- New DAB / DAB + Digital Radio source (DAB radio requires a connection to an existing antenna system using a 75ohm coaxial cable)
• Thermostat function on thermoregulation enviroment made on your needs. Regolation and temperature control in every single area with Vivaldi Domotica iCONTROL4.0+ and with an thermostat.
• BLUETOOTH 5.0 with automatic PIN assignment, possibility to rename the device and change the password
• HFP profile (Hands Free): in Bluetooth source, automatic Hands Free function for smartphone turns on
• Integrated chime function can be activated in 3 modes: on call reception, on call sending or both
• 7 Band graphic EQ
• Possibility to mix an external source through MIC input to all sources
• New graphical interface and new navigation menu
• Adjustment of Left / Right channel balance
• Possibility to set the outputs, amplifier and PreOut, in the following modes: all stereo / all mono / only amp mono

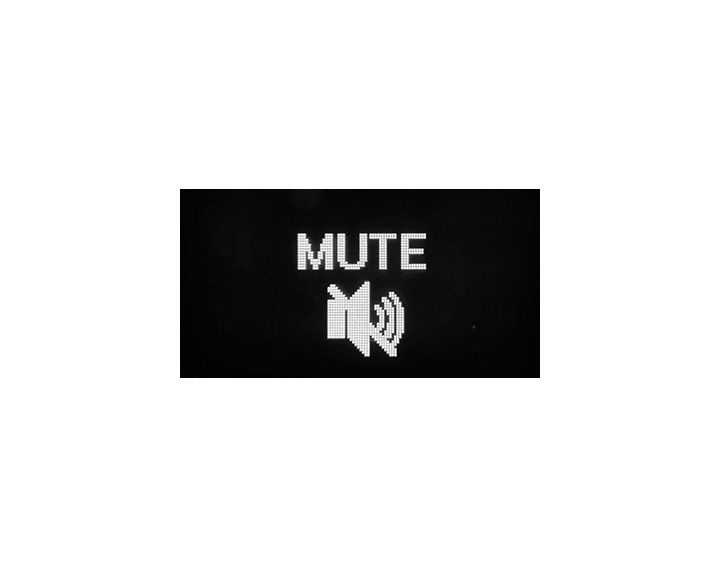

• Possibility to set the PreOut output without Mute
