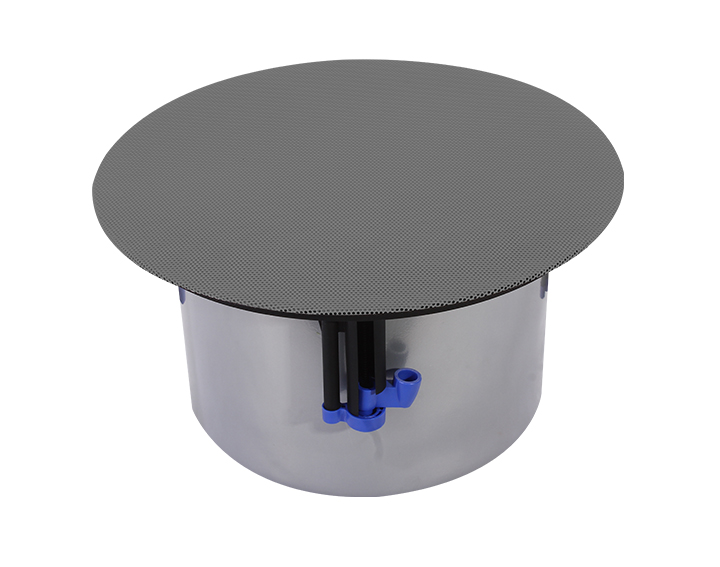

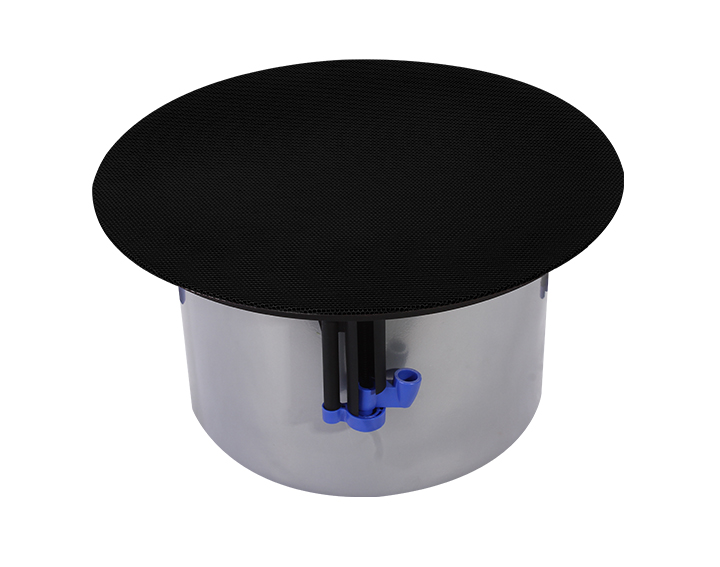

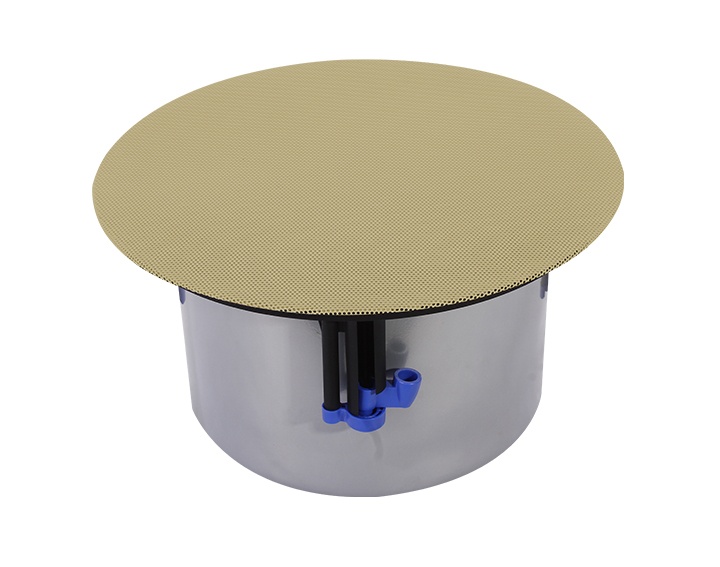

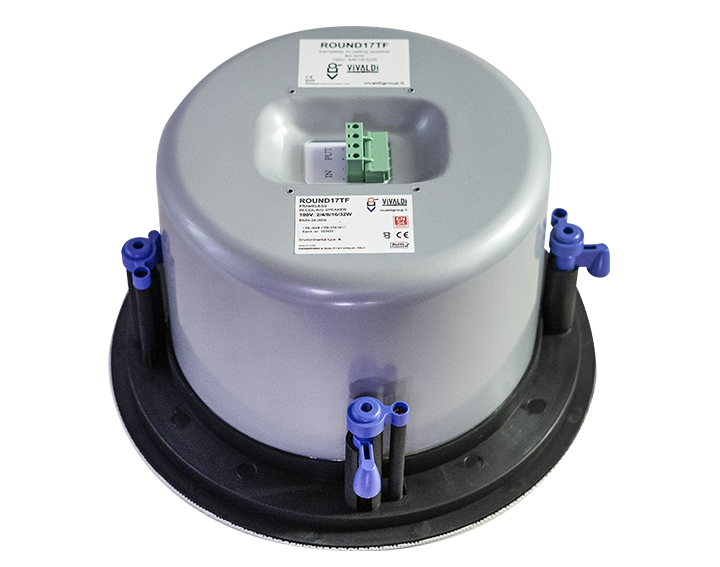

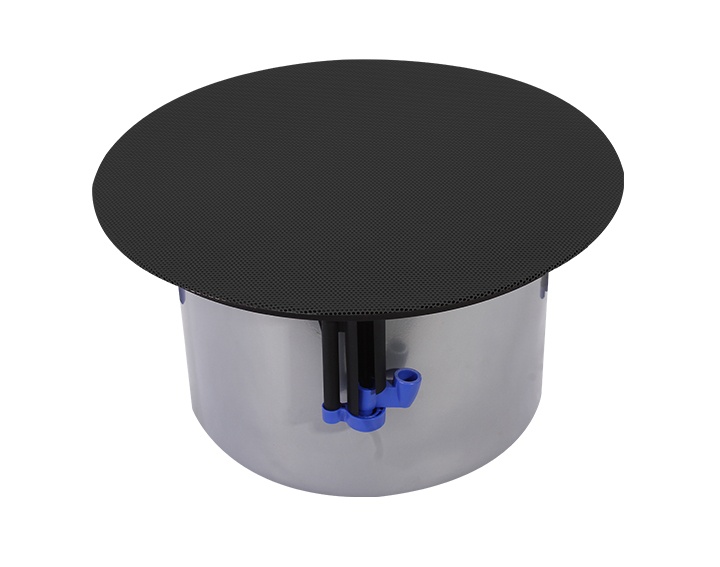

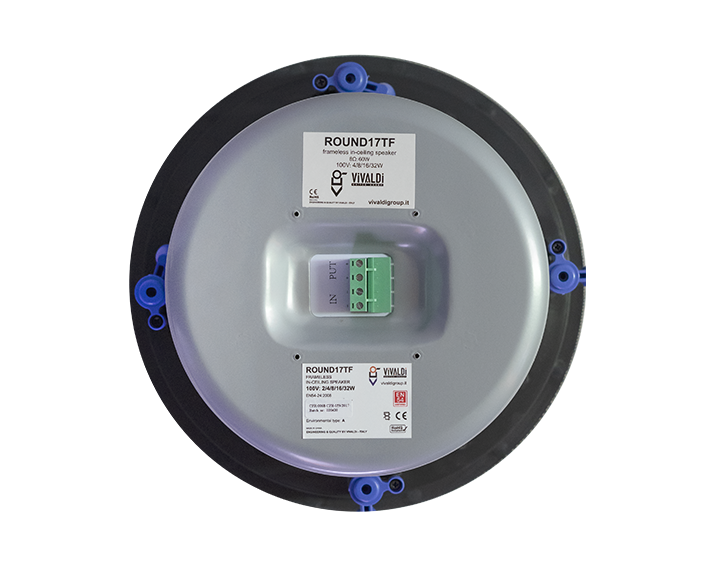

Vivaldi EN54 ROUND17TF.R
In-ceiling speaker for EN54-24 certified voice evacuation systems
In-ceiling 2-way round speaker, HiFi, IP33, with steel flame-resistant cap, Frameless series
EN50849 EN54-24 Certified. Certification number 0068-CPR-059/2017. Steel frame with protection grill
Woofer: 16,5cm
Tweeter: 1,9 cm dome, in Mylar, Neodymium magnet
Nominal power: 2/4/8/16/32W, peak 64W, max 104dB.
Transformer voltage: 100V
Impedance 8 Ω: power 60 W RMS.
Musical power 120W.
Recommended amplification from 20 to 80 W RMS.
Frequency response: 65-20000 Hz – 10dB.
Sensitivity: 86 dB
Max output level / full power: 101 dB
Speaker dimensions (DxD): 284x155 mm
Recessed installation hole (D): 262mm
Weight: 2,9 Kg
Installation: no accessories needed
Installation in-wall (concrete): not suitable
Grille colour: painted custom
Cabinet: V0 ABS, V0 metal protection grill
Steel frame
Operation temperature: from -20° to +65°
Request a commercial offer
EN50849 EN54-24 Certified. Certification number 0068-CPR-059/2017. Steel frame with protection grill
Woofer: 16,5cm
Tweeter: 1,9 cm dome, in Mylar, Neodymium magnet
Nominal power: 2/4/8/16/32W, peak 64W, max 104dB.
Transformer voltage: 100V
Impedance 8 Ω: power 60 W RMS.
Musical power 120W.
Recommended amplification from 20 to 80 W RMS.
Frequency response: 65-20000 Hz – 10dB.
Sensitivity: 86 dB
Max output level / full power: 101 dB
Speaker dimensions (DxD): 284x155 mm
Recessed installation hole (D): 262mm
Weight: 2,9 Kg
Installation: no accessories needed
Installation in-wall (concrete): not suitable
Grille colour: painted custom
Cabinet: V0 ABS, V0 metal protection grill
Steel frame
Operation temperature: from -20° to +65°
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
