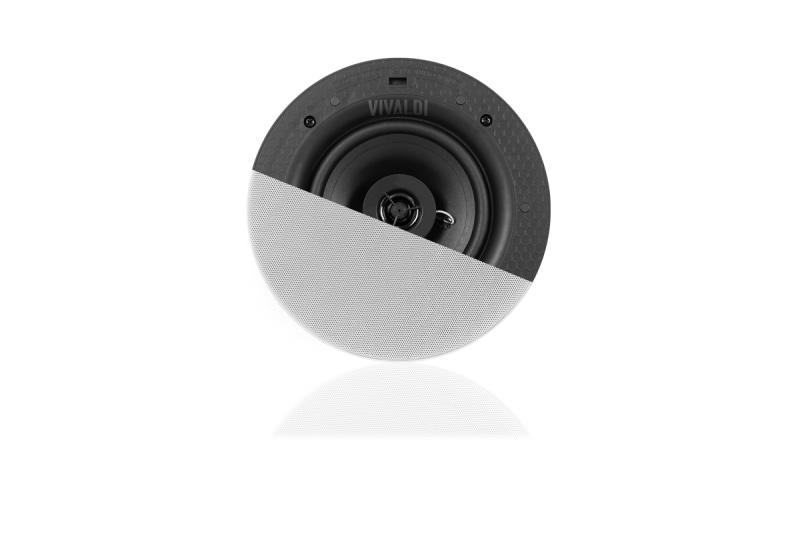

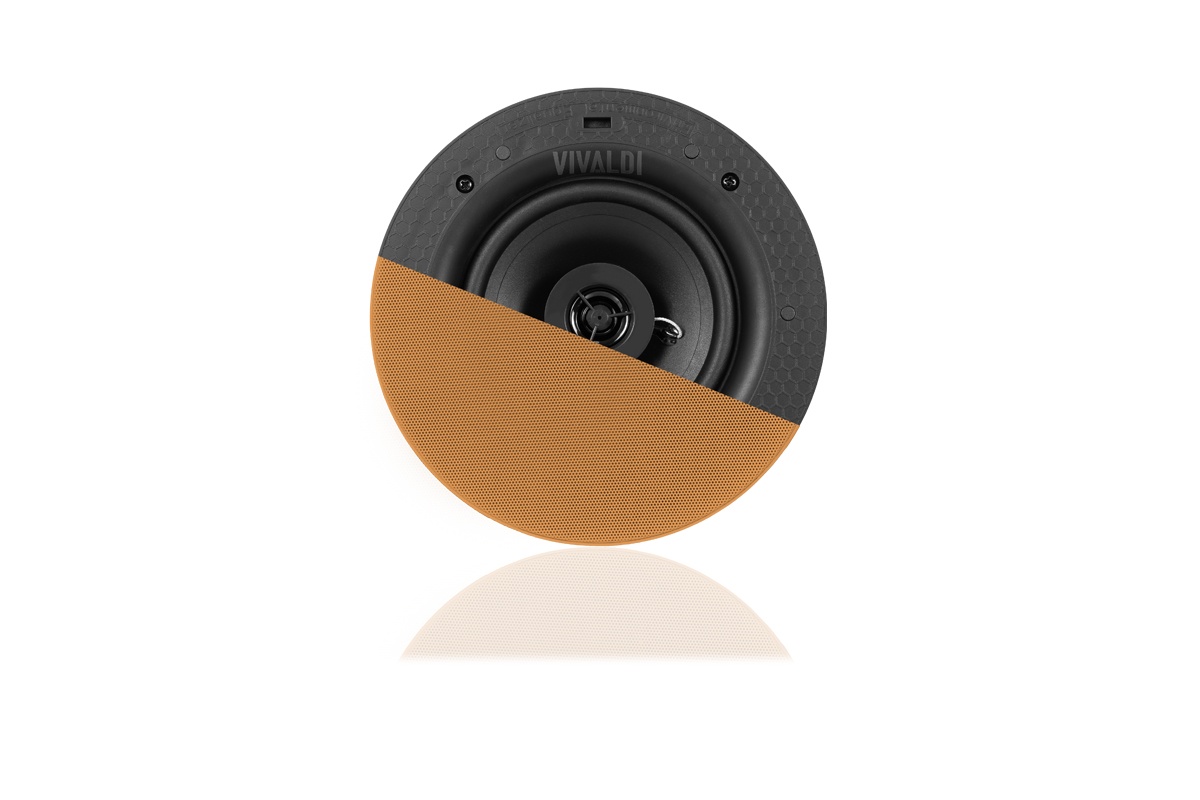

Vivaldi EN54 ROUND13TF.R
100V EN60849

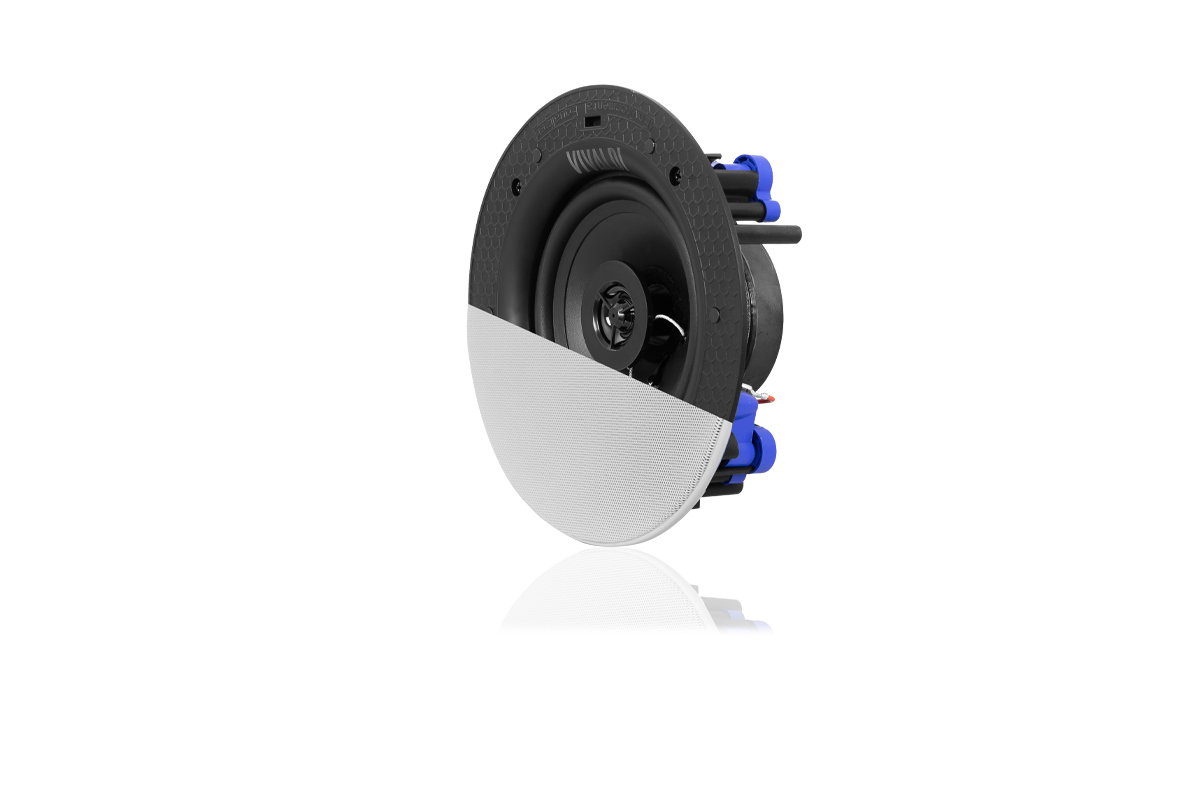

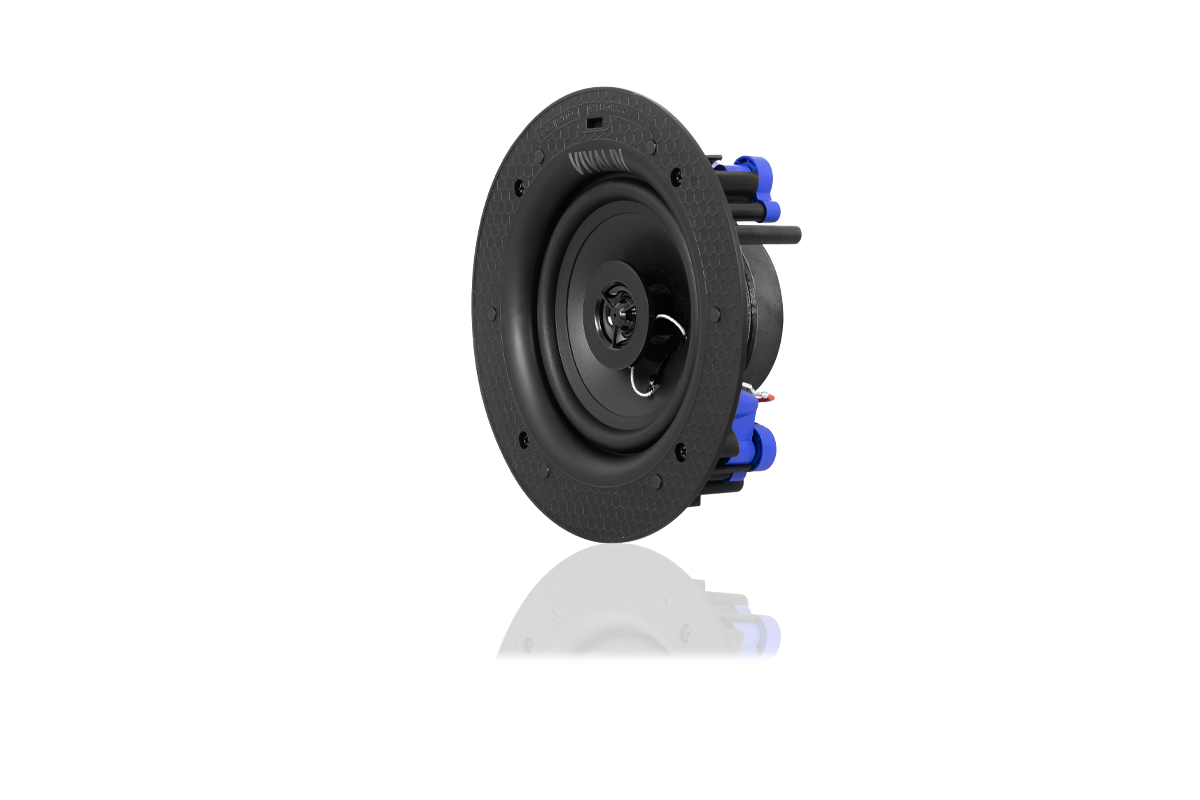

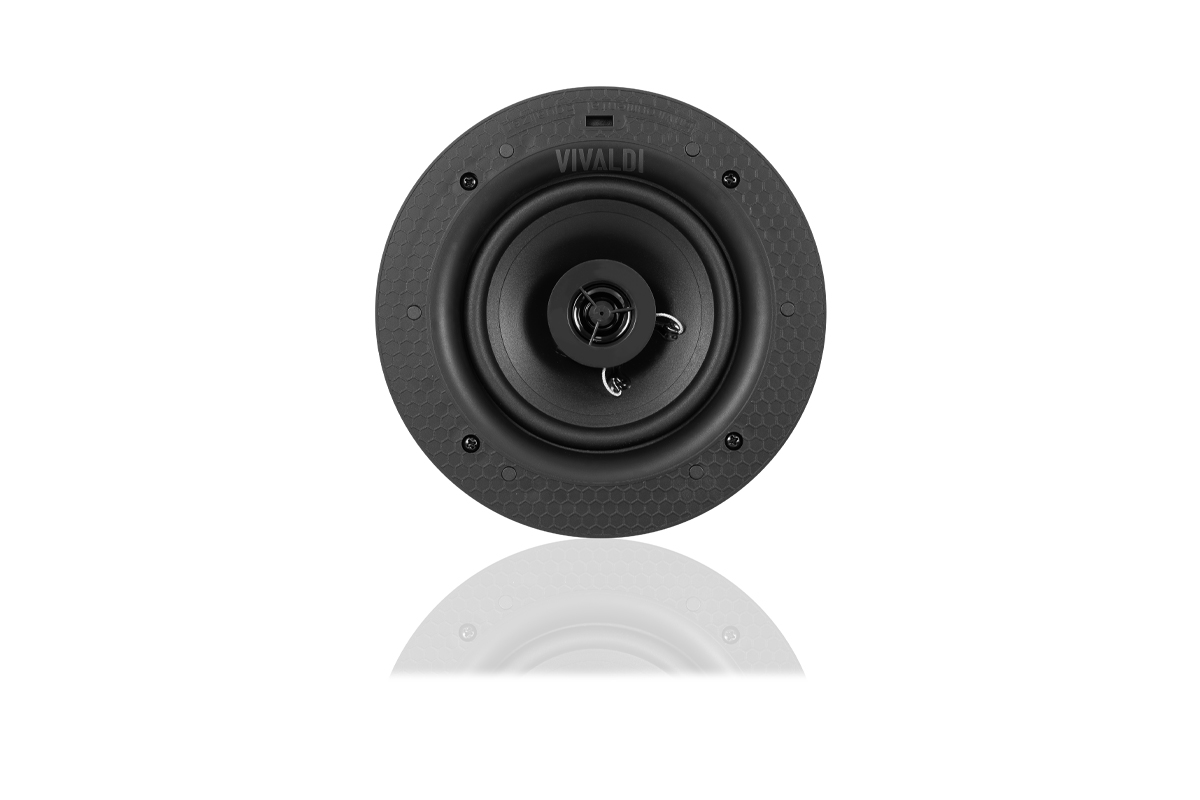

Ceiling round speaker, 2 way, HiFi, Frameless
EN50849, EN54-24 Certified. Certification number 0068/CPR/071-2018
when install with fireproof and fire resistant cover Vivaldi EN54 SQR13 (to be order separately)
For recessed installations on masonry (not EN54) use the Vivaldi Ulisse SR13 .
Woofer 13,5 cm
Tweeter 1,3 cm dome, in Mylar, neodymium magnet.
Nominal Power 2,5/5/10W – 30W peak, max 102dB.

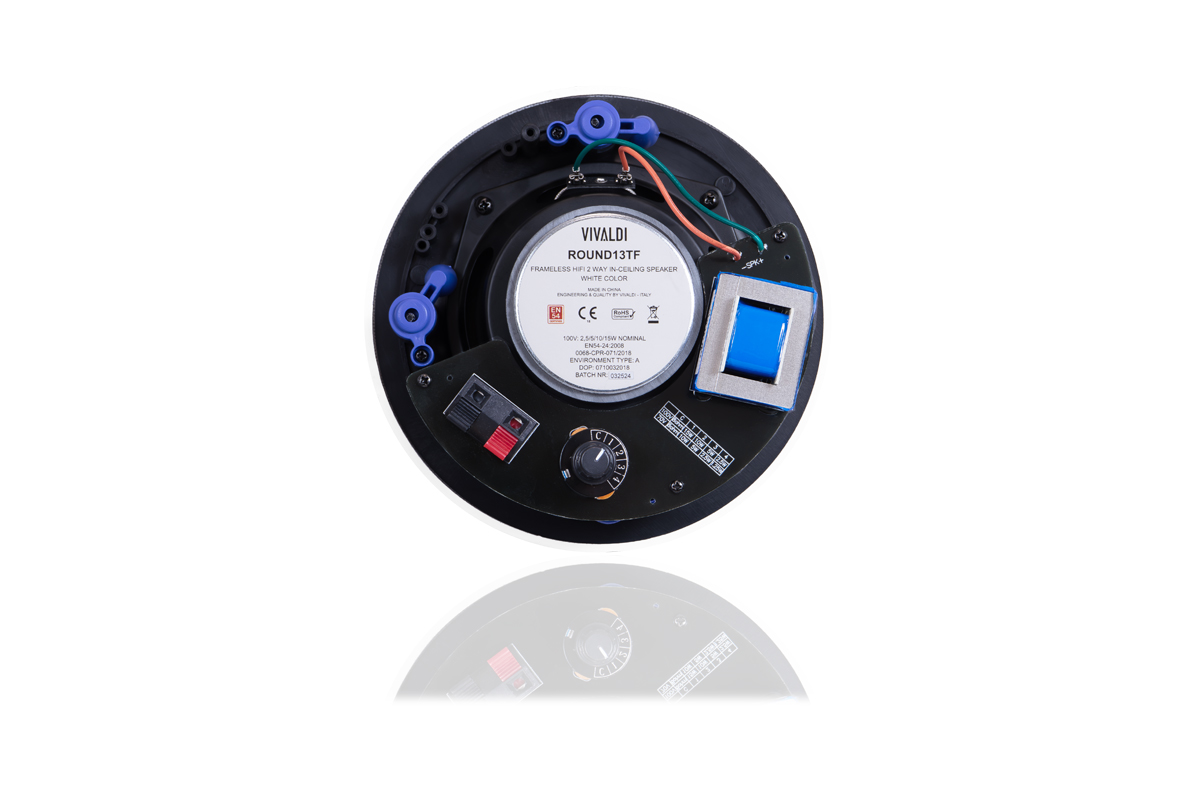

Transformer voltage 100V
Frequency response 70-20000 Hz
Sensitivity 87 dB
Max Output level full power 99dB
Dispersion angle 120° (V/O)
Dimensions (DxP) 204x90 mm
Recessed installation hole (D) 177mm
Weight 1,35 Kg

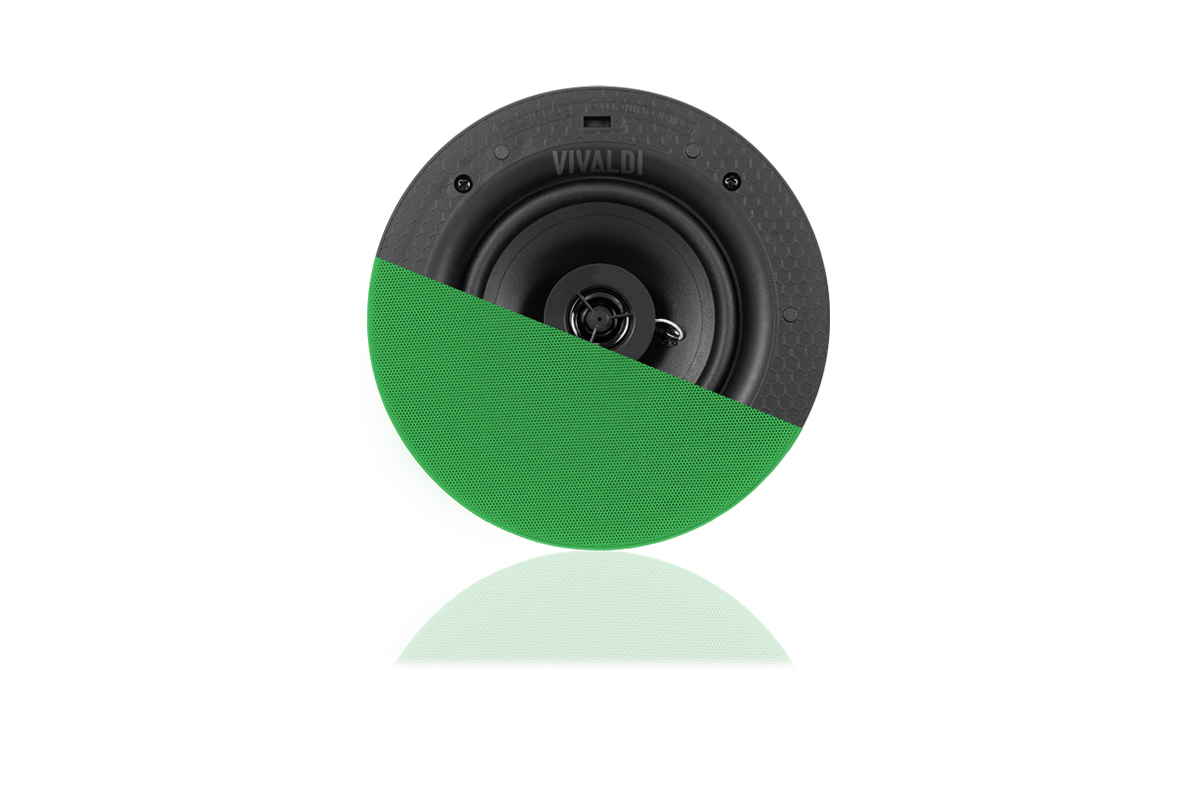

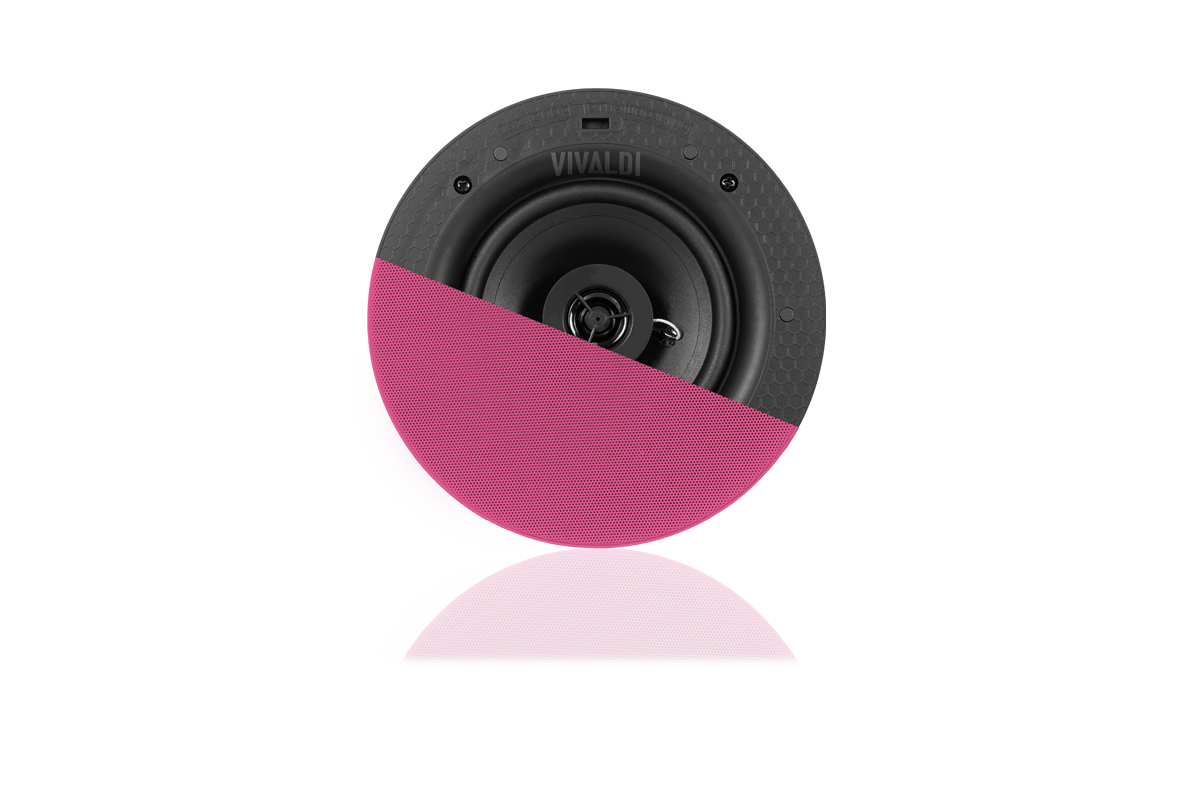

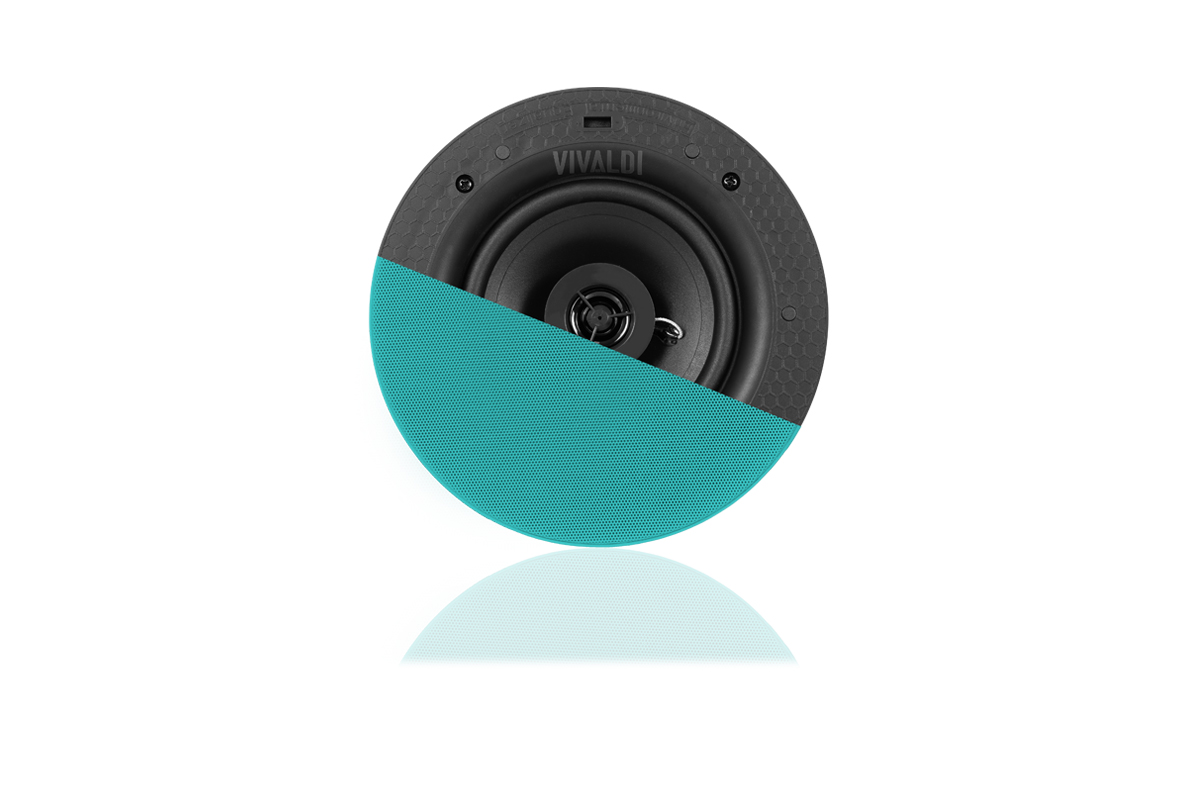

Customizable colour ( please comunicate the RAL code during the order phase)
Working temperature: -20° a +65°
Request a commercial offer
EN50849, EN54-24 Certified. Certification number 0068/CPR/071-2018
when install with fireproof and fire resistant cover Vivaldi EN54 SQR13 (to be order separately)
For recessed installations on masonry (not EN54) use the Vivaldi Ulisse SR13 .
Woofer 13,5 cm
Tweeter 1,3 cm dome, in Mylar, neodymium magnet.
Nominal Power 2,5/5/10W – 30W peak, max 102dB.
Transformer voltage 100V
Frequency response 70-20000 Hz
Sensitivity 87 dB
Max Output level full power 99dB
Dispersion angle 120° (V/O)
Dimensions (DxP) 204x90 mm
Recessed installation hole (D) 177mm
Weight 1,35 Kg
Customizable colour ( please comunicate the RAL code during the order phase)
Working temperature: -20° a +65°
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
