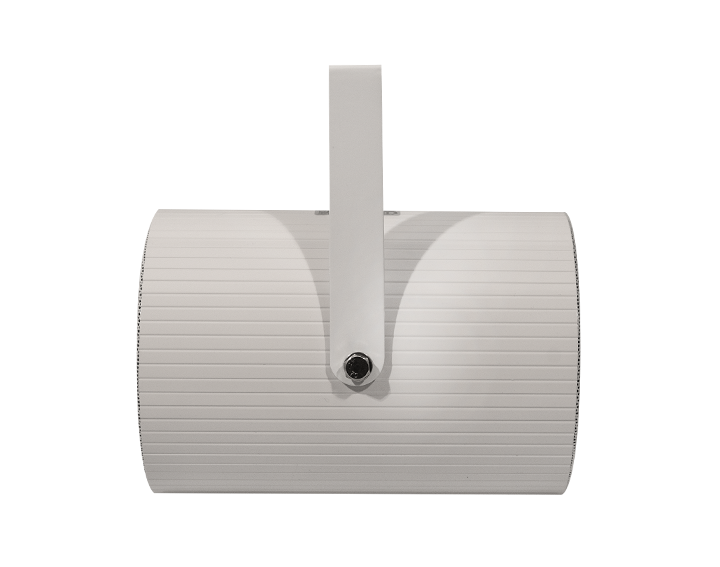

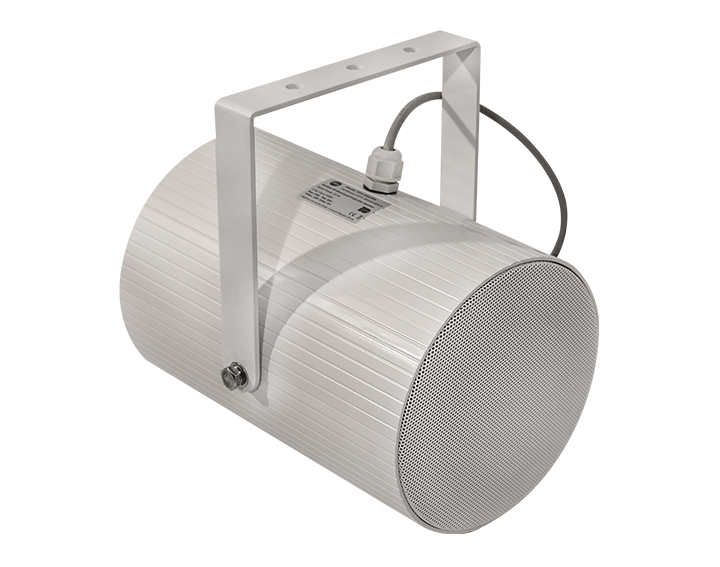

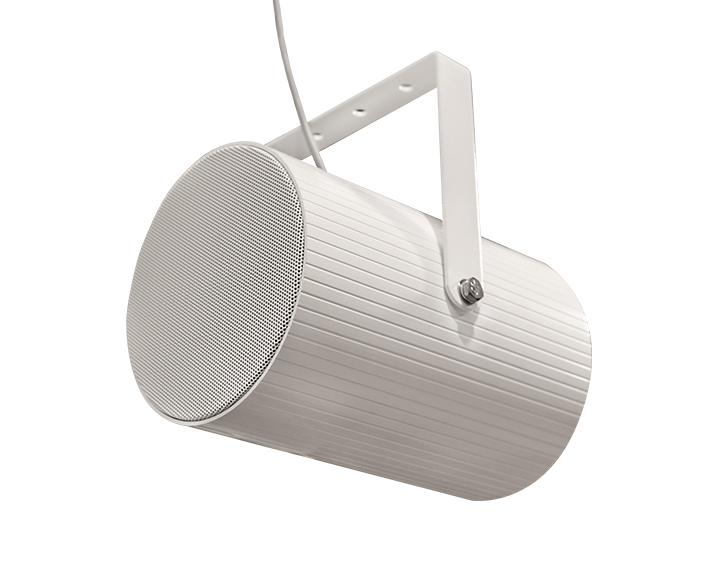

Vivaldi EN54 PSL20BIDI
| Vivaldi EN54_spkr projector bidi 10W/100V IP66 |
code variation:
Vivaldi EN54 PS10 100V - IP65Vivaldi EN54 PS20BIDI 100V - IP65
Vivaldi EN54 PS20L 100V - IP65

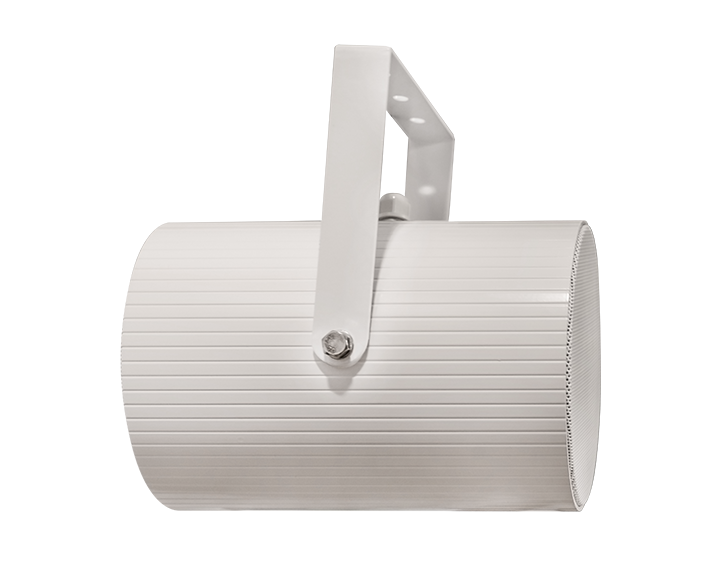

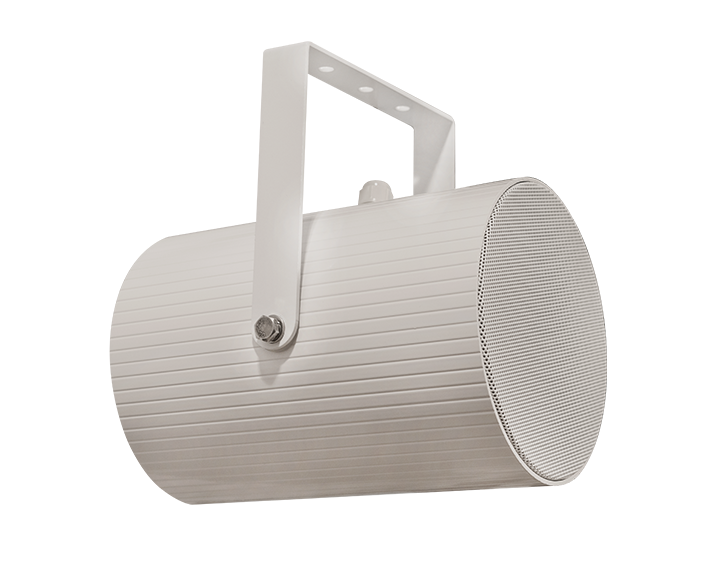

Sound projector for indoor or outdoor enviroments (also with chlorine) IP66 waterproof.
EN54-24 certified certification nr 0068/CPR/170-2022.
2x Coax loudspeaker 16,5 cm.
Input 100V.
Nominal power 100V 5/10/20W. 40W peak, 109dB.
Frequency response 110-15000 Hz- 10dB.
Sensitivity 92 dB.
Max output level/full power 106 dB.
Dispersion 118°(V/H) 2KHz.
Dimensions without bracket (WxHxP) 170x170x252 mm.
Dimensions with bracket (WxHxP) 170x250x252 mm.
Weight 2,8 Kg.
White colour RAL9016.
Cabinet: aluminium, stainless metal bracket.
Working temperature from -20° a +70°.

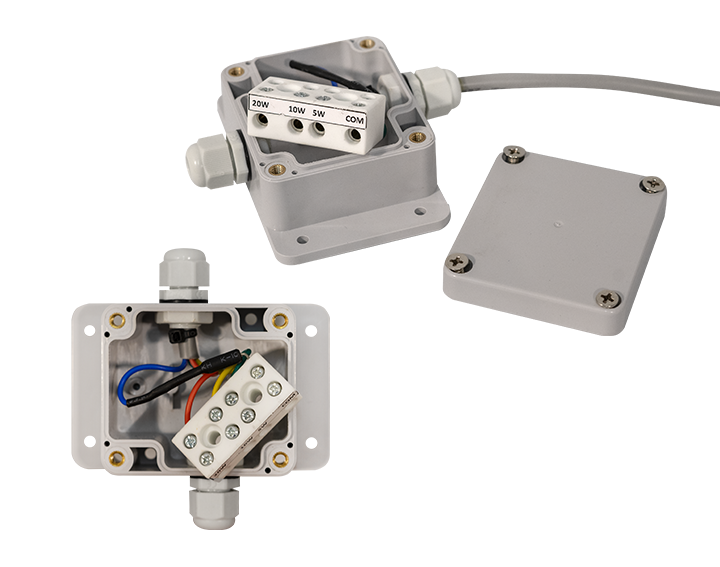

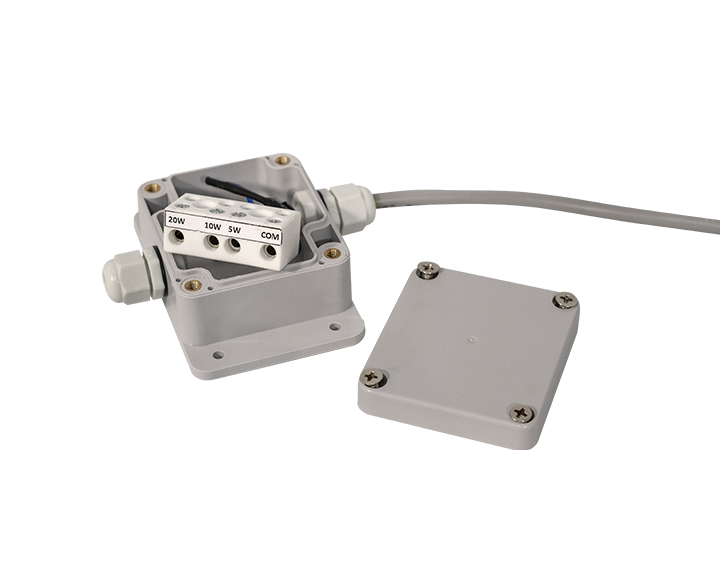

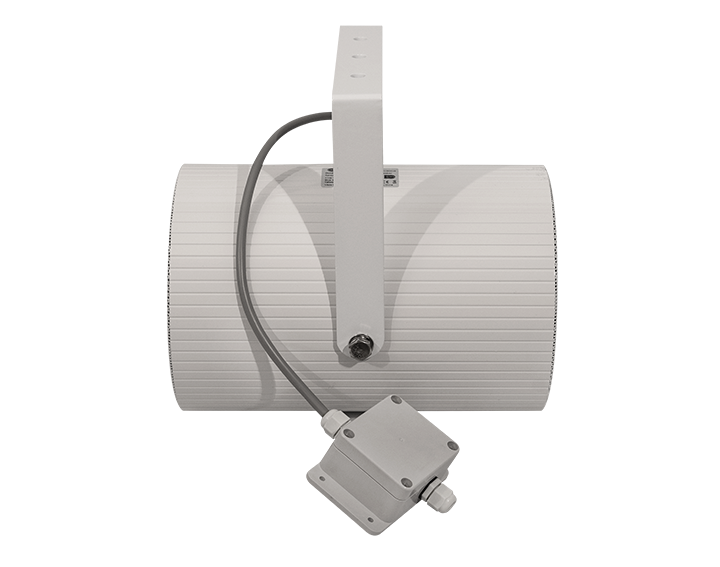

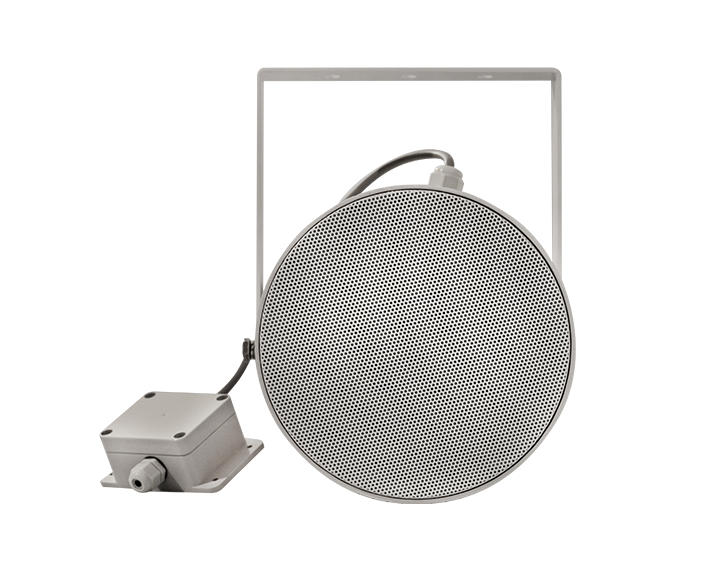

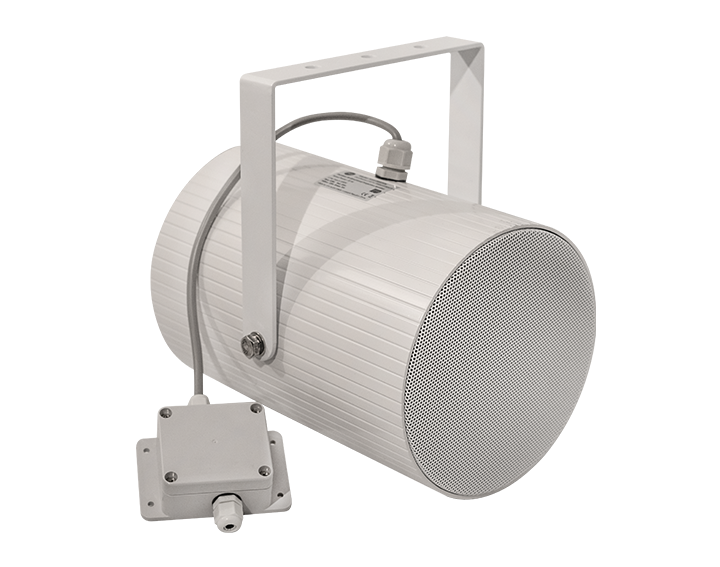

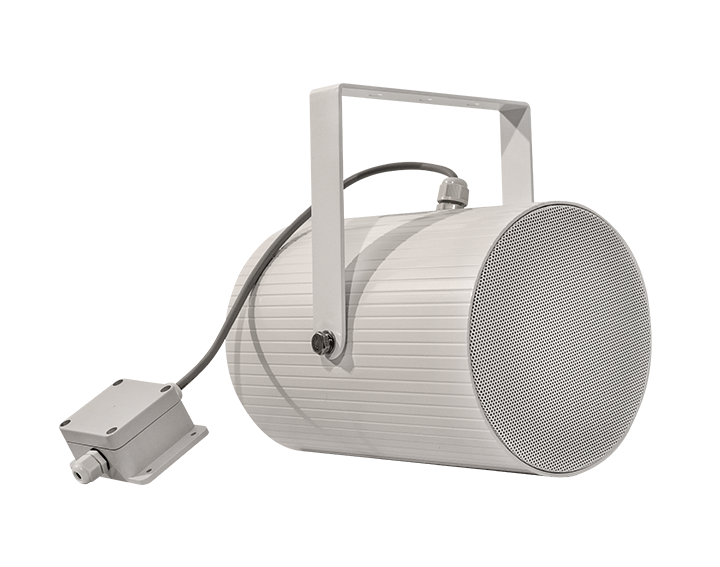

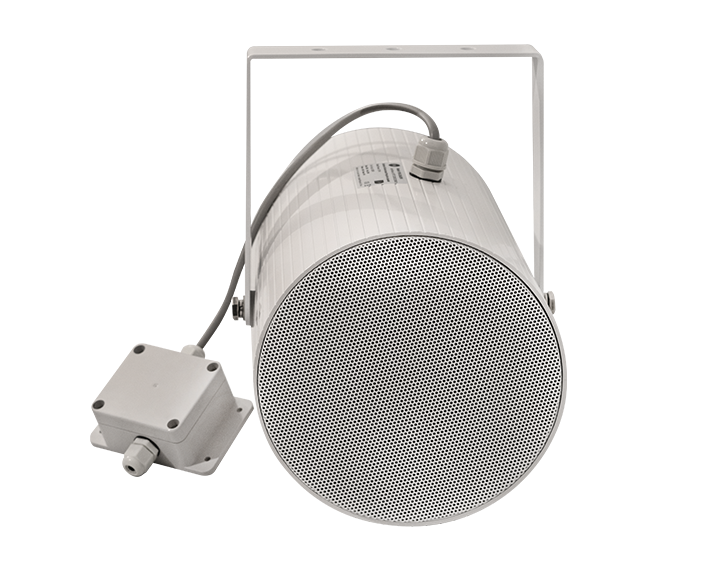

Notes: supplied with connecting block (with thermal fuse and ceramic clamp) and 0,30mt cable.
Request a commercial offer
EN54-24 certified certification nr 0068/CPR/170-2022.
Bracket for wall mounting supplied
2x Coax loudspeaker 16,5 cm.
Input 100V.
Nominal power 100V 5/10/20W. 40W peak, 109dB.
Frequency response 110-15000 Hz- 10dB.
Sensitivity 92 dB.
Max output level/full power 106 dB.
Dispersion 118°(V/H) 2KHz.
Dimensions without bracket (WxHxP) 170x170x252 mm.
Dimensions with bracket (WxHxP) 170x250x252 mm.
Weight 2,8 Kg.
White colour RAL9016.
Cabinet: aluminium, stainless metal bracket.
Working temperature from -20° a +70°.
Notes: supplied with connecting block (with thermal fuse and ceramic clamp) and 0,30mt cable.
Vivaldi srl ongoing effort to improve its products, reserves the right to make technical and aesthetic changes effectively without obligation to notice
