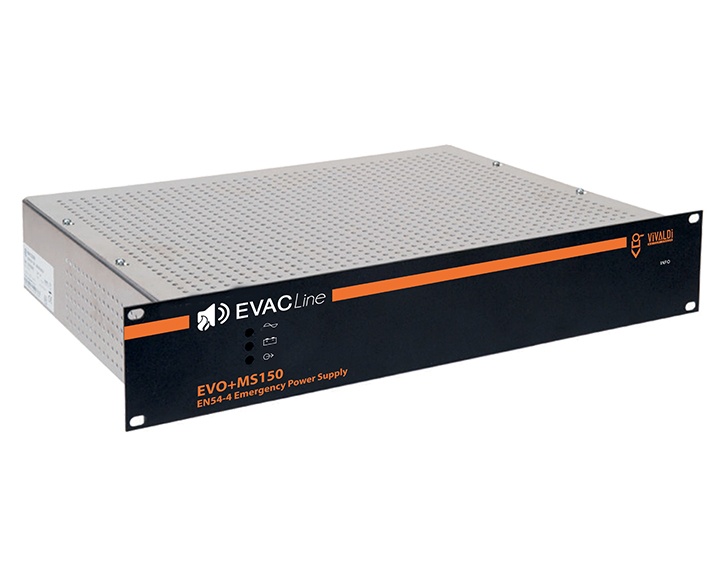

Vivaldi EN54 EVO+MS150

Battery charger for evacuation systems certified EN54-4 to guarantee that the system batteries are always charged. This unit was designed to charge 24V lead-acid batteries. Maximum output current 150A, to avoid damages to the batteries, EVO+MS150 switches off automatically when the battery voltage is too low. Protection system prevents overvoltages, inverse polarity and short circuit. The outputs are fue-protected. Battery voltage, resistance and connection check every 4 hours. Supplied with a temperature sensor, used to adjust charge voltages, this unit features relay outputs for fault signaling on mains power, battery or charger output voltage.

MAIN FETURES:
• Input connections (connection to the battery) plug-screw connector
• Output connections (connection to the system) 10 x connectable screw connector
• 6 main outputs for the system, each with its own fuse
• 3 auxiliary outputs for peripherals
• Fault relay
• Battery connection
• Dimensions (WxHxD): 430x88x260 mm - 2U rack mount
• Colour: black/orange front panel, metal gray chassis
•Weight 6 Kg
